USER MANUAL SRD-480D Hanwha

©2012 Samsung Techwin Co., Ltd. All rights reserved.

Trademark

SAMSUNG TECHWIN is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

◆ Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product. Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit.

Follow all the safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

BEFORE START

This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, etc.

You have to keep in mind the following notices :

• SAMSUNG retains the copyright on this manual.
- This manual cannot be copied without SAMSUNG's prior written approval.
- We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.
- Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.
- Before installing an additional HDD or connecting an external storage device (USB memory or eSATA HDD) to this DVR, check the compatibility. Consult your provider for the compatibility list.

Warning

Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion.

The following are the specifications of the battery you are using now.

• Normal voltage : 3V
  • Normal capacity : 170mAh
  • Continuous standard load : 0.2mA
• Operating temperature: -20^ +85^ (-4^ +185^)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

"Perchlorate Material - special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate."

Caution

• Connect the power cord into a grounded outlet.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

◆System Shutdown

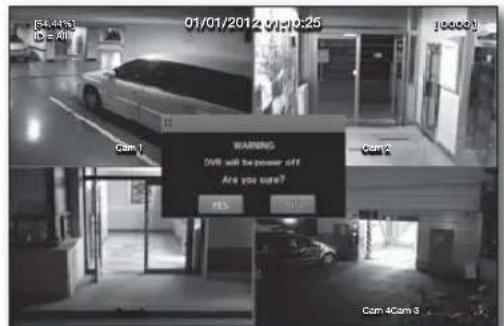

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product.

For safety purpose, press the Power button on the front panel of the DVR to shut down the system. Then, unplug the power cable.

You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

Operating Temperature

The guaranteed operating temperature range of this product is 0^ C \~ 40^ C ( 32^ F \~ 104^ F).

This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one.

Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period.

Especially for the built-in HDD in the product, its guaranteed temperature range is 5^ C \~ 55^ C ( 41^ F \~ 131^ F).

Likewise, the hard drive may not work at a temperature below the guaranteed one.

◆Ethernet Port

This equipment is in door use and all the communication wirings are limited to inside of the building.

OVERVIEW

3

3 Important Safety Instructions

4 Before Start

5 Contents

7 Key Features

10 Part Names and Functions (Front)

12 Part Names and Functions (Rear)

13 Remote Control

INSTALLATION

14

14 Checking the installation environment

15 Rack Installation

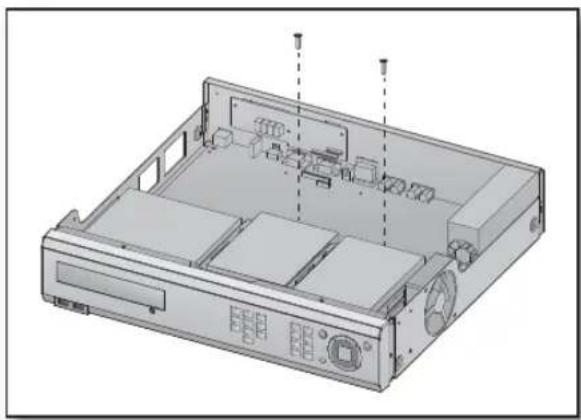

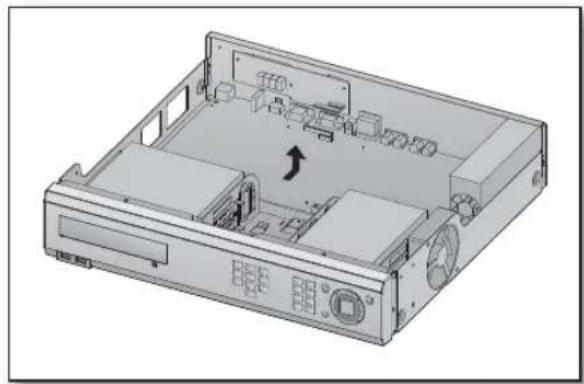

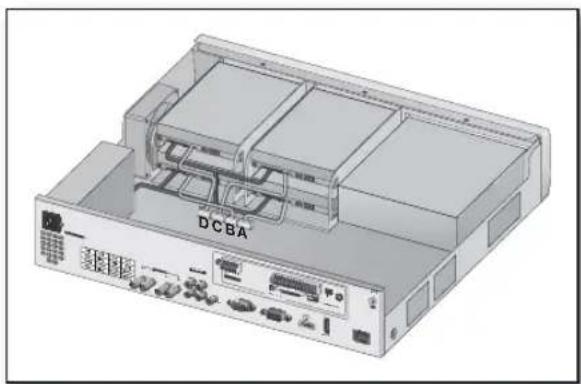

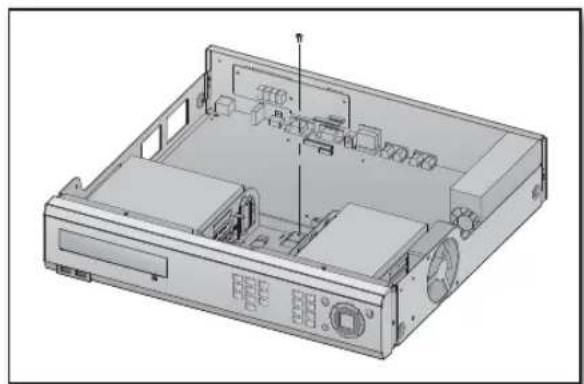

15 HDD Addition

CONNECTING WITH OTHER DEVICE

18

18 Wiring diagram for external devices

18 Connecting the camera, monitor and audio

19 Connecting to an external storage device

20 Using the I/O ports

24 Network Connection

LIVE

27

27 Getting Started

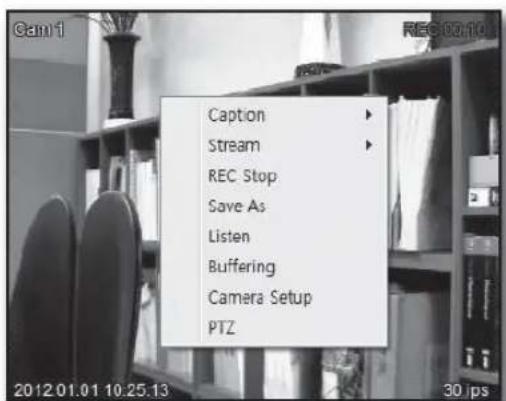

29 Using the Live menu

31 Event monitoring

MENU SETUP

32

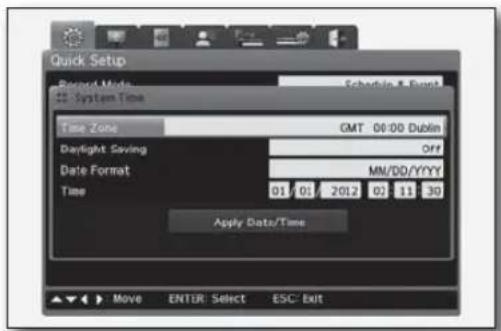

32 Quick Setup

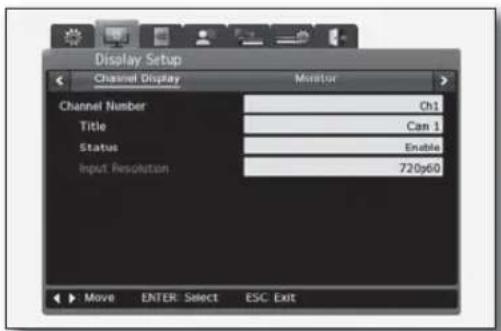

33 Display Setup

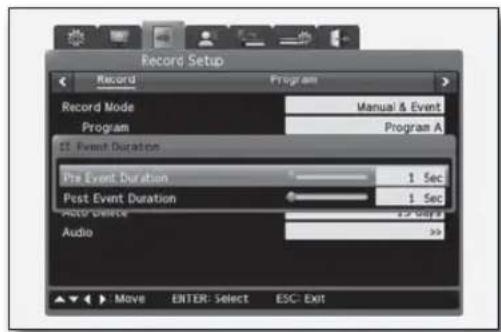

34 Record Setup

38 Event Setup

43 Network

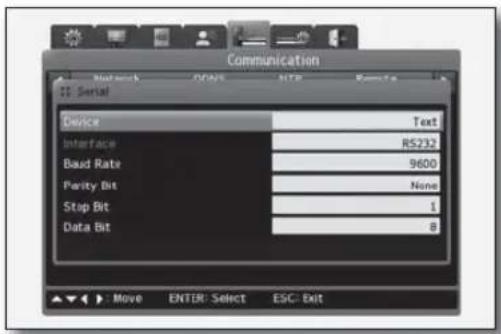

48 System Setup

52 Exit

SEARCH & PLAY

53

53 Play Mode

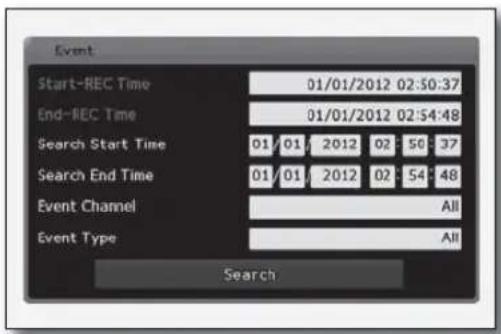

54 Search Mode
56 Copy

WEB VIEWER

61

61 Overview of Web Viewer

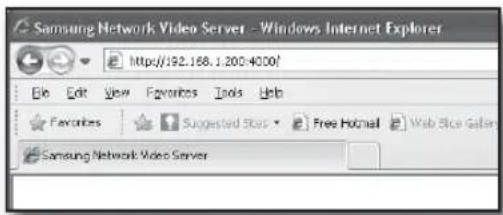

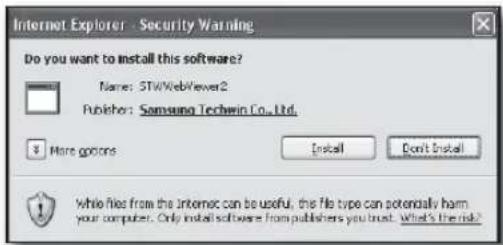

62 Connecting to the web viewer
63 Using the Live Viewer
69 Using the Search Viewer

SMARTVIEWER

72

72 Setup Viewer

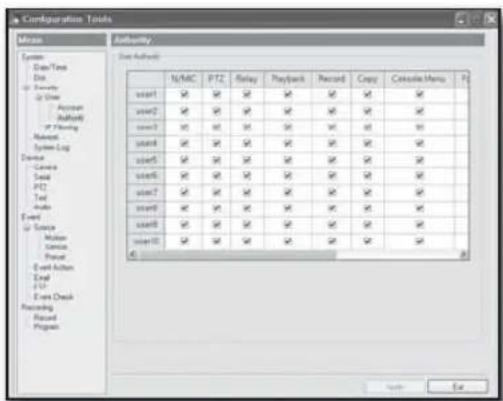

72 System Setup
79 Device Setup

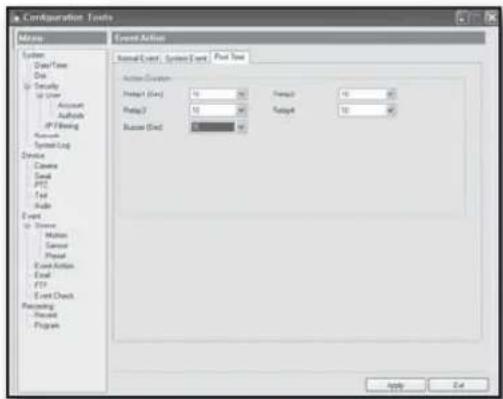

81 Event Setup

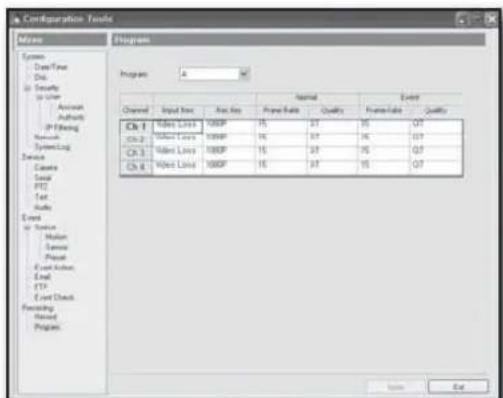

85 Record

APPENDIX

86

86 Product Specification
89 Product Overview
90 Troubleshooting
93 Open Source License Report on the Product

This DVR is a digital recorder that enables you to save a 4CH high-definition (HD) digital video to the internal HDD and play it for an intended purpose.

You can use the mouse or front buttons to configure your settings and make a desired instruction.

This model is a standalone digital video recorder with high performance and proven stability that is used for security purposes in banks, apartments and public offices. Using the HDD, it can save a high-quality video in a digital file format, which facilitates the material search. Furthermore, it is a digital improvement featuring high-quality video playback, mass storage and user-friendly interface that supports any of the thought-to-be-required operations of record/play/copy, motion detection, PTZ (Pan, Tilt, Zoom) operations, password lock, real-time voice recording, a max of 10,000 event lists and log files, and more.

Monitoring Screen

It can implement a high-quality video from each channel and provide multi-angle monitoring scenes.

• High-quality HD-SDI live video
- Multi-angle Monitoring Screen Modes Single, 4-split

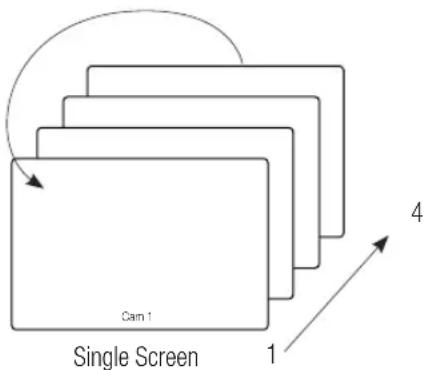

- Auto Sequence
- Various monitor output signals supported (output resolution: 1920x1080) HDMI x1, VGA x1
- Pan/Tilt, Digital Zoom

Voice Recording

Real-time voice input and recording

• Simultaneous recording of 4CH sound signals in real time Input: 4 (rear RCA x4), Output: x1 (rear)
  • Recording enabled during playback

Record

It can save a high-quality HD-SDI video in a max of 120 frames per second, and make recording of the event scene for a max of 15 seconds before the event occurred. Featuring the Covert function, it can protect your privacy.

• High-quality HD-SDI video recording
- For 1080p, control the storage space by means of 7-level quality settings For 720p, control the storage space by means of 5-level quality settings
- Multiple recording of both manual events and scheduled events
- Simultaneous operation of all 4 of record/play/copy/network
- Adjust the recording resolution for each channel and specify the motion detection area
- Record up to 30 frames for 720p - Record up to 15 frames for 1080p
• Video loss detection
- Log of event lists (sensor, video loss, motion detection, text)
- Pre-even record of up to 15 seconds for each channel

Search/Play

It provides various functions to facilitate your search and playback.

• Playback by the time, date or channel
• User-friendly search interface using the mouse
• Forward/backward navigation of frozen video
• Play by the event list (sensor, video loss, motion detection, text)
• Easy search using through the remote control
  • Full frame playback

Storage Media

The product is equipped with an internal HDD. You can also save your data to DVD-R, CD-R or USB memory to your preference.

• Provided by default: Internal HDD
- Various copy media: DVD-R, CD-R, USB memory
- HDD extension (external storage device): SVS-5R (sold separately as a dedicated device)

Network

The product supports various network environments including LAN and xDSL where you can use the PC viewer to operate and manage the product in a remote site.

• E-mail transfer using TCP/IP and DHCP when an event occurs.
• Play the live video from a remote site (full screen or 4-split mode selectable)
• Play, save or search on the PC and control the DVR via the network viewer
  • Record by the time, search and play from a remote site
  • 10/100Mbps Ethernet/xDSL supported
• Connect to multiple DVRs

Others

• User-friendly GUI configuration in association with the mouse

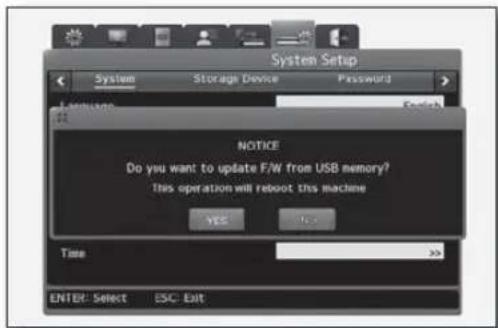

• Easy Software upgrade using USB memory
  • Copy of recording video using the USB port
  • PTZ control (Speed Dome) & Preset
  • Multilingual support (22 languages)
  • Control of a max of 16 DVRs using a single remote control

Standards Approvals

FC CE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed. Check if the main unit and all the following accessories are included in the product package.

DVR Remote Control Power Cable			Network Viewer S/W, User Manual CD
User Manual Quick Guide		SATA Cable<used inside the main unit>	Remote Control Battery (AAAx2)
HDD screws Bracket screws Rack-mount Bracket		Mouse

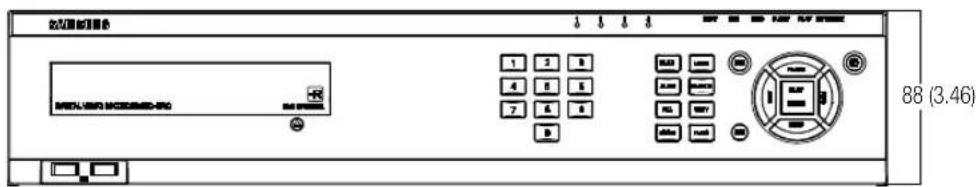

PART NAMES AND FUNCTIONS (FRONT)

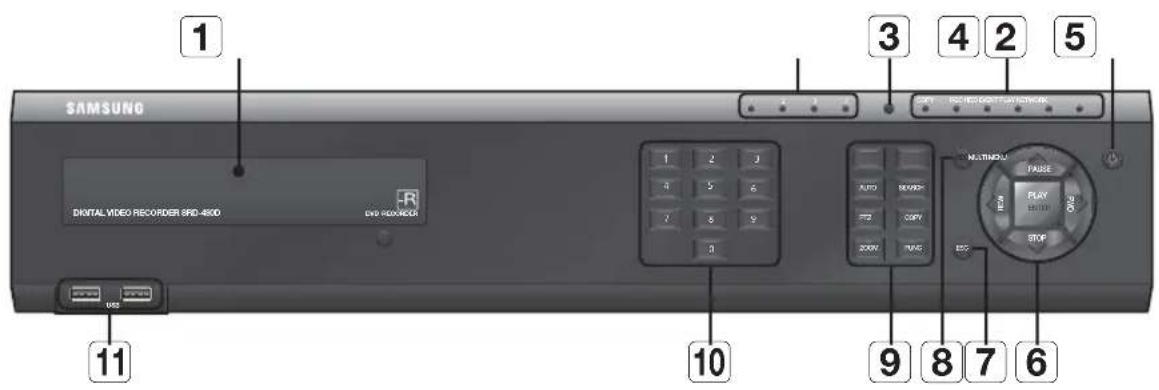

SAMSUNG DIGITAL VIDEO RECORDER SRD-4800 DVD RECORDER 1 3 4 2 5 10 9 8 7 6 11 AUTO MOVER OFF 200V PASS MULTIMON FAUSE PLAY BUY STOP

Part Names Functions
1	Copy DVD-Multi Drive	Used to copy recording data in DVD/CD media.
2	Channel Indicator	Show the video input status and event operation status.
3	Remote Reception System	Receive the signal from the remote control.
4	Status Indicator	Show the DVR operation and network connection status.
5	Power	Turn on or off the system power.
6	< /REW	Used to navigate or make selection in the menu, or to change the backward play speed in play mode.
	>/FWD	Used to navigate or make selection in the menu, or to change the forward play speed in play mode.
	^/PAUSE	Used to navigate or make selection in the menu, or to stop playing the live video temporarily.
	√/STOP	Stop playing in play mode.
	PLAY/ENTER	Access the play mode or select a menu item.
7	ESC	Used to exit the menu or close the popup.
8	REC	Start or stop manual recording.
9	MULTI	Switch the split mode in Live or play mode.
	MENU	Access the main menu.
	AUTO	Activate or deactivate the user sequence.
	SEARCH	Access the search mode.
	PTZ	Start or end the PTZ operations.
	COPY	Access the copy mode.
	ZOOM	Enter the digital zoom mode from the single screen mode.
	FUNC	Access the function mode.
10	Channel	Select a channel in Live video or play screen.
11	USB1, USB2	Communication ports for external devices (mouse, USB memory)

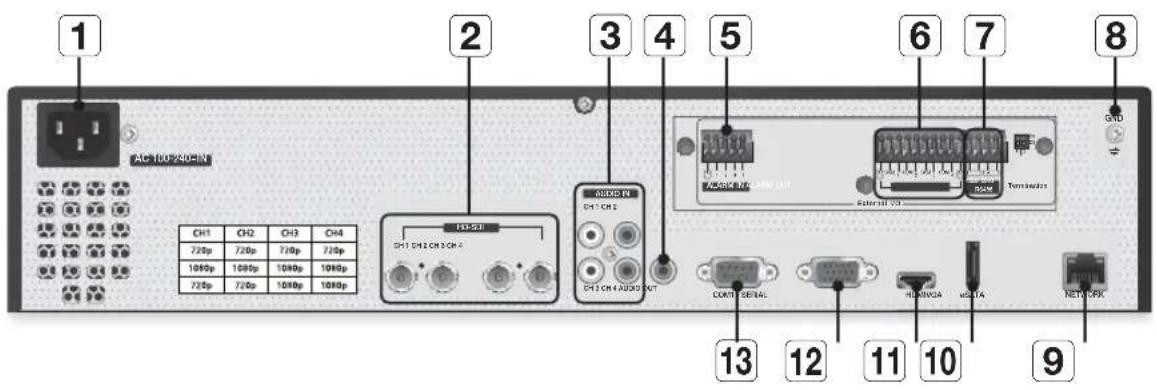

PART NAMES AND FUNCTIONS (REAR)

Part Names Functions
1	Power Input	Socket for power source between AC100V and AC240V.
2	CH1~4	BNC input port for HD-SDI source.
3	AUDIO IN (RCA)	RCA port for audio input.
4	AUDIO OUT	Speaker output port.
5	ALARM IN	Alarm input terminal.
6	ALARM OUT	Alarm output terminal.
7	RS-485	Extension port for external RS-485 devices such as PTZ camera or remote keyboard.
8	GND	Earth-grounding for the DVR unit and external devices.
9	NETWORK	Network connection port. (RJ-45)
10	eSATA	Connection port for an eSATA external HDD.
11	HDMI	HDMI port for monitor output signal.
12	VGA Out	Connection port for VGA monitor.
13	RS-232C	Connection port for the POS device.

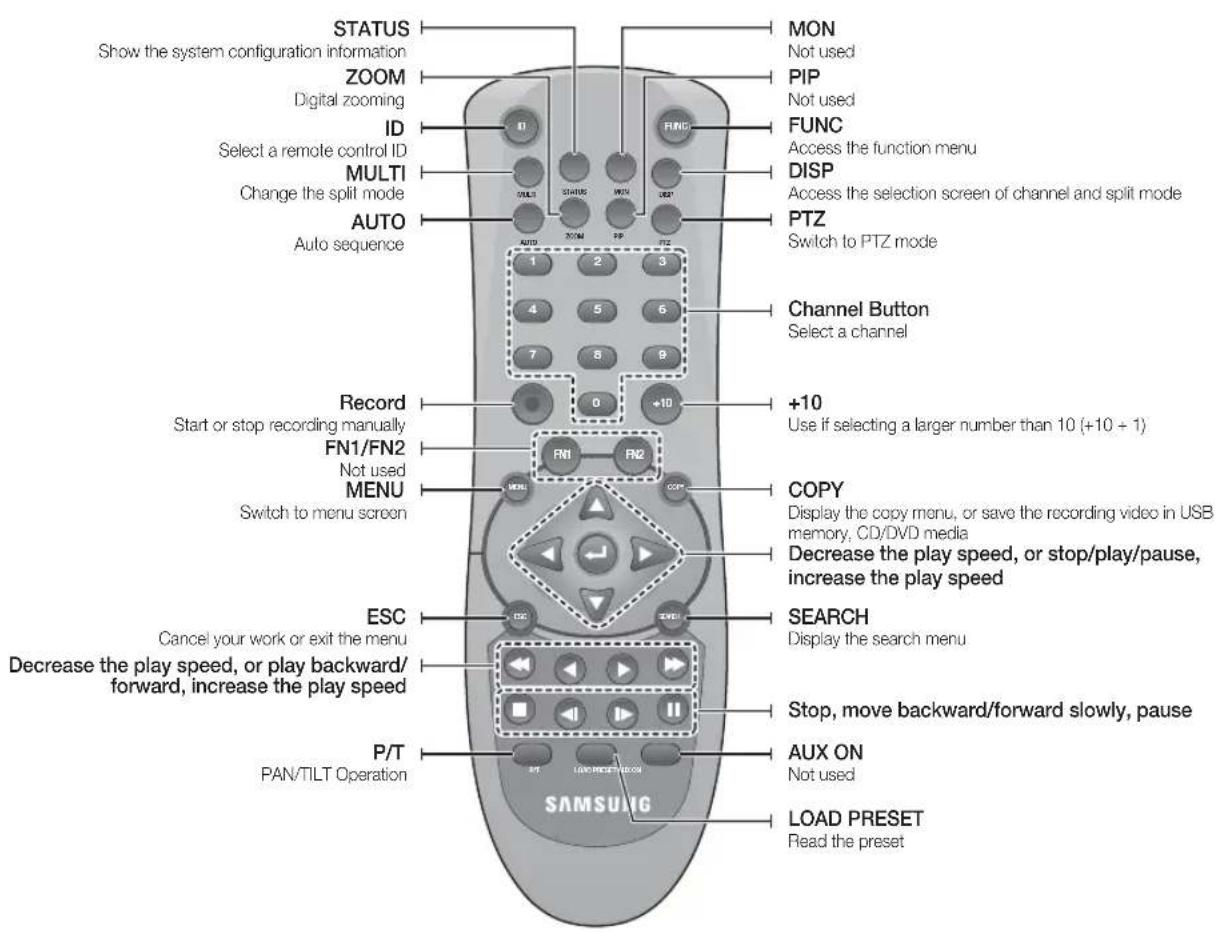

STATUS Show the system configuration information ZOOM Digital zooming ID Select a remote control ID MULTI Change the split mode AUTO Auto sequence MON Not used PIP Not used FUNC Access the function menu DISP Access the selection screen of channel and split mode PTZ Switch to PTZ mode Channel Button Select a channel +10 Use if selecting a larger number than 10 (+10 + 1) Record Start or stop recording manually FN1/FN2 Not used MENU Switch to menu screen COPY Display the copy menu, or save the recording video in USB memory, CD/DVD media Decrease the play speed, or stop/play/pause, increase the play speed SEARCH Display the search menu ESC Cancel your work or exit the menu Decrease the play speed, or play backward/forward, increase the play speed Stop, move backward/forward slowly, pause P/T PAN/TILT Operation AUX ON Not used LOAD PRESET Read the preset

Using the numeric buttons

CHANNEL 1–9 Press each button between 1 to 9.
CHANNEL 10	Press the [+10] button first, then press the [0] button again within 3 seconds.
CHANNEL 11–16	Press the [+10] button first, then press any number between [1] to [6] within 3 seconds.

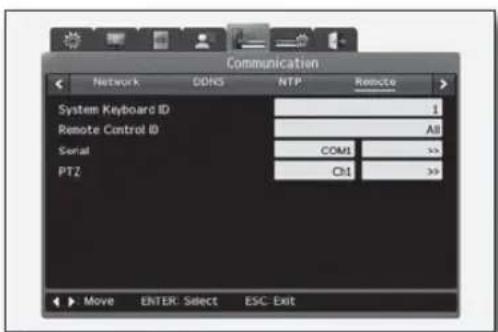

Changing the Remote Control ID

1. Check the remote control ID that is specified for the DVR. The factory default ID of the remote control is 00.
2. Press [ID] on the remote control, and enter the remote control ID number.
3. If the remote control ID matches with the remote control ID, the DVR will sound the buzzer.

- If changing the remote control ID to 08: Press and hold the system [ID] button and press the number [8].
If changing the remote control ID to 12: Press and hold the system [ID] button and press the numbers [+10] and [2] in sequence.
The remote control will be active only if the remote control ID matches with that of the DVR remote device. For details, refer to "Communication > Remote". (page 46)

Please take note of the followings before using this product.

• Do not use the product outdoor.
• Do not spill water or liquid in the connection part of the product.
• Do not impose the system to excessive shock or force.
• Do not pull out the power plug forcefully.
• Do not disassemble the product on your own.
• Do not exceed the rated input/output range.
• Use a certified power cord only.
• For the product with an input ground, use a grounded power plug.

CHECKING THE INSTALLATION ENVIRONMENT

Samsung Digital Video Recorder ("DVR" hereinafter) is a state-of-art security device, and contains mass storage hard disk(s) and critical circuits inside.

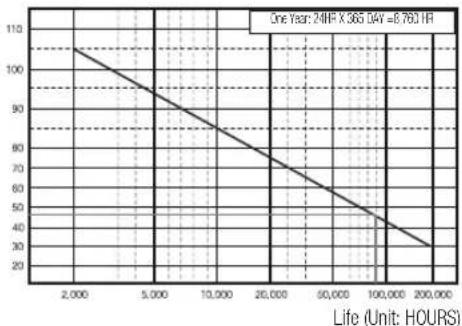

When the temperature rises inside the product, the product may breakdown and the product life be shortened. Please pay attention to the following recommendations before installation.

Temperature Unit: ℃

[Figure 1]

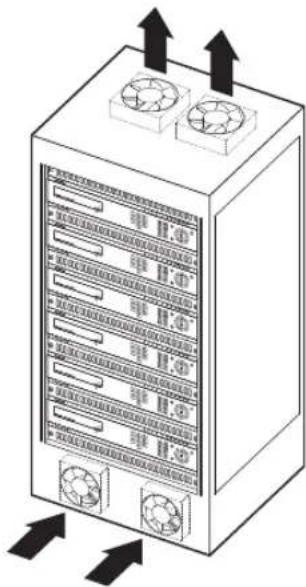

The followings are the recommendations when Samsung DVR is installed on a rack.

1. Please ensure that the rack inside is not sealed.
2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
3. If the DVR or other devices on a rack is to be stacked as in the picture, provide a suitable space or install a ventilating opening for air circulation.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between 0^ C \~ 40^ C ( 32^ F \~ 104^ F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Illustration of a server rack with heat exchangers and ventilation fans (no text or symbols)

[Figure 2]

Install the Bracket-Rack as shown in the figure, and then fasten the screws on both sides (2 screws on each side).

- Fix the screws not to be loosened by vibrations.

HDD ADDITION

You can install additional HDDs.

Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage.

Please consult your provider for further information on HDD installation since improper installation or settings may damage the product.

■ Number of HDDs supported : Up to 4 HDDs installed

■ Make sure to unplug the power cord from the wall outlet before proceeding with the installation.

■ Cautions for data loss (HDD care)

Please pay attention so that the data inside the HDD is not damaged.

Before adding a HDD, please check the compatibility with this DVR product.

HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating.

Please ensure that the HDD is free from such shock.

We are not liable for any damage to the HDD incurred by user's carelessness or miss use.

■ Cases might cause damage to HDD or recorded data

To minimize the risk of data loss from a damaged HDD, please copy data as often as possible.

Data may be lost due to external impacts during disassembly or installation of the DVR.

HDD may be damaged if the DVR is suddenly stopped by a power cut or power off during operation.

HDD or files stored inside may be damaged if the main body is moved or impacted during the HDD operation.

HDD Installation Instructions

1. When adding a HDD, ensure that the cable does not get caught or the insulation does not come off.
2. Pay attention so as not to lose the disassembly screws or accessories.

If the screws or accessories are not put together correctly, the product may breakdown or not operate properly.

1. Please check the HDD compatibility before adding a HDD.

- Please contact your nearest dealer to obtain the list of compatible devices.

1. A HDD that was used for other device (PC or DVR) should have any partition removed before you can use it on the current device.

Installing the HDD

1. Loosen the bracket screws on the man unit.

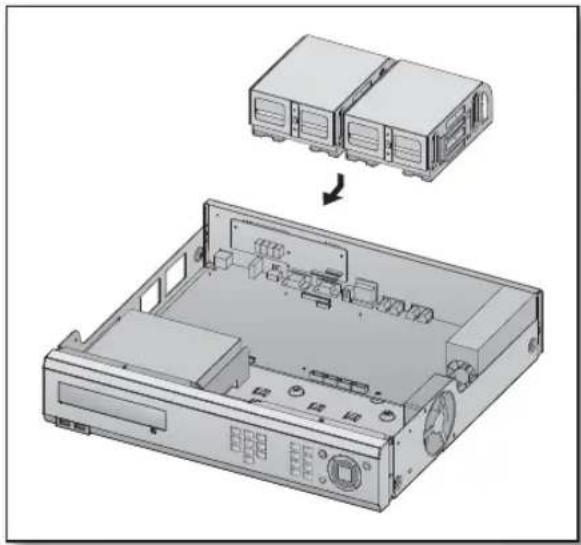

3D technical illustration of a computer chassis with drive bays and ventilation slots (no text or symbols)

1. Pull out the main unit slightly backward to remove the bracket.

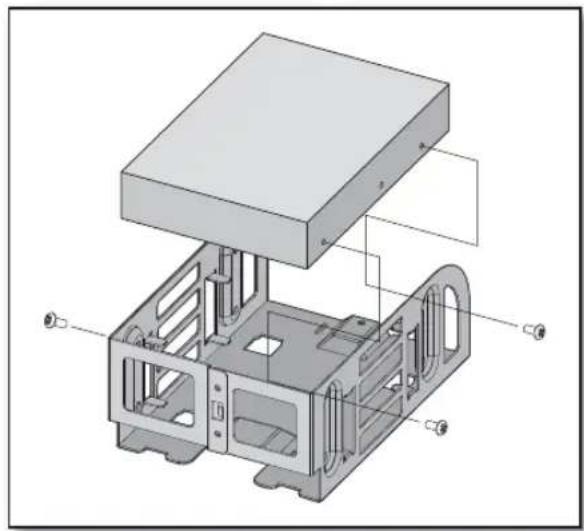

3D technical illustration of a computer drive chassis showing internal components and a directional arrow (no text or symbols)

1. Insert and mount the HDD bracket and tighten the left and right HDD screws.

3D mechanical assembly diagram showing a housing with internal components and mounting holes (no text or labels)

1. Insert the bracket where the HDD is fixed in the main unit.

Diagram of a computer setup showing an open chassis with internal components and a separate rack unit (no text or symbols present)

1. Tighten the bracket screws to fix the HDD-installed bracket to the main unit.

3D technical illustration of a computer chassis with labeled components and mounting holes (no text or symbols present)

1. Connect both SATA cable and power cable. For HDD position, the bottom right is IntA; the bottom left is IntB; the top right is IntC; and the top left is IntD.

■ The SATA cable is already connected inside by default.

3D technical illustration of a DCBA internal unit with ports and connectors (no text or symbols)

connecting with other device

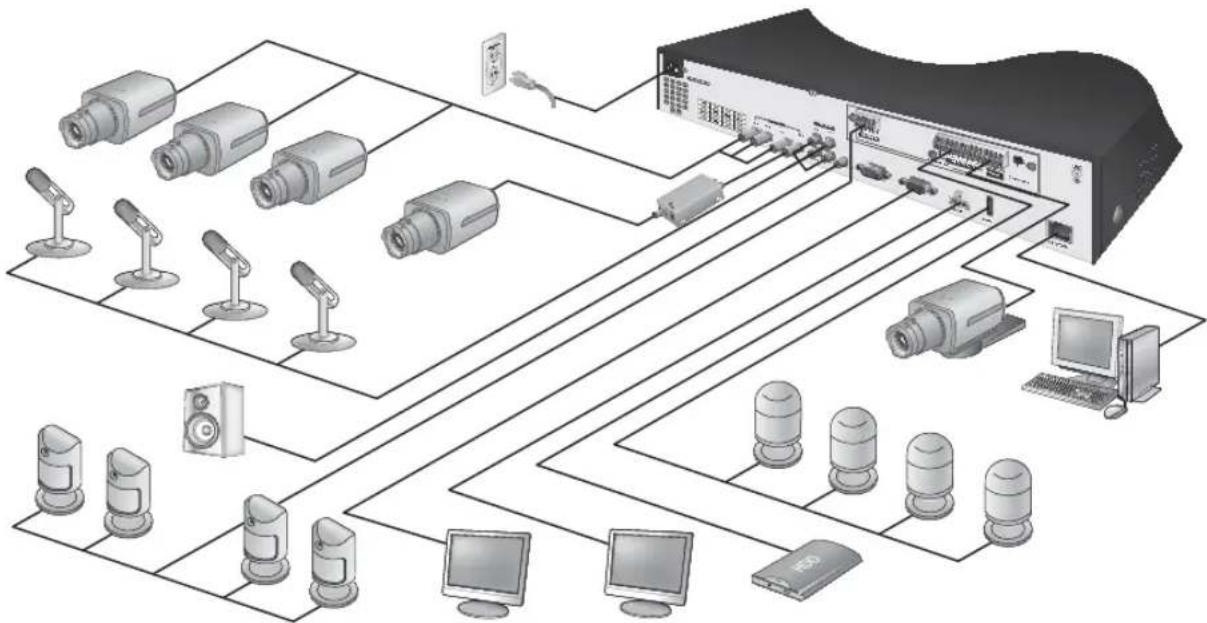

WIRING DIAGRAM FOR EXTERNAL DEVICES

Connecting to the monitor

The resolution of the monitor can affect the video output. Check the resolutions that the monitor supports before connecting to the monitor.

• Using the HDMI port: 1920x1080p (HDMI V1.2 standard)
• Using the VGA port: 1920x1080p RB (VESA standard)

Note that the HDMI monitor and VGA monitor cannot used simultaneously for video output.

However, some of Samsung or LG manufactured monitors can be used simultaneously for video output if either monitor supports both resolutions of 1080p and 1920x1080p RB.

Power Connection

• When the DVR is connected to the power source, it will be applied with power and start booting automatically.
• With DVR turned on, press and hold the Power button for 3 seconds to display the dialog. Click to turn off the power.
• If you want to turn it back on, simply press the Power button.

Connecting the camera

Use the coaxial cable to connect between DVR and HD-SDI camera as shown.

• Auto setting of the 75Ω terminal resistor
The 75Ω terminal resistor is set by default. If the resistor is connected to the video output port under the video input port, it will be disconnected and switch to the Hi-z condition.
- The video type entered will be recognized automatically when the DVR gets started.
Starting with camera 1, the DVR will recognize the cameras for all channels available. The priority will be determined depending on the signal type of the camera searched first.

There is no limit on the number of channels available if they send camera videos in the same resolution. However, if different videos in 1080p and 720p are received simultaneously, channel 1, 2 should receive the video in 720p while channel 3, 4 should receive the video in 1080p. Otherwise, the video will not be played properly.

Recommended Cables

• 5C-FB(T), 5C-HFB(T), L-5CFB
  • L-4.5CHD, L-6CHD : HD-SDI specific cable
  • Belden : 543945 RG59U, RG-59/U 1505A, RG-6/U 1694A

The transfer distance of a cable may differ depending on the damping rate of 750MHz. (An attenuation rate of dB/100m < 25dB is recommended.)
It is recommended to use foaming or high-density foaming insulation.

■ The dual- or triple-shield cable is recommended.

For recommended cable specifications, refer to KSC-3617, domestic standard (5C-FBT) and RG-6/U.

■ DC LOOP resistance of 31.3Ω/km or lower is recommended.

- When extending coaxial cable and attaching connector, make sure to use parts of 75Ω impedance.

- Pay attention to cables when working, to avoid cable deformation by pressure.

■ When cabling, do not apply excessive force with pulling.

- When cabling I/O cables on rear side of the rack, take care not to bind the tie too tightly. Otherwise, cable's internal/external insulations may be deformed when the cable is twisted after binding. Allow a cable-thick gap when binding ties. Be careful not to bend the cable over its curvature radius.

The maximum transmission distance of HD-SDI may be affected by the cable manufacturer and installation conditions.

CONNECTING TO AN EXTERNAL STORAGE DEVICE

The USB port is designed to use the USB storage device for simple copying (less than one hour in data size). If you want to use an USB device, the specifications of the USB device should not exceed the following specifications.

eSATA Port

The DVR introduces eSATA as an interface with the external storage device, which provides one eSATA port on the rear panel.

By taking advantage of the internal HDD and eSATA port, you can install up to 12TB storage device.

■ The eSATA port supports only Samsung Techwin-manufactured external HDD (SVS-5R).

connecting with other device

Connecting to an eSATA device

If using a SVS-5R external HDD, you can use one rear port of the DVR. However, the DVR does not supply a separate power source so you should use an external power source for operating the HDD.

The DVR can recognize an additional external HDD normally during the operation, but you may encounter a recognition failure depending on the model.

Follow the steps below for the connection.

1. Turn off the power.
2. Connect the eSATA interface cable to the external storage device.
3. Turn on the external storage device.
4. Turn on the DVR.

HDD compatibility

For information on compatible HDD, contact the retailer.

Registering an formatting the HDD

When the HDD is installed completely, turn on the DVR to start booting. The will get started automatically on the monitor screen. (Page 50)

If the does not get started, check if you have made the connection correctly.

USING THE I/O PORTS

How to handle the wiring cables

The wires used on the terminal block should be handled as follows. Note that the thickness of the solid wire differs from that of the stranded wire. Be careful when using both solid and stranded wires.

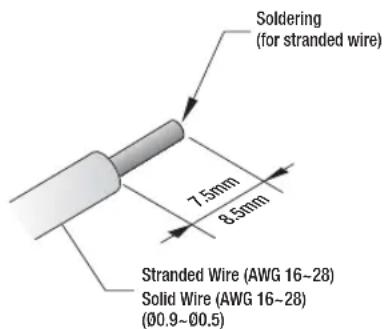

Soldering (for stranded wire) 7.5mm 8.5mm Stranded Wire (AWG 16-28) Solid Wire (AWG 16-28) (00.9-00.5)

• Stranded Wire : Peel off the coating as specified (7.5\~8.5mm) and solder the core wire. The stranded wire available is between AWG 16 and 28.
• Solid Wire : Peel off the coating as specified (7.5\~8.5mm). The solid wire available is between AWG 16 and 28.

If you want to insert or remove the wire in or from the terminal block, push the lever as shown.

SUN2001 RS465

Alarm Connection and Setting

Specifications

The alarm input signal shall meet the following specifications and operating conditions.

Specification	No. of input circuits 4	transistor inputs
	Input type N.C, N.O
	Alarms available Dry	Contact Alarm
	Connection system Connected to the terminal block with the coating peeled off
Electrical Performance	Effective width of input pulse	Min. 200ms
	Output current Typical DC 12mA

If using the alarm input port

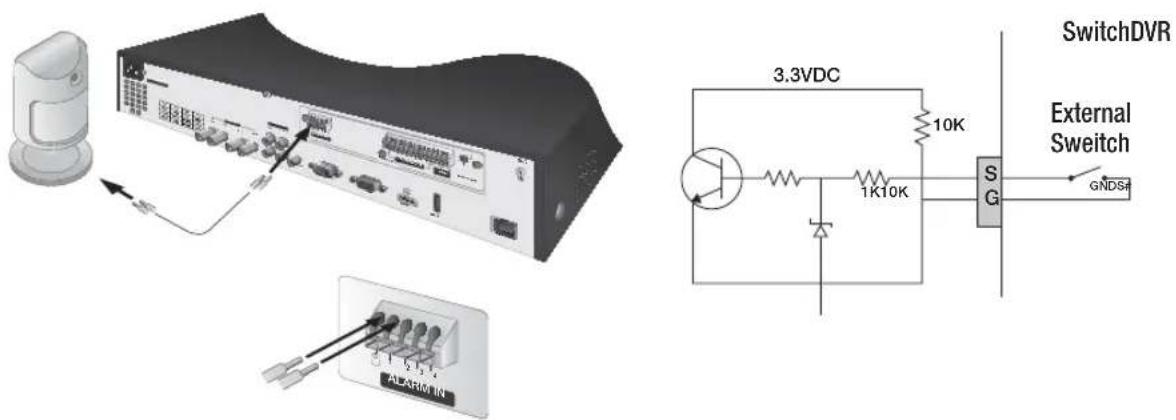

See the picture below for connecting the alarm inputs [ALARM IN 1\~4]. The picture below provides an example of the connection of alarms featuring dry contacts. For inserting or removing the wire, refer to "How to handle the wiring cables". (page 20)

SwitchDVR External Sweitch 3.3VDC 10K 1K10K SG gNDS# ALARM IN

connecting with other device

Relay Connection and Setting

Specifications

The alarm output signal shall meet the following specifications and operating conditions.

Specification	No. of output circuits	4 relay outputs
	Output type Dry Contact
	Connection system	Connected to the terminal block with the coating peeled off
Rated Power	DC 30V 1A
	AC 125V 0.5A

Relay Connection

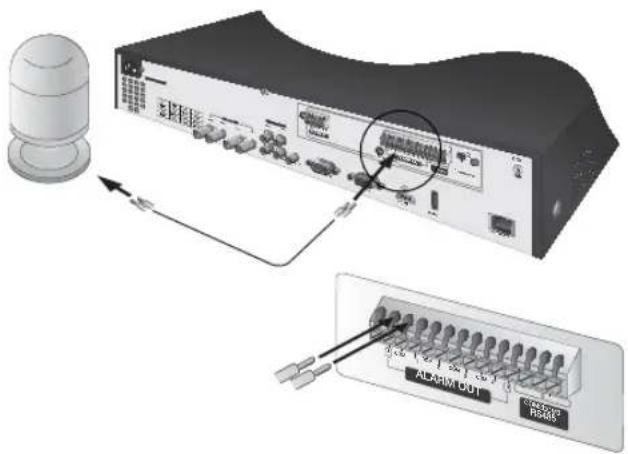

For the outputs between R1 \~ R4, refer to the figure below. This is an example of connecting the warning light. For inserting or removing the wire, refer to "How to handle the wiring cables". (page 20)

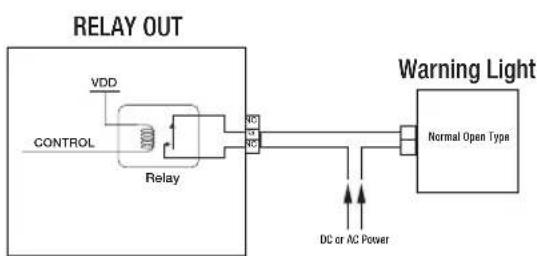

Diagram showing connection between a server rack and an alarm output port, with labeled ports and a magnified view highlighting the internal structure.


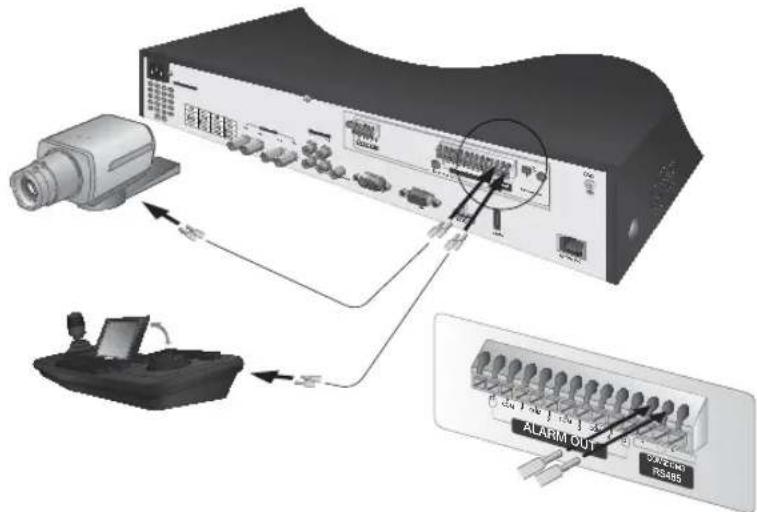

Connecting the serial communication port for Pan/Tilt/Zoom

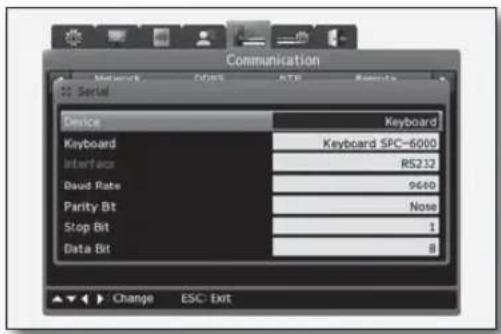

You can control the PTZ device via the COM port if it is compliant with the DVR.

For the compatibility, refer to "Compatible PTZ devices and keyboards". (page 24)

The figure below provides an example of connecting the PTZ-featuring camera to the RS-485 (COM2/COM3) communication port.

For other serial ports, refer to both the figure below and the wiring diagram.

For inserting or removing the wire, refer to "How to handle the wiring cables". (page 20)

Diagram showing connection between a device with labeled ports and an alarm output, including a camera and control panel.

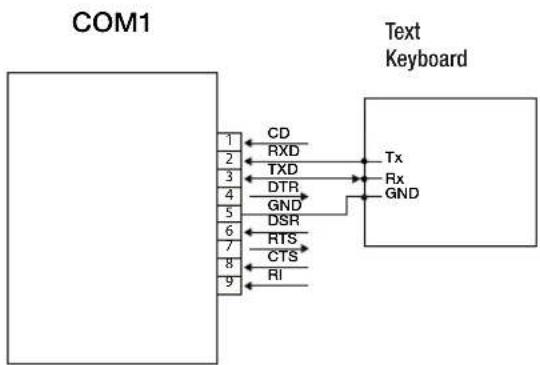

Wiring diagram for serial communications

Wiring diagram for COM1 (RS-232)

Wiring diagram for COM2/COM3 (RS-485)

COM2/COM3 Keyboard PTZ GND

connecting with other device

◆Compatible PTZ devices and keyboards

Device Protocol/Model Name Manufacturer
PTZ Camera	SAMSUNG-T Samsung Techwin
	SAMSUNG-E Samsung Techwin
	PELCO-P Pelco
	PELCO-D Pelco
System Keyboard SPC-6000 Samsung Techwin

If you want to select a protocol for the keyboard, make sure that you choose .

NETWORK CONNECTION

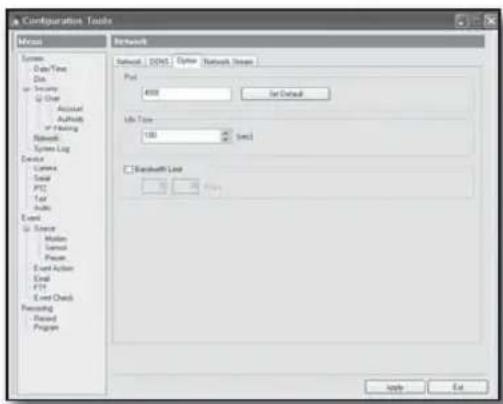

Connect to a remote PC via the Internet/Intranet. Then, you can control the DVR and make monitoring using the PC as if you were in the scene.

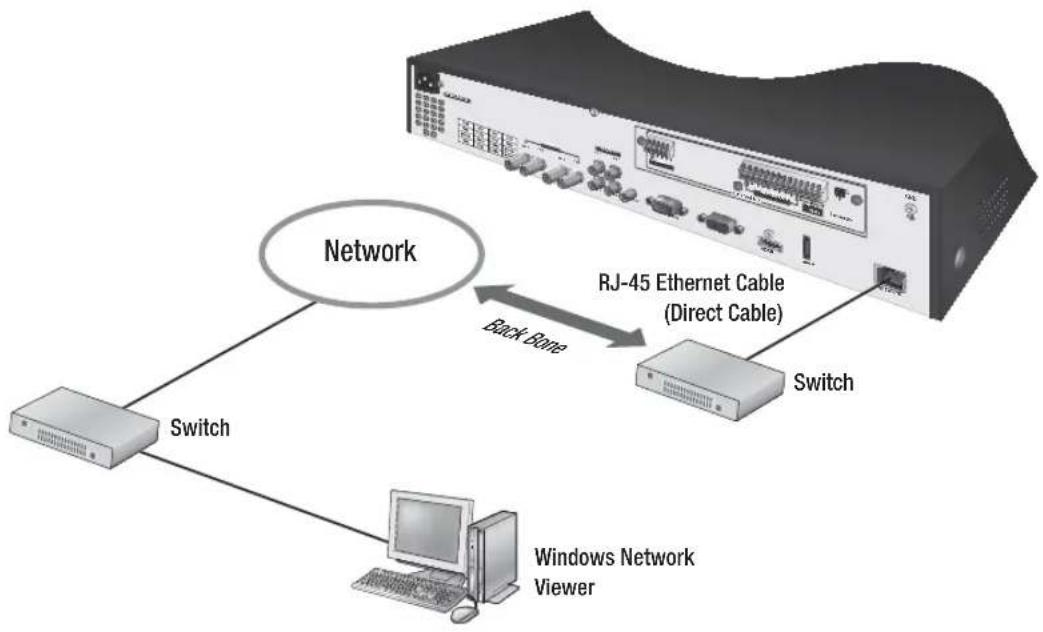

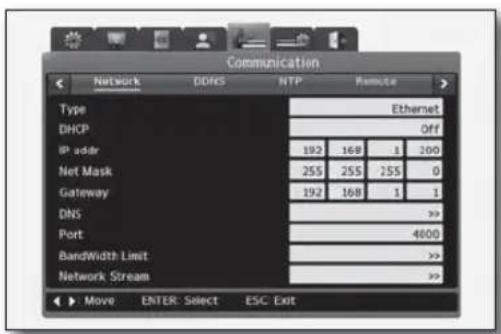

Network connection via Ethernet (10/100BaseT)

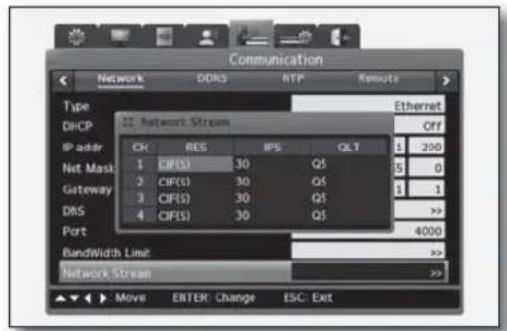

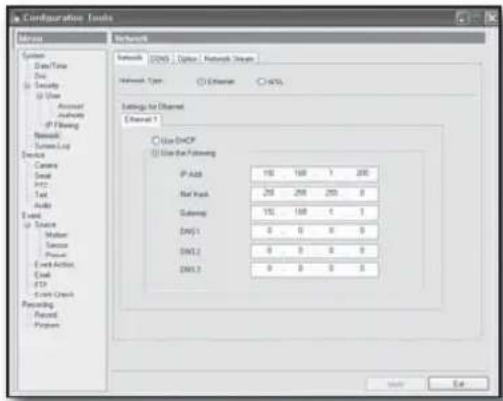

Set the type to and enter the IP, Net Mask, Gateway and DNS.

Select a desired position and use the front [▲▼] button or use the mouse wheel to set the position.

1. Turn off the power.
2. Connect the Ethernet cable to both DVR and hub.
3. Turn back on the power.


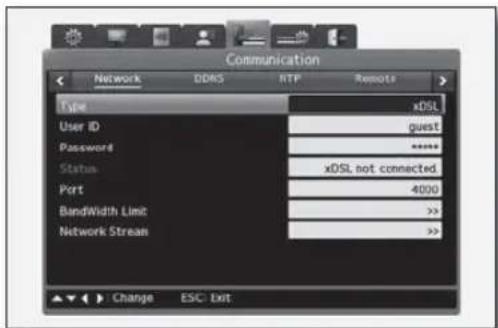

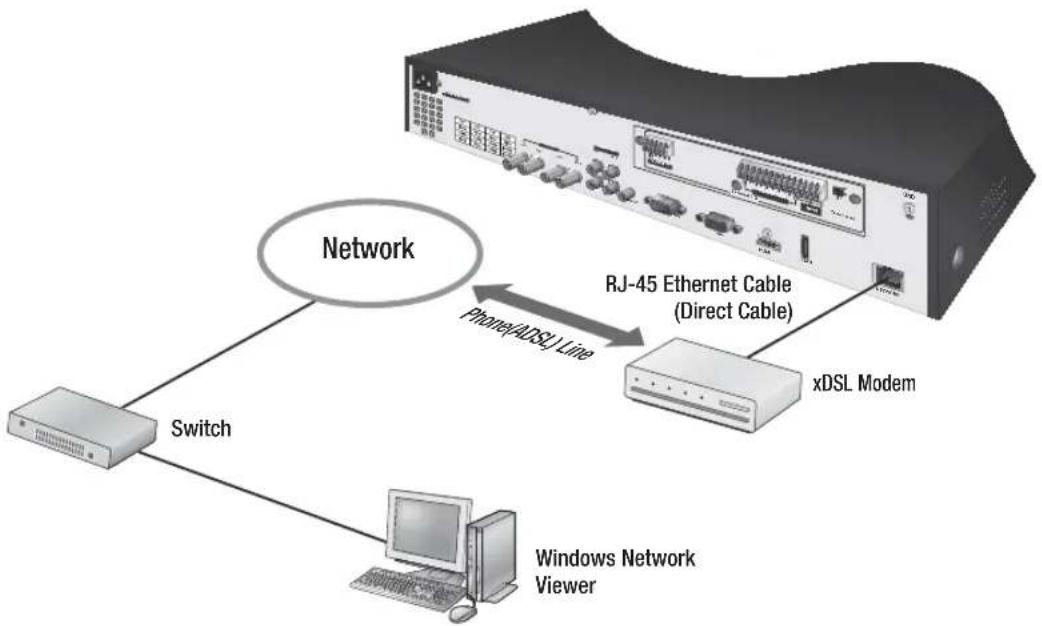

Network connection via xDSL

Change the type to before moving to the xDSL menu.

First of all, change the port for the Ethernet line. (You should remember the pot number.)

Enter the user ID and password that were provided in the xDSL menu when you subscribed to PPPoE service.

connecting with other device

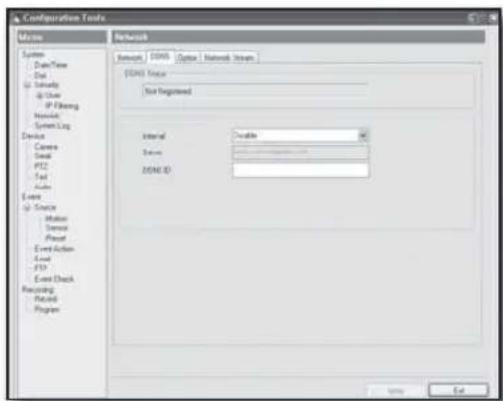

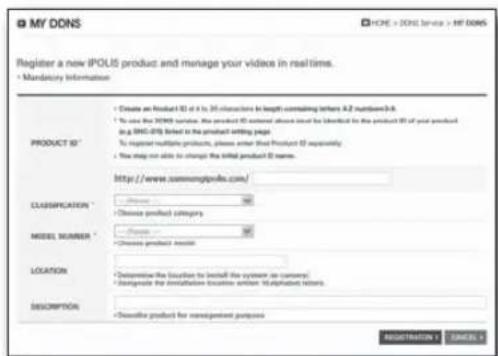

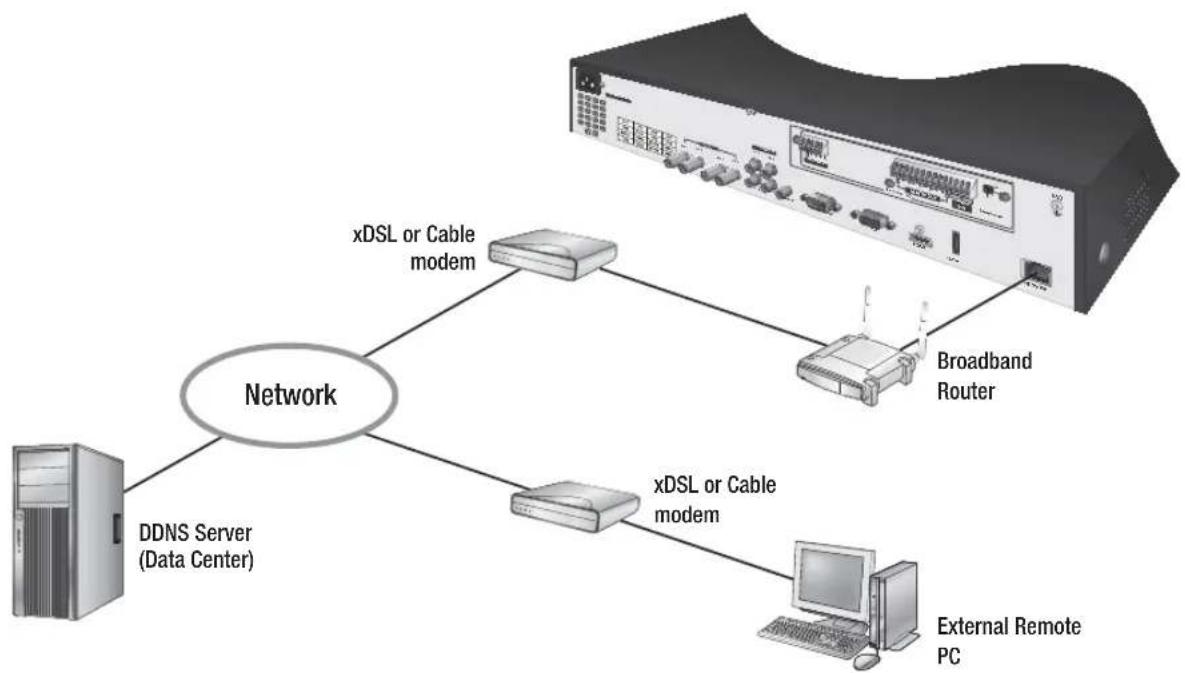

Connection using DDNS

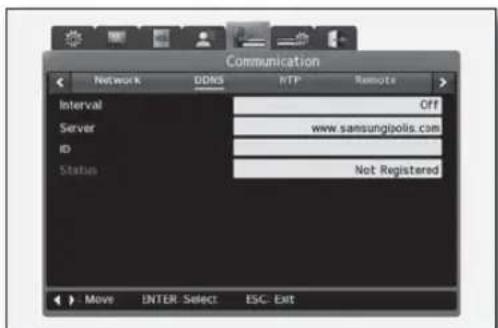

Change the interval to more than 1 minute and enter the DDNS server IP and the user ID that you registered.

• To prevent damage to the DVR, you must connect the Ethernet cable before applying power.
• Insert the Ethernet cable to the end for secure connection.
• Turn on the DVR and check if you have made connection correctly.

■ Refer to "DDNS Setting". (Page 44)

GETTING STARTED

Starting the system

1. Connect the power cable to the rear Power port of the DVR.
2. Every indicator blinks once.

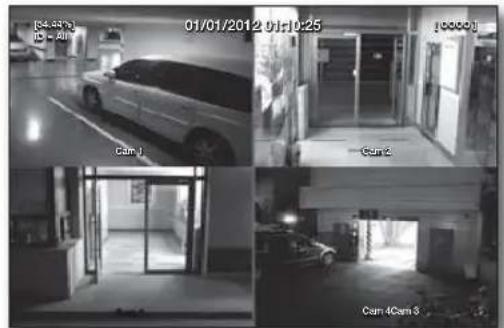

The booting process will take a minute with the booting logo on the screen.

SAMSUNG

1. The Live screen appears.

If you ever specified the password, enter the password in the password dialog.

[4.337e] [15-89] 01/01/2012 01:10:25 Cam 1 Cam 2 Cam 4Cam 3

System Shutdown

You can shut down the system only if you are logged in to the DVR.

Other user accounts than admin can shut down the system only if granted the permission.

1. Press the Power button on the front panel for more than 3 seconds.
2. If you are prompted to confirm the shutdown, select .

01/01/2012 01:00:25 [64.44%] ID = 801 CAM 1 WARNING OWR will be power off? Are you store? CAM 2 CAM 3 CAM 4CAM 3

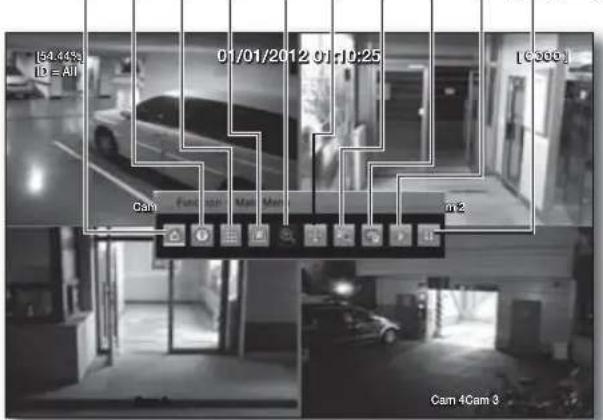

Live function menu

Besides the front button or the remote control button, you can right-click any area on the Live screen to display the Function menu bar. Select a desired item in the Function menu bar.

10 2 3 4 5 6 7 8 1 9

[54.44%] lb = Alt 01/01/2012 01:10:25 [0:300] Cam Function Mat Man m2 Cam 4Cam 3

Menu Item Description
1	Main Menu	Access the main menu.This is the same as the [MENU] button on the remote control.
2	System Information	Display the system information.This is the same as the [STATUS] button on the remote control.
3	Display	You can select the single screen or a multi-split mode.These are the same as the [DISP] buttons on the remote control.
4	Sequence	Perform the sequence in the order specified in "Sequence".This is the same as the [AUTO] button on the remote control.
5	D-Zoom	Display the digital zoom menu.This is the same as the [ZOOM] button on the remote control.
6	PTZ	Display the PTZ control menu on the screen.This is the same as the [PTZ] button on the remote control.

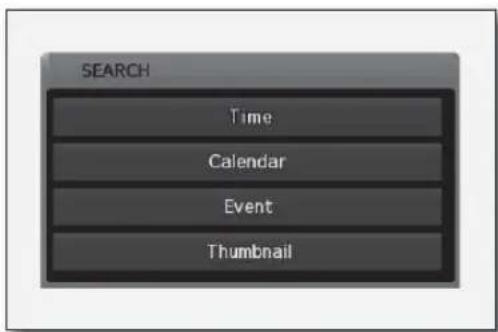

7	Search	Move to the search menu screen.This is the same as the [SEARCH] button on the remote control.

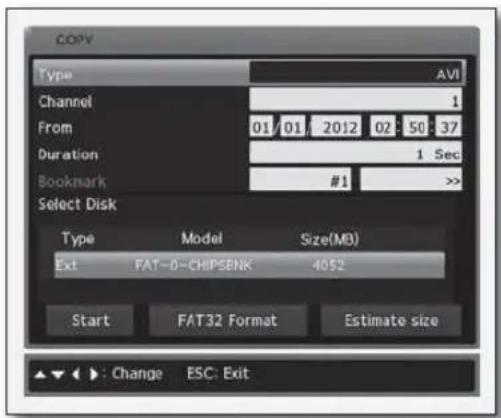

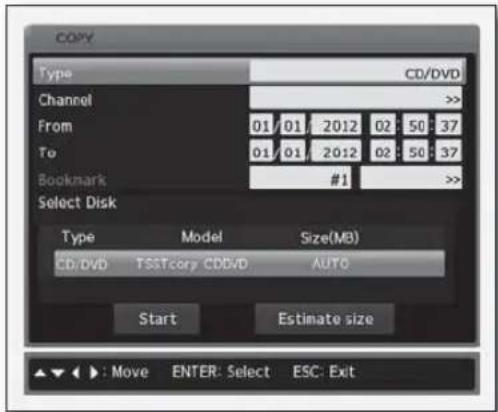

8	Copy	Display the copy menu.This is the same as the [COPY] button on the remote control.
9	Play	Access the play mode.This is the same as the [▶] button on the remote control.
10	Freeze	Stop playing the live video temporarily.This is the same as the [III] button on the remote control.

Select a split mode

Press the [MULTI] button on the remote control or select the display menu in the Function menu window to display the screen mode menu where you can select a desired screen mode.

Single Screen

Press each channel button in Live mode, or place the cursor on a desired channel and just left click it. Press the [MULTI] button again or click the channel screen again to switch back to the split screen.

Split Mode

In single screen mode, press the [MULTI] button or select <4A> in the display menu.

Auto Sequence

You can view 4 Live videos in sequence at a specified interval.

Press the front [AUTO] button or click the button in the Function menu bar.

Press the button again or select the Auto Sequence item in the Function bar to stop the sequencing.

The dwell time will be displayed according to the channel and time specified in "Display Setup > Monitor". (page 34)

Switching to the single screen mode

Move the cursor to a desired channel in the split mode and double-click it to switch to the single screen for that channel.

Press the number button on the front or remote control for a desired channel. The screen will switch to the single mode for that channel.

Refer to "Remote control > Using the numeric buttons". (page 13)

Ex) If you click number 3 channel or press the number 3 on the front panel or remote control

Digital Zoom

1. In single full screen mode, press [FUNC] and select <图标> button and [+] button. Then, press [ENTER] or left-click it to enlarge the screen.
2. If selecting the <@> button, the center of the screen will be enlarged by default. In the enlarged screen, you can move the enlarged screen by 48 levels horizontally, and by 27 steps vertically.
3. You can use the direction buttons to navigate through the screen.
4. Select the [-] button and press [ENTER] or just right-click it to return to the previous screen mode.

Freeze

You can freeze the live screen as if you did so in play mode.

Press the [PAUSE] button on the front panel to freeze the live screen; press it again to return to the live screen.

PTZ control

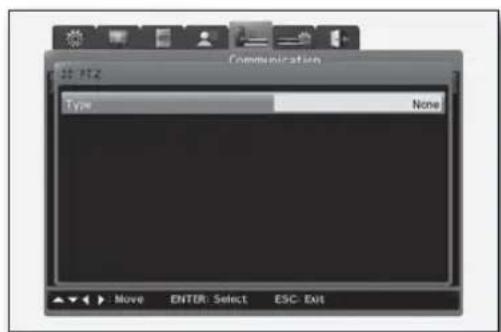

Connect the PTZ controller to the DVR and specify the protocol in the "Serial" menu. Then, you can control the PTZ operations while watching the video in real time.

Press the [PTZ] button on the front panel or press [FUNC] to select a desired PTZ operation.

If you want to control the PTZ operations, select a channel before using the function. The selected channel will be boxed in blue.

PTZ control in a split mode

In a split mode, press the [PTZ] button in the front panel or click <✗> from the Function menu to enter the PTZ control mode.

Select a channel and press the

button. You will see the symbol + in the center of the selected channel. Note that if you control the Pan/Tilt operations for channel 2, you are doing that in the entire 4-split mode screen, not in the channel 2 screen.

Therefore, you should control the actual operations based on the center of 4-split screens.

Pan – Left/Right, Tilt – Up/Down, Zoom – Left/Right, Focus – Up/Down

1. Press the button for the channel that you want to control.
2. Press the front [PTZ] button or click <⊕> in the Function menu bar.
3. The PTZ menu bar (Pan/Tilt, Zoom/Focus, Menu, Load Preset, Save Preset) will appear.
4. Select a desired item and press [ENTER] button or just click it.

If you want to control the PTZ operations in a split mode, the position of the PTZ menu bar will differ depending on the channel.
If selecting an even-number channel using the [▲▼] button on the remote control or front panel or mouse wheel, the menu bar will appear to the left; if selecting an odd-number channel, the menu bar will appear to the right.

Pan/Tilt

Used to control the pan and tilt operations in real-time monitoring mode.

1. Select "Pan/Tilt" in PTZ mode.
2. Use the [◀▶] buttons on the front panel or click a left or right area on the screen to control the pan operation; Use the [▲▼] buttons on the front panel or click an upper or lower area on the screen to control the tilt operation.

Zoom/Focus

Used to control the Zoom and Focus functions in real-time monitoring mode.

1. Select "Zoom/Focus" in PTZ mode.
2. Use the [▲▼◀▶] buttons on the front panel or use the mouse to control the zoom and focus functions.

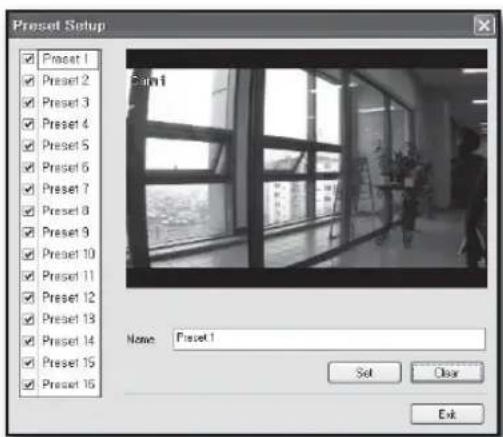

Load Preset

Used to move to a preset point in real-time monitoring mode.

1. Use the [▲▼] buttons on the front panel or remote control, or use the mouse wheel to select a preset number.
2. When the preset is determined, select a and press [ENTER] or just click it.

Save Preset

Used to specify a new preset point in real-time monitoring mode.

1. Use the 'Pan/Tilt' and 'Zoom/Focus' menus to adjust the camera position.
2. Use the [▲▼] buttons on the front panel or remote control, or use the mouse wheel to select a preset number.
3. When the preset is determined, select and press [ENTER] or just click it.

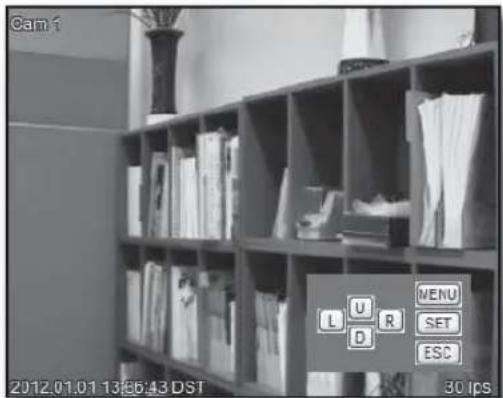

Menu

Used to access the console menu of the connected PTZ device. You can use the [▲▼◀▶] on the front panel or [ENTER] button to select a console menu. When done, press [ESC] or [PTZ] on the front panel to exit the console menu.

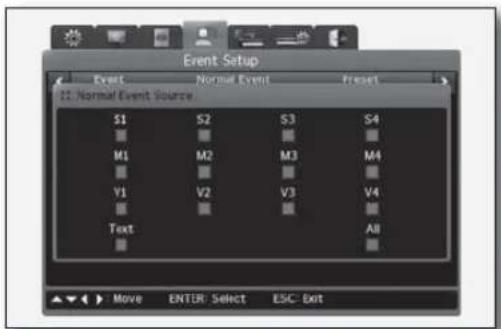

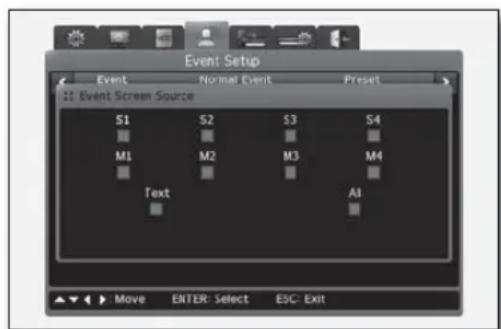

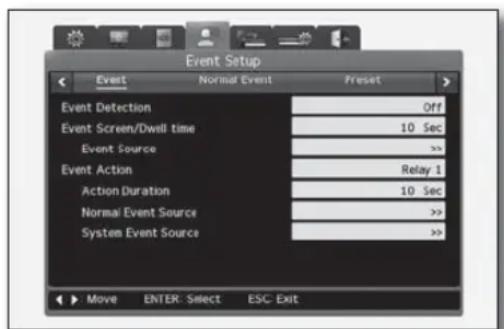

EVENT MONITORING

You can set to display the popup video if an event occurs.

• You can select an event for the popup video in the event source. The event source contains three options: sensor, motion detection and text.
• If events occur in multiple channels simultaneously, the screen will be split in as many as the channel count. For instance, if events occur in 3 channels, the screen will be split in 4 to display the individual event. To return to the previous screen mode, simply press the button of any one channel that is displayed on the screen.
• To return to the previous screen, press [ESC].

If you set the event screen to <0ff>, the event popup will be deactivated.
If you set the event screen to Keep, the popup video will be played until you press any button. To return to the previous screen mode, simply press the button of any channel on the screen.

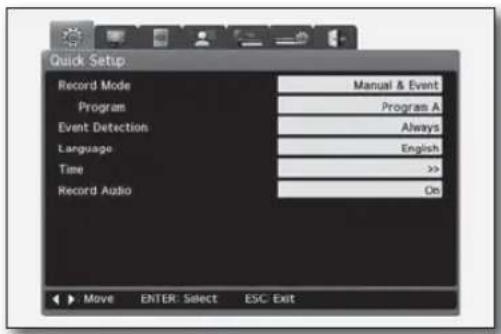

QUICK SETUP

The Quick Setup menu is a collection of only key functions of the DVR for you to access with ease.

MENU - ENTER - ▼ - ▼ - ENTER

Quick Setup Record Mode Manual & Event Program Program A Event Detection Always Language English Time >> Record Audio On Move ENTER: Select ESC: Exit

Quick Setup Record Mode: Schebrin & Engt System Time Time Zone GMT 00:00 Dublin Daylight Saving Off Date Format MN/DD/YYYY Time 01 03 2012 02 11 30 Apply Date/Time Move ENTER Select ESC Exit

Record Mode

It sets recording method.

■ For more information, refer to "Record Settings". (page 34)

Event Detection

Select an event application option from: , and .

Application details can differ depending on the option.

■ For more information about event recording, refer to "Event Setting". (page 38)

Language

Select a preferred OSD language.

■ For more information, refer to "System Setting". (page 48)

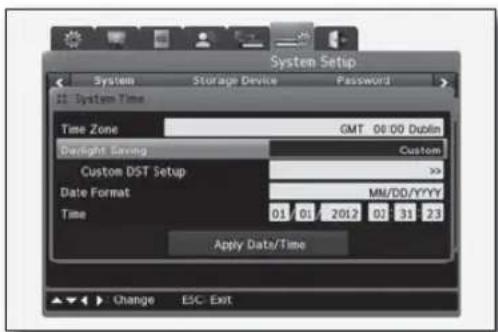

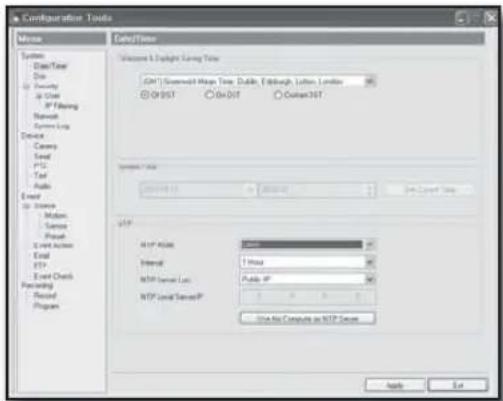

Time

It sets the time applied to the system.

■ If you change the time during recording, you may have redundant data.

For time settings, refer to "To specify the time". (page 49)

Audio Recording

Specify the use of audio recording.

For more information about audio recording, refer to "To configure the audio settings". (Page 37)

Display settings

You can specify the title for each channel available and also specify the use of the channels.

MENU - ▶ - ENTER - ENTER

Display Setup Channel Display Monitor Channel Number Ch1 Title Can 1 Status Enable Input Resolution 720x60 Move ENTER: Select ESC: Exit

Display Setup Channel Display Monitor Channel Number 1 2 3 4 5 6 7 8 9 0 - = Tab q w e r t y u i o p [ ] \ Capital key B s d f g h j k l : * Enter Shift z x c v b n m , . / Shift Space Cam 1 Move ENTER: input ESC Exit

• Channel Number : Select a channel that you want to apply your settings to.
• Title : Use the virtual keyboard to enter the title that will be displayed on the screen.
  • Status : Specify the use of the channel.

If you don't intend to make recoding or (network) monitoring, set it to .

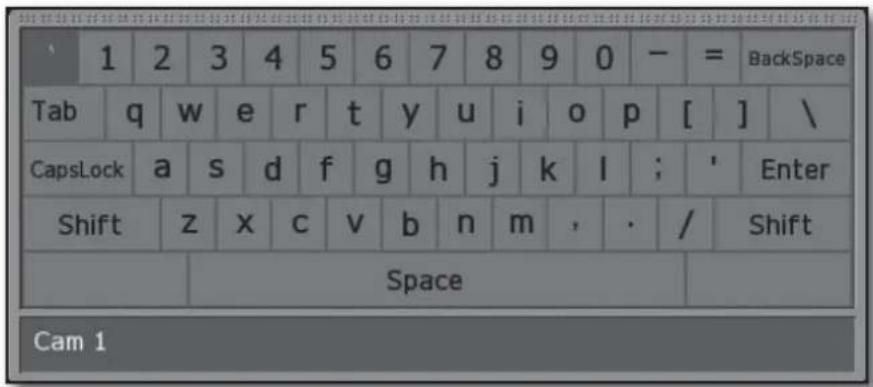

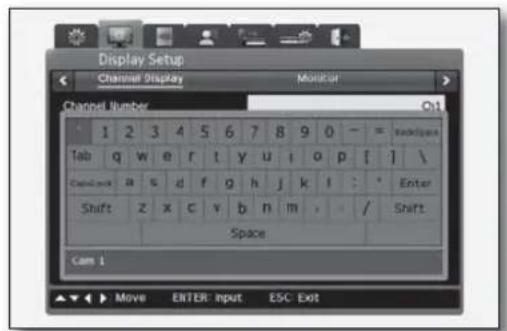

Using the virtual keyboard

1 2 3 4 5 6 7 8 9 0 - = BackSpace Tab q w e r t y u i o p [ ] \ CapsLock a s d f g h j k l ; ' Enter Shift z x c v b n m , · / Shift Space Cam 1

1. If you want to change the camera title, DVR name or user ID/password, use the virtual keyboard.
2. Use the front direction buttons to select a character and press [ENTER]. Or, you can simply click a desired character one by one.
3. When done, use the front direction buttons to move to the button and press [ENTER]. Or simply click .

In English mode, you can press [CapsLock] or [Shift] to enter a special character
■ Press [Tab] to skip 3 characters.
■ Press [BackSpace] to delete a character one at a time.

Monitor settings

If you want to display a video on the monitor, you must configure the related settings first.

• Sequence : Change the auto sequence settings to your preference.
  You can specify up to 16 sequence modes, and the dwell time shall be specified between 1 and 60 seconds.
• On Screen Display: Select which item(s) you want to display on the live or play screen.
  For a live video, you can select to display the time, channel name, event or recording status, HDD, remote control ID and text. For a recording video, you can select to display the time, command, channel name, event or text.

RECORD SETUP

Record Settings

Record Setup Record Program Record Mode Manual & Event Program Program A Event Duration >> Overwrite Off Warning Level 45 % Auto Delete 15 days Audio >> Move ENTER: Select ESC: Exit

Record Setup Record Program Record Mode Manual & Event Program Program A 12 Event Duration Pre Event Duration 1 Sec Post Event Duration 1 Sec Auto Delete 12 Day 9 Audio Move ENTER: Select ESC: Exit

- Record Mode: Select record mode.

• Manual & Event : Select this if you want to make manual recording.
• Schedule & Event : Select this if you want to make recording schedule in advance.

The manual recording will be enabled only if you set the record mode to . Select a channel program and press [REC] on the front panel (only by a user with the applicable permission) to start recording.
If you set , the menu bar on the bottom will change to or according to the selected mode. Then, the DVR starts recording accordingly.

- Event Duration: Specify the pre- and post-event recording time.

- Your setting for

 and  apply to the entire channels.
• Overwrite : Specify the use of overwrite if the HDD's space is full.

- Warning Level: It checks the usage of all the disks attached or connected to the DVR and warns you if the usage reaches the specified level.

- Auto Delete: If you specify the auto deletion period, the recording data before the period will be deleted automatically.
- When completing your settings, please be sure to backup the exiting data before saving your settings because they will be lost.

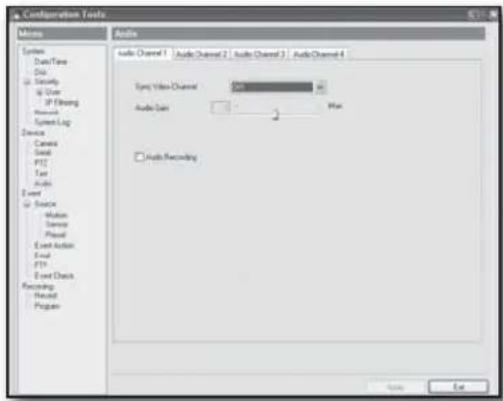

- Audio : Audio settings include, audio channel, audio recording, audio gain, sync video channel and audio mix.
- For more information about audio settings, refer to "To configure the audio settings". (page 37)

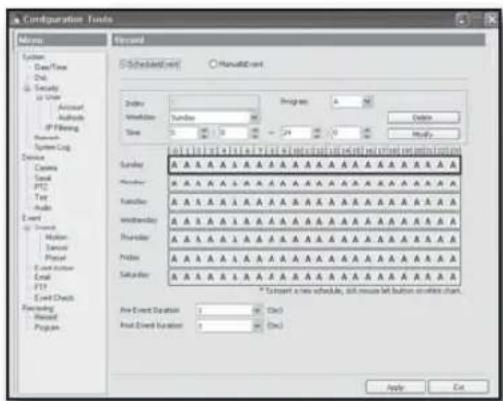

To make scheduled recoding

The DVR will start recoding as scheduled and programmed.




Record Setup
Record  Program
Record Mode Schedule & Event
Schedule    >>
Event Duration  >>
Overwrite   Off
Warning Level   45 %
Auto Delete 15 days
Audio   >






Record Setup

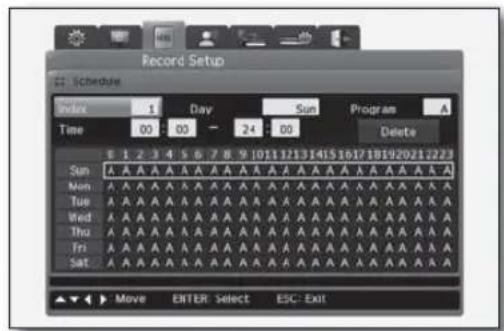

Schedule
Index 1 Day Sun Program A
Time 00 00 24 00 Delete
Sun A A A A A A A A A A A A A A A A A A A A A
Mon A A A A A A A A A A A A A A A A A A A A A A A A A A
Tue A A A A A A A A A A A A A A A A A A A A A A
Wed A A A A A A A A A A A A A A A A A A A
Thu A A A A A A A A A A A A A A A A A
Fri A A A A A A A A A A A A A A A A A
Sat: A A A A A A A A A A A A A A A
▲▼ ▶ Move ENTER Select ESC: Exit



Set  to , and press [ENTER].
Use the arrow button [▼] to move to , and press [ENTER].

You will see the schedule setup screen.
Specify a program for each day or timeline as you want.

Use [▲▼◀▶] buttons to specify each item of the schedule menu and press [ENTER].

• Index : Schedule unit between 1 and 50

• Day : Specify the day

- Program : Specify the program to record (A\~I)

• Time : Specify the time

- Delete : Delete by the index unit

4. If you specify the Index, Day, Program and Time, your settings will be displayed in the table.
If you use the mouse to select the start and end times of recording, details will be displayed in each of Index, Day, Program and Time.
To delete an existing schedule

Select an index and press .
If you press  without selecting an index, the previous index will be deleted at first. Then, deletion will progress in the descending order from the largest number of index.
To change an existing schedule

Select an index and change the date, program and time manually.
If all indexes up to 50 are already specified, click a timeline from the table and select a time to change.
Then, the existing content will be deleted and changed to your new settings.

If you make a duplicate setting in the same time, the duplicate items will be marked '!' in the table. If you configure the time line settings, the existing ones cannot be included.

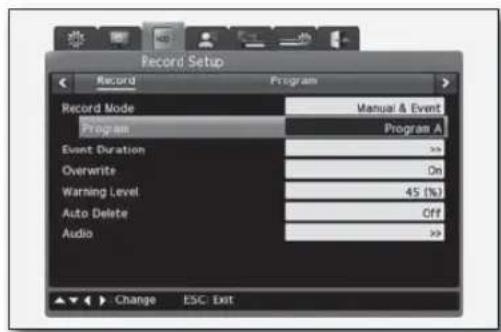

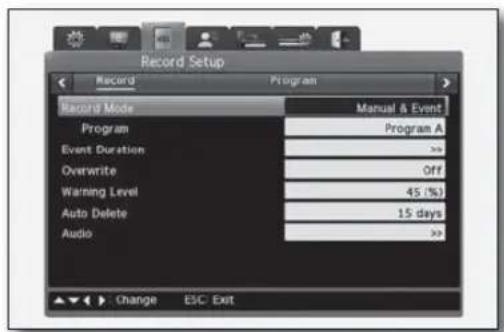

To make event recoding

You can set to make recoding of an event if it occurs.
To make event recording, specify the resolution, frame rate and quality to include in the program.




Record Setup
Record Mode Manual & Event
Program Program A
Event Duration >>
Overwrite Off
Warning Level 45 %
Auto Delete 15 days
Audio >>
Change ESC Exit






Record Setup
Record Mode Manual & Event
Program Program A
Event Duration >>
Overwrite On
Warning Level 45 (%)
Auto Delete Off
Audio >>
Change ESC Exit




Set  to , and press [ENTER].


Use the arrow button [▼] to move to , and press [ENTER].


Select a program to apply for the event recording.

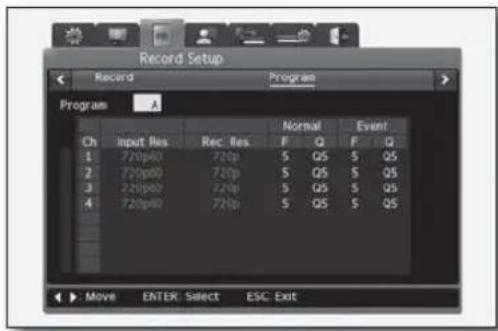

The resolution for each program can be specified in "Record Setup > Program". (Page 37)

If you want to make the event recording only, set the normal frame rate to 0fps in program setup, and specify the frame rate only for the event.

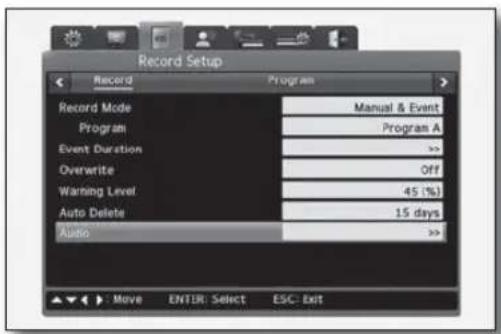

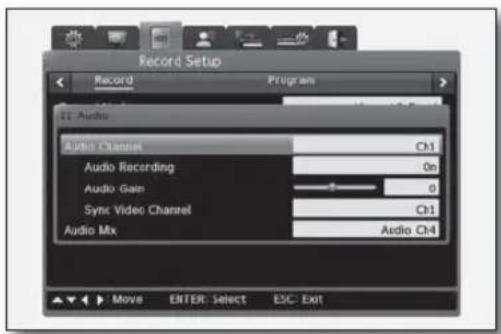

To configure the audio settings





Record Setup
Record  Program
Record Mode Manual & Event
Program Program A
Event Duration  >>
Overwrite   Off
Warning Level   45 %
Auto Delete 15 days
Audio   >






Record Setup
Record  Program
Audio
Audio Channel   Ctrl
Audio Recording On
Audio Gain  0
Sync Video Channel  Ctrl
Audio Mix   Audio Ch4
Move    ENTER: Select   ESC: Exit


• Audio Channel : Select a channel for audio setting.

- Auto Recording: Specify the saving of the existing audio settings. If you set it to , only the live video will output the audio signal; if setting it to , the recording video as well will output the audio signal.

- Audio Gain: Use the +/- buttons to adjust the volume.

- Sync Video Channel : Select a channel to sync with the input audio signal. If you set to synchronize the video of channel 1 with channel 4, the audio input to channel 1 will be output if you select channel 4. By default, channel 1 audio will output in channel 1 video.

- Audio Mix : Select an audio signal to use in live video. If you set , all incoming audio signals will be mixed before being output. So if you select a specific audio, it will be output regardless of the channel that you selected.
Program Setting

You can adjust the frame rate and the video quality for a recording program that will be used for Manual & Event and Schedule & Event. Select a program according to the frame rate, quality of your choice, or make settings manually. For event recording, you can specify up to the maximum frame rates for each channel; if events occur from more than one channel, the recoding frame rate can be adjusted accordingly.
MENU - ▶ - ▶ - ENTER - ▶ - ENTER




Record Setup
Record  Program
Program:A
Ch  Input Res   Rec Res Normal  Event
1   720p60  720p    F   Q   F   Q
2   720p60  720p    S   Q   S   Q
3   720p60  720p    S   Q   S   Q
4   720p60  720p    S   Q   S   Q
Move    ENTER: Select   ESC- Exit



Program : You can select a total of 9 programs from A to I, and specify the normal/event resolution for each program.

• Ch : Display the channel number.

menu setup


Input Res : Display the input resolution.

• Rec. Res : Display the recording resolution.
F(FPS) : FPS stands for frames per second. You can specify FPS between 0 and 30fps. The maximum frame rate can differ depending on your setting.

When mixed with 720p and 1080p setups, 1 frame of 1080p is estimated as 2 frames of 720p. (In DVR menu, frame allocation should satisfy this limit and cannot set to a value that exceeds the maximum performance.) For example, if two channels are set to 720p at 30 frames, rest of the channels can be allocated with 1080p at 30 frames or 720p at 60 frames.
- Q(Quality) : For 1080p, you can select a recording quality between Q1 and Q7. For 720p, you can select a recording quality between Q1 and Q5. It is recommended to select Q3 or more for event recording.
The higher the quality is, the shorter the recording time becomes. So set it to Q1 if you want to reduce the recording size.

If you set the frame rate to 0fps in program setup, the remaining 30fps cannot be used for other channels. This is because even if you set the frame rate to 0fps, at least 2\~3fps will be reserved for a reason such as network transfer. Therefore, if you want to use the remaining 30fps for other channel, you must set the channel to  in the channel setup.
EVENT SETUP

Event Setting

Specify the event application time and dwell time.
MENU - ▶ - ▶ - ▶ - ENTER - ENTER




Event Setup
Event   Normal Event    Preset
Event Detection Off
Event Screen/Dwell time 10 Sec
Event Source    >>
Event Action    Relay 1
Action Duration 10 Sec
Normal Event Source >>
System Event Source >






Event Setup
Event
Normal Event
Preset
Event Screen Source
S1 S2 S3 S4
M1 M2 M3 M4
Text AI
Move ENTER: Select ESC: Exit


- Event Detection: Specify the application method for event recoding.
- Always : The DVR always recognizes the event while in operation.
- Schedule : Recognize and respond to an event that occurs at a specific time.
The  item will be created on the bottom. Select that to display the setup window.
- Off : This will disable the event recording.

Event Screen/Dwell time : Specify the duration to display the channel where an event took place.
Event Source : Select an event source to use for the popup window. The event source contains three options : sensor, motion detection and text.
Event Action : Select one from relay 1\~4, buzzer, e-mail and FTP.


If events occur in multiple channels simultaneously, the screen will be split in as many as the channel count. For instance, if events occur in 3 channels, the screen will be split in 4 to display the individual event. To return to the previous screen, press [ESC].
Specify the operation according to the incoming event.
MENU - ▶ - ▶ - ▶ - ENTER - ENTER - ▼ - ▼ - ▼ - ▼ - ▼ - ENTER




Event Setup
Event   Normal Event    Reset
Normal Event Source
S1  S2  S3  S4
M1  M2  M3  M4
V1  V2  V3  V4
Text    All
Move    ENTER: Select   ESC: Exit






Event Setup
Event   Normal Event    Preset

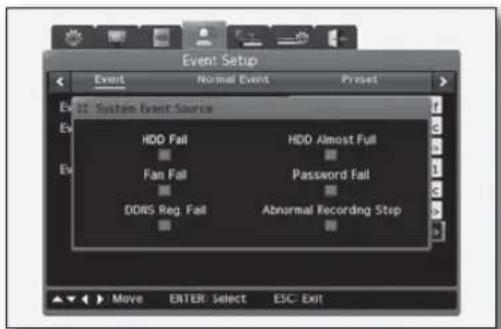

System Event Source
HDD Fail    HDD Almost Full
Fan Fail    Password Fail
DDWS Reg. Fail  Abnormal Recording Stop
Move    ENTER: Select   ESC: Exit



Action Duration: This is used for relay and buzzer settings. This will keep the operation as long as the specified time.

The e-mail will be transferred at a specified interval; FTP will transfer the image each time an event is activated.

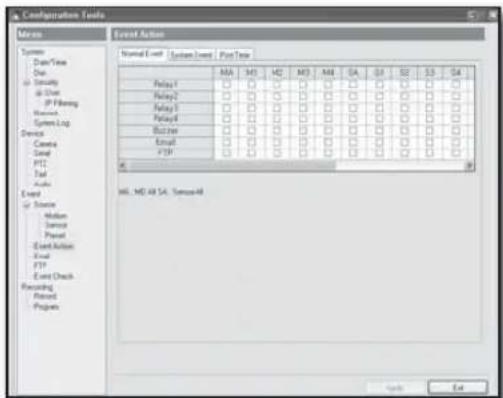

Normal Event Source : You can set the normal event source to one of 4 sensors, 4 MDs, 4 video losses and text.
System Event Source : As system event source, you can set some or whole of: HDD Fail, HDD Almost Full, Fan Fail, Password Fail, DDNS Reg. Fail, and Abnormal Recording Stop.

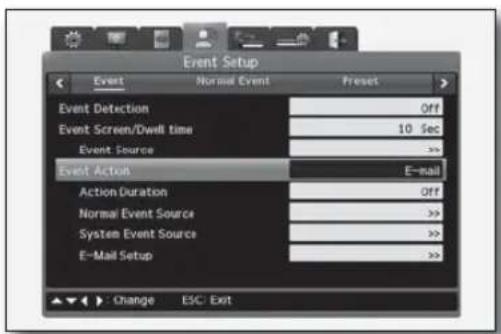

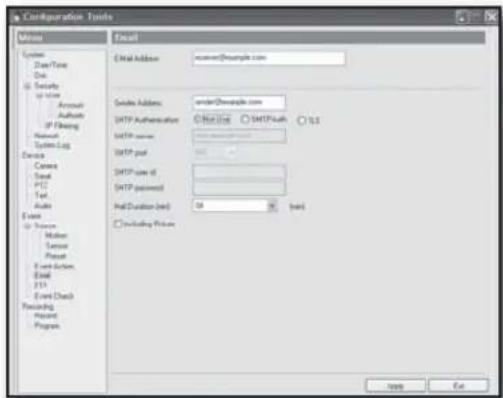

To synchronize the event via email

There are three ways to transfer via email: non-authentication, SMTP authentication, and TLS authentication.




Event Setup
Event Normal Event Preset
Event Detection Off
Event Screen/Dwell time 10 Sec
Event Source >>
Event Action E-mail
Action Duration Off
Normal Event Source >>
System Event Source >>

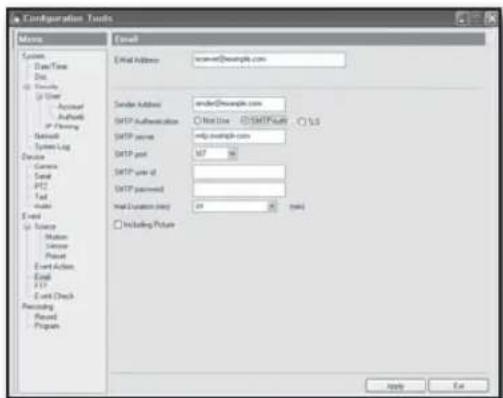

E-Mail Setup >>
Change ESC Exit






Event Setup
E-Mail Setup

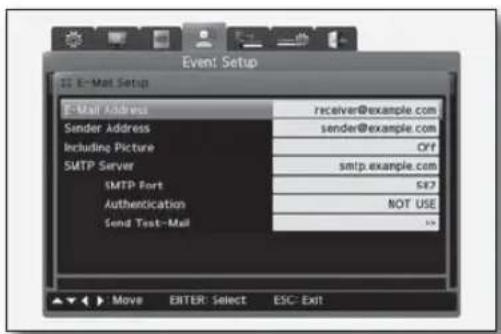

E-Mail Address [e-mail]
Sender Address [e-mail]
Including Picture OFF
SMTP Server smtp.example.com
SMTP Fort 647
Authentication NOT USE
Send Text-Mail 100
Move ENTER: Select ESC: Exit



Select  for event synchronization.
Specify the duration.

The email will be transferred at a specified interval.

Select  or .
Select  and provide each item.

- E-Mail Address: Provide the email address at which you want to receive messages.
- Sender Address : Provide a valid (currently used or existing) email address.
menu setup

- Including Picture: If you set it to , the email to send if an event occurs will include the event image at the event occurrence time.
If you set it , the email will be sent if an event occurs but with no image attached.
- SMTP Server : Provide the SMTP server address for the sender email address.
If the server adopts the authentication system, the  and  items will be created.
- SMTP Port : Select a port to use in SMTP server.
- Authentication : Authentication will be performed using the protocol of TLS (Transport Layer Security), or email address and account for SMTP authentication. Use an email account in compliant with TLS or SMTP-AUTH.
- Send Test-Mail : This is to check if you specify the sender, receiver of the email and other necessary settings properly.

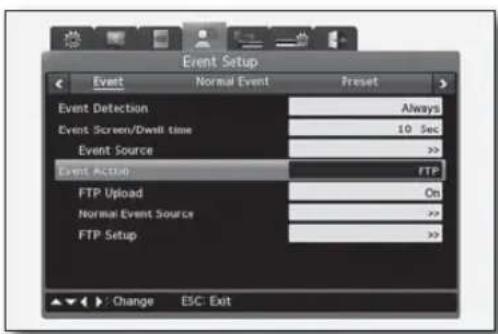

To synchronize the event via FTP





Event Setup
Event   Normal Event    Preset
Event Detection Always
Event Screen/Dwell time 10 Sec
Event Source    >>
Event Action    FTP
FTP Upload  On
Normal Event Source >>

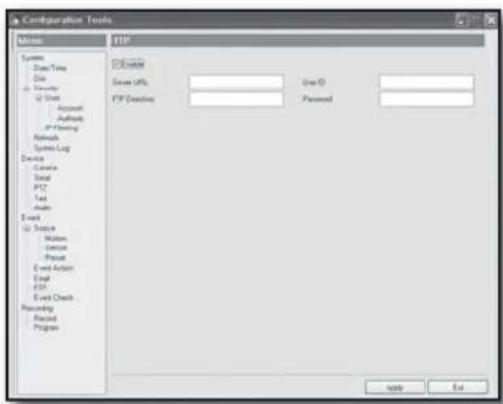

FTP Setup   >






Event Setup
Event   Normal Event    Preset
Event Detection Off

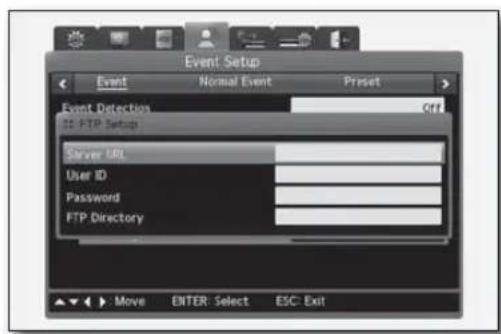

FTP Setup
Server URL
User ID
Password
FTP Directory
Move    ENTER: Select   ESC: Exit




Select  for event synchronization.


Specify whether to upload via FTP. The image will be sent every moment the event is active.


Select  and provide each item.


- Server URL : Provide the FTP server address.
- User ID : Provide the ID for connecting to the FTP server.
- Password : Provide the password for connecting to the FTP server.
- FTP Directory : Specify the saving path for the images that will be transferred to the FTP server. If you leave it blank, the images will be transferred to the server-specified folder; if you provide a wrong path, the images will be sent to the specified folder by the FTP server.
Ex) If you provide "Download", you must have created the "Download" folder in a sub directory of the server. If an event occurs, the images will be transferred to the "Download" folder.

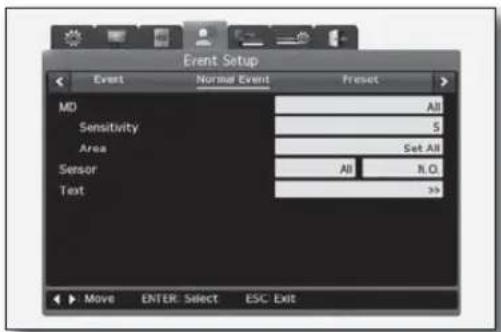

You can specify the motion detection area, sensor and text.
MENU - ▶ - ▶ - ▶ - ENTER - ▶ - ENTER




Event Setup
Event   Normal Event    Freset
MD  All
Sensitivity 5
Area    Set All
Sensor  All N.O.
Text    3s
Move    ENTER: Select   ESC: Exit






Event Satron
Recording   Off
Sync Text With  Cb1
Device  Manual
Seek Header On
Header 1    header1
Header 2    header2
Delimiter   000A
Timeout(ms) 1000
Lines   20

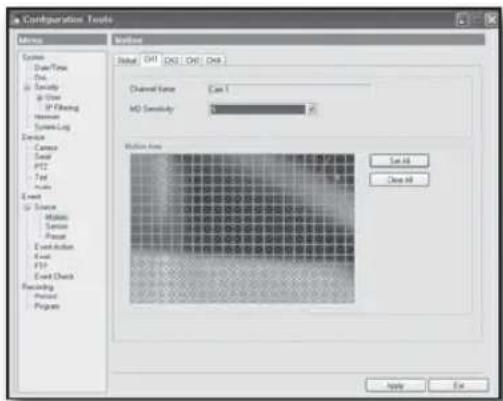

Motion Detection Setting

The Motion Detection item will be used to detect every single channel and notice the user of a motion if it occurs.
• MD : Select a channel that you want to perform the motion detection for.

- Sensitivity: Select a sensitivity level for each channel from Off, lowest, 1\~10, and highest.

- Area: Specify the area for which you want to perform the motion detection.
If you set it to All, you have two options: Set All or Clear All. If you set it for each channel, you will have three options: Set All, Clear All and Select Area.

Sensor: You can use 4 sensors. If set it to , all channels will be set to N.O and N.C in the same manner; Alternately, you can select a channel and set it to: N.O., N.C., or Off.

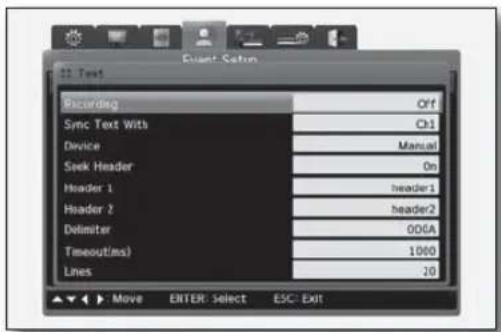

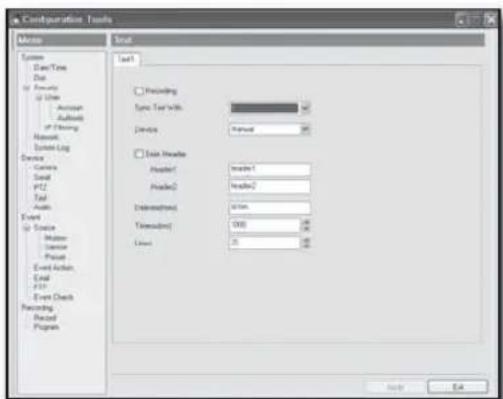

Text : Provide the message. You must specify the text setting in "Event Setup" of the OSD menu.

- Sync Text With : Select a channel to synchronize with the text.
- Seek Header : If the information (Manual, VSI Pro, VSI Pro Hydra) from external devices contains other than the protocol, this option will check how and what each item of the information consists of.
The header is a start item of each distinctive piece of information that will be inserted for your reference.
Set  to  and provide text to be recognized as header.
- You can specify two headers for each because a single device can transfer data to multiple external devices.

Delimiter : The delimiter may differ depending on the host device. So refer to the user manual or contact your retailer for the exact delimiter.
Timeout(ms) : Even if you provide less information than specified in , the last line you provided will be set as the final line after a specific time.
Lines : Define how many lines a piece of information consists of.

- Some external devices may not be recognized depending on the model. You must contact the retailer for compatibility before installation.

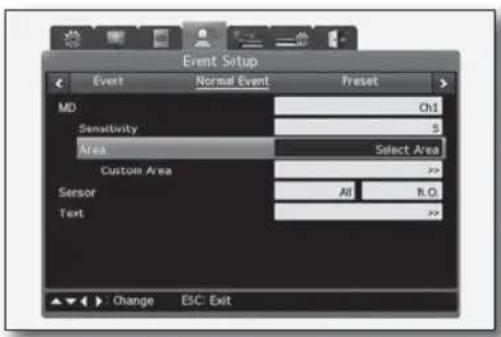

To specify a motion area





Event Setup
Event   Normal Event    Preset
MD  Ch1
Sensitivity 5
Area    Select Area
Custom Area >>
Sensor  All R.O.
Text    >






Black-and-white photo of a parked car in a garage with visible parking area and window (no text or symbols)



Select a motion detection channel.
Only if you select a single channel, you can specify the motion detection area.
Move to  and select .
Select .

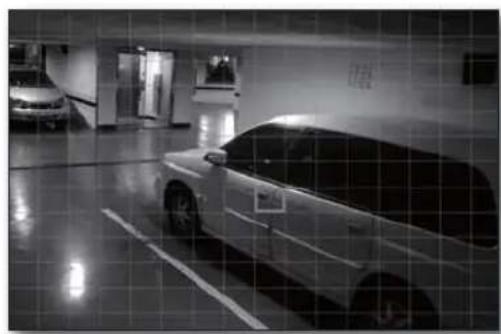

When the custom area setup window appears, use the direction buttons to move to a desired area and press [ENTER].

The specified motion area will be boxed in grey.

When done, press [ESC] or right-click to return to the previous menu.

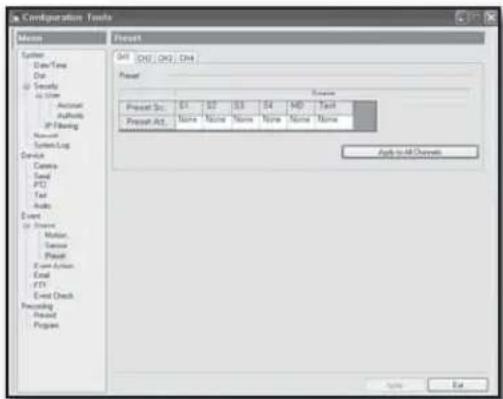

Preset Setting

You can control the preset specified in the PTZ function to react according to the event input.
MENU - ▶ - ▶ - ▶ - ENTER - ▶ - ▶ - ENTER

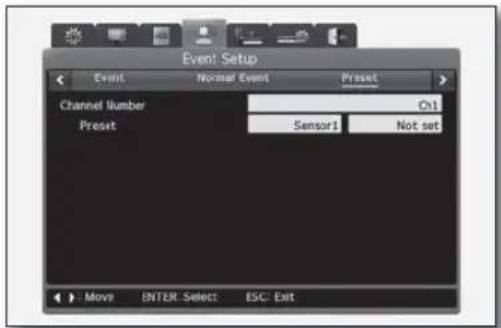

Event Setup
Event   Normal Event    Preset
Channel lumber
On1
Preset  Sensor1 Not set
Move    ENTER: Select   ESC: Exit



Specify a preset to use as a PTZ operation for each channel.
From the preset menu, select a channel and specify the event to trigger the preset.
You can select for the event: sensor, motion detection and text. You can specify up to 16 presets.

Network setting via Ethernet

This is a menu where you can configure the network settings for connecting to the network via the Ethernet.
MENU - ▶ - ▶ - ▶ - ▶ - ENTER - ENTER




Communication
Network DDNS    NTP Remote
Type    Ethernet
DHCP    Off
IP addr 192 168 1   200
Net Mask    255 255 255 0
Gateway 192 168 1   1
DNS >>>
Port    4600
Bandwidth Limit >>>
Network Stream  >>>
Move    ENTER: Select   ESC: Exit






Communication
Network Stream
Type
DHCP
IP addr
1
2
3
4
NET MASK
NET MASK
Gateway
DNS
Port
BandWidth Limit:
Network Stream
Ethernet
Off
1 200
5 0
1 1
>> 4000
Move  ENTER: Change  ESC: Exit



Type : Set the type of network line (connected to the DVR) to .

This is suitable if the DVR is connected to the DVR-dedicated line, cable modem or LAN.
DHCP : The use of DHCP depends on how to share the IP addresses of the network. DHCP server assigns public IPs to the DVR so set this option to  in a LAN environment using the DHCP server.
IP addr : Used to communicate between DVR and Smart Viewer, or try to access DVR the web viewer. If you set  to , this item will be active. Enter the static IP.
Net Mask: Specify the IP range. Any IP within the range is valid in mutual communications.
Gateway: This is a required field for communications.

• DNS : You must enter the DNS if you want to register DVR with DDNS.

For information about Net Mask, gateway and DNS1, contact the network administrator.
- Port : Enter the port number that you use to register the DVR with DDNS, or try to access Smart Viewer or Web Viewer.
The default port number is 4000. You should be careful when entering the port number if using PPPoE modem and Broadband router.

BandWidth Limit : Specify the maximum transfer rate that the DVR can produce. You don't need to specify the limit manually because this is specified by the network admin.

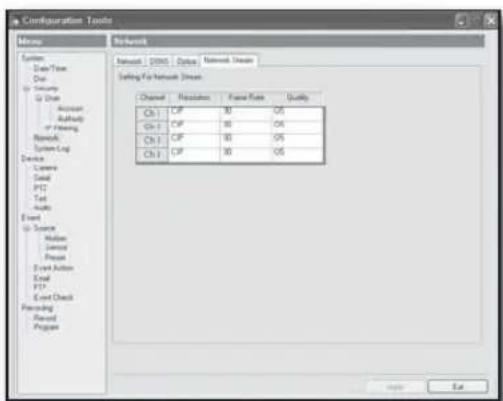

Network Stream : Specify the quality of video that is transferred from the DVR via the network. In the following cases, the video may be played at a lower frame rate than requested:

- Insufficient bandwidth, below the PC recommended specifications, 3 or more concurrent users, or the server is in operating for playback/backup
Network Setup via xDSL

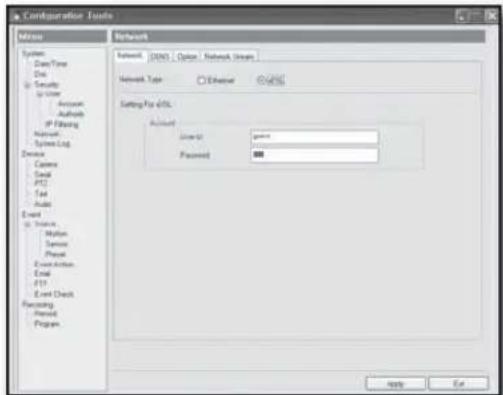

If the DVR is connected to xDSL line that uses PPPoE, change the type to xDSL and provide the user ID and password. Use the user ID and password that were assigned when you registered with xDSL service.
MENU - ▶ - ▶ - ▶ - ▶ - ENTER - ENTER




Communication
Network DDRS    RTP Remote
Type    xDSL
User ID guest
Password    ****
Status  xDSL not connected
Port    4000
Bandwidth Limit >>
Network Stream  >



Type: If using PPPoE, set it to .
User ID/Password : Provide the ID and password for xDSL service.
Port : Enter the port number that you use to register with DDNS, or try to access Smart Viewer or web viewer.

The default port number is 4000. You should be careful when entering the port number if using PPPoE modem and Broadband router.

BandWidth Limit : Specify the maximum transfer rate that the DVR can produce. You don't need to specify the limit manually because this is specified by the network admin.

• Network Stream : Specify the quality of video that is transferred from the DVR via the network.

DDNS Setting

Select the DDNS server and specify the transfer interval.
MENU - ▶ - ▶ - ▶ - ▶ - ENTER - ▶ - ENTER




Communication
Network DDNS    HTTP    Remote
Interval        Off
Server      www.samsungpolis.com
ID
Status      Not Registered
Move    ENTER: Select   ESC: Exit



Interval : Specify the registration frequency for continuous registration. The dynamic IP information will be updated with DDNS server at a specified interval.
If you set it to  or the DVR does not transfer any data for two consecutive days, the DDNS server will delete the interval setting.
Server : Provide the address of the server that you want to register. The DDNS address is www.samsungipolis.com.

• ID : Provide the domain information that you entered when registering the product with the DDNS server.
Status: Show the status of the DVR registration.

What is DDNS?

If he DVR is connected to the cable or xDSL modem, the IP address will change each time the DVR tries to access ISP. If this is the case, you will not be informed of the IP address changed by DDNS. Once you register a dynamic IP-based DVR with the DDNS server, you can easily check the changed IP when you try to access the DVR.
To use the DDNS feature, subscribe to the DDNS server and register the DVR.
Log in to the DDNS server and click Register Device to provide the domain information that you entered.
To register with Samsung DDNS


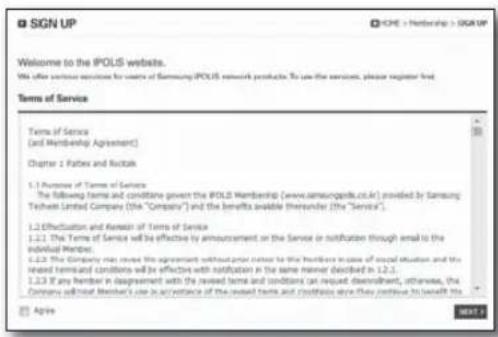

Register yourself at iPOLiS homepage (www.samsungipolis.com).





Welcome to the iPOUS websites.
We offer continuous services for centre of Samsung iPOUS network products. To use the service, please register free.

Terms of Service

1.1 Presence of Terms of Service
The following terms and conditions given the iPOUS Membership (www.samsungipoli.co.uk) provided by Samsung Tshkwe Limited Company (the "Company") and the benefits available thereunder (the "Service").
1.2 Effectuation and Reason of Terms of Service
1.2.1 The Terms of Service will be effective by announcement on the Service or notification through email to the individual Member.
1.2.2 The Company may invest the agreement without prior notice to the Neighborhood Income Bureau of Social Education and the revised terms and conditions will be effective with notification in the same manner described in 12.1.
1.2.3 Any member is agreement with the revised terms and conditions can request download, otherwise, the Company's official Member's use is accordance with the revised terms and conditions are then required to benefit the
Agree

NEXT >



From the top menu bar, select  - .





iPOLiS WHAT IS iPOLiS PRODUCT DIRECT SERVICE
+ MY SABB
+ DANA SERVICE
+ BROWN TAG
NETWORK SEC
THE WORLD CHAPES FOR THE INTERNET NETFLAMERS




Click [PRODUCT REGISTRATION].


Enter the product ID.


- You must perform the duplicate check for the ID that you entered.




MY DONS
Current product list is displayed.
If wanted product is not in the list, click "Product Registration" at the bottom.
NO Product ID MODEL LOCATION STATUS VIEW MANAGEMENT VIEW SAG
nothing
7 & 7 PRODUCT REGISTRATION




Select a  and specify the .


Specify the product location with a description if necessary.


Click [REGISTRATION].


The product will be added to the product list that you can check.




My DONS
Register a new IPOLIS product and manage your videos in realtime.
• Mandatory Information
PRODUCT ID*
• Create an Product ID at 30 characters in length customizing letters A:2 without a:
• To use the MDSI version, the product ID external above is found to be identified in the product ID of your product (a SWS-078) listed in the product setting page
• To register multiple products, please enter that Product ID respectively.
• You stay on able to change the initial product ID name.
http://www.commingipolis.com/
CLASSIFICATION*
• Choose product category
MODEL NUMBER*
• Choose product Author
LOCATION
• Determine the location to install the system as common?
• Designate the limitation location within 16 alphabetic retorts.
DESCRIPTION
• Customize product for management purposes
REGISTRATION >
CANCEL >


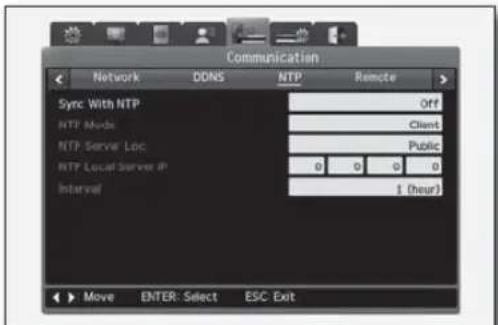

NTP Setting

NTP (Network Time Protocol) is used to synchronize the time between network devices. It consists of the server providing the standard time in the network and the client that is connected to the server for receiving the sync time.
MENU - ▶ - ▶ - ▶ - ▶ - ENTER - ▶ - ▶ - ENTER




Communication
Network DDNS NTP Remote
Sync With NTP Off
NTP Mode Client
NTP Server Loc Public
NTP Local Server IP 0 0 0 0
Interval 1 (hour)
Move ENTER: Select ESC Exit






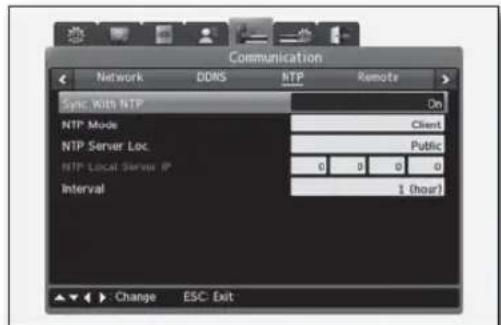

Communication
Network DDNS    NTP Remote
Sync With NTP
NTP Mode    C client
NTP Server Loc  Public
NTP Local Server IP 0   0   0   0
Interval    1 (hour)
Change  ESC: Exit



Sync With NTP: Specify the use of NTP.
NTP Mode: Set the NTP mode to Client, Server or Both.
NTP Server Loc. : This will be active if the NTP mode is set to Client. Specify if the NTP server is located in the local network or the Internet (public).
NTP Local Server IP : If you set the NTP local server to Local, this item will be active. Specify the server IP. Provide the IP of the DVR whose IP or NTP mode of the NTP server in the local network is set to Server.
Interval: Specify the interval for time synchronization.

If the NTP mode is set to Client, NTP application should be set to .
However, if NTP application is set to , you cannot set the . (page 48)

If you set to enable NTP, the time of all recording data will be changed according to the application time of NTP.
Remote Setting

Configure the RS-485 communication settings to sync the DVR with PTZ camera and system keyboard.
MENU - ▶ - ▶ - ▶ - ▶ - ENTER - ▶ - ▶ - ▶ - ENTER




Communication
Network DDNS    NTP Remocte
System Keyboard ID  1
Remote Control ID   All
Serial  COM1    >>>
PTZ Cbl >>>
Move    ENTER: Select   ESC- Exit






Communication
Type None
Move ENTER: Select ESC: Exit


- System Keyboard ID: If you want to use the controller buttons to control all functions of the DVR, specify the ID of the keyboard. If you use a single keyboard to control multiple DVRs, there can occur a conflict against channels. If this is the case, specify a different ID for the keyboard.

Remote Control ID : Provide the ID of the remote control in sync with the DVR. You can specify up to 16 remote control IDs. Each remote control can control up to 16 DVRs.

For registering the remote control ID, refer to "Changing the Remote Control ID". (page 13)
Serial : Configure the settings of the devices connected to each serial port, and the transfer-related menus.
PTZ: Select this if you use the serial port to control the PTZ operations.

To set the serial port

You can use a total of 3 serial ports for your settings. One for RS-232C (COM1), and two for RS-232C (COM2, 3).




Communication
Network OINS NTP Remote
Serial
Device Text
Interface RS232
Baud Rate 9600
Parity Bit None
Stop Bit 1
Data Bit 8
Move ENTER: Select ESC: Exit






Communication
Network OOS FTP Remote
Serial
Device Keyboard
Keyboard SPC-6000
Interface RS212
Baud Rate 9600
Parity Bit Nose
Stop Bit 1
Data Bit 8
Change ESC Exit


- Text : Since only COM1 port (RS-232) supports text, select COM1 in the serial port menu.
- Interface : Fixed to RS-232.
- Baud Rate/Parity Bit/Stop Bit/Data Bit : Configure the same settings with those of each device.

■ For the input text, no keyword search is available.
- Keyboard: If you want to use the keyboard, set the device to Keyboard and select a keyboard to use.
- Interface : Select COM2 or COM3.
- Baud Rate/Parity Bit/Stop Bit/Data Bit : Configure the same settings with those of the keyboard.
- PTZ: If you use the serial port to control the PTZ operations, select PTZ.
SYSTEM SETUP

System Setting

You can configure the system-related settings and upgrade the software.
MENU - ▶ - ▶ - ▶ - ▶ - ▶ - ENTER - ENTER




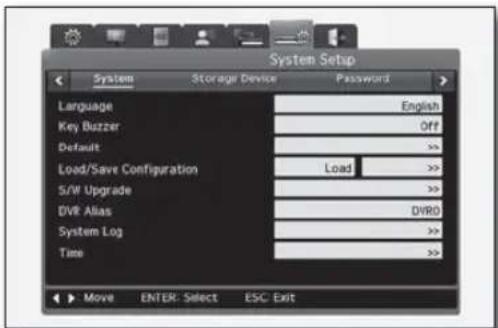

System Setup
System  Storage Device  Password
Language    English
Key Buzzer  Off
Default >>
Load/Save ConfigurationLoad >>
S/W Upgrade >>
DVR Alias   DVRO
System Log  >>
Time    >






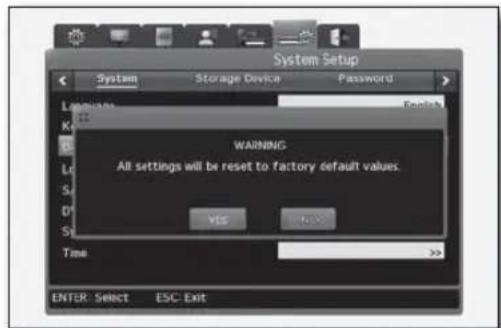

System Setup
System  Storage Device  Password
Language    English
WARNING
All settings will be reset to factory default values.
OK  Next
Time
ENTER: Select   ESC: Exit


• Language : The OSD menu is provided in multiple languages. Select a preferred language.

• Key Buzzer : Specify the use of the key tone if the front button is pressed.

- Default: Used to restore the factory settings.

- Load/Save Configuration : Used to transfer DVR settings saved in the USB memory to the DVR, or save the current settings of DVR in the USB memory.




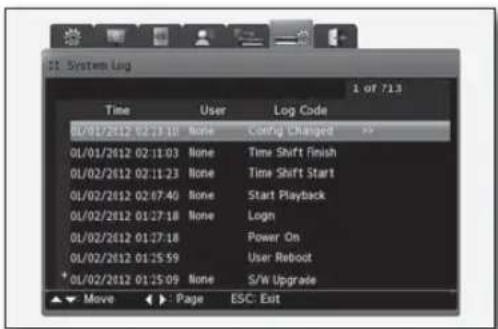

System Log
1 of 7/13
Time    User    Log Code
01/01/2012 02:13:10 None    Codrig Changed >>
01/01/2012 02:11:03 None    Time Shift Finish
01/02/2012 02:11:23 None_TIME Shift Start
01/02/2012 02:07:40 None    Start Playback
01/02/2012 01:27:18 None capital
01/02/2012 01:27:18 None Power On
01/02/2012 01:25:59 None User Reboot
+ 01/02/2012 01:25:09   None    S/W Upgrade
Move    Page    ESC: Exit






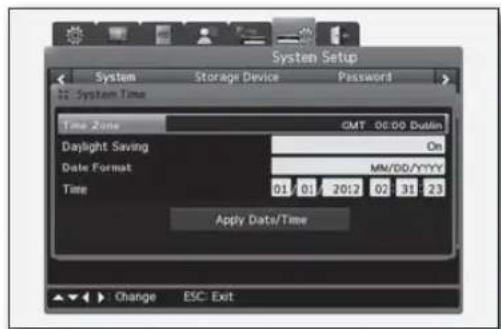

System Setup
System Storage Device Password
System Time
Time Zone GMT 00:00 Dublin
Daylight Saving On
Date Format MM/DD/YYYY
Time 01 01 2012 02 31 23
Apply Data/Time
Change ESC Exit



S/W Upgrade : Perform the software upgrade using the upgradable files in the USB memory.
DVR Alias : Use the virtual keyboard to enter the DVR alias.
System Log : If you change the menu settings for each user, power on/off, change the time settings with time, use the system event or HDD, or make a copy, all of them will be listed in the system log.
Time : Specify the time and date that will be applied to your system.

To protect recording data, it is recommended to set the time according to the local area.


■ Do not change the time during the recording.
If you change the time, the time of all recording data will be changed according to the changed time.
To update the software

The USB updatable files is formatted in "*.dat".




System Setup
System  Storage Device  Password
Language    English
NOTICE
Do you want to update F/W from USB memory?
This operation will reboot this machine
YES No...
Time    >>.
ENTER: Select   ESC: Exit



Download the USB updatable files to the USB device before connecting to the DVR.
Select the Software Update item in the system menu, and press [ENTER].
If you are prompted to confirm the update, click  and press [ENTER]. The system will reboot in a moment with a buzzer.

To specify the time

If you change the time in the recording process, the time of an existing recording video will be changed accordingly so it is recommended to copy important video data before changing the time.




System Setup
System Storage Device Password
System Time
Time Zone GMT 00:00 Dublin
Darlight Saving Custom
Custom DST Setup >>
Date Format MM/DD/YYYY
Time 01 01 2012 01 31 23
Apply Data/Time
Change ESC Exit






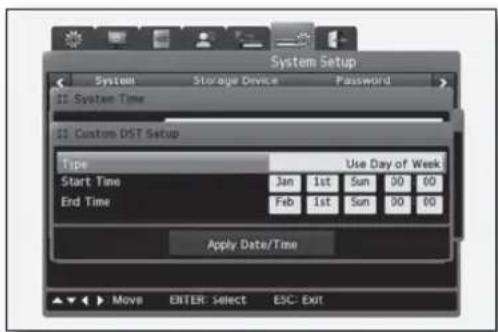

System Setup
System Storage Device Password
System Time
Custom DST Setup
Type Use Day of Week
Start Time Jan 1st Sun 00 60
End Time Feb 1st Sun 00 60
Apply Date/Time
Move ENTER: Select ESC: Exit



Press the [MENU] button on the front panel or select <◀> in the Function menu.
Move to the  menu and select . Then, press [ENTER].
If you move to a sub menu item, use the direction buttons or the mouse to select it, and press [ENTER] or simply click it.

- Time Zone : Use the front [◀▶] or mouse wheel to select a time zone. Each time you press the arrow button, the time zone will switch. (To return to the previous menu, press the front [ESC] button or simply right-click it. This method is the same in all OSD menus.)
- Daylight Saving: This will be in sync with your time zone setting. Namely, If you select an area where DST is applied in the Time Zone menu, DST will be automatically set to . Otherwise, it will be set to . Select  if you want to configure your own DST settings regardless of the standard time zone and DST. If you select , the Custom DST menu will be displayed.

Custom DST contains two options  and .

In , specify the month, week, day of the week and time for the start and end times of DST.

 requires you to specify the month, day and time for the start and end times of DST.


For the overlapped time when DST expires, play data with the DST time and then, play data after the DST time.

- For more information about NTP, refer to "NTP" in the network setup.

■ However, if NTP is set to , you cannot specify the time.

Date Format : Specify the date format. Use the left/right buttons or the mouse wheel to select one from ,  and
.
Time : Use the [◀▶] button to move to Year, Month, Day and Hour in order. For time settings, use the [▲▼] buttons or the mouse wheel.
Apply Date/Time : To apply the time settings, you must press the  button. If you press this button, the warning message will be displayed.


- Other than the "Time/Date" settings will be saved automatically when you exit the menu. However, the "Time/Date" setting may affect HDD recoding file system so it are not saved automatically. To apply your changes, you must press the  button.
Disk Check

This will check the internal and external HDDs, and enable you to add, remove or format one as you want.
MENU - ▶ - ▶ - ▶ - ▶ - ▶ - ENTER - ▶ - ENTER




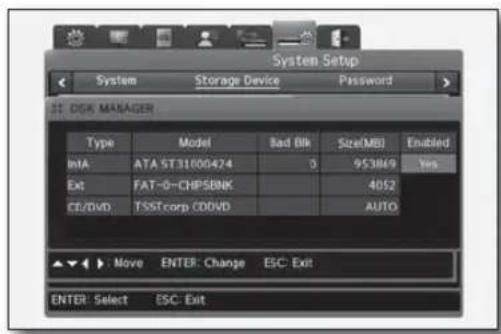

System Setup
System Storage Device Password
DISK MANAGER
Type Model Rad Disk Size(MB) Enabled
INTA ATA ST31000424 0 953849 Yes
Ext FAT-0~CHPSBNK 4052
CD/DVD TSSTcorp CDDVD AUTO
Move ENTER: Change ESC Exit
ENTER: Select ESC Exit






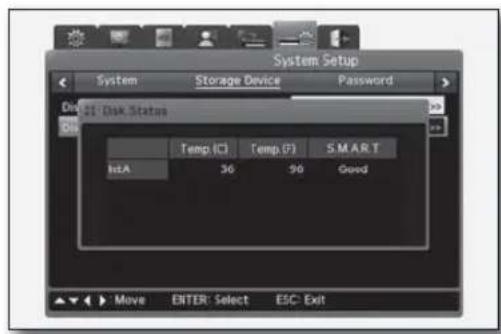

System Setup
Storage Device Password
Disk Status
Temp (C) Temp (F) SMART
kTA 36 90 Good
Move ENTER: Select ESC: Exit


- DISK MANAGER: You can use the disk manager to manage both internal/external HDDs and external storage devices. You can specify the HDD status, error block, size and use of HDD.

Type : Display the disk location and type.
IntA (internal HDD A), IntB (internal HDD B), eSATA (external storage), Ext (external storage)
Model : Show the HDD model name.
Bad Blk : Show the HDD containing an error block. It is displayed "0" if there is no error. The error bock will not be displayed for an unused HDD.
Size(MB) : Display the HDD size in MB.
Enabled : Enable or disable the HDD.

If you change HDD to Yes

- Enabled : With this set to , if you press [ENTER] or turn the mouse wheel, you will see a warning message as below:
"NOTICE: This disk can be added without format. Nevertheless, do you want to format this disk?"

If selecting , the existing data in the HDD will be intact and the HDD will be enabled.
If selecting , the existing data in the HDD will be removed and the HDD will be enabled.

If you change HDD to No


Enabled : With this set to , if you press [ENTER] or turn the mouse wheel, you will see a notice as below:

"NOTICE: Disk will be removed."

- If selecting , you will see a message of "Recording disk removed." and this option will switch to .
The HDD will not be enabled.
- If selecting , the HDD will be intact.
- Disk Status: You can check the temperature and status of the HDD installed in the system.

A HDD that was used for other device (PC or DVR) should have any partition removed before you can use it on the current device.
Security

Security setting

The DVR accounts are classified in two: user and admin. The admin account can access all features of the DVR without restriction.
You can add up to 10 users, each of whom can use or access the DVR only within the permissions granted.
MENU - ▶ - ▶ - ▶ - ▶ - ▶ - ENTER - ▶ - ▶ - ENTER




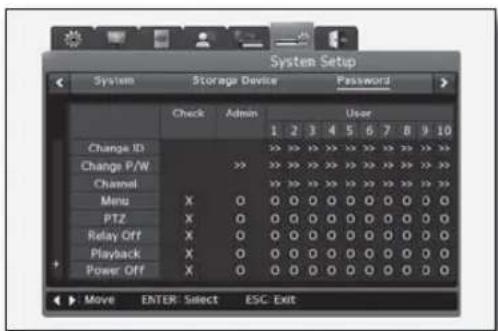

System Setup
System  Storage Device  Password
Check   Admin   User
1   2   3   4   5   6   7   8   9   10
Change ID       >> >> >> >> >> >> >> >> >> >>
Change P/W      >>  >> >> >> >> >> >> >> >> >> >>
Channel     >> >> >> >> >> >> >> >> >> >> >>
Menu    X   0   0   0   0   0   0   0   0   0   0   0   0
PTZ X   0   0   0   0   0   0   0   0   0   0   0   0
Relay Off   X   0   0   0   0   0   0   0   0   0   0   0   0
Playback    X   0   0   0   0   0   0   0   0   0   0   0   0   0
Power Off   X   0   0   0   0   0   0   0   0   0   0   0   0   0
Move    ENTER: Select   ESC: Exit






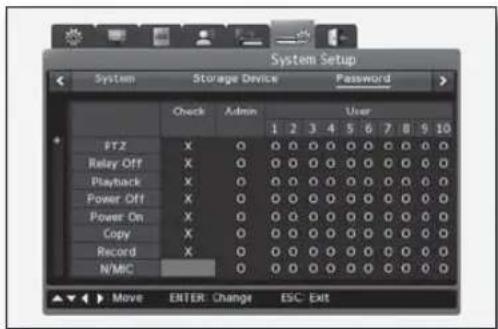

System Setup
System Storage Device Password
Check Admin User
PTZ X O 1 2 3 4 5 6 7 8 9 10
Relay Off X O O O O O O O O O O
Playback X O O O O O O O O O O
Power Off X O O O O O O O O O O
Power On X O O O O O O O O O
Copy X O O O O O O O O O
Record X O O O O O O O O O
N/MIC 0 O O O O O O O O
▲▼ ▶ Move ENTER Change ESC Exit



Check : From the Authority Settings menu, If you set all items in the Check option to , all users can access the DVR without restriction.

On the contrary, if you set them all to <0>, each user can access the DVR within their respective permission.
Channel : Only the video from the channels selected by the user will be played; unselected channels will be set to COVERT.

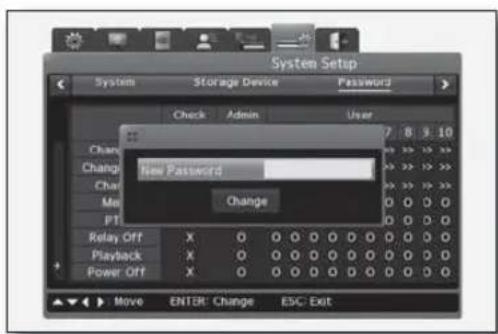

To change the password





System Setup
System Storage Device Password
Check Admin User
Change
Change
Change
New Password
Change
Relay Off X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Playback X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Power Off X 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0


menu setup


Select Change P/W.
When a new password dialog appears, provide a new password.

■ You can enter a max of 12-digit password.
Press the  button.
If you are prompted to confirm the change, click .

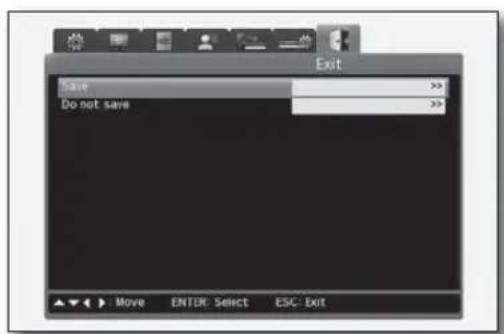

EXIT

Exit

You can return to the Live screen with saving or without saving the settings in other menus.
MENU - ▶ - ▶ - ▶ - ▶ - ▶ - ▶ - ENTER




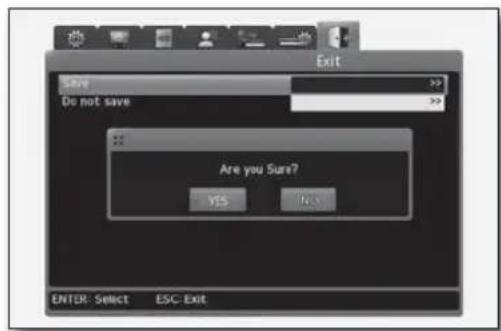

Exit
Save >>
Do not save >>






Save
Do not save
Are you Sure?
YES
No
ENTER: Select ESC-Exit



Save : Select this if you want to save the settings in other menus. If prompted to confirm your selection, click .
Do not save: Select this if you don't want to save the settings in other menus.

PLAY MODE

Play in default mode (4-split screen)


In Live mode, press the [▶] button or click <▶> in the Function menu bar.
If you press the Play or Change Speed button, the video will be played in the default speed of x1.
If you press the Change Speed button, the video will be played backward in the default speed of x1.


If you press Play in a split mode, the screen will be split in 4 and display the video for each of 4 channels.

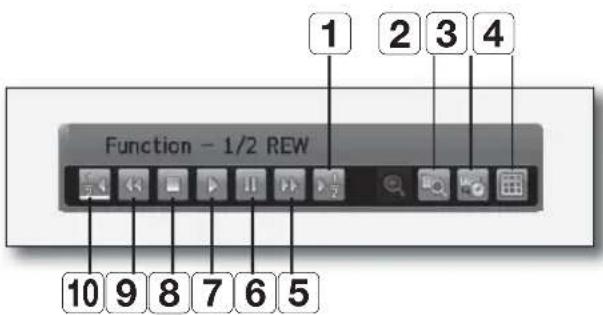

Playback control





1
2
3
4
Function - 1/2 REW
10 9 8 7 6 5


Item Description
1
1/2 FWD
If you pressin the Function menu bar, the DVR will play the video forward at 1/2 speed.
2
Search
Move to the search menu screen.
3
Copy
Move to the Copy Setup screen.
4
Display
The single screen mode or 4-split mode button will be displayed on the screen.
5
FWD
Each time you press this button, the play speed will switch to: (x1, x2, x4, x8, x16, x32, x64, x1/2, x1, x2, x4 in this order)If you pressin Live mode, the video one minute before now Live-mode time will be played.You can pressin the Function menu bar to change the speed.
6
Pause
Stop playing the video temporarily. If using the mouse, clickin the Function menu bar..
7
Play
Play the video at x1 speed. If using the mouse, clickin the Function menu bar.If you press [▶] in Live mode, this will always play multiple videos.If you pressto play the recording data, the DVR will play the video starting with the last run video.
8
Stop
Stop playing the video. If using the mouse, clickin the Function menu bar.
9
REW
Each time you press this button, the backward play speed will switch to: (x1, x2, x4, x8, x16, x32, x64, x1/2, x1, x2, x4 in this order)If you pressin Live mode, the video 10 seconds before the last recording section will be played reversely.You can pressin the Function menu bar to change the speed.
10
1/2 REW
If you pressin the Function menu bar, the DVR will play the video backward at 1/2 speed.

SEARCH MODE

In this mode, you can search for a specific time or log for playing a desired video.
Search mode includes time, calendar, event and thumbnail.
To enter the search mode, press [SEARCH] on the front panel or remote control, or click <☐> in the Function menu bar.




SEARCH
Time
Calendar
Event
Thumbnail



If you right-click during the search, you will return to the previous menu like the operation of the [ESC] button, instead of opening the Function menu bar. To use the Function menu bar, press [FUNC] on the front panel or exit the Search menu and simply right-click any area.
Time Search

Specify the time and date for your search and press Search, and you will move to the video on that specific date and time.




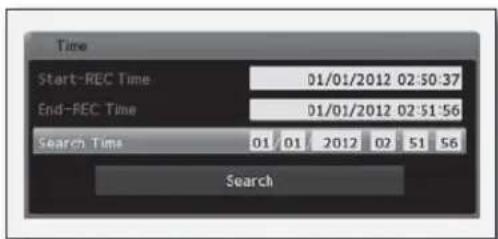

Time
Start-REC Time  01/01/2012 02:50:37
End-REC Time    01/01/2012 02:51:56
Search Time 01/01   2012    02  51  56
Search



Start-REC Time : Display the time and date of the first recording.

• End-REC Time : Display the last recorded time and date.
Search Time: Select a time and date for your search between first recording time and current time.
Search : Search for the video at the specified time.

Calendar Search

You can use the calendar to search for a desired date/time.

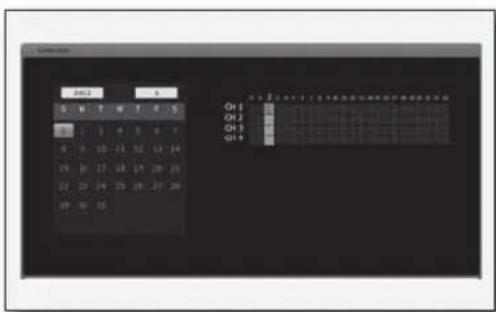

The below picture shows an example of time settings containing: year, month, date and time.




2013
5
S W T W T F S
Q1 2 3 4 5 6 7
4 6 10 15 12 13 14
19 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
Q4
Q3
Q2
Q1






01/01/2017 02:59:05
01/01/2017 02:59:05


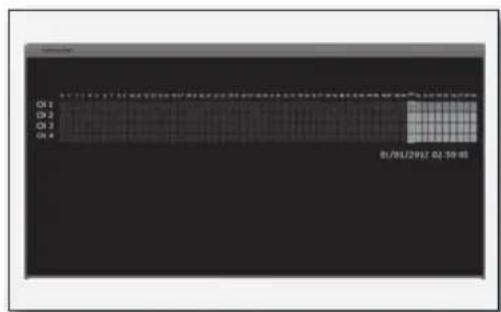

If you click a hour-based time line, you will see the recording details by the minute.
Select a specific minute in the time line and press [ENTER].
• Year : Select a year for your search. You can use the mouse wheel to change the year.

• Month : Select a month for your search. You can use the mouse wheel to change the month.

- Date : Move to a specific date in the calendar and press [ENTER]. You can use the mouse to select a date and use the mouse wheel to search by the hour.

• Hour : Select a desired timeline and press [ENTER]. You can search for recording data by the minute.

- Minute: The recording data will be listed by the minute. Select a desired timeline and press [ENTER] to play the video. If using the mouse, select a video listed by the minute. Use the wheel to play the video.
Event Search

You can select a specific range for your search by sorting by: all channels, some channels, entire events, motion detection and sensor.
Use the [▲▼] buttons on the front panel to change the time and date; if using the mouse, select an item to change and turn the wheel to set your setting.




Event
Start-REC Time  01/01/2012 02:50:37
End-REC Time    01/01/2012 02:54:48
Search Start Time   01/01 2012 02:56:37
Search End Time 01/01 2012 02:54:48
Event Channel   All
Event Type  All
Search






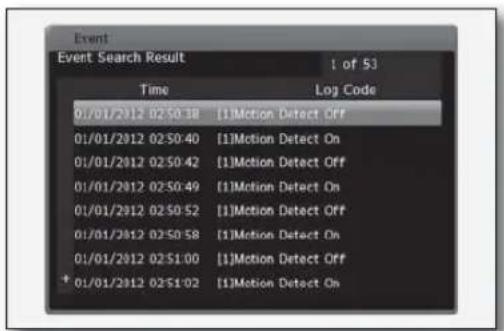

Event
Event Search Result
1 of 53
Time
Log Code
01/01/2012 02:50:38
[1]Motion Detect Off
01/01/2012 02:50:40
[1]Motion Detect On
01/01/2012 02:50:42
[1]Motion Detect Off
01/01/2012 02:50:49
[1]Motion Detect On
01/01/2012 02:50:52
[1]Motion Detect Off
01/01/2012 02:50:58
[1]Motion Detect On
01/01/2012 02:51:00
[1]Motion Detect Off
+ 01/01/2012 02:51:02
[1]Motion Detect On



Start-REC Time : Display the time and date of the first recording.

• End-REC Time : Display the last recorded time and date.
Search Start Time : Specify the start time and date for your search. Use the arrow buttons to move to a desired item and press [ENTER]. While holding the button, use the [▲▼] button to change the setting. If using the mouse, simply click an item to change and use the wheel to change the setting.
Search End Time: Specify the end time and date for your search. Use the arrow buttons to move to a desired item and press [ENTER]. While holding the button, use the [▲▼] button to change the setting. If using the mouse, simply click an item to change and use the wheel to change the setting.

• Event Channel : Select a channel for your search.

• Event Type : Select a type of event that you want to search for. You can select from: All, MD, Sensor, V-Loss, Text and Relay.


The event occurrence status can be checked only in .
To check the search result


Press the  button.
From the result list, move to a desired event and press [ENTER] or turn the mouse wheel. The DVR will play the recording data at the specific time and date.

Thumbnail

Use the [▲▼] button or the mouse wheel to select a specific time at which interval you will search.
The search result will be listed in thumbnails. Select a thumbnail. The DVR will play the recording data at the specific time and date.




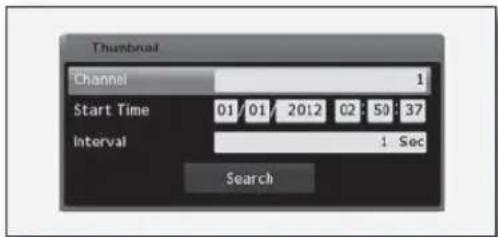

Thumbual
Channel 1
Start Time 01/01/20:12 02:50:37
Interval 1 Sec
Search



Channel : Select a channel for your search. You can use the [▲▼] button or mouse wheel to change the setting.
Start Time : Specify the start time and date for your search. Use the [◀▶] button to move to an item to change and press [ENTER]. Then, use the [▲▼] button or the mouse wheel to change the setting.
Interval : Your search will be separated at a certain interval. The search result will be displayed. Use the [▲▼] button or mouse wheel to change the setting.
View Video : Press  to display up to 16 recording videos from the start time. To return to the search window, press the [FUNC] button or use the mouse wheel.
Select Video : Click a thumbnail video item to start playing the videos from the selected timeline. Press [ENTER] or click the item to play the video.

COPY

You can copy a recording video. Options available include: CD/DVD, EXE and AVI.
Only the users with applicable permission granted in the security setup can copy the video.
To make a copy, press the [COPY] button on the front panel or remote control, or click <→> in the Function menu bar.

- Files copied in the format of  or  can be played only with the mini-player, which will be automatically copied together with the files.
CD/DVD

You can use CD/DVD to make a copy, which will be recognized automatically by the DVR.




COPY
Type
CD/DVD
Channel
>>
From
01 01 2012 02: 50: 37
To
01 01 2012 02: 50: 37
Bookmark
#1
>>
Select Disk
Type Model Size(MB)
CD/DVD TSSTcopy CDDVD AUTO
Start Estimate size
► : Move ENTER: Select ESC: Exit



Type : Select CD/DVD. Use the front [▲▼] buttons or mouse wheel to select CD/DVD. Press and hold [ENTER], and use the [▲▼] button or mouse wheel to change the setting.
Channel : You can select some or the entire channels from 4 channels. Select a channel position and press [ENTER]. You can also use the mouse wheel for the same purpose.
From : Specify the start time and date for the copying. You can use the [▲▼] buttons on the front panel or remote control, or mouse wheel for this purpose.
To : Specify the end time and date for the copying. You can use the [▲▼] buttons on the front panel or remote control, or you can use the mouse wheel for this purpose.
Select Disk : Select a medium to use for the copying.
Start : Start copying. Press [ENTER] as  button or simply click the selected medium to start copying.
Estimate size: This function approximates the size of the data to be copied. It calculates the size by unit of 1MB for footages of less than 1 hour long, and uses unit of 256MB for longer than 1 hour.

EXE

You can use the USB memory for copy.
You can use the mini-player to play the file. Select a channel position and press [ENTER], or use the mouse wheel to select it.

■ The USB type of HDD is not supported.




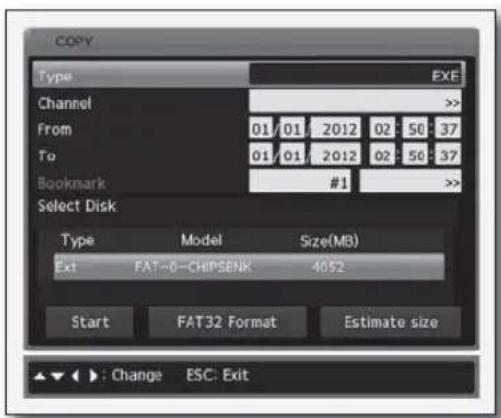

COPY
Type    EXE
Channel >>
From    01/01 2012 02:56:37
To  01/01 2012 02:56:37
Bookmark    #1  >>
Select Disk
Type-model  Size(MB)
Ext FAT-0-CHIPSENK  4652
Start   FAT32 Format    Estimate size
► : Change  ESC: Exit






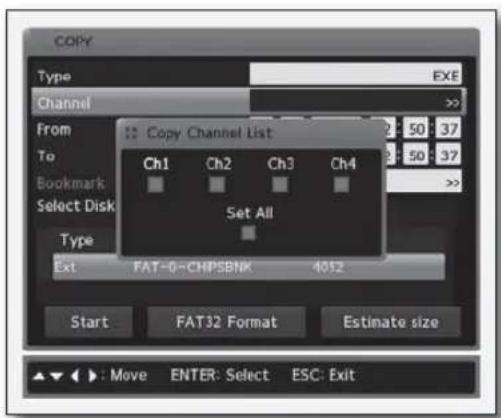

COPY
Type
EXE
Channel
From
To
Bookmark
Select Disk
Type
Ext FAT-0-CHPSBNK 4012
Copy Channel List
Ch1 Ch2 Ch3 Ch4
Set All
Start FAT32 Format Estimate size
: Move ENTER: Select ESC: Exit



Type : Select EXE. Select this using the [▲▼] button or the mouse wheel.
Channel : To display the channel selection dialog, move to a channel and press [ENTER] or use the mouse wheel to open the dialog.
Copy Channel List: You can select some or the entire channels. Select a channel position from the channel list and press [ENTER]. You can also use the mouse wheel for the same purpose.
From : Specify the start time and date for the copying. Select an item to change and use the [▲▼] button or mouse wheel to change the setting.
To : Specify the end time and date for the copying. This is the same as specifying the start time.

search & play


Select Disk : Select a medium to use for the copying. Move to a desired disk and press [ENTER] or simply click it.
Start : Start copying. Press [ENTER] or just click it.
FAT32 Format : Format the USB memory or eSATA HDD if not formatted in FAT32 before proceeding. Press [ENTER] or simply click it to start formatting.

A copy file that is not completed by 100% cannot be played properly on the PC.
- Estimate Size: This function approximates the size of the data to be copied. It calculates the size by unit of 1MB for footages of less than 1 hour long, and uses unit of 256MB for longer than 1 hour.
MiniPlayer

The mini player is a dedicated tool that will be copied along with the CD, DVD or EXE copy.
You can change the spit mode of Miniplayer to your preference in Windows mode. Double-click a split screen to switch to Single mode.
The Filter function includes adjusting the display settings. You can adjust the brightness and contrast of the screen image. Besides, there are play-related buttons in the bottom of the player.




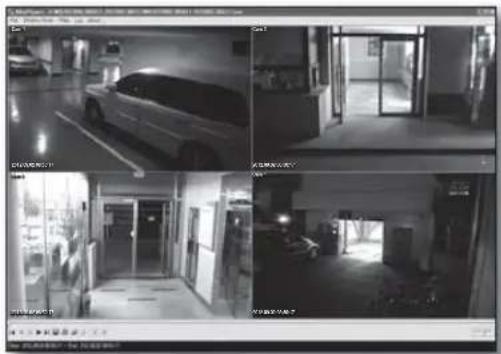

Security camera screenshot showing four black-and-white photos of a car parked in a garage, with Chinese UI labels and status bar at bottom.


Controlling the MiniPlayer





Start 2012.09.02 09:50:17 - End 2012.09.02 09:51:17


Item Description
REW Step
Move backward by one step
REW
Play reversely at x1 speed
Pause
Stop playing temporarily
Play
Play at x1 speed
FWD Step
Move forward by one step
Image Save
Save the image
Image Print
Print out the image
File Open
Open a selected file
Audio On/Off
Listen to/stop playing audio
Show Previous Group
Move to the previous split mode or single mode
Show Next Group
Move to the next split mode or single mode
Audio Volume
Control the audio volume
Copy Time
Start
Display the copy time

AVI

This enables you to copy some of the selected channel in the USB memory.

■ The USB type of HDD is not supported.




COPY
Type    AVI
Channel 1
From    01/01 2012 02:50:37
Duration    1 Sec
Bookmark    #1 >>
Select Disk
Type-model  Size(MB)
Ext FAT-0-CHIPSENK  4052
Start   FAT32 Format    Estimate size
Change  ESC: Exit



Type : Select AVI. Select this using the [▲▼] button or the mouse wheel.
Channel : Select a channel to copy. Select this using the [▲▼] button or the mouse wheel.
From : Specify the start time and date for the copying. Use the [◀▶] button to move to the time or year item. Use the [▲▼] button to change the time/date. If using the mouse, click a point to change and use the wheel to change the setting.
Duration : Specify the copy duration. Copy from the start time to as specified. Use the [▲▼] button or the mouse wheel to change the setting.
Select Disk : Select a medium to use for the copying. Move to a desired disk and press [ENTER] or simply click it.
Start : Start copying. Press [ENTER] or just click it to start copying.
FAT32 Format : Format the USB memory or eSATA HDD if not formatted in FAT32 before proceeding. Press [ENTER] or simply click it to start formatting.
Estimate size: This function approximates the size of the data to be copied. It calculates the size by unit of 1MB for footages of less than 1 hour long, and uses unit of 256MB for longer than 1 hour.


If your PC fails to play a copied file, you must install the integrated codec on your PC.
OVERVIEW OF WEB VIEWER

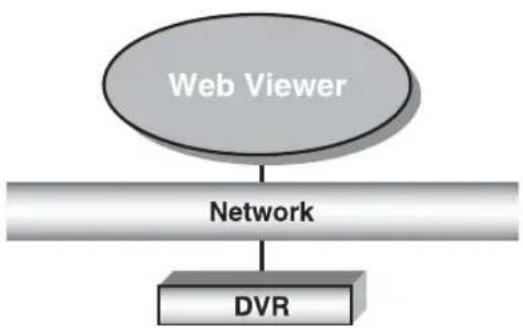

What is the Web Viewer?

Mobile Viewer is management software that enables you to connect to DVR (Digital Video Recorder) remotely and control the video playback and PTZ operations (if configured) in real time.
Key Features


Remote access via the default browser

• 1\~4 channels supported (up to 4 cameras)
Save in the format of JPEG or BMP for the purposes of printout or storage. (Play mode)
AVI format recording in compliance with commercial media players (integrated coded required)




System Requirements

The minimum requirements to run the web viewer are as follows.
Operating System
Windows XP ProfessionalWindows Vista Home Basic / PremiumWindows 7 DirectX 9.0 or later
Web Browser Internet Explorer 6.0 or higher
CPU Core 2Duo 2.66GHz
RAM 2GB or higher
VGA Memory 512MB
HDD 200GB or more



In the following cases, you will see a message of "Insufficient resource". Then, you can view the monitoring video only in a lower frame rate until the web viewer is connected back again.
If the web viewer is not guaranteed to operate properly due to insufficient specification of the PC that is running the web viewer

■ If other running program deteriorates the performance of the web viewer

- Or if the DVR is not connected stably to the network

■ The network performance is not guaranteed due to a restricted bandwidth of the DVR

If the PC specification is below Core 2 Duo 2.66GHz (minimum requirement), the PC cannot meet the normal play speed.
CONNECTING TO THE WEB VIEWER


Open the web browser and enter the IP address and port number (that are specified in the DVR) in the address bar. The address is in such a format of "http://192.168.1.200:4000." If you change the default port number (4000), enter the new port number in the port input box. (page 43)





Samsung Network Video Server - Windows Internet Explorer
http://192.168.1.200-4000/
File Edit View Favorites Tools Web
Favorites Suggested Star Free Hotmail Web Ice Gallery
Samsung Network Video Server



For the admin account, provide the admin ID and password for the DVR.
A registered user shall provide the user ID and password for the DVR.





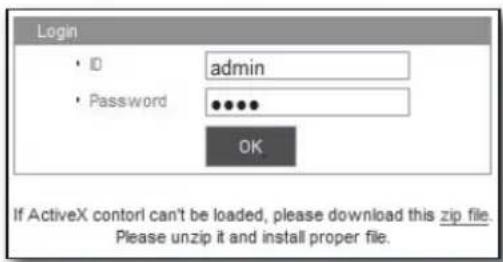

Login
• ID admin
• Password •••••
OK
If ActiveX contori can't be loaded, please download this zip file.
Please unzip it and install proper file.



- The web viewer allows a max of 10 concurrent users including the administrator.
■ The default password of the admin account is "4321".

The respective passwords for the admin and registered users can be changed in the  menu of the DVR.

■ The DVR settings will take priority over all other settings.

- The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.

Download the  in the bottom of the login dialog. Unzip it.

Select a suitable one to your PC from the unzipped files of , , .


vcredist_IA64.EXE : For a PC featuring Intel Itanium 64bit CPU.

vcredist_x64.EXE : For a PC featuring Xeon 64bit CPU.

vcredist_x86.EXE : For ordinary PCs featuring 32bit CPU.


Click


Downloading Active-X control may take several minutes according to the security settings on your PC.




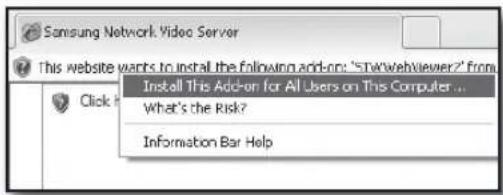

Samsung Network Video Server
This website wants to install the following add-on: "STIWebViewer2" from
Install This Add-on for All Users on This Computer...
What's the Risk?
Information Bar Help



Click
The installation is completed.
You will see the main screen of the Live Viewer.





Internet Explorer - Security Warning
Do you want to install this software?
Name: STWWebViewer2
Publisher: Samsung Techwin Co., Ltd.
$ More options
Install
Don't Install
While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?


Provide the user ID and password in the login page. If the information is authenticated, you will move to the monitoring page. In the monitoring page, you can view the camera video in real time and control the PTZ camera, relays, listening to audio and microphone, which are connected according to your permission level.

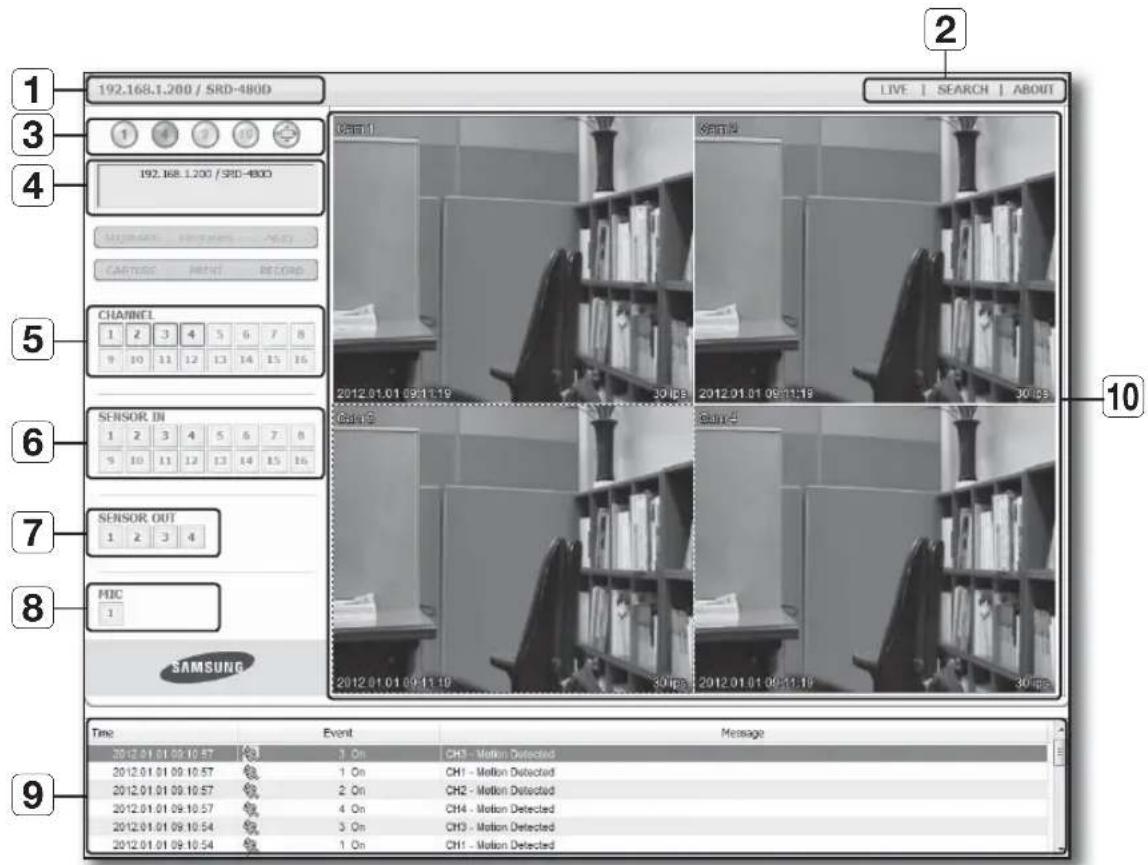

Live Viewer at a Glance

If you open the web viewer, the Live Viewer will be displayed in the start screen. If you want to open a different viewer, click  in the top right corner.




192.168.1.200 / SRD-4B0D
1
3
4
192.168.1.200 / SRD-4B0D
CHANNEL
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR IN
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR OUT
1 2 3 4
MIC
1
SAMSUNG
Time Event Message
2012.01.01 09:10:57 3 On CH3 - Motion Detected
2012.01.01 09:10:57 1 On CH1 - Motion Detected
2012.01.01 09:10:57 2 On CH2 - Motion Detected
2012.01.01 09:10:57 4 On CH4 - Motion Detected
2012.01.01 09:10:54 3 On CH3 - Motion Detected
2012.01.01 09:10:54 1 On CH1 - Motion Detected
LIVE | SEARCH | ABOUT
2012.01.01 09:11:19 30 fps CH2-01.01.09:11:19 30 fps CH3-01.01.09:11:19
2012.01.01 09:11:19 30 fps CH4-01.01.09:11:19 30 fps CH5-01.01.09:11:19
2012.01.01 09:11:57
Time Event Message


Item Description
1
Connection Information
The model name of the DVR that is connected through the IP address will be displayed.
2
Select Viewer
Select one viewer from, , and.
3
Screen Mode
Switch to a split mode or full screen.
4
Connection Status
The IP address and model name of the connected DVR will be displayed.
5
CHANNEL
Display the video input channel.
6
SENSOR IN
Display the sensor input channel.
7
SENSOR OUT
Display the sensor output channel.
8
MIC
Specify the use of the microphone.
9
Log
Display the event log.
10
Display Pane
Display the video from the camera that is connected to the DVR.

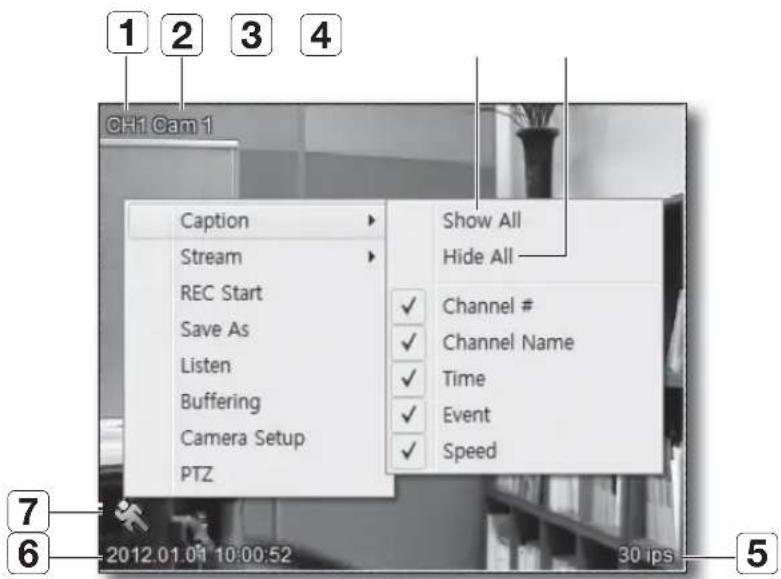

OSD Information

Place the cursor on the channel screen and right-click any area to display the context menu where you can select to display or hide the information on the OSD screen.




1 2 3 4
CH1 Cam 1
Caption
Stream
REC Start
Save As
Listen
Buffering
Camera Setup
PTZ
Show All
Hide All
✓ Channel #
✓ Channel Name
✓ Time
✓ Event
✓ Speed
7
6 2012.01.01 10:00:52 30 ips 5


Item Description
1
Channel #
Display the channel number.
2
Channel Name
Display the channel name.
3
Show All
Display all OSD information.
4
Hide All
Hide all OSD information.
5
Speed
Display the transfer rate of network streaming.
6
Time
Display the system time of the DVR.
7
Event
Display the icon applicable to the event that occurred.

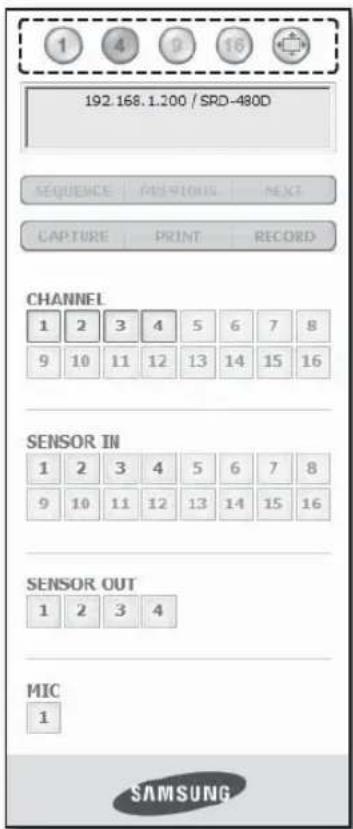

Split Mode

Click a desired numeric icon to switch the split mode.




Black-and-white photo of a bookshelf with books and a vase, no visible text or symbols






Grid of four grayscale images showing bookshelves and a small object, no text or symbols present.


1-split Mode 4-split Mode
- Click <1>.
The "1-split mode" will display the video from the camera connected to the DVR.

 appears in case of full screen mode, and selecting it displays the stream in its original resolution on the screen.
If the stream's resolution is bigger than that of the monitor, it fits to the screen resolution of full screen mode.
- Click <4>.
The "4-split mode" will display the videos from the cameras connected to the DVR.
- Click <.
The video from the camera connected to the DVR will be displayed in "Full Screen" mode.




192.168.1.200 / SRD-480D
SEQUENCE | PREP題ING | NEXT
CAPTURE | PRINT | RECORD
CHANNEL
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR IN
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR OUT
1 2 3 4
MIC
1
SAMSUNG


Full Screen

To return to the previous mode, right-click to select  in the context menu.




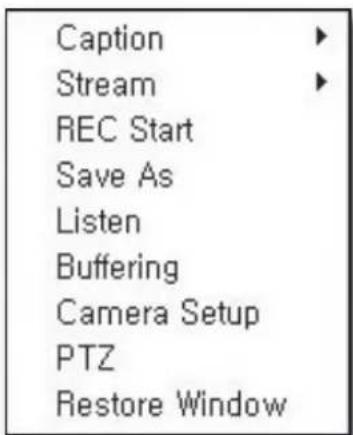

Caption
Stream
REC Start
Save As
Listen
Buffering
Camera Setup
PTZ
Restore Window


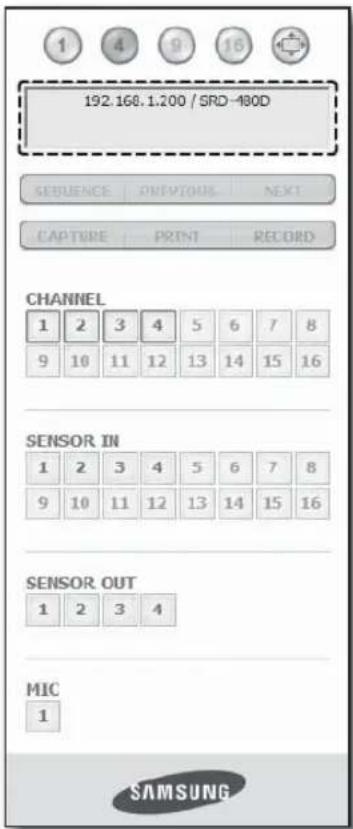

Connected DVR

Display the IP address and operation status of the connected DVR.

■ Connection failure message
No response : Displayed if the DVR makes no response
Connection not allowed : If the number of concurrent users exceeds the limit
■ The maximum number of concurrent users is 10.




192.168.1.200 / SRD-480D
SEQUENCE | PREVIOUS | NEXT
CAPTURE | PRINT | RECORD
CHANNEL
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR IN
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR OUT
1 2 3 4
MIC
1
SAMSUNG


Channel Connection

You can turn on or off the channel connection.
Channels available will be marked in blue. if selecting one, the border of the channel button will turn blue and the video from the channel will be played.

If you click the button of a connected channel, the current video will be disconnected and the screen will turn black.
Sensor Input

This icon will be displayed if a sensor event occurs from the DVR.
If a sensor event occurs, the sensor icon will turn red and the sensor number will be displayed on the screen. If no sensor event occurs, the icon stays in blue.

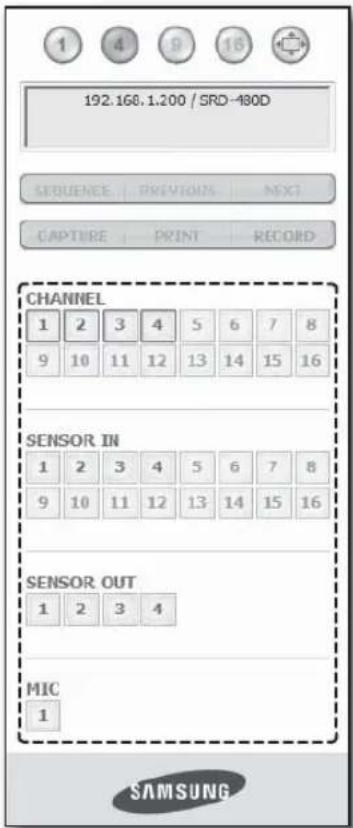

Sensor Output

You can turn on or off the relay. Click the number button of a relay that you want to activate. The relay turns ON and the button turns blue.
Inactive sensor output buttons indicate that they are not supported by the DVR.
To activate the relay, you must have that permission.
For more information, refer to the relay user permission. (page 51)




192.168.1.200 / SRD-480D
SEQUENCE | PREVIOUS | NEXT
CAPTURE | PRINT | RECORD
CHANNEL
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR IN
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
SENSOR OUT
1 2 3 4
MIC
1
SAMSUNG


Microphone

You can turn on or off the microphone. It is defaulted to OFF. If you click the button, it will turn blue, indicating that it is ready for use.
The audio signal incoming to the microphone will output to the audio output port of the DVR.
Event Information

Display the real-time information of an event that occurred in the bottom of the monitoring screen.
Time
Event
Message
2012 01 01 09:10:57
3 On
CH2 - Motion Detected
2012.01.01 09:10:57
1 On
CH1 - Motion Detected
2012.01.01 09:10:57
2 On
CH2 - Motion Detected
2012.01.01 09:10:57
4 On
CH4 - Motion Detected
2012.01.01 09:10:54
3 On
CH3 - Motion Detected
2012.01.01 09:10:54
1 On
CH1 - Motion Detected


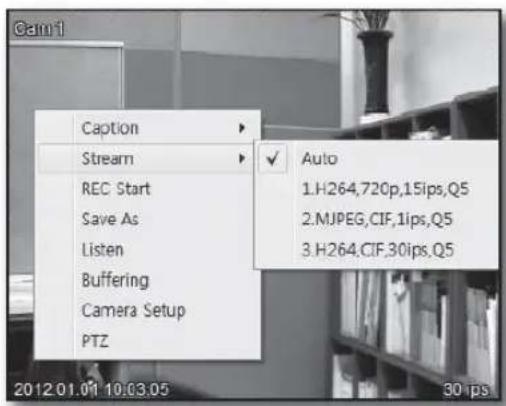

To select a stream


On the current monitoring screen, select a channel to record.
Right-click to display the context menu, and select .
Select a desired video stream.


In the following cases, the video may be played at a lower frame rate than requested:
- Insufficient bandwidth, low-performance computer, 3 or more concurrent users, or the server is in operating for playback/backup




Caption
Stream
REC Start
Save As
Listen
Buffering
Camera Setup
PTZ
Auto
1.H264,720p,15ips,Q5
2.MJPEG,CIF,1ips,Q5
3.H264,CIF,30ips,Q5
2012 01.01 10:03:05
30 ips


To make recording


On the current monitoring screen, select a channel to record and right-click it.
In the context menu, select . You can make recoding for a max of 10 minutes. For quick recording, the recoding time will be displayed on the screen.
Recording will be ended automatically in 10 minutes after the start.





Caption
Stream
REC Stop
Save As
Listen
Buffering
Camera Setup
PTZ
2012 01.01 10:25.13
30 ps
REe 02.10



During the recording, right-click to display the context menu, and select  again. The recording will be ended. And you will be prompted to save the recording file. You can rename the recording file and save it in a directory of your choice.


■ The file will be recorded in "*.avi" format.
To save the video

The video image can be saved in two formats of jpg and bmp, which is, namely, a video clip of the current monitoring screen that is saved in 1 frame.

If you want to save the video, select a channel to save the video from and right-click it.
From the context menu, select , specify the saving path and click
To check the video, open the saving directory and double-click a video clip to play it.

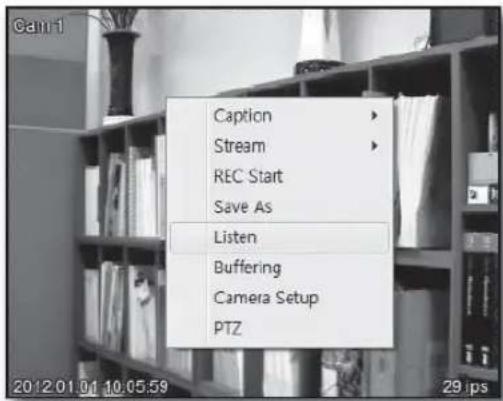

To listen to the sound

You can listen to the audio signal from the channel if the audio signal is in sync with the channel.

To play the audio, select a channel and right-click it.
From the context menu, select .





Caption
Stream
REC Start
Save As
Listen
Buffering
Camera Setup
PTZ


Buffering

Selecting the Buffering function will smooth the video as it displays the video at the same frame rate as the original.
Buffering will smooth the video and minimize the video delay.
However, if the frame rate is below 15, it does not make much difference in smoothness.
Also, buffering will increase the video delay by about 1 second.
Camera Setup


To change camera setup, select a channel and click right mouse button.
From the popup menu, select .
Click the menu navigation button displayed on screen to move to a desired menu item.


■ Camera menu setup will be available only when the serial communication is established between the camera and DVR. (page 23)




Cam 1
2012.01.01 13:56:43 DST
30 fps


With the search viewer, you can play the recording video. However, you must have the admin account or have the 'HDD' permission granted to your account.

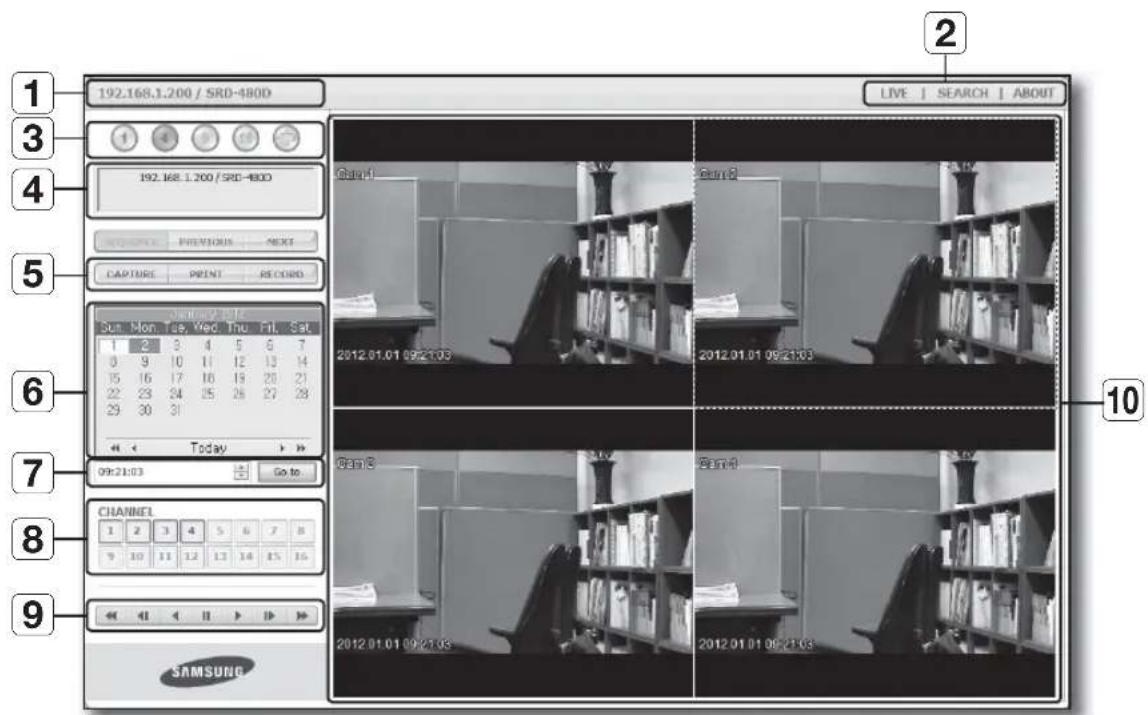

Search Viewer at a Glance

To move to the search viewer, click
 on the top right corner of the viewer screen.





192.168.1.200 / SRD-480D
LIVE | SEARCH | ABOUT
1
3
4
5
6
7
8
9
CHANNEL
SAMSUNG
192.168.1.200 / SRD-480D
PREVIOUS NEXT
CAPTURE PRINT RECORD
Sun Mon Tue Wed Thu Fri Sat
1 2 3 4 5 6 7
0 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
Today Go to
2012.01.01 09:21:03
2012.01.01 09:21:03
2012.01.01 09:21:03
2012.01.01 09:21:03
SAMSUNG


Item Description
1
Connection Information
The model name of the DVR that is connected through the IP address will be displayed.
2
Select Viewer
Select one viewer from, , and.
3
Screen Mode
Switch to a split mode or full screen.
4
Connection Status
The IP address and model name of the connected DVR will be displayed.
5
Save Image
Capture or print out the current video.
6
Calendar
Search for a date, which can be marked if it contains any recording data.
7
Time
Specify the time for your search and move to the applicable timeline.
8
Channel
Display the video input channel.
9
Playback Adjustment
Adjust the settings of the current video.
10
Display Pane
Play the video found by your search.

Capture

You can capture the current video in .bmp format.

Select a channel to capture.
Click . The "Save Image" dialog appears.
Enter a memo or provide the channel name, date and event information.
Click  and specify the saving path.





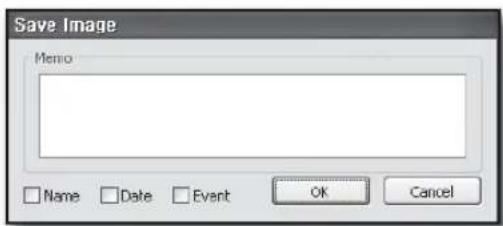

CAPTURE PRINT RECORD






Save Image
Menlo
Name Date Event OK Cancel


Print

You can print out the current video image using the printer connected to the PC.

Select a channel to print.
Click .

The "Print Image" dialog appears.

Enter a memo if necessary and click . The video image will be printed out containing the printing date, channel name, recording date, event and memo.


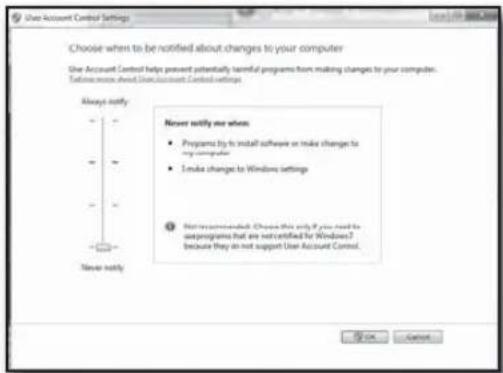

If the User Access Control (UAC) is turned on, Web Viewer cannot access the printer. If UAC is turned on and attempted to print captured scene by pressing the  button, a message of "User Access Control is detected. To use the print function, you should set the UAC low." Press OK to close the message, and it doesn't print. To use print function, UAC needs to be turned off or start the Internet Explorer as an administrator.




CAPTURE PRINT RECORD






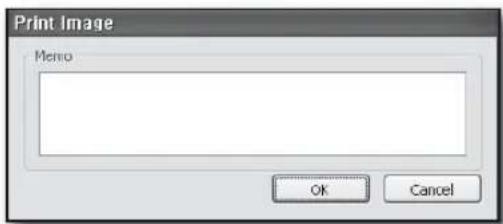

Print Image
Memo
OK Cancel






Choose when to be notified about changes to your computer
Use Account Control helps prevent potentially harmful programs from making changes to your computer.
Therefore note about Use Account Control settings
Always notify
Never notify me when:
• Programs by us install software or make changes to my computer
• Make changes to Windows settings
Not recommended. Choose this only if you need to use programs that are not certified for Windows?
Because they do not support Use Account Control.


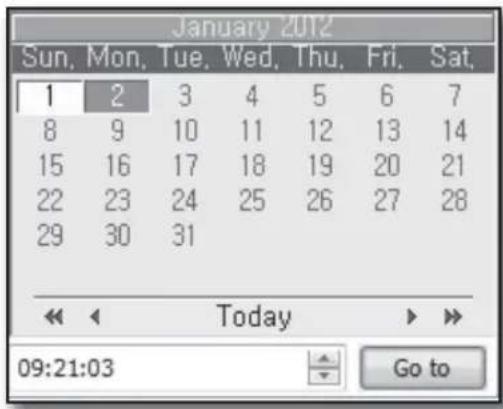

To move to the search time and date

The date containing recording data will be active in black. You can select a date containing recording data and play the video.

Using the calendar, select a date for your search.
Specify the time.
Click .

Play the video on that specific time and date.





January 2012
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27 28
29 30 31
Today
09:21:03 Go to


Watermark


Not Tampered: This indicates that the video is original.
Tampered: This indicates that the original video is tampered with by someone.

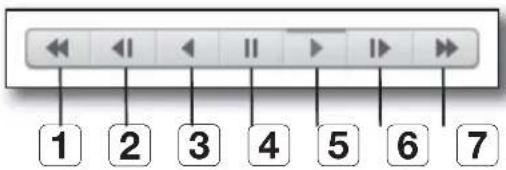

Using the play button bar





1
2
3
4
5
6
7


Item Description
1
Fast Backward
Play the video backward.
2
Move one frame back
Play reversely one frame by one.
3
Reverse
Play the video reversely.
4
Freeze
Stop playing the current video temporarily.
5
Play
Play the video at normal speed.
6
Move one frame up
Play forward one frame by one.
7
Fast Forward
Play the video forward.

SETUP VIEWER

Open the Smart Viewer and click [ *button in the top right corner.
Open the Smart Viewer and move to  where you can configure the DVR settings remotely.
Using the Setup Viewer

This will display the DVR menu items. If you click a menu item, you will move to the setup page of the item.




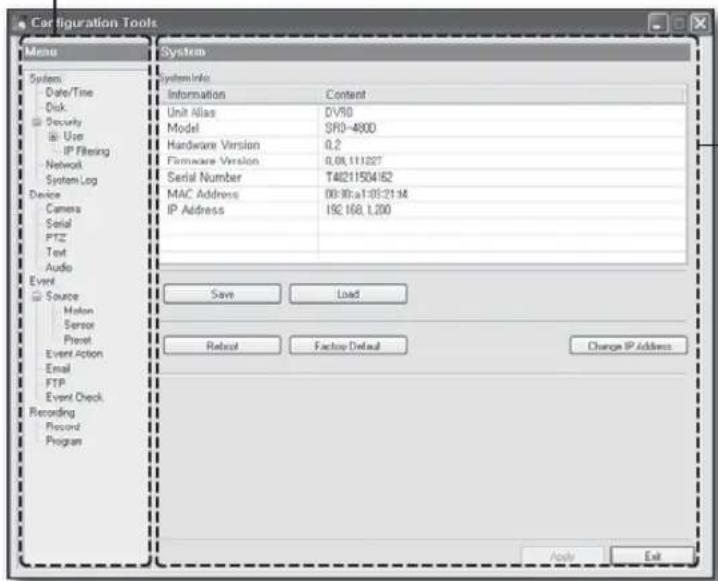

Configuration Tools
Menu
System
SystemInfo
Information
Content
Unit Atlas
DV80
Model
SPD-4900
Hardware Version
0.2
Firmware Version
0.06.111327
Serial Number
T40211504152
MAC Address
08:30:a1:05:21:34
IP Address
192 168, 1,200
Save
Load
Rebuild
Factory Default
Change IP Address
Audio
Exit


If you change the setting in the setup page, the  button on the bottom will be active. Press the button to apply your changes.
Once you made changes in any of the setup pages, you must press  before your changes can be applied.
SYSTEM SETUP

System

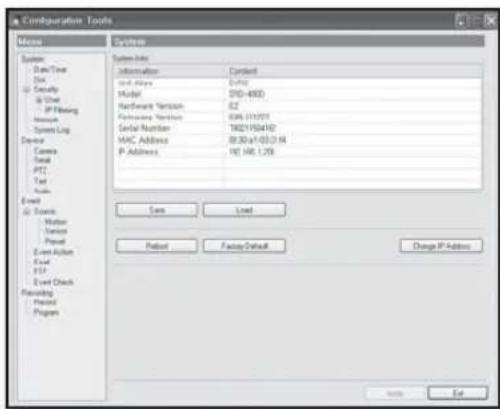

System Information

Display the system information of the DVR. For the items in blue, you can double-click one to change the settings. When done, click  to apply your changes.




Configuration Tools
Name
System
Date/Time
Disk
Sexually
& Use
JP Wiring
Network
System Log
Device
Camera
Total
PT2
Test
Tools
Event
Source
Method
Services
Panel
Event Action
Event
PTP
Event Check
Recording
Record
Program
System Info
Information
Content
User Address
EVI92
Model
STD-4000
Hardware Version
62
Hardware Version:
035-111077
Serial Number: 180217504140
MAC Address: 89.30 av-03.01 M
IP Address: 187.446.1.259
Tears
Load
Relief
Factory Default
Change IP Address
Note
Ext


Import & Export


Save: You can save the configuration information of the selected DVR as a file.
Load: You can use a recorded file to configure the same settings for other DVR.

This is useful if you want to apply the same settings to multiple DVRs.
However, this is possible only for those DVRs with the same software version and model type.

■ Before you import or export the configuration file, you must register the DVRs with the Smart Viewer.
To export the configuration

If you click , you will see a window where you can specify the saving path of the configuration. Name the exported file at your preference.




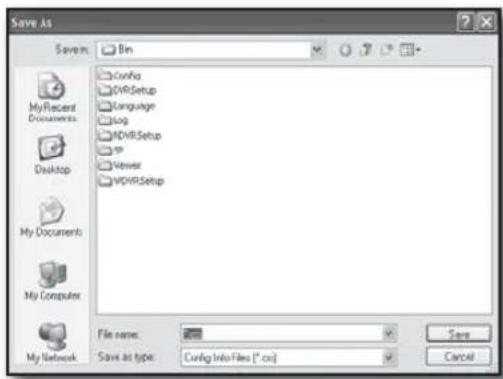

Save As
Savem
Bin
Confa
OVRSetup
Language
Log
ADVRSetup
IP
Viewer
VDRSetup
MyRecent Documents
Desktop
My Documents
My Computer
My Network
File name:
Save as type: ConfigInfo-Files (*.csv)
Save
Cancel


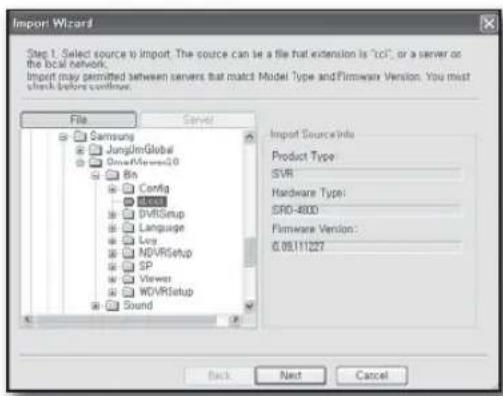

To import the configuration

Click  to open the Import Wizard. Select a file in "*.cci" format from the file list. Then, the information of the selected file such as the product type, hardware type and software version will be displayed. Check the information and click .




Import Wizard
Step 1: Select source to import. The source can be a file that extension is "ccl", or a server on the local network.
Import may permitted between servers that match Model Type and Firmware Version. You must check before continue.
File    Servd
Samsung
JungJunGlobal
GrunView20
Bin
Config
DVRSetup
Language
Logy
MDVRSetup
SP
Viewer
MDVRSetup
Sound
Import SourceInfo
Product Type:
SVR
Hardware Type:
SRO-8000
Firmware Version:
0.09.111227
Back    Next    Cancel


Select whether you want to import or export the configuration from the same device, same model type.




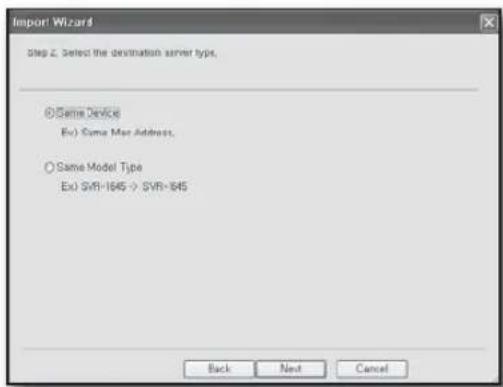

Import Wizard
Step 2. Select the destination server type.
○ Same Device
Ex) Come Mar Address.
○ Same Model Type
Ex) SWR-1645 -> SWR-1645
Back    Next    Cancel


SmartViewer

If it's the same device, the configuration file will be saved immediately.
Provide the admin password and click . The configuration file will be imported.




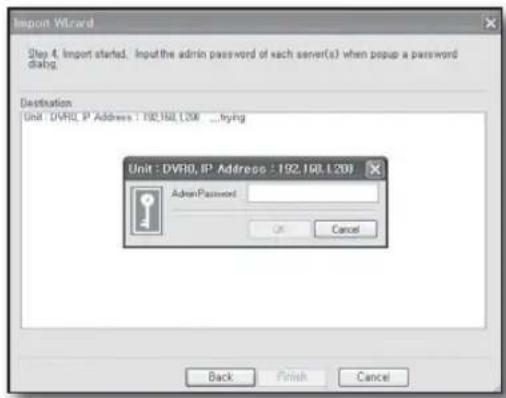

Import Wizard
Step 4. Import started. Input the admin password of each server(s) when popup a password
Dialog
Destination
Unit: DV90, IP Address: 192.198.1.208 ...trying
Unit: DV90, IP Address: 192.198.1.208
AdmirPassword
OK Cancel
Back Finish Cancel


When done, you will see the "Completed" message and the  button will be active.

Restart: Use to restart the DVR.
Default : Return to the current settings to the factory default.
Change IP : Use to change the IP of the DVR.


Even if you reset the DVR, the system time and date and network settings will not be affected.




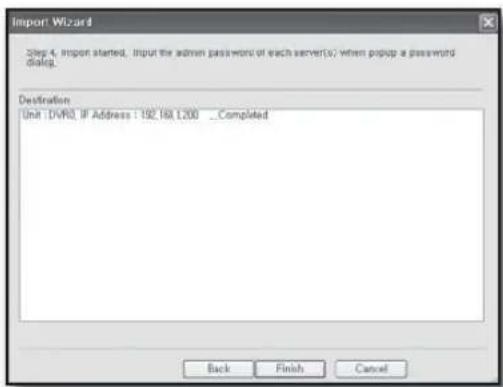

Import: Wizard
Step 4, Import started. Input the admin passwords of each server(s); when popup a password dialog.
Destination
Unit: DVR0, IF Address: 192.168.1200  _Completed
Back    Finish  Cancel


Date/Time

Date & Time


Timezone & Daylight Saving Time : This menu is in sync with your time zone settings. Namely, If you select an area where DST is applied in the Time Zone menu, DST will be automatically set to On. Otherwise, it will be set to Off. Select  if you want to configure your own DST settings regardless of the standard time zone and DST. If you select , the Custom DST menu item will be displayed.
System Time : Display the system time and date of the DVR. The system time can be changed only in the applicable menu of an individual DVR.





Configuration Tools
Name
DataTime
Date
Security
Use
IP Following
Normal
System Log
Device
Carry
Total
PTG
Total
Public
Event
Shower
Mode
Service
Phone
Event Action
End
FTP
Event Check
Pending
Record
Program
Capture & Insight Usage Time
Open/Off/Export Time
On/Off/Export Time
NTP
NTP Address
Internal: 1 Max
NTP Server List: Public IP
NTP Local ServerIP:
Use Auto Compute as NTP Server
Apply   Exit


- Custom DST contains two options: "Day of Week" and "Day of Month".
In "Day of Week", specify the month, week, day of the week and time for the start and end times of DST.




Timezone & Daylight Saving Time
(GMT) Greenwich Mean Time: Dublin, Edinburgh, London, London
○ Off DST ○ On DST ● Custom DST
Day of Week ▼ Start Time January ▼ Sat ▼ Week ▼ Sunday ▼ 00:00
End Time February ▼ Sat ▼ Week ▼ Sunday ▼ 00:00


- "Day of Month" requires you to specify the month, day and hour for the start and end times of DST.




Timeframe & Daylight Saving Time
(GMT) Greenwich Mean Time: Dublin, Edinburgh, London, London
Off DST On DST Custom DST
Start Time 01:01 00:00
Brief Time 02:01 00:00


NTP Setting

NTP (Network Time Protocol) is used to synchronize the time between network devices based on the base device.

MODE : Select one from Server/Client/Both. In Server mode, the DVR itself is the basis of providing the time; In Client mode, the time will be propagated from the time server. In Both mode, the DVR plays both of server and client.
Interval : Specify the interval of receiving the time information if the NTP mode is set to Client. (1/3/6/12/24 hr.)
IP Type : Select Public IP if the DVR obtains the time information from a public NTP server on the Internet; Select Local IP if the DVR obtains the time information from your specified NTP server.

- Local IP : If the IP type is set to Local IP, provide the IP of the NTP server.
Disk

The DVR shows the storage information of the internal HDD such as total and remaining capacity of the HDD.




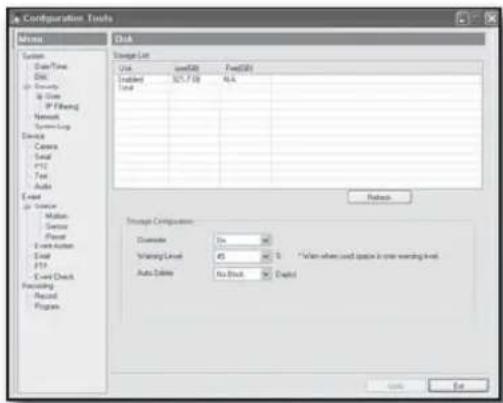

Configuration Tools
Options
Disk
Storage List
Unit: mmGB
FeedGB
Enabled: 325.7 GB
40A
Load:
Device:
Camera
Total
PTG
Test
Audio
Event
Source:
Mission
Server
Phone
Event Source:
Total
PTP
Event Check
Processing
Record
Program.
Resource Configuration:
Discrete: 100 %
Warning Level: 45 %
Auto Datability: No Block, 90% Enabled
*When when used space in order warning level.
OK
Cancel


User

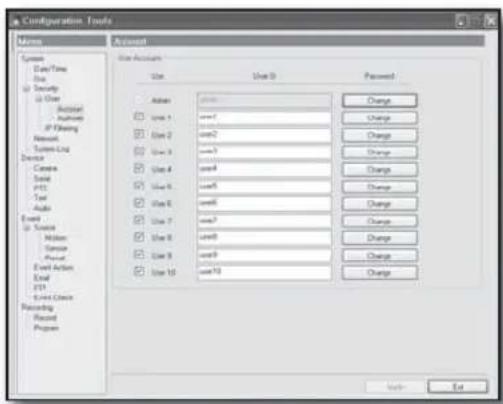

Account

The DVR accounts are classified in two: user and admin. The admin account can access all features of the DVR without restriction. You can add up to 10 users, each of whom can use or access the DVR only within the permissions granted.

Admin Password: The default admin password is "4321" that can be changed. If you want to change the password, provide 12-digit numbers for a new password.
User Password: All of the user passwords are the same as "1111", which can be changed.
Change : Select a user password that you want to change.





Configuration Tools
Name
User Accounts
Use User D Password
Address: www
user 1 user1
user 2 user2
user 3 user3
user 4 user4
user 5 user5
user 6 user6
user 7 user7
user 8 user8
user 9 user9
user 10 user10
Change
Change
Change
Change
Change
Change
Change
Change
Change
Start
End
System Log Device
Create Date
Start Date
Test Date
Audio
Event Source
Member Service
Physical Event Action
End FTS
Event Class Record Record Program
Make Edit



- The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
Authority

You can set permissions for each user so that the user can use the menus as allowed.




Configuration Tools
System
Date/Time
Dist
Security
On Date
Accession
MultiStack
PT Planning
Network
Systems Log
Device
Camera
Send
PT3
Test
Model
Event
Source
Motion
Sentence
Format
Event Action
Event
100
Event Check
Recording
Record
Program
Attribute
Date/Author)
N/MC    PT2 Relay   Playback    Record  Copy    Cancel Menu F
user1   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user2   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user3   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user4   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user5   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user6   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user7   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user8   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user9   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
user10  ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓   ✓
45


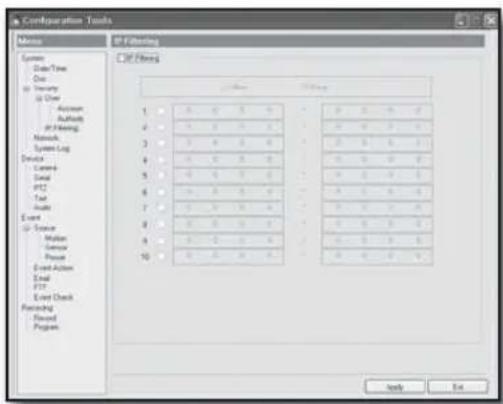

IP Filtering

With the IP Filtering function, you can allow or reject access to a specific IP(s) from the DVR.
Access will be granted only to IPs listed; reject means that access will be granted to any other IPs than listed. You can add a max of 10 IPs to the list, all of which can be set to Allow or Reject.




Configuration Tools
Name
IP Following
System
Data/Time
Out
Security
User
Accession
Affordability
IP Filencing
Network
System Log
Devots
Camera
Signal
PT2
Text
Audit
Event
Source
Motion
Sensor
Power
Event Action
Event
FTP
Event Check
Recording
Record
Program
IP Following
1
2
3
4
5
6
7
8
9
10
Apply
Exit


Ethernet network connection

Select  if using dynamic IP In a network environment using a static IP, provide the assigned IP, subnet mask, gateway and DNS server address.

- For more information about the static IP settings, consult with the network admin or your IPS service provider.




Configuration Tools
Network
System
Data/Time
Disc
Security
User
Account
Apache
IP Filing
Network
Server Log
Device
Camera
Snail
INT2
Test
Audit
E-mail
Source
Mather
Sensor
Phone
E-mail Action
Crank
FTP
E-mail Check
Forwarding
Record
Preview
Networks
Network: DNS1 Option 1 Network Type
Network Type: Ethernet 1475.
Settings for Internet
Internet 1
Use DHCP
Use the Following
IP Add 192 168 7 200
Net Pack 258 258 250 8
Subway 192 168 4 1
DNS1 0 0 0 0 0
DNS2 0 0 0 0 0
DNS3 0 0 0 0 0
OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK  OK


xDSL network connection

If your network environment uses xDSL, select xDSL and provide the user ID and password.

- xDSL is available only with the PPPoE protocol.
If you configure the network settings in xDSL type, you must specify the WRS.
(however, this is not applicable if you are using a static IP)
- Change the network settings according to xDSL type. However, that is not available in Ethernet network environment.
- The user account and password are provided from the xDSL ISP service provider.
Even if the network line is of xDSL type, you must set the network environment to Ethernet if a modem is used.




Configuration Tools
Network
System
Clock/Time
Disk
Security
Up User
Accession
Authentic
IP Filtering
Network
Systems Log.
Device
Camera
Signal
PTC
Fast
Audio
Event
To Source
Motion
Service
Phone
Event Action
Email
PTI
Event Check
Recording
Record
Program
Network
DNS Options Network System
Network Type Ethernet NETS
Setting For CDSL
Account
User(s) gamma
Password 88
Apply Exit


DDNS

If the DVR is connected to the network using a dynamic IP, the user cannot find out the IP assigned to the DVR. If this is the case, register the DVR with the DDNS service. The DVR will add the IP assigned at each interval to the DDNS server. You can use the list of dynamic IPs added to the DDNS server to connect to the DVR.
- Interval : Specify the time interval of updating the DDNS server with dynamic IP.
It is recommended to set it to one minute in a network environment with very frequently changing IPs. (Off/1min/1hr/3hr/6hr/12hr/24hr)
- Server : The DDNS server run by Samsung Techwin is "www.samsungipolis.com".
- DDNS ID : Provide the IP that is registered with the DDNS server.




Configuration Tools
Network
System
Date/Time
Out
Subtype
User
IP Filtering
Hosted
System Log
Device
Canvas
SaaS
PT2
Test
Audio
Event
Source
Mature
Serial
Phone
Event Action
Local
FTP
Event Check
Recording
Record
Program
Network
DS401 Network
DOS401 Network
Not Registered
Internal
Disable
Server
DS4010
Name
Edit



■ Add dynamic IPs in the following cases:
- If the Ethernet uses the DHCP protocol
- If using xDSL (However, this is not applicable if using a static IP)
Option


Port: You must change the port number if the DVR fails to connect due to such as fire wall.
Idle Time: This is specified to find out which client has an abnormal network connection status.

If the network is not restored normally within the idle time, the DVR will terminate the connection with the client. The default is 3 minutes. (0\~3600 sec)
- Bandwidth Limit : If you check this option, the traffic of data transfer to the smart viewer or web viewer will be limited to a specific value.




Configuration Tools
System
Data/Time
Dist.
Security
Order
Account
Authenticity
of Hiding
Network
System Log
Device
License
Total
PTC
Test
Audio
Event
Source
Motion
Sensed
Phone
Event Action
Event
PTC
Event Check
Recording
Record
Program
Network
Network / DNET Option Network Status
Pcs:
4000
Get Default
Life Time:
100
Send
Bandwidth Load:
30
5000
Apply
Exit



If you change the network settings, the DVR will regain connection automatically.
Network Stream


Resolution: You can select a video resolution that will be used in data transfer via the network.
Frame Rate: It indicates frames per second. Select one between 0 fps and 30 fps.
Quality: For a video in 1080p, you can select one between Q1 and Q7.

For a video in 720p, you can select one between Q1 and Q5.




Configuration Tools
Network
Network: 000000  Status: Network Stream
Setting To Network Stream
Channel Resolution Format Rate Quality
Ch1 CP 30 OS
Ch1 CP 30 OS
Ch1 CP 30 OS
Ch1 CP 30 OS
Source
Send
Send
Event Action
End
Event Check
Forecasting
Forward
Program
OK
Exit


System Log

Used to check the system log.




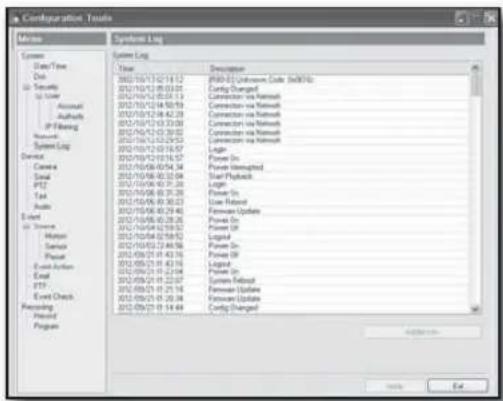

Configuration Table
Systems Log
System Log
Name
Description
002-10/13/12 18:52
(AMD)1.0 (Unknown Code: NotTo)
002-10/13/12 09:03:01
Config Changed
002-10/13/12 05:01:13
Construction via Network
002-10/13/12 04:50:59
Construction via Network
002-10/13/12 04:43:29
Construction via Network
002-10/13/12 03:33:00
Construction via Network
002-10/13/12 03:30:52
Construction via Network
002-10/13/12 03:25:53
Construction via Network
002-10/13/12 03:16:57
Logic
002-10/13/12 03:15:57
Power On
002-10/13/12 03:54:34
Power Unweighted
002-10/13/12 03:52:04
Star Playback
002-10/13/12 03:51:26
Logic
002-10/13/12 03:49:23
Low Relief
002-10/13/12 03:48:26
Fireman Update
002-10/13/12 03:48:26
Power On
002-10/13/12 03:48:52
Power Off
002-10/13/12 03:48:52
Legal
002-10/13/12 03:48:56
Power On
002-10/13/12 03:48:56
Power Off
002-10/13/12 03:48:56
Legal
002-10/13/12 03:48:56
Power On
002-10/13/12 03:48:56
System Relief
002-10/13/12 03:48:56
Fireman Update
002-10/13/12 03:48:56
Fireman Update
None
Programs
OK


Camera

Video Channel Setting

You can specify the basic information, brightness, and contrast for each channel.
The tap number (CH1, CH2, CH3, CH4) indicates the channel number of each video.

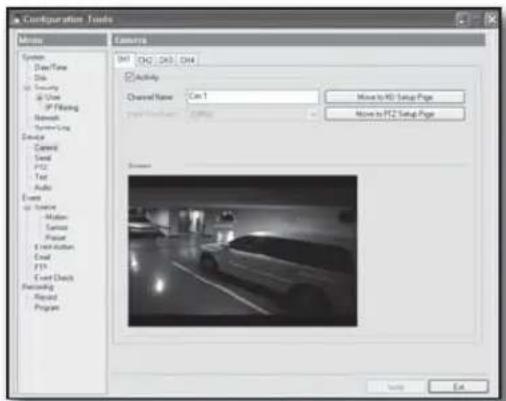

Channel Information

• Activity : Specify the use of the channel.

- Channel Name : Provide the channel name.




Configuration Tools
Camera
System
Draw Time
Dis
Security
Use
IP Filming
Network
System Line
Device
Control
Send
PT2
Text
Audio
Event
Source
Motion
Tuning
Pract
E-mail Action
Email
PT2
Event Check
Recording
Record
Program
DW  DW  DW
ActiveUp
Channel Name: Cam 1
View Channel:
Move to WD Setup Page
Move to PT2 Setup Page
Screen
Save  Exit


Serial Port

In the COM Port page, configure the communication settings for each COM port and select devices to use. The tabs exist as many as the COM ports where the tab number corresponds to the COM port number.

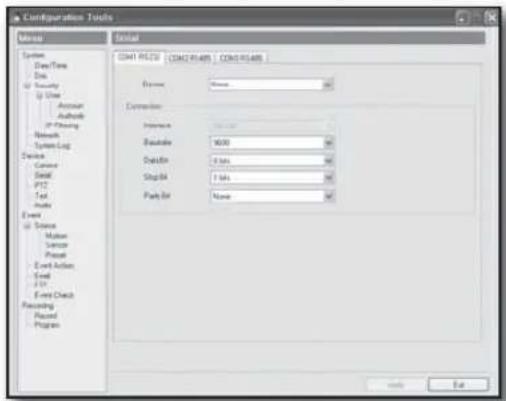

Selecting a device to connect to the serial port

Device types that can be connected to the serial port include: PTZ, Keyboard and Text.

PTZ : Select this if you want to connect a PTZ device. Select this option to display the setup details on the bottom. Select an appropriate PTZ device. If you jump to the PTZ setup page, click "Go".
Keyboard : Select this if you want to connect the keyboard. If you select this, the keyboard setting menu will be displayed on the bottom. Select an appropriate keyboard.
Text : Select this if you want to connect the text device. If you jump to the text setup page, click .





Configuration Tools
Model
System
Draw/Time
Dis
Security
User
Account
Authorship
IP Clearing
Network
System Log
Device
Current
Set
PTC
Test
Model
Event
Source
Motion
Sensor
Project
Event Action
Event
2.19
Event Check
Recording
Record
Program
COM-REGS COM-REGS COM-REGS
Instance: None 300
Connection:
Instance: None 300
Database: 3000 300
Default: 5 bits 300
Stop Bit: 5 bits 300
Park Bit: None 300
OK  Exit


PTZ

The tab number indicates the channel number. According to this number, the PTZ device will be connected to a specific channel.
PTZ Setting

You can change the PTZ settings only after you had set to enable PTZ in the COM port page.

Type : Select a serial port that is connected to the PTZ device.
Camera ID : Specify the address of the PTZ device. You must refer to the PTZ device settings for the address.
Idle Time: If no PTZ operation is detected for the idle time, you will move to the preset.
Interface, Baudrate, Data Bit, Stop Bit, Parity Bit : Configure the same settings with those of each device.





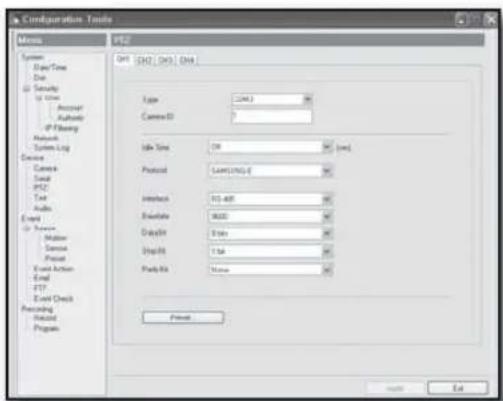

Configuration Tools
Notes
PFE2
System
Start Time
Out
Security
Up Time
Microsoft
Authentic
IP Filing
Network
System Log
Device
Camera
Signal
PFE2
Test
Audio
Event
Up Power
Motion
Sensor
Project
Event Action
End
FTP
Event Check
Recording
Record
Program
Type: COM2
Camera ID:
Index Time: 0%
Protocol: Cam(ONG) E:
Interface: F13-405
Database: MOLD
Database: Table:
Step All: Train:
Place File: None:
Prints
OK
Exit



If a PTZ device is connected, you must first configure the related settings in the "Channel" and "Device" tabs.
Preset Setting

Press the  button to open the preset setup window.
- Record/remove Preset : Select a preset to record from the list, and move to a desired point of the video. Provide the preset name and press . Select a preset in the list, and press  button. The preset will be deleted.




Preset Setup
✓ Preset 1
✓ Preset 2
✓ Preset 3
✓ Preset 4
✓ Preset 5
✓ Preset 6
✓ Preset 7
✓ Preset 8
✓ Preset 9
✓ Preset 10
✓ Preset 11
✓ Preset 12
✓ Preset 13
✓ Preset 14
✓ Preset 15
✓ Preset 16
Catali
None Preset 1
Set Clear
End



If you want to control the PTZ operations, open the context menu and select 'PTZ'.

- With the PTZ item active, place the cursor in the video. You will see a cross line on the video. Then, you can control the pan/tilt operations.

■ Move the cursor to either side of the video. The Zoom control will be displayed in the left while the Focus control will be displayed in the right.
- Enable Preset : To enable a preset, check the preset checkbox in the list to activate it.
Text

Check the Save checkbox and select a channel to synchronize. If the device to synchronize is "VSI Pro", set that device only. For other devices, set Device to Manual and specify all the sub items.




Configuration Tools
Name
System
Date/Time
Dist
Security
User
Account
Author(s)
IF Closing
Network
System Log
Device
Camera
Signal
PT2
Tail
Audio
Event
Source
Modeler
Sensor
Project
Event Action
End
213
Event Check
Recording
Record
Program
End1
Handling
Type Text With:
Address: Format 96
Edit Header
Header1: Header1
Header2: Header2
Address(m): 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
Apply   Exit


Audio

The audio signal can be paired with any channel available.

Sync Audio Channel: Sets to which channel the audio input will be linked. If linked channel 1 audio to the video channel 4, the audio input of channel 1 is produced when the channel 4 is selected.
Audio Gain: Use +, - to adjust to desired volume.

• Audio Recording : Whether to save the audio settings or not.





Configuration Tools
Options
System
Data/Time
Size
Socially
Use
IP Oblong
Microsoft
System Log
Device
Camera
Send
PT2
Text
Audio
Event
Source
Motion
Service
Physical
Event Action
Event
PT3
Event Check
Recording
Record
Program
Audio Channel 1 | Audio Channel 2 | Audio Channel 3 | Audio Channel 4
Type: Video Channel 50%
Audio Slot 1 Max
Audio Recording
OK Use


EVENT SETUP

Source

Motion

Select whether to activate the motion detection function for each channel.
You can select a sensitivity level of motion detection in the MD Sensitivity item.
If you set it to , any motion from that channel will not be detected. The higher the level is, the more sensitive the motion detection becomes.




Configuration Tools
Address
Networks
System
Data/Time
Dis
Security
IP User
IP Filtering
Networks
System Log
Device
Camera
Sensor
PT2
Tay
Event
Source
Maintenance
Services
Phone
Event button
Event
PT3
Event Check
Recording
Posted
Programs
Status: CM1 CM2 CM3 CM4
Channel Name: Cam 1
MD Sensitivity: 5
Rotation Axis:
Set Alt
Check Alt
Apply   Exit


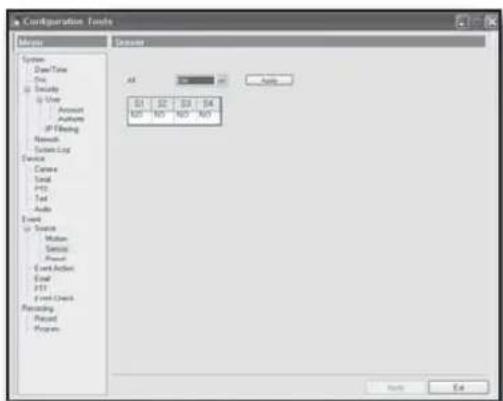

Sensor

Specify the sensor type. You can add up to 4 sensor types.
(NC: Normal Close, NO: Normal Open, Off)




Configuration Tools
System
Date/Time
One
Security
Up User
Amount
Audio
Off Binding
Network
System Log
Device
Camera
Sound
PTG
Text
Audio
Event
or System
Motion
Sensit
Present
Event Action
Event
PTG
Event Check
Recording
Record
Program
Cluster
All
01 02 03 04
825° 90° 925° 945°
Apply
Next
Exit


Preset

You can specify the preset for motion, sensor or text event. You can set the preset for each channel.




Configuration Tools
Name
System
Date/Time
Ctrl
Security
User
Accession
Affordia
IP Fleming
Microsoft
System Log
Device
Comms
Good
PT3
Tail
Audio
Event
0.1 Shares
Motion...
Tension
Project
Event Action
Event
PT3
Event Check
Recording
Record
Program
Reset
OK
Cancel
OK2
OK3
Reset
Preview
Preview
Preview Inc.
01
02
03
04
MD
Total
Prepaet Act.
None Name None Name None Name Name
Apply to All Channels
Apply to All Channels
Name
Exit


Event Action

In this page, specify the operation according to the incoming event.
The DVR provides 4 relays, buzzer, e-mail and FTP transfer by default. And you can operate the DVR in sync with events such as sensor input or motion detection.
Normal Event

You can set the normal event source to one of 4 sensors, 4 MDs, 4 video losses and text.




Configuration Tools
Metric
Event Action
System
Draw Time
Out
Security
Up Draw
IP Filtering
Networks
Systems Log
Device
Camera
Setup
PTS
Task
Audio
Event
Source
Medium
Service
Present
Event Action
Event
FTP
Event Check
Recording
Record
Programs
Normal Event | System Event | Post Event
MA  M1  M2  M3  MA  GA  G1  G2  G3  GA
Pelay 1    □   □   □   □   □   □   □   □   □   □   □   □
Pelay2    □   □   □   □   □   □   □   □   □   □   □   □   □
Pelay3    □   □   □   □   □   □   □   □   □   □   □   □   □
Pelay4    □   □   □   □   □   □   □   □   □   □   □   □
Business    □   □   □   □   □   □   □   □   □   □   □   □   □
Email    □   □   □   □   □   □   □   □   □   □   □   □   □
FTP     □   □   □   □   □   □   □   □   □   □   □   □
ML, MD, AR, SA, ServiceID


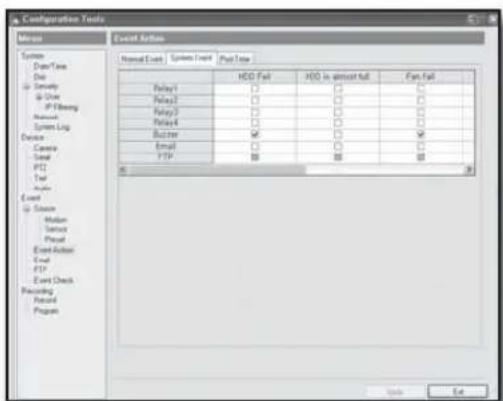

System Event

As system event source, you can set some or whole of: disk error, HDD full, fan error, authentication failed, and DDNS registration failed.




Configuration Tools
Metric
Event Action
System Event
Event Event
Post Date
HDD Fail
HDD in almost full
Fan fail
Pelay1
Pelay2
Pelay3
Pelay4
Buzzer
Email
FTP
HDD
HDD in almost full
Fan fail
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
E


Post Time

4 relays are supported that can be activated manually or if a normal or system event occurs.
Select an event source and specify the duration.
To activate the relay manually, press the relay button that will be active if you access the Smart Viewer or Web Viewer.
- Buzzer (Sec) : The buzzer will sound if a normal or system event occurs so that you can check the event.
Select an event source and specify the duration.




Configuration Tools
Name
Event Action
Event Event: System Event: Post Event
Action Description:
Project (End): 10 24
Project3: 10 24
Project4: 10 24
Event (End): 10 24
Event (Start)
Event (End)
Event Check
Event
Program
Apply
Exit


Email

Non-authentication emailing


E-Mail Address : Provide the email address at which you want to receive messages.
Sender Address : Provide a valid (currently used or existing) email address.
Including Picture : If you check this option, the email to send if an event occurs will include the event image at the event occurrence time.

If you uncheck this option, the email will be sent if an event occurs but with no image attached.




Configuration Tools
Name
Email Address: [e-mail]
Send Address: undermsample.com
HTTP Authentication: Not Use    SL
HTTP source:
HTTP mail:
HTTP user ID:
HTTP password:
Mail Duration (sd): 28          Next
□ Including Privacy
OK    Cancel


SMTP-Auth / TLS

SMTP authentication uses the SMTP-based email address or account to authenticate the email transfer.

E-Mail Address : Provide the email address at which you want to receive messages.
Sender Address : Provide a valid (currently used or existing) email address.
Including Picture : If you check this option, the email to send if an event occurs will include the event image at the event occurrence time.

If you uncheck this option, the email will be sent if an event occurs but with no image attached.

SMTP server : Provide the SMTP server address for the sender email address.
SMTP port : Select a port to use in SMTP server. Select one from 25 and 587.
SMTP user id : Provide the SMTP account (ID) of the sender.





Configuration Tools
Email Address: [e-mail]
Sender Address: [e-mail]
SMTP Authentication: None line SMTPs
SMTP name: http://iccamer.com
SMTP post: 167
SMTP post at:
SMTP password:
mail address now: 49
□ Including Picture
Apply   Exit


FTP

- Enable : Check this option if you want to use the FTP transfer. Otherwise, deselect it.
- Server URL : Enter the address for a FTP server to which you will upload event images when an event occurs.
- User ID : Provide the user ID that you have specified for the FTP server.
- Password : Enter the password that you have specified for the FTP server.
- FTP Directory : Check this option if you want to create a sub directory under the directory that you have specified in the server, in which you will save the transferred images. Use characters or numeric figures for the directory name.




Configuration Tools
Name
System
Data/Time
File
Security
Units
Access
Afford
IP Clearing
Network
System Log
Device
Device
Event
PPT
Test
Audio
Event
Switch
Motion
Service
Printout
Event Action
Event
FTP
Event Check
Recording
Record
Program
FTP
Connect
Server URL:
User ID:
FTP Connection:
Password:
Apply   Exit


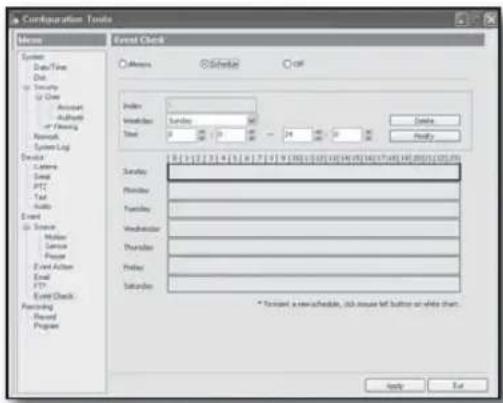

Event Application

Specify the time to apply the event recording. Three options are available: Always, Off, Schedule.
 recognizes incoming events all the time,
 will recognize the event only at a specified time. If selecting Schedule, you can specify the event checking time for a specific time or day of the week like you make schedule.




Configuration Tools
Name
System
Data/Time
Dist
Security
U Close
Account
Affinity
of Fanning
Network
System Log
Device
Latency
Signal
PTT
Text
Audio
Event
Source
Motion
Service
Project
Event Action
Excel
FTP
Event Check
Forwarding
Forward
Program
Event Check
Balance
Balance
Balance
Wednesday
Thursday
Friday
Saturday
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Balance
Average: 100%
* Forward a test schedule, click user left button or delete chart.
Apply   End


Record

Schedule & Event

Schedule & Event allows you to make recording according to a specific schedule and event.
Specify the date or time, and select a program before specifying the schedule. You can select A through I.
The event recording can be triggered by the 'sensor', by the 'motion detection', by the 'text' and by the 'digital input'.




Configuration Tools
Name:
System
Start/Time
One
Security
To User
Account
Affordia
IF Planning
Remark
System Log
Device
Canvas
Cassava
Gmail
PTC
Text
Audio
Event
Word
Motion
Tension
Physical
Event Author
Event
PTC
Event Check
Recording
Record
Program
Record Event
Manual Event
Index
Number
Time
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
1300
1400
1500
1600
1700
1800
1900
2000
2100
2200
2300
2400
2500
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200
5300
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300
6400
6500
6600
6700
6800
6900
7000
7100
7200
7300
7400
7500
7600
7700
7800
7900
8000
8100
8200
8300
8400
8500
8600
8700
8800
8900
9000
9100
9200
9300
9400
9500
9600
9700
9800
9900
1000


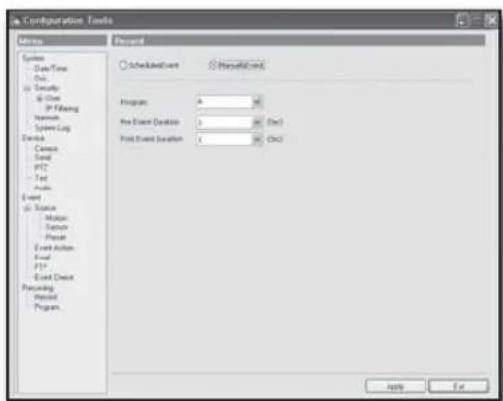

Manual & Event

In Manual & Event, you can specify the recording conditions and triggering event. Recording will start by your pressing the [REC] button on the front panel.
You can specify program A through I together with the Pre Event Duration and Post Event Duration settings.

Pre Event Duration: You can assign up to 15 seconds.

• Post Event Duration : You can assign up to 60 seconds.





Configuration Panels
Settings
System
Data/Time
One
Security
IP Filing
Networks
System Log
Event
Canvas
Goid
PT2
Text
Event
Source
Mouse
Sensor
Phone
Event Action
Event
F17
Event Check
Recording
Record
Program
Proceed
Scheduled Event
Microsoft Event
Program:
4
Rev Event Duration:
3
Rev Event Duration:
4
Rev Event Duration:
3
Rev Event Duration:
3
Apply   Exit


Program

In this page, you can apply the resolution, frame rate and quality for each channel to program A \~ I.

Input Res : Show the input resolution as well as the recording resolution.
Frame Rate : Indicate frames per second. Select one between 0fps and 30fps.
Quality: For 1080p, you can select one between Q1 and Q7. For 720p, select one between Q1 and Q5.





Configuration Tools
Myers
System
Data/Time
Dis
Security
Up User
Account
Authors
#B Binding
Network
SystemLog
Device
Cache
Social
PT2
Text
Audio
Event
or Solution
Motion
Sentence
Phased
Event Action
Email
FTP
Event Check
Recording
Record
Programs
Program: A
Channel
Input Data
Area Data
Normal
Quality
Frame-Folds
Quality
Cfs 1
Cfs 2
Cfs 3
Cfs 4
Cfs 5
Cfs 6
Output Line1
Output Line2
Output Line3
Output Line4
Output Line5
Output Line6
Output Line7
Output Line8
Output Line9
Output Line10
Output Line11
Output Line12
Output Line13
Output Line14
Output Line15
Output Line16
Output Line17
Output Line18
Output Line19
Output Line20
Output Line21
Output Line22
Output Line23
Output Line24
Output Line25
Output Line26
Output Line27
Output Line28
Output Line29
Output Line30
Output Line31
Output Line32
Output Line33
Output Line34
Output Line35
Output Line36
Output Line37
Output Line38
Output Line39
Output Line40
Output Line41
Output Line42
Output Line43
Output Line44
Output Line45
Output Line46
Output Line47
Output Line48
Output Line49
Output Line50


appendixappendix

PRODUCT SPECIFICATION
Item Details
Video
Inputs 4CH (HD-SDI SMPTE292M)
Resolution 720p 30fps / 720p 60fps / 1080p 30fps
Live
Frame rate 120fps
Resolution 1920x1080p
Multi Screen display 1/4/SEQUENCE
Performance
OS Embedded Linux
Recording
Compression H.264
Record Rate 1280x720p : 120fps
Mode
1920x1080p : 60fps
Manual & Event or Schedule & Event
Overwrite modes Continuous
Pre-alarm Up to 15 sec (1/2/3/4/5/10/15 Sec)
Post-Alarm Up to 60 sec (1/2/3/4/5/6/7/8/9/10/15/20/25/30/35/40/45/50/55/60 Sec)
Search & Playback
Search mode
Date/Time, Calendar, Event Search, Thumbnail Search
Playback function
Forward (x2, x4, x8, x16, x32, x64) × I frame onlyForward (x1, x1/2) × All frameBackward (x1/2, x1, x2, x4, x8, x16, x32, x64) × I frame onlyStep Forward/Backward Play at single channel (I+P frame) × All frame
Network
Transmission speed
Dual codec (CIF120fps/2CIF120fps/4CIF120fps)Single codec (720p, 1080p)
Bandwidth Up to (15)Mbps, 15M~256kbps
Bandwidth control Selectable
Stream 720p, 1080p (Record Encoding), 4CIF/2CIF/CIF (Dual codec) Selectable
Remote users 10 users (two users for searching are included)
Protocol support TCP/IP/DHCP/HTTP, PPPoE/DDNS(iPOLiS only)/NTP/SMTP/TLS
Monitoring NET-i Viewer, Smart viewer, Webviewer
Storage
Internal HDD Up to 4 SATA (Basic 1TB, Up to 2TB x 4EA)
External HDD SVS-5R (Only Storage Support), Total 12TB (internal + external)
DVD Writer (Copy) YES (DVD-R, CD-R Support)
USB (Copy) USB 2.0 (Max. 32GB)
File Format (Copy) AVI, EXE (Include Player), VFS4 (CD/DVD copy)
Security
Password Protection
1 admin, 10 user, user can be assigned authority for function
Data Authentication
Watermark
Interface
Monitors
VGA
1920x1080p resolution
HDMI
1920x1080p resolution
Main Composite
-
Spot Composite
-
Loop Outputs
-
Audio
Inputs / Output
4CH line in/1CH line out
Compression
ADPCM
Sampling rate
16KHz
Alarm
Inputs / Outputs
Terminal 4 inputs (NO/NC), Terminal 4 relay outputs (NO/NC)
Remote notification
Notification via e-mail
Connections
Ethernet 10/100 Mbps Ethernet
Serial interface RS-485 for PTZ, System Keyboard (SPC-6000)
USB USB 2.0, Front 2 ports
e-SATA 1 External SATA ports
Application Supoort Mouse, Remote Controller, Samsung System Keyboard (SPC-6000)
PTZ Protocol support SAMSUNG-E / SAMSUNG-T / PELCO-D / PELCO-P
General
Electrical
Input Voltage /Current 100 to 240 VAC ±10%; 50/60 Hz, Autoranging
Power consumption Max 85W
Environmental
Operating Temperature / Humidity
+0°C to +40°C (+32°F to +104°F)/20%RH to 85%RH
Mechanical
Dimension (W x H x D) H (leg not included)
W445 X H88 X D412 mm (W17.51" X H3.46" X D16.22")
Weight (With hard disks)
Approx. 7.3 kg
Rack mount kit 2 EA
Lauguage
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese,Swedish,Danish, Thailandais, Rumania, Serbia, Croatia, Hungary, Greek (22 Language)

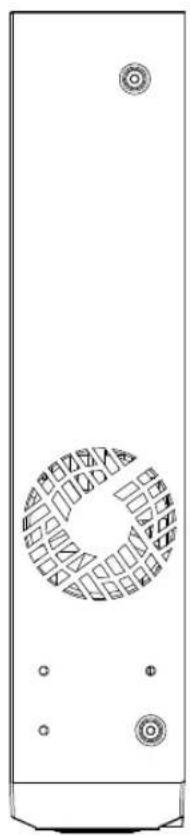

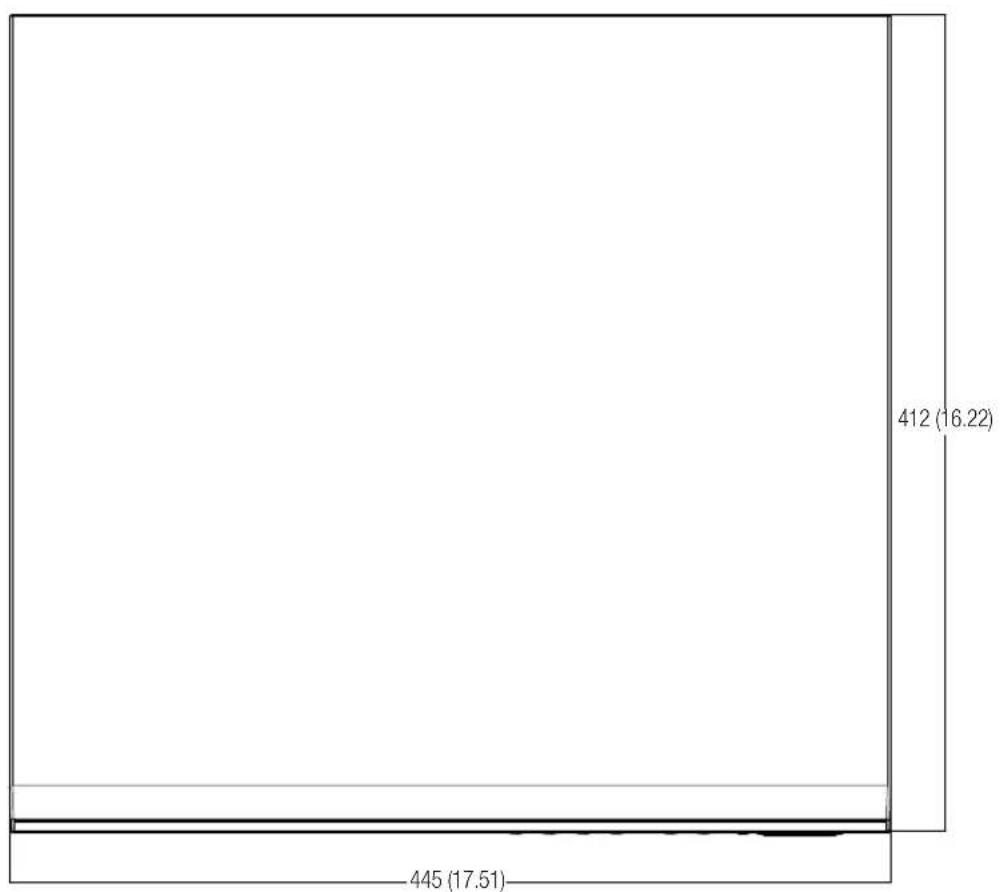

unit : mm (inches)







Pure technical diagram of a rectangular device with circular and rectangular patterns, no text or symbols present






MIDUAL MEDIUM-100
88 (3.46)


TROUBLESHOOTING
Symptom Countermeasures
The system does not turn on and the indicator on the front panel does not work at all.
Check if the power supply system is properly connected.Check the system for the input voltage from the power source.If the problem persists even after you have taken the above actions, check the power supplier and replace it with a new one if necessary.
Some channels display just a black screen even if they receive video sources.
Check if the camera connected to the system properly displays the image. Sometimes, this problem may occur on a camera that is not properly connected to the video source.Check if the camera is properly supplied with power.Sometimes, this problem may occur on a channel with weak video signal from a video distributor that is connected to multiple systems. In this case, input the video source of the camera directly into the DVR. This may find the cause and solve the problem.
If nothing is displayed on the screen.
Check if the DVR is properly cable-connected to the camera.If the camera is connected to the HD-SDI BNC input port of DVR: Check if the camera supports HD-SDI output.If the HD-SDI BNC cable of the camera is connected directly to the BNC port of the monitor: Check if the monitor supports the HD-SDI input source.If the HD-SDI video is converted to the DVI or VGA format using the video converter: Check if the converted format (by the converter) of the HD-SDI input video is compliant with the output format of the DVR.
If I press the [REC] button on the front panel, the REC indicator does not flash, nor the player start recording.
Check if there is a free space on the HDD for the recording.Check if the record mode is set to ON in the record mode setting.
The screen displays the logo image repeatedly.
This may occur from a problem with the main board, or the related software is corrupt.Contact the nearest service center for more information.
The Channel button does not work on the Live screen.
The Channel button does not work if the current screen is in the event monitoring mode.In the event monitoring screen, press the [ESC] button to exit the screen and select a channel.
The cursor will not move to the Start button when I start the calendar search.
Check if the channel and the date that you want to play are marked with the V symbol.Both channel and date should be checked before you can start playing with the Start button.
When the alarm sounds, I press the [ESC] button on the front panel to release the alarm but it does not work.
Press the [MENU] button on the front panel to release the alarm in the following way:To release the event monitoring mode : Monitoring Mode - set the duration of the event monitoring to Off.To release the alarm sound : Event Record Mode - Alarm (Motion Detection/Video Loss) – deactivate the alarm sound.To release the event : Event Record Mode - Alarm (Motion Detection/Video Loss) – set the mode to Off.
No response is made even if I press the [PTZ] button on the Live screen.
·Menu → Network → Remote Device Check if the current protocols and other settings in the PTZ device are properly configured according to the PTZ camera.
I've found that the DVR does not recognize as many disks as installed when I have connected multiple external HDDs to the DVR.
·It takes time for the DVR to recognize multiple external HDDs.Try again in a moment and if the problem (of failure to recognize as many HDDs as connected) persists, it may occur due to a mechanical error of the HDD installed. Try again with a different HDD.
A message of "Need to reset date/time." Is displayed on the screen.
·This message is displayed if there occurs a problem with the time setting of the internal clock or an error in the clock itself.Contact the retailer or the service center for more information.
The "NONE" icon and an error message are displayed.
·Check the HDD for connection.If the problem persists in a normal condition, contact the nearest service center to have the HDD checked by the service personnel.
I have installed an additional HDD on the DVR but it does not recognize the HDD.
·See the compatibility list to check if the additional HDD is supported by the DVR. For the compatibility list, contact the retailer where you purchased the DVR.
I have connected an external storage device (USB memory, eSATA HDD) to the DVR but the DVR seems not to recognize it.
·See the compatibility list of external storage devices to check if the connected device is supported by the DVR. For the compatibility list, contact the retailer where you purchased the DVR.
I found it difficult to configure the network settings if using the default search, copy and router settings.
·For more information, refer to the user manual.·If you use the router for network connection, refer to the "Connecting to the Internet using the router" section in this manual.
I forgot the password.
·Contact the DVR administrator for help.
Copy data is just not played by the PC or DVR.
·During copying, do not eject the media or turn the DVR off.·Copied files using VFS4(For CD/DVD media only) and exe can be played only by the dedicated MiniPlayer.·A file copied in the format of .avi can be played only on a PC that has installed the integrated codec.
My player does not switch to Live mode while in playback.
·To return to the Live screen directly, press ■] or [ESC] button on the DVR front panel or the remote control.
Recording does not work.
Make sure the channel to be recorded is fed with video from the camera.Check the recording mode settings.Check whether the HDD is available for recording.If set to Continuous or Event Recording, check whether the recording schedule includes the current time.For manual recordings, press the [REC] button to start recording.If event recording fails to record, check the detection settings.
The image quality of the recording data is not good.
For 720p recordings, replace the camera with one that supports 1080p.If the video quality of a channel is set to a lower one, change it to Q7 for a 1080p camera-connected channel, or change it to Q5 for a 720p camera-connected channel.Changing to a higher image resolution and quality results in bigger data size, which causes faster hard disk occupation. For overwriting data recording, it results shorter interval of overwriting existing recordings.

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to [e-mail].
If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.
GPL Software : busybox, boa, CyaSSL, dosfstools, linux kernel, rp-pppoe, cdrtools, dvd+rw-tools, dhcpd, iproute2, smartmontools
LGPL/GPL with exceptions : glibc, libgcc, libstdc++, FFMpeg, ftplib
Apache License : WenQuanYi Micro Hei
Copyright (c) 2007, Google Corp.; Copyright (c) 2008, 2009 WenQuanYi Board of Trustees and Qianqian Fang.
Apache License : Apache Commons
http://commons.apache.org
BSD License : ash, miniupnpc, telnet-server, YUI Library, ppp
Freetype License : freetype2
Portions of this software included in this product are copyright (C) 2010 The FreeType Project (www.freetype.org). All rights reserved.
IJG License : JPEG
The software included in this product is based in part on the work of the Independent JPEG Group.
MIT License : c-ares, curl, liboauth, jcodec
OpenSSL License : OpenSSL
SIL Open Font License : Arimo
Copyright (c) 2010 Google Corporation.
This Font Software is licensed under the SIL Open Font License, Version 1.1.
This license is copied in this manual, and is also available with a FAQ at: http://scripts.sil.org/OFL
GNU GENERAL PUBLIC LICENSE

Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION


This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.


You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.


You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:


a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.


You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.


You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.


Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.


If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.


If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY


BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.
one line to give the program's name and an idea of what it does.
Copyright (C) yyyy name of author
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.
Also add information on how to contact you by electronic and paper mail.
If the program is interactive, make it output a short notice like this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.
The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items--whatever suits your program.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision'
(which makes passes at compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.
GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007
Copyright © 2007 Free Software Foundation, Inc. http://fsf.org/
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble

The GNU General Public License is a free, copyleft license for software and other kinds of works.
The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.
To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the freedom of others.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.
For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.
Some devices are designed to deny users access to install or run modified versions of the software inside them, although the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users' freedom to change the software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users.
Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS

• 0. Definitions.

"This License" refers to version 3 of the GNU General Public License.
"Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.
"The Program" refers to any copyrightable work licensed under this License. Each licensee is addressed as "you". "Licensees" and "recipients" may be individuals or organizations.
To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a “modified version” of the earlier work or a work “based on” the earlier work.
A “covered work” means either the unmodified Program or a work based on the Program.
To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.
To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.
An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.
• 1. Source Code.

The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work.
A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.
The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window system, and so on) of the specific operating system (if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.
The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work’s System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.
The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source.
The Corresponding Source for a work in source code form is that same work.
• 2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law.
You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the
terms of this License in conveying all material for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.
Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.
- 3. Protecting Users' Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures.
When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.
• 4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the Program.
You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.
• 5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:
a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement modifies the requirement in section 4 to "keep intact all notices".

c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it.

d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.
A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation’s users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.
• 6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways:
a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange.

b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by a written offer, valid for at least three years and valid for as long as you offer spare parts or customer support for that product model, to give anyone who possesses the object code either (1) a copy of the Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network server at no charge.

c) Convey individual copies of the object code with a copy of the written offer to provide the Corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 6b.
d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source. Regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.
e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subsection 6d.
A separable portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work.
A "User Product" is either (1) a "consumer product", which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, "normally used" refers to a typical or common use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.
"Installation Information" for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.
If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM).
The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.
Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.
• 7. Additional Terms.

"Additional permissions" are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire Program remains governed by this License without regard to the additional permissions.
When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.
Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:
a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or

b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or

c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or
d) Limiting the use for publicity purposes of names of licensors or authors of the material; or
e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or
f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors.
All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.
If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.
Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.
- 8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses granted under the third paragraph of section 11).
However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.
Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.
Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive new licenses for the same material under section 10.
- 9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.
• 10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.
An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party’s predecessor in interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.
You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.
• 11. Patents.

A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor’s “contributor version”.
A contributor's "essential patent claims" are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, "control" includes the right to grant patent sublicenses in a manner consistent with the requirements of this License.
Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.
In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.
If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. "Knowingly relying" means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.
If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.
A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license (a) in connection with copies of the covered work conveyed by you (or copies made from those copies), or (b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007.
Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.
• 12. No Surrender of Others' Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.
• 13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU Affero General Public License into a single combined work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction through a network will apply to the combination as such.
• 14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies that a certain numbered version of the GNU General Public License "or any later version" applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the Free Software Foundation.
If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to
choose that version for the Program.
Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.
• 15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
• 16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
• 17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.
END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively state the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright (C)
This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.
Also add information on how to contact you by electronic and paper mail.
If the program does terminal interaction, make it output a short notice like this when it starts in an interactive mode:
 Copyright (C)
This program comes with ABSOLUTELY NO WARRANTY; for details type 'show w'.
This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.
The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, your program's commands might be different; for a GUI interface, you would use an "about box".
You should also get your employer (if you work as a programmer) or school, if any, to sign a “copyright disclaimer” for the program, if necessary. For more information on this, and how to apply and follow the
GNU GPL, see http://www.gnu.org/licenses/.
The GNU General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License. But first, please read http://www.gnu.org/philosophy/why-not-lgpl.html.
GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]
Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.
When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.
To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.
For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.
We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.
Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.
Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.
When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.
We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.
For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes
a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.
In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.
Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.
The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION


This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”).
"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.

a) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.

a) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.

a) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the
library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

a) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.


You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.


You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.


Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.


If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.


If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY


BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).
To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.
one line to give the library's name and an idea of what it does.
Copyright (C) year name of author
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public
License along with this library; if not, write to the Free Software
Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
Also add information on how to contact you by electronic and paper mail.
You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in
the library 'Frob' (a library for tweaking knobs) written
by James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
That's all there is to it!
Apache License

Version 2.0, January 2004
http://www.apache.org/licenses/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

• 1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.
"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.
"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.
“Source” form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.
"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.
“Work” shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).
“Derivative Works” shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.
“Contribution” shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, “submitted” means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as “Not a Contribution.”
“Contributor” shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.
• 2. Grant of Copyright License.

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
• Grant of Patent License

Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.
• 4. Redistribution.

You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:


You must give any other recipients of the Work or Derivative Works a copy of this License; and


You must cause any modified files to carry prominent notices stating that You changed the files; and


You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and


If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.


• 5. Submission of Contributions.

Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.
- 6. Trademarks.

This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
• 7. Disclaimer of Warranty.

Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
• 8. Limitation of Liability.

In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
• 9. Accepting Warranty or Additional Liability.

While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.
END OF TERMS AND CONDITIONS

APPENDIX: How to apply the Apache License to your work

To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets “[I]” replaced with your own identifying information. (Don’t include the bracketsl) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same “printed page” as the copyright notice for easier identification within third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and limitations under the License.
ash license:

Copyright (c) 1989, 1991, 1993, 1994 The Regents of the University of California.

All rights reserved.

This code is derived from software contributed to Berkeley by Kenneth Almquist
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:


Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.


Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.


Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.


THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
miniupnpc license:

Copyright (c) 2005-2009, Thomas BERNARD

All rights reserved.

Redistribution and use of this software in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the author may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
telnet-server license:

Copyright (c) 1989 Regents of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:


Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.


Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.


All advertising materials mentioning features or use of this software must display the following acknowledgement:


This product includes software developed by the University of California, Berkeley and its contributors.

Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
YUI License:

Copyright (c) 2011, Yahoo! Inc.

All rights reserved.

Redistribution and use of this software in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of Yahoo! Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission of Yahoo! Inc.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
ppp license:
Copyright (c) 1993 The Australian National University.

All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by the Australian National University. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Copyright (c) 1989 Carnegie Mellon University.

All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by Carnegie Mellon University. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
c-res license:

Copyright 1998 by the Massachusetts Institute of Technology.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.
M.I.T. makes no representations about the suitability of this software for any purpose. It is provided "as is" without express or implied warranty.
curl license:

Copyright (c) 1996 - 2010, Daniel Stenberg, .

All rights reserved.

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
liboauth license:

Copyright 2007, 2008 Robin Gareus

Unless otherwise indicated, Source Code is licensed under MIT license. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
jcodec license:

Copyright (c) 2011 The jcodec project.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the
"Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
OpenSSL License:

Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:


Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.


Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.


All advertising materials mentioning features or use of this software must display the following acknowledgment:


"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"


The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].


Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.


Redistributions of any form whatsoever must retain the following acknowledgment:


"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young([e-mail]). This product includes software written by Tim Hudson ([e-mail]).
Original SSLeay License

Copyright (C) 1995-1998 Eric Young ([e-mail])

All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).
Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed.
If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:


Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.


Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.


All advertising materials mentioning features or use of this software must display the following acknowledgement:


"This product includes cryptographic software written by Eric Young ([e-mail])"
The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-).

If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:

"This product includes software written by Tim Hudson ([e-mail])"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]
SIL OPEN FONT LICENSE

Version 1.1 - 26 February 2007

PREAMBLE

The goals of the Open Font License (OFL) are to stimulate worldwide development of collaborative font projects, to support the font creation efforts of academic and linguistic communities, and to provide a free and open framework in which fonts may be shared and improved in partnership with others.
The OFL allows the licensed fonts to be used, studied, modified and redistributed freely as long as they are not sold by themselves. The fonts, including any derivative works, can be bundled, embedded, redistributed and/or sold with any software provided that any reserved names are not used by derivative works. The fonts and derivatives, however, cannot be released under any other type of license. The requirement for fonts to remain under this license does not apply to any document created using the fonts or their derivatives.
DEFINITIONS

"Font Software" refers to the set of files released by the Copyright Holder(s) under this license and clearly marked as such. This may include source files, build scripts and documentation.
"Reserved Font Name" refers to any names specified as such after the copyright statement(s).
"Original Version" refers to the collection of Font Software components as distributed by the Copyright Holder(s).
"Modified Version" refers to any derivative made by adding to, deleting, or substituting — in part or in whole — any of the components of the Original Version, by changing formats or by porting the Font Software to a new environment.
"Author" refers to any designer, engineer, programmer, technical writer or other person who contributed to the Font Software.
PERMISSION & CONDITIONS
Permission is hereby granted, free of charge, to any person obtaining a copy of the Font Software, to use, study, copy, merge, embed, modify, redistribute, and sell modified and unmodified copies of the Font Software, subject to the following conditions:
1) Neither the Font Software nor any of its individual components, in Original or Modified Versions, may be sold by itself.

2) Original or Modified Versions of the Font Software may be bundled, redistributed and/or sold with any software, provided that each copy contains the above copyright notice and this license. These can be included either as stand-alone text files, human-readable headers or in the appropriate machine-readable metadata fields within text or binary files as long as those fields can be easily viewed by the user.

3) No Modified Version of the Font Software may use the Reserved Font Name(s) unless explicit written permission is granted by the corresponding Copyright Holder. This restriction only applies to the primary font name as presented to the users.

4) The name(s) of the Copyright Holder(s) or the Author(s) of the Font Software shall not be used to promote, endorse or advertise any Modified Version, except to acknowledge the contribution(s) of the Copyright Holder(s) and the Author(s) or with their explicit written permission.

5) The Font Software, modified or unmodified, in part or in whole, must be distributed entirely under this license, and must not be distributed under any other license. The requirement for fonts to remain under this license does not apply to any document created using the Font Software.
TERMINATION

This license becomes null and void if any of the above conditions are not met.
DISCLAIMER

THE FONT SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER RIGHT. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE.


Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
SAMSUNG

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL: [phone]\~60 FAX: [phone]
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax: [phone]
www.samsungcctvusa.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL: [phone] FAX: [phone]
www.samsungtechwin.com
www.samsungsecurity.com
www.samsungipolis.com
