Product Type	Heavy-Duty Open Frame Server Rack
Model	SmartRack SR4POST52HD
Form Factor	4-Post Open Frame
Rack Height	52U
Material	Heavy-duty steel
Color	Black
Overall Dimensions (Approx.)	Height: 96.3 in (244.6 cm), Width: 19 in (48.3 cm), Depth: 42 in (106.7 cm)
Weight Capacity	Up to 1000 lbs (453.6 kg) static load
Weight	Approx. 100 lbs (45.4 kg)
Mounting Style	Adjustable front and rear uprights for variable mounting depths
Included Accessories	2 front uprights, 2 rear uprights, 2 top flanges, 2 base flanges, 4 horizontal beams, 2 PDU brackets, M10 acorn nuts & flat washers, M6 screws & hex nuts, assembly instructions
Optional Accessories	SRCASTER caster kit (sold separately), side panels (sold separately)
Tools Required for Assembly	Phillips head screwdriver, 16mm open-end wrench
Warranty	5-year limited warranty
Safety Warnings	Extremely heavy; require assistance for unpacking and assembly. Do not install equipment until rack is stabilized. Do not install casters with equipment in rack.
Intended Use	Mounting standard 19-inch rack equipment (servers, switches, patch panels, etc.)
Compliance	RoHS compliant
Manufacturer	Tripp Lite, 1111 West 35th Street, Chicago, IL 60609 USA

Frequently Asked Questions - SmartRack SR4POST52HD Tripp Lite

What tools are required to assemble the Tripp Lite SmartRack SR4POST52HD?

Assembly requires a Phillips head screwdriver and a 16mm open-end wrench (both user-supplied).

What is the weight capacity of the SR4POST52HD rack?

The rack can support up to 1000 lbs (453.6 kg) static load when properly assembled and stabilized.

Can I install equipment before the rack is fully assembled?

No. The manual warns that the rack is prone to tipping until fully assembled and stabilized. Do not attempt to install equipment until the rack is upright on a level surface and all nuts are tightened.

What is the warranty period for this Tripp Lite rack?

Tripp Lite offers a 5-year limited warranty covering defects in material and workmanship from the date of purchase. Register your product at www.tripplite.com/warranty for faster support.

Can I add casters to the SR4POST52HD?

Yes, optional casters are available via the Tripp Lite Heavy-Duty Rolling Caster Kit (model SRCASTER), sold separately. Install casters only when the rack is empty; do not install with equipment already mounted.

What is the rack height in U?

The SR4POST52HD is a 52U open frame rack, suitable for mounting standard 19-inch equipment.

Are side panels included?

No, side panels are sold separately as optional accessories.

How do I adjust the mounting depth?

The rack has adjustable front and rear uprights. During assembly, align the uprights with the horizontal beam studs and push them into position. Leave acorn nuts loose initially to allow flex, then tighten once all uprights are attached.

Is the rack heavy?

Yes, the rack is extremely heavy. Tripp Lite advises not to unpack, move, or assemble without assistance to prevent injury or property damage.

Can I use this rack for network switches and servers?

Yes, the SmartRack SR4POST52HD is designed for standard 19-inch rack-mount equipment, including servers, switches, patch panels, and UPS systems, as long as total weight does not exceed the 1000 lb capacity.

USER MANUAL SmartRack SR4POST52HD Tripp Lite

Assembly Instructions

SmartRack® 4-Post

Heavy-Duty Open Frame Racks

Models: SR4POST48HD, SR4POST50HD, SR4POST52HD, SR4POST58HD

Technical line drawing of a rectangular metal enclosure with bolt holes and internal structural ribs (no text or symbols)

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

Manufacturing Excellence.

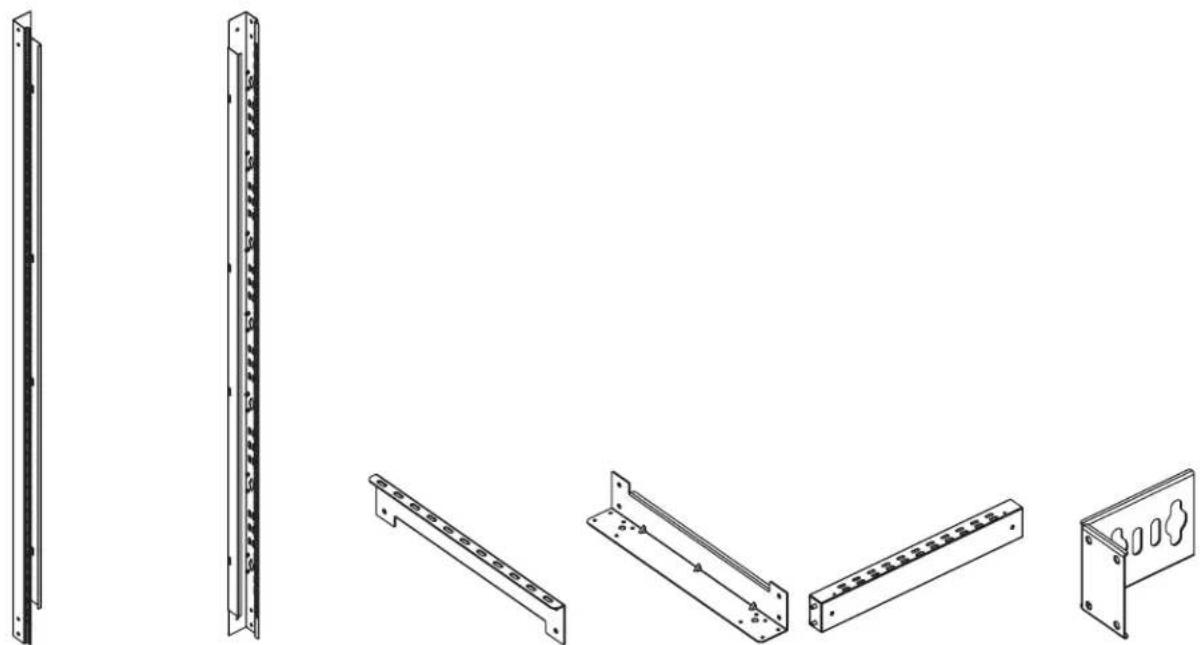

Parts List

Technical line drawings of five different mechanical components or mounting brackets, shown from different angles (no text or symbols present)

ABCDEF

Front Upright Rear Upright Top Flange Base Flange Horizontal Beam PDU Bracket

x2

x2

x2

x2

x4

x2

GHI

M10 Acorn Nut M10 Flat Washer M6x12 Phillips Head Screw

x16

x16

x4

SRCASTER Kit (Optional, Sold Separately)

JKL

M6x16mm Hex Head Screw

M

M6 Hex Nut M6 Flat Washer Caster

x16

x16

x32

x4

Required tools (User Supplied):

• Phillips Head Screwdriver
• 16 mm Open End Wrench

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when assembling the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.

step

1

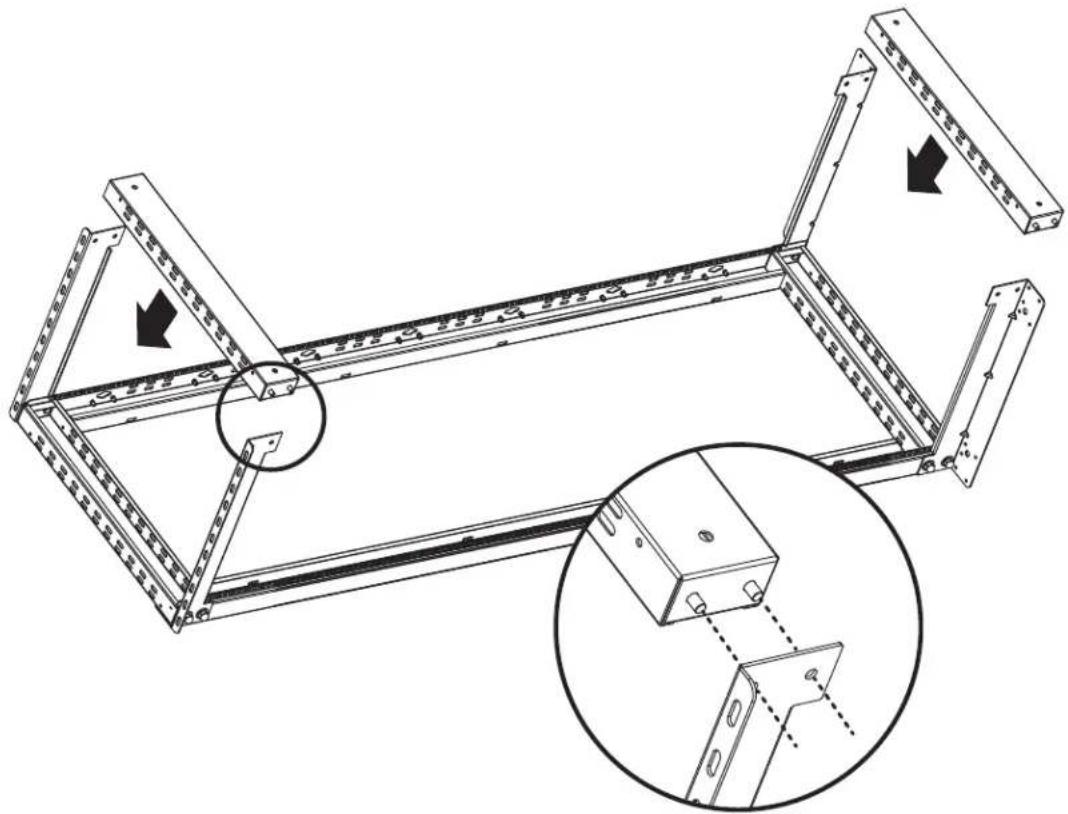

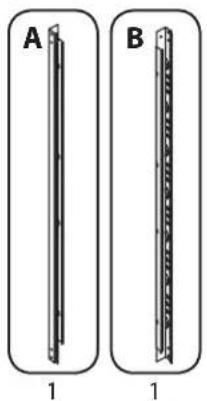

Lay out parts on the floor or a stable work surface and assemble as shown.

Two vertical cylindrical objects labeled A and B, each with a textured surface and a numbered label 1 below (no text or symbols on the objects themselves)

Technical line drawing of a rectangular frame with internal components and an inset close-up showing internal structure (no text or symbols)

step

2

Attach the washers and acorn nuts, but leave them loose. This will allow the unit to flex later in the assembly process.

Technical line drawing of a structural frame with mounting brackets and bolt holes (no text or symbols)

step

Attach the washers and acorn nuts, but leave them loose.

2

4

4

Technical line drawing of a structural frame with mounting holes and structural supports (no text or symbols)

step

2

Technical line drawing of a structural frame assembly with mounting brackets and a magnified inset showing internal components (no text or symbols)

step

5

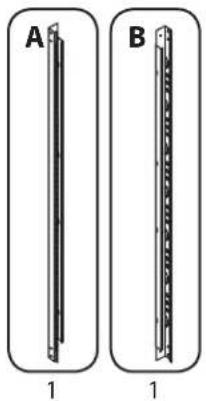

Lay rear upright on the unit. Pull apart the base flange and horizontal beam 1. Align the holes at the end of the upright with the studs in the horizontal beam and push the upright onto the beam 2. Push the base flange and horizontal beam back together.

Two vertical cylindrical objects labeled A and B, each with a textured surface and a numbered label 1 below (no text or symbols on the objects themselves)

Repeat this process for the other end of the upright.

step

6

Attach the washers and acorn nuts, but leave them loose.

4

4

Technical line drawing of a structural frame with mounting holes and internal ribs (no text or symbols)

Repeat steps 5 & 6 to attach front upright.

step

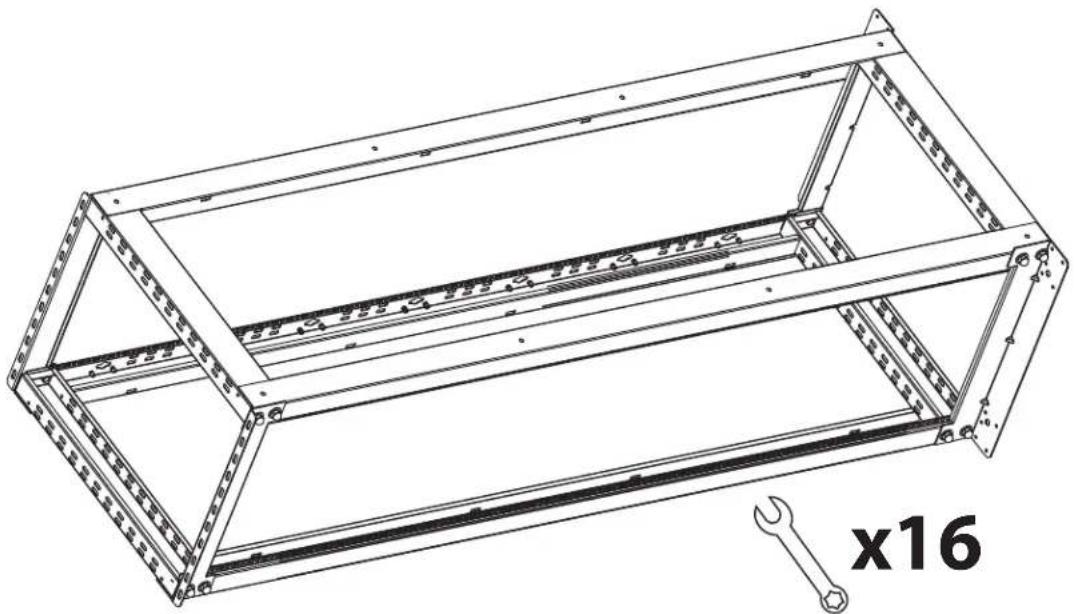

Using an open end wrench (user-supplied), tighten all acorn nuts firmly. Place the rack upright on a level surface and confirm it's stable.

Technical line drawing of a mechanical frame structure with a wrench and dimension label 'x16' (no text or symbols on the diagram itself)

step

(Optional)

Attach PDU Brackets

2

4

step

(Optional)

Attach Casters

Warning: Do not attempt to install casters while equipment is installed in the rack.

Note:

Installation requires

Tripp Lite's Heavy-

Duty Rolling Caster

Kit (model SRCASTER, sold separately)

16

16

32

4

Technical line drawing of a mechanical assembly with mounting brackets and fasteners (no text or symbols)

Configuration 1 Configuration 2

Technical line drawing of a door mechanism with circular components and a stand (no text or symbols)

Technical line drawing of a door mechanism with wheels and a stand (no text or symbols)

step

(Optional)

Attach Side Panels (sold separately)

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See Web site for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.

Manufacturing Excellence.

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
