USER MANUAL Business P222c HP

© 2015 Hewlett-Packard Development Company, L.P.

Microsoft and Windows are U.S. registered trademarks of the Microsoft group of companies.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: March 2015

Document Part Number: 820635-001

About This Guide

This guide provides information on monitor features, setting up the monitor, and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

Table of contents

1 Product features....1

HP ProDisplay P222c Monitor 1

2 Safety and maintenance guidelines ....2

Important safety information....2

Maintenance guidelines .... 3

Cleaning the monitor....3

Shipping the monitor....3

3 Setting up the monitor....4

Use caution when setting up the monitor 4

Attaching the stand base 5

Identifying rear components 6

Connecting the cables....7

Identifying front panel controls....9

Adjusting the monitor 10

Turning on the monitor 10

Connecting USB devices....11

Removing the monitor stand....11

Mounting the Monitor 12

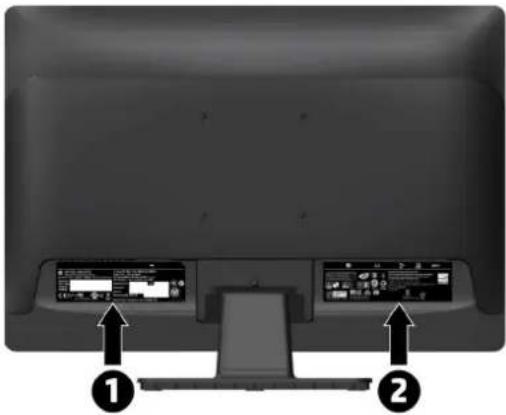

Locating the serial number and product number....13

Installing a cable lock....13

4 Operating the monitor ....14

Software and utilities....14

The Information file....14

The Image Color Matching file....14

Installing the .INF and .ICM files....14

Installing from the disc 14

Downloading from the Web....15

Using the HP Display Assistant 15

Using HP MyRoom 16

Installing HP MyRoom from the media disc....16

Downloading HP MyRoom from the Internet....16

Creating a HP MyRoom Account 16

Using the On-Screen Display (OSD) menu 17

Using Auto-Sleep Mode....17

Using the Microsoft Skype for Business 18

Appendix A Technical specifications....20

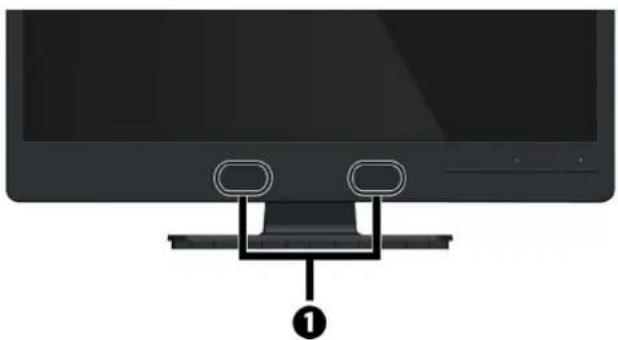

Speaker specifications 21

Recognizing preset display resolutions....22

Entering user modes 22

Energy saver feature....22

Appendix B Support and troubleshooting....23

Solving common problems 23

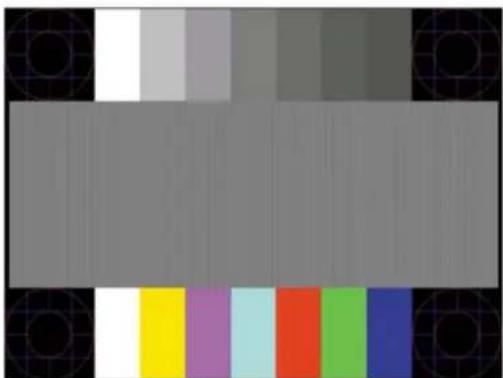

Using the Auto-Adjustment Function (Analog Input) 24

Optimizing Image Performance (Analog Input) 25

Button lockouts....26

Product support 26

Preparing to call technical support....26

Appendix C LCD monitor quality and pixel policy....27

Appendix D Accessibility....28

Supported assistive technologies....28

Contacting support 28

1 Product features

HP ProDisplay P222c Monitor

The LCD (liquid crystal display) monitor has an active matrix, thin-film transistor (TFT) panel. The monitor's features include:

• 54,6 cm (21.5 in) diagonal viewable area display with 1920 x 1080 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
  • Non-glare panel with an LED backlight that consumes less energy
• Wide viewing angle to allow viewing from a sitting or standing position, or moving from side-to-side
• Tilt capability
• Removable stand for flexible monitor panel mounting solutions
  • Video signal input to support VGA analog with VGA signal cable provided
  • Video signal input to support DisplayPort digital with DisplayPort signal cable provided
  • Integrated 720P HD webcam, microphone and speaker
  • Plug-and-play capability if supported by the operating system
  • Security slot provision on rear of monitor for optional cable lock
• On-Screen Display (OSD) adjustments in several languages for easy setup and screen optimization
• HP Display Assistant software for adjusting monitor settings and enabling theft deterrence features (refer to the HP Display Assistant User Guide included on the disc with your monitor)
  • HDCP copy protection on DisplayPort input
  • Software and documentation disc that includes monitor drivers and product documentation
  • Energy saver feature to meet requirements for reduced power consumption
  • Certified for Skype for Business
  • Supports an optional HP Integrated Work Center Stand
  • Supports an optional HP ProDisplay Companion Stand
• Supports an optional HP Quick Release to enable mounting to an optional HP monitor arm or attaching an optional HP Chromebox, HP Thin Client (select models), or HP Desktop Mini Business PC

NOTE: For safety and regulatory information, refer to the Product Notices provided on your media disc, if one is included, or in your documentation kit. To locate updates to the user guide for your product, go to http://www.hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions.

2 Safety and maintenance guidelines

Important safety information

A power cord is included with the monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with the monitor, refer to the Product Notices provided on your media disc, if one is included, or in your documentation kit.

WARNING! To reduce the risk of electric shock or damage to the equipment:

• Plug the power cord into an AC outlet that is easily accessible at all times.
• Disconnect power from the monitor by unplugging the power cord from the AC outlet.
• If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo.

CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails.

Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.

⚠ WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause personal injury.

Care should be taken to route all cords and cables connected to the LCD monitor so that they cannot be pulled, grabbed, or tripped over.

NOTE: This product is suitable for entertainment purposes. Consider placing the display in a controlled luminous environment to avoid interference from surrounding light and bright surfaces that may cause disturbing reflections from the screen.

Maintenance guidelines

To enhance the performance and extend the life of the monitor:

• Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered in the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
• Use only a power source and connection appropriate for this monitor, as indicated on the label/back plate of the monitor.
• Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.
• Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
• Turn the monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a screen saver program and turning off the monitor when not in use.

NOTE: Monitors with a "burned-in image" are not covered under the HP warranty.

• Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.
• Do not drop the monitor or place it on an unstable surface.
• Do not allow anything to rest on the power cord. Do not walk on the cord.
• Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
• When removing the monitor stand, you must lay the monitor face down on a soft area to prevent it from getting scratched, defaced, or broken.

Cleaning the monitor

1. Turn off the monitor and unplug the power cord from the back of the unit.
2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
3. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.

CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen surface. Never spray the cleaner directly on the screen surface. It may run behind the bezel and damage the electronics.

CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene, thinner, or any volatile substance to clean the monitor screen or cabinet. These chemicals may damage the monitor.

Shipping the monitor

Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.

3 Setting up the monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.

Use caution when setting up the monitor

To prevent damage to the monitor, do not touch the surface of the LCD panel. Pressure on the panel may cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

If installing a stand, lay the monitor face down on a flat surface covered with a protective sheet foam or nonabrasive cloth. This prevents the screen from getting scratched, defaced or broken as well as damage to the front panel buttons.

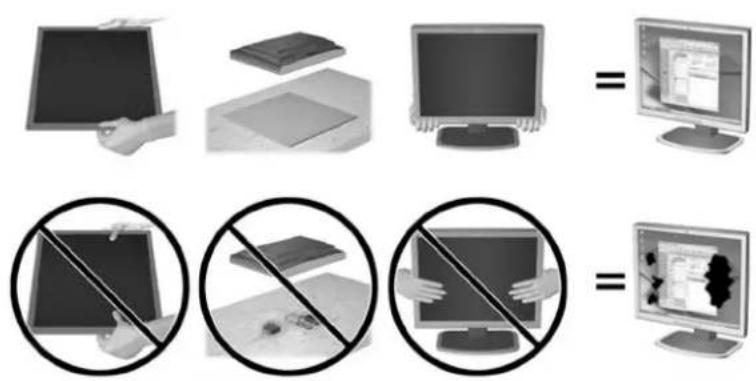

Diagram illustrating computer monitor usage and prohibition rules, showing screen control and display protection.

NOTE: Your monitor may look different from the monitor in this illustration.

Attaching the stand base

CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

1. Remove the stand/base assembly, and then lift the monitor from the box and place it face down on a flat surface.
2. Position the stand over the base, and firmly press down to lock it in place.

3D diagram showing a mechanical component being processed into a base plate (no text or symbols)

1. Insert the two tabs on the stand into the bracket on the back of the display head until they click into place.

Black electronic device with a scroll wheel and a separate black clip attachment (no text or symbols visible)

Identifying rear components

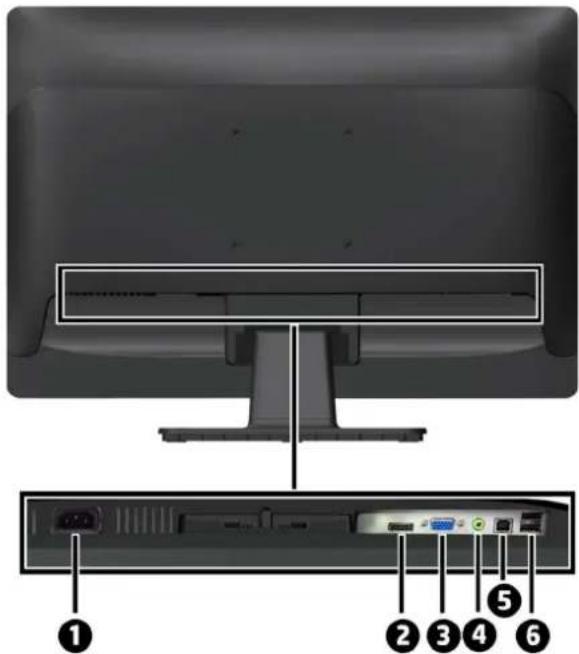

Diagram of a computer monitor with labeled ports and rear panel view showing internal components

Component		Function
1	AC Power Connector	Connects the AC power cord to the monitor.
2	DisplayPort	Connects the DisplayPort cable from the source device to the monitor.
3	VGA	Connects the VGA cable from the source device to the monitor.
4	Audio Connector	Connects the Audio cable from the source device to the monitor.
5	USB Upstream	Connects the USB hub cable from the source device to the monitor.
6	USB Downstream	Connects optional USB devices to the monitor.

Connecting the cables

NOTE: The monitor ships with select cables. Not all cables shown in this section are included with the monitor.

1. Place the monitor in a convenient, well-ventilated location near the computer or source device.
2. Connect a VGA signal cable or DisplayPort signal cable.

NOTE: The monitor is capable of supporting either analog or digital input. The video mode is determined by the video cable used. The monitor will automatically determine which inputs have valid video signals. The inputs can be selected by pressing the OK/Source button on the front panel or through the On-Screen Display (OSD) feature by pressing the Menu button.

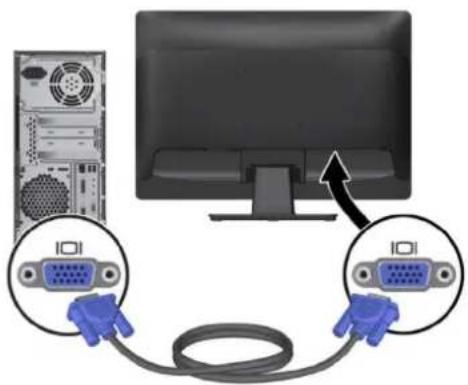

- For analog operation, connect the VGA signal cable to the VGA connector on the rear of the monitor and the other end to the VGA connector on the computer (cable provided).

Diagram showing a computer monitor connected to two V8V connectors via a cable, with an arrow indicating the connection (no text or symbols present)

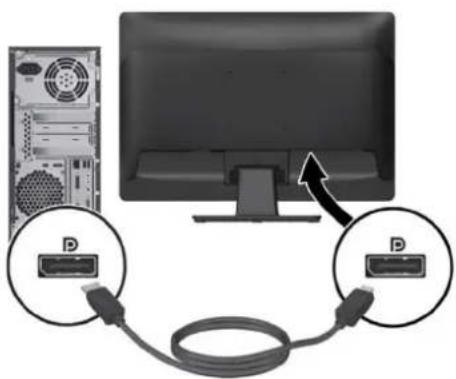

- For DisplayPort digital operation, connect the DisplayPort signal cable to the DisplayPort connector on the rear of the monitor and the other end to the DisplayPort connector on the computer (cable provided).

Diagram showing a computer monitor connected to two USB cables, with an arrow indicating cable direction (no text or symbols present)

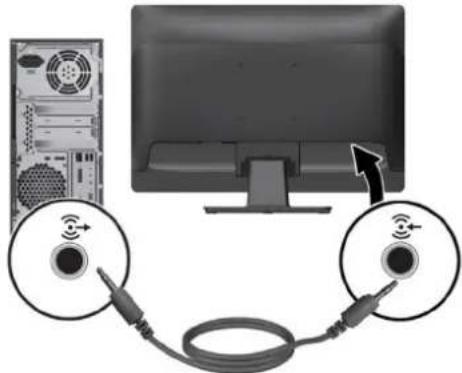

1. Connect one end of audio cable to the audio connector on the monitor and connect the other end of the cable to an audio output connector on the rear panel of the computer (cable not provided).

Diagram showing a computer monitor connected to two cables with wireless signals, no text or symbols present.

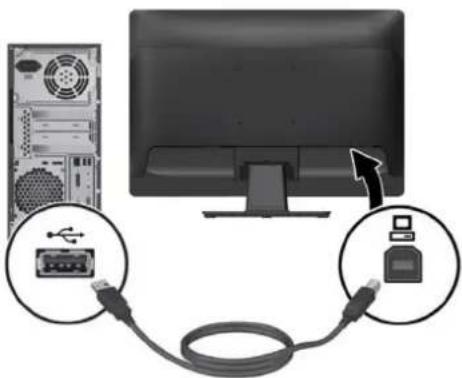

1. Connect the USB upstream cable's Type B connector to the USB upstream port on the rear of the monitor and the cable's Type A connector to the USB downstream port on the source device.

Diagram showing a computer monitor connected to a USB cable with two labeled devices (no text or symbols present)

1. Connect one end of the AC power cord to the power connector on the rear of the monitor, and the other end to an AC outlet.

Diagram showing a computer monitor connected to a power outlet cable, with an inset close-up of the socket (no text or symbols present)

WARNING! To reduce the risk of electric shock or damage to the equipment:

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Disconnect power from the equipment by unplugging the power cord from the AC outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

Identifying front panel controls

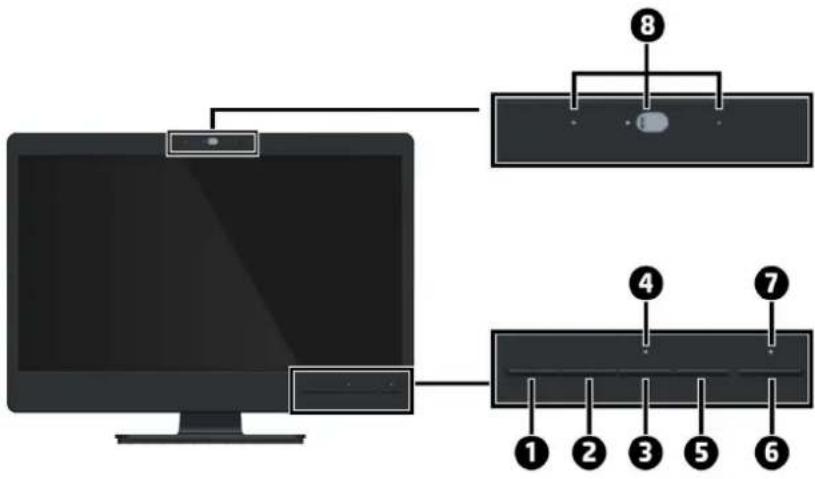

Diagram showing a computer monitor connected to a device with labeled parts 1 through 8, likely illustrating an audio or display setup.

Control		Function
1	Menu button	Opens, selects or exits the OSD menu.
2	Minus/volume/Speaker mute	If the OSD menu is on, press to navigate backward through the OSD menu and decrease adjustment levels.If the OSD menu is inactive, press to activate the volume adjustment bar, then press - or + to adjust the volume.If the OSD menu is inactive, press and hold for 3 seconds to activate speaker mute or unmute, press – to adjust the speaker mute or unmute while mute message appeared.
3	Plus/Microphone mute	If the OSD menu is on, press to navigate forward through the OSD menu and increase adjustment levels.If the OSD menu is inactive, press to activate the microphone mute function.
4	Microphone mute LED	Red = Microphone mutedOff = Microphone unmuted
5	OK/Source	If the OSD menu is on, press to select the highlighted menu item.If the OSD menu is inactive, press to activate the source button that chooses the video signal input (VGA or DisplayPort).
6	Power	Turns the monitor on or off.
7	Power LED	White = Fully powered.Amber = Sleep mode.Flashing Amber = Sleep Timer mode.
8	Webcam & Mic	Slide the switch to turn camera on or off.Offers up to HD 720 resolution (1280x720) for image applications to take still image.Offers video stream for end user to preview/record motion image through USB 2.0 interface.

NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at http://www.hp.com/go/sml.

Adjusting the monitor

Tilt the monitor's panel forward or backward to set it to a comfortable eye level. The monitor can be tilted from -5^ to +22^ .

Illustration of a computer monitor with a black screen and a circular arrow on top (no text or symbols)

Turning on the monitor

1. Press the power button on the computer to turn on the computer.
2. Press the power button on the front of the monitor to turn it on.

CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens. Monitors with a “burned-in image” are not covered under the HP warranty.

* A prolonged period of time is 2 consecutive hours of a static image.

NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be enabled. To disable this feature, press and hold the monitor power button for 10 seconds.

NOTE: You can disable the power LED in the OSD menu. Press the Menu button on the front of the monitor, and then select Power Control > Power LED > Off.

When the monitor is powered on, a Monitor Status message is displayed for five seconds. The message shows which input is the current active signal, the status of the auto-switch source setting (On or Off; factory default is On), the current preset display resolution, and the recommended preset display resolution.

The monitor automatically scans the signal inputs for an active input and uses that input for the display.

Connecting USB devices

USB ports are used to connect devices such as a digital camera, USB keyboard, or USB mouse. There are two downstream USB ports on the rear of monitor.

NOTE: You must connect the USB upstream cable from the computer to the monitor to enable the USB downstream ports on the monitor. See step 4 in Connecting the cables on page 7.

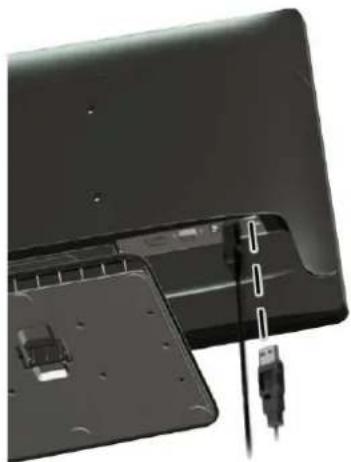

Close-up of a black electronic device showing internal components and cable connections (no text or symbols visible)

Removing the monitor stand

You can remove the monitor panel from the stand to install the panel on a wall, a swing arm, or other mounting fixture.

CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and all cables are disconnected.

1. Disconnect and remove all cables from the monitor.
2. Lay the monitor face down on a flat surface covered by a clean, dry cloth.

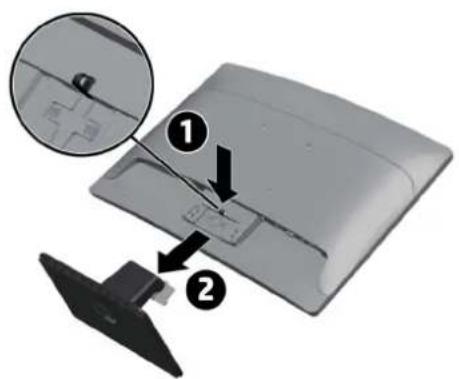

3. Press down on the release latch (1) and slide the stand out of the slot on the display head (2).

Diagram showing a device component with labeled parts and an inset magnified view of the internal structure.

Mounting the Monitor

The monitor panel can be attached to a wall, swing arm, or other mounting fixture.

NOTE: This apparatus is intended to be supported by UL or CSA or GS Listed wall mount bracket.

CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach a third-party mounting solution to the monitor, four 4mm diameter, 0.7 pitch, and 10 mm long screws (M4 x 10mm screws) are required. Longer screws must not be used because they may damage the monitor. It is important to verify that the manufacturer's mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor display panel. For best performance, it is important to use the power and video cables provided with the monitor.

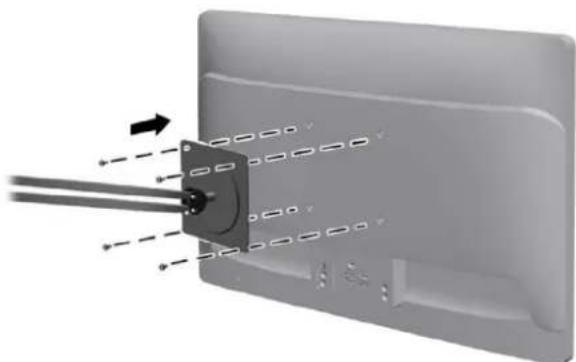

1. Remove the monitor from the stand (see Removing the monitor stand on page 11).
2. Remove the four screws from the VESA holes located on the rear of the monitor.

3D rendered diagram of a device with dashed lines and arrows indicating motion or flow (no text or symbols)

1. To attach the monitor to a swing arm (sold separately), insert four 10mm screws through the holes on the swing arm plate and into the mounting holes on the monitor.

NOTE: To attach the monitor to other mounting fixtures, follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.

3D diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

1. Reconnect the cables to the monitor panel.

Locating the serial number and product number

The Rating label (1) and Safety label (2) are located on the rear of the monitor. The serial number and product number are located on a Rating label. You may need these numbers when contacting HP about the monitor model.

Diagram of a monitor front panel with two labeled buttons and display screens, showing numbered annotations.

Installing a cable lock

You can secure the monitor to a fixed object with an optional cable lock available from HP.

Close-up of a mechanical component with a cable inserted into a base (no visible text or symbols)

4 Operating the monitor

Software and utilities

The disc that comes with the monitor contains files you can install on the computer:

• an .INF (Information) file
- ICM (Image Color Matching) files (one for each calibrated color space)
HP MyRoom
HP Display Assistant

The Information file

The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor compatibility with the computer's graphics adapter.

This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without installing the .INF file. Monitor Plug and Play compatibility requires that the computer's graphic card is VESA DDC2-compliant and that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC type connectors or through distribution buffers/boxes.

The Image Color Matching file

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color matching from monitor screen to printer, or from scanner to monitor screen. This file is activated from within graphics programs that support this feature.

NOTE: The ICM color profile is written in accordance with the International Color Consortium (ICC) Profile Format specification.

Installing the .INF and .ICM files

After you determine that you need to update, you can install the .INF and .ICM files from the disc or download them.

Installing from the disc

To install the .INF and .ICM files on the computer from the disc:

1. Insert the disc in the computer optical drive. The disc menu is displayed.
2. View the HP Monitor Software Information file.
3. Select Install Monitor INF/ICM Software.
4. Follow the on-screen instructions.
5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the disc in the event of an installation error. Refer to the HP Monitor Software Information file on the disc.

Downloading from the Web

If you do not have a computer or source device with an optical drive, you can download the latest version of .INF and .ICM files from the HP monitors support Web site:

1. Go to http://www.hp.com/support and select the appropriate country and language.
2. Select Drivers & Downloads, type your monitor model in the Find my product search field, and click Go.
3. If necessary, select your monitor from the list.
4. Select your operating system, and then click Next.
5. Click Driver - Display/Monitor to open the list of drivers.
6. Click on the driver.
7. Click the System Requirements tab, and then verify that your system meets the program minimum requirements.
8. Click Download and follow the on-screen instructions to download the software.

Using the HP Display Assistant

HP Display Assistant software, included on the software and documentation CD, is a software utility that guides you through the tuning process with easy to understand instructions and background patterns designed for each monitor control. It provides:

• Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the best overall image quality.
• Software control of the monitor image and color settings to eliminate dependence on the monitor' front panel buttons and On-Screen Display (OSD) menu.
• Defined preset display settings for each individual user in a multi-user environment.
• Multiple preset display settings for a single user based on content and ambient lighting.
• Asset Management and Power Management capabilities that include remote control for individual or a group of displays on the domain from a centralized console application.

The HP display software has two modes of operation: Wizard and OSD mode. The preferred method of use is Wizard mode, which takes you through a step-by-step process to accurately calibrate the monitor. This method relies on a sequence of steps that will obtain the best display results when completed.

NOTE: Refer to the HP Display Assistant User Guide for additional information about the software.

Using HP MyRoom

HP MyRoom is your online meeting room. Connect with business colleagues “face to face” and collaborate with useful tools.

Installing HP MyRoom from the media disc

To install HP MyRoom:

1. Insert the media disc that came with your monitor into the computer optical drive.
2. Select Install HP MyRoom and run the setup file.
3. Follow the instructions on the screen.

Downloading HP MyRoom from the Internet

To download HP MyRoom:

1. Go to https://www.rooms.hp.com/myroom.
2. Select language of your choice in the upper right-hand corner of the screen. Click Go if changing language.
3. Click Download Now.
4. Click Run to run the file.
5. Follow the instructions on the screen to complete the software installation.

Creating a HP MyRoom Account

To begin using HP MyRoom after the software installation is complete:

1. Click Create New Account.
2. Enter your name, e-mail address, and set a password.
3. Follow the prompt to validate your e-mail address.
4. Sign in to HP MyRoom.
5. Begin using HP MyRoom by clicking on the Add Contact button.
6. Click the question mark button and select Documentation for detailed instructions.

Using the On-Screen Display (OSD) menu

Use the On-Screen Display (OSD) menu to adjust the monitor settings screen image based on your preferences. You can access and make adjustments in the OSD using the buttons on the monitor's front panel.

To access the OSD and make adjustments, do the following:

1. If the monitor is not already on, press the power button to turn on the monitor.

2. To access the OSD menu, press one of the five front bezel buttons to activate the buttons, and then press the Menu button to open the OSD.

3. Use the four Function buttons to navigate, select, and adjust the menu choices. The button labels are variable depending on the menu or sub-menu that is active.

The following table lists the menu selections in the main menu.

Main Menu	Description
Brightness	Adjusts the brightness level of the screen.
Contrast	Adjusts the contrast level of the screen.
Color Control	Selects and adjusts the screen color.
Input Control	Adjusts the video input signal.
Image Control	Adjusts the screen image.
Audio Control	Adjusts the audio settings.
Power Control	Adjusts the power settings.
OSD Control	Adjusts the on-screen display (OSD) and Function button controls.
Management	Enables/disables DDC/CI support and returns all OSD menu settings to the factory default settings.
Language	Selects the language in which the OSD menu is displayed. The factory default is English.
Information	Displays important information about the monitor.
Exit	Exits the OSD menu screen.

Using Auto-Sleep Mode

The display supports an OSD (On-Screen Display) option called Auto-Sleep Mode that allows you to enable or disable a reduced power state for the display. When Auto-Sleep Mode is On(On by default), the monitor will enter a reduced power state when the host PC signals low power mode (absence of either horizontal or vertical sync signal).

Upon entering this reduced power state sleep mode, the monitor screen is blanked, the backlight is turned off and the power LED indicator turns amber. The monitor draws less than 0.5W of power when in this reduced power mode. The monitor will wake from the sleep mode when the host PC sends an active signal to the monitor (for example, if you activate the mouse or keyboard).

You can disable the Auto-Sleep Mode in the OSD. Press one of the five front bezel buttons to activate the buttons, and then press the Menu button to open the OSD. In the OSD press Power Control > Auto-Sleep Mode > Off.

Using the Microsoft Skype for Business

To enable the Microsoft Skype for Business features, do the following:

1. Use the provided USB upstream cable to connect the monitor and your computer (see Connecting the cables on page 7). Your computer will automatically detect the monitor and install the drivers.

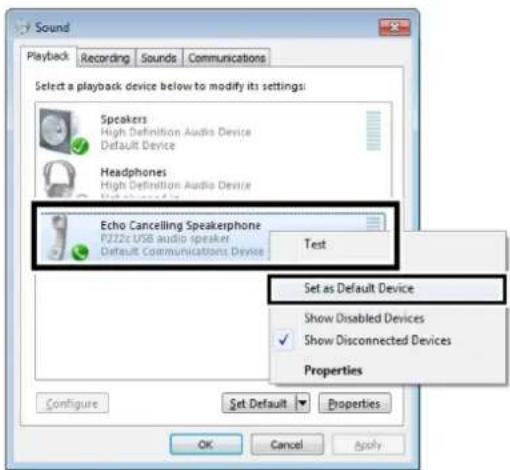

2. In the windows operating system, open the Sound window, and then set the Echo Cancelling Speakerphone as default device.

Sound Playback Recording Sounds Communications Select a playback device below to modify its settings: Speakers High Definition Audio Device Default Device Headphones High Definition Audio Device Test Echo Cancelling Speakerphone P222c USB audio speaker Default Communications Device Test Set as Default Device Show Disabled Devices ✓ Show Disconnected Devices Properties Configure Set Default Properties OK Cancel Apply

1. In the Skype for Business main window, click the Options button, and then select Video Device.
2. In the Select the webcam you want to use for video calls list, select HP Hign Definition 1MP Webcam.

Lync - Options General Personal Status My Picture Phones Alerts Ringtones and Sounds Audio Device Video Device Call Forwarding File Saving Video device Select the webcam you want to use for video calls: Visual Communication Camera RP High Definition IMP Webcam Visual Communication Camera Learn More Webcam Settings

Access the Microsoft Skype for Business with front panel buttons:

- Mute

Press and hold the Minus button for 3 seconds to mute the audio or turn off the mute. When the mute icon appears, press the Minus button to switch the audio between mute and un-mute.

User interface control panel showing playback mode with '+' and '−' buttons and display icons

• Volume Down/Volume Up

To adjust the volume, press and hold the Minus button for 1 second. The activated OSD shows the numeric values of the volume level. To increase or decrease the volume use the Plus or Minus buttons.

User interface control panel showing playback controls with percentage and OK/Cancel buttons

Audio Volume 90 Select Audio-Auto-Select Select DisplayPort Audio Select PC Analog Audio Internal Speaker Self-Text Cancel Save and Return 1920 x 1080 60Hz

- Microphone Mute

To mute the microphone, press the Microphone Mute/Plus button. The microphone-mute-button light turns on when the microphone is muted.

Close-up of a computer control panel with no visible text or symbols on the screen or buttons

A Technical specifications

NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

For the latest specifications or additional specifications on this product, go to http://www.hp.com/go/quickspecs and search for your specific display model to find the model-specific QuickSpecs.

Display	54.6 cm wide screen	21.5 inches wide screen
Type	LCD
Viewable Image Size	54.6 cm diagonal	21.5-inch diagonal
Maximum Weight (Unpacked)	3.75 kg	8.27 lbs
Dimensions (include stand)
Height	38.79 cm	15.27 inches
Depth	20.35 cm	8.01 inches
Width	50.67 cm	19.95 inches
Maximum Graphic Resolution	1920 x 1080 (60 Hz)
Optimum Graphic Resolution	1920 x 1080 (60 Hz)
Power Source	100 – 240 VAC 50/60 Hz
Tilt	-5° to 22°
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-20 to 60°C	-4 to 140°F
Input Terminal	One VGA connector, one DP connector (cable inclusion varies by region)

Speaker specifications

Diagram of a device with two circular components mounted on a stand, labeled with number 1 (no text or symbols on the device itself)

Component		Specifications
1	Speaker	Rated Power	2 W * 2
		Frequency	350 Hz ~ 20 kHz

Recognizing preset display resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognizes these preset modes and they will appear properly sized and centered on the screen.

Preset	Pixel Format	Horz Freq (kHz)	Vert Freq (Hz)
1	640 × 480	31.469	59.94
2	800 × 600	37.879	60.317
3	1024 × 768	48.363	60.004
4	1280 × 720	45.00	59.94
5	1280 × 800	49.702	59.81
6	1280 × 1024	63.981	60.02
7	1440 × 900	55.935	59.887
8	1600 × 900	60.00	60.00
9	1680 × 1050	65.29	59.954
10	1920 × 1080	67.50	60.00

Entering user modes

The video controller signal may occasionally call for a mode that is not preset if:

• You are not using a standard graphics adapter.
• You are not using a preset mode.

If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. Your changes can be made to any or all of these modes and saved in memory. The monitor automatically stores the new setting, and then recognizes the new mode just as it does a preset mode. In addition to the factory preset modes, there are at least 10 user modes that can be entered and stored.

Energy saver feature

The monitors support a reduced power state. The reduced power state will be entered into if the monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and the power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize 0.5 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.

Refer to the computer manual for instructions on setting energy saver features (sometimes called power management features).

NOTE: The above power saver feature only works when connected to computers that have energy saver features.

By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes the monitor to enter the reduced power state, the power light blinks amber.

B Support and troubleshooting

Solving common problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.

Problem	Possible Cause Solution
Screen is blank or video is flashing.	Power cord is disconnected.	Connect the power cord.
	Power button is turned off.	Press the front panel power button.NOTE: If pressing the power button has no effect, press and hold the power button for 10 seconds to disable the power button lockout feature.
	Video cable is improperly connected.	Connect the video cable properly. See Connecting the cables on page 7 for more information.
	System is in sleep mode.	Press any key on the keyboard or move the mouse to inactivate the screen blanking utility.
	Video card compatibility. Open the OSD menu and select the Input Control menu.Set Auto-Switch Input to Off and manually select the input.
Image appears blurred, indistinct, or too dark.	Brightness is too low. Open the OSD menu and select Brightness to adjust the Brightness scale as needed.
Check Video Cable is displayed on screen.	Monitor video cable is disconnected. Connect the appropriate video signal cable between the computer and monitor. Be sure that the computer power is off while connecting the video cable.
Input Signal Out of Range is displayed on screen.	Video resolution and/or refresh rate are set higher than what the monitor supports.	Change the settings to a supported setting (see Recognizing preset display resolutions on page 22).
The monitor is off but it did not seem to enter into a low-power sleep mode.	The monitor's power saving control is disabled.	Open the OSD menu and select Power Control > Auto-Sleep Mode and set auto-sleep to On.
OSD Lockout is displayed.	The monitor's OSD Lockout function is enabled.	Press and hold the Menu button on the front panel for 10 seconds to disable the OSD Lockout function.
Power Button Lockout is displayed.	The monitor's Power Button Lockout function is enabled.	Press and hold the power button for 10 seconds to unlock the power button function.

Using the Auto-Adjustment Function (Analog Input)

When first setting up the monitor, when conducting a Factory Reset of the computer, or whenever you change the resolution of the monitor, the Auto-Adjustment feature will automatically engage, and attempt to optimize your screen for you.

You may also optimize the screen performance for the VGA (analog) input at any time by using the Auto-Adjustment from the OSD Main Menu (press the Menu button, then select Image Control > Auto-Adjustment) and the auto-adjustment pattern software utility on the disc provided.

Do not use this procedure if the monitor is using an input other than VGA. If the monitor is using a VGA (analog) input, this procedure can correct the following image quality conditions:

• Fuzzy or unclear focus
  • Ghosting, streaking or shadowing effects
• Faint vertical bars
  • Thin, horizontal scrolling lines
  • An off-center picture

To use the auto-adjustment feature:

1. Allow the monitor to warm up for 20 minutes before adjusting.

2. Do Auto-Adjustment of image control

3. You can also press the Menu button, then select Image Control > Auto-Adjustment from the OSD Main Menu.
   • If the result is not satisfactory, continue with the procedure.

4. Insert the disc in the disc drive. The disc menu is displayed.

5. Select Open Auto-Adjustment Utility. The setup test pattern is displayed.
6. Do Auto-Adjustment of image control to produce a stable, centered image.
7. Press the ESC key or any other key on the keyboard to exit the test pattern.

Gray-scale color calibration bar with grayscale intensity mapping (no text or symbols)

NOTE: The auto-adjustment test pattern utility can be downloaded from http://www.hp.com/support.

Optimizing Image Performance (Analog Input)

Two controls in the on-screen display can be adjusted to improve image performance: Clock and Phase (available in the main menu).

NOTE: The Clock and Phase controls are adjustable only when using an analog (VGA) input. These controls are not adjustable for digital inputs.

The Clock must first be set correctly since the Phase settings are dependent on the main Clock setting. Use these controls only when the auto-adjustment function does not provide a satisfactory image.

• Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the screen background.
  • Phase—Increases/decreases the value to minimize video flickering or blurring.

NOTE: When using the controls, you will obtain the best results by using the auto-adjustment pattern software utility provided on the disc.

When adjusting the Clock and Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the Factory Reset menu in the on-screen display.

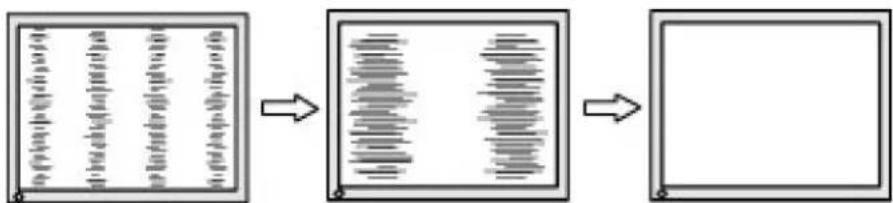

To eliminate vertical bars (Clock):

1. Press the Menu button on the monitor's front panel to open the OSD Menu, and then select Image Control > Clock and Phase > Clock.
2. Press the + (Plus) or - (Minus) buttons on the monitor's front panel to eliminate vertical bars. Press the buttons slowly so that you do not miss the optimum adjustment point.

1. After adjusting the Clock, if blurring, flickering, or bars appear on the screen, proceed to adjust the Phase.

To remove flickering or blurring (Phase):

1. Press the Menu button on the monitor's front panel to open the OSD Menu, and then select Image Control > Clock and Phase > Phase.
2. Press the + (Plus) or - (Minus) buttons on the monitor's front panel to eliminate flickering or blurring. Flicking or blurring may not be eliminated depending on your computer or graphics controller card installed.

To correct screen position (Horizontal Position or Vertical Position):

1. Press the Menu button on the monitor's front panel to open the OSD Menu, and then select Image Control > Image Position > Horizontal Position and/or Vertical Position.
2. Press the + (Plus) or - (Minus) buttons on the monitor's front panel to properly adjust the position of the image in the display area of the monitor. The Horizontal Position shifts the image left or right; the Vertical Position shifts the image up and down.

Two blank rectangular frames with a right-pointing arrow between them, no text or symbols present.

Button lockouts

Holding down the power button or Menu button for ten seconds will lock out the functionality of that button. You can restore the functionality by holding the button down again for ten seconds. This functionality is only available when the display is powered on, displaying an active signal, and the OSD is not active.

Product support

For additional information on using your monitor, go to http://www.hp.com/support. Select your country or region, select Troubleshooting, and then enter your model in the search window and click the Go button.

NOTE: The monitor user guide, reference material, and drivers are available at http://www.hp.com/support.

If the information provided in the guide does not address your questions, you can contact support. For U.S. support, go to http://www.hp.com/go/contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.

Here you can:

• Chat online with an HP technician

NOTE: When support chat is not available in a particular language, it is available in English.

• Find support telephone numbers
- Locate an HP service center

Preparing to call technical support

If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical support. Have the following information available when you call:

• Monitor model number
• Monitor serial number
• Purchase date on invoice
• Conditions under which the problem occurred
- Error messages received
• Hardware configuration

• Name and version of the hardware and software you are using

C LCD monitor quality and pixel policy

The TFT monitor uses high-precision technology, manufactured according to HP standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.

• A pixel consists of one red, one green, and one blue sub-pixel.
• A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off (a dark spot on a bright background). The first is the more visible of the two.
• A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and only visible on a specific background.

To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (20 in).

HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer cosmetic imperfections and HP will adjust guidelines as improvements are made.

D Accessibility

HP designs, produces, and markets products and services that can be used by everyone, including people with disabilities, either on a stand-alone basis or with appropriate assistive devices.

Supported assistive technologies

HP products support a wide variety of operating system assistive technologies and can be configured to work with additional assistive technologies. Use the Search feature on your device to locate more information about assistive features.

NOTE: For additional information about a particular assistive technology product, contact customer support for that product.

Contacting support

We are constantly refining the accessibility of our products and services and welcome feedback from users. If you have an issue with a product or would like to tell us about accessibility features that have helped you, please contact us at [phone], Monday through Friday, 6 a.m. to 9 p.m. Mountain Time. If you are deaf or hard-of-hearing and use TRS/VRS/WebCapTel, contact us if you require technical support or have accessibility questions by calling [phone], Monday through Friday, 6 a.m. to 9 p.m. Mountain Time.
