Product Type	Indoor/Outdoor Mini PTZ Dome IP Camera (Vandal Proof)
Image Sensor	Sony 1/4" Super HAD CCD, 410K pixels
Horizontal Resolution	580 TVL (Color) / 680 TVL (B/W)
Zoom	12x Optical, 16x Digital (Max 192x)
Pan/Tilt	360° endless rotation, Pan: 0.05° ~ 250°/sec, Tilt: -2° ~ 90°, 0.05° ~ 250°/sec
Day/Night	True Day & Night with IR Cut Filter (Auto/Day/Night)
Video Compression	H.264, MPEG-4, MJPEG (selectable per stream)
Streaming	Dual stream, configurable
Max Frame Rate	25/30 fps @ D1 (PAL/NTSC)
Audio	Two-way mono audio, G.711 (μLaw/aLaw) / PCM
Network	10/100 Base-T Ethernet, RTSP/HTTP/SNMP/SSL etc.
Analog Video Output	1 loop out (BNC terminal block)
Digital I/O	1 DI (max 50mA@5VDC), 1 DO (max 500mA@24VAC or 1A@12VDC)
RS-485	PTZ control supported
Storage	Micro SD card socket (SD card not included)
Power Supply	DC 12V, 1A (voltage range: 8V ~ 16V)
Power Consumption	Approx. 1400mA
Operating Temperature	-40°C ~ 50°C (DC12V), cold start -10°C
Dimensions	Housing: 157mm (Φ) x 178mm (H)
Weight	1,900 g
Material	Aluminum die casting / Polycarbonate
Color	Ivory
VCA	Presence (included), Surveillance (optional)

Frequently Asked Questions - PixelPro ZN-PTZ12VN-XT Ganz

How do I reset the camera to factory defaults?

Disconnect power, press and hold the reset button, reconnect power, hold for 5 seconds, then release. The camera will reboot with factory settings. Default IP: 192.168.xx.yy, user: root, password: pass.

What is the default IP address of the PixelPro ZN-PTZ12VN-XT?

The default IP address is derived from the MAC address. For example, MAC 00-13-23-01-14-B1 corresponds to IP 192.168.20.177. Use the IPAdminTool or consult the conversion table in the manual.

Can I use the camera without internet?

Yes, the camera can operate on a local network. Connect via Ethernet and use the IPAdminTool or direct IP address to view video. For local recording, insert a Micro SD card (not included).

How do I install the PTZ camera on a ceiling?

Use the included installation template to drill four holes, insert anchor blocks, fasten the surface mount bracket, then attach the camera body and secure with screws. Ensure the ceiling is strong enough to support the 1.9 kg camera.

What are the audio input/output specifications?

Audio input: Line-in, 1.43Vp-p (min 1.35, max 1.49), 39 kΩ. Audio output: Line-out, 46mW into 16 Ω. Two-way mono audio supported. Do not connect a speaker directly without an amplifier.

How do I control the PTZ functions?

PTZ can be controlled via RS-485 connection to a keyboard, or through the web interface OSD menu. The camera supports 360° endless pan, tilt from -2° to 90°, and preset speeds up to 250°/sec.

What video resolutions and frame rates are supported?

Supports D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA. Maximum frame rate is 25 fps (PAL) or 30 fps (NTSC) at D1 resolution. Dual streaming allows different codec/resolution/bitrate per stream.

How do I clean the camera dome?

Use a soft, dry cloth to gently wipe the dome. Avoid abrasive cleaners or solvents. For stubborn dirt, lightly dampen the cloth with water. Do not spray liquids directly onto the camera.

Can I use the camera with third-party VMS software?

Yes, the camera supports standard protocols like RTSP, HTTP, and ONVIF compliance (implied by SDK support). A Software Development Kit (SDK) is provided for integration. Check your VMS compatibility.

What is the warranty period for this camera?

Warranty information is not specified in the manual. Typically, Ganz offers a limited warranty. Contact your dealer or Ganz support for details. Refer to the purchase documentation.

USER MANUAL PixelPro ZN-PTZ12VN-XT Ganz

H.264 x12 PTZ NETWORK CAMERA

ZN-PTZ12VP-XT ZN-PTZ12VN-XT

Installation Manual

ZMAG®

INFORMATION TO USER

CAUTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL.

This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the appliance.

Table of Contents

1. FEATURES ....4
2. PACKAGE CONTENTS .... 5
3. PART NAMES ...... 6
4. INSTALLATION 8

4.1.Installaon Template....9
4.2.Seng the Image Aribute 10
4.3.Operang the OSD Menu ....10

1. CONNECTIONS....11

5.1Connectors....11

1. CONFIGURATION .... 14

6.1. Set up network environment....14
6.2. View video on web page....14

6.2.1. View video using IPAdmin Tool .... 14
6.2.2. View video using IP address....16

6.3. Reset....16
6.4. Factory Default....16

APPENDIX (A): SPECIFICATIONS....17

Summary 17
Electrical Characteriscs 18
Environment Condion....18

APPENDIX (B): DIMENSIONS....19

APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE 20

REVISION HISTORY 21

1. FEATURES

Camera

• Indoor/Outdoor Mini PTZ Dome IP Camera (Vandal Proof)
  • Sony 1/4" Super HAD CCD, 410K Pixel
  • x12 Opcal Zoom, x16 Digital Zoom (Max x192)
  • True Day & Night (IR Cut Filter, DSS)
• 360^ endless rotaon
  • Intelligent pan/It controlling
• Improvement of color rolling suppression

Streaming

• Dual streaming mode (such as dierent codec/resoluon/bit rate and so on.)
• De-interlacing on DSP
• Burnt-in text supported
  • Unicast/Mulcast supported

Video/Audio

• Video compression: H.264/MPEG4/MJPEG, 25/30FPS@D1(PAL/NTSC)
• Audio compression: G.711(μLaw, aLaw)/PCM
- Analog video out for external monitors
• Video Moon Detecon supported
- Two-way mono audio supported

Network

• RTSP/ HTTP protocol supported
• 10/100 Base-T Ethernet

Additional Features

• RS-485 supported
• Micro SD card socket for external storage
• OSD supported
• SDK (Soware Development Kit) provided

VCA (Video Content Analysis)

• VCA Presence (Included as basic)
• VCA Surveillance (Oponal)

2. PACKAGE CONTENTS

Unpack carefully and handle the equipment with care. The packaging contains:

Camera

Terminal block

Power adaptor jack

Video BNC cable

Quick Installaon Guide

DC power adaptor

Technical line drawing of a mechanical assembly with two components and a central circular feature (no text or symbols)

Installaon Template

Screws and Anchor blocks

Illustration of various screw and nail components (no text or symbols)

Hex wrench driver

Note

The above contents are subject to change without prior noce.

3. PART NAMES

* Models herein and their appearance are subject to change without any prior noce.

① Micro SD Card Socket

It is a memory card slot for external storage.

② LAN Connector (Ethernet)

This is a RJ45 LAN connector for 10/100 Base-T Ethernet.

This LED lights up as orange and turns green when the encoder is powered on.

LED operaon seng:

For the factory default seng, LED 2 blinks for the heartbeat and LED 1 turns on for video signal. To change its seng, refer to the secon 4.5.11. LED Seng of the NVC Web Page User's Manual.

③ 8 pin terminal block for audio, DI, and DO

Refer to the secon "5.1.Connectors" for more specific informaon.

④ 6 pin connector for analog video output, RS485, and power

Refer to the secon "5.1.Connectors" for more specic informaon.

⑤ Reset

Reset switch is used for restarng the camera or reseng it to Factory Default (FD). Refer to the secon "6.3. Reset" for more specic information.

4. INSTALLATION

Exploded view diagram of a smart home control module showing internal components and screw installation (no text or labels)

1) Connect the LAN cable, power supply cable, and the video loop out cable with the camera.

2) Place the installaon template on the ceiling.

3) Drill four holes on the template and insert anchor blocks into the holes. Fasten the surface mount bracket with screws.

4) Put the main body on the surface mount bracket of the camera. Make sure the bracket and the main body fit each other into place.

5) Fasten the main body with screws.

When assembling the main body of the camera and its dome cover, make sure they t each other into place.

The camera may fall o the ceiling even aer the proper installaon and mounng. To prevent any accident, make sure the ceiling is rm and stable enough to support the camera. If any reinforcement is needed, consult with your safety personnel and proceed with the installaon.

4.1. Installation Template

4.2. Setting the Image Attribute

You can set the image aribute of camera through the webpage.

The menu of image aribute can be seen under Setup > Video & Audio > Video-in > Aribute

Seng. Brightness, contrast, hue, saturaon and sharpness can be adjusted.

4.3.Operating the OSD Menu

To operate the OSD of camera, refer to the "OSD Menu Control Manual."

5. CONNECTIONS

5.1Connectors

① Audio Input/Output Connection

Connect to the audio input device such as a mike and the audio output device such as the amplifier speaker.

Audio Input : Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ

Audio Output: Lineout, 46mW Power, 16 Ω

Do not connect the speaker without amplifier.

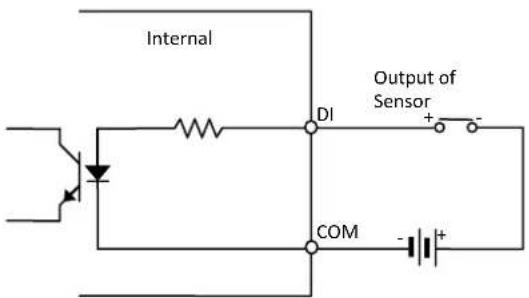

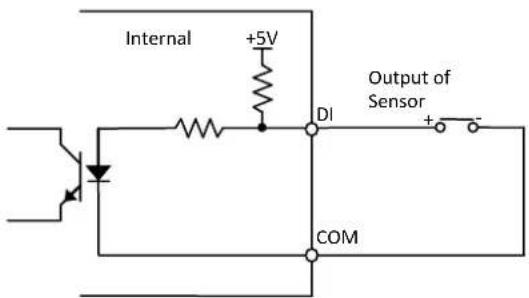

② Sensor (DI) conncon

The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following gures. It can be selected by soware.

Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 4.5V

Do not exceed the maximum input voltage or relay rate.

Relay Type

Voltage Type

③ Alarm (DO) conneccon

The camera provides 1 channel D/O.

Relay Rang: Max 24VAC 500mA or 12VDC 1A

Do not exceed the maximum relay rang.

Relay Type
④ Analog video out
Connect with BNC coaxial cable.

⑤ RS-485 Communicaon
For PTZ control, connect this line to keyboard.
⑥ Power Connecon
Please, check the voltage and current capacity of rated power carefully.

Rated Power	Input Voltage Range	Current Consumpon
DC 12V	DC 8V ~ 16V	1 A

6. CONFIGURATION

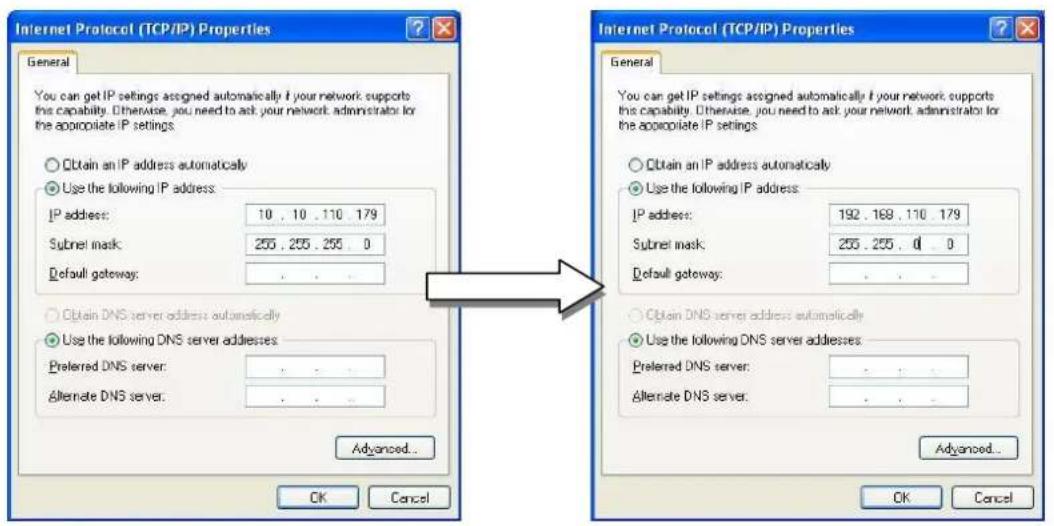

6.1. Set up network environment

The default IP address of your IP device is 192.168.XXX.XXX. You can nd the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installaon. If the network segment between your PC and the device is dierent, change your PC's sengs as below.

IP address : 192.168.xxx.xxx

Subnet mask: 255.255.0.0

6.2. View video on web page

View the live video on a web page using your IP device and its IP address. You can use the IPAdminTool or enter the IP address on the web page.

6.2.1. View video using IPAdmin Tool

IPAdminTool automacally searches all acvated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided with SDK at the following SDK path.

{SDK root}\BIN\TOOLS\AdminTool\

To use the IPAdminTool and view the live video on a web page:

1. Start IPAdminTool. Names and info of currently acvated devices appear as a list.
2. Right-click on the desired device and select Web view.
3. Click pop-up blocked and install the ActiveX setup.exe by clicking the Run or Save buon. You need to install the AcveX for displaying the images.

1. Follow the instructions of the dialog boxes and complete the installaon. Then the live video is displayed on the main page of the web browser.

2. If the live video is not displayed with the message said, "This soware requires the Microso XML Parser V6 or higher. Please download MSXML6 from the Microso website to connue. Error code: Can not create XMLDOMDocument.", please download and install the relevant MSXML.

If the AcveX setup.exe file fails to be installed successfully, close all of the Internet Explorer windows and go to Program Files > AxInstall folder on your computer. Then, run Uninstall.exe and try to perform the steps 1 to 4 above again.

6.2.2. View video using IP address

View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page:

1. Convert a MAC address to an IP address or check the IP address on the IPAdminTool. Refer to Appendix (C): Hexadecimal-Decimal Conversion Table.

(The MAC address is aached on the side or boom of the device.)

MAC address = 00-13-23-01-14-B1 → IP address = 192.168.20.177

the Hexadecimal number to Decimal number.

1. Open a web browser and enter the IP address of the device.

2. Click pop-up blocked and install the AcveX setup.exe by clicking the Run or Save buon. You need to install the AcveX for displaying the images.

3. Follow the instructions of the dialog boxes and complete the installaon. Then the live video is displayed on the main page of the web browser.

6.3. Reset

1. While the device is in use, press and hold the Reset buon.
2. Release the Reset buon aer 3 seconds.
3. Wait for the system to reboot.

6.4. Factory Default

1. Disconnect the power supply from the device.
2. Connect the power to the device with the Reset buon pressed and held.
3. Release the Reset buon aer 5 seconds.
4. Wait for the system to reboot.

The factory default sengs can be inferred as follows:

IP address: 192.168.xx.yy

Network mask: 255.255.0.0

Gateway: 192.168.0.1

User ID: root

Password: pass

APPENDIX (A): SPECIFICATIONS

Summary

Camera Module
Image Sensor	Sony 1/4" Super HAD CCD
Eecve Pixels	811 x 508 (NTSC) / 795 x 596 (PAL)
TV System	NTSC / PAL
Horizontal Resoluon	580 TVL (Color), 680 TVL (B/W)
Zoom	X12 Opcal Zoom, x16 Digital Zoom
Focal length	F1.67~1.88, f=3.94~46.05mm
Sync System	Internal (12 VDC)
Min. Illuminaon	0.7 Lux(Color) / 0.02 Lux(B/W), 50 IRE
Lens	10X Opcal Day & Night F1.8 f=3.8 ~ 38.0 mm
Iris	Auto / Manual
Day & Night	Auto / Day / Night(ICR)
S / N Rao	52 dB
BLC	On/O
Flickerless	On/O
SSNR	Yes
Dome
Pan Angle / Speed	360° Endless Rotaon,Manual: 0.05° ~ 150°/sec / Preset: Max 250°/sec
Tilt Angle / Speed	-2° ~ 90°,Manual: 0.05° ~150°/sec / Preset: Max 250°/sec
Auto Scan	Programmable Auto scan
Paern	8 Programmable Paerns (total 480 seconds)
Sector	8 selectable Sectors with 16 characters
On Screen Display	Yes
Video
Compression	H.264, MPEG-4, MJPEG Selectable per Stream
Number of Streams	Dual stream, Congurable
Resoluon	D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA
Compression FPS	25/30 fps @ D1 (PAL/NTSC)
De-interlacing	Support (DSP)
Moon Detecon	Support
Burnt-in Text(digital)	Support (DSP)
Analog Video Output	1 Loop Out (Terminal Block)
Audio
Input / Output	1 / 1 Ch
Compression	PCM, G.711
Funcon
Network	10/100 Base-T
DI / DO	1 / 1 Ch
RS-485	Support
Protocol	TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH, SNMP v2/v3
SD memory	Micro SD card slot※ Micro SD Card is not included
Mechanical
Material	Aluminum Die Casng / Polycarbonate
Dimensions	Housing : Housing: 157(Φ) x 178(H) mm
Color	Ivory
Weight	1,900 g

Electrical Characteristics

Power Source	12V DC
Power Consumpon (Approx.)	1400mA
Analog Video Output	1 Vp-p, 75Ω, Composite
Audio Input	Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ
Audio Output	Lineout, 46mW Power, 16 Ω
Sensor(D/I)	Max 50mA@5VDC, TTL level 4.5V threshold
Alarm(D/O)	Max 500mA@24VAC or 1A@12VDCOn-state resistance: 50 Ω (max connuous)

Environment Condition

Operang Temperature	Operang RangeDC12V : -40°C ~ 50°C (-40°F ~ 122°F)Cold StartDC12V : -10°C (14°F)
Storage Temperature	-20 °C ~ 60 °C (-4°F ~ 140 °F)
Operang Humidity	Up to 85% RH

APPENDIX (B): DIMENSIONS

(Unit: mm)

APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE

Refer to the following table when you convert the MAC address of your device to IP address.

Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec	Hex	Dec
00	0	25	37	4A	74	6F	111	94	148	B9	185	DE	222
01	1	26	38	4B	75	70	112	95	149	BA	186	DF	223
02	2	27	39	4C	76	71	113	96	150	BB	187	E0	224
03	3	28	40	4D	77	72	114	97	151	BC	188	E1	225
04	4	29	41	4E	78	73	115	98	152	BD	189	E2	226
05	5	2A	42	4F	79	74	116	99	153	BE	190	E3	227
06	6	2B	43	50	80	75	117	9A	154	BF	191	E4	228
07	7	2C	44	51	81	76	118	9B	155	C0	192	E5	229
08	8	2D	45	52	82	77	119	9C	156	C1	193	E6	230
09	9	2E	46	53	83	78	120	9D	157	C2	194	E7	231
0A	10	2F	47	54	84	79	121	9E	158	C3	195	E8	232
0B	11	30	48	55	85	7A	122	9F	159	C4	196	E9	233
0C	12	31	49	56	86	7B	123	A0	160	C5	197	EA	234
0D	13	32	50	57	87	7C	124	A1	161	C6	198	EB	235
0E	14	33	51	58	88	7D	125	A2	162	C7	199	EC	236
0F	15	34	52	59	89	7E	126	A3	163	C8	200	ED	237
10	16	35	53	5A	90	7F	127	A4	164	C9	201	EE	238
11	17	36	54	5B	91	80	128	A5	165	CA	202	EF	239
12	18	37	55	5C	92	81	129	A6	166	CB	203	F0	240
13	19	38	56	5D	93	82	130	A7	167	CC	204	F1	241
14	20	39	57	5E	94	83	131	A8	168	CD	205	F2	242
15	21	3A	58	5F	95	84	132	A9	169	CE	206	F3	243
16	22	3B	59	60	96	85	133	AA	170	CF	207	F4	244
17	23	3C	60	61	97	86	134	AB	171	D0	208	F5	245
18	24	3D	61	62	98	87	135	AC	172	D1	209	F6	246
19	25	3E	62	63	99	88	136	AD	173	D2	210	F7	247
1A	26	3F	63	64	100	89	137	AE	174	D3	211	F8	248
1B	27	40	64	65	101	8A	138	AF	175	D4	212	F9	249
1C	28	41	65	66	102	8B	139	B0	176	D5	213	FA	250
1D	29	42	66	67	103	8C	140	B1	177	D6	214	FB	251
1E	30	43	67	68	104	8D	141	B2	178	D7	215	FC	252
1F	31	44	68	69	105	8E	142	B3	179	D8	216	FD	253
20	32	45	69	6A	106	8F	143	B4	180	D9	217	FE	254
21	33	46	70	6B	107	90	144	B5	181	DA	218	FF	255
22	34	47	71	6C	108	91	145	B6	182	DB	219
23	35	48	72	6D	109	92	146	B7	183	DC	220
24	36	49	73	6E	110	93	147	B8	184	DD	221

REVISION HISTORY

MAN#	DATE(M/D/Y)	Comments
01A.01	12/219/2011	Created
01A.02	01/03/2012	Modified operang temperature
