Product Type	TV Mount - Interface Kit
Brand	Chief
Model	Fusion FMSIML
Category	Television Mounting Accessory
Weight Capacity	125 lbs (56.7 kg)
Tilt Range	0° to 20°
Lockable Tilt Positions	0°, 10°, 20°
Height Adjustment	Yes (via upper knob on brackets)
Plumb Adjustment	Yes (via middle and lower knobs)
Compatible Mounting Rail	Fusion FMSECAP (end caps required)
Included Hardware	Screws (M6, M8, 1/4-20), spacers, washers, interface brackets, latch screws
Material	Steel
Color	Black
Security Option	Padlock compatible (padlock not included)
Installation Tools Required	Phillips screwdriver, open-ended wrench
Installation Instructions Included	Yes (PDF manual)

Frequently Asked Questions - Fusion FMSIML Chief

What is the weight capacity of the FMSIML interface kit?

The weight capacity is 125 lbs (56.7 kg). Always ensure the combined weight of all components does not exceed this limit.

What tools are required for installation?

You will need a Phillips screwdriver and an open-ended wrench. Specific sizes are not listed, but standard tools should suffice.

How do I attach the interface brackets to my display?

Place the display face down on a soft surface. Select the correct screw diameter (M6, M8, or 1/4-20) and length from the included hardware. Use spacers if the mounting holes are recessed. Align the bracket's center with the screen's center and secure with screws and washers.

Can I tilt my display after installation?

Yes, the interface brackets allow 0° to 20° tilt adjustment. You can lock the tilt at 0°, 10°, or 20° using the provided screws and lock nuts.

How do I lock the tilt at a specific angle?

Loosen the tilt friction bolt on the side of the bracket, adjust tilt to desired angle, then insert one 1/4-20 x 5/8" Phillips head screw and one 10-24 lock nut per bracket at the 0°, 10°, or 20° locking hole. Tighten the friction bolt afterwards.

Does the FMSIML include security features?

Yes, it has an optional padlock feature. You can add a padlock (not included) to each interface bracket to lock the display to the mounting rail.

What is the difference between FMSIML and FMSITL?

The FMSIML is designed for single display mounting with tilt and height/plumb adjustment, while the FMSITL is for dual upright displays with similar adjustment features. Refer to the manual for specific part differences.

Are spacers included with the FMSIML?

Yes, spacers (Part E: .750x.344x.500) are included. They are required if your display has recessed mounting holes or protrusions that prevent the brackets from sitting flat.

How do I adjust the height and plumb of the display?

Use the upper knob on the back of each interface bracket to adjust height. Use the middle and lower knobs to make plumb (level) adjustments. Adjust both brackets evenly to maintain a level mount.

Can I install the FMSIML without end caps?

No, end caps (FMSECAP) must be installed at both ends of the mounting rail before adding displays, as stated in the caution. Follow the instructions included with the end caps.

USER MANUAL Fusion FMSIML Chief

INSTALLATION INSTRUCTIONS

Menu Board Interface Kits

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all parts are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which the mounting system is attached can support five times the combined weight of all equipment.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located on the accessory does not exceed the weight capacity listed in Table 1.

Table 1: Weight Capacity

	Maximum Weight Allowed
FCASFP	75 lbs (34.0 kg)
FMSIML	125 lbs (56.7 kg)
FMSITL	125 lbs (56.7 kg)

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

--SAVE THESE INSTRUCTIONS--

TABLE OF CONTENTS

FCASFP....3

FMSIML....7

FMSITL....11

DIMENSIONS

LEGEND

	Tighten Fastener		Phillips Screwdriver
	Apretar elemento de fijación		Destornillador Phillips
	Befestigungsteil festziehen		Kreuzschlitzschraubendreher
	Apertar fixador		Chave de fendas Phillips
	Serrare il fissaggio		Cacciavite a stella
	Bevestiging vastdraaien		Kruiskopschroevendraaier
	Serrez les fixations		Tournevis à pointe cruciforme
	Loosen Fastener		Open-Ended Wrench
	Aflojar elemento de fijación		Llave de boca
	Befestigungsteil lösen		Gabelschlüssel
	Desapertar fixador		Chave de bocas
	Allentare il fissaggio		Chiave a punte aperte
	Bevestiging losdraaien		Steeksleutel
	Desserrez les fixations		Clé à fourche

TOOLS REQUIRED FOR INSTALLATION - FCASFP

PARTS - FCASFP

DISPLAY ATTACH HARDWARE BAG

(Letters correspond to letters on bag)

A (4)

M4×12mm

D (4)

M5x12mm

B (4)

M4x20mm

E (4)

M5x20mm

C (4)

M4x25mm

F (4)

M5x25mm

G (4)

M6x12mm

J (4)

M8x12mm

H (4)

M6x20mm

K(4)

M8x20mm

I(4)

M6x25mm

L(4)

M8x30mm

MA (4)

.750 × .323 × .250

MB (4)

.750 × .344 × .500

N (4)

[Universal washer]

Locking Hardware Kit

P (2)

10-24×5/8"

Q (2)

10-24

Technical line drawing of a mechanical bracket with mounting holes and a separate view labeled R (1), no text or symbols present.

1. 2017年1月1日

[Left interface bracket]

Technical line drawing of a mechanical bracket with mounting holes and a hanging clamp (no text or symbols)

S (1)

[Right interface bracket]

INSTALL INTERFACE BRACKETS TO DISPLAYS

1. Raise the latch mechanism on both interface brackets (R and S) to the OPEN position. (See Figure 1)

Figure 1

1. Place displays face down on a soft, non-abrasive surface.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select screw diameter by examining hardware (A-L) and comparing with mounting holes on display. (See Figure 2)

2. Select spacers:

3. Spacers are NOT required if mounting holes are not recessed and interface brackets (R and S) can lay flat against display.

4. Spacers (MA or MB) ARE required if mounting holes are recessed, or if protrusions prevent interface brackets (R and S) from laying flat.

5. Select screw length: (See Figure 2)

- By hand, insert SHORTEST length screw of selected diameter (A, D, G or J) through universal washer (N - if required), bracket (R or S), selected spacer (MA or MB-if required), into display mounting hole. Do NOT thread screw into hole at this time.

IMPORTANT ! : The M8 screws do NOT require a washer. Use the universal washer (N) ONLY with M4, M5 and M6 screws.

- Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

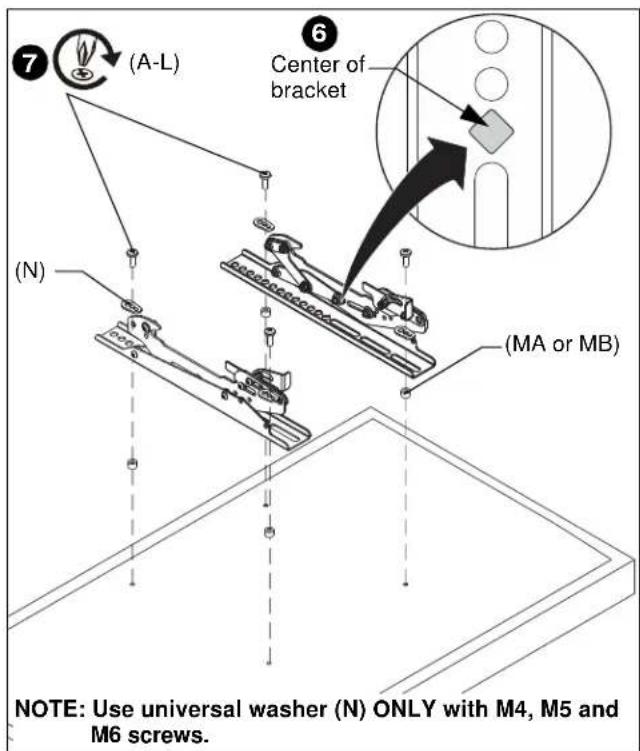

1. Align the center of the interface brackets (R and S) with center of screen. (See Figure 2)
   NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.
2. Use selected screws (A-L), universal washers (N-if required) and spacers (MA or MB-if required), to connect interface brackets (R and S) to back of display. (See Figure 2)

Figure 2

ATTACH DISPLAYS TO MOUNTING RAIL

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The displays must be located approximately evenly across the length of the rail.

1. Ensure that the latch mechanisms on interface brackets (R and S) are already raised to the OPEN position. (See Figure 1)

CAUTION: BEFORE adding displays to the mounting rails, ensure end caps (FMSECAP) are in place at BOTH ends of mounting rail following instructions included with the FMSECAP.

1. While supporting both sides of display, lower display onto mounting rail, hooking top of interface brackets onto top of mounting rail. (See Figure 3)
2. Lower the latch mechanism on both interface brackets to lock bracket in place. (See Figure 3)

Figure 3

1. Repeat for remaining interface bracket.

Interface Bracket Adjustment

CAUTION: ALWAYS keep a small distance between screens when making adjustments! Damage to screens possible if placed too close together.

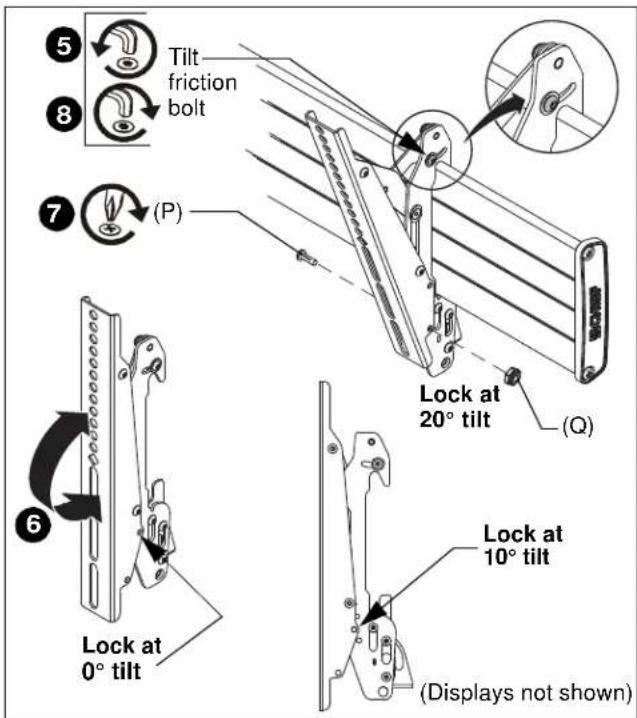

Tilt

The interface brackets allow 0^ to 20^ tilt, and can be locked at 0^ , 10^ and 20^ tilt.

1. If necessary, loosen button head tilt friction bolt (located on side of interface bracket). (See Figure 4)

2. Adjust tilt as required. (See Figure 4)

3. The tilt may be locked at 0°, 10° and 20° using one 10-24 x 5/8" Phillips head screw (P) and one 10-24 lock nut (Q) per interface bracket. (See Figure 4)
4. Tighten tilt friction bolt as necessary.

Figure 4

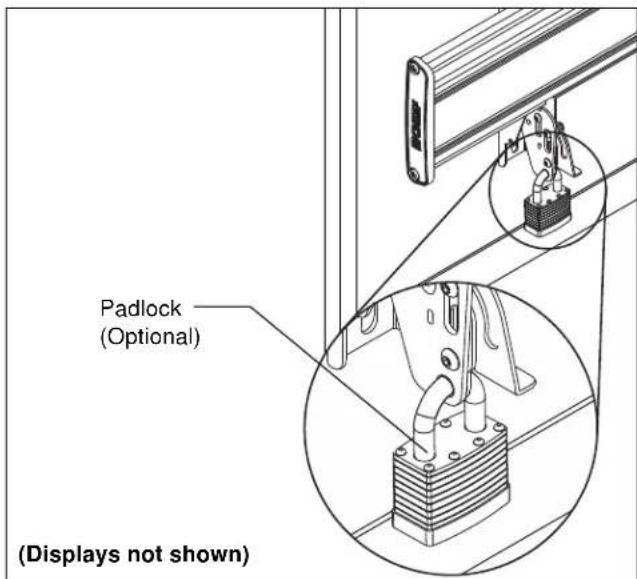

OPTIONAL: Security

1. OPTIONAL: Add padlock (not included) to each interface bracket to lock display to mounting rail. (See Figure 5)

Figure 5

DIMENSIONS

LEGEND

	Tighten Fastener		Phillips Screwdriver
	Apretar elemento de fijación		Destornillador Phillips
	Befestigungsteil festziehen		Kreuzschlitzschraubendreher
	Apertar fixador		Chave de fendas Phillips
	Serrare il fissaggio		Cacciavite a stella
	Bevestiging vastdraaien		Kruiskopschroevendraaier
	Serrez les fixations		Tournevis à pointe cruciforme
	Loosen Fastener		Open-Ended Wrench
	Aflojar elemento de fijación		Llave de boca
	Befestigungsteil lösen		Gabelschlüssel
	Desapertar fixador		Chave de bocas
	Allentare il fissaggio		Chiave a punte aperte
	Bevestiging losdraaien		Steeksleutel
	Desserrez les fixations		Clé à fourche

TOOLS REQUIRED FOR INSTALLATION - FMSIML

PARTS - FMSIML

DISPLAY ATTACH HARDWARE BAG

(Letters correspond to letters on bag)

A (4) M6 x 12mm

B (4) M6 x 16mm

C (4) M6 x 30mm

D (4) 1/4"

E (4) .750x.344x.500

F (4) M8 x 12mm

G (4) M8 x 16mm

H (4) M8 x 25mm

I (2) 1/4-20 x 1-1/4"

Technical line drawing of a mechanical bracket or panel assembly (no text or symbols)

J (1) [Right interface bracket]

Technical line drawing of a vertical mechanical or electrical component with mounting holes and mounting brackets (no text or symbols)

K (1) [Left interface bracket]

INSTALL INTERFACE BRACKETS TO DISPLAYS

1. Place displays face down on a soft, non-abrasive surface.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select screw diameter by examining hardware (A-C and F-H) and comparing with mounting holes on display. (See Figure 6)

2. Select spacers:

- Spacers are NOT____ required if mounting holes are not recessed and interface brackets (J and K) can lay flat against display.

- Spacers (E) ARE required if mounting holes are recessed, or if protrusions prevent interface brackets (J and K) from laying flat.

1. Select screw length: (See Figure 6)

- By hand, insert SHORTEST length screw of selected diameter (A or F) through 1/4" washer (D), bracket (J or K), selected spacer (E, if required), into display mounting hole. Do NOT thread screw into hole at this time.

- Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

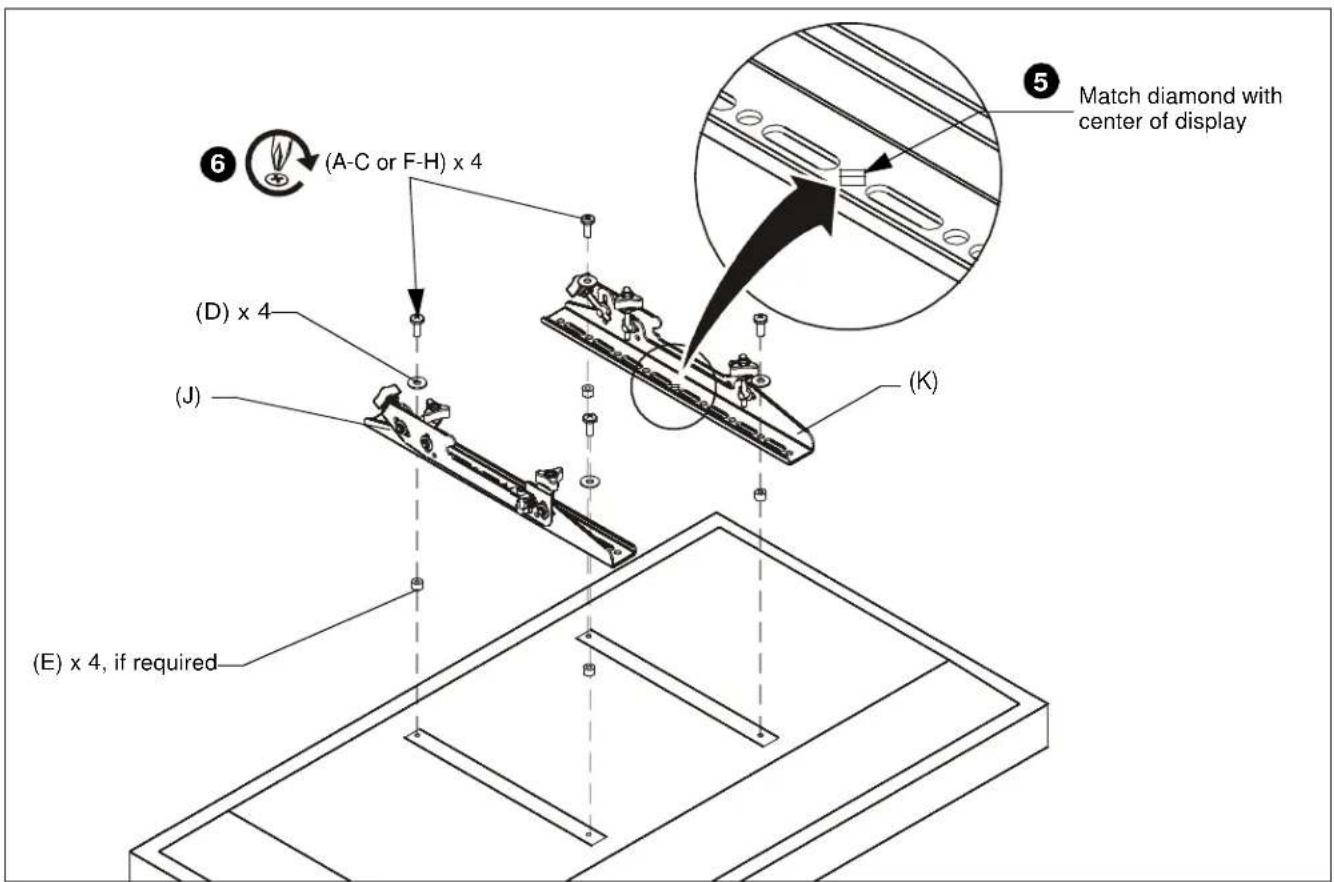

1. Align the center of the interface brackets (J and K) with center of screen. (See Figure 6)

NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.

1. Use selected screws (A-C or F-H), washers (D) and spacers (E), if necessary, to connect interface brackets (J and K) to back of display. (See Figure 6)

Figure 6

ATTACH DISPLAYS TO MOUNTING RAIL

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The displays must be located approximately evenly across the length of the rail.

1. Ensure that the latch mechanisms on interface brackets (J and K) are already raised to the OPEN position. (See Figure 7)

CAUTION: BEFORE adding displays to the mounting rails, ensure end caps (FMSECAP) are in place at BOTH ends of mounting rail following instructions included with the FMSECAP.

1. While supporting both sides of display, lower display onto mounting rail, hooking top of interface brackets onto top of mounting rail. (See Figure 7)

Figure 7

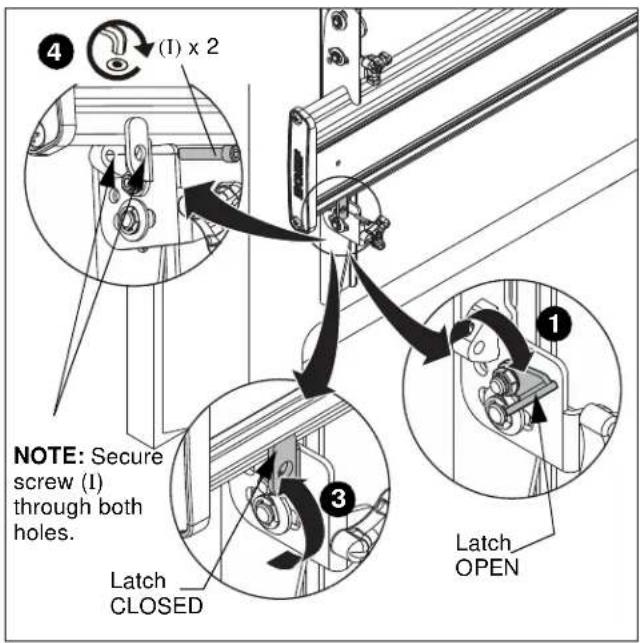

1. Raise latch on interface bracket and close into place against mounting rail. (See Figure 7)
2. Fasten latch into place using one 1/4-20 x 1-1/4" socket head screw (I). (See Figure 7)

NOTE: Socket head screws (I) must engage through both holes to be fully secured. (See Figure 7)

1. Repeat for each interface bracket on the mounting rail.

Interface Bracket Adjustment

CAUTION: ALWAYS keep a small distance between screens when making adjustments! Damage to screens possible if placed too close together.

1. Move displays so that screens are nearly flush and level with each other.

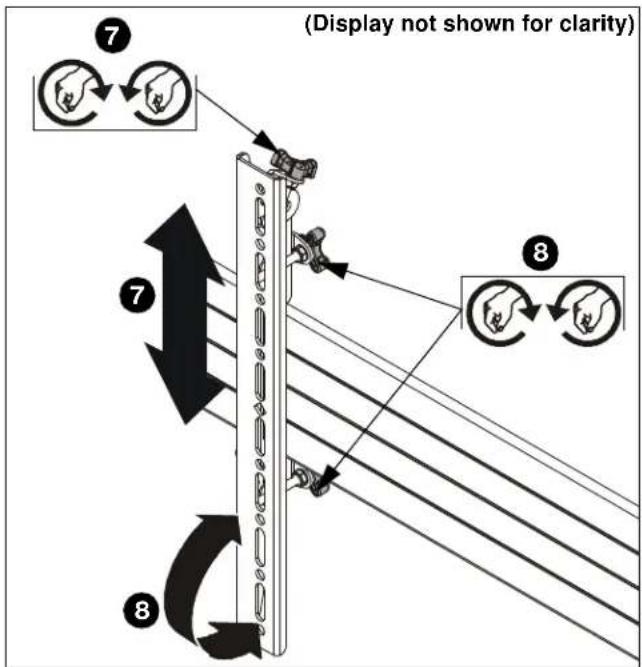

2. Use upper knob on back of interface brackets (J and K) to adjust the height of each display. (See Figure 8)

NOTE: Adjust both brackets in order to maintain a level mount.

1. Use middle and lower knobs on back of interface brackets (J and K) to make plumb adjustments to each display. (See Figure 8)

Figure 8

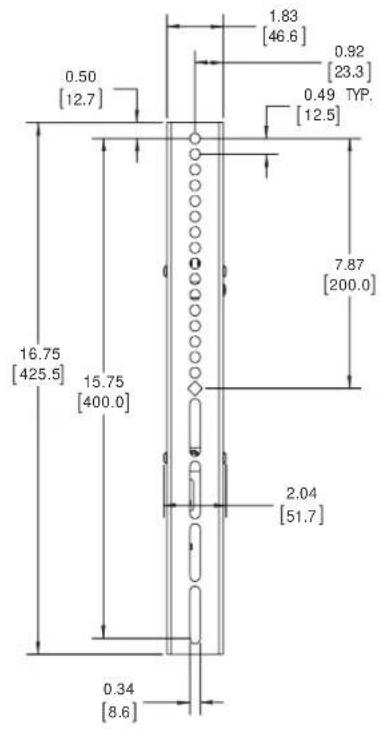

DIMENSIONS

FMSITL INCLUDES TWO UPRIGHT

FMSITL

DIMENSIONS: INCHES [MILLIMETERS]

LEGEND

	Tighten Fastener
	Apretar elemento de fijación
	Befestigungsteil festziehen
	Apertar fixador
	Serrare il fissaggio
	Bevestiging vastdraaien
	Serrez les fixations
	Loosen Fastener
	Aflojar elemento de fijación
	Befestigungsteil lösen
	Desapertar fixador
	Allentare il fissaggio
	Bevestiging losdraaien
	Desserrez les fixations
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

	Phillips Screwdriver
	Destornillador Phillips
	Kreuzschlitzschraubendreher
	Chave de fendas Phillips
	Cacciavite a stella
	Kruiskopschroevendraaier
	Tournevis à pointe cruciforme
	Open-Ended Wrench
	Llave de boca
	Gabelschlüssel
	Chave de bocas
	Chiave a punte aperte
	Steeksleutel
	Clé à fourche

TOOLS REQUIRED FOR INSTALLATION - FMSITL

PARTS - FMSITL

DISPLAY ATTACH HARDWARE BAG

(Letters correspond to letters on bag)

A (8) M4x16mm

B (6) M4x20mm

C (6) M4x25mm

D (6) M5x16mm

E (6) M5x20mm

F (6) M5x25mm

G (6) M6x16mm

H (6) M6x25mm

I (6) M8x20mm

J (6) M8x30mm

K (4) M8x50mm

L (8) .75x.323x.25"

M (8) .75x.344x.5"

N (8) [Univ. washer]

M5 (In section marked "N")

Q (2) [Interface bracket]

T (2) 10-24 x 5/8"

S (2) 10-24

10-24 × 2-1/4"

INSTALL INTERFACE BRACKETS TO DISPLAYS

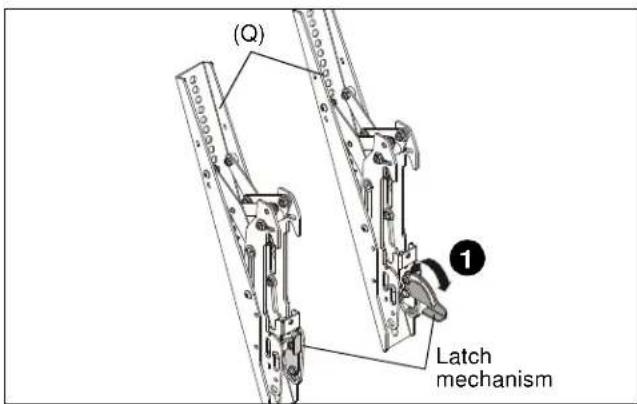

1. Lower the latch mechanism on each interface bracket (R). (See Figure 9)

Figure 9

1. Place displays face down on a soft, non-abrasive surface.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select screw diameter by examining hardware (A-K) and comparing with mounting holes on display. (See Figure 10)

2. Select spacers:

3. Spacers are NOT required if mounting holes are not recessed and interface brackets (Q) can lay flat against display.

4. Spacers (L or M) ARE required if mounting holes are recessed, or if protrusions prevent interface brackets (Q) from laying flat.

5. Select screw length: (See Figure 10)

- By hand, insert SHORTEST length screw of selected diameter (A, D, G or I) through universal washer (N - if required), bracket (Q), selected spacer (L or M-if required), into display mounting hole. Do NOT thread screw into hole at this time.

IMPORTANT ! : The M8 screws (I, J and K) do NOT require a washer. Use the universal washer (N) ONLY with M4 (A-C), M5 (D-F) and M6 (G and H) screws.

- Proper screw length requires base of screw head to protrude above flat washer a distance equal to or greater than the screw diameter. If screw length is inadequate, select longer screw. Select shortest screw which will protrude the required distance.

1. Align the center of the interface brackets (Q) with center of screen. (See Figure 10)

NOTE: The diamond-shape hole in the bracket corresponds to the vertical center of the mount.

1. Use selected screws (A-K), universal washers (N-if required) and spacers (L or M-if required), to connect interface brackets (Q) to back of display. (See Figure 10)

Figure 10

ATTACH DISPLAYS TO MOUNTING RAIL

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The displays must be located approximately evenly across the length of the rail.

1. Ensure that the latch mechanisms on interface brackets (Q) are already lowered to OPEN position. (See Figure 11)

CAUTION: BEFORE adding displays to the mounting rails, ensure end caps (FMSECAP) are in place at BOTH ends of mounting rail following instructions included with the FMSECAP.

1. While supporting both sides of display, lower display onto one side of mounting rail, hooking top of interface brackets onto front of mounting rail. (See Figure 11)
2. Raise the latch mechanism on both interface brackets to lock bracket in place. (See Figure 11)

Figure 11

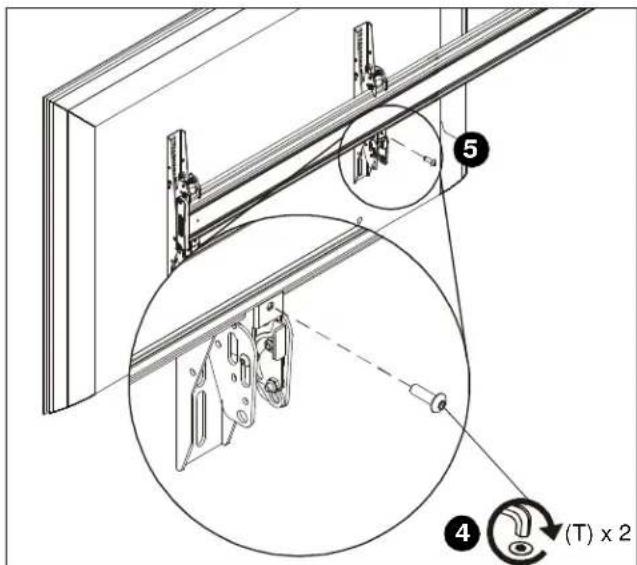

1. Fasten bracket against mounting rail using one 10-24 x 5/8" button head cap screw (T). (See Figure 12)
2. Repeat for other interface bracket.

Figure 12

Interface Bracket Adjustment

CAUTION: ALWAYS keep a small distance between screens when making adjustments! Damage to screens possible if placed too close together.

Tilt

The interface brackets allow 0^ to 20^ tilt, and can be locked at 0^ , 10^ and 20^ tilt.

1. If necessary, loosen button head tilt friction bolt (located on side of interface bracket). (See Figure)
2. Adjust tilt as required. (See Figure)
3. The tilt may be locked at 0°, 10° and 20° using one 10-24 x 2-1/4" Phillips head screw (U) and one 10-24 lock nut (S) per interface bracket. (See Figure )
4. Tighten tilt friction bolt as necessary.

Figure 13

OPTIONAL: Security

1. OPTIONAL: Add padlock (not included) to each interface bracket to lock display to menu board. (See Figure 14)

Figure 14

Installation Instructions
