USER MANUAL MM17TG ASUS

CONNECTOR PIN ASSIGNMENT 17

IMPORTANT INFORMATION

Before operating the monitor, please read this User Guide thoroughly. This User Guide should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

As an ENERGY STAR ^1 Partner our company has determined that this product meets the ENERGY STAR ^2 guidelines for energy efficiency.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
1 Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
1 Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.
I Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
I Never push any object into the slot on the monitor cabinet. It may short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
I To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.
I The wall socket shall be installed near the equipment and shall be easily accessible.

SPECIAL NOTES

The following symptoms are normal with the monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• When the screen becomes black or flashing, or cannot illuminate any more, contact your dealer or service center to replace parts. Don't repair the screen by yourself!

TAKE CARE OF THE MONITOR

• Do not install the monitor in a location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it is originally packed in the factory.
• To maintain cleanness of your LCD display, wipe it periodically with clean and soft cloth. The screen may be damaged by any liquid splash.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

• 43.2cm(17") TFT Color LCD Monitor.
• Recommended Resolutions: SXGA 1280 X 1024 @60Hz.
• 8ms (Tr+Tf) Quick Response Time.
- SPLÉNDID™ Video Enhancement Technology.
• 5 Video Preset Modes Switched by Hotkey
• 3 Skin-Tones Selection for Users' Preference.
• Microsoft Windows 95/98/2000/XP Compliance
• VESA Display Data Channel (DDC)1/2B Compliance
• VESA Wall Mount Compliance (100x100mm).
- EPA ENERGY STAR® and Ergonomic Design.
• Cabel Binder and Compact Case Design for Space Saving.
• Both VGA and DVI-D Inputs. (for MM17T only)
• 1.2Wx2 Stereo Speakers / Earphone Jack. (for MM17T only)

PACKAGE LIST

The product package should include the following items:

1. LCD Monitor
2. Quick Start Guide
3. User Guide (CD)
4. Power Cord
5. VGA Cable
6. Audio Cable (for MM17T only)

INSTALLATION INSTRUCTIONS

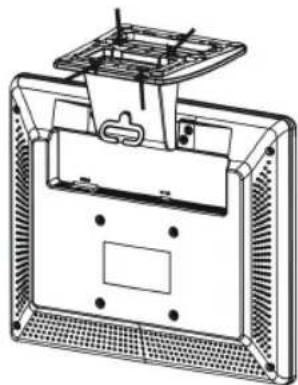

ASSEMBLING THE MONITOR BASE

Install

Line drawing of a monitor with an attached USB port, showing no text or symbols

Remove

Technical line drawing of a computer monitor with ventilation grilles and a top-mounted stand (no text or symbols)

Figure 1

POWER CORD / POWER SOURCE

1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the power cord into your LCD monitor's power input socket, and then plug the other end into a 3-pin AC power outlet. The power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.

NOTES

A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm^2 or H05VVH2-F2 3G 0.75mm^2 ) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm^2 ) shall be used.

MAKING THE CONNECTIONS

Connecting the Signal Cable: Plug one end of the VGA Cableto the LCD monitor's VGA port, the other end to the computer's VGA socket and tighten the two screws on the cable connector. Moreover, for MM17T, you can buy an extra 24-Pin DVI-D cable from your dealer for the digital signal connection if preferred.

Connecting the Power Cord: Plug one end of the AC-power cord to the LCD monitor's AC input socket, the other end to the power outlet.

Connecting the Audio Cable (MM17T only): Plug the audio cable between the computer multi-media (or audio) card's audio output and monitor's audio jack.

Caution: If the AC outlet is not grounded (with three holes), install the proper grounding adapter (not supplied).

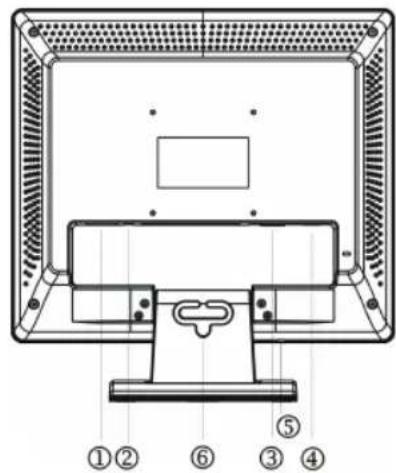

①② ⑥ ③ ④ ⑤

Diagram of a computer rear panel with labeled ports and components, including numbered annotations ① to ⑤.

Figure 2

1.	AC Input Socket	2.	Audio Jack (MM17T only)
3.	DVI-D Port (MM17T only)	4.	VGA (D-SUB) Port
5.	Earphone Jack (MM17T only)	6.	Cable Binder

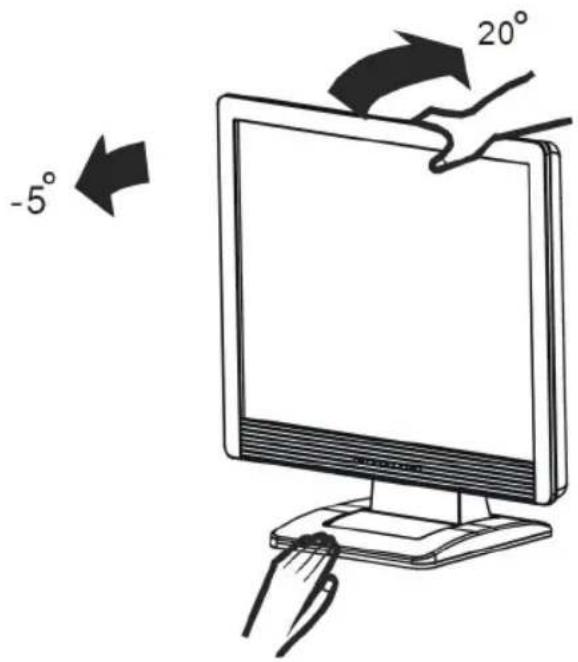

ADJUSTING THE VIEWING ANGLE

- For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.

- Hold the stand so you do not topple the monitor when you change the monitor's angle.

- You are able to adjust the monitor's angle from -5^ to 20^ .

-5° 20°

Figure 3

NOTES

- Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

- Careful attention is required not to catch your fingers or hands when you change the angle.

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the LCD monitor on or off. The other control buttons are located on the front bezel (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
- Connect the signal cable from the LCD monitor to your computer.
- Press the power button to turn on the LCD monitor. The power indicator will light up.

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or side

SPLENDID ← - OK + ► MENU ① ② ③ ④ ⑤

Figure 4

1. SPLENDID™ Button :

• Hotkey for switching between 5 advanced video preset modes (Scene Standard Mode, Theater Mode, Game Mode, Night Mode) with SPLENDID™ Video Enhancement Technology.
• Automatically adjust the image to its optimized position, clock, and phase by pressing the button for 2 seconds.
• Exit the OSD menu or go back to the previous menu as the OSD menu is active.

2. -/ ▶ Button :

• Activate Volume (MM17T)/ Contrast (MM17D) adjustment menu.
• Decrease the level of the function selected or move to the previous function as the OSD menu is activated.

3. Power Button / Power LED Indicator:

• Switch the LCD monitor on or off.
• LED lights blue(MM17T)/green(MM17D): normal operation mode.
  • LED lights amber: power saving mode.
  • LED is off: power off mode.

4. +/ Button :

• Activate Brightness adjustment menu.

- Increase the level of the function selected or move to the next function as the OSD menu is activated.

5. Menu Button :

- Activate the OSD (On-Screen Display) main menu.

- Enter/select the icon(function) highlighted as the OSD menu is activated.

HOW TO RECONFIGURE

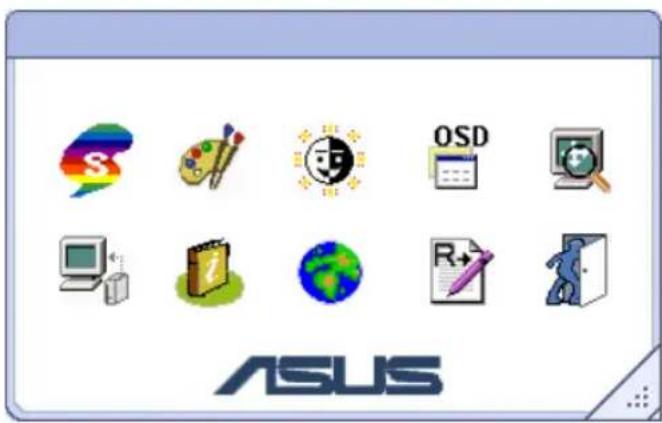

1. Press the MENU-button to activate the OSD main menu (Figure 5).

2. Press ◀ or ▶ to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press ◀ or ▶ again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.

3. Press ◀ or ▶ to change the settings of the selected function.

4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.

S F OSD i R+ ASUS

Figure 5

OSD MENU TABLE

The table describes the function of each OSD icon

Main Menu Item	Main Menu Icon	Sub Menu Item	Sub Menu Icon	Description
Scenario		Scenery Mode		Advance for scenery use with SPLENDIDTM Video Enhancement
		Standard Mode		Advance for general Windows use (SPLENDIDTM Off)
		Theater Mode		Advance for movie use with SPLENDIDTM Video Enhancement
		Game Mode		Advance for game use with SPLENDIDTM Video Enhancement
		Night Mode		Advance for dark-display use with SPLENDIDTM Video Enhancement
Color Adjust		RGB		Color R		Adjust red gain
				Color G		Adjust green gain
				Color B		Adjust blue gain
		Skin Tone		Reddish		Select reddish skin stone
				Natural		Select natural skin stone
				Yellowish		Select yellowish skin stone
		Color Temp	[SD42]	Cool		The image appears bluer. (9300°K)
				Normal		Normal image color. (7500°K)
				Warm		The image appears redder. (6500°K)
Luminance		Brightness		Adjust brightness level
		Contrast		Adjust contrast level
OSD Setup		OSD H-Position		Adjust horizontal position of the OSD
		OSD V-Position		Adjust vertical position of the OSD
		OSD Timeout		Adjust OSD timeout
Image Setup		Focus		Phase		Adjust image Phase to reduce Horizontal-line noise of the image
				Clock		Adjust image Clock to reduce Vertical-line noise of the image
		Image Position		H-Position		Adjust horizontal position of the image
				V-Position		Adjust vertical position of the image
		Auto		Automatically adjust the horizontal /vertical positions, phase and clock of the image
Input Select		Select an input signal from analog/digital source (MM17T only)
Information		Show the resolution,H/V frequency and input port of current input timing
Language		Select the desired language
Reset		Recall default setting
Exit		Exit OSD

NOTES

• PHASE adjusts the phase of the pixel clock signal. With a wrong phase adjustment the screen shows horizontal disturbances.
- CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image has no correct width.

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. TO OPERATE PROPERLY, THERE MUST BE VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.

Supplied with units are intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 female configuration.

Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

TROUBLESHOOTING (FAQ)

Problem & Question	Possible Solution
Power LED is not ON I Press the Power Button to check if the monitor is in the ON mode.Check if the Power Cord is properly connected the monitor and the power outlet.
The Power LED lights amber and there is no screen image	Check if the monitor and the computer are in the ON mode.Make sure the Signal Cable is properly connected the monitor and the computer.Inspect the Signal Cable and make sure none of the pins are bent.Connect the computer and another available monitor to check if the computer is properly working.
Screen image is too light or dark	Adjust the Contrast and Brightness settings via OSD.
Screen image is not centered or sized properly	Press the SPLENDIDTM Button for 2 seconds to automatically adjust the image.Adjust the H-Position or V-Position settings via OSD
Screen image bounces or a wave pattern is present in the image	Make sure the Signal Cable is properly connected the monitor and the computer.Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)	Inspect the Signal Cable and make sure that none of the pins are bent.Perform Reset via OSD.Adjust the R/G/B color settings or select the Color Temperature via OSD.
Screen image is blurry or fuzzy	Press the SPLENDIDTM Button for 2 seconds to automatically adjust the image.Adjust the Phase and Clock settings via OSD.
No sound or sound is low (MM17T only).	Ensure that the Audio Cable is properly connected the monitor and the computerAdjust the volume settings of both your monitor and computer.Ensure the computer sound card driver is properly installed and activated.

ERROR MESSAGE & POSSIBLE SOLUTION

NO SIGNAL :

1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector's screws.
2. Check the signal-cable's connection pins for damage.

OUT OF RANGE :

Your computer has been set to unsuitable display mode, set the computer to display mode given in the following Preset Timing Table.

APPENDIX

SPECIFICATIONS

Model	MM17T	MM17D
Visible Diagonals 17.0" (43.2cm)
Screen Size	Horizontal: 337.92mm, Vertical: 270.34mm
Max. Resolution SXGA 1280x1024@75Hz
Pixel Pitch 0.264mm
Brightness	300cd/m2 (Typ.), 400cd/m2 (Max.)
Contrast Ratio 500:1 (Typ.), 600:1 (Max.)
Viewing Angle (CR≥10)	150°(H)/ 130°(V)
Display Colors 16.2M
Response Time 8ms
Signal Frequency Horizontal: 30~80 kHz, Vertical: 55 ~ 75Hz
Max. Pixel Clock 135MHz
Plug & Play VESA DDC2B TM
Video Input DVI-D & D_Sub D_Sub
Audio Input/ Earphone 3 5mm Mini-jack	--
Speaker (Built-in) 1.2W x 2 Stereo	--
Tilt +20°~ -5°
VESA Wall Mount 100x100mm
Power Source 100~240VAC,47~63Hz
Power Consumption Power On: <40W, Standby: <2W
Phys. Dimension	380(W) x 390(H) x 180mm(D)
Net Weight	4 kg (approx.)
Environmental Conditions	Operating Temp: 5° to 35°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 85%
Regulatory Approvals	TCO'03, Energy Star, UL/cUL, TUV-GS, CB, CE, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, ISO13406-2 ClassII,MIC

PRESET TIMING TABLE

STANDARD	RESOLUTION	HORIZONTAL FREQUENCY	VERTICAL FREQUENCY
Dos-mode	640 × 350	31.47kHz	70Hz
Dos-mode	720 × 400	31.47kHz	70Hz
VGA	640 × 480	31.47kHz	60Hz
	640 × 480	35.00kHz	66.6Hz
	640 × 480	37.50kHz	75Hz
	640 × 480	37.86kHz	72Hz
SVGA	800 × 600	37.879kHz	60Hz
	800 × 600	46.875kHz	75Hz
	800 × 600	35.16kHz	56Hz
	800 × 600	48.01kHz	72Hz
	832 × 624	49.725kHz	75Hz
XGA	1024 × 768	48.363kHz	60Hz
	1024 × 768	56.476kHz	70Hz
	1024 × 768	60.02kHz	75Hz
SXGA	1280 × 1024	64.00kHz	60Hz
	1280 × 1024	80.00kHz	75Hz

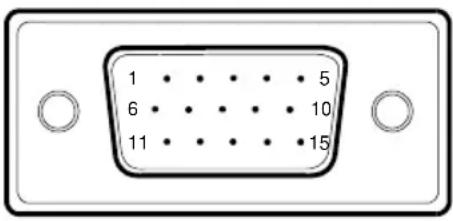

CONNECTOR PIN ASSIGNMENT

1 6 11 5 10 15

15 - Pin Color Display Signal Cable

PIN NO.	DESCRIPTION	PIN NO.	DESCRIPTION
1.	Red	9.	+5V
2.	Green	10.	Detect Cable
3.	Blue	11.	RXD
4.	TXD	12.	DDC-Serial Data
5.	Ground	13.	H-Sync
6.	R-Ground	14.	V-Sync
7.	G-Ground	15.	DDC-Serial Clock
8.	B-Ground

1 9 17 8 16 24

24 - Pin Color Display Signal Cable(MM17T only)

PIN NO.	DESCRIPTION	PIN NO.	DESCRIPTION
1.	TMDS Data 2-	13.	TMDS Data 3+
2.	TMDS Data 2+	14.	+5V Power
3.	TMDS Data 2/4 Shield	15.	Ground(for+5V)
4.	TMDS Data 4-	16.	Hot Plug Detect
5.	TMDS Data 4+	17.	TMDS Data 0-
6.	DDC Clock	18.	TMDS Data 0+
7.	DDC Data	19.	TMDS Data 0/5 Shield
8.	N.C.	20.	TMDS Data 5-
9.	TMDS Data 1-	21.	TMDS Data 5+
10.	TMDS Data 1+	22.	TMDS Clock Shield
11.	TMDS Data 1/3 Shield	23.	TMDS Clock +
12.	TMDS Data 3-	24.	TMDS Clock -
