Product Type	HEPA Air Purifier with UVC
Model Number	30847
Brand	Hunter
Power Supply	120V AC, 60Hz
Particle Removal Efficiency	Up to 99.9% of particles as small as 0.3 microns
Filtration Stages	Washable Pre-Filter, HEPA Filters, UVC Lamp, Photocatalytic Oxidation, Oxygenating Catalyst
Pre-Filter Type	Washable, permanent
HEPA Filter Replacement	Every 12 months (part #30904)
UVC Bulb Replacement	Every 12 months (part #30851)
Fan Speeds	Low, Medium, High (rotary dial)
UVC Light Control	Separate on/off button
Safety Features	Polarized plug, safety grill interlock, UVC radiation warning (RG-3)
Maintenance Interval (Pre-Filter)	Check/clean every 6 months
Maintenance Interval (HEPA Filter)	Check every 6 months, replace when dark charcoal gray (approx. yearly)
Warranty (Motor)	5 years limited
Warranty (Other Parts)	1 year limited
Certifications	FDA and EPA accepted UVC technology
Country of Origin	China and Taiwan
Customer Support	USA: 1-888-830-1326, Canada: 1-866-268-1936

Frequently Asked Questions - Hepa 30847 HUNTER

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 12 months, or sooner if it matches the dark charcoal gray indicator inside the unit.

How do I clean the pre-filter?

Remove the rear grill and take out the pre-filter. Submerge it in warm soapy water, gently agitate, rinse, and let it dry completely before reinstalling.

How often should I replace the UVC bulb?

Replace the UVC bulb once a year. Follow the instructions in the manual: remove the back grill and photocatalytic screen, then gently roll the old bulb out and insert the new one without touching the glass.

What does the UVC light do?

The UVC germicidal lamp kills pathogens in the air that pass through it. It is an FDA and EPA accepted technology for air purification.

What should I do if the air purifier doesn't turn on?

Check that it is plugged in, that the rear grill is properly installed (the tab must snap in), and that the UVC lamp cover is correctly secured.

Why is the airflow reduced?

The filter may be clogged. Check and clean the pre-filter or replace the HEPA filter if necessary.

Can I use the air purifier on carpet?

Place the air purifier on a firm, level surface. It may not work properly on uneven floors, so a hard floor is recommended.

Is the UVC light safe?

The UVC light emits radiation (RG-3) that can irritate eyes and skin. Do not expose yourself to the unshielded lamp. The unit is designed with a guard to prevent exposure.

How do I order replacement filters?

Replacement HEPA filter (part #30904) and UVC bulb (part #30851) are available from Hunter directly at 1-888-830-1326 or at www.hunterfan.com, or from most retailers that sell Hunter air purifiers.

What is the warranty coverage?

The motor is covered by a 5-year limited warranty. Other parts (cord, ionizer, rear grill) are covered for 1 year. Filters are not covered under warranty.

USER MANUAL Hepa 30847 HUNTER

Total Air Purification Tot

HEPA

Air Purifier

Owner's Manual

Exterior view of a modern black air purifier with ventilation slots (no text or symbols visible)

English

Model

30847

Form# 44030-01

20100616

©2010 Hunter Fan Co.

HUNTER SINCE 1886

Table of ConTenTs

Introduction 3

Safety Instructions 3

Setting Up Your Air Purifier 5

How The System Works 6

Operating Your Air Purifier 7

Air Purifier Maintenance 7

Check or Clean Your Pre-Filter 7

Check or Replace Your Filters 8

Replace The UVC Bulb 8

Clean the Unit 9

Troubleshooting 10

Technical Support 10

Filter Ordering 11

Warranty 11

Products 11

Filter and UVC Calendar 14

Notes 14

Illustration of four common safety symbols: a magnifying glass, warning triangle, remote control panel, and showerhead (no text or labels)

InTroDuCTlon

Thank you for purchasing the Total Air Purification System from Hunter Fan Company. You have purchased our latest development in Portable Air Purification Systems. This system has been developed to improve the quality of the air you breathe.

Our HEPA Air Purification System out performs other air purification systems by quickly and effectively removing dust, smoke, and pollen particles as small as 0.3 microns in size. The following innovative features are included in your Hunter Air Purifier.

√ High Particulate Efficiency: The HEPA filters will remove up to 99.9% of particles as small as 0.3 micron particles from the air that passes through the filter.
√ Washable Pre-Filter: The washable pre-filter is permanent and can be cleaned and reused.
√ UVC Lamp: This Hunter Air Purifier is equipped with a UVC germicidal lamp. UVC technology is a proven germicide that is accepted by the FDA and EPA as having the ability to kill pathogens in air that are exposed to UVC light.
√ Photocatalitic Oxidation: Reduces the amount of toxic VOCs in the air caused by household cleaners and products.
√ Oxygenating Catalyst: Converts ozone and smog into oxygen for cleaner air and peace of mind.

saFeTy InsTruCTlons

IMPORTANT!

READ ALL INSTRUCTIONS BEFORE USING THIS AIR PURIFIER.

1. WARNING: This Air Purifier emits UVC radiation that may cause eye and/or skin irritation. RG-3. Avoid exposing eyes and skin to unshielded UVC Lamp.
2. CAUTION: The UVC Lamp may shatter and cause injury if it is dropped or sustains impact. Wear safety glasses and gloves when handling the UVC Lamp. Do not use excessive force when handling the UVC Lamp. Dispose of the UVC bulb in accordance with local or State guidelines as trace amounts of Mercury are present.

1. This Air Purifier is designed for use on a level floor and may not work properly on an uneven floor. ALWAYS place the Air Purifier on a firm, level floor. ALWAYS place the Air Purifier at least six (6) inches away from walls and heat sources such as stoves, radiators, or heaters.

2. Place the Air Purifier in an area that is out of the reach of children.

3. Before using the Air Purifier, extend the cord and inspect for any signs of damage. DO NOT use the product if the cord has been damaged.

4. To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat or override this safety feature.

5. ALWAYS UNPLUG the Air Purifier while it is being cleaned.

6. DO NOT move or tilt the Air Purifier while it is in operation. Turn off and unplug before moving.

7. DO NOT immerse the Air Purifier in water at any time because permanent damage will occur. To properly clean your Air Purifier, follow the instructions in the Maintenance section of this manual "Air Purifier Maintenance" on page 7.

8. This equipment should be inspected frequently and collected dirt removed from it regularly to prevent excessive accumulation that could result in flashover or risk of fire.

SETTING UP YOUR AIR PURIFIER

1. Take the Air Purifier out of the box and remove the clear plastic protective bag and place the unit on a firm, level surface.
2. Before turning on the Air Purifier, you need to confirm that the filters are firmly in place and have not become loose during shipping. To check the filters, push down on the tab under the handle. Figure 1.
3. Gently pull the rear grill away from the unit and lift away. Figure 2.
4. The washable Pre-Filter is mounted inside the back grill of the unit. Confirm that it properly covers the grill vents.
5. The HEPA Filters will be resting inside the unit. If present, remove the plastic bag surrounding the filter and place the filters back into the Air Purifier. The filters should have arrows on the side to indicate air flow and the direction the filter should be placed back into the unit. Figure 3.
6. Set the tab on the bottom of the rear grill into the slot in the base of the unit and rock the grill up until the top tab snaps into place. Figure 4.
7. Plug the unit into a 120V electrical outlet.

Figure 1.

Close-up of a white plastic device with a textured surface and an arrow pointing upward (no text or symbols visible)

Figure 2.

Figure 3.

Close-up of a white plastic housing with a metallic ventilation grille and a black arrow pointing to a component (no text or symbols visible)

Figure 4.

Dust and other irritants are pulled into the Air Purifier by the fan. The Washable Pre-Filter attracts larger particles like pet dander and hair and traps them on the Pre-Filter. Smaller particles such as dust, mold, and pollen pass through the Pre-Filter and are captured by the HEPA filters. Up to 99.9% of particles can be captured.

The UVC Light helps kill particles not trapped on the HEPA Filters and the Photocatalytic Oxidation screen removes harmful VOC's. Clean, purified air is then released into the room through the front grill as the Oxygenating Catalyst converts smog and ozone back into oxygen. Figure 5.

Figure 5.

○ Low speed - Recommended for use when soft background noise is unwanted.
○○ Medium speed - Typical usage setting. Soft background noise is not an issue.
○○High speed - Use when quick, efficient results to a room's air quality are desired.

The fan speed can be adjusted at any time by rotating the dial so the indicator light aligns with the desired speed.

Press the UVC Light Button to turn on and off the UVC function of your Air Purifier.

NOTE: The ON/OFF Indicator and the UVC Indicator will stay lit while the fan and/or UVC is running.

AIR PURIFIER MAINTENANCE

It is necessary to periodically check your Air Purifier for performance. If the Pre-Filter and/or HEPA Filters are covered in dust and other captured particles, it will be necessary to clean or replace one and or both. The Pre-Filter and Filters should be checked at least every 6 months. The UVC Light should be replaced every year.

NOTE: Some environments may require more frequent cleaning of each filter. In these situations, adjust the time you check your filters to ensure the filters stay clog free to optimize performance.

Check or Clean Your Pre-Filter

1. Turn the Air Purifier off and disconnect from the wall.

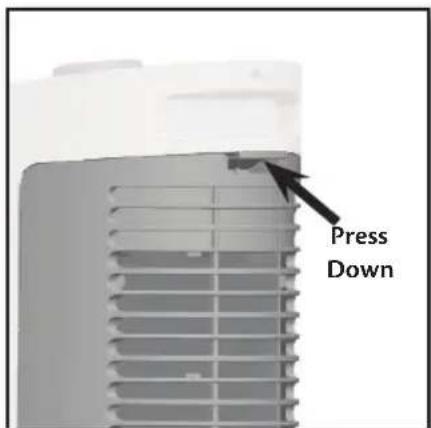

2. Remove the rear grill on the back of the unit by pressing the tab at the top of the unit, under the handle and pull the rear grill outward. Figure 7.
3. Turn the Rear grill over and gently remove the Pre-Filter from the grill.
4. Check the Pre-Filter side facing the grill for particle coverage.

Figure 6.

Figure 7.

1. If the Pre-Filter needs to be cleaned, it may be submerged in warm soapy water to clean. Gently lift and submerge the filter several times to clean.
2. When complete, rinse the filter with warm water and allow to dry completely.

Note: Wet parts placed into the unit can cause damage to the filters and or the motor of the Air Purifier.

Check or Replace Your Filters

1. Turn the Air Purifier off and disconnect from the wall.
2. Remove the rear grill on the back of the unit by pressing the tab at the top of the unit, under the handle and pull the rear grill outward. Figure 7.
3. Remove the HEPA Filters from the unit.
4. Check the Filters for particle build-up.
5. The HEPA filter should be removed every 12 months of use and matched to the color indicator on the inside of the filter compartment. When the filter matches the dark, charcoal gray indicator, it should be replaced.

Replace The UVC Bulb

The UVC light should be replaced once yearly. Follow these instructions to remove and replace the UVC bulb.

1. Unplug the unit from the wall outlet and remove the back grill by pressing down on the top tab.
2. Remove the 2 screws holding the Photcatalytic Screen in place and remove the screen. Figure 9.

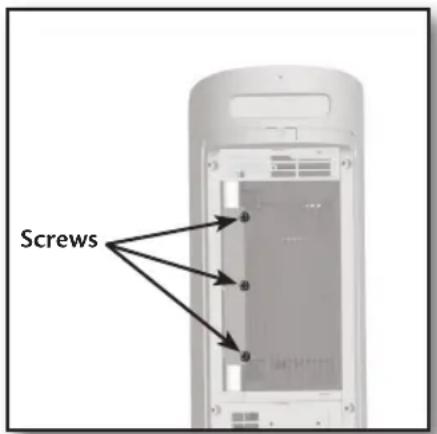

3. Remove the 3 screws holding the UVC Guard in place and remove it from the unit. Figure 10. & 11.
4. Grasp the bulb with your thumbs and forefingers at the plastic top and bottom and gently roll the bulb to the left. Figure 12.
5. When the bulb releases, slide the top of the bulb out of the bracket and remove.
6. Partially remove the new UVC Bulb from it's packaging being careful not to let the bulb come in contact with your skin.

Figure 9.

Figure 10.

Interior view of a desktop computer tower showing internal panel structure with arrows indicating movement (no text or symbols visible)

Figure 11.

Note: Oils from your skin can cause damage to the bulb and will prevent it from working.

1. Using the bag the bulb came in to prevent skin contact with the bulb, insert the base of the bulb into the lower UVC socket in the unit, with the flat side of the base facing the opening of the unit. Figure 13.
2. Insert the top part of the UVC bulb into the top socket and roll the bulb to the right util it locks into place.

Note: If the UVC Bulb Guard is not re-installed correctly, the unit will not run.

1. Reattach the UVC Guard by inserting the back tabs into the Air Purifier and secure the 3 screws holding it back in place. Figure 14.

2. Align the Photocatalytic Screen over the 2 holes in the unit and screw it back into place.

3. Set the tab on the bottom of the rear grill into the slot in the base of the unit and rock the grill up until the top tab snaps into place.

Clean the Unit

Clean the outside of the unit with a soft, damp cloth. The rear grill can be cleaned in soapy water after it has been removed from the unit and the pre-filter has been removed.

NOTE: Ensure the grill is completely dry before reinstalling it on the unit. Failure to do so could cause damage to the filters or motor.

Interior view of a server rack unit with visible internal compartments and ventilation slots (no text or labels)

Figure 12.

Interior view of a server rack with a black arrow pointing to a component, no visible text or symbols

Figure 13.

Interior view of a computer tower case showing internal components and ventilation slots (no text or symbols visible)

Figure 14.

3D rendering of a mechanical component with internal structure and mounting holes (no text or symbols visible)

Figure 15.

TroublesHooTIng

Problem:

No Operation.

Solution:

√ Confirm that the unit is plugged in.
√ Check the installation of the Rear grill.
√ Check the installation of the UVC Lamp Cover.

Problem:

Unit has reduced air flow or increased noise.

Solution:

√ The filter may be clogged and needs to be cleaned. See "Check or Replace Your Filter" on page 10.

Problem:

The UVC Lamp is not operating.

Solution:

√ Check the installation of the UVC Bulb.
√ Replace the UVC Bulb. See "Replace The UVC Bulb" on page 8.

TeCHnICal supportT

If you have any additional questions or problems with your Hunter Air Purifier, please call:

USA: 1-888-830-1326

Canada: 1-866-268-1936

Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time. You may also contact us over the Internet at www.hunterfan.com.

Illustration of a magnifying glass with a handle and lens (no text or symbols)

Illustration of a showerhead with a bulb and perforated base (no text or symbols)

FILTER ORDERING

Depending on usage and the environment, your Hepa filter should be replaced once a year.

Replacement filters are available at most retailers that carry Hunter Air Purifiers. You may also purchase directly from Hunter Fan Company by:

Phone: [phone]

Website: www.hunterfan.com

* Applicable state and local taxes may apply.

* Prices are subject to change without notice.

* All orders will be shipped USPS or UPS Ground, allow 12-15 working days for delivery.

Part# Type

30904 HEPA Filter

30851 UVC Bulb

WARRANTY

Hunter Fan Company Total Air Purification System 5 YEAR LIMITED WARRANTY

The Hunter Fan Company makes the following limited warranty to the original residential user or consumer purchaser of the Total Air Purification System:

If any part of your Total Air Purification System ("Air Purifier") motor fails during the first five (5) years from the date of installation due to a defect in material or workmanship, we will provide a replacement Air Purifier free of charge. Installation is deemed to occur at the date of purchase.

If the Air Purifier cord, ionizer, or rear grill fails any time within one (1) year after installation due to a defect in material or workmanship, we will replace or, at our option, repair the unit free of charge at our nearest service center or at our Service Department in Memphis, Tennessee. You will be responsible for all parts and labor costs after this one-year period.

PRODUCTS

Ceiling Fans

Humidifiers

Line drawing of a portable washing machine (no text or symbols)

Air Purifiers

Line drawing of a portable electronic device with ventilation slots and a button (no text or symbols)

Thermostats

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Bath Fans

Simple line drawing of a circular basin with a central hole (no text or symbols)

Oscillating Fans

IF THE ORIGINAL RESIDENTIAL USER OR CONSUMER PURCHASER CEASES TO OWN THE AIR PURIFIER, THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. NO WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN RESPECT TO THE FILTER MATERIAL OR WASHABLE FILTER. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT TO THE MOTOR IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE.

This warranty is voided if the air purifier is not purchased and used in the USA or Canada.

This warranty excludes and does not cover defects, malfunctions or failures of the Air Purifier which were caused by repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling, modifications, or damage to the Air Purifier while in your possession, or unreasonable use, including failure to provide reasonable and necessary maintenance. This warranty does not cover Air Purifiers used in commercial applications. There are no express or implied warranties as to commercial purchasers or users.

To obtain service, contact the nearest Hunter authorized service center or the Hunter Fan Company Service Department, 7130 Goodlett Farms Pkwy., Suite 400, Memphis, TN 38016, 1-888-830-1326. For the name of our nearest authorized Hunter Fan Company Service Center, write to the Hunter Fan Company at the preceding address. You will be responsible for insurance and freight or other transportation to our factory service center. We will return the Air Purifier freight prepaid. The Air Purifier should be properly packaged to avoid damage in transit since we will not be responsible for any such damage. Proof of purchase is required when requesting warranty service. The purchaser must present sales receipt or other document that establishes proof of purchase.

IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR DIRECT, INDIRECT, SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE AIR PURIFIER. YOUR SOLE REMEDY WILL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE. SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF DIRECT, INDIRECT SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR INVALIDITY OF EXPRESS OR IMPLIED WARRANTIES IF THE USER CEASES TO OWN THE AIR PURIFIER, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Hunter

Fan Company

7130 Goodlett Farms Pkwy., Suite 400

Memphis, Tennessee 38016

To learn more about Hunter Fan Company products, please see our Web page at:

www.hunterfan.com

FILTter anD uVC CalenDar

Date of Replacement or Cleaning
Pre-Filter HEP	A Filters UVC Bulb
