Download the instructions for your Speaker in PDF format for free! Find your manual NK1-169 - MB QUART and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NK1-169 by MB QUART.
USER MANUAL NK1-169 MB QUART
NK1-116L
NK1-120
NK1-120L
NK1-169
NK1-169L
NK1-116B
NK1-116LB
NK1-120B
NK1-120LB
NK1-169B
NK1-169LB
Congratulations on your choice of a MBQuart speaker. This "Quick Start" Installation guide is meant to help you complete a basic installation. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit our website at mbquart.com
CAUTION
Always consider consulting a professional audio installer before installing new speakers. Many manufacturers locate speakers behind interior panels that require special tools to remove. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires only through safe areas. Do not let speaker wire make contact with metal edges or hot engine components.
Speaker Dimensions
| NK1-116 / NK1-116LNK1-116B / NK1-116LB | 6.58"(174) | 3.02"(77) | 1.14"(29) | 3.58"(91) | 5.59"(142) |
| NK1-120 / NK1-120LNK1-120B / NK1-120LB | 8.46"(215) | 3.58"(91) | 1.26"(32) | 5.20"(132) | 7.09"(180) |
| NK1-169 / NK1-169LNK1-169B / NK1-169LB | 9.69"/6.86"(246/174) | 3.50"(89) | 1.20"(30) | 3.87"(99) | 8.58"/5.74"(218/147) |
Before you start
It's a good idea to confirm that you have purchased the correct size speakers to fit your application. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional.
Speaker Mounting Location
Choose a suitable mounting location
If you are replacing an older or inferior speaker, the location is chosen for you. Make sure the speaker fits properly in the hole for the old speaker. If you are creating your own new location, you must be careful to verify that there is sufficient depth to mount the speaker.


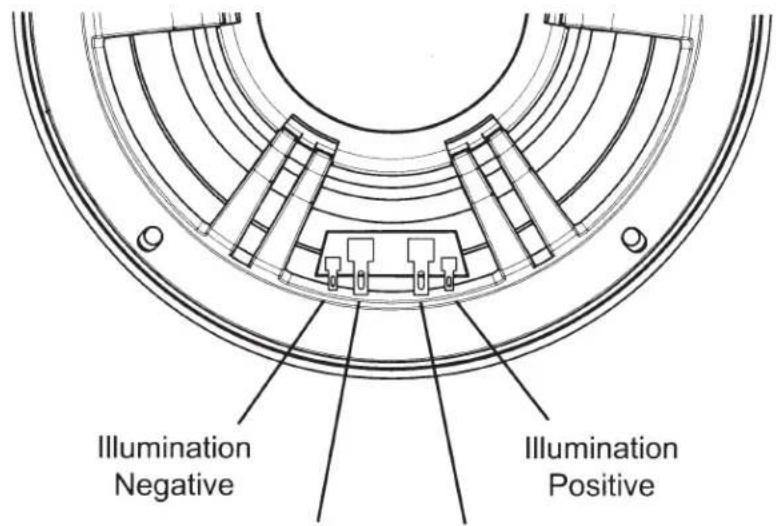

Route signal and illumination wires
Carefully select a route for the speaker wires. If using existing speaker wires, confirm that the wire is in good shape and not shorted. In the case of an illuminated model, route a positive and negative wire from a switched +12V source.
Audio Signal
Positive
Speaker installation
Confirm fit and mount speaker
Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place.
If you have purchased an illuminated version, consider getting an N1-RC remote control. The remote allows you to adjust color, speed and brightness of the illumination. Check with an authorized MBQuart retailer or check our website www.mbquart.com for further details.
MBQuart.com #MUSIC DEFINED
WARRANTY
Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.
Hifonics products are designed and engineered in the USA by
MAXXSONICS®
847-540-7700
www.maxxsonics.com
MBQ NK skr QSG 01 - rev2
MBOUART®
MUSIC.DEFINED.


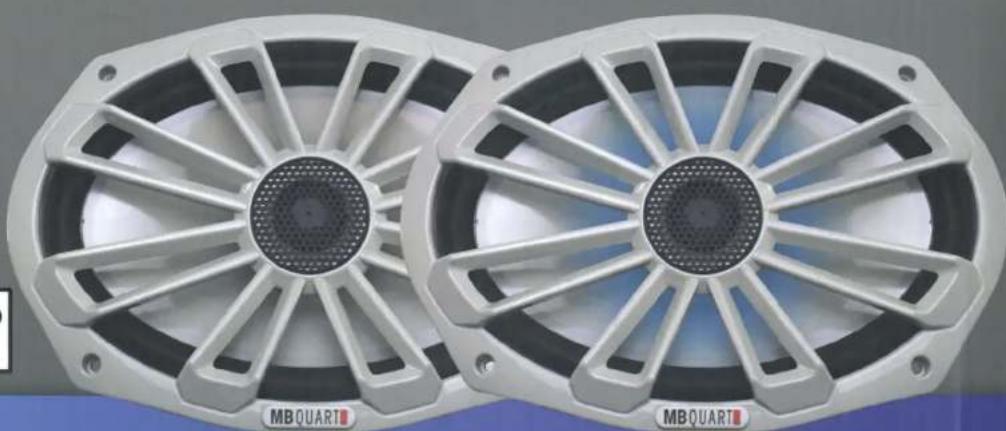

Two identical white and gray speaker fans with metallic blades and mesh patterns, labeled 'MBQUART' (no additional text or symbols visible)NauticNK1-169 / NK1-169L
Illumination available in select models only.
MBQUARTI MUSIC. DEFINED.
Nautic Speakers
6X9"2-WAY FULL RANGE
Marine Certified
1" Pure Titanium Dome Tweeter
6x9" Composite Poly Midrange
Available with Illumination
Nautic Speakers
6X9'2-WAY FULL RANGE
Marine Certified
1" Pure Titanium Dome Tweeter
6x9' Composite Poly Midrange
Available with Illumination
□ NKI-169 6x9" NON-ILLUMINATED
NKI-169L 6x9" ILLUMINATED
Specs
| English / Speakers | Spanish / Alluvocles | French / Haut-parleurs | ||
| Model | Modèle | Modèle | NK1-169 | NK1-169L |
| Power Handling RMS | Capacidad de Potencia RMS | Pulsarlos RMS | 70 | 70 |
| Power Handling Peak | Manelo de potencia máxima | Pulsarlos en crête | 140 | 140 |
| Impedance | Impedance | Impedance | 4 | 4 |
| Sensitivity (1 wt/1 meter) | Sensibility (1 vallo/1 metro) | Sensibility (1 west/1 m2) | 92dB | 82dB |
| Frequency Response (+/- 10dB) | Résipées de fréquence (+/- 10dB) | Réponse en fréquence (+/- 10dB) | 27Hz-22kHz | 27Hz-22kHz |
| Crossover Slope | Crossover Slope | Crossover Slope | 12dB Per Octave | 12dB Per Octave |
| Cut-Out @ | Cut-Out @ | Cut-Out @ | 5.85" x 6.65"(148.8" x 220.7mm) | 5.85" x 6.65"(148.8" x 220.7mm) |
| Chassis depth from range | Profundidad de chassis desde abiporde | Profondeur du chassis de la bride | 3.5"(89mm) | 3.5"(89mm) |
| Illumination | Illumination | Illumination | X |
