USER MANUAL AT-DIS7-HD Atlona

1. Introduction 3
2. Package Contents 3
3. Features 3
4. Specification 3
5. Description 4
6. Remote Control 5
7. Display Mode List 5
8. Special Notes on LCD Monitors 6
9. Atlona Product Registration 6
10. Safety Information 7
11. Warranty 8

INTRODUCTION

Atlona Technologies' AT-DIS7-HD is a 7 inch Testing monitor designed for those looking to test cabling and installation of different components, where displays are remote or not yet present. This portable display will recognize any HDMI or DVI source at resolutions up to 1080P, and allow integrators and installers to observe both audio and video signal in real time. An added function allows users the ability to view signal information such as HDCP compliance, Resolution and Frequency, Digital format, and Audio information. With multiple control options including manual as well as IR Remote, the AT-DIS7-HD is perfect for installers and integrators looking for a simple solution to monitor or verify audio and video settings on remote displays. The DIS7-HD can also be placed in the Rack Unit for constant monitoring.

PACKAGE CONTENTS:

1. AT-DIS7-HD Unit
2. Operating instructions
3. Power supply (12VDC 1A)
4. Remote
5. IR extension cable

FEATURES:

• 7" TFT testing panel
• Accepts resolution up to 1080p• HDMI input support HDMI1.3b
  • Monitor supports the latest HDMI standard 1.3b
  • DIS7-HD is featured with a built speaker
• Manual Panel button control or IR control

SPECIFICATIONS:

Screen size 7.0"W
Max input resolution 1920x1200/60Hz
Max brightness 220cd/m	^2
View angle (CR=10) >=110°(V),>=140°(H)
Colors 262.1K
Embedded speaker 0.8W
Dimensions (W×H×D) 7" ×4.5" ×1.2"
Mass (main unit) 5.8
Power supply DC:+12V
Power consumption 8W

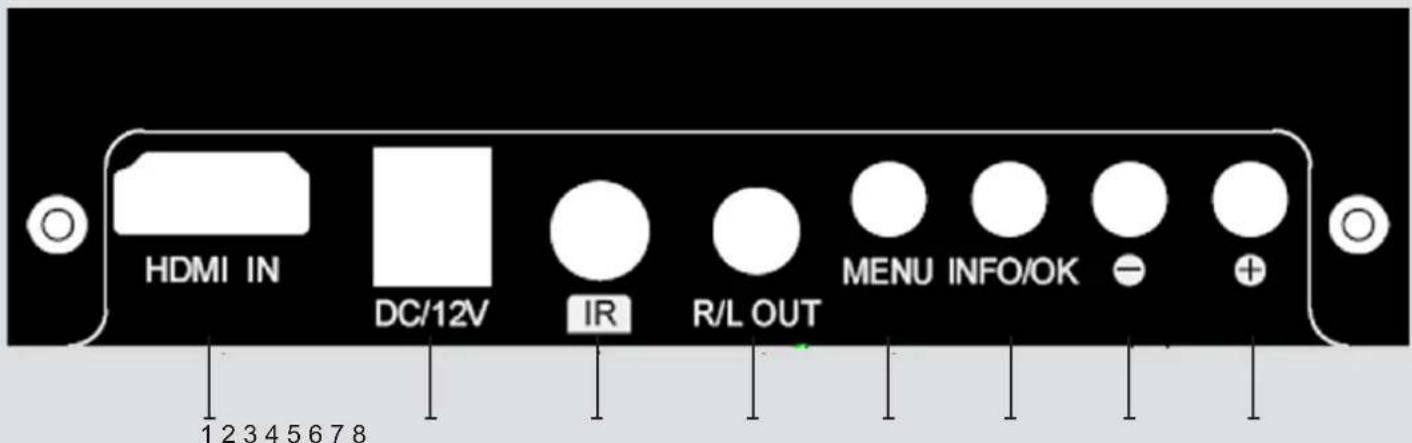

DESCRIPTION

HDMI IN DC/12V IR R/L OUT MENU INFO/OK - + 1 2 3 4 5 6 7 8

1. HDMI Input
2. 12V DC Input
3. IR Extension cable input
4. Analog L/R Audio Output
5. Menu button
6. Information activate button or OK button for menu item selection
7. Volume down or decrease menu item
8. Volume up or increase menu item

Menu Descriptions:

Menu Items Sub	Menu Description
CONTRAST For contrast adjustment
BRIGHTNESS For brightness adjustment
EDID	EDID1.3 1080P 2CH Select EDID of the HDMI monitor to HDMI 1.3 1080P video 2 channel audio
	EDID1.3 1080P 6CH Select EDID of the HDMI monitor to HDMI 1.3 1080P video 6 channel audio
	EDID1.3 1080P 8CH Select EDID of the HDMI monitor to HDMI 1.3 1080P video 8 channel audio
	EDID1.2 1080P 2CH Select EDID of the HDMI monitor to HDMI 1.2 1080P video 2 channel audio
	EDID1.3 1080I 2CH Select EDID of the HDMI monitor to HDMI1.3 1080I video 2 channel audio
	EDID1.3 1080I 8CH Select EDID of the HDMI monitor to HDMI1.3 1080I video 8 channel audio
	EDID1.2 1080I 2CH Select EDID of the HDMI monitor to HDMI1.2 1080I video 2 channel audio
	EDID COPY To read EDID from the HDMI sink device and store to this portable HDMI monitor

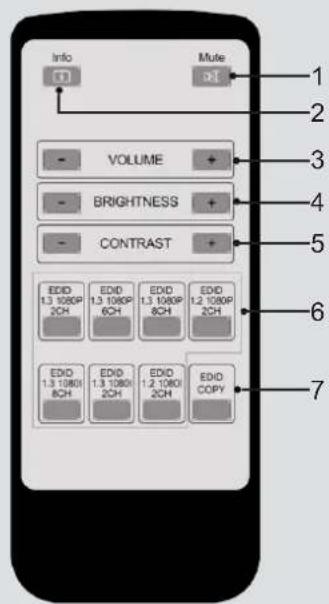

REMOTE CONTROL

Info VOLUME BRIGHTNESS CONTRAST EDID 1.3 1080P 2CH EDID 1.3 1080P 6CH EDID 1.3 1080P 8CH EDID 1.2 1080P 2CH EDID 1.3 1080I 8CH EDID 1.3 1080I 2CH EDID 1.2 1080I 2CH EDID COPY 1 2 3 4 5 6 7

1. Mute (Mute or enable the audio)
2. Info (To display the information of the signal status V+/-)
3. Turn Volume up or down
4. Brightness +/- Increase or decrease brightness
5. Contrast +/- Increase or decrease contrast
6. EDID selection buttons to select different embedded EDID mode.
7. EDID COPY

You can read EDID from any source and store it to a DIS7-HD

Note: When the monitor is displaying the signal from HDMI source, this button will not function

DISPLAY MODE LIST

RESOLUTION HORIZONTAL	FREQ(KHZ)	VERTICALFREQ(HZ)
480i 15.75 60
480P 31.5 60
576i 15.625 50
576P 31.25 50
720P 37.5 50
720P 45 60
1080i 28.125 50
1080i 33.75 60
1080P 56.25 50
1080P 67.5 60
1080P 27 24
640*480 31.469 60
800*600 37.879 60
1024*768	48.363 60
1280*1024	63.981 60
1440*900	55.935 60
1400*1050	65.317 60
1680*1050	65.29 60
1600*1200	75 60
1920*1200	74.038 60

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power and then turn it on again to make sure the flicker disappears.
• You may find slightly un-even brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching image when the same image has been displayed for a long time. The monitor will slowly recover from this effect.

ATLONA PRODUCT REGISTRATION

Thank you for purchasing this Atlona product — we hope you'll enjoy it.

We also hope that you'll take a few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.

To register go to www.atlona.com/registration

SAFETY INFORMATION

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture.

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in case it requires disconnection.

Precautions

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product or cause fires.

In the event of an electrostatic discharge, this device may automatically turn off. If this occurs, unplug the device, and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins, or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements and swimming pools.

Use only accessories recommended by ATLONA to avoid fire, shock or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning. Do not use cleaning fluid or aerosols, which could enter the unit and cause damage, fire or electrical shock. Some substances may also mar the finish of the product.

Never open or remove unit panels or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DIS7-HD. Opening the product will void the warranty.

Do not attempt to service the unit. Instead disconnect it and contact your Authorized ATLONA reseller or contact ATLONA directly.

1. LIMITED WARRANTY

Atlona Technologies warrants that (a) its products (the "Product") will perform substantially in accordance with the accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.

2. CUSTOMER REMEDIES

Atlona Technologies and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer's receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.

3. NO OTHER WARRANTIES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.

4. NO LIABILITY FOR DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES' AND ITS SUPPLIERS' ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
