USER MANUAL Muzx Core MZX206 ALTEC LANSING

ALTEC LANSING®

Noise-Isolation Music isn't just n wired into our sou

Mūzx®

My Music, My Style, My DNA

hear what's next™

Noise-Isolating Headphones

Music isn't just music, it's who we are. We are wired into our sound; it pulses through our veins. It's part of our DNA. Our music DNA is unique; it's like no one else's. MuzxDNA earphones give you the tools to express yourself. With subtle yet distinctive design elements, they fit your style. In tune with your body, the SungFit™ design features flexible material that adapts to the contours of your ear, blocking out noise and allowing you to truly feel your music. With enhanced bass frequency response, you can hear the full depth of your anthems without pushing the volume high. Let your music express who you are.

Ultimate Sound Guarantee Story

We're passionately proud of our sound! If you do not feel these are the best sounding earphones for the price, simply return them to the store within 30 days from time of purchase.*

Mūzx mesh

Vivid sound

Excellent noise isolation

Pure sound and powerful bass, Muzx Mesh earphones bring your music to life. With electric styling and vivid sound, it's time show the world your style.

• Superior sound with enhanced deep bass
• SnugFit™ designfor extreme comfort, blocks out exterior sound
• Electric styling
• Sliding cable adjuster
• 6-piece fit kit with silicone tips for any ear (small, medium, large)
• For MP3 player, iPhone® and iPod® (music only)

NEODYMIUM Drive Noise 16 Isolation Input 112 Sensitivity @ 1 Impedance 16 Cable 46" Length Input 3.5 Connector Frequency 20 Response

Neodymium Drivers: 9 mm
Noise Isolation	16 dB
Input Sensitivity	112 dB SPL/mW @ 1 kHz
Impedance	16 Ohms
Cable Length	46"/1.2 m
Input Connector	3.5 mm
Frequency Response	20 Hz - 20 kHz

Mūzx

Active sport

Sweat resistant

With fierce sound and an innovative pivot joint, the Muzx XY earphones move with an active life. The single-cord design and sliding tie let you wear these powerful little earphones the way you want.

• Superior sound with enhanced deep bass
• SnugFit™ design for extreme comfort, blocks out exterior sound
• Low profile design perfect for wearing under any headgear
• Single cable, round-the-head wear
  • Active Ball pivot joint, keeps earpiece in during active wear
• 6-piece fit kit with silicone tips for any ear (small, medium, large)
• For MP3 player, iPhone and iPod (music only)

Neodymium Drivers: 9 mm
Noise Isolation	16 dB
Input Sensitivity	112 dB SPL/mW @ 1 kHz
Impedance	16 Ohms
Cable Length	46" /1.2 m
Input Connector	3.5 mm
Frequency Response	20 Hz - 20 kHz

9 mm 3 SPL/mW Hz ms 2 m m

Mūzx CORE

Great stereo sound

Inline Mic

Taking everyday sound to the next level, the MZX Core noise-isolating earphones fit every style. Engineered for crystal-clear sound and passive noise reduction with an inline mic that lets you pick up your calls.

• Pours out crystal clear audio
- Convenient inline mic with call / answer / end button
- SnugFit™ design for extreme comfort, blocks out exterior sound
• Strong cloth cable leaves you tangle-free
- 6-piece fit kit with silicone tips for any ear (small, medium, large)
• For MP3 player, iPhone and iPod

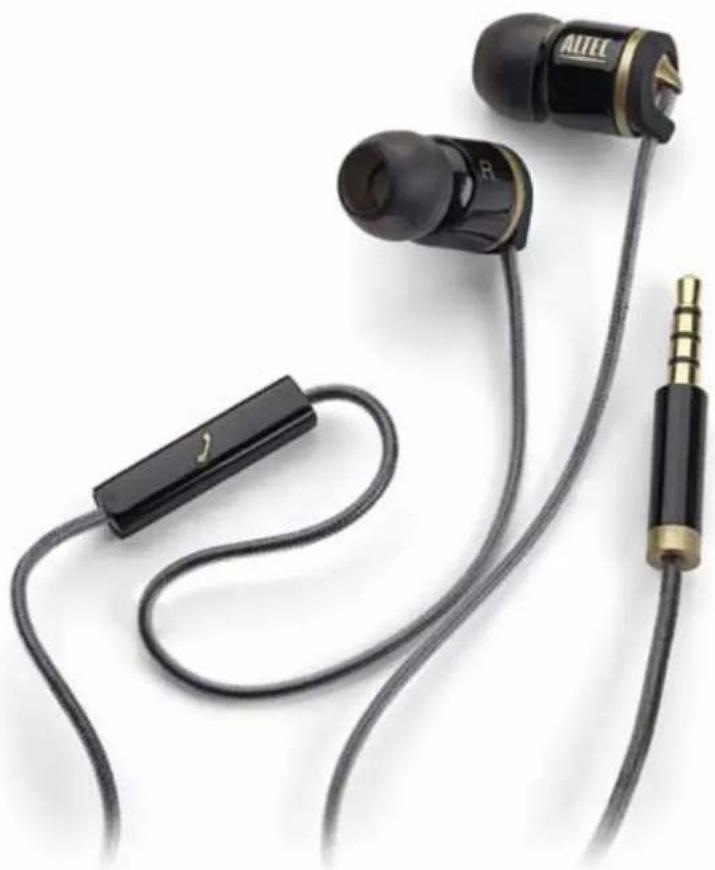

Close-up of a black and gold audio earbuds with attached audio jack (no text or symbols visible)

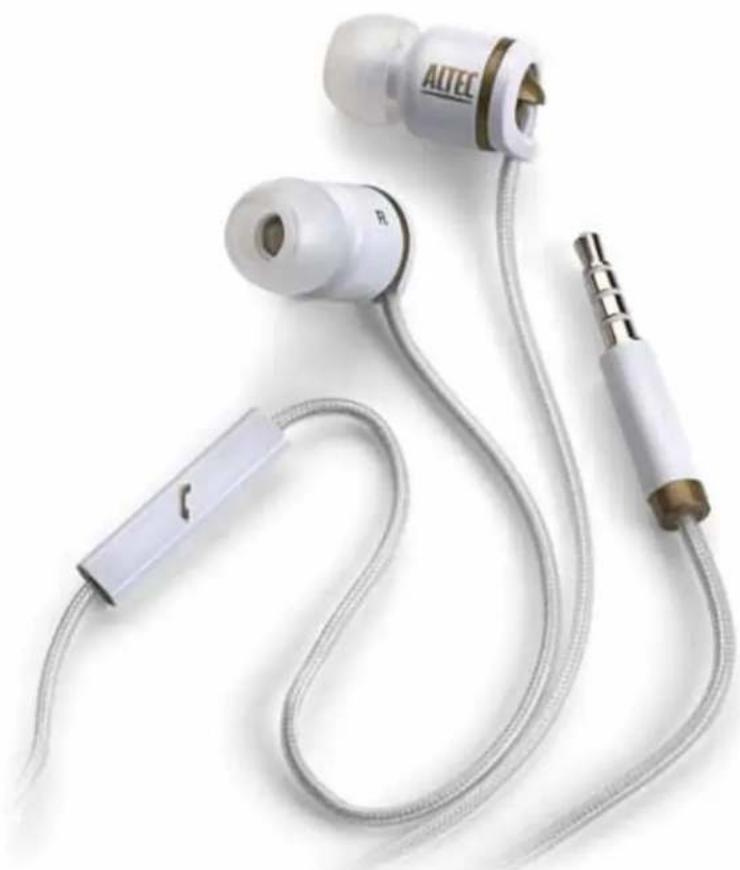

White AlTEC audio earbuds with flexible cord and metallic connector (no text or symbols visible)

Neodymium Drivers: 10 mm
Noise Isolation	16 dB
Input Sensitivity	100 dB SPL/mW @ 1 kHz
Impedance	16 Ohms
Cable Length	46"/1.2 m
Input Connector	3.5 mm, gold-plated
Frequency Response	20 Hz - 20 kHz

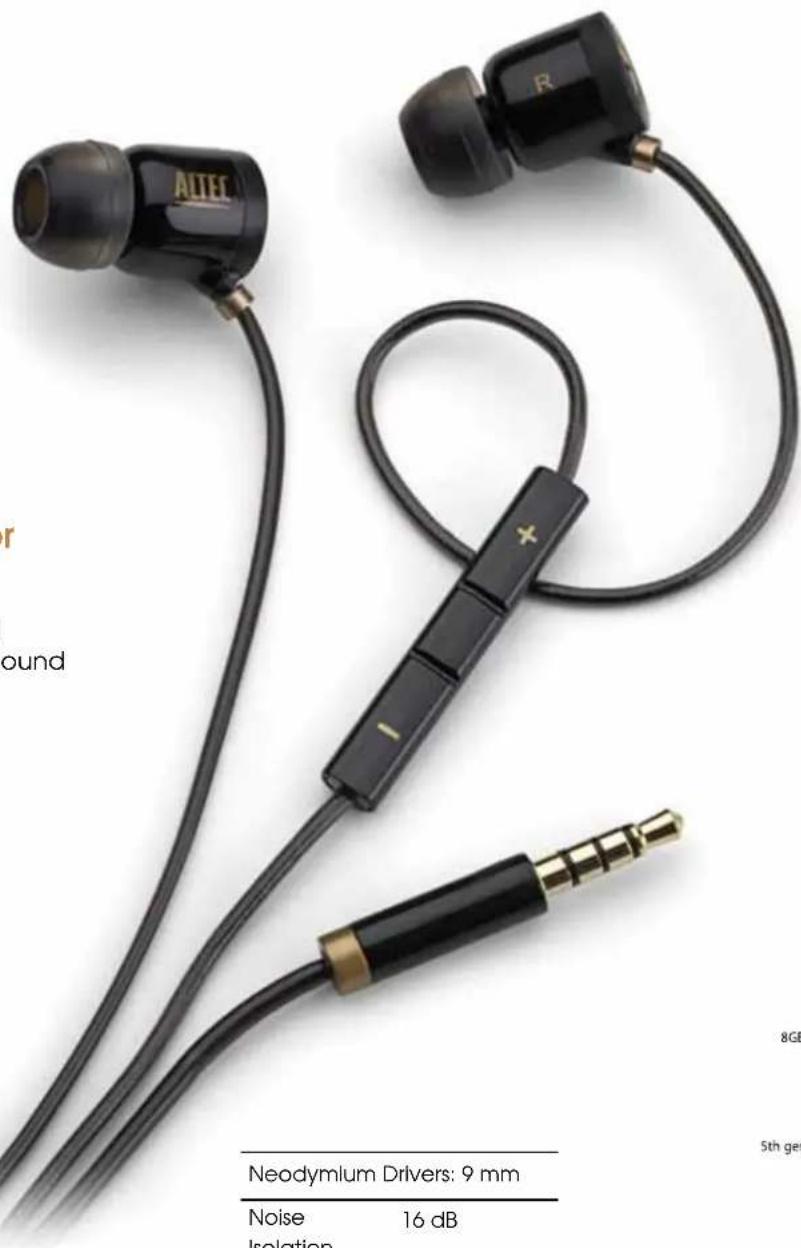

Extra Bass power

Inline Remote with Mic for iPhone, iPod, and iPad

Feel the richness of your music and control it all, with the crystal-clear sound and full-bodied enhanced bass of the Muzx Extra and their inline remote.

• Well-balanced highs and mids
• Full-bodied, powerful lows
- SnugFif™ design for extreme comfort, blocks out exterior sound
• Strong cloth cable leaves you tangle-free
- 6-piece fit kit with silicone tips for any ear (small, medium, large)
• Inline remote and mic allows you to control compatible iPhone, iPod and iPad models
- Compatible with other MP3 players

AlTEC R Neodymium Drivers: 9 mm Noise 16 dB Isolation 8GB 5th gen

Neodymium Drivers: 9 mm
Noise Isolation	16 dB
Input Sensitivity	113 dB SPL/mW @ 1 kHz
Impedance	16 Ohms
Cable Length	46"/1.2 m
Input Connector	3.5 mm, gold-plated
Frequency Response	20 Hz - 20 kHz

MADE FOR

iPod touch
2nd generation

8GB 16GB 32GB 64GB

iPod nano

5th generation (video camera) 8GB 16GB

iPod nano

4th generation (video) 8GB 16GB

iPhone 3GS

16GB 32GB

iPad
16GB 32GB 64GB

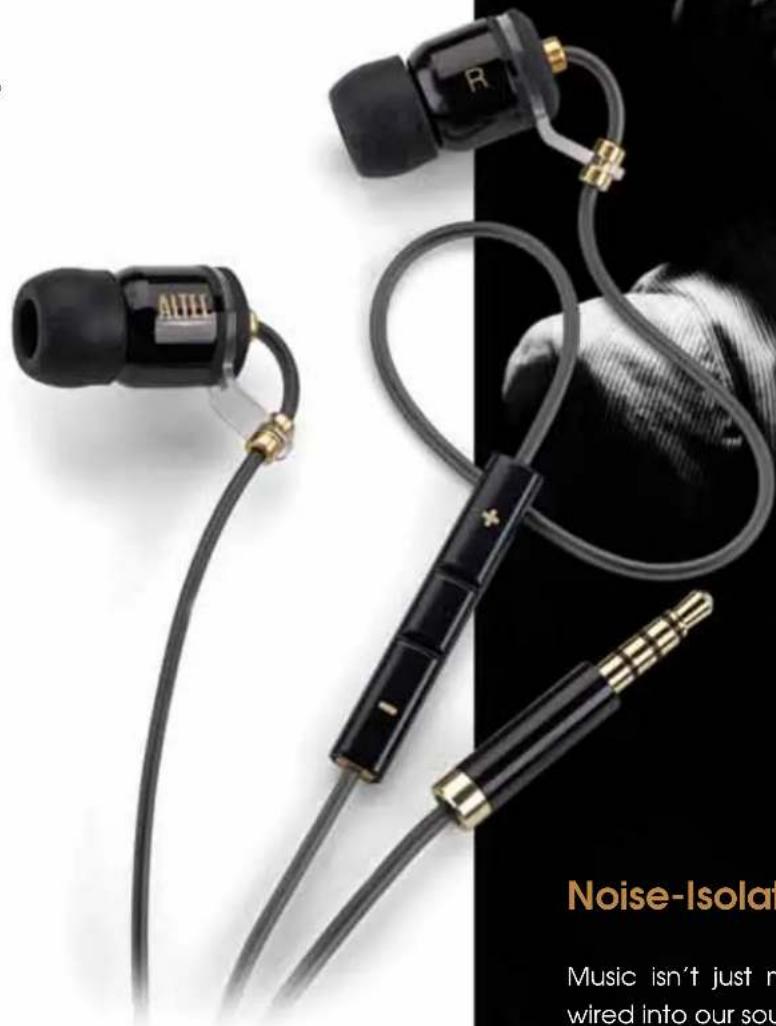

Mūzx ULTRA

Made for

iPod

iPhone

iPad

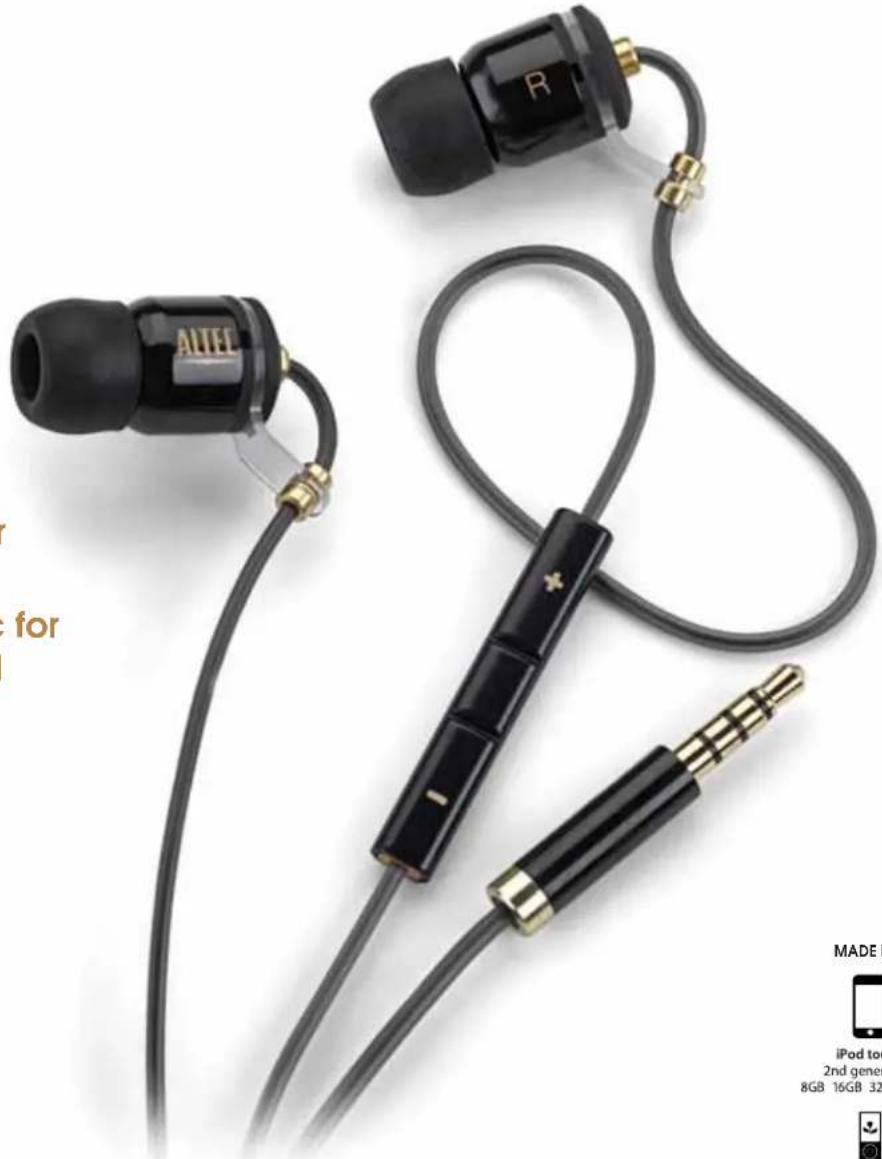

Close-up of two black audio earbuds with gold connectors, no visible text or symbols on the devices themselves.

Balanced armature for high definition audio Inline Remote with Mic for iPhone, iPod, and iPad

Muzx Ultra earphones give your music professional quality from single balanced armature technology. With high-definition audio, remarkable noise isolation and an inline remote, these earphones take your music seriously.

• Professional sound engineering from single balanced armature technology
- Unique cord design minimizes friction noise
- SnugFit® design for extreme comfort, delivers superior passive noise isolation
• Inline remote and mic allows you to control compatible iPhone, iPod, and iPad models
- 8 piece fit kit with silicone tips for any ear (small, medium, large, and dual-flange)
- Compatible with other MP3 players
- Soft carry case included -Spring loaded -PVC suede

Speaker	Balanced armature
Noise Isolation	26 dB
Input Sensitivity	105 dB SPL/mW @ 1 kHz
Impedance	29 Ohms
Cable Length	46"/1.2 m
Input Connector	3.5 mm, gold-plated
Frequency Response	20 Hz - 20 kHz (10-dB)

MADE FOR

iPod touch

2nd generation

8GB 16GB 32GB 64GB

iPod nano

5th generation (video camera) 8GB 16GB

iPod nano

4th generation (video) 8GB 16GB

iPhone 3GS 16GB 32GB

iPad 16GB 32GB 64GB

Mūzx ^® X

Pure sound

Soft comfort fit

Small and perfectly formed, the Muzx XX are a fresh voice for your anthems. With pure sound and serious bass, hear your music in its purity.

• Superior, clean sound with enhanced deep bass
• SnugFit™ design for extreme comfort, blocks out exterior sound
• Fresh style
• Sliding cable adjuster
• 6-piece fit kit with silicone tips for any ear (small, medium, large)
• For MP3 player, iPhone and iPod (music only)

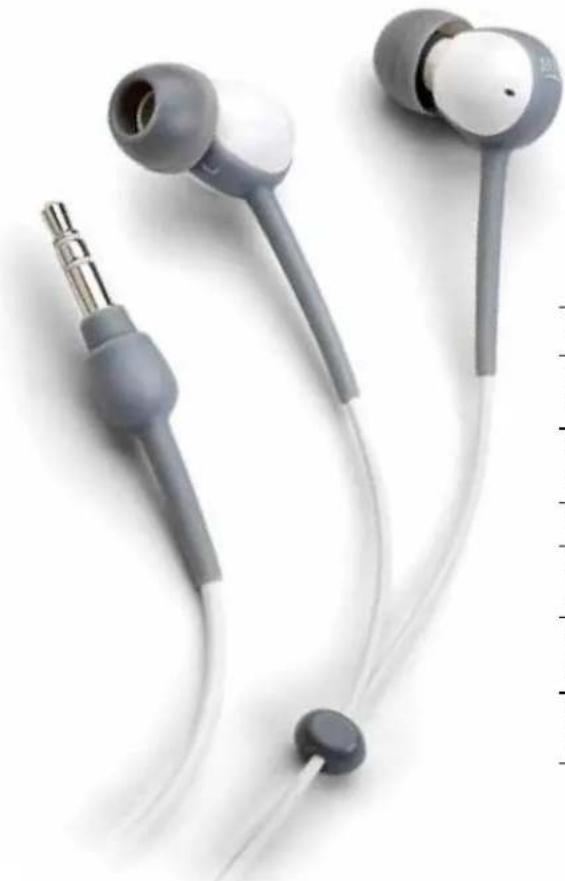

Close-up of two gray medical earphones with metallic connectors, shown against a white background (no text or symbols visible)

Neodymium Drivers: 9 mm
Noise Isolation	16 dB
Input Sensitivity	107 dB SPL/mW @ 1 kHz
Impedance	16 Ohms
Cable Length	46" /1.2 m
Input Connector	3.5 mm
Frequency Response	20 Hz - 20 kHz

PACKAGING SPECIFICATIONS:

(MZX106W, MZX116W, and MZX126W):

Master Carton Quantity: 16

Master Carton Dimensions:

8.5" (W) × 10.2" (D) × 6.5" (H)

Display Carton Dimensions:

2.6" (W) × 1" (D) × 7.5" (H)

66 mm (W) x 25 mm (D) x 191 mm (H)

Master Carton Weight: 3.2 lbs. (1.5 kg)

Display Carton Weight: 0.2 lbs. (0.09 kg)

(MZX206 and MZX206W)

Master Carton Quantity: 16

Master Carton Dimensions:

11" (W) × 5.5" (D) × 7.7" (H)

280 mm (W) x 140 mm (D) x 196 mm (H)

Display Carton Dimensions:

Master Carton Weight: 5 lbs. (2.3 kg)

Display Carton Weight: 0.3 lbs. (0.1 kg)

(MZX406)

Master Carton Quantity: 16

Master Carton Dimensions:

14" (W) × 5.5" (D) × 7.7" (H)

356 (W) mm x 140 mm (D) x 196 mm (H)

Display Carton Dimensions:

3.5" (W) × 1.2" (D) × 7.5" (H)

89 (W) mm x 30 mm (D) x 191 mm (H)

Master Carton Weight: 6.4 lbs. (2.9 kg)

Display Carton Weight: 0.4 lbs. (0.2 kg)

(MZX606)

Master Carton Quantity: 4

Master Carton Dimensions:

6.8" (W) × 5.8" (D) × 8.5" (H)

173 (W) mm x 147 mm (D) x 216 mm (H)

Display Carton Dimensions:

Master Carton Weight: 2 lbs. (0.9 kg)

Display Carton Weight: 0.4 lbs. (0.2 kg)

0 21986 80260 0 0 21986 80269 3 MUZX Mesh MZX106W MUZX Core MZX206

0 21986 80263 1 MUZX XX MZX116W 0 21986 80272 3 MUZX Core MZX206W

0 21986 80266 2 MUZX XY MZX126W 0 21986 80278 5 MUZX Extra MZX406

HEADQUARTERS

535 Rte. 6 & 209

Milford, PA 18337-0277

800-ALTEC-88

570-296-4434

Fax [phone]

0 21986 80275 4 MUZX Ultra MZX606

Specifications subject to change without notice. 2-year limited warranty (see inside for details.) ©2010 Altec Lansing, LLC. All rights reserved. • ALTEC, ALTEC LANSING, the Altec Lansing logo, the horn design, Muzx, SnugFit, My Music, My Style, My DNA, MUZX Mesh MZX106W, MUZX XX MZX116W, MUZX XY MZX126W, MUZX Core MZX206/MZX206W, MUZX Extra MZX406, and MUZX Ultra MZX606 are trademarks or registered trademarks of Altec Lansing, LLC. • iPhone, iPod, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc. All other trademarks appearing herein are the property of their respective owners. • Designed by Altec Lansing in the USA. Made in China.
