USER MANUAL PBS-TS Auray

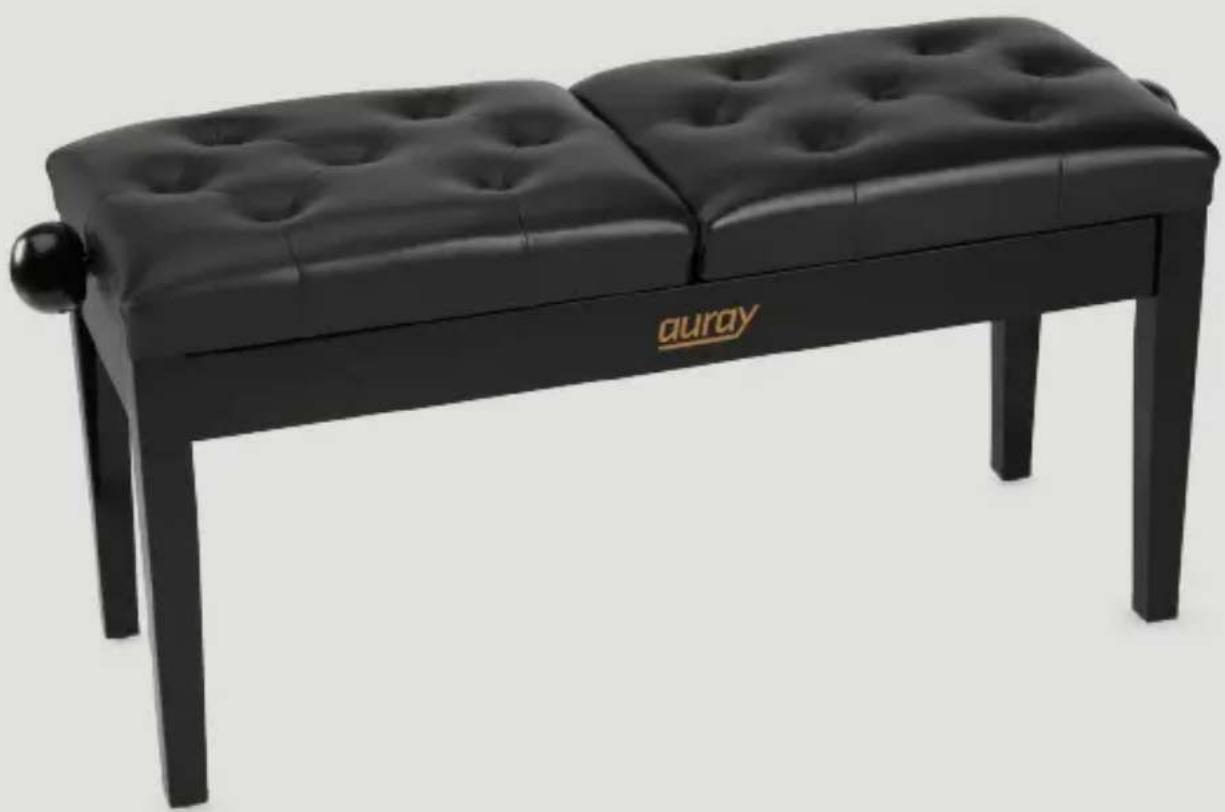

Wooden Piano Bench for Two
with Individual Height Adjustment
Owner's Manual
This elegant piano bench for two is suitable for use in a concert hall, studio, or at home. It features genuine wood construction and dual tufted bi-cast leather seats for comfort through many hours at the keyboard. The dual-seat design offers individual height adjustment on each seat, and custom positioning for each performer.
Warnings
- Please read and follow these instructions, and keep this manual in a safe place.
- Make sure this product is intact and that there are no missing parts.
- Make sure all parts are secure before use.
- All images are for illustrative purposes only.
- To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings.
- Do not exceed the maximum load capacity.

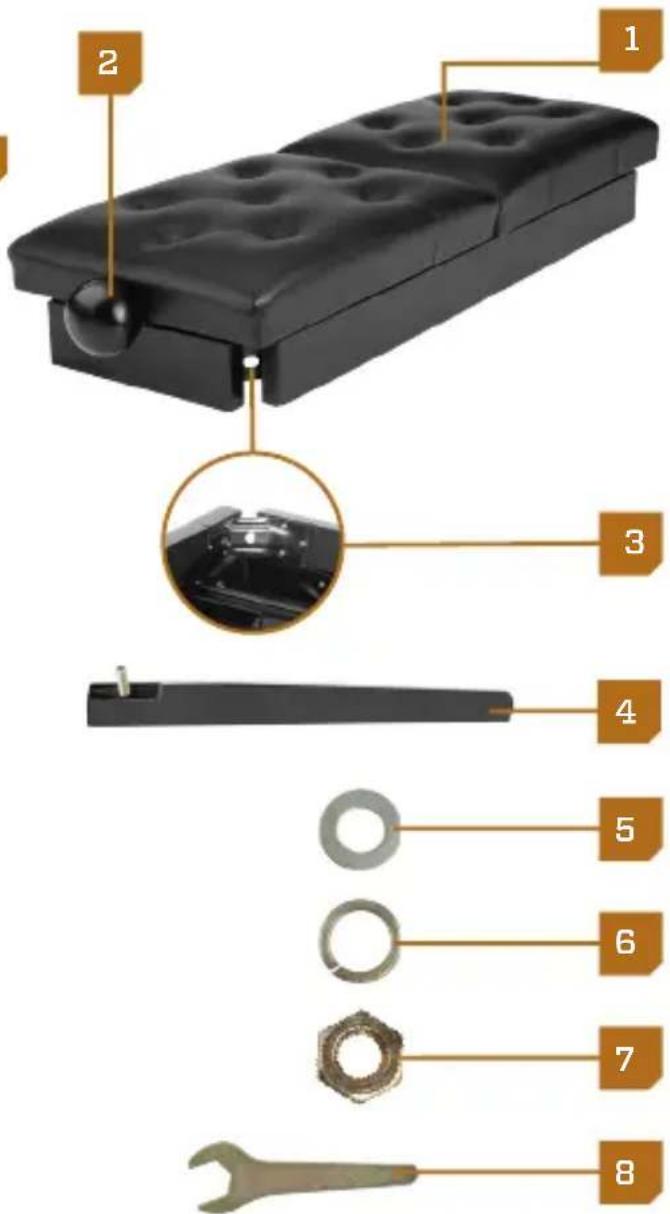

Overview
Seat 1
Height adjustment knob 2
Corner bracket 3
Bolted leg (4) 4
Washer (4) 5
Locking washer (4) 6
Hex nut (4) 7
Wrench 8
Assembling the PBS-TS
Follow these steps for all four legs:
- Place the piano bench upside down on a stable, flat surface.
- Align and insert the threaded bolt from the leg with the hole in the corner bracket. 1
- Fit the washer onto the bolt, followed by the locking washer.
- Screw the hex nut onto the threaded bolt, and use the wrench to tighten until secure. 2
After all of the legs are attached, stand the bench upright, and place it on a flat surface.
Adjusting the height
To adjust the height of the PBS-TS, turn the seat's height adjustment knob located on the corresponding side of the bench. 3
Warning: Keep your fingers clear when lowering the seat.
Seat dimensions (W × D): 18.2" × 13.8" (46.25 × 35 cm)
Weight capacity: 400 lb. (200 kg)
Bench width: 36.4" (92.5 cm)
Height: 18.1" - 22" (46 - 56 cm)
Weight: 27 lb. (12.3 kg)
One-Year Limited Warranty
This AURAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit aurayaudio.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
AURAY is a registered trademark of the Gradus Group.
© 2016 Gradus Group LLC. All Rights Reserved.
