S-65T - Loudspeaker PowerBass - Free user manual and instructions

Product Type	6.5-inch Thin Coaxial Speaker
Model	S-65T
Brand	PowerBass Autosound
Nominal Impedance	4 ohms
Frequency Response	63 Hz - 20 kHz
Sensitivity (1W/1M)	87 dB
Power Handling (RMS/Peak)	45W / 135W
Magnet Size	10 oz
Mounting Depth	2.15 inches
Cone Material	2-Layer Black Paper with DDC Finish
Tweeter Type	Balanced Pure Silk Soft Dome
Surround Material	Double Pressed Treated Rolled Foam
Design Feature	OEM Drop-in Replacement
Additional Accessories	Acoustically transparent grills, mounting hardware, speaker wires
Warranty	1 year limited (defects in material/workmanship)
Mounting Options	Rear deck, door, or custom panels
Recommended Amplifier	Separate amplifier with electronic crossover for best performance
Safety Warning	SPL can exceed 170 dB; risk of hearing loss above 100 dB
Installation Tools Required	Drill, screwdrivers, wire strippers, crimping tool, silicone sealant

Frequently Asked Questions - S-65T PowerBass

What is the power handling of the PowerBass S-65T speaker?

The S-65T handles 45W RMS and 135W peak power.

What is the mounting depth required for the S-65T?

The mounting depth is 2.15 inches (55 mm). Ensure sufficient clearance behind the mounting surface.

Can the S-65T be used as a direct replacement for factory speakers?

Yes, the S-65T is designed as an OEM drop-in replacement and fits most standard 6.5-inch openings, often behind factory grilles.

What type of tweeter does the S-65T use?

It features a balanced pure silk soft dome tweeter for smooth and accurate high-frequency reproduction.

How do I avoid damaging the speakers during installation?

Disconnect the battery negative terminal, wear safety glasses, and ensure no interference with fuel/brake lines. Use grommets for wire passages. Keep speakers in packaging until final installation.

What should I do if I hear distortion?

Distortion indicates potential overdrive or clipping. Immediately reduce the volume until sound is clean. Persistent distortion can damage the speaker.

Is the S-65T compatible with 4-ohm systems?

Yes, the nominal impedance is 4 ohms, making it compatible with most car audio amplifiers and head units.

What is the warranty period for PowerBass S-65T?

PowerBass offers a 1-year limited warranty against defects in material and workmanship to the original purchaser.

Can I install the S-65T in a marine environment?

The S-65T is not specifically rated water-resistant. Avoid mounting where the speaker will get wet. Use weatherstripping to seal but do not expose to moisture.

What tools are needed for installation?

Typical tools include an electric drill, screwdrivers (Phillips and flat), wire strippers, crimping tool, silicone sealant or weatherstripping, metal file, hole saw, and tin snips.

USER MANUAL S-65T PowerBass

powerbass® AutoSound

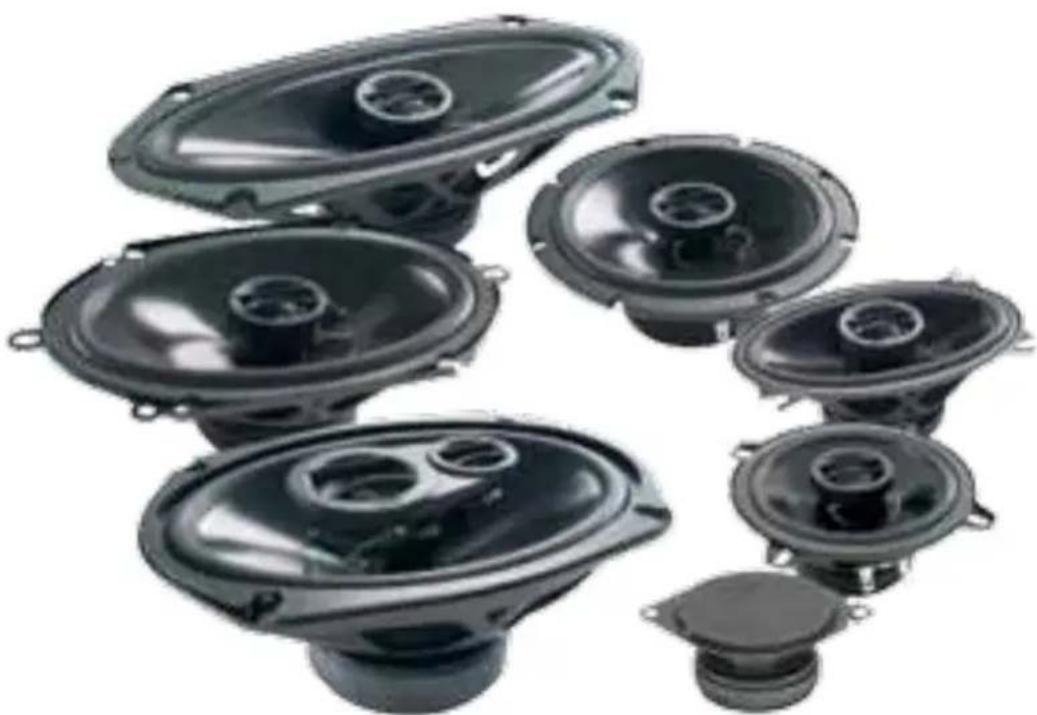

Collection of black automotive speakers with various sizes and mounting brackets (no visible text or labels)

S-402	S-652	S-693
S-352	S-65T	S-682
S-275CH	S-522	S-410
	S-462	S-675

AUTOSOUND S SERIES SPEAKERS

Application Guide

Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speakers ever require service, you will need to have the original dated receipt.

powerbass® AutoSound

Thank you and Congratulation

Congratulations on your purchase of Powerbass Autosound speakers. You now own a speaker of uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection. Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance between high fidelity, extreme performance and long-lasting reliability.

At Powerbass USA, Inc. we are confident you will have many years of outstanding enjoyment from your superior SPEAKER investment. For maximum performance we recommend that you have your new PowerBass Autosound speakers installed by an Authorized PowerBass Dealer.

To learn more about PowerBass, please visit us on the World Wide Web at

http://www.powerbassusa.com

Δ Caution Δ

Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Autosound Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.

POWERBASS AUTOSOUND S SPEAKER FEATURES

2-Layer Black Paper, DDC Finish Cone: The choice of cone materials has everything to do with the difference between good and great sound. Paper delivers one of the warmest sounds available along with the DDC (Dynamic Damping Coating) finish to give your music uncompromised fidelity.

Balanced Pure Silk, Soft Dome Tweeter: Silk dome tweeters have been used for many years by audiophile's world wide for the most accurate and smooth high frequency sound reproduction available. The low profile tweeter design makes upgrading factory speakers a simple and non-evasive task. (The S-693 utilizes a mylar Mid and Tweeter and S-275CH is full range)

OEM Drop-in Replacement: Designed to fit most OEM speaker applications for an easy installation upgrade over factory speakers. Fits behind factory grills in many cars.

Double Pressed Treated Rolled Foamed Surround: The high damping, double rolled foam surround on these speakers ensure linear travel throughout the entire frequency range resulting in more bass output and higher efficiency while reducing distortion.

Additional Features: Acoustically transparent speaker grills*professional mounting hardware and speaker wires adds further value to your investment.

SPECIFICATIONS FOR POWERBASS S SERIES SPEAKERS

(Due to Constant Improvements, Specifications and Parameters are subject to change without notice.)

Model Size Nominal		Impedance	Frequency Response	Sensitivity 1W/1M	Magnet Size Mounting Depth		Power RMS/ Peak
S-275CH*	2.75" 4-ohm	150Hz-19kHz	90dB 3 oz. 1.25" 30W/60W
S-352*	3.5"	4-ohm	80Hz-20kHz	85dB	4 oz.	1.5"	30W/90W
S-402	4"	4-ohm	70Hz-20kHz	86dB	6 oz.	1.8"	35W/105W
S-462*	4x6"	4-ohm	70Hz-20kHz	86dB	6 oz.	1.95"	35W/105W
S-522	5.25"	4-ohm	65Hz-20kHz	87dB	8 oz.	2.0"	40W/120W

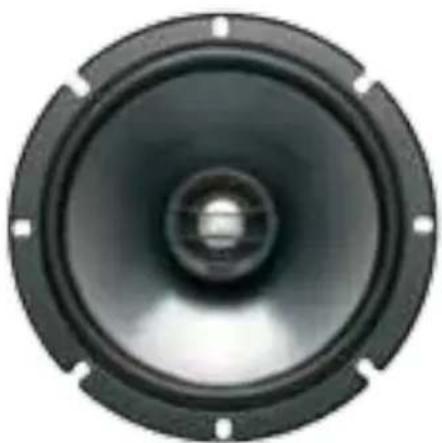

S-65T	6.5" thin	4-ohm	63Hz-20kHz	87dB	10 oz.	2.15"	45W/135W
S-652	6.5"	4-ohm	60Hz-20kHz	88dB	10 oz.	2.3"	50W/150W
S-675*	6.75"	4-ohm	63Hz-20kHz	87dB	10 oz.	2.15"	50W/150W
S-412	4x10"	4-ohm	58Hz-20kHz	89dB	10 oz.	2.6"	50W/150W
S-682*	6x8"	4-ohm	56Hz-20kHz	88dB	10 oz.	2.35"	60W/180W
S-693*	6x9"	4-ohm	45Hz-20kHz	90dB	20 oz.	3.3"	70W/210W

*Grills Not Included on some Models.

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

Before beginning your installation, thoroughly read this guide and keep it as a reference. It will give you tips on proper placement, wiring, and installation as well as how to obtain the best sound from the PowerBass speakers you have selected.

INSTALLATION EXPERIENCE

Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.

TIPS TO GET THE MOST OUT OF YOUR POWERBASS SYSTEM

Your PowerBass Autosound speakers have been meticulous engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used. In general, you will hear distortion as a so-called warning before any damage occurs. If you hear distortion in your system, immediately reduce the musical level to the point where the sound retains its clarity.

1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly. (More damage can be done to a speaker by under-powering and clipping your amplifier than any other way!)
2. Where possible, a separate amplifier just for your speaker should be used with an electronic crossover to set the frequency range. One amplifier with passive crossovers will work (Tri-Way Setup), but the system will do more with less stress on the amplifier by using two amps.
3. To avoid any possible sound cancellation from the front of the speaker to that of the rear of the speaker, cut a panel of Masonite or MDF to firmly mount the speaker if the vehicle's original cutout is too big.
4. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay attention to the polarity of the connection. This will insure optimum sound reproduction and performance.
5. For maximum dynamic performance use weather stripping to insure a tight seal.
6. Do not mount any speakers or external crossovers where they will get wet.
7. Remember the Golden Rule "Measure twice...cut once."

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation.

• An electric drill with drill bits
• Phillips-head and standard screwdrivers
- Wire strippers
• Crimping tool and needle-nose pliers
• Silicone sealant or closed cell weather-stripping
- Metal file
- Hole saw
- Tin Snips

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.

• Always wear protective eyewear when using tools.
- Turn off all stereo and other electrical devices before you begin.
- Disconnect the (-) negative lead from your vehicle's battery.
- Keep the speakers in the package until final installation.
- Locate all fuel lines, brake lines, oil lines, and electrical cables when planning your installation.
- Check to see if there is enough clearance behind the mounting surface before installing the speakers.
- When running speaker wires through sheet metal, be sure to use grommets to properly insulate the wires from metal edges.

EXAMPLE OF MOUNTING

Diagram of a car interior showing dashboard and seat area (no text or symbols)

Interior view of a car showing three seats and dashboard (no text or symbols visible)

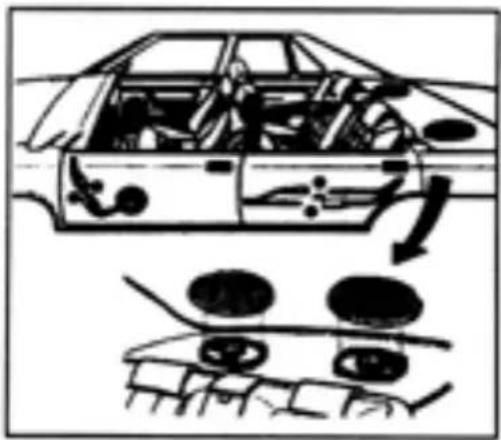

Mounting Options

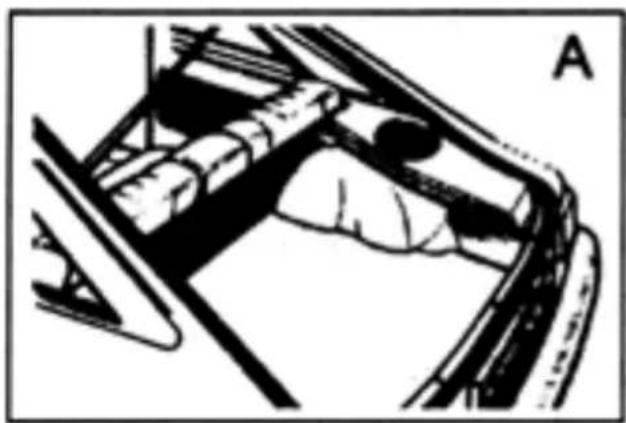

A: Rear Deck Mounting

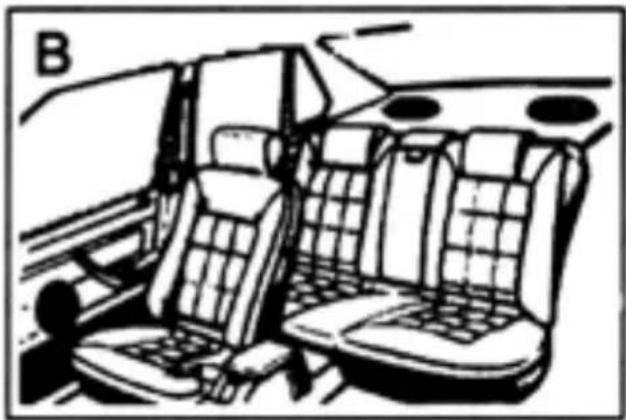

B: Multiple Mounting

Multi-Speaker Installation Wiring Diagram

Diagram of a car interior showing dashboard and steering wheel, with no visible text or symbols

ILLUSTRATION OF REAR DECK MOUNT INSTALLATION

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a mechanical or architectural component with no visible text or symbols

Pure mechanical diagram showing a lever and bracket assembly without any text or symbols

• A: Speaker mounting depth and hole cutout diameter.

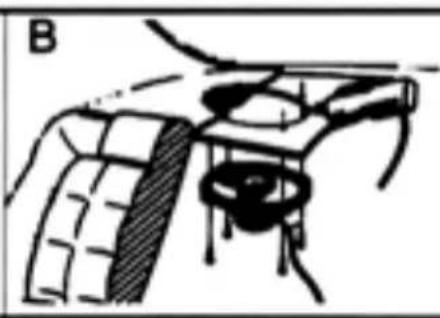

• B: Cut hole using saber saw/ utility knife.

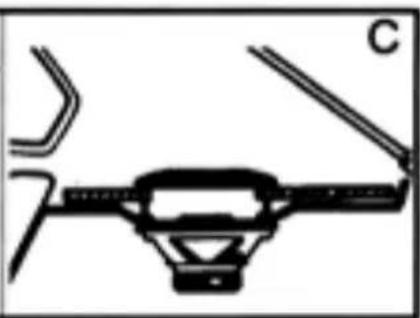

- C: Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)ground. Using a philips screwdriver secure speakers and attach grille, if applicable.

POWERBASS AUTOSOUND LIMITED WARRANTY POLICY

PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:

PowerBass Autosound Speakers are to be free of defects in material and workmanship for a period of one (1) year.

This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of America. Products purchased by consumers from a PowerBass dealer in another country are covered only by that country's Distributor and not by PowerBass USA.

This warranty covers only the original purchaser of PowerBass product. In order to receive service, the purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass's discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations:

• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplifier clipping or distortion
• Product that has not been installed according to this owners manual

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.

Please call [phone] for PowerBass Customer Service. You must obtain an RA# (Return Authorization Number) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping. Return the defective product along with a copy of the original dated retail sales receipt, plus \$12.00 for handling and diagnostic evaluation to:

13936 Mountain Avenue, Chino, CA 91710

Residents of HI, AK and US territories will be charged for return shipping. All inquires regarding service and warranty should be sent to the above address.

Removed or altered serial numbers will void this warranty

PowerBass Autosound – A division of PowerBass USA, Inc.

13936 Mountain Avenue – Chino, CA 91710

Tel. [phone] – Fax [phone]

www.powerbassusa.com
