USER MANUAL 3W1BF26 Perfect Aire
Staple the receipt to your manual.
Record the model number and serial number of the unit in the spaces provided below. This information can be found on the product sticker located on the unit.
Model Number: ____
Serial Number: ____
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.... 1 & 4
PARTS AND FEATURES....2
SPECIFICATIONS.... 3
INSTALLATION INSTRUCTIONS
MAKING THE ICE CUBES.... 6
ASSEMBLING LEGS.... 7
REFRIGERATOR INTERIOR SHELVES.... 7
HOW TO DEFROST.... 7
DOOR ALIGNMENT & REVERSAL INSTRUCTION 8
CARE AND MAINTENANCE
CLEANING YOUR REFRIGERATOR.... 9
VACATION TIME.... 9
MOVING YOUR REFRIGERATOR.... 9
ENERGY SAVING TIPS.... 9
TROUBLESHOOTING GUIDE.... 10
REFRIGERATOR WARRANTY.... 11
IMPORTANT SAFETY INSTRUCTIONS

WARNING
To reduce the risk of fire, electrical shock, or injury, follow these basic precautions when using your refrigerator.
1) WARNING----Keep ventilation openings (in the appliance enclosure or in the built-in structure) clear of obstruction.
2) WARNING----DO NOT use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
3) WARNING----DO NOT damage the refrigerant tubing when handling, moving and using refrigerator as this increases the risk of a leak.
4) WARNING----DO NOT use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.
5) WARNING----DANGER: Never allow children to play with, operate, or crawl inside the refrigerator. Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
• Take off the doors
- Leave the shelves in place and secure so that children may not easily climb inside.
6) The appliance must be unplugged before performing any user maintenance on the appliance.
7) This appliance can be used by children age 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.
8) If a component part is damaged, it must be replaced by a qualified professional in order to avoid a hazard.
9) Please dispose of the refrigerator according to local regulations as the unit contains flammable gas and refrigerant. Follow local regulations regarding disposal of the appliance due to flammable refrigerant and gas. All refrigeration products contain refrigerants which, under the guidelines of federal law, must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.
10) This appliance is intended to be used in households and similar environments such as:
- staff kitchen areas in shops, offices and other work environments;
- farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
11) DO NOT store or use gasoline or any flammable vapors and liquids inside or in the vicinity of refrigerator.
12) DO NOT use an extension cord with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the unit's performance.

Caution: risk of fire

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE PERSONNEL TO CARRY OUT SERVICES OR REPAIRS INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK, DO NOT ATTEMPT REPAIRS YOURSELF.

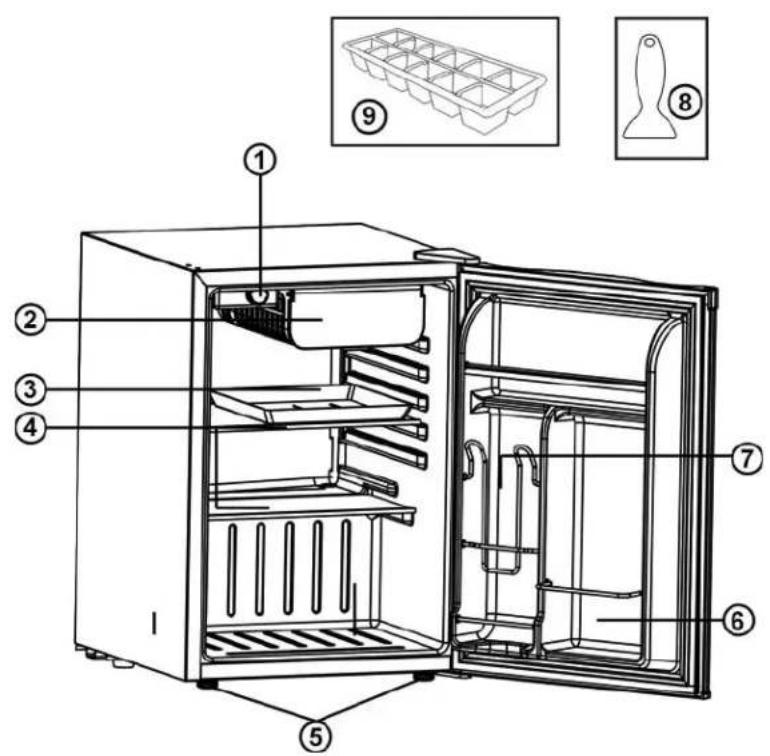

(1) Adjustable Temperature Control
(2) Half-Width Freezer
(3) Drip Tray
(4) Removable Glass Shelves
(5) Adjustable Front Leveling Legs
(6) Accommodates 2 liter and tall bottles
(7) "Dispense-A-Can" TM Storage
(8) Scraper
(9) Ice Cube Tray
NOTE: All the illustrations in this manual are for explanation purposes only. Unit purchased may be slightly different.
WARNING
Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frost bite.
| Product Description | Perfect Aire 2.6 cu. ft. Refrigerator | ||
| Model No. 3W1BF26 / 3W1WF26 | |||
| Capacity | 2.6 Cu. Ft. | ||
| Unit Dimensions (inches) | Width Height Depth | ||
| 17.5" 25" | 19.5" | ||
| Net Weight (lbs) | 38.8 (lbs) | ||
IMPORTANT SAFETY INSTRUCTIONS
| WARNING | To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions: |
| Read all instructions before using the refrigerator.DANGER / WARNING:Risk of child entrapment.To avoid the possibility of child entrapment, please take the following precautions before disposing of the refrigerator.Remove all doors from the unit.Leave the shelves in place and secure so that children may not easily climb inside.NEVER allow children to operate, play with, or crawl inside the refrigerator.NEVER clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.DO NOTstore or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or an explosion. | |
INSTALLATION INSTRUCTIONS
Before Using Your Refrigerator
- Remove all exterior and interior packing.
- Before plugging the refrigerator to the power source, let it stand upright for 24 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation.
- Clean the interior surface with lukewarm water using a soft cloth. (See cleaning instructions on pg. 9.)
Installing Your Refrigerator
- This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a level floor that is strong enough to support the refrigerator when it is fully loaded.
- Allow 5 inches of space between the back and sides of the refrigerator, which allows for proper air ventilation. Adjust the leveling legs to keep the refrigerator level.
- Place the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50°F or above 109.4°F will hinder the performance of this appliance.
This unit is not designed for use in a garage or any other outside installation. - Avoid locating the refrigerator in moist areas.
- Plug the refrigerator into a dedicated, properly installed-grounded wall outlet.
- DO NOT under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
- After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2\~3 hours before placing food in the refrigerator or freezer compartment.
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.
This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
' 2 1 2 7, under any circumstances, cut or remove the third ground prong from the power cord supplied.
This refrigerator requires a standard 115V\~ / 60Hz electrical outlet with three-prong ground.
This refrigerator is 127 designed to be used with an inverter.
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.
1(9)(5) unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
'2□127 use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.
If any problems with the appliance persist, please contact Consumer Services at 1-8 ^1 ^2 3 ^3 ^4 ,5( .

DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used
Temperature Control
- Your refrigerator has a control knob for regulating the temperature. The temperature control is located on the top left hand corner of the refrigerator compartment
- The first time you turn the unit on, adjust the temperature control knob to "7" and run for at least 2 hours before putting foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
- The range of the refrigerator temperature control is from position "1" the warmest to "7" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of "4" should be appropriate for home or office refrigerator use.
- To turn off the refrigerator, please turn the temperature control knob to "0". Please note that turning the temperature control knob to "0" position stops the cooling cycle, but does not disconnect the power supply to the refrigerator
NOTE
- If the unit is unplugged or loses power; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
• Large amounts of food will lower the cooling efficiency of the appliance.
• DO NOT place the foods on the air outlet, and leave spaces for airflow. - If you choose to change the thermostat setting, adjust thermostat control by one increment at a time. Allow several hours for temperature to stabilize between adjustments.
Auto-Restart
If the unit breaks off unexpectedly due to a loss of power, it will automatically restart with the previous function setting when the power resumes.
Making the Ice Cubes

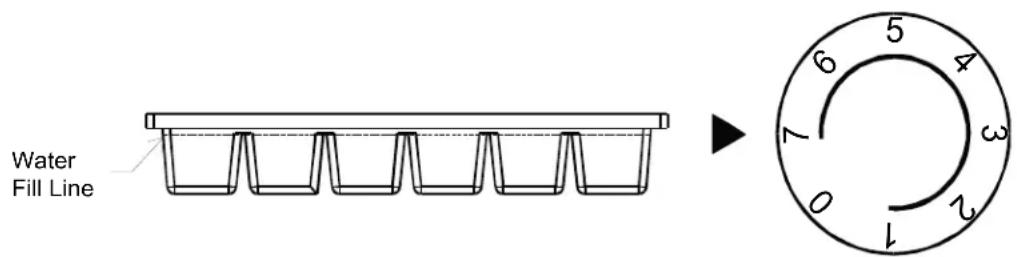

Take out the ice cube tray and fill the tray to 80% capacity with drinkable water. Put the ice cube tray back into the freezer compartment and close the door.

Fig. 1
- Turn the temperature control knob to "7". (See Fig. 1.)
• Wait for approximately 2 to 5 hours. - Twist the ice cube tray and release the ice cubes.
- Reset the temperature control knob to the normal recommended setting. ("4")
Normal Operating Sounds You May Hear
- Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.
- The thermostat control will click when it cycles on and off.
Assembling Legs
- Your refrigerator has two leveling legs which are located in the front bottom corners of the appliance. After properly placing your refrigerator in its final position, you can level your refrigerator.
- Leveling legs can be adjusted by turning them clockwise to raise your refrigerator or by turning them counterclockwise to lower your refrigerator.
NOTE: The refrigerator door will close easier when the leveling legs are extended.
Refrigerator Interior Shelves

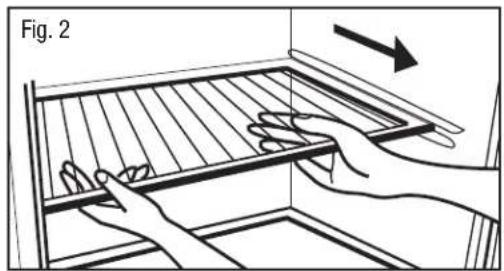

To remove or replace a full-width slide-out shelf: (see Fig. 2)
- Gently tilt the shelf up and slide forward until the shelf has been completely removed.
- To replace the shelf, gently slide the shelf back.


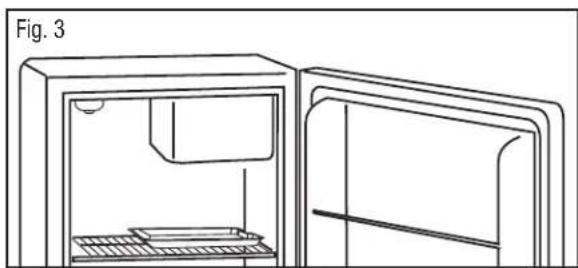

For maximum energy efficiency, defrost freezer section whenever frost accumulates to a thickness of 1/8" or more on freezer walls. Note: Frost tends to accumulate more during the summer months.
- To defrost freezer, remove food and ice cube tray from the refrigerator and freezer.
- Place food in a cooler to protect it. Your model requires you to place the drip tray under the freezer section (see Fig. 3).
- To defrost turn the temperature control dial to the 0 position. Defrosting may take a few hours. To speed up defrost time, keep the door open and place a bowl of warm water in the refrigerator.
- During the defrost cycle, water will accumulate in the drip tray. The drip tray may also need to be emptied during the defrost process. DO NOT leave unattended.
- After defrosting, empty and wipe down the drip tray, as well as the interior of the refrigerator. You may now reset your refrigerator to the desired temperature and return food.
- Allow inside of refrigerator/freezer to cool for at least 4 hours before reloading food.
Door Alignment
- Remove the top hinge cover by using a flathead screwdriver. Place the head under the front edge of the cap and gently lift. (Fig. 4)
- Loosen the top hinge screws using a Phillips head screw driver.
- Adjust the door or put a spacer in between and tighten the screws.
- Replace the top hinge cover by aligning the rear of the cover with the rear of the hinge. Press firmly on the front of the cover until it snaps in place.

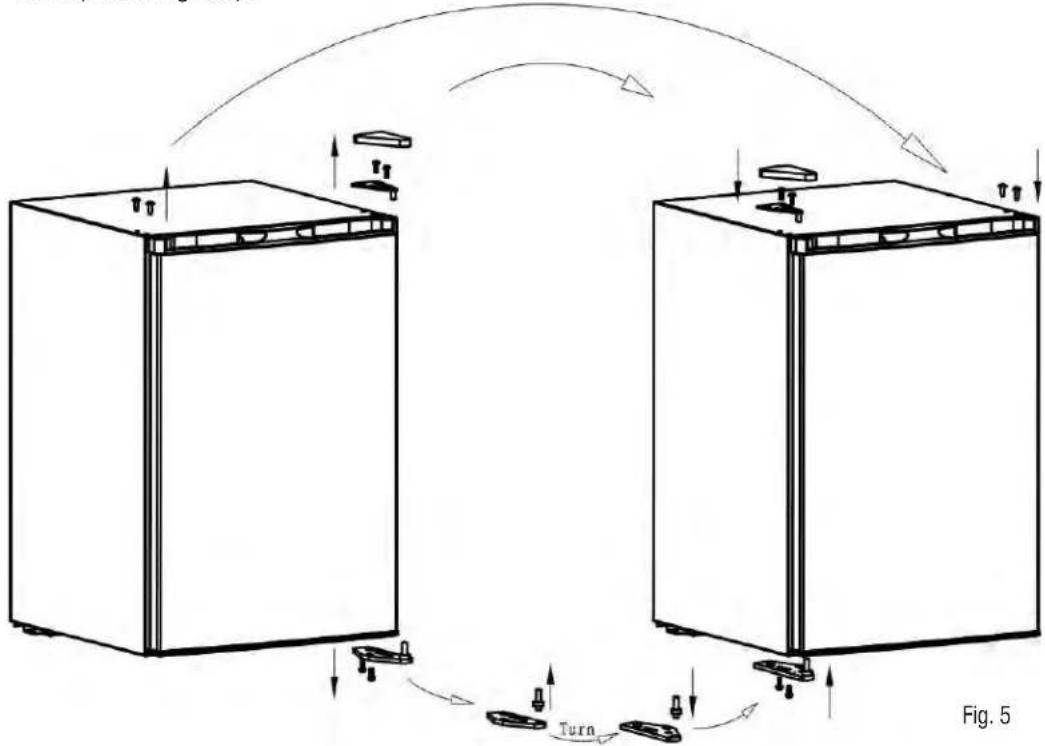

Door Reversal (Fig. 5)
- Remove the top hinge cover.
- Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place.
- Remove top hinge and carefully lift off the door.
- Remove the screw hole plugs from the opposite side and insert the plugs in the screw hole openings of the just removed screws.
- Remove any loose items from the refrigerator; Carefully turn refrigerator on its back.
- Loosen the screws holding the lower hinge bracket to the refrigerator and remove screws and bracket.
- Remove (2) screws from the other side and insert in the previously removed screw holes.
- Remove door pin by turning it counter-clockwise, then reinsert into the underside of the bracket and tighten.
- Align bracket and insert (2) remaining screws into the holes provided.
- Align hole in the door with the door pin and washer and gently push down until firm.
- Align upper hinge bracket with screw holes. Insert screws and partially secure. Check that door and cabinet are properly aligned and then secure tightly.
- Replace hinge cap.
Note: The diagram shows a single arrow labeled 'Turn' connecting the output to the center of the chambers.
Cleaning Your Refrigerator
Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
- First, turn off the refrigerator (set temperature to "0") and then unplug the unit from the wall outlet.
- Remove all food contents.
- Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda for every quart of water. Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
- The outside of the refrigerator should be cleaned with mild detergent and warm water.
- Dry the interior and exterior with a soft cloth.
Vacation Time
- Turn off the refrigerator (set temperature to "0") and then unplug the unit from the wall outlet.
- Remove all food contents.
- Clean the refrigerator per instructions above.
- Leave the door open slightly and place an open box of baking soda inside the refrigerator to avoid possible formation of condensation, mold, or odors.
WARNING: Use extreme caution with children. The unit should not be accessible to children.
- Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly; block it open if necessary or remove the door.
Moving Your Refrigerator
- Turn off the refrigerator (set temperature to "0") and then unplug the unit from the wall outlet.
- Remove all of the food/beverages from the refrigerator.
- Securely tape down all loose items inside your refrigerator.
- Tape the doors shut.
- Be sure the refrigerator stays in the upright position during transportation.
Energy Saving Tips
- The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
- Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
- Be sure to wrap foods properly and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
TROUBLESHOOTING GUIDE
You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.
| ESUAC ELBISSOP MEL | |
| Refrigerator does not operate. | Check plug / not plugged in.The circuit breaker tripped or a blown fuse. |
| Compressor turns on and off frequently. | The room temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely. |
| Temperature inside the refrigerator is too warm. | Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has had a chance to reach its selected temperature.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely. |
| Temperature inside the refrigerator is too cold. | Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize. |
| Temperature of external refrigerator surface is warm. | The exterior refrigerator walls can be as much as 30^ warmer than room temperature. This is normal while the compressor works to transfer heat from inside the refrigerator cabinet. |
| Popping or cracking sound when compressor comes on. | Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as refrigerator continues to run. |
| Bubbling or gurgling sound, like water boiling. | Refrigerant (used to cool refrigerator) is circulating throughout the system. This is normal. |
| Vibrations. | Check to assure that the refrigerator is on a level surface.Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Be sure floor can adequately support refrigerator. Level the refrigerator by putting wood or metal shims under part of the refrigerator.The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall.See “Installation Instructions”. |
| Moisture forms on inside refrigerator walls. | Weather is hot and humid, which increases internal rate of frost build-up. This is normal.Door is slightly open.Door is kept open too long or is opened too frequently. Open the door less often.The door is not sealed properly. |
| Moisture forms on outside of refrigerator. | Door is slightly open, causing cold air from inside the refrigerator to meet warm moist air from outside. |
| The door will not close properly. | The refrigerator is not on a level surface.The gasket is dirty. |
If the troubleshooting tips in this manual are not effective, please contact Consumer Services at 1-844-472-2473 for assistance before contacting the store where the item was purchased.
PERFECT AIRE®
ONE YEAR APPLIANCE WARRANTY
This warranty covers all defects in workmanship and the internal parts contained in this product for One Year from the date of purchase. Warranty covers the original purchaser of this product only.
You MUST have your original receipt in order to obtain your warranty.
Please call the toll-free number below for troubleshooting before contacting the store.
What will be done?
Perfect Aire will replace any unit found to be defective in material or workmanship through a one year over-the-counter exchange with a new or refurbished unit of equal or similar model, at Perfect Aire's discretion. Defective unit must be returned to the original store of purchase.*
This warranty covers Perfect Aire products within the United States & Canada. This warranty does NOT cover:
- Damages in shipping.
- Damages caused by improper installation.
- Damages as the result of not using product in accordance with provided instructions.
- Damage from services performed by an unauthorized service center.
- Disposal fees.
- Any performance issues that fall outside of the 1 year warranty.
- Damages incurred to the home during installation, including but not limited to floors, walls, and furniture.
- Rust on interior or exterior of unit.
- Products with serial numbers that have been removed or altered.
- Products used in a commercial setting.
- Display models.
- Content losses of food due to spoilage.
- Chest freezer lid liners.
- Replacement of the light bulbs and/or plastic housing.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages. This limitation or exclusion may not apply to you.
If you would like to register your Perfect Aire product, please visit www.perfectaire.us
If you have questions about your warranty, please call 844-472-2473.
Hours of operation: Monday-Friday, 8:30 am-4:30 pm (cst)
*Store policy may override manufacturer's exchange warranty. Contact your store for details.

Distributed by:
Perfect Aire, LLC
5401 Dansher Rd.
Countryside, IL 60525
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
PA/User_3W1BF26_3W1WF26/03012018
