Product Type	Ceiling Loudspeaker System (Strategy Series II)
Brand	Atlas Sound
Model	FAP42TB (Black)
Woofer Size	4" (102 mm)
Power Handling	25 Watts
Transformer Taps (70.7V)	1, 2, 4, 8, 16 Watts & 8Ω Bypass
Sensitivity (1W/1M)	88 dB Average
Frequency Response	75 Hz - 20 kHz (±7 dB)
Magnet Weight	10 oz (364 g)
Cut-Out Diameter	9" (229 mm)
Overall Dimensions (Diameter x Depth)	10.5" x 8.125" (267 x 225 mm)
Woofer Cone Material	Polypropylene with Butyl Rubber Surround
HF Driver	Coaxially Mounted PEI Dome Tweeter (19 mm)
Enclosure Material	Deep Drawn Galvanized Steel (18 Gauge)
Internal Volume	285 in³ (Ported)
Grille	Press-Fit, 24-Gauge Perforated Steel Mesh (Black)
Connector	4-Pole Detachable Phoenix/Euro Connector
Mounting System Included	C-Ring, V-Rail Tile Bridge, Dog Leg Tabs
UL Listed	UL 1480
Recommended Use	Commercial, Industrial, Institutional (High Intelligibility)
Seismic Support	Eye on Top for Safety Cable (Mandatory in Drop Ceilings)
Conduit Access	Trap Door for Flexible or Rigid Conduit
Cleaning	Wipe with Dry Cloth

Frequently Asked Questions - FAP42TB Atlas Sound

What is the power handling of the FAP42TB?

The FAP42TB has a power handling of 25 Watts.

What are the transformer tap settings?

At 70.7V, the taps are 1, 2, 4, 8, and 16 Watts. There is also an 8Ω bypass setting for direct coupled operation.

Can I use this speaker in a 100V system?

Yes, the transformer is rated for both 70.7V and 100V systems. Tap settings correspond to the same power levels.

What mounting hardware is included?

The package includes a C-Ring, V-Rail tile bridge, and Dog Leg tabs for easy installation in drop tile or drywall ceilings.

What is the dispersion angle?

The FAP42TB has a 130° dispersion angle, reducing the number of speakers needed for coverage in low-ceiling distributed systems.

Is the speaker UL listed?

Yes, the FAP42TB is UL 1480 listed for safety and reliability.

How do I connect multiple speakers?

Use the 4-pole Phoenix connector for daisy chaining. The connector supports in/out wiring for multiple units.

Can it be used outdoors?

No, the FAP42TB is designed for indoor ceiling installation only. It is not weather-rated.

What is the frequency response?

The frequency response is 75 Hz to 20 kHz (±7 dB).

How do I clean the grille?

Clean the grille with a soft dry cloth. Do not use water or cleaning solvents.

USER MANUAL FAP42TB Atlas Sound

Strategy Series® II 4" Loudspeaker System

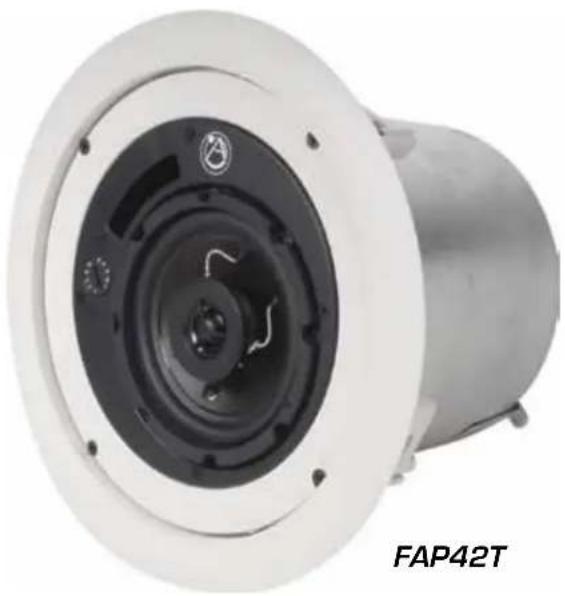

Close-up of a white cylindrical device with black inner components and mounting holes, labeled 'FAP42T' at bottom (no other text or symbols visible)

Specifications

Woofer Size 4" (102mm)

Power Handling 25 Watts

Transformer Taps at 70.7V 1, 2, 4, 8, & 16 Watts & 8Ω Bypass

Sensitivity (1W / 1M) 88dB Average

Frequency Response 75Hz - 20kHz (±7dB)

Magnet Weight 10oz (364g)

Cut-Out Diameter 9" (229mm)

Height 8 ^1/8 " (225mm)

Diameter 10½" (267mm)

Woofer 4" Poly Cone with Butyl Rubber Surround

HF Driver Coaxially Mounted PEI Dome Tweeter

Features

• Extended low frequency response from the 285 in ^3 optimally tuned and ported deep drawn, galvanized steel enclosure
• Easy installation in drop tile or sheetrock ceilings via C-Ring / V-Rail tile bridge and "Dog Leg" mounting system (Included)
• Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8Ω / direct coupled operation
• Unique "trap door" input section allows for through conduit runs with rigid or flex conduit
• 4 Pole detachable Phoenix style / Euro connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy Series full range speakers or subwoofers
• "Press fit" grilles blend better into contemporary architecture
• Enhanced quality 70.7V / 100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
  • Also Available in Black FAP42T-B
• UL 1480 Listed

Applications

FAP42T combines superior coaxial loudspeaker performance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

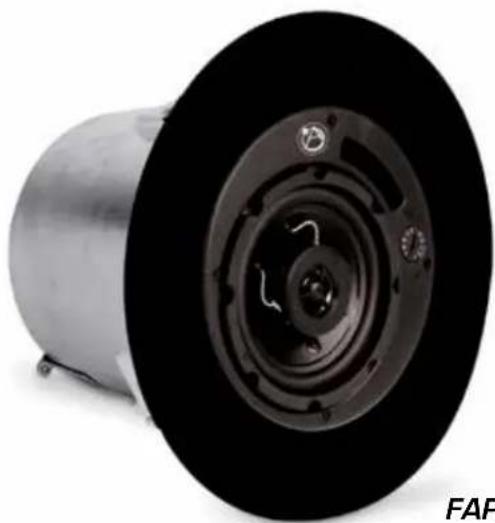

Close-up of a cylindrical mechanical component with a circular top and central hub, showing internal components (no text or symbols visible)

FAP42T-B

General Description

The FAP42T's 130° dispersion angle effectively reduces the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

The loudspeaker component matches the performance of the legendary Atlas Sound Strategy FA Series. High quality construction 4" coaxial cone type driver includes a 1" voice coil and polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity level means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled in an optimally tuned & ported deep drawn enclosure and includes a specially designed 16 Watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8Ω direct coupled operation.

Mounting Accessories

Mounting is simplified with Strategy style "Dog Leg" tabs that allow easy installation into drop tile or drywall ceilings with provided tile bridge assembly. The tile bridge consists of two "V" shaped formed mounting rails and a C-Ring assembly. The C-Ring can be attached to the rails with the screws provided to extend support to the T-Bar grid in suspended ceiling applications. Multiple hole locations are provided to allow the C-Ring to be positioned to the outer edge the tile if necessary.

For existing dry-wall applications the tile bridge C-Ring and support rails can be inserted into the hole cut for the FAP42T. For easy positioning the "V" shaped support rails match the shape of the C-Ring tabs for easy maneuvering and location when working "blindly" above the deck

A uniquely designed "easy access" input panel on the side of the enclosure allows for "thru" conduit runs using flexible or rigid conduit. Below this cover resides a detachable Phoenix style locking four-pole connector which provides for easy daisy chain wiring to other full range 70.7V loudspeakers or Atlas Sound FASUB subwoofer. The package includes an attractive press-fit grille which nicely matches contemporary architecture.

For new construction drywall ceiling applications, the optional FAP42-TR trim ring is available. This unit provides a marked location for drywall installers to cut around essentially reserving the desired location in the ceiling until final installation of FAP42T. Mounting holes are provided to accommodate 16" or 24" OC stud / joist mounting.

A support ring is also provided on the top of the FAP42T enclosure to facilitate an auxiliary support cable.

NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC CONSIDERATIONS).

Architect & Engineer Specifications

System shall include a high performance 4° coaxial loudspeaker, ported bass reflex enclosure and press-fit grille for conventional ceiling installation.

Frequency response for the system shall be 75Hz - 20kHz (±7dB).

Sensitivity shall be 88dB average. Loudspeaker shall be comprised of a 4" coaxial cone driver constructed of polypropylene with a butyl rubber surround. The 19mm tweeter shall be constructed of PEI. Magnet shall be a minimum of 10oz. (264g) and the voice coil diameter shall be 1" (25mm).

Transformer shall be a 70.7V / 100V type with 1, 2, 4, 8, and 16 watt primary taps (@70.7V) with a front mounted tap selector switch to include a transformer bypass setting for 8Ω / direct coupled operation.

Enclosure shall be a deep drawn steel enclosure design. Internal volume shall be 285 in ^3 . To facilitate connection in conduit systems, enclosure shall be equipped with an access panel covering a recessed terminal cup. This cover shall provide a combination ^3/_4' (19mm inside diameter) / 1" (25mm inside diameter) knock-out on the side access and a top access compression fitting / strain relief to facilitate flexible conduit up to 22mm outside diameter or 1 in (25mm inside diameter) conduit when the compression fitting is removed.

External wiring shall be accomplished via a removable lockable wiring connector with screw-down terminals to provide both secure wire termination and pre-wiring capability before loudspeaker installation. The 4-pole locking connector shall facilitate in / out connections and shall be located in the recessed area behind the conduit access panel.

Seismic support eye shall be provided on top of enclosure for additional suspension point when used in drop tile ceilings. Construction of enclosure shall be a minimum of 18-gauge, deep drawn galvanized metal.

The system shall include a support backing plate to reinforce the ceiling material and tile support rails for use on either 2' × 4' (609mm x 1219mm) or 2' × 2' (609mm x 609mm) suspended ceiling tiles. This assembly can all be installed from beneath the ceiling tile.

Overall front face diameter shall not exceed 10½" (267mm); overall depth from the bottom of the ceiling shall not exceed 8½" (225mm). Grilles shall be press-fit, manufactured from 24-gauge perforated steel mesh and finished in white epoxy. Round grille shall be 8½" (214mm) diameter.

The loudspeaker shall be the Atlas Sound FAP42T.

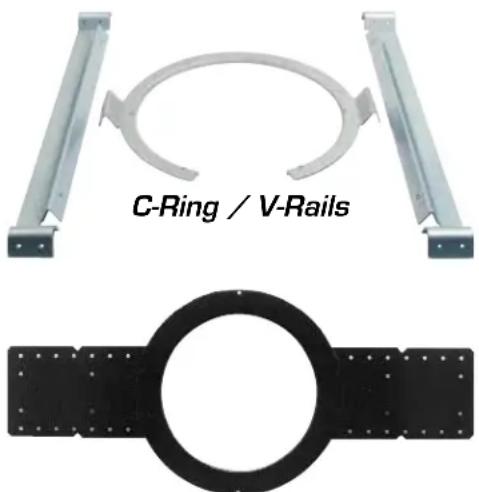

Two mechanical components: a metallic frame with curved arms and a black circular base with evenly spaced dots (no text or symbols visible)

FAP42-TR

Atlas Sound

1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.

TELEPHONE: [phone]

FAX [phone]

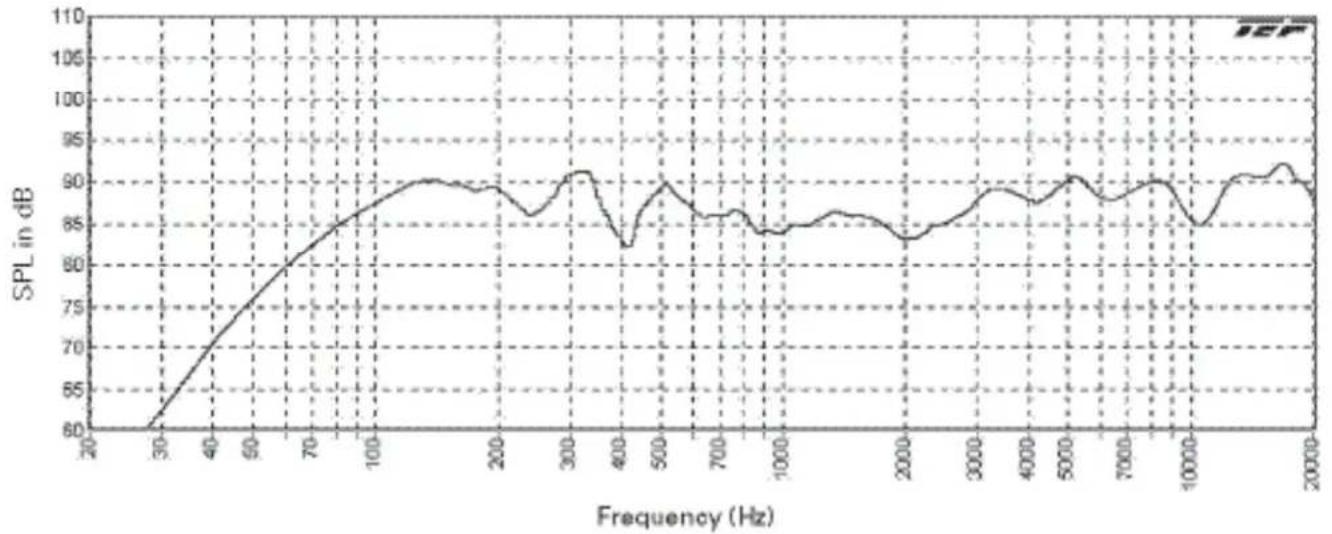

FAP42T ^1/2 Space Frequency Response

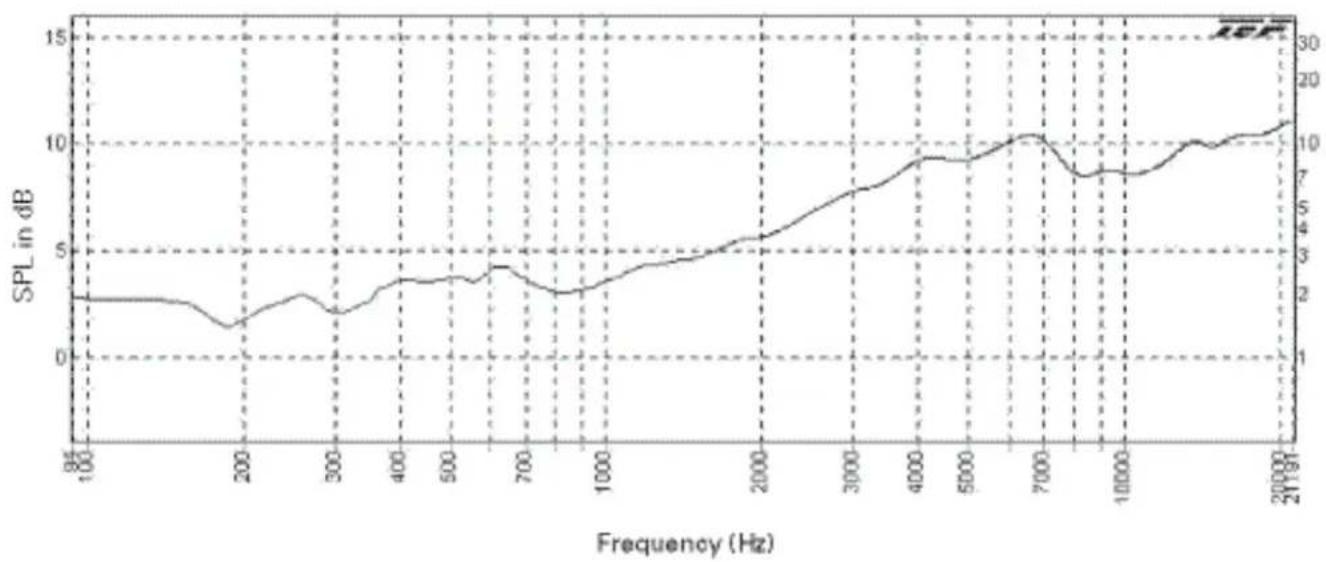

FAP42T Directivity vs Frequency

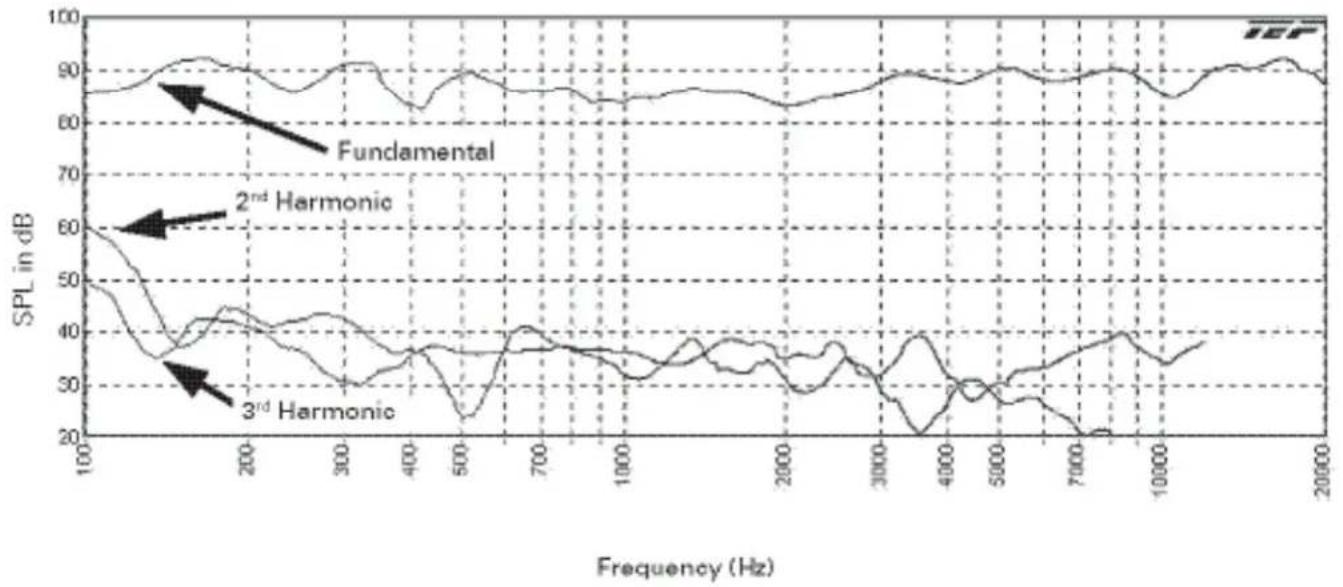

FAP42T Harmonic Distortion

FAP42T Polars (Normalized to Zero on Axis) (-6 dB)
