KAWDVAC21LA - Vacuum Cleaner Kogan - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Kogan
Model	KAWDVAC21LA
Dimensions (L x W x H)	400 mm x 250 mm x 300 mm
Weight	5.5 kg
Power Source	Corded Electric
Power Consumption	1200 W
Dust Capacity	2 L
Filtration System	HEPA Filter
Noise Level	78 dB
Cord Length	6 m
Cleaning Type	Dry Vacuum
Attachments Included	Crevice tool, Dusting brush, Upholstery tool
Main Functions	Carpet and hard floor cleaning
Maintenance	Empty dust cup after each use; clean filter monthly
Safety Features	Overheat protection, automatic cord rewind
Spare Parts Availability	Filters and accessories available from Kogan
Repairability	User-replaceable filters and belts
Warranty	1 Year

Frequently Asked Questions - KAWDVAC21LA Kogan

How do I clean the HEPA filter?

To clean the HEPA filter, remove it from the vacuum, tap off loose dust, and rinse under cold water. Allow it to dry completely for 24 hours before reinserting.

What is the dust capacity of the KAWDVAC21LA?

The dust cup has a capacity of 2 liters. It should be emptied when it reaches the fill line to maintain suction.

Does this vacuum have a cord rewind?

Yes, the automatic cord rewind allows you to retract the cord with a simple press of a button for easy storage.

Can I use the vacuum on hardwood floors?

Yes, the vacuum has a setting for hard floor cleaning to protect your floors. You can also attach the included brush.

What attachments are included?

The package includes a crevice tool for tight spots, a dusting brush for delicate surfaces, and an upholstery tool for furniture.

How often should I replace the filter?

The HEPA filter should be replaced every 6 to 12 months depending on usage. Regular cleaning extends its life.

Is the vacuum bagless?

Yes, the KAWDVAC21LA is bagless with a transparent dust cup so you can see when it needs emptying.

What power consumption does it have?

The vacuum operates at 1200 watts for effective suction on carpets and hard floors.

How do I replace the belt?

To replace the belt, turn off the vacuum, remove the brush roll cover, take out the brush, slide off the old belt, and install the new one. Ensure it is properly aligned.

What safety features does the vacuum have?

The vacuum includes overheat protection that automatically shuts it off if it gets too hot, and the cord rewind is designed to prevent tangling.

USER MANUAL KAWDVAC21LA Kogan

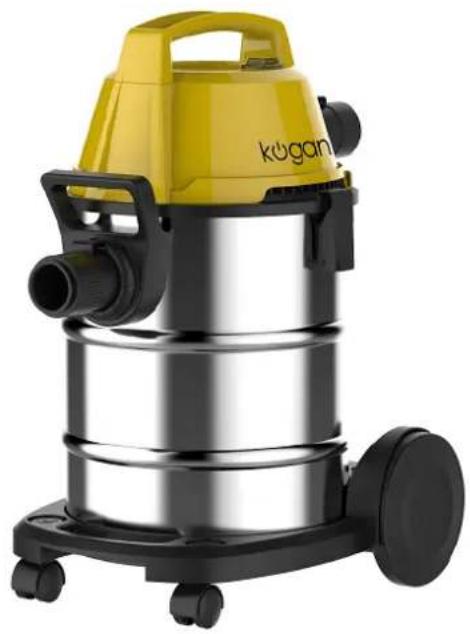

Kogan 21L Wet & Dry Vacuum

USER MANUAL

Yellow and black Kugan vacuum cleaner with coiled glass body (no visible text or symbols)

Table of Contents

Safety & Warnings 1

Overview 2

Cleaning & Care 3

Troubleshooting 3

Safety & Warnings

• Read all instructions before using the appliance and retain for reference.
• Ensure the dust compartment is properly installed.
• Change the HEPA/dust filter assembly immediately if it becomes damaged.
• Only use the vacuum cleaner indoors on dry surfaces and keep the area your cleaning well lit.
• Don't use this vacuum cleaner if it has been dropped, damaged or left outdoors.
• Don't handle the plug or use the vacuum cleaner with wet hands.
• Don't pull or carry this vacuum cleaner by the power cord. Don't use the power cord as a handle, pull the power cord around corners, sharp edges or close a door over the power cord. Don't unplug vacuum cleaner by pulling on the power cord.
• Don't vacuum up any flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive vapours or liquid.
• Don't vacuum up hot coals, cigarette butts, matches or smoking hot burning items or use in an area where there may be harmful fluids (chlorine, bleach, and ammonia drain cleaner).
• Don't attempt to remove blockages with sharp objects as this may cause damage to your vacuum cleaner.
• If abnormal noise, smell, smoke or any other failure or breakage, including any issue with the power cord is found during the operation, cease use immediately and contact Kogan Support.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

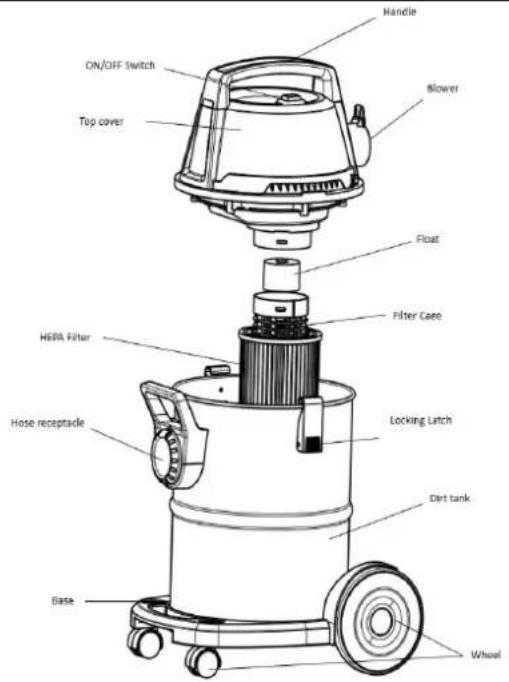

Overview

2 in 1 water brush	tube	small round brush	nozzle	hose	filter bag
Wheels: insert the big wheel and the small wheel into the hole of the base.		Hose: insert the hose connection wand into the hose inlet.		Plastic tube: insert the plastic tube into the end of the hose.
Floor brush for floor or carpet: insert into the suction hole of the plastic tube.		Blower function for dust, leaves, etc.: insert hose connector to blower outlet.		Power cord storage hook: wind the power cord and hook over for convenient storage.

• Always use with HEPA filter during wet and dry vacuuming.
- If suction power or product function is in any way lower than expected, or the vacuum cleaner produces foam or liquid, cease usage immediately and examine as per Cleaning and Care.

Cleaning & Care

NOTE: Turn off and unplug the appliance and before any cleaning.

CAUTION: Do not use abrasives, glass or universal cleaners. Never immerse the appliance in water, especially the motor and power cord.

• Dry filters completely in the air.
- Clean the appliance and accessory parts made of plastic with clean water and squeeze the water out. Do not clean in the washing machine
- If required, rinse the container and accessories with water properly and dry them before reuse.
- Only clean the HEPA filter under running water; do not wipe or brush. Let it dry completely before installation.

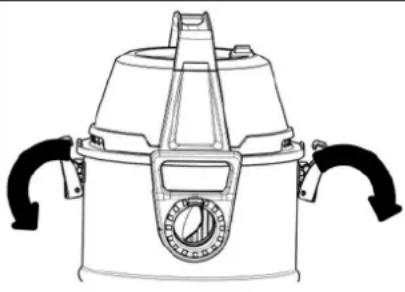

To empty the dirt tank:

Pull outward to release the locking latch on both sides of the dirt tank.	Take off the top cover, remove the filter bag, HEPA filter and tap to remove dust.	Empty the dirt tank.

Troubleshooting

IMPORTANT: If you are experiencing any issue with the appliance whatsoever, first inspect the filters and all parts of the brush head carefully and ensure there is no buildup of dust or dirt.

The filter bag may be full, or the HEPA filter may be blocked or damaged.

This is the most common cause of vacuum cleaner faults and problems, including powering on and suction strength.

If you experience any issues, contact Kogan Support.

User manual is subject to change without notice. For the latest version of your user manual, please visit https://www.kogan.com/usermanuals/
