USER MANUAL MTS-55P-BASE NEC

Z-Brackets for U-Click

Large Format Display Options

Based on

MultiSync ^® X555UNS PG (Protective Glass)

Table of Contents

1. Introduction ...... 3
2. Required tools and screws 8
3. Steps how to install Z-Brackets on video wall 9
4. Technical overview ...... 15

1. Introduction

Z-Brackets have been designed as a part of modular touch system. This solution is a frame to hold modular touch system on top of video wall's monitors.

Large digital display showing a beach scene with mountains and waves, featuring a running person silhouette (no text or symbols visible)

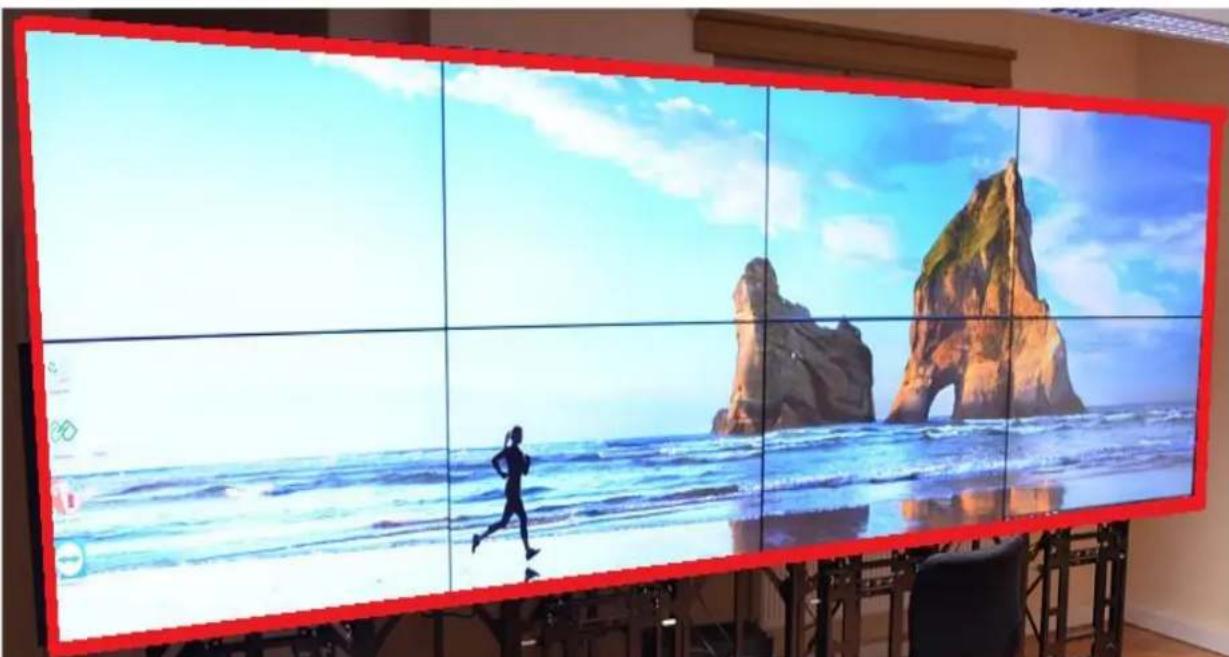

Z-Brackets as a frame over video wall

There are four types of Z-Brackets:

- Top brackets, marked in the middle of its length as:

Close-up of two abstract light streaks against a dark background, no text or symbols visible

- Bottom brackets, marked in the middle of its length as:

Blurred image of a dark, indistinct object with no visible text or symbols

- Right brackets, marked in the middle of its length as:

Blurred abstract image with no discernible text, symbols, or identifiable objects

- Left brackets, marked in the middle of its length as:

Close-up of a metallic L-shaped object against a dark background (no visible text or symbols)

Each Z-Bracket consists of two parts:

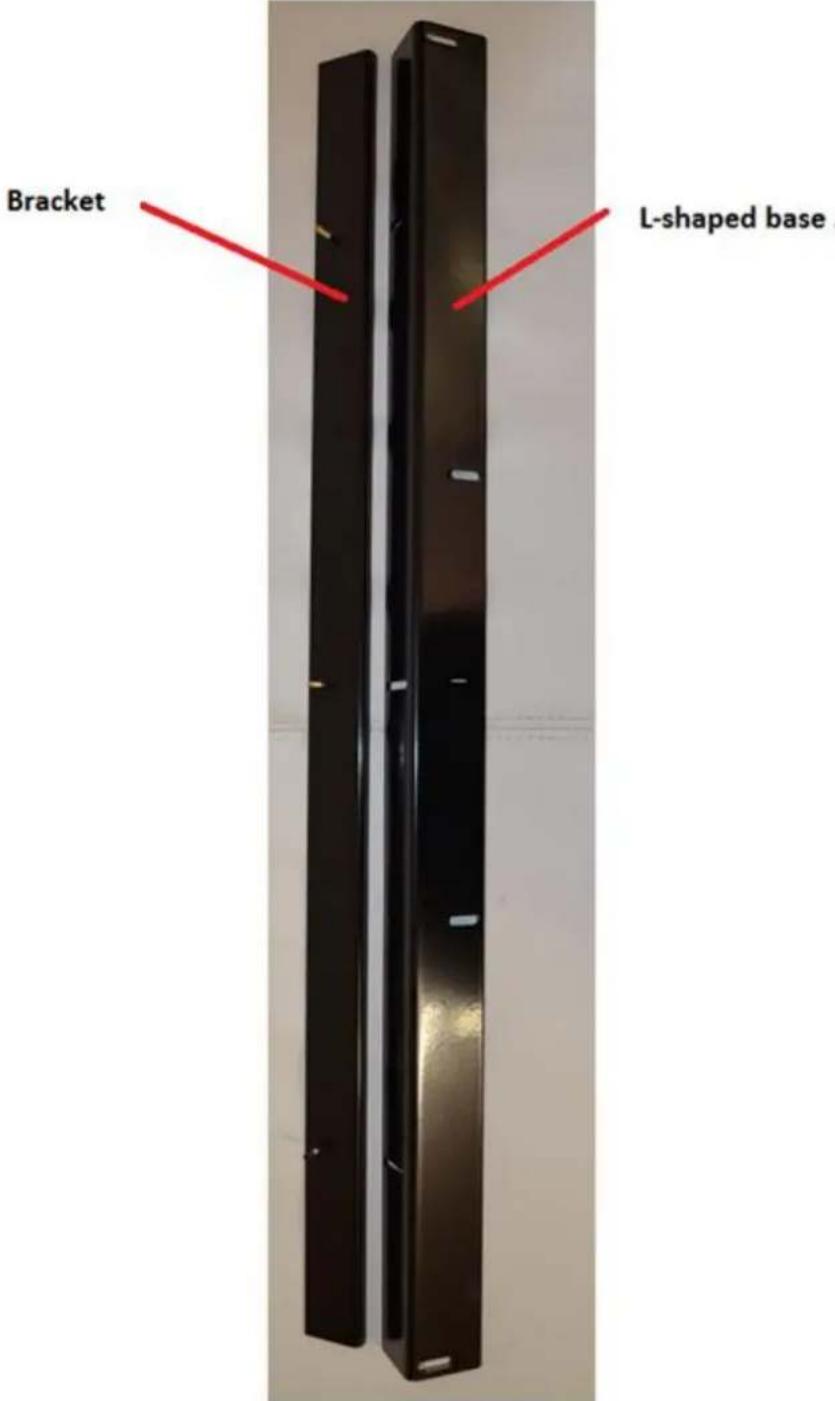

Bracket L-shaped base

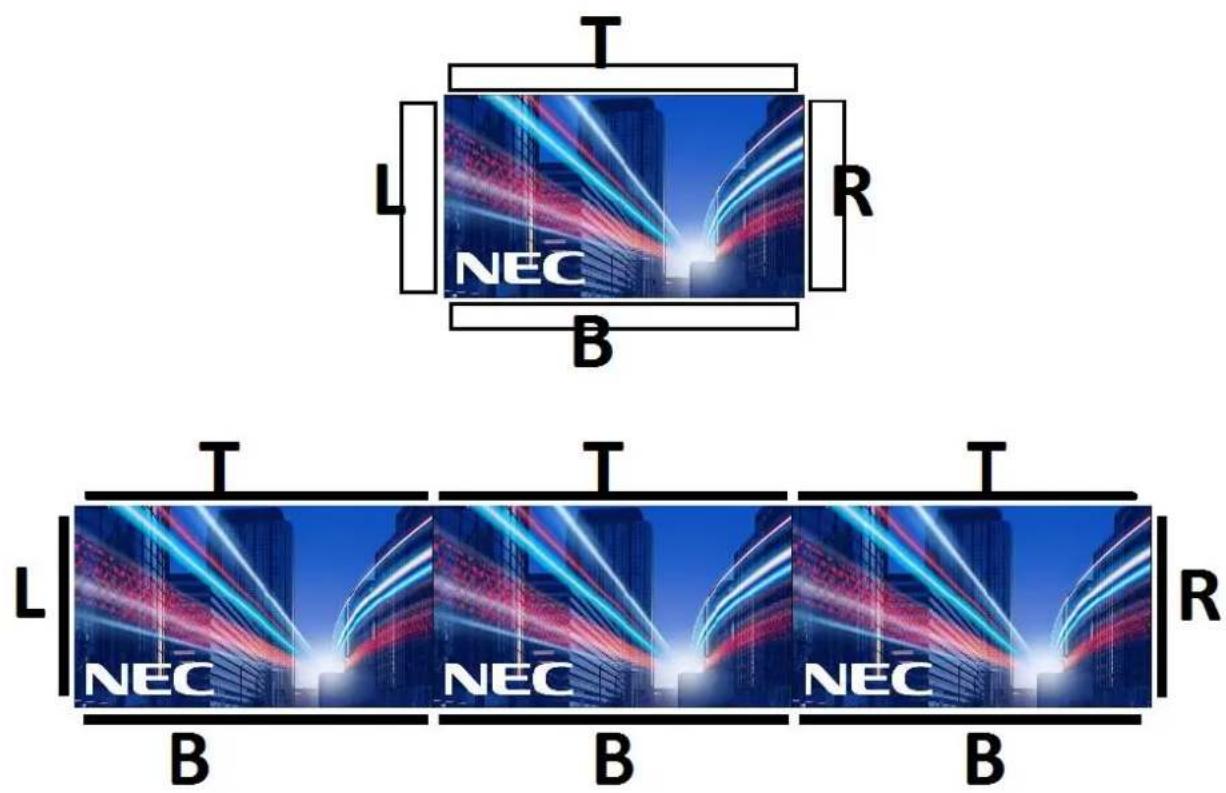

Bracket's marking in Landscape and Portrait configuration:

Landscape:

L NEC B T R T L NEC B T NEC B T NEC B R

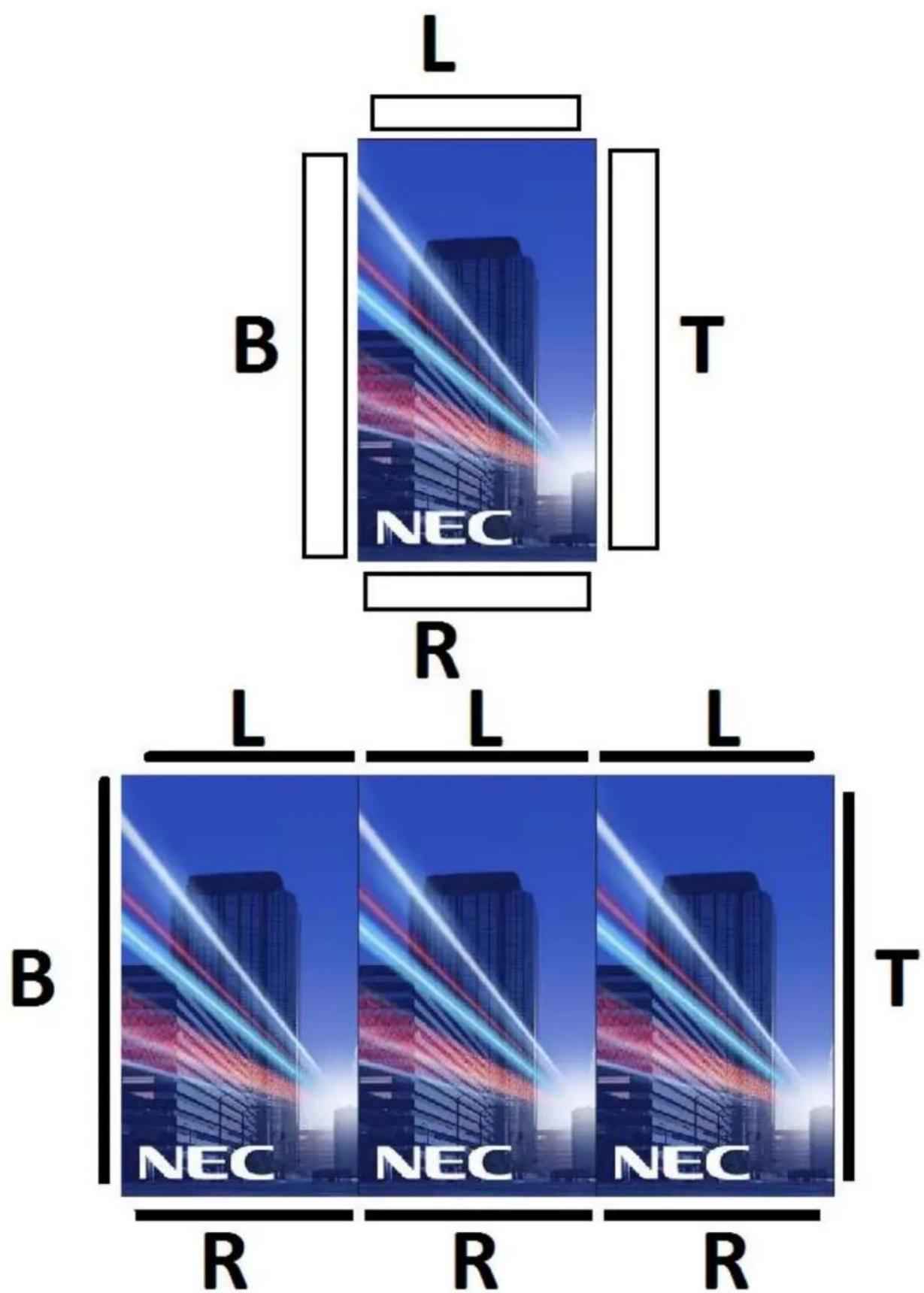

Portrait:

- When using the display in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top, right side is moved to the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

Abstract geometric diagram with two overlapping triangles and a vertical rectangle, no text or symbols present

L B T NEC R L L L B NEC NEC NEC R R R T

2. Required Tools and Screws

Close-up of metal screwdrivers and screws on a textured surface, with an inset image of M3 PH1 screwdriver (no text or symbols on main objects)

• Hand – driven screws (provided in accessory box)
• Hand – driven nuts (provided in accessory box)
  • M3 screws 5mm (provided in accessory box)
  • M3 PH1 screwdriver
• Ladder (in some cases)

3. Steps how to install Z-Brackets on video wall

This manual show's how to install Z-Brackets on sample video wall built of four displays in configuration 2 x 2. However there is no limitation in length and height of Z- Bracket's system.

• Sample 2 x 2 video wall:

Large metallic display panel mounted on a black metal frame, displayed indoors (no visible text or symbols)

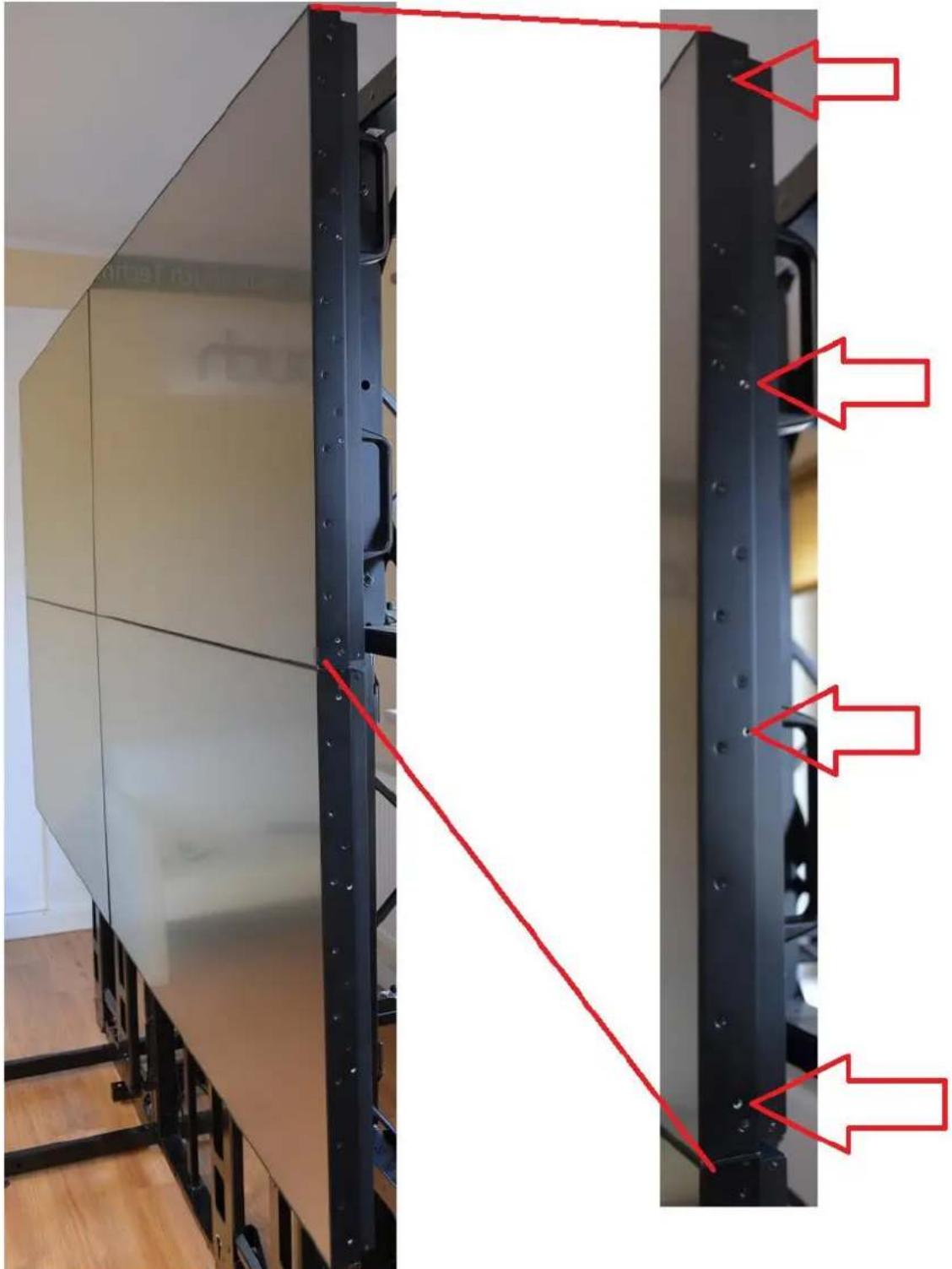

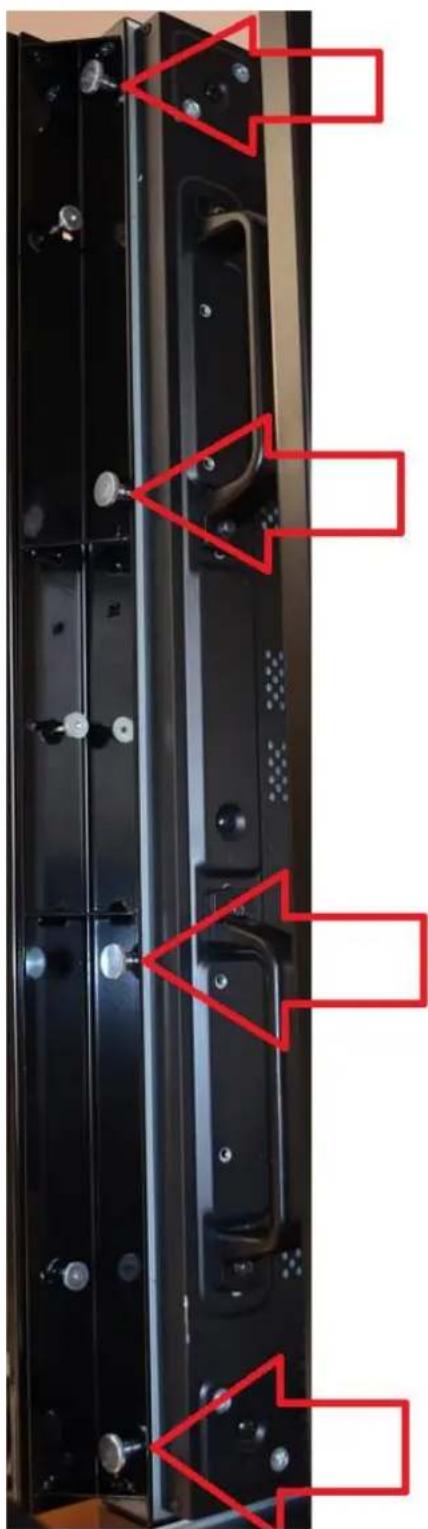

- Side view with four installation holes

Exterior view of a modern office building (no signage)

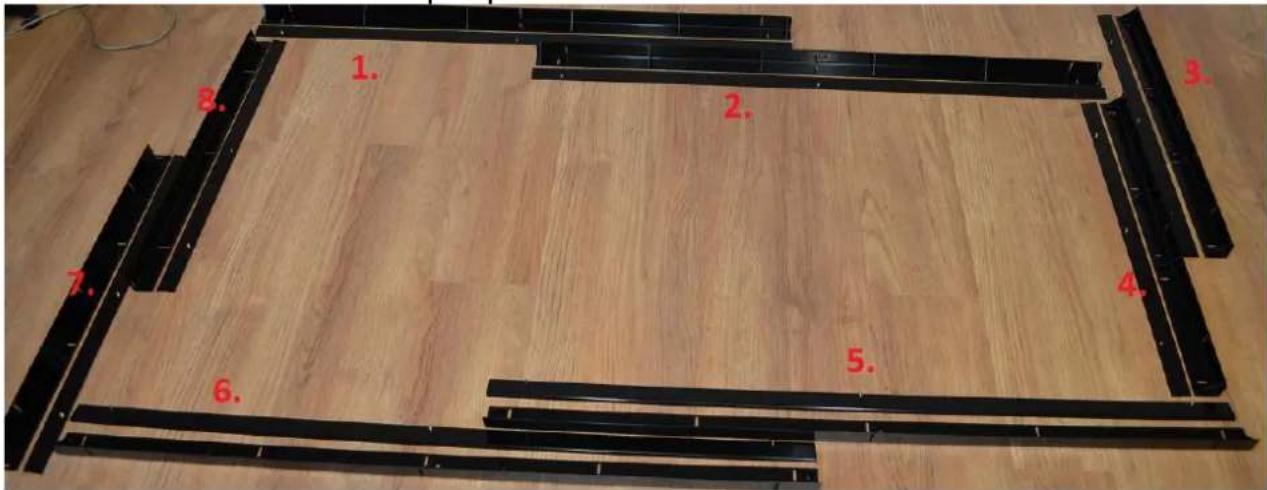

- Set of Z-Brackets prepared for installation

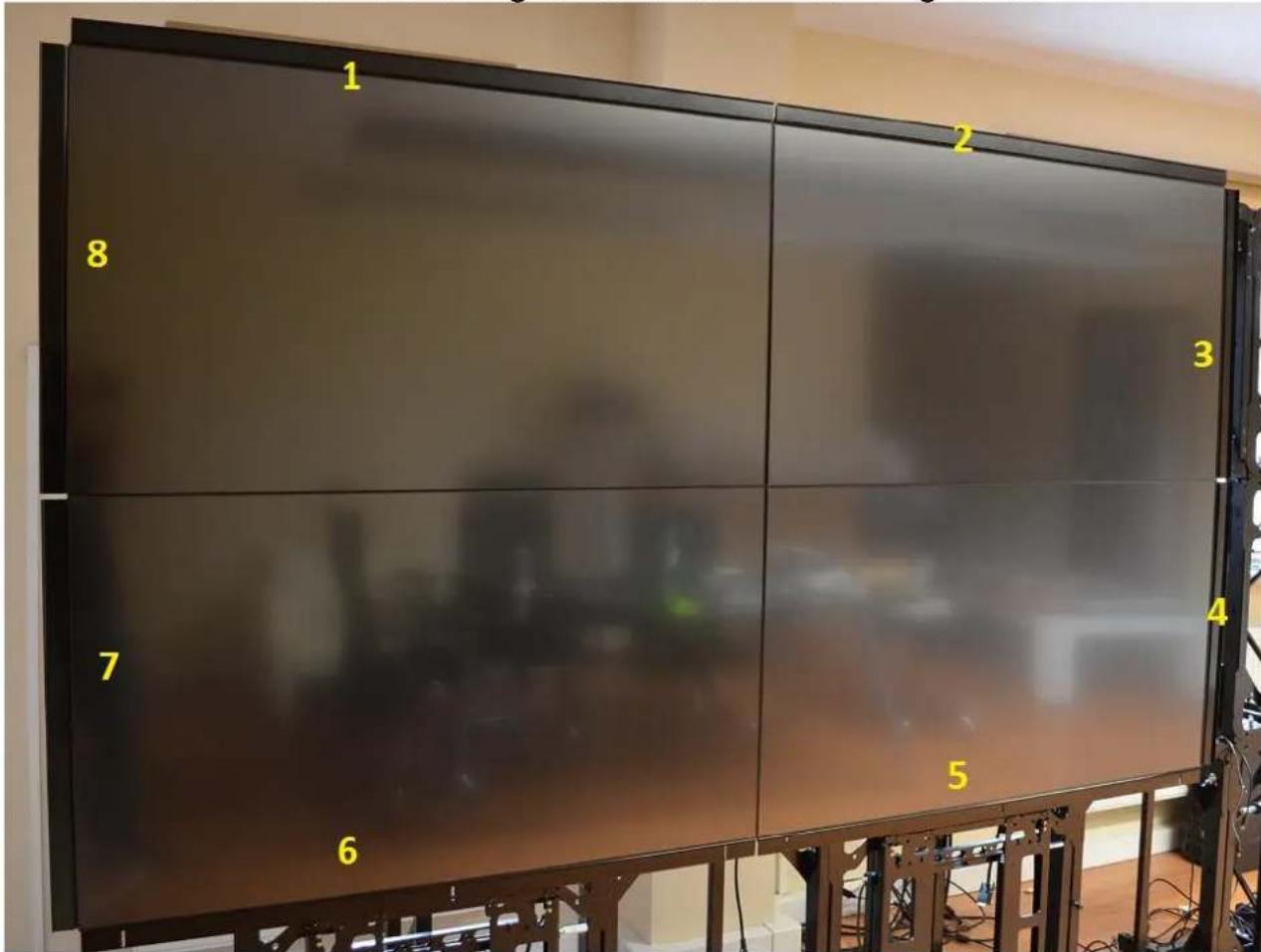

1. 2. 3. 4. 5. 6. 7. 8.

1,2 - Top brackets + L-shaped bases

3,4 - Right brackets + L-shaped bases

5,6 - Bottom brackets + L-shaped bases

7,8 - Left brackets + L-shaped bases

- Assembling bracket with it's L-shaped base

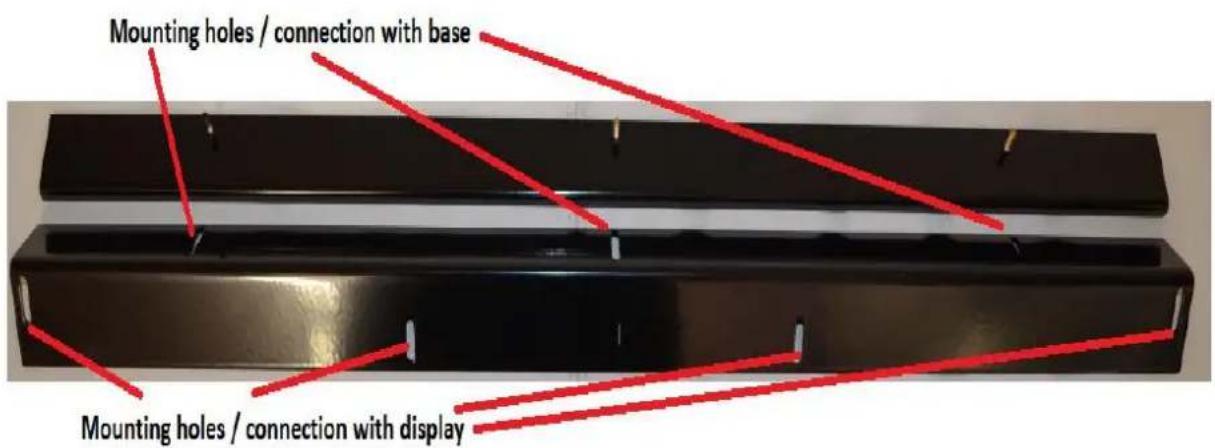

Mounting holes / connection with base Mounting holes / connection with display

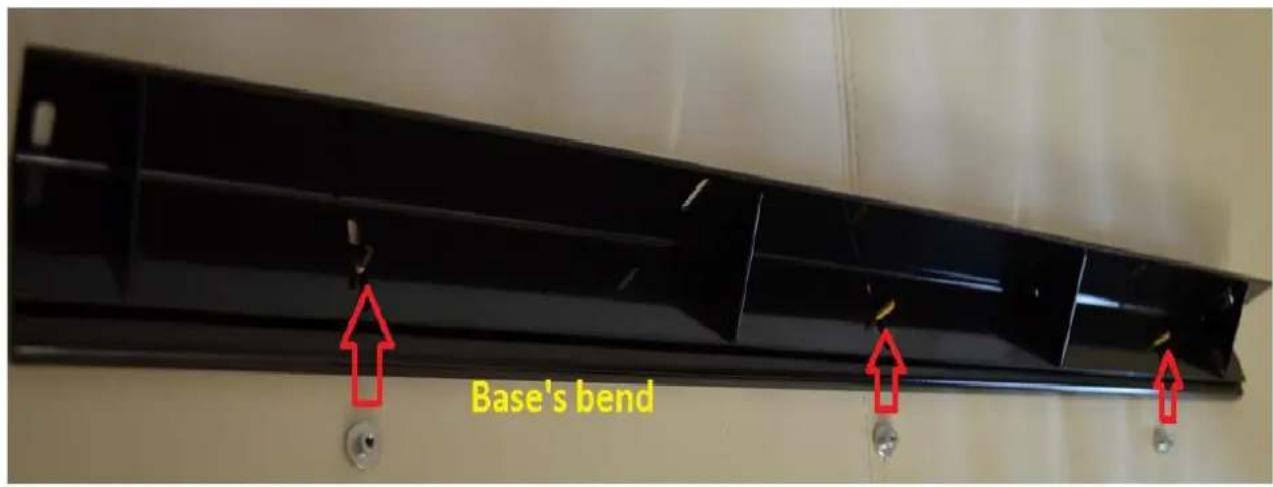

Base's bend

Base's bend

- Short and long brackets with L-shaped bases

Two black metal plates mounted on a wooden floor, each with white clips attached (no text or symbols visible)

Close-up of a black metal door panel with red annotations highlighting structural details (no readable text or symbols)

Use four hand-driven screws for short brackets and five for long ones

- Mount Z-Brackets using all available mounting holes

1 2 3 4 5 6 7 8

1,2 - Top brackets + L-shaped bases
3,4 - Right brackets + L-shaped bases
5,6 - Bottom brackets + L-shaped bases
7,8 - Left brackets + L-shaped bases

- Construction is ready for touch frame installation

4. Technical overview

- Top bracket

65 540 540 (65) C

49,8 554,8 A 1210 554,5 D D 50,8 R4 36,9 39,4 2 SECTION D-D SCALE 1 : 2

- Bottom bracket

65 540 540 (65)

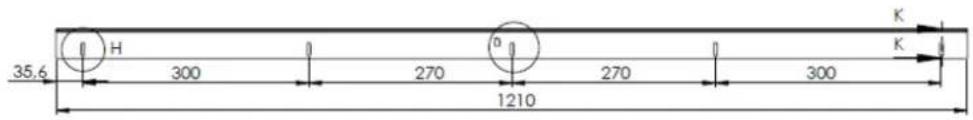

35.6 H 300 270 1210 270 300 K K

SECTION K-K SCALE 1:2

- Left bracket

99,5 240 240 (99,5) P

8 227 220 217,1 7 679 M M X L N

R4 36.9 39.4 2

SECTION M-M SCALE 1:2

- Right bracket

99,5 V 240 240 (99,5)

26.1 208 210 208 U U T0 S S 679

R4 36,9 39,4 2 SECTION S-S SCALE 1 : 2
