Product Type	Rechargeable Battery Pack
Brand	Watson
Model	AHDBT-301
Battery Chemistry	Lithium-ion (Li-ion)
Voltage	18V
Capacity	2.0 Ah
Energy	36 Wh
Compatibility	Watson 18V cordless power tools
Charging Time	Approximately 1-2 hours with Watson charger
Dimensions (L x W x H)	120 x 75 x 50 mm
Weight	400 g
Power Source	DC charger (sold separately)
Main Functions	Provides power to Watson 18V cordless tools
Maintenance	Keep terminals clean; store in a cool, dry place
Cleaning	Wipe with a dry, soft cloth
Safety	Do not disassemble, short-circuit, or expose to water; use only Watson charger
Spare Parts & Repairability	Contact Watson service centers; battery pack is not user-serviceable
General Information	LED charge level indicator on battery; rechargeable up to 500 cycles

Frequently Asked Questions - AHDBT-301 Watson

How do I charge the Watson AHDBT-301 battery?

Use only a Watson 18V charger. Insert the battery into the charger until it clicks. The charger LED will indicate charging status. Disconnect once fully charged.

How long does it take to fully charge?

Charging time is typically 1 to 2 hours, depending on the charger model and battery condition.

How can I tell when the battery is fully charged?

The charger has an LED that turns green or switches off when charging is complete. Some models have a multi-stage LED indicator on the battery itself.

Can I use a non-Watson charger?

No, always use the specified Watson charger. Using incompatible chargers may damage the battery or cause safety hazards.

What is the lifespan of this battery?

Under normal use, the battery can be recharged up to 500 cycles. Actual lifespan depends on usage and care.

How should I store the battery when not in use?

Store in a cool, dry place at around 50% charge. Avoid extreme temperatures. Remove from tool if storing for extended periods.

Is the battery waterproof?

No, it is not waterproof. Keep away from water and moisture to prevent short circuits or damage.

Can I replace the cells inside the battery?

The battery is sealed and not user-serviceable. Attempting to open it may void the warranty and create safety risks. Contact Watson for replacement.

What devices are compatible with the AHDBT-301 battery?

This battery is designed for Watson 18V cordless power tools that accept slide-on batteries. Check your tool's compatibility.

How do I dispose of the battery?

Do not throw in household waste. Recycle at designated battery recycling centers or follow local regulations for Li-ion batteries.

USER MANUAL AHDBT-301 Watson

Please read before using this equipment.

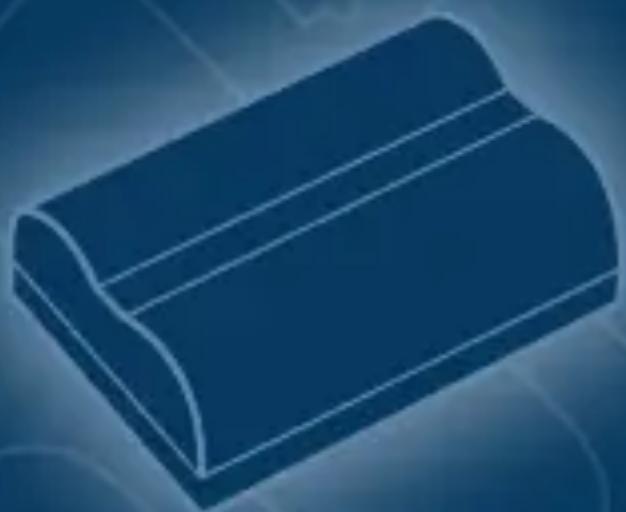

Blue 3D illustration of a folded or layered object with smooth edges and no visible text or symbols

Abstract geometric pattern with yellow and white shapes (no text or symbols)

Thank you for purchasing the Watson Li-ion Battery Pack.

Browse through this manual for information and useful tips on how to use your new equipment.

SAFETY INSTRUCTIONS:

- Charge the battery pack before use. Read your camcorder or digital camera manual for charging instructions.

- When not in use, remove the battery pack from its device and store in a cool, dry place.

- Do not short circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery. Be careful where you set the battery down.

• Under no circumstance attempt to open the battery case.
- Do not expose the battery to rain or moisture.

- Keep away from fire. Do not incinerate. Battery may explode in the presence of fire.

- Do not drop battery or expose it to strong shocks.

- Do not use at temperatures below 15°F (-10°C) or above 105°F (40°C). Use of the battery at very high temperatures will activate a safety circuit, disallowing use.

- Running time depends on the power demanded. Stated manufacturer run times are developed in simple laboratory tests of non-stop recording. Real-life use of zoom, automatic focus, tape review, etc., all demand extra power and shorten run time.

TO MAXIMIZE BATTERY PERFORMANCE

• Make sure the battery is fully charged before use.
- Clean the battery and terminals with a clean, soft, dry cloth.
• The battery may be warm during use on recharging. This is normal.
- When storing the battery for an extended period, be sure that it is not completely charged, nor completely discharged.

The ideal level is a 40% charge. This is approximate; the closer the battery is to this level, the better it will hold its charge during storage. The battery should be stored in a cool, dry place. The recommended temperature for storage is 59°F (15°C). You may store a battery in a refrigerator. Do not store batteries in a freezer.

- Remove the battery from your equipment when not in use. Some electronic equipment will draw current even when the switch is off.

- When operation time has noticeably shortened, the battery may need to be replaced.

ONE-YEAR LIMITED WARRANTY

This Watson product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Watson Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Watson along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.poweredbywatson.com or call Customer Service at 212-594-2353.

WATSON™ A Gradus Group Brand

Product warranty provided by the Gradus Group. Watson is a registered trademark of the Gradus Group. © 2016 Gradus Group LLC. All Rights Reserved.
