USER MANUAL ROKK Hidden Qi Scanstrut

Pure electrical circuit lines without any symbols

SCANSTRUT.

outdoor . technologies .

ROKK™

SC-CW-01E

WIRELESS.

SC-CW-02E

SC-CW-03E

(ENG) READ THESE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT

The product must be installed in accordance with the instructions provided. Failure to do so could result in personal injury, damage to your vessel/vehicle and/or product failure.

Scanstrut recommends installation is carried out by a qualified electrician. No liability is accepted for damage and/or injury caused by incorrect installation.

WARNING

• This product is to be fitted to a 12V DC or 24V DC battery/power source only.

• The power supply must be switched off before installation.

- An appropriate fuse or circuit breaker must be used in-line between the battery/power source and the product.

- Check for correct polarity of all wiring before switching the power on.

• This product may contain high voltages. Do not tamper with the product.

- This product is NOT approved for use in hazardous/flammable atmospheres. Do NOT install in a hazardous/flammable atmosphere e.g. engine rooms.

- Before drilling any holes, ensure the area behind the mounting location is clear of wires, fuel and all other hazardous objects.

- Ensure any holes cut will not significantly weaken the structure of the surface.

- If the product needs to be mounted outside, it must be mounted in a location safely above the waterline, where it is not at risk of being submerged.

•The product cannot charge through a metallic surface.

CAUTION

• The product is specifically for the charging of Qi compatible devices.

- The cable must be retained and not interfere with mechanical systems.

- This product contains no user serviceable components. Do NOT attempt to repair or alter the product in any way.

• The high friction top surface does not ensure the device will not slip during extreme operating environments such as high acceleration and deceleration.

- If a phone case which is thicker than 3mm is used the device may not charge.

- When used in a high ambient temperature/direct sunlight the product may temporarily shut down, this is a safety feature of the electronics.

- The IP rating is only valid if correctly installed using the instructions and on a perfectly flat non-porous smooth surface.

- When selecting a mounting location, avoid places exposed to heat-radiating appliances and poorly-ventilated areas.

EMC INSTALLATION GUIDELINES

Scanstrut products conform to Electromagnetic Compatibility (EMC) regulations, to ensure that electromagnetic interference between equipment is minimised.

Correct installation is required to ensure that electromagnetic interference is kept to a minimum. It is advisable that the product is not installed within 1m/3' to any vital safety equipment such as VHF radios, cables and antennas carrying radio signals. The product should also not be installed less than 2m/6' from the path of a radar beam.

WIRING

When extending the cable from your battery/power source to the product, ensure there is a minimum of 10V being provided to the product continuously. We recommend a wire gauge of 18AWG (0.82mm²) for any length of cable extension.

This schematic is to illustrate how the product should be connected to a 12V DC or 24V DC battery/power supply.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

ROKK Wireless Sub (SC-CW-07E)

Parts List Charger x1 Alcohol wipe x1

Technical Information Input voltage range : 10-30V DC (12/24V system) Input currant max: 1.5A Output power: 5W (5V, 1A) Standby current draw: < 0.03W Certifications: Qi, CE, FCC, ROHS Waterproof rating: IPX6 front and back

Tools Required
	Power drill
	64/65mm (2.5")Hole Saw)ORStraight router

READ THE IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING

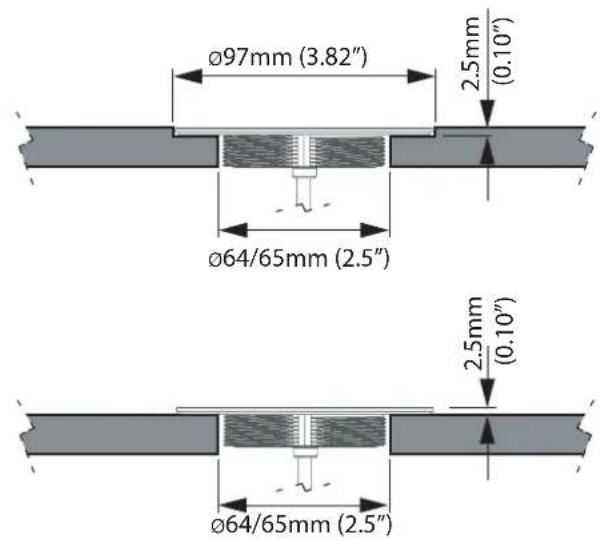

1 Install options and cut out dimensions

Ø97mm (3.82") Ø64/65mm (2.5") 2.5mm (0.10") 2.5mm (0.10") Ø64/65mm (2.5")

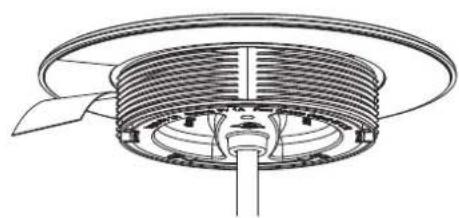

2 Remove self-adhesive backing

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

Optional threaded locking ring available separately if self-adhesive is not suitable for mounting surface. Part #: SC-CW-LOCK-01

3 Use alcohol wipe to ensure surface is free from dirt or grease and insert into hole.

Diagram of a cylindrical object with a central rod and a flag attached, showing internal structure (no text or symbols)

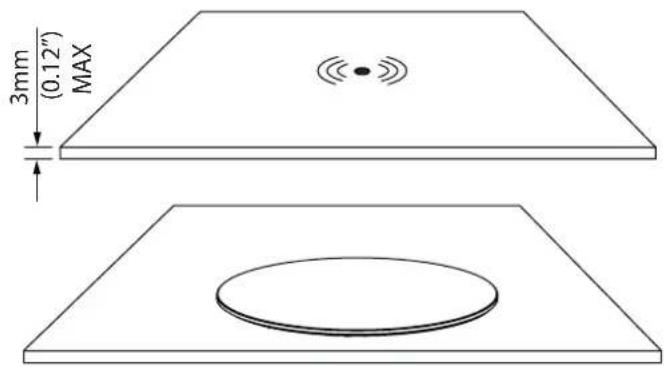

4 Overlay your choice of non-metallic surface, including wood, fabric or marine traction surface. (Not provided). Maximum thickness ≤3mm. Ensure charge logo is concentric over charger.

3mm (0.12") MAX

5 Connect wires to 12-24V supply, ensuring a waterproof connection. Fuse appropriately according to input voltage and current, check product is functioning correctly.

Simple electrical circuit diagram with battery, switch, and bulb labeled with polarity signs

ROKK

WIRELESS

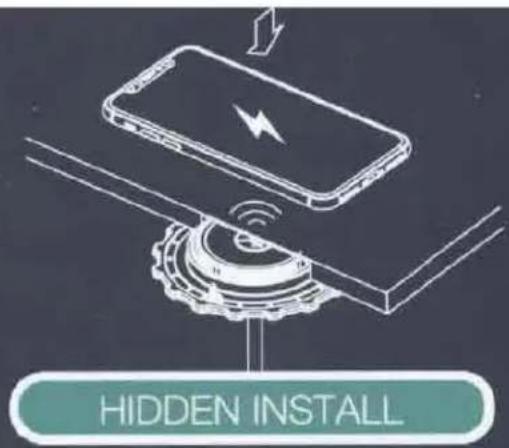

HIDDEN INSTALL

Waterproof Wireless Phone Charger

12/24V input

Hidden from view: charges through surface

Sealed IPX6 waterproof unit

Unique easy-fit lock ring install

Anti-slip device locator

Thermal management

Foreign object detection

Circular stone slab with engraved Chinese characters, likely a historical or technical document.

Simple line drawing of a sailboat on a boat (no text or symbols)

Sub-surface, hidden from view but always ready to charge. Engineered to be installed under the surface, leaving the top clean and un-cluttered. Simply etch in your logo or anti-slip device locator included to identify the charge location.

Ideal for GRP or wood, the charger can be installed under tables, cabinets, consoles or worktops and works with a variety of panel depths and materials.

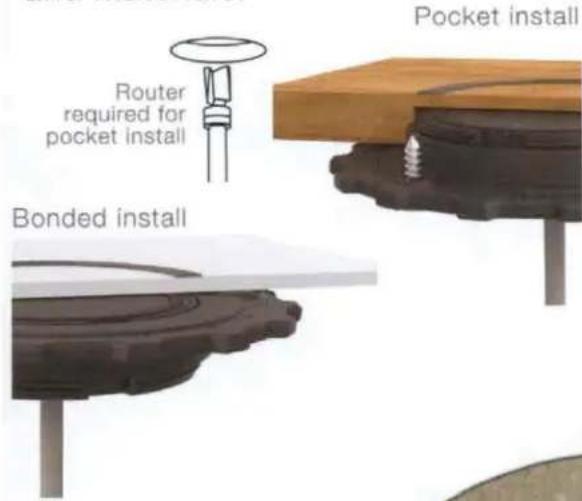

Router required for pocket install Pocket install Bonded install

Smartphone with a green battery icon on its screen, resting on a wooden surface with a circular ring nearby (no text or symbols visible)

Technical:

Input voltage range: 10-30V DC (12/24V system)

Input current max: 1.5A

Output power: 5W (5V 1A)

Standby power draw: < 0.03W

Waterproof rating: IPX6 front and back

• Works with phone cases up to 3mm
• Not for use on metal surfaces

Safety:

Foreign object detection system

Thermal management system

Certifications: Qi, CE, FCC, ROHS

Pocket Ø 67mm (2.6") Max thickness 3mm (0.1") RoHS

RoHS

CE

FC

Circular brown paper with faint vertical text, likely a historical or technical document scan.

EAN

UPC

SC-CW-01E

Made in China

Technical information Input voltage range: 10-30V DC (12/24V system) Input currant max: 1.5A Output power: 5W (5V, 1A) Standby power draw: < 0.03W Certifications: Qi, CE, FCC, ROHS Waterproof rating: IPX6 front and back Parts List | Locking Ring x1 Charger x1 Magnet Installation Tool with x2 Magnets x1 Self Adhesive EPDM Rubber x1 No6 x 1/2" Self Tapping Screw x3 Alcohol Wipe x1 Tools Required Pozi Screwdriver Straight Router Sikaflex 292-i (recommended) READ THE IMPORTANT SAFETY INFORMATION

READ THE IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING

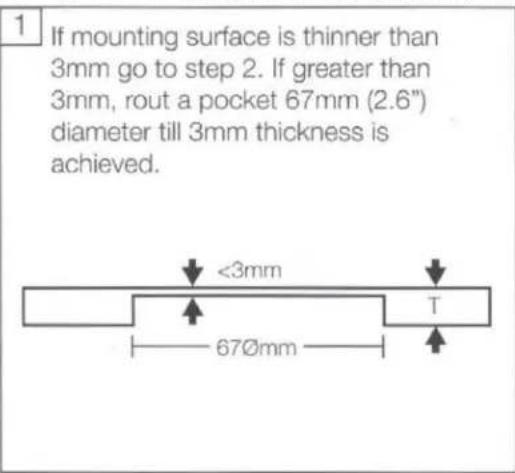

1 If mounting surface is thinner than 3mm go to step 2. If greater than 3mm, rout a pocket 67mm (2.6") diameter till 3mm thickness is achieved. <3mm T 670mm

2 Screw or bond locking ring in correct orientation to underside of surface according to the measured material thickness (Sikaflex 292-i recommended). 3-9mm or 9-18mm or >18mm

3 Option 1 - CNC etch logo onto top surface. Do not exceed 0.5mm. 4 Option 2 - Use adhesive EPDM rubber and align with magnet tool provided. Use Alcohol wipe to ensure surface is free from dirt or grease. 5 Screw in charger until firm, do not over tighten. Do not use tool. 6 Connect wires to 12/24V supply, ensuring a waterproof connection. Fuse according to input voltage and current.

FCC Warning Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
UK & International
[phone]
[e-mail]
For further installation
information please visit:
www.scanstrut.com/rokk-wireless
USA
[phone]
[e-mail]

Disclaimers and important notes

- This ROKK wireless charger is only designed to be fitted to a 12/24V system (10-32V input). Connecting this product to a voltage supply which is greater than specified may cause irreversible damage to the product.

•The power supply must be switched off before installing the product.
•The charger draws a max current of 1.5A and an appropriate fuse must be used in line between the battery and the product to protect the power supply.
•The cable must be adequately retained in order to prevent damage.
- No liability is accepted for damage caused by incorrect installation.
- Product has been designed specifically for the charging of Qi compatible devices.
•The high friction top surface does not ensure the device will not slip

during extreme operating environments such as high acceleration and deceleration.

• If a phone case which is thicker than 3mm is used it may cause either the device to not charge at all or the product to temporarily shut down, this is a safety feature which protects the electronics from over-heating.
• When used in a high ambient temperature the product may temporarily shut down, this is a safety feature which protects the electronics from over-heating. This safety feature may also be seen on the phone where it will stop accepting charge; this is common for all smart phone devices.
  •This product must be installed according to the instructions provided. Failure to do so could result in personal injury or damage to the product and surrounds.
• Scanstrut recommends the installation to be carried out by a qualified marine electronics installer.
  •This product is not approved for use in hazardous or flammable environments.
