| Brand | MB Quart |
| Model | RK1-113 |
| Product Type | Car Audio Coaxial Speaker |
| Speaker Size | 5.25 inches (13 cm) |
| Design | 2-Way Coaxial |
| Woofer Cone Material | Polypropylene with Rubber Surround |
| Tweeter Type | 1-inch Silk Dome |
| Power Handling (RMS) | 40 Watts |
| Power Handling (Peak) | 80 Watts |
| Impedance | 4 Ohms |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity | 90 dB (1W/1m) |
| Mounting Depth | 1.9 inches (48 mm) |
| Mounting Hole Diameter | 4.6 inches (117 mm) |
| Weight per Speaker | 1.2 lbs (0.55 kg) |
| Included Accessories | Grilles, mounting hardware, wiring harness |
| Installation | Replacement/Upgrade for 5.25-inch car speakers |
| Maintenance | Clean with soft dry cloth; avoid liquids |
| Safety | Professional installation recommended; disconnect battery before installing |
| Warranty | 1 year limited warranty |
Frequently Asked Questions - RK1-113 MB QUART
User questions about RK1-113 MB QUART
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speaker in PDF format for free! Find your manual RK1-113 - MB QUART and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RK1-113 by MB QUART.
USER MANUAL RK1-113 MB QUART
RK1-116 RK1-168
RK1-169 RS1-213
RS1-216 RS1-269
Congratulations on your choice of a MBQuart speaker. This “Quick Start Installation” guide is meant to help you “hook up” and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at MBQuart.com
CAUTION
Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time.
If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

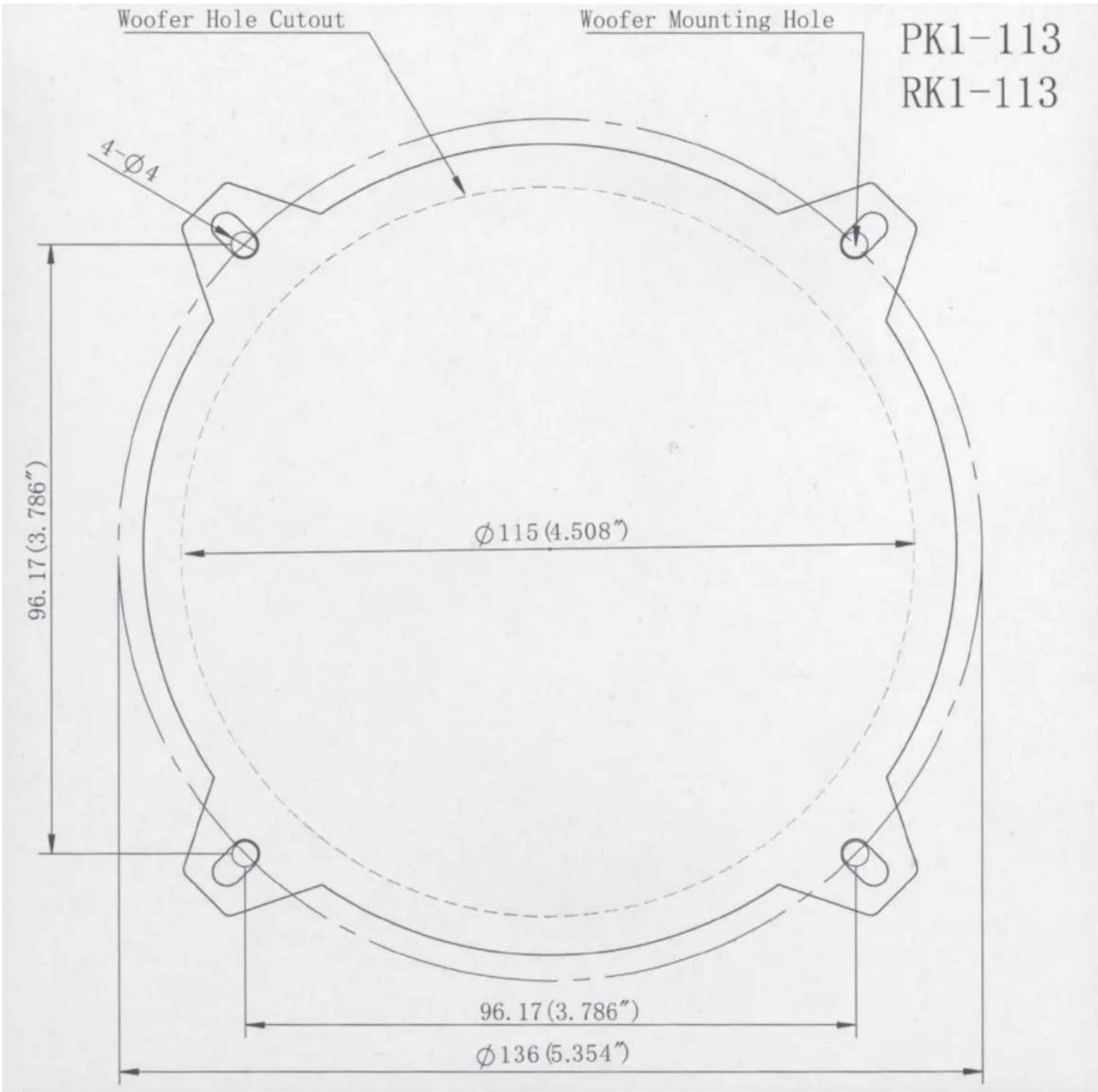

Speaker dimensions
| RK1-110 | 1.9"(49) | 2.6"(66) | 2.8"(70) | 3.6"(91) | 4.0"(102) | |
| RK1-113 | 6.3"(161) | 2.4"(60) | 3.1"(79) | 2.9"(74) | 4.5"(114) | 5.0"(128) |
| RK1-116 | 6.8"(173) | 2.4"(62) | 3.1"(80) | 3.5"(89) | 5.6"(142) | 6.6"(167) |
| RK1-168 | 2.5"(63.6) | 2.8"(70) | 3.6"(91) | 5"/7.1"(127/181) | 5.5"/8.7"(139.7/221) | |
| RK1-169 | 6.9"/9.7"(175/246.9) | 2.9"(74.5) | 3.4"(86) | 3.6"(91) | 5.9"/8.7"(150/222) | 6.6"/9.4"(167/239) |
| RS1-213 | 6.3"(161) | 2.4"(60) | 3.2"(81) | 2.9"(74) | 4.5"(114) | 5.0"(128) |
| RS1-216 | 6.8"(173) | 2.4"(62) | 3.3"(84) | 3.5"(89) | 5.6"(142) | 6.6"(167) |
| RS1-269 | 6.9"/9.7"(175/246.9) | 2.9"(74.5) | 3.4"(86) | 3.6"(91) | 5.9"/8.7"(150/222) | 6.6"/9.4"(167/239) |
Before you start
It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

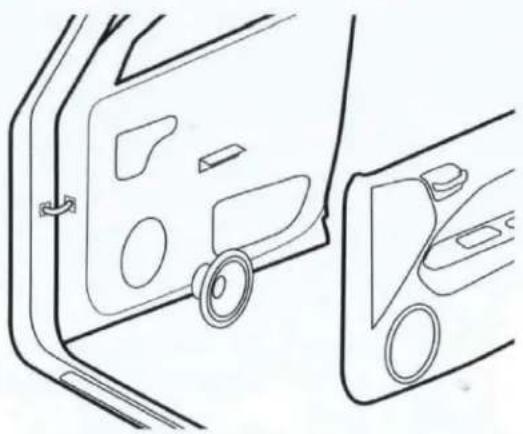

Factory speaker removal

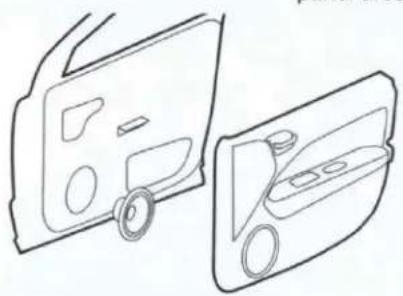

Access and remove factory door speakers
Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.
Access and removal of rear factory speakers
Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.
Fit and Wiring
Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.


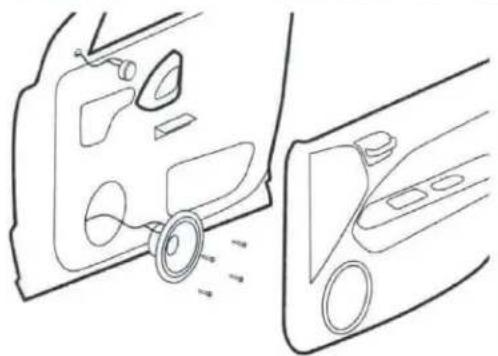

Factory location behind door panel
Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.
Factory location behind small panel
Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.


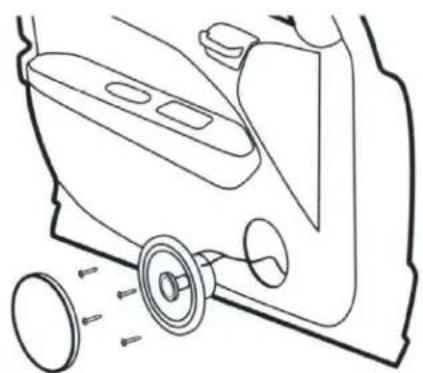

Custom location
Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.
Rear factory locations
Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.
Factory location behind door panel
Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.


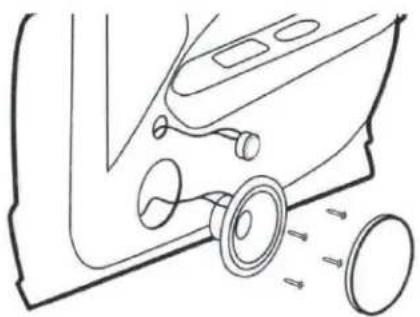

Custom location
If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.
Crossover wiring
The crossover is necessary for the proper operation of the component speaker system. Make sure the wires are securely attached and that there are no stray strands of wire contacting other terminals. Mount the crossover to a secure surface that is free of interference from window mechanisms and excessive moisture.
Tweeter mounting
There are three primary ways the tweeter can be mounted. Surface, Flush and Angled mounting. Make sure to check for any obstructions before cutting into any panel.
Flush Mount
Surface Mount
Angled Mount
MBQuart.com #MUSIC DEFINED
WARRANTY
Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.
MBQuart products are designed and engineered in the USA by
MAXXSONICS®
