RK1-169 - Loudspeaker MB QUART - Free user manual and instructions

Product Type	Car Audio Coaxial Speaker
Brand	MB Quart
Model	RK1-169
Speaker Design	Coaxial with integrated tweeter
Speaker Size Class	Oval (6x9 inch)
Dimension A (Overall Width)	6.9 in / 9.7 in (175 mm / 246.9 mm)
Dimension B (Mounting Depth)	2.9 in (74.5 mm)
Dimension C	3.4 in (86 mm)
Dimension D	3.6 in (91 mm)
Dimension E (Overall Height)	5.9 in / 8.7 in (150 mm / 222 mm)
Dimension F (Overall Length)	6.6 in / 9.4 in (167 mm / 239 mm)
Installation Guide	Quick Start Installation included
Recommended Installation	Professional installation advised for complex vehicles
Wiring	Use factory speaker wire and boots; avoid metal edges
Warranty	1 year from date of purchase (parts and labor)
Manufacturer	Maxxsonics USA Inc.
Country of Design	USA

Frequently Asked Questions - RK1-169 MB QUART

What tools do I need to install the RK1-169 speakers?

Basic hand tools such as screwdrivers, panel removal tools, and possibly a drill may be required. Refer to your vehicle's service manual for specific panel removal procedures.

Can I install these speakers without professional help?

Yes, if you have experience with car audio installation. However, the manual recommends consulting a professional installer, as many vehicles have interior panels that require special tools and care to remove.

What is the warranty period?

MB Quart offers a 1-year warranty from the date of purchase covering defects in materials and workmanship. The warranty is valid for the original consumer purchaser.

How do I determine if these speakers fit my car?

Check the dimensions in the manual (A through F) against your vehicle's speaker mounting locations. Lower the window while holding the speaker in place to verify depth clearance.

What is the difference between coaxial and component speakers?

Coaxial speakers (like the RK1-169) have a tweeter integrated into the woofer, making installation simpler. Component systems have separate woofer, tweeter, and crossover for better sound staging but require more complex installation.

How should I connect the speaker wires?

Connect the positive wire to the positive terminal and negative to negative. Ensure wires are securely attached with no stray strands. Run wires through factory boots and grommets to avoid contact with metal edges.

What should I do if the speaker does not fit?

If the speaker does not fit or has insufficient depth, do not force it. Consider using a spacer ring or consult a professional for custom mounting solutions.

Are there any special precautions for installation?

Yes: always disconnect the battery before starting, avoid pinching wires, and ensure no wires interfere with window mechanisms or door panels. If installing in a custom location, check for obstructions behind the panel.

Can I use the factory speaker wire?

Yes, the manual recommends using the factory speaker wire and boots whenever possible to maintain proper fit and avoid damage. If running new wire, use the existing harness paths.

How do I clean and maintain the RK1-169 speakers?

The manual does not specify cleaning instructions. Generally, gently wipe the speaker grille with a dry or slightly damp cloth. Avoid using harsh chemicals or spraying liquid directly onto the speaker.

USER MANUAL RK1-169 MB QUART

RK1-110 RK1-113

RK1-116 RK1-168

RK1-169 RS1-213

RS1-216 RS1-269

Congratulations on your choice of a MBQuart speaker. This “Quick Start Installation” guide is meant to help you “hook up” and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at MBQuart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time.

If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

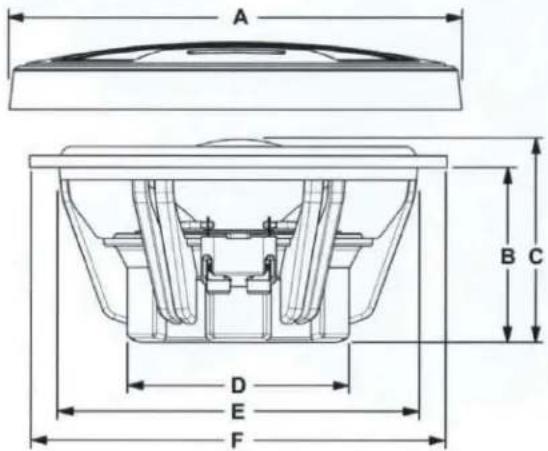

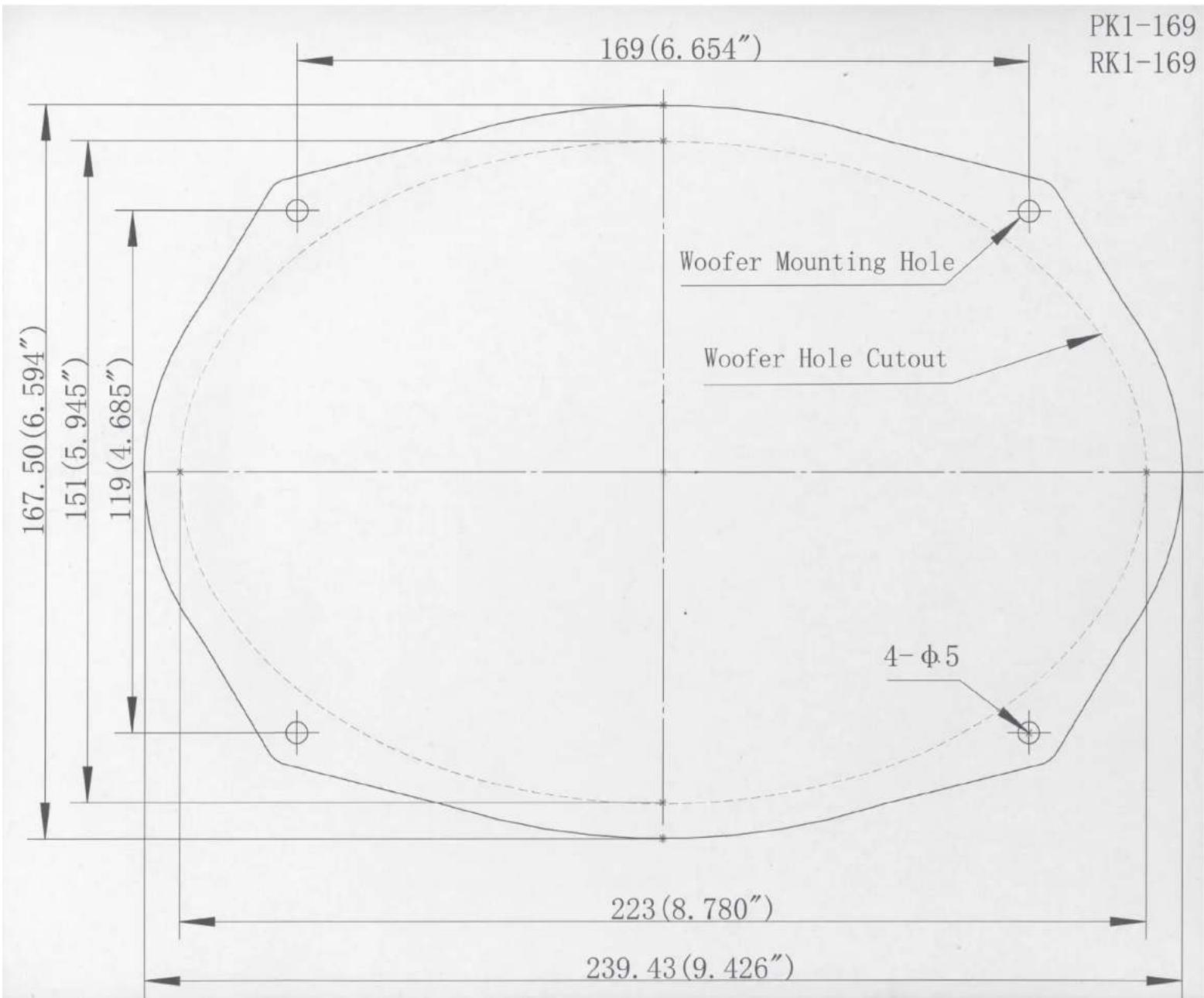

Speaker dimensions

	A	B	C	D	E	F
RK1-110		1.9"(49)	2.6"(66)	2.8"(70)	3.6"(91)	4.0"(102)
RK1-113	6.3"(161)	2.4"(60)	3.1"(79)	2.9"(74)	4.5"(114)	5.0"(128)
RK1-116	6.8"(173)	2.4"(62)	3.1"(80)	3.5"(89)	5.6"(142)	6.6"(167)
RK1-168		2.5"(63.6)	2.8"(70)	3.6"(91)	5"/7.1"(127/181)	5.5"/8.7"(139.7/221)
RK1-169	6.9"/9.7"(175/246.9)	2.9"(74.5)	3.4"(86)	3.6"(91)	5.9"/8.7"(150/222)	6.6"/9.4"(167/239)
RS1-213	6.3"(161)	2.4"(60)	3.2"(81)	2.9"(74)	4.5"(114)	5.0"(128)
RS1-216	6.8"(173)	2.4"(62)	3.3"(84)	3.5"(89)	5.6"(142)	6.6"(167)
RS1-269	6.9"/9.7"(175/246.9)	2.9"(74.5)	3.4"(86)	3.6"(91)	5.9"/8.7"(150/222)	6.6"/9.4"(167/239)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory speaker removal

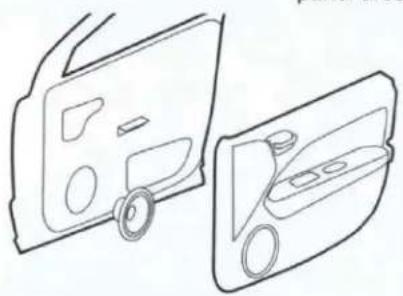

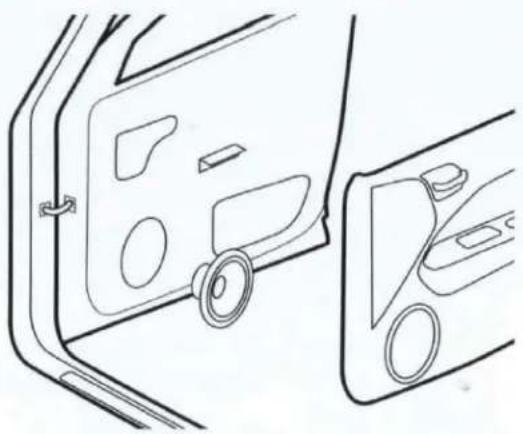

Access and remove factory door speakers

Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

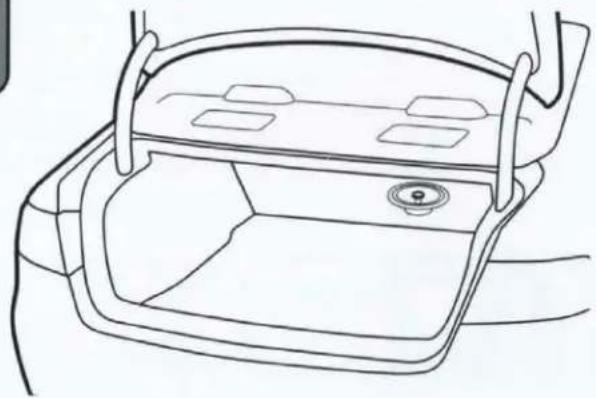

Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.

Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Coax installation

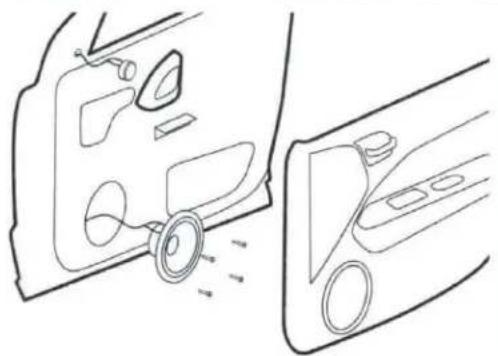

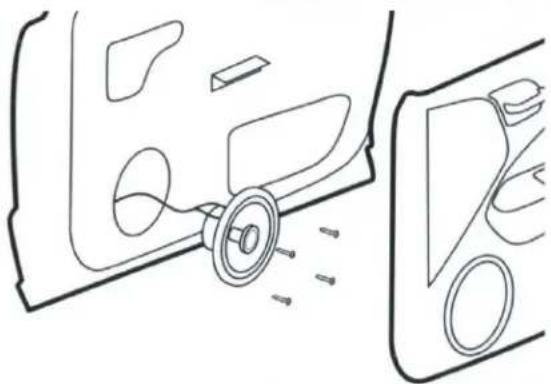

Factory location behind door panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

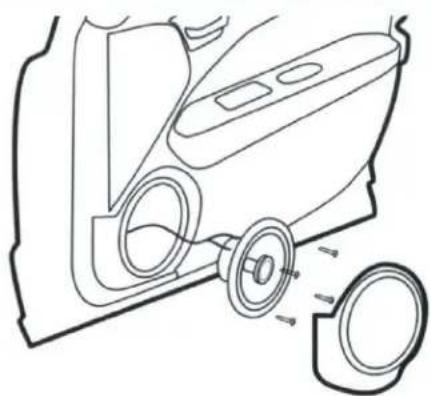

Factory location behind small panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

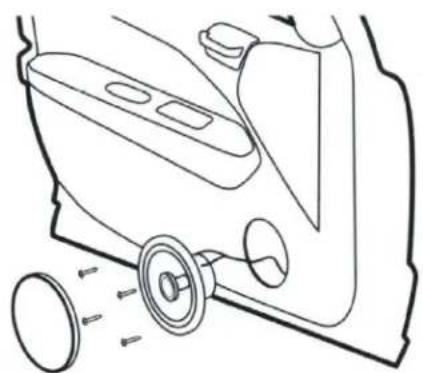

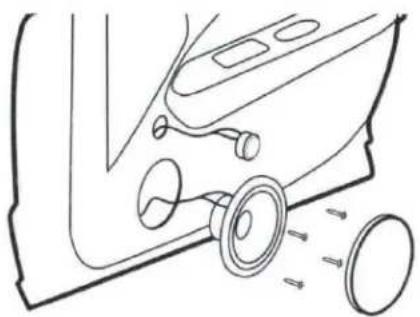

Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

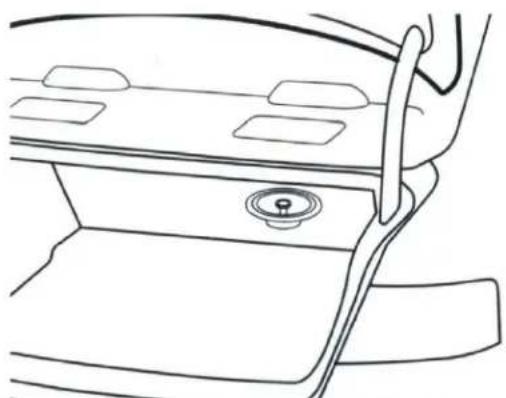

Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Component installation

Factory location behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

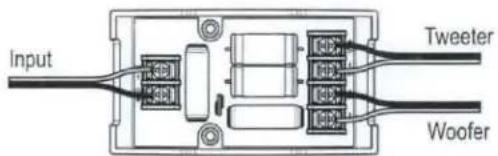

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Make sure the wires are securely attached and that there are no stray strands of wire contacting other terminals. Mount the crossover to a secure surface that is free of interference from window mechanisms and excessive moisture.

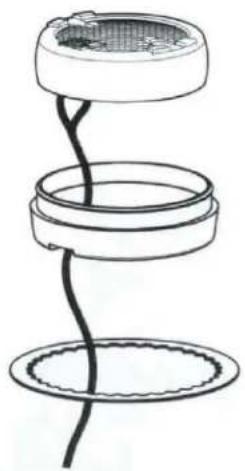

Tweeter mounting

There are three primary ways the tweeter can be mounted. Surface, Flush and Angled mounting. Make sure to check for any obstructions before cutting into any panel.

Flush Mount

Surface Mount

Angled Mount

MBQuart.com #MUSIC DEFINED

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MBQuart products are designed and engineered in the USA by

MAXXSONICS®
