Product Type	Desktop computer (Mini PC)
Processor	Intel Core i7-10510U (quad-core 1.8GHz, up to 4.9GHz)
Graphics	Intel UHD Graphics
Memory Support	2 x DDR4-2666/2400 SODIMM slots, up to 32GB
Storage Support	1 x 2.5-inch SATA HDD/SSD (9.5mm max height)
USB Ports	2 USB 3.1 Type-C, 4 USB 3.1, 1 USB 3.0
Network	Dual Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 5.0
Audio	Digital 8 Channel Audio via HDMI
Display Output	HDMI 2.0 (3840x2160 @60Hz), DP 1.2 (4096x2160 @60Hz)
Operating System Support	Windows 10 64-bit
Dimensions	127.8mm x 126.4mm x 50.8mm
Power Supply	External AC Adapter (19V DC input)
Card Reader	SD/SDHC/SDXC
Front Ports	1 USB 3.0, 2 USB 3.1 Type-C, Headphone, Microphone
Rear Ports	2 USB 3.1, 2 Ethernet, 1 HDMI, 1 DP, WiFi antenna connector
Package Includes	ZBOX nano, VESA mount, AC Adapter, Power Cord, Antenna, Support DVD (optional), USB flash drive with drivers, User Manual, Warranty Card
Mounting	VESA mount compatible (75/100mm)

Frequently Asked Questions - ZBOX MI662 nano Zotac

How to install additional memory modules?

Locate the SO-DIMM memory slots on the motherboard. Insert a DDR4 SO-DIMM module at a 45-degree angle, then gently press down until it locks into place. Install at least one module for the system to function. If installing two, insert the lower slot first.

How to install a 2.5-inch hard drive or SSD?

Remove the hard disk bracket by unscrewing 2 screws. Attach the bracket to a 2.5-inch SATA HDD/SSD with 2 screws. Insert the drive into the connector and slide it in. Reinstall the bracket screws.

Can I mount this device to a monitor?

Yes, the ZBOX MI662 nano supports VESA mounting (75/100mm). Use the included VESA mount to attach it to the back of a compatible LCD monitor. Secure the mount with 4 screws (not included) and gently press the device onto the pegs.

How to connect to a wireless network?

Double-click the wireless network icon in the notification area, select your network from the list, and click Connect. Enter the network security key if prompted. For security, avoid connecting to unsecured networks.

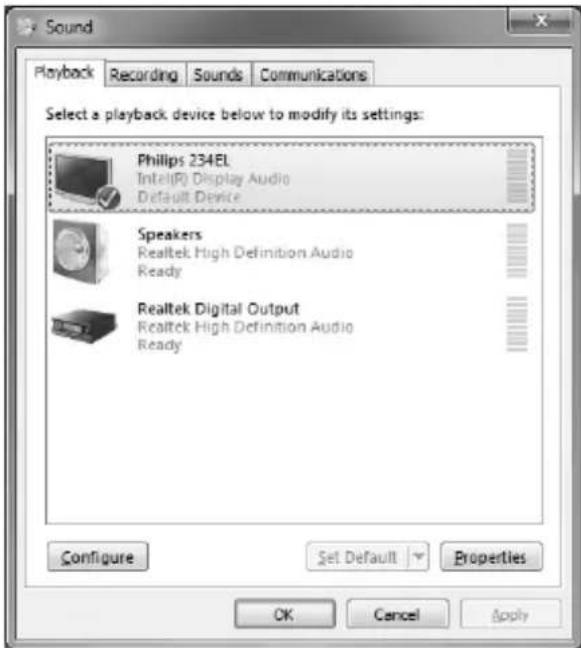

How to set up audio output via HDMI or DisplayPort?

Access the Sound settings via the Control Panel. Under Playback devices, select the display device corresponding to your audio-compatible display. Click 'Set Default' and then 'OK' to exit.

What operating systems are supported?

The ZOTAC ZBOX MI662 nano supports Windows 10 64-bit. You must install the operating system yourself as it does not come preinstalled.

What is the maximum memory capacity?

The device supports up to 32GB of DDR4-2666/2400 memory across two SO-DIMM slots.

How to clean the ZBOX nano?

Unplug all power, modem, and network cables before cleaning. Do not spill water or any liquids on the system. Use a dry cloth for dusting. Avoid blocking ventilation openings.

Does it support dual monitors?

Yes, it has one HDMI 2.0 port and one DisplayPort 1.2, supporting dual independent displays up to 4K resolution.

What is included in the package?

The package includes: ZOTAC ZBOX nano, VESA mount, AC Adapter, Power Cord, Antenna, Support DVD (optional), USB flash drive with OS drivers, User Manual & Quick Start Guide, and Warranty Card.

USER MANUAL ZBOX MI662 nano Zotac

INNOVATING THE PC IN EVERY BEST MINI WAY

facebook.com/zotac
twitter.com/zotac
youtube.com/zotacofficial
vimeo.com/zotac
instagram.com/zotac_official

EFP FCCCE10HDMI

ZOTAC.COM

USER'S MANUAL

ZOTAC ZBOX

M SERIES MI662/MI642/MI622 nano

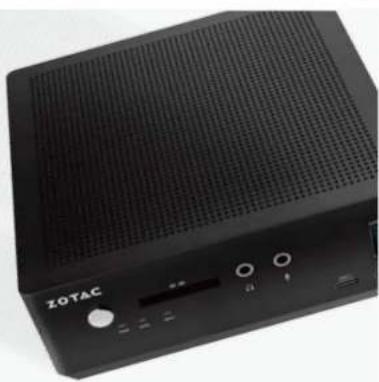

Black ZOTAC portable electronic device with ventilation grille and control buttons (no visible text or symbols on body)

ZOTAC ZBOX nano User's Manual

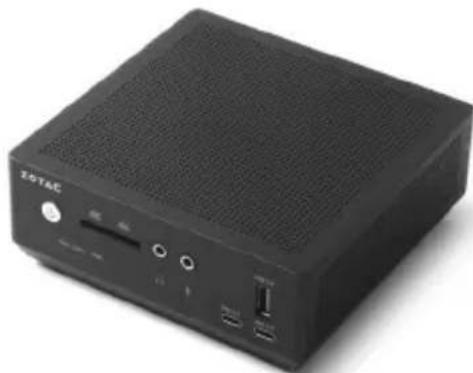

Black electronic device labeled 'ZGTAS' with ports and indicator lights (no readable text beyond branding)

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ZOTAC.

Products and corporate names mentioned in this manual may be registered trademarks or copyrights of their respective companies, and are used for identification purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and up to date. However, the manufacturer makes no guarantee regarding the accuracy of its contents, and reserves the right to make changes without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

Table of Contents

Product specifications 3

Safety information 4

Setting up your system----4

Care during use 4

Welcome 5

Package contents 5

Getting to know your ZOTAC ZBOX nano 6

Front view 6

Rear view 7

Customizing the ZOTAC ZBOX nano 8

Installing a memory module----9

Removing the memory module 10

Installing a hard disk drive 11

Setting up your ZOTAC ZBOX nano 13

Positioning the ZOTAC ZBOX nano----15

Mounting the ZOTAC ZBOX nano to an LCD monitor 15

Installing drivers and software 17

Installing an operating system----17

Installing system drivers 17

Using your ZOTAC ZBOX nano----18

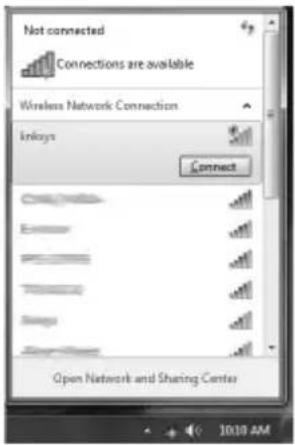

Configuring a wireless connection 18

Configuring audio output----19

Product specifications

Processor

• Intel Core i7-10510U (quad-core 1.8GHz, up to 4.9GHz) for ZBOX MI662NANO
• Intel Core i5-10210U (quad-core 1.6GHz, up to 4.2GHz) for ZBOX MI642NANO
• Intel Core i3-10110U (dual-core 2.1GHz, up to 4.1GHz) for ZBOX MI622NANO

Onboard graphics

• Intel UHD Graphics
  • Intel Quick Sync Video
  • HDMI 2.0 (max resolution: 3840x2160 @60Hz)
  • DP 1.2 (max resolution: 4096x2160 @60Hz)

Memory support

• 2 x DDR4-2666/2400 SODIMM Slot
- Up to 32 GB of memory

USB ports

• 2 USB 3.1 Type-C ports
• 4 USB 3.1 ports
- 1 USB 3.0 port

Storage support

• SATA 6.0 Gb/s transfer rates
• Supports one 2.5-inch SATA HDD/SSD (9.5mm max height)

Network support

• Dual Gigabit (10/100/1000Mbps) LAN
- IEEE 802.3 compatible

Wi-Fi support

• 802.11ac Wi-Fi (dual-band)
- Bluetooth 5.0

Audio

• Digital 8 Channel Audio (LPCM/bitstream via HDMI)

Operating System support

- Windows 10 64-bit

Product Dimensions

- 127.8mm x 126.4mm x 50.8mm

Safety information

Your ZOTAC ZBOX nano is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before operating your system.
Do not use this product near water or a heat source such as a radiator.

- Set up the system on a stable surface.

Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0°C and 35°C.

If you use an extension cord, please use the UL listed cord and make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.

Care during use

Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.

When the system is turned off, a small amount of electrical current still flows. Always unplug all power, modem, and network cables from the power outlets before cleaning the system.
If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

The power cord or plug is damaged.
Liquid has been spilled onto the system.

The system does not function properly even if you follow the operating instructions.

The system was dropped or the cabinet is damaged.

Welcome

Congratulations on your purchase of the ZOTAC ZBOX nano. The following illustration displays the package contents of your new ZOTAC ZBOX nano. If any of the below items is damaged or missing, contact your retailer.

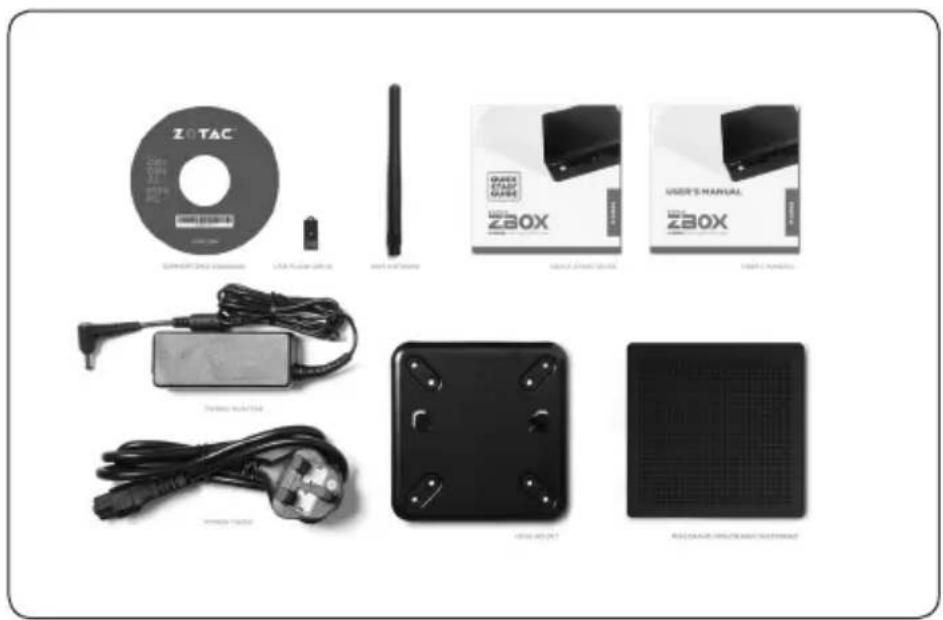

Package contents

• 1 x ZOTAC ZBOX nano
- 1 x VESA mount
- 1 x AC Adapter
- 1 x Power Cord
- 1 x Antenna
• 1 x Support DVD(Optional)
• 1 x USB flash drive with OS drivers
• 1 x User Manual & Quick Start Guide
- 1 x Warranty Card

Getting to know your ZOTAC ZBOX nano Front view

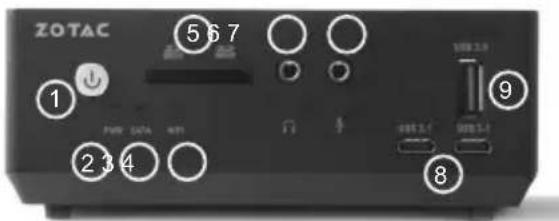

Refer to the diagram below to identify the components on the front of the ZBOX nano

1. Power button

The power button turns the system ON and OFF.

2. Power LED

The Power LED is always ON when power is on.

3. SATA status LED

The SATA LED blinks when data is being written onto or read from the SATA.

4. Wi-Fi status indicator

The Wi-Fi LED is always ON when data is being transferred over Wi-Fi.

5. Memory card reader

The built-in memory card reader reads SD/SDHC/SDXC cards used in devices such as digital cameras, MP3 players, mobile phones and PDAs.

6. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system's audio out signal to amplified speakers or headphones.

7. Microphone jack

The microphone jack is designed to connect a microphone for video conferencing, voice narrations or simple audio recordings.

8. USB 3.1 Type-C ports

The type-C USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1 devices for maximum performance with USB 3.1 compatible devices.

9. USB 3.0 port

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with USB 3.0 compatible devices.

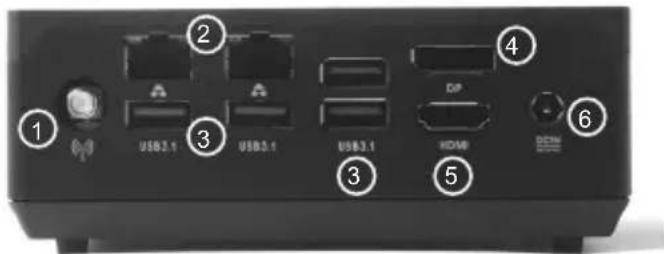

Rear view

Refer to the diagram below to identify the components on the back of the system.

1. WiFi antenna connector

The WiFi antenna connector supports the included WiFi antenna.

2. Ethernet ports

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connections to local area networks (LAN) with speeds of 10/100/1000Mbps.

3. USB 3.1 ports

The USB 3.1 port supports the SuperSpeed USB 3.1 devices and is backwards compatible with USB 3.0/2.0/1.1 devices. Use this port for USB 3.1 devices for maximum performance with USB 3.1 compatible devices.

4. DisplayPort

DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display connections.

5. HDMI port

The HDMI (High Definition Multimedia Interface) port supports a UHD device such as an LCD TV or monitor to allow viewing on a larger external display.

6. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.

The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

Customizing the ZOTAC ZBOX nano

Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX nano.

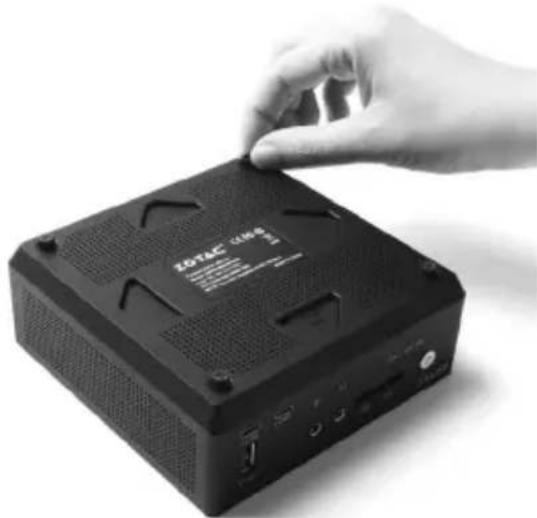

1. Remove the four screws securing the bottom cover into place.

Hand placing a black ZOTAC C-860 audio device into a black square base (no visible text or symbols on the device body)

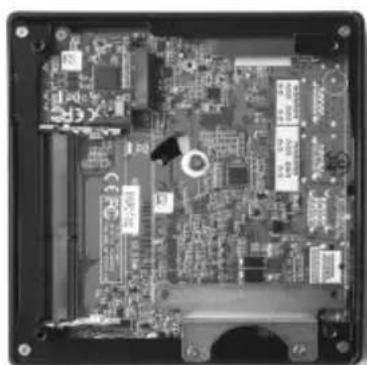

1. Remove the bottom cover.

Interior view of an electronic circuit board with visible traces and components (no readable text or symbols)

Close-up of a black electronic circuit board with visible traces and pads (no text or symbols)

Installing a memory module

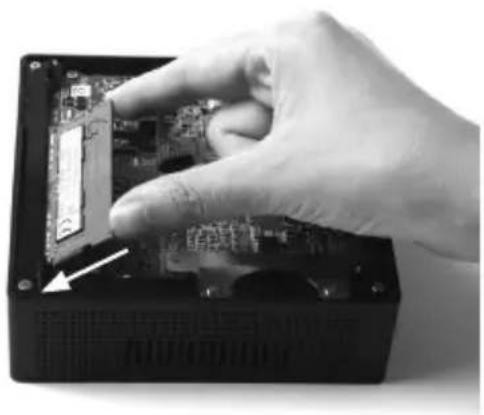

1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle.

Hand inserting a memory card into a black electronic device casing (no visible text or symbols)

Note: When installing two SO-DIMM memory modules, please insert a module into the lower slot first.

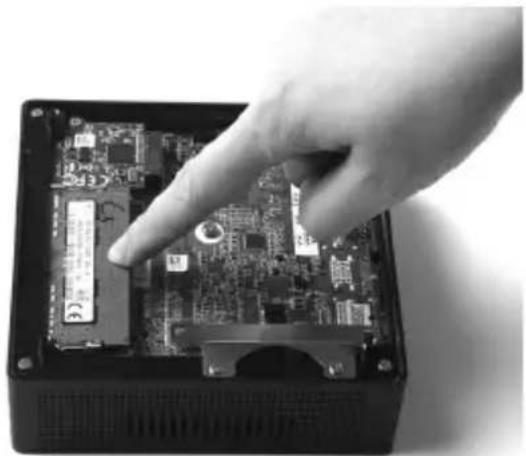

1. Gently press down on the memory module until it locks into place by the arms of the memory slot.

Hand inserting a physical electronic device into a black case (no visible text or symbols)

Note: This ZOTAC ZBOX nano accommodates two DDR4 SO-DIMM memory modules. You must install at least one module for the system to function. PLUS / Windows models include memory pre-installed.

Removing the memory module

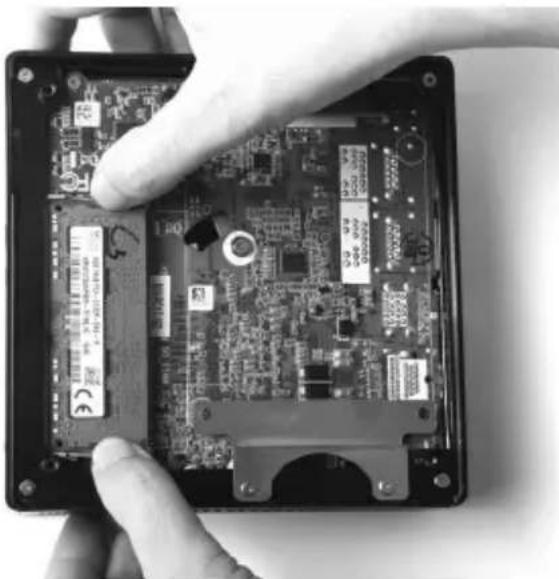

1. Locate the SO-DIMM memory slot and gently press the two arms securing the memory module outwards, as shown in the image below, to release the memory module.

Close-up of hands installing a circuit board on an electronic device (no visible text or symbols)

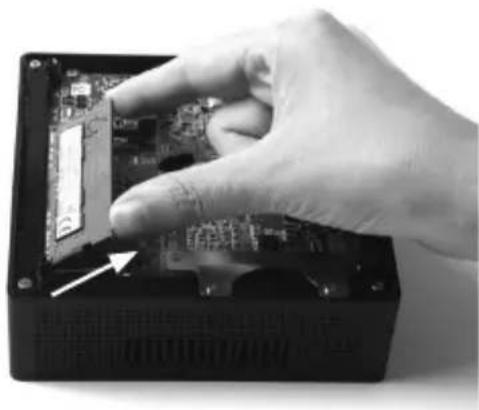

1. Remove the memory module from the slot at a 45-degree angle.

Hand inserting a physical component into a black electronic device casing (no visible text or symbols)

Installing a hard disk drive

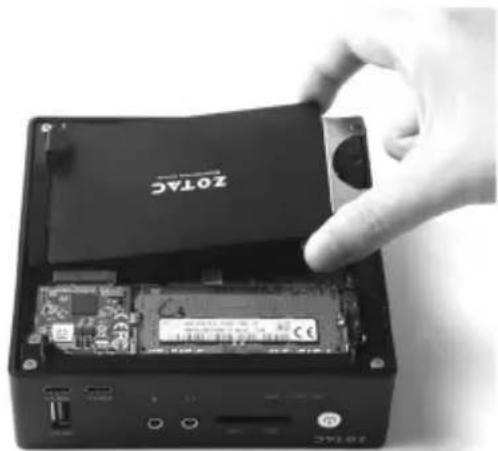

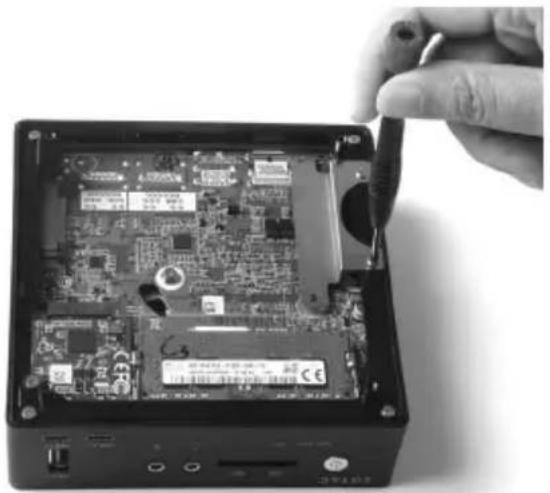

1. Locate the hard disk bracket, remove the 2 screws, and remove the hard disk bracket as shown in the image below.

Close-up of a hand inserting a small electronic device into an open circuit board (no visible text or symbols)

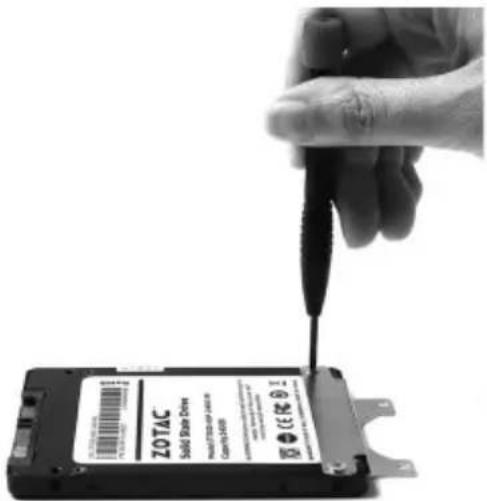

1. Install the hard disk bracket onto a 2.5-inch SATA hard disk drive /SSD with 2 screws.

*PLUS / Windows models include SSD pre-installed.

1. Insert the hard disk drive /SSD into the socket and gently slide into the connector.

Hand inserting a ZOTAC device into an open black electronic device (no visible text or symbols on the device itself)

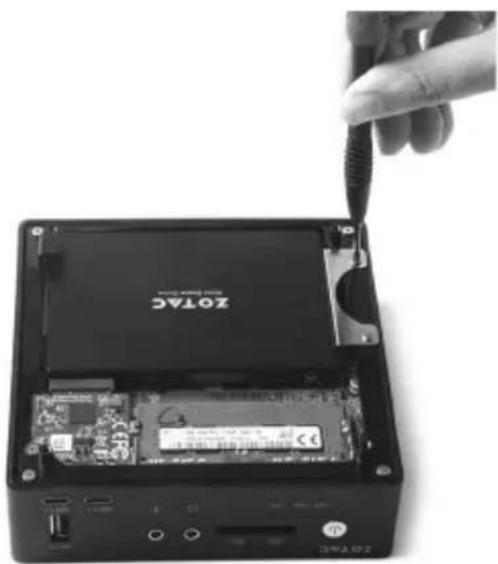

1. Reinstall the screws for the hard disk bracket.

Close-up of a black electronic device with a circuit board and a USB cable inserted, being handled by a hand (no visible text or symbols)

Setting up your ZOTAC ZBOX nano

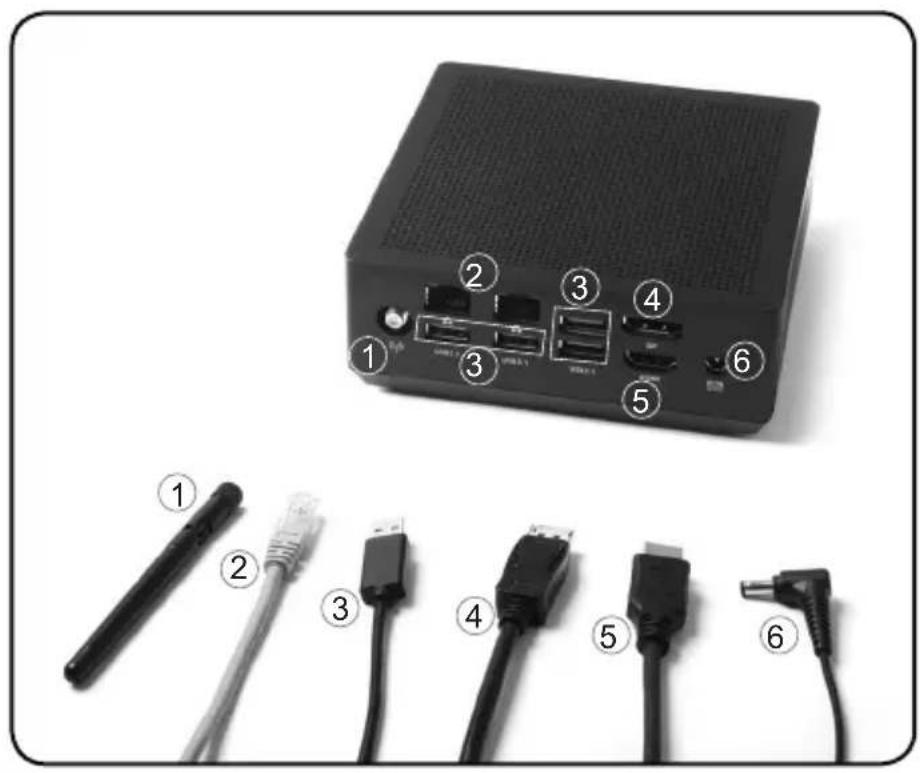

Please connect your peripherals before using your ZOTAC ZBOX nano

1. Connecting the WiFi antenna

Connect the WiFi antenna to the WiFi antenna connector.

2. Connecting to a network device

Connect one end of a network cable to the LAN port on the system rear panel and the other end to a network hub, switch or router.

3. Connecting to USB 3.1 devices

Connect USB 3.1 devices such as external hard disk drives, SSDs and flash drives to the USB 3.1 port on the system rear panel.

4. Connecting a DisplayPort display

Connect the DisplayPort connector to the DP port of the monitor or display.

5. Connecting to an HDMI display

Connect one end of an HDMI cable to an HDTV or monitor, and the other end to the HDMI port on the system rear panel.

6. Connecting the power adapter and turning on the ZBOX nano

Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system.

When your ZOTAC ZBOX nano is not in use, unplug the power adapter or switch off the AC outlet to conserve power.

Positioning the ZOTAC ZBOX nano

• Do not position the ZOTAC ZBOX nano where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes.
• ZOTAC ZBOX nano mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference.

Mounting the ZOTAC ZBOX nano to an LCD monitor

You can attach your ZOTAC ZBOX nano to the back of a VESA75/100 compliant monitor.

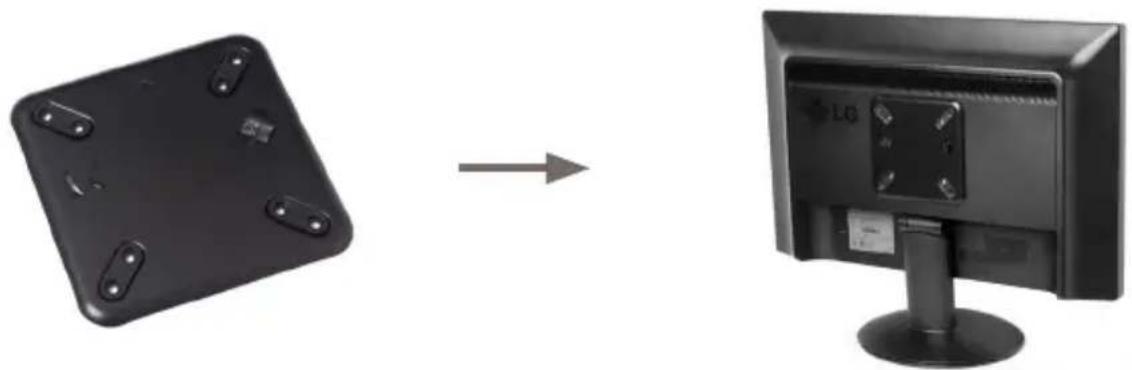

1. Secure the VESA mount to the LCD monitor using 4 screws (not included). Disclaimer: ZOTAC cannot be held liable for damages resulting from an improper installation.

Two black electronic devices with labeled buttons, one shown and one with a monitor displaying LG (no text or symbols on device)

1. Align the ZOTAC ZBOX nano mounting holes to the VESA mount attachment pegs. Attach the ZOTAC ZBOX nano to the VESA mount and gently press down to secure the ZBOX nano to the mount.

Two black plastic electrical enclosures shown from front and side views (no text or symbols visible)

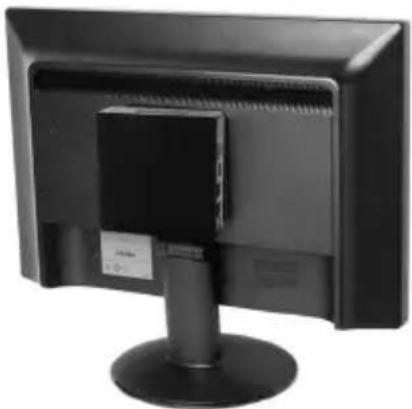

1. Connect the ZOTAC ZBOX nano to your LCD monitor with an HDMI/DP cable.

Front view of a black computer monitor with a stand and cable, no visible text or symbols on the screen or body.

Installing drivers and software

Installing an operating system

The ZOTAC ZBOX nano does not ship with an operating system preinstalled. The user must install the operating system before the ZOTAC ZBOX nano can be used. The following operating systems are supported:

- Windows 10 64-bit

Follow the instructions below to install an operating system:

1. Attach external DVD drive via USB 3.1/USB 3.0 ports.
2. Insert disk for operating system (Windows or Linux).
3. Wait for the ZOTAC ZBOX nano to boot from the disk.
4. Follow the onscreen directions to install the operating system.
5. Install system drivers to gain full functionality of the ZOTAC ZBOX nano hardware and features.

Installing system drivers

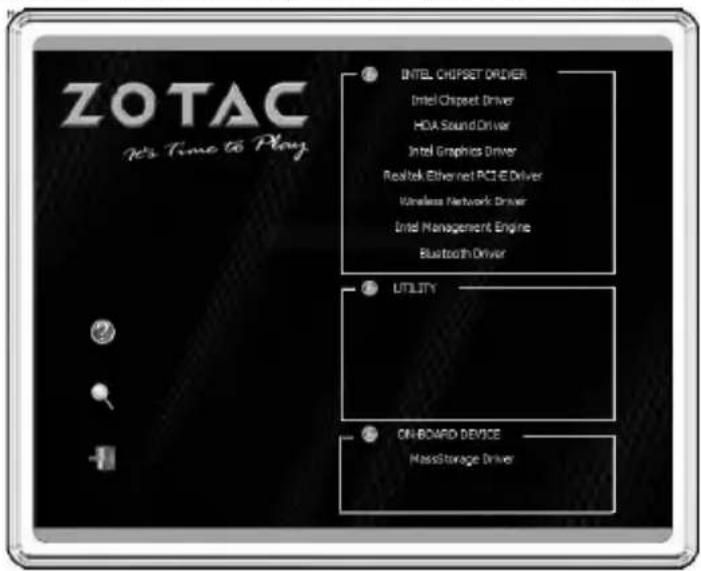

Before you can use the full features of the ZOTAC ZBOX nano, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX nano

driver DVD and USB flash drive:

- Windows 10 64-bit

Follow the instructions below to install the system drivers:

1. Insert the ZOTAC ZBOX nano driver DVD or driver USB flash drive. If autorun is enabled, the driver installation main menu will show up automatically. If autorun is disabled, you may click the file Launch.EXE to bring up the driver installation main menu.

2. The following drivers are available on the DVD and USB flash drive:

- Intel Chipset Driver

• HDA Sound Driver
• Intel Graphics Driver
• Realtek Ethernet PCI-E Driver
• Wireless Network Driver
• Intel Management Engine
- Bluetooth Driver
- MassStorage Driver

Each driver must be installed individually to ensure proper operation of the ZOTAC ZBOX nano.

1. Select the driver you want to install. The driver installer should launch.
2. Follow the onscreen instructions to install the drivers.
3. Restart the system.

Using your ZOTAC ZBOX nano

Configuring a wireless connection

Please follow the instructions below to connect to a wireless network:

1. Double-click the wireless network icon (pic) in the notification area.
2. Select the wireless network you want to connect to from the list and click Connect.
3. After connection is established, you will see "Connected."

Note 1: For security concerns, Do NOT connect to an unsecured network, otherwise, the transmitted information without encryption might be visible to others.

Note 2: Enter the network security key if necessary.

Configuring audio output

Follow the steps below to enable audio output when connecting the ZOTAC ZBOX nano to a

TV or receiver via DP/HDMI adapter.

1. Access the Sound settings via the system Control Panel.
2. Under Playback devices, click the display device that corresponds with your audio compatible display.
3. Click the "Set Default" button in the lower right hand corner.
4. Click "OK" to exit the setup.

ZOTAC ZBOX nano
