Hammerhead Follow Focus - Photo accessory Axler - Free user manual and instructions

Product Type	Follow Focus (Photo Accessory)
Brand	Axler
Model	Hammerhead Follow Focus
Drive Gear	43 tooth / 0.8 film pitch
Lens Gear Wrap	152 tooth / 0.8 pitch
Rail Width	0.5 in (15 mm)
Lens Diameter Range	20 mm to 100 mm (0.78 to 3.9 in)
Dimensions (H x W x D)	3.5 x 8 x 3 in (8.9 x 20.3 x 7.6 cm)
Weight	9.2 oz (260 g)
Mount Type	15 mm rail mount
Dual-Sided Drive	Yes (switchable drive gear side)
Adjustable Stops	Yes (Stop A and Stop B with quick-release)
Marking Disc	Removable for custom marks
Width Adjustment	Tool-free locking knob for lens diameter range
Material	Metal and high-strength plastic
Warranty	1-year limited warranty
Care Instructions	Clean with soft dry cloth; avoid overtightening
Safety	Handle with care; use only manufacturer-provided parts
Compatible Lenses	Lenses with focus ring diameter 20-100 mm

Frequently Asked Questions - Hammerhead Follow Focus Axler

What is the maximum lens diameter that fits the Hammerhead Follow Focus?

The adjustable lens gear wrap accommodates lens diameters from 20 mm to 100 mm (0.78 to 3.9 inches).

Does the follow focus work with 15 mm rail systems?

Yes, it includes a rail mount that fits most 15 mm rod systems.

Can I adjust the drive gear side?

Yes, the dual-sided drive allows you to switch the drive gear to the other side using a 3 mm hex wrench.

How do I set focus stops?

Loosen the screws on Stop A and Stop B to adjust their positions. Lift the Stop A/B release to quickly release both stops.

What is the weight of the Hammerhead Follow Focus?

It weighs approximately 9.2 oz (260 g).

How do I clean and maintain the follow focus?

Clean with a soft, dry cloth. Avoid overtightening threaded fittings to prevent damage.

What is the warranty period?

Axler offers a one-year limited warranty from the original purchase date against defects in materials and workmanship.

Does the unit come with a lens gear wrap?

Yes, it includes an adjustable lens gear wrap that wraps around the lens's focus ring.

Can I use the marking disc for custom focus marks?

Yes, the marking disc is removable, allowing you to pull it off and apply custom marks.

What tools are needed for assembly?

A 3 mm hex wrench is needed to switch the drive gear side. No other tools are required for basic setup.

USER MANUAL Hammerhead Follow Focus Axler

Technical line drawing of a mechanical gear assembly with no visible text or symbols

FF-2S-QR

HAMMERHEAD

Follow Focus

QUICK-START GUIDE

THANK YOU FOR CHOOSING AXLER.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Make sure that this product is intact and that there are no missing parts.
• Use only parts provided by the manufacturer.
• Handle the unit with care.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings.
• Clean the unit with a soft, dry cloth.
• Make sure everything is secure before use.
• All images are for illustrative purposes only.

SPECIFICATIONS

Drive gear 43 tooth/0.8 film pitch

Lens gear wrap 152 tooth/0.8 pitch

Rail width 0.5 in. (15 mm)

Lens diameter Max: 100 mmMin: 20 mm

Dimensions Height: 3.5 in. (8.9 cm)Max. width: 8 in. (20 cm)Min. width: 6.5 in. (16.5 cm)Depth: 3 in. (7.6 cm)

Weight 9.2 oz. (260 g)

OVERVIEW

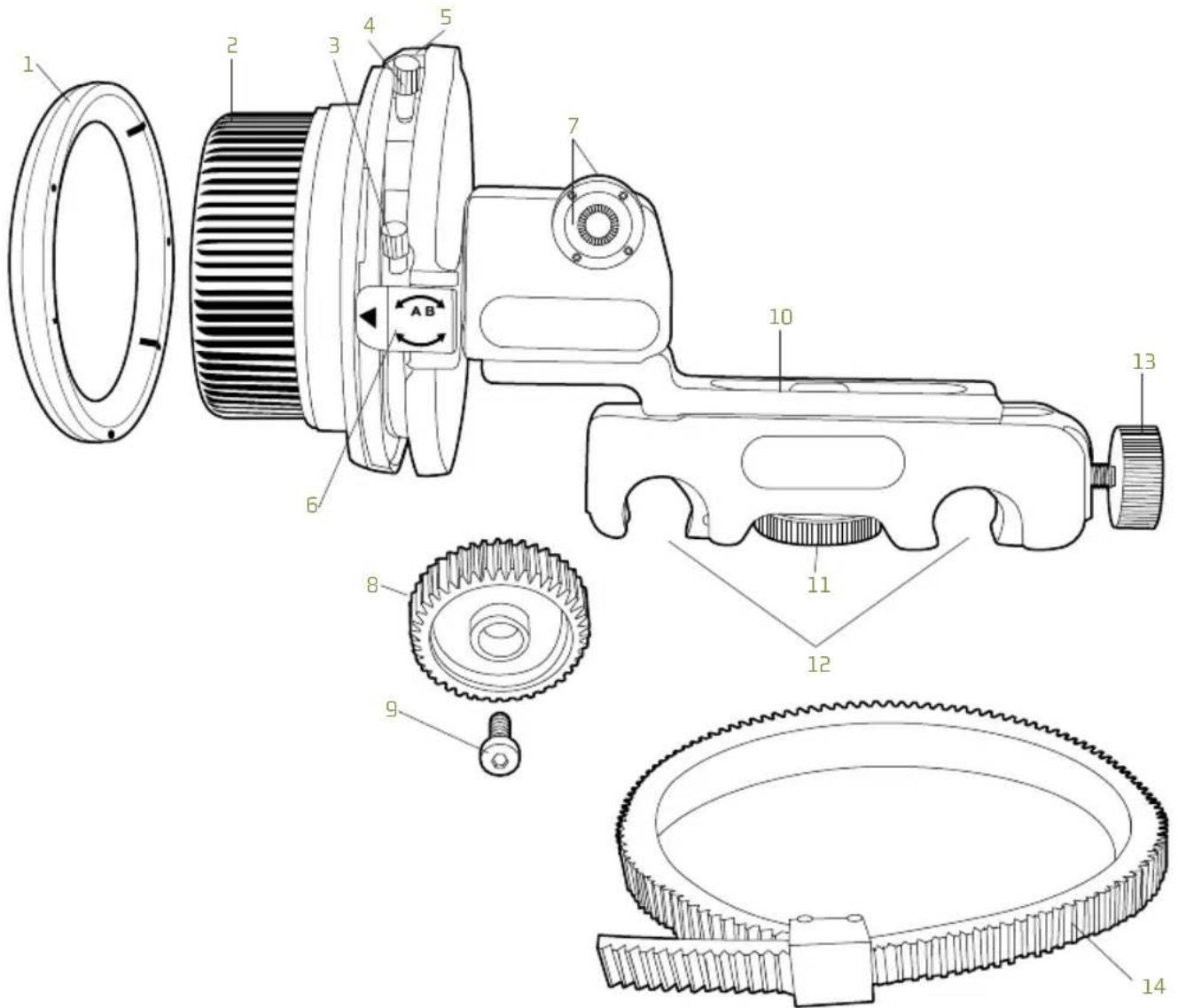

1. Marking disc: Pull to remove.
2. Focus wheel
3. Stop A: Loosen the screw to adjust.
4. Stop B: Loosen the screw to adjust.
5. Reference marker
6. Stop A/B release: Lift to release A and B stops.
7. Dual-sided drive

8. Drive gear

9. Drive gear screw: Use a 3 mm hex wrench to switch the drive gear to the other side of the dual-sided drive.

10. Width adjustment: Accommodates lens diameters from 0.78 to 3.9 inches (20 to 100 mm).
11. Width adjustment locking knob
12. Rail mount: Fits most 15 mm rail systems.
13. Rail mount locking knob
14. Adjustable lens gear: Wraps around your lens's focus ring. Make sure it's tight to ensure a solid grip.

AXLER™

ONE-YEAR LIMITED WARRANTY

This Axler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Axler Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Axler along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.axlersupports.com or call Customer Service at 212-594-2353.

Axler is a registered trademark of the Gradus Group.

© 2016 Gradus Group LLC. All Rights Reserved.

www.AxlerSupports.com
