USER MANUAL S80GHW13 Sandstrøm

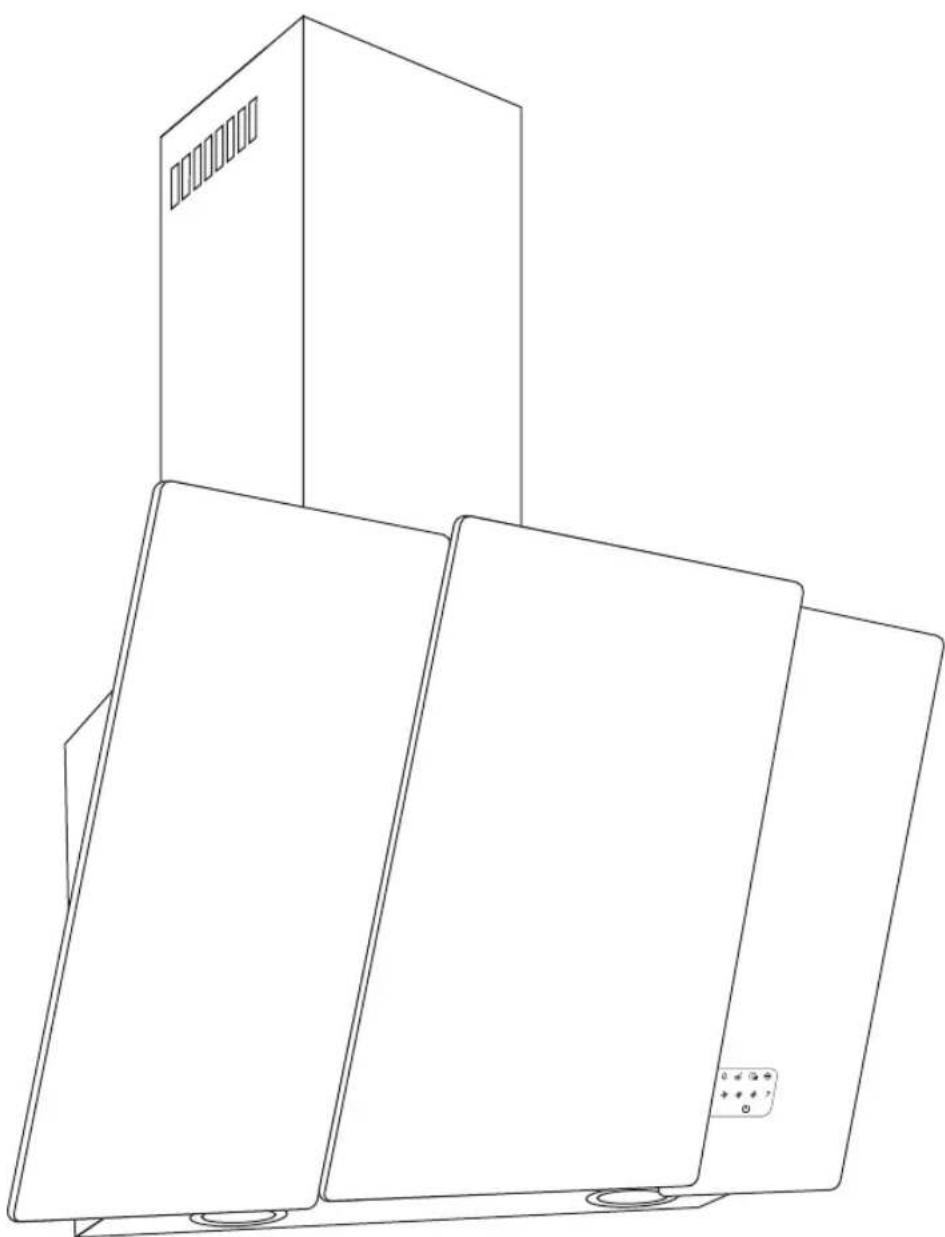

Instruction Manual Cooker Hood

S60GHB13/S60GHW13/S80GHB13/S80GHW13

Line drawing of three stacked rectangular electronic devices with ventilation slots and buttons (no text or symbols)

Contents

Safety Warnings....4

Unpacking 8

Product Overview 9

Cooker Hood....9

Control Panel....9

Using the Cooker Hood....10

Switching On/Off....10

Switching the Light On/Off....10

Fan Speed Selection....10

Using the 30 Minute Timer....10

Clean and Fresh Function....10

Maintenance and Cleaning....11

Removing and Replacing the Filters....11

Cleaning the Metal Grease Filter....11

Replacing the Carbon Filter....12

Replacing the Halogen Bulbs 12

Cleaning....12

Installation....13

Overview....13

Positioning 14

Installing the Cooker Hood ....15

Using an External Outlet Vent 16

Fitting the Chimney....17

Technical specification ....18

Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Correct Application

• This cooker hood is for household (domestic) use only.
• It must only be used as a domestic appliance to extract vapours and remove odours from cooking.
• Any other usage is not supported by the manufacturer and could be dangerous. The manufacturer cannot be held liable for damage resulting from incorrect or improper use or operation of the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning its use by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Accessible parts may become hot when used with cooking appliances.
• If the supplied mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is only intended for use by adults who have read these instructions.

Correct Use

• Never use an open flame beneath the cooker hood. To avoid the danger of fire, do not flambé or grill over an open flame under the cooker hood. When switched on, the cooker hood could draw flames into the filter. Fat particles drawn into the cooker hood present a fire hazard.
• The cooker hood can become damaged when exposed to excessive heat.
• Always switch the cooker hood on when a cooking zone is in use, otherwise condensation may collect in the hood, which could cause corrosion.

• Do not use the cooker hood without the aluminium filters in place. This way you will avoid the risk of grease and dirt getting into the appliance and hindering its smooth operation.

• The filters should be regularly cleaned or changed as appropriate. Saturated filters are a fire hazard. See “Cleaning and Maintenance”.

• The cooker hood can get very hot during cooking due to heat rising from the hob. Do not touch the housing or the aluminium grease filters until the cooker hood has cooled down.
• Do not use a steam-cleaner to clean this appliance. Steam could reach the electrical components and cause a short circuit.

Technical safety

- Before installation, check the cooker hood for visible signs of damage. Under no circumstances should you use a damaged appliance. It could be dangerous.

- Before connecting the appliance to the mains supply, make sure that the voltage and frequency details given on the data plate correspond with the on-site electricity supply, otherwise the appliance could be damaged. Consult a qualified electrician if in any doubt.

- The mains plug must remain accessible to allow disconnections or an all pole switch must be incorporated in the fixed wiring in accordance with the wiring rules.

- This product must be earthed. It is most important that this basic safety requirement is present and tested regularly, and where there is any doubt, the household wiring system should be inspected by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

- For safety reasons, this appliance may only be used when it has been fully installed.

- Only open the housing as described in the instructions.

- Installation and repairs may only be carried out by an authorised person in accordance with current national and local safety regulations. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.

- During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:

a) it is switched off at the isolator, or
b) the mains fuse is disconnected, or
c) it is switched off at the wall socket and the plug withdrawn, or
d) the fuse to the fused spur connection unit is withdrawn.

- Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead. These do not guarantee the required safety of the appliance (e.g. danger of overheating).

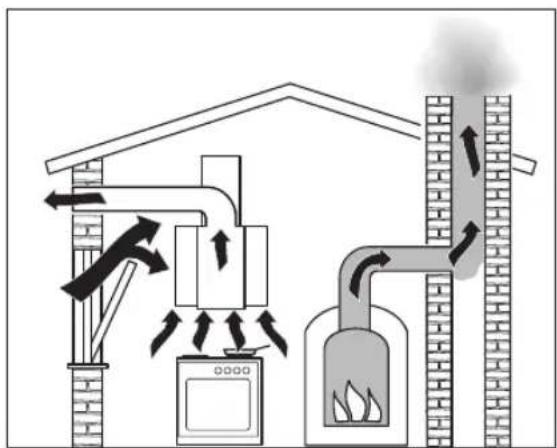

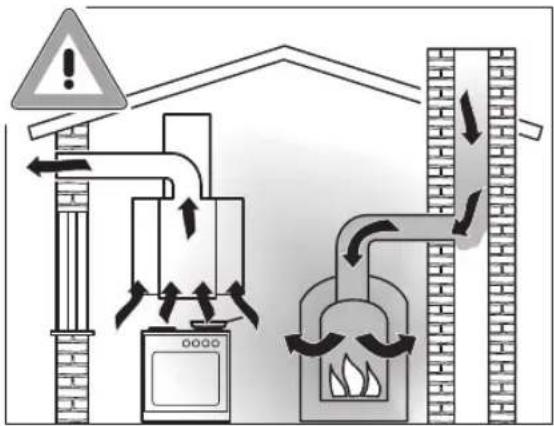

Using at the same time as other heating appliances that depend on the air from the same room.

WARNING: Danger of toxic fumes.

- When used in extraction mode, great care should be taken when using the cooker hood at the same time and in the same room or area of the house as another heating appliance which depends on the air in the room. Such appliances include gas, oil, wood or

Diagram illustrating fire resistance system with warning sign, airflow direction, and labeled components like smokestack and fire extinguisher

coal-fired boilers and heaters, continuous flow or other water heaters, gas hobs, cookers or ovens which draw air in from the room and duct exhaust gases out through a chimney or extraction ducting.

- If there is insufficient air, an underpressure will occur. The heating appliance may be starved of oxygen, impairing combustion.

- Harmful gases could be drawn out of the chimney or extraction ducting back into the room, with potentially fatal consequences.

- In order to ensure safe operation, and to prevent gases given off by the heating appliances from being drawn back into the room when the cooker hood and the heater are in operation simultaneously, an underpressure of 0.04 mbar (4 pa) is the maximum permissible in the room.

- Ventilation can be maintained by air inlets which must not be blocked, in windows, doors and outside wall vents, or by other technical measures, such as ensuring that the cooker hood can only be switched on when the heating appliance is switched off or vice versa. A ventilation brick alone is not generally sufficient to ensure safe ventilation.

Diagram of a greenhouse gasifier with cooling fans, steam heating, and air flow directions (no text or labels)

The overall ventilation condition of the dwelling must be taken into account. If in any doubt, the advice of a competent builder or, for gas, a qualified gas fitter (Gas Safe registered in the UK) must be sought.

• One of the following technical measures may be necessary to ensure safe operation.
• If the only way of ensuring adequate ventilation is via an open window, a window contact switch should be fitted to ensure that the cooker hood can only operate when the window is opened sufficiently. A window contact switch kit is available from good builders' merchants. Take care when ventilating the room through an open window that ventilation is not impaired by a closed blind or curtain.
• If the hood is being operated in recirculation mode, the above restrictions do not apply.

Correct Installation

• Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob.
• The minimum safe distances between the top of the cooker or hob and the bottom of the cooker hood given in the Installation section of this booklet must be maintained, unless the hob/cooker manufacturer states that a greater safe distance is required.
• If more than one appliance is fitted beneath the cooker hood, and they have different minimum safe distances to the cooker hood, select the greater distance.
• Safety regulations prohibit the fitting of a cooker hood over solid fuel stoves.
• All ducting, pipework and fittings must be of non-flammable material. These can be obtained from builders' merchants.
• The appliance must not be connected to a chimney or vent flue which is in use. Neither should it be connected to ducting which ventilates rooms with fireplaces.
• If exhaust air is to be extracted into a chimney or ventilation duct no longer used for other purposes, seek professional advice.

Thank you

Thank you for purchasing your new Sandstrøm Cooker Hood. Like all Sandstrøm products our cooker hoods take inspiration from traditional Scandinavian values of quality and functionality, combined with modern innovations and a flair for simply looking good. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this installation manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it, please do so according to local regulations.

The following items are included:

Chimney Cover

Simple line drawing of a rectangular box with internal compartments (no text or symbols)

Internal Chimney

Simple line drawing of a 3D rectangular box (no text or symbols)

External Chimney

Line drawing of a 3D geometric shape resembling a folded corner or wedge (no text or symbols)

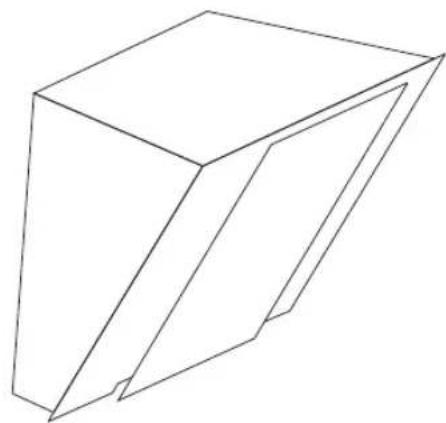

Main Unit

Simple line drawing of a trapezoidal shape with two small circles on the front and top (no text or symbols)

Drill Template
(printed on the packaging)

Fixing Plate

Wall plugs x6

50mm screws x6

8mm screws x2

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

Product Overview

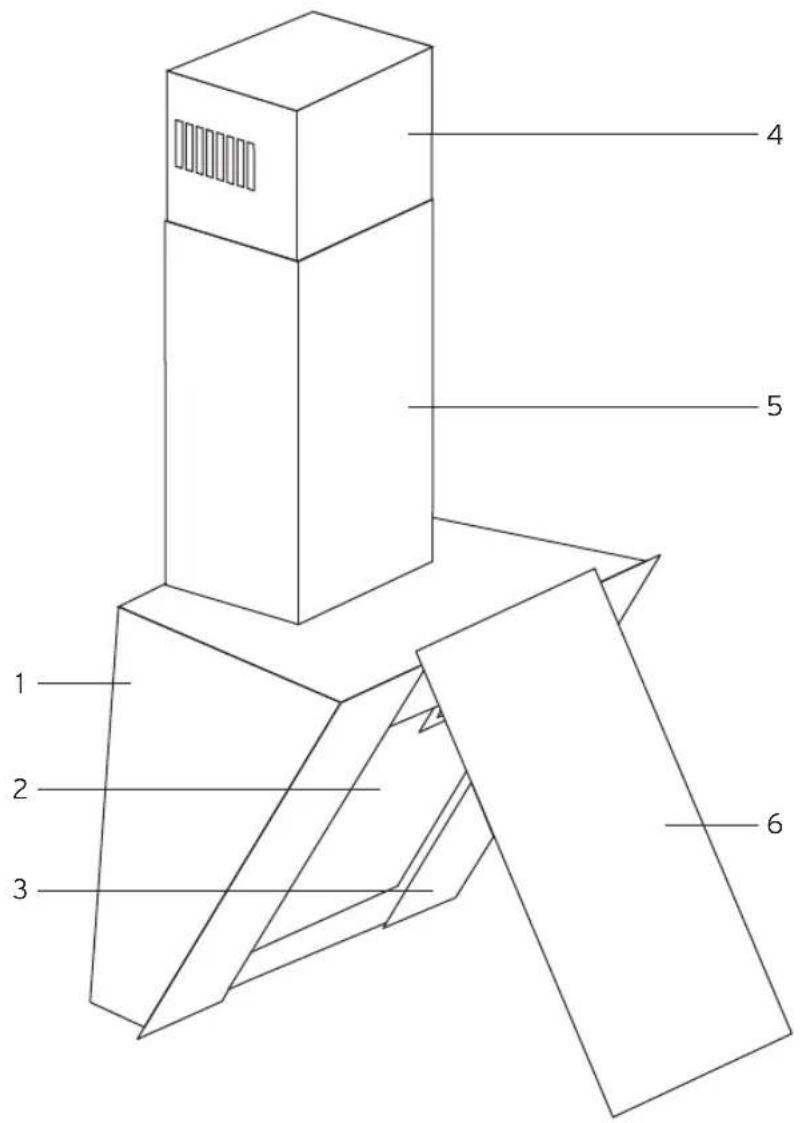

Cooker Hood

1. Main Unit
2. Filter Unit
3. Control Panel
4. Internal Chimney
5. External Chimney
6. Door

1 2 3 4 5 6

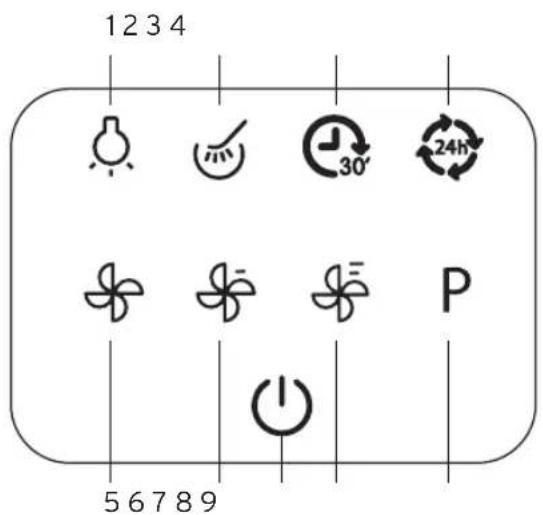

Control Panel

1. Light
2. Filter Warning Light
3. 30 Minute Timer
4. Clean and Fresh Function
5. Low Speed Fan Setting
6. Medium Speed Fan Setting
7. Power On/Off
8. High Speed Fan Setting
9. Fan Power Boost

1234 30' 24h P 56789

Using the Cooker Hood

Switching On/Off

Press the power symbol ☐ on the cooker hood control panel to switch the cooker hood on.

The icons on the control panel will illuminate in red once it is switched on. Press the power symbol again to switch the unit off.

The unit will automatically switch into standby if it is left idle for 5 minutes. If you have accidentally left the unit on it will switch into standby after 48 hours.

Switching the Light On/Off

To switch on the lights press the symbol, press it again to switch off.

Fan Speed Selection

The unit has three fan speed settings, plus a booster function.

Press either low speed or medium speed or high speed to select a fan speed setting. Pressing the last used symbol again will switch the fan off.

The booster function P can be used when a short period of maximum speed ventilation is required. The fan will run for only 10 minutes at this speed before reverting to the hi speed setting.

Using the 30 Minute Timer

Pressing the timer function symbol will operate the fan for 30 minutes before switching off.

1. Select the fan setting required.

2. Press the timer symbol.

To cancel the timer setting, press the timer symbol again.

Clean and Fresh Function

The Clean and Fresh function will operate the fan at low speed for 5 minutes each hour over a 24 hour period to eliminate any residual cooking odours. To switch off this function press the icon again.

- If the light is switched on, it will automatically switch off when you select the 30 Minute timer or the Clean and Fresh function.

Maintenance and Cleaning

!

Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply and ensure that:

• it is switched off at the isolator, or
• it is switched off at the wall socket and the plug is withdrawn, or
• the fuse from the fused spur connection unit is withdrawn, or
• the mains fuse is disconnected.

The surfaces and controls are susceptible to scratches and abrasions.

Please observe the following cleaning instructions.

Removing and Replacing the Filters

1. To remove the filter unit, pull firmly from the centre of the edge of the door to release it from its magnetic catches and allow it to hang down. This will reveal the filter unit.
2. Press the release catch down on the filter unit and remove it completely.
3. If fitted, press in the plastic tabs on the carbon filter (not supplied) to separate the carbon filter from the metal grease filter unit.
4. To replace the filter unit, locate the tabs at the back into the cooker hood unit and press back into place.
5. Push door back into position.

!

• Dirty filters adversely affect the efficiency of the cooker hood and are a fire hazard.
• To avoid damaging the filter unit or the hob below, make sure you hold it securely at all times when handling it.
• Take care to avoid the magnetic catches on the door when replacing the filter unit.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Diagram of a folded paper or document with a folded corner and a numbered arrow indicating '3' (no text or symbols present)

Cleaning the Metal Grease Filter

The metal grease filter collects fat particles from cooking and needs cleaning regularly (every 3-4 weeks).

Manual cleaning

The filter can be cleaned manually using a soft nylon brush and a mild solution of hot water and washing-up liquid. Do not use neat washing-up liquid.

Dishwasher cleaning

The metal grease filter can be cleaned in a dishwasher on a 65°C setting using appropriate detergents.

There may be some discolouration to the metal using this method, but this does not affect the functioning of the filter.

Ensure the filter is completely dry before replacing.

Replacing the Carbon Filter

Fitting of a carbon filter (not supplied) is only necessary if using the cooker hood is used with air recirculation.

The carbon filter collects the odours from cooking and needs replacing when the filter warning light on the control panel lights up. Typically, this will be after 100 hours of operation.

• This filter has to be replaced, do not try to clean it
• To reset the warning light, press the warning light symbol for at least 5 seconds.
• Regular maintenance will help ensure that the unit operates efficiently.
  • The carbon filter is not supplied.

• Carbon filters for this cooker hood are available as an optional extra, and be obtained through partmaster.co.uk
• Before using the cooker hood in recirculation mode, ensure that the carbon filter is in place.

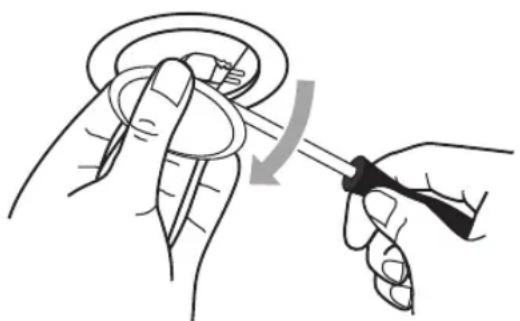

Replacing the Halogen Bulbs

1. Disconnect the cooker hood from the power supply.
2. Using a small screwdriver or something similar, carefully prise out the inner metal ring of the light compartment to reveal the light bulb.
3. Remove the bulb by pulling it backwards out of the fixing.
4. Replace with a suitable 20W bulb, taking care not to touch the bulb with your fingers, hold it with a cloth or tissue paper.
5. Push back on the metal ring and reconnect the power supply.

Illustration of a hand holding a circular object with a tool, showing a curved arrow indicating motion (no text or symbols present)

Cleaning

• All external surfaces and controls can be cleaned using a little washing-up liquid applied with a damp soft sponge or cloth. Wipe dry using a soft cloth.
• Only use cleaners suitable for glass on the glass surfaces.
• Wipe dry using a soft cloth.

!

Do not use:

Cleaning agents containing soda, acids, chlorides or solvents.

Abrasive cleaning agents, e.g. powder cleaners or cream cleaners and abrasive sponges, as well as pot scourers or sponges which have been used previously with abrasive cleaning agents as these will damage the surface material.

Installation

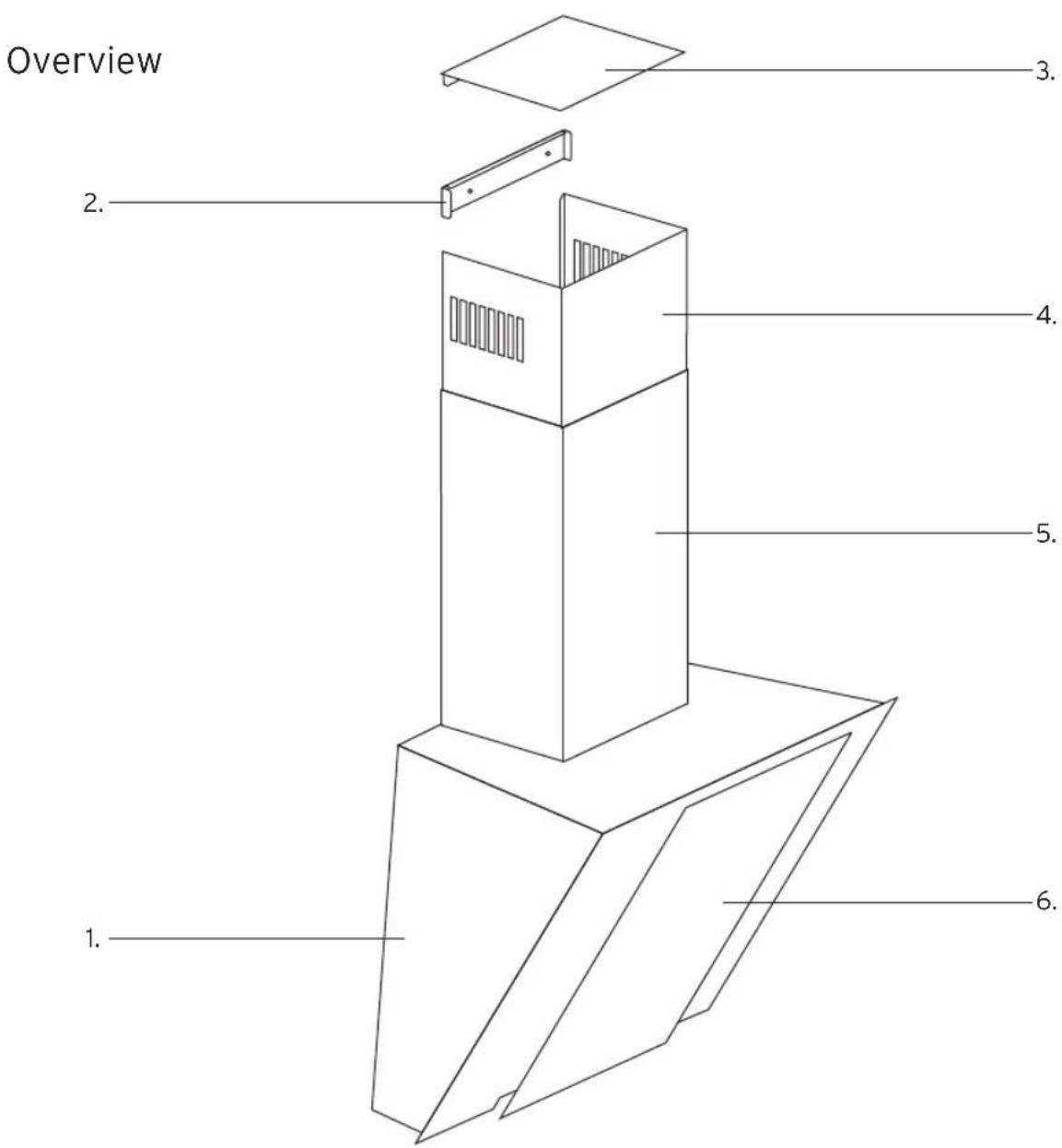

Overview 1. 2. 3. 4. 5. 6.

1. Cooker hood unit
2. Fixing plate

3. Chimney cover

4. Internal chimney section

5. External chimney section
6. Door

Positioning

• When deciding on the safe distance between the hob and cooker hood, please note that a distance greater than 450mm above electric cookers/hobs may be preferable to give more working space under the hood.
• Account should also be taken of the height of the person who will be using the hood most often. The person should have sufficient space to work comfortably at the hob, and also be able to reach the hood controls with ease.
• Please be aware that if positioned too high, air extraction will be inefficient.

!

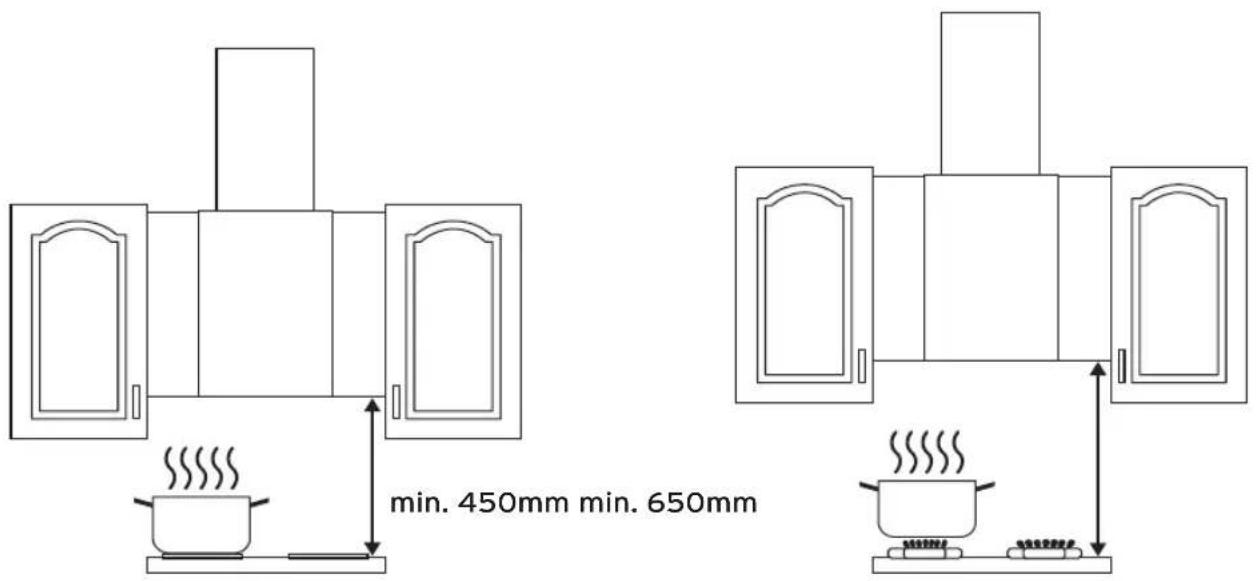

When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood are as follows, unless a greater distance is specified by the manufacturer of your cooking appliance:450 mm – above electric hobs and cookers650 mm – above gas hobs and cookers650 mm – above dual gas/electric hobs and cookers

Installing the Cooker Hood

• We recommend professional tradespersons are consulted prior to the fitting of this appliance.
- Each installation is different and these instructions should be used as a guide only. If in doubt consult professional tradespersons.

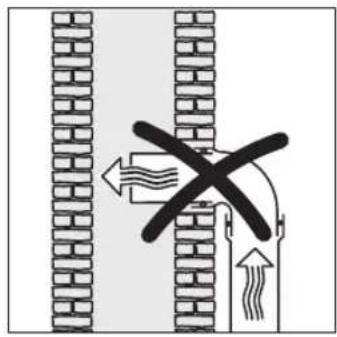

- Air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

1. Remove the cooker hood body from the packaging and locate the mounting template (which forms part of the packaging).
2. Trim the mounting template at the bottom edge (and sides if necessary) of the printed template shape. Leave the top section untrimmed as the upper screw hole markings fall outside of the main cooker hood body shape.
3. Position the mounting guide on the wall at the correct height for the appliance it is to be used with, and mark on the wall the position of the four holes for the mounting screw holes. Ensure the holes are level.
4. Remove the filter from the cooker hood to allow access to the mounting brackets.
5. Drill holes in the positions marked and gently tap the wall plugs into all the holes.
6. Insert screws into the lower two holes and hang the cooker hood onto them.
7. Secure the cooker hood in place by inserting the top two screws.

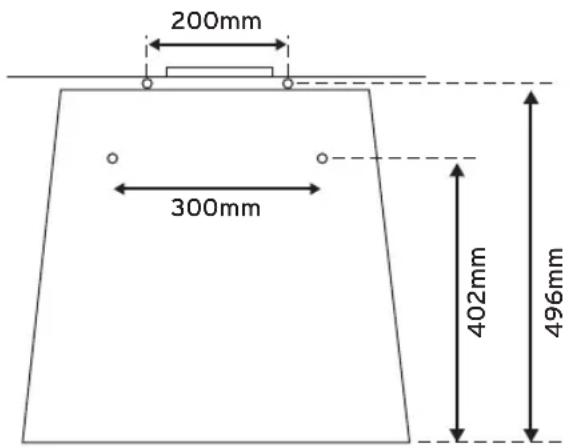

200mm 300mm 402mm 496mm

Simple geometric diagram showing a right angle with a diagonal line (no text or symbols)

Using an External Outlet Vent

- This cooker hood can be vented externally using a exhaust hose and fixings (not supplied).

- Only use smooth pipes or flexible hoses (not supplied) made from non-flammable materials for the extraction ducting. To achieve the greatest possible air extraction with the lowest noise level, please note the following:

- To ensure efficient air extraction, the diameter of the exhaust ducting should not be less than 120mm for maximum extraction and quietest operation 150mm diameter tubing should be used.

- If flat ducting is being used, the cross-sectional area must not be smaller than the cross sectional area of the exhaust connection.

- All ducting, pipework and fittings must be made of non-flammable materials.

• The exhaust ducting should be as short and straight as possible.

- Only use wide radius bends.

- The exhaust ducting should not be kinked or compressed.

- Ensure that all connections are strong and airtight.

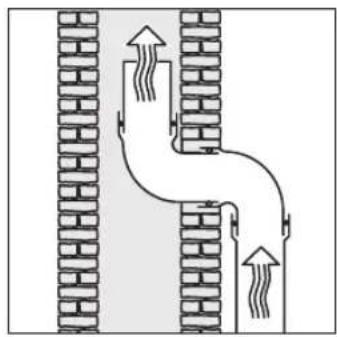

- Where ducting is horizontal, it must be laid to slope away at least 1 cm per metre. This is to ensure that condensation cannot drain back into the cooker hood.

- If the exhaust air is to be ducted into the open air, the installation of a telescopic wall vent or roof vent is recommended.

Diagram illustrating a mechanical or fluid system with directional arrows and a cross symbol indicating flow or movement.

Diagram of a pipe system with brick walls and directional arrows indicating flow or movement (no text or symbols)

!

To avoid the danger of toxic fumes, please observe the Safety Warnings.This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room.The cooker hood should be installed according to local and national building regulations. Seek approval from the building inspector where necessary.If the exhaust ducting is to run through rooms, ceiling space etc. where there may be great variations in temperature between the different areas, the problem of condensation will need to be addressed. The exhaust ducting will need to be suitably insulated.

Fitting the Chimney

Do not remove the protective plastic covering from the chimney until it is fitted as the surface could be scratched during installation.

1. Position the chimney above the unit and mark the position of the screw holes for the fixing plate.
2. Remove the chimney again and drill two holes for the fixing plate.
3. Gently tap in the wall plugs and screw the fixing plate and chimney cover into position using 2 x 50mm screws.
4. Reposition the chimney sections and slide the upper section into its final position. Screw into place using 2 x 8mm screws.
5. Remove protective foil from chimney.

Technical line drawing of a mechanical assembly with two components and alignment markers (no text or symbols)

Technical specification

Model No. S60GHB13/S60GHW13 S80GHB13/S80GHW13
Dimensions (w x d x h) (mm) 600 x 446 x 515	800 x 446 x 515
Extraction Rate (m3/h) 493 493
Voltage (V) 220 - 240 ~ 220 - 240 ~
Frequency (Hz) 50 50
Total Power (W) 240 240
Noise Level (dBA)	62	62
Lamp	Halogen 2 x 20W	Halogen 2 x 20W

Features and specifications are subject to change without notice.

KNOWHOW™

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0844 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.

Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only)

Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

DSG Retail Limited (Registered in England No. 504877), Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK
