NP1-116 - Loudspeaker MB QUART - Free user manual and instructions

Product Type	Car Audio Speaker
Brand	MB Quart
Model	NP1-116
Speaker Size (A)	6.58 in (174 mm)
Mounting Depth (B)	3.02 in (77 mm)
Mounting Height (C)	1.14 in (29 mm)
Cutout Diameter (D)	3.58 in (91 mm)
Overall Diameter (E)	5.59 in (142 mm)
Grille Colors Included	3 different colors
Installation	Quick Start guide; use supplied speaker wire and screws
Warranty	1 year from date of purchase
Recommended Use	Replace factory speakers or new installations
Safety Note	Consult professional installer if unsure; avoid contact with metal edges or hot components
Maintenance	Clean with dry cloth; do not use solvents

Frequently Asked Questions - NP1-116 MB QUART

What are the dimensions of the MB Quart NP1-116 speaker?

The NP1-116 has an overall diameter of 5.59 inches (142 mm), mounting depth of 3.02 inches (77 mm), and cutout diameter of 3.58 inches (91 mm). Full dimensions are listed in the manual.

What is the power handling of the NP1-116?

The specific RMS and peak power ratings for the NP1-116 are not provided in the manual. Please check the product specifications on the MB Quart website for detailed power handling.

What is the impedance of the NP1-116?

The impedance is not listed in the manual. For accurate information, refer to the product packaging or the MB Quart website.

Does the NP1-116 come with grilles?

Yes, the NP1-116 includes three different grille colors to match your vehicle. You can choose the color you prefer and attach the MB Quart logo.

How do I install the NP1-116?

Installation involves selecting a suitable mounting location, routing speaker wires, connecting positive and negative terminals, securing the speaker with the provided screws, and attaching the grille with the logo. A detailed guide is in the manual.

What tools are needed for installation?

Basic tools such as a screwdriver, wire strippers, and possibly a drill for new mounting locations are required. The speaker comes with screws.

Is professional installation recommended?

Yes, MB Quart recommends consulting a professional audio installer if you are unsure about the installation, as some vehicles have panels that require special tools.

What is the warranty period for the NP1-116?

The NP1-116 comes with a one-year warranty from the date of purchase against defects in materials and workmanship. Proof of purchase is required.

How do I clean the NP1-116?

Clean the speaker and grille with a dry, soft cloth. Do not use water or cleaning solvents as they may damage the components.

Can I use the NP1-116 with my car's existing wiring?

Yes, you can use existing speaker wires if they are in good condition and not shorted. Ensure the wire gauge is adequate and the connections are secure.

USER MANUAL NP1-116 MB QUART

Technical line drawing of a mechanical component with radial blades and central hub (no text or symbols)

NP1-116

NP1-120

NP1-169

Congratulations on your choice of a MBQuart speaker. This "Quick Start" Installation guide is meant to help you complete a basic installation. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit our website at mbquart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many manufacturers locate speakers behind interior panels that require special tools to remove. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires only through safe areas. Do not let speaker wire make contact with metal edges or hot engine components.

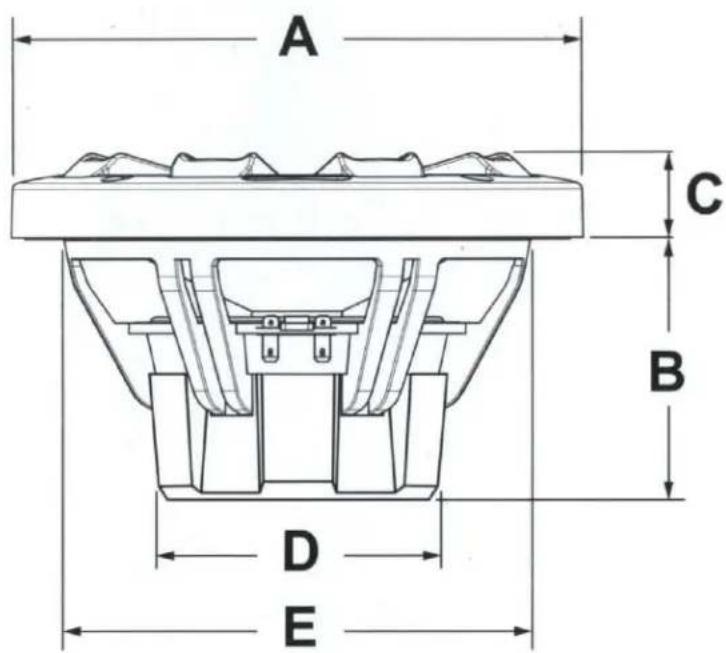

Speaker Dimensions

	A	B	C	D	E
NP1-116	6.58"(174)	3.02"(77)	1.14"(29)	3.58"(91)	5.59"(142)
NP1-120	8.46"(215)	3.58"(91)	1.26"(32)	5.20"(132)	7.09"(180)
NP1-169	9.69"/6.86"(246/174)	3.50"(89)	1.20"(30)	3.87"(99)	8.58"/5.74"(218/147)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your application. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional.

Speaker Mounting Location

Choose a suitable mounting location

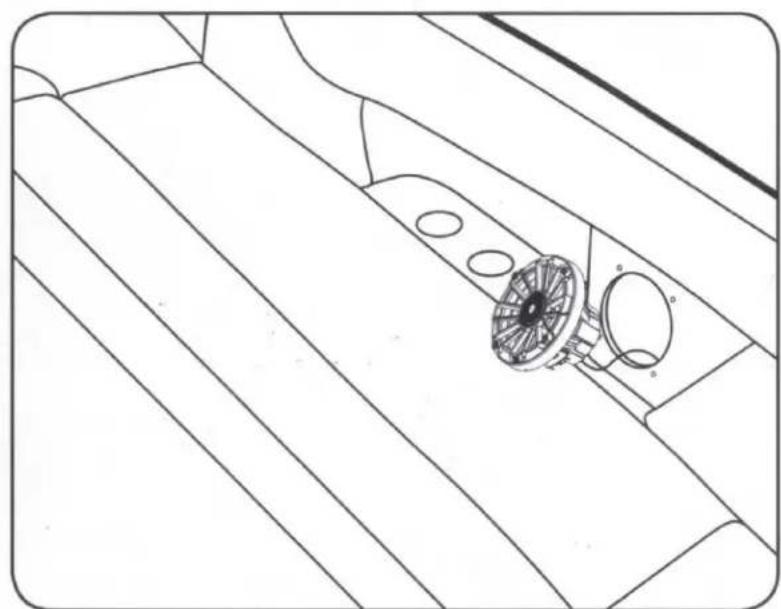

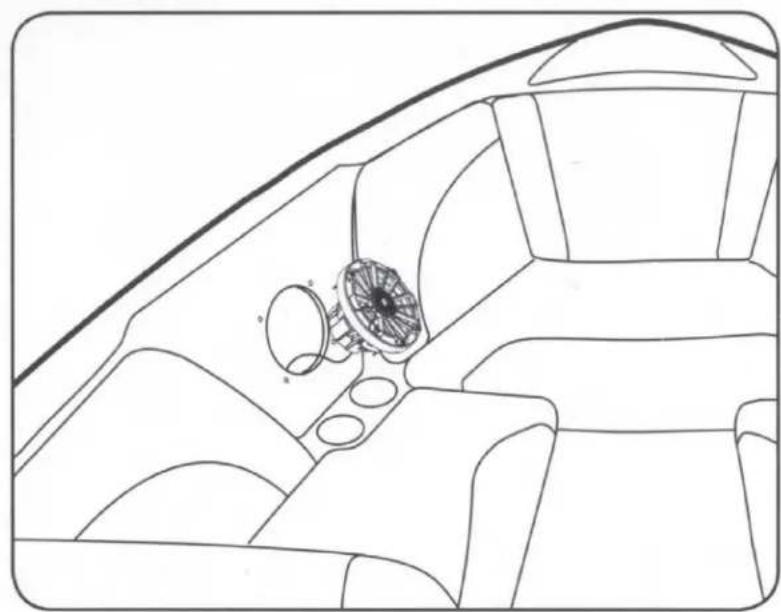

If you are replacing an older or inferior speaker, the location is chosen for you. Make sure the speaker fits properly in the hole for the old speaker. If you are creating your own new location, you must be careful to verify that there is sufficient depth to mount the speaker.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Wiring

Route signal wires

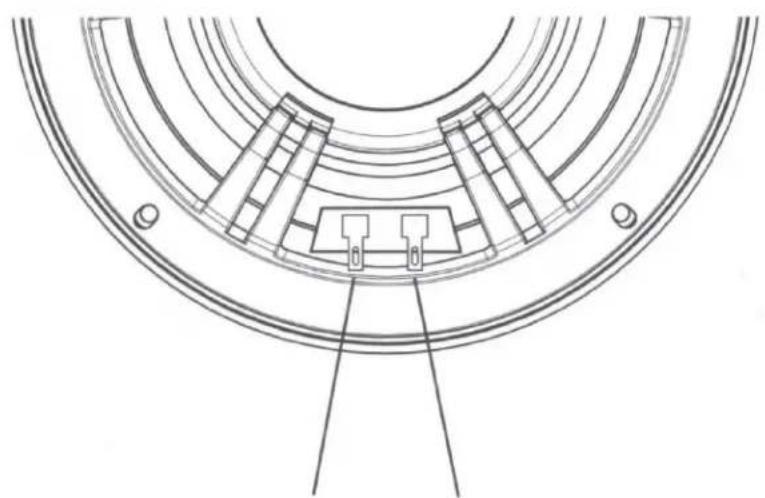

Carefully select a route for the speaker wires. If using existing speaker wires, confirm that the wire is in good shape and not shorted.

Technical line drawing of a circular mechanical component with internal structural elements (no text or symbols)

Audio Signal Negative
Audio Signal Positive

Speaker installation

Confirm fit and mount speaker

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals.

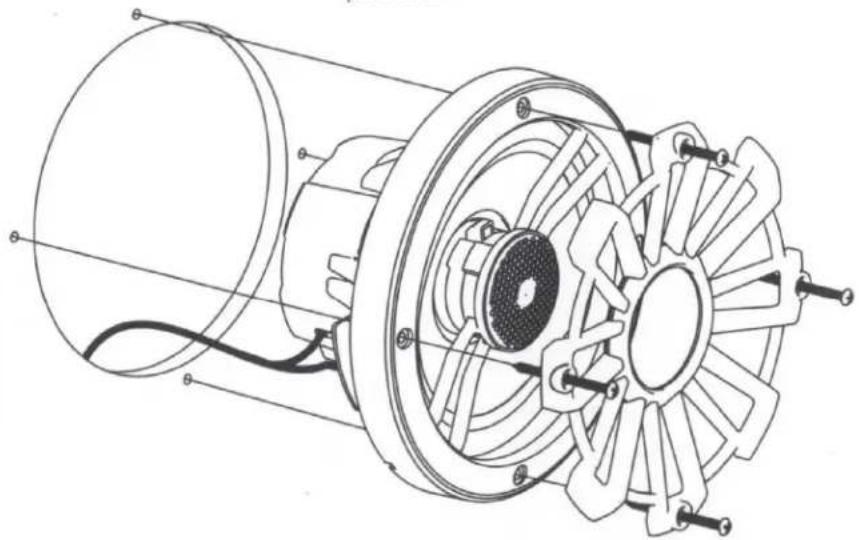

The NP1 speakers come with three different grill colors to match your application. Select the color of your choice, adhere the MB Quart logo in the correct position on the grill, and secure using the 4 screws provided.

Technical line drawing of an electric motor with visible stator and rotor blades (no text or labels)

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS®

MBQUART ^® MUSIC. DEFINED.
