NP1-169 - Loudspeaker MB QUART - Free user manual and instructions

Product Type	Car Audio Speaker
Brand	MB Quart
Model	NP1-169
Speaker Size	6x9 inch (oval)
Overall Width	9.69 in (246 mm)
Overall Height	6.86 in (174 mm)
Mounting Depth	3.50 in (89 mm)
Cut-Out Width	8.58 in (218 mm)
Cut-Out Height	5.74 in (147 mm)
Grille Colors Included	3 colors (choose one)
Mounting Hardware	4 screws, grille, logo badge
Speaker Wire	Included
Connection Type	Positive and negative terminals
Warranty	1 year (from date of purchase)
Country of Design	USA
Manufacturer	Maxxsonics USA Inc.
Manual Format	PDF (6 pages)
Manual Language	English (also available in other languages via website)
Installation Guide	Quick Start Guide included
Compliance	Designed and engineered in USA

Frequently Asked Questions - NP1-169 MB QUART

What are the dimensions of the MB Quart NP1-169 speaker?

The speaker has an overall width of 9.69 in (246 mm) and height of 6.86 in (174 mm). The mounting depth is 3.50 in (89 mm). Cut-out dimensions are 8.58 in (218 mm) width and 5.74 in (147 mm) height.

How do I install the NP1-169 speaker?

First, choose a suitable mounting location and ensure proper clearance. Route the speaker wires safely, connect positive and negative wires to the correct terminals, then mount the speaker. Select one of the three grille colors, attach the MB Quart logo, and secure with the four provided screws.

What grille colors are available?

The NP1-169 comes with three different grille colors. You can choose the one that matches your application. The MB Quart logo is also included and should be adhered to the chosen grille.

What is the warranty period for MB Quart speakers?

The product is warranted for one year from the date of purchase to the original consumer purchaser, covering defects in material and workmanship. Components must be returned to the original authorized retailer with a copy of the receipt.

Can I use existing speaker wires?

Yes, you can use existing speaker wires, but verify they are in good condition and not shorted. If using the supplied wire, ensure it runs through safe areas, avoiding metal edges or hot components.

Do I need professional installation?

While the manual provides a basic installation guide, it is recommended to consult a professional audio installer if you are unsure. Many manufacturers locate speakers behind interior panels that may require special tools.

How do I connect the positive and negative wires?

Connect the audio signal positive wire to the positive terminal and the audio signal negative wire to the negative terminal. Ensure correct polarity for proper sound.

Where can I download the user manual?

The manual is available as a PDF download on notice-facile.com or the MB Quart website. It is 6 pages long and includes installation instructions and specifications.

What is the power handling of the NP1-169?

The manual does not specify power handling specifications. For detailed specs, please visit the official MB Quart website at mbquart.com.

What tools are needed for installation?

Basic hand tools such as a screwdriver and wire strippers may be needed. If replacing existing speakers, you may require special tools to remove interior panels. Refer to your vehicle's manual.

USER MANUAL NP1-169 MB QUART

Technical line drawing of a mechanical component with radial blades and central hub (no text or symbols)

NP1-116

NP1-120

NP1-169

Congratulations on your choice of a MBQuart speaker. This "Quick Start" Installation guide is meant to help you complete a basic installation. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit our website at mbquart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many manufacturers locate speakers behind interior panels that require special tools to remove. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires only through safe areas. Do not let speaker wire make contact with metal edges or hot engine components.

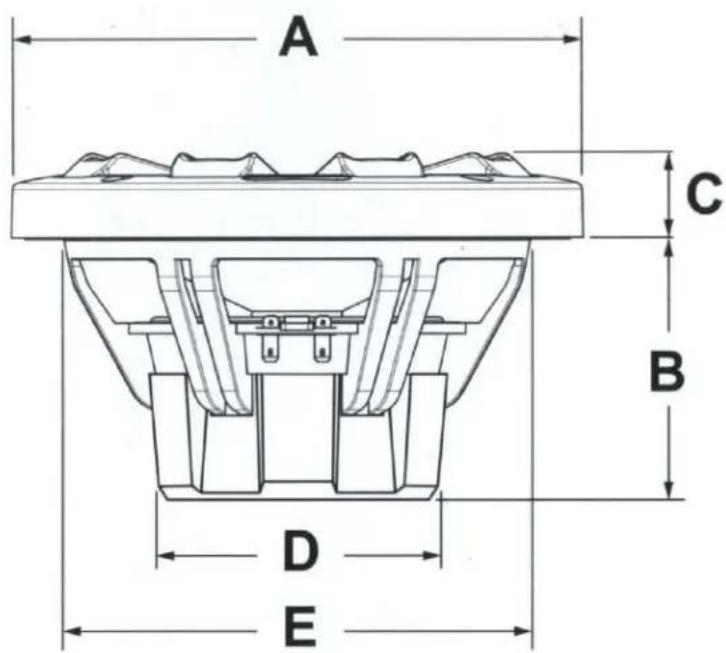

Speaker Dimensions

	A	B	C	D	E
NP1-116	6.58"(174)	3.02"(77)	1.14"(29)	3.58"(91)	5.59"(142)
NP1-120	8.46"(215)	3.58"(91)	1.26"(32)	5.20"(132)	7.09"(180)
NP1-169	9.69"/6.86"(246/174)	3.50"(89)	1.20"(30)	3.87"(99)	8.58"/5.74"(218/147)

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your application. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional.

Speaker Mounting Location

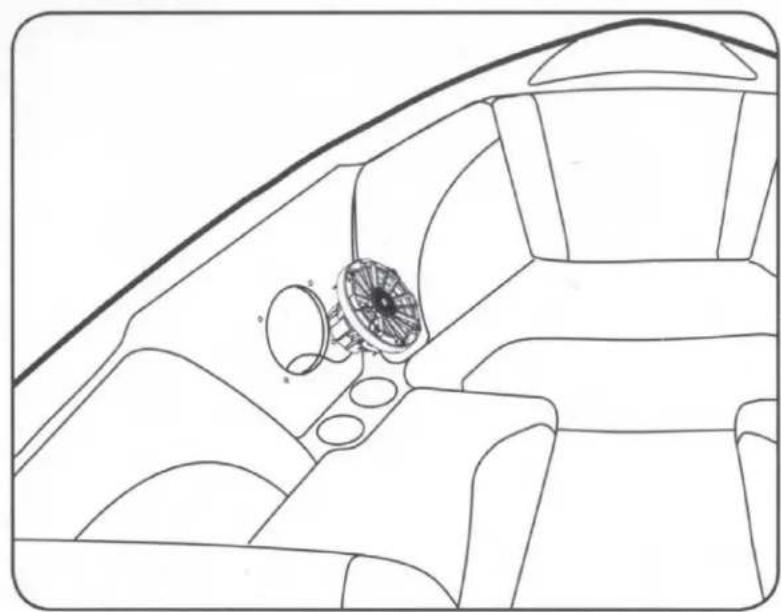

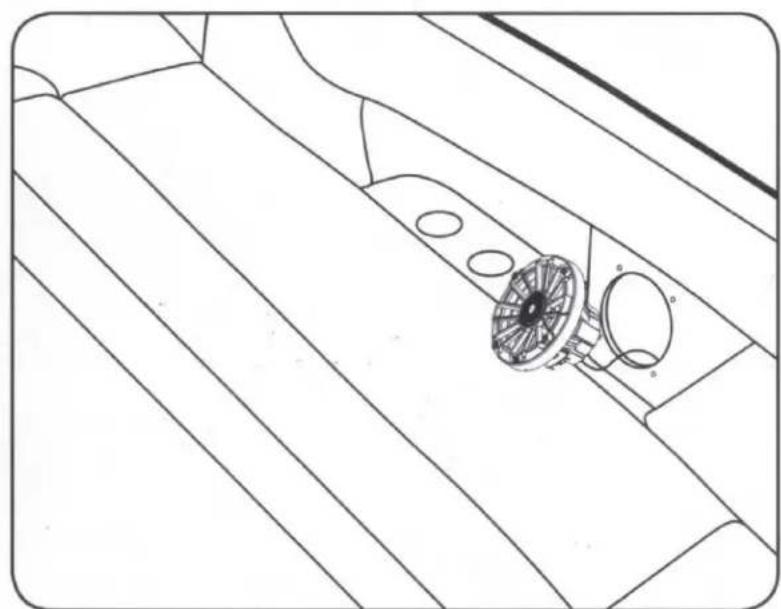

Choose a suitable mounting location

If you are replacing an older or inferior speaker, the location is chosen for you. Make sure the speaker fits properly in the hole for the old speaker. If you are creating your own new location, you must be careful to verify that there is sufficient depth to mount the speaker.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Wiring

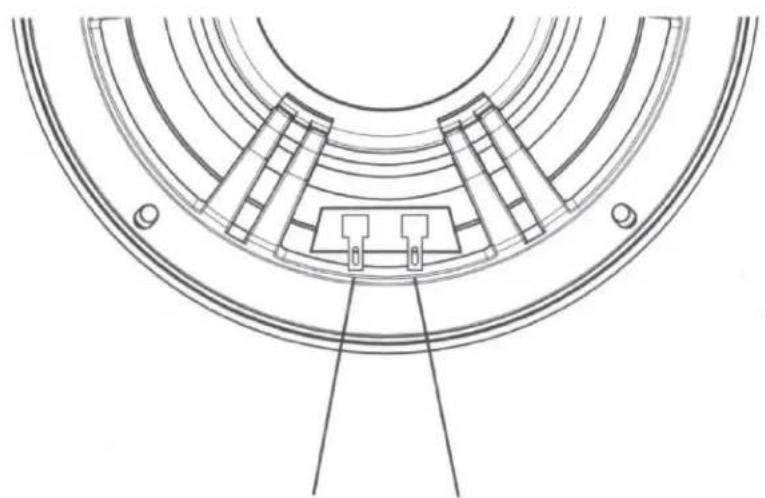

Route signal wires

Carefully select a route for the speaker wires. If using existing speaker wires, confirm that the wire is in good shape and not shorted.

Technical line drawing of a circular mechanical component with internal structural elements (no text or symbols)

Audio Signal Negative
Audio Signal Positive

Speaker installation

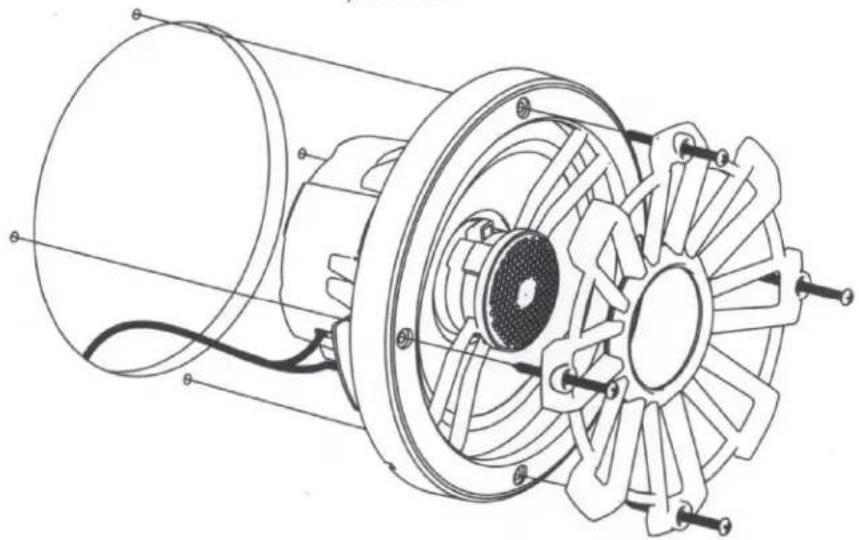

Confirm fit and mount speaker

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals.

The NP1 speakers come with three different grill colors to match your application. Select the color of your choice, adhere the MB Quart logo in the correct position on the grill, and secure using the 4 screws provided.

Technical line drawing of an electric motor with visible stator and rotor blades (no text or labels)

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS®

Specs

English / Speakers

Model

Power Handling RMS

Power Handling Peak

Impedance

Sensitivity (1 watt / 1 meter)

Frequency Response +/- 10dB

Crossover Slope

Cut-Out

Chassis depth from flange
