NPT1-120 - Loudspeaker MB QUART - Free user manual and instructions

Brand	MB Quart
Model	NPT1-120
Product Type	Marine Speaker Pod
Speaker Type	Full-range coaxial speaker
Mounting Type	Clamp-on for round tubing
Compatible Tube Diameter	1.5" to 2.75" (1/8" increments)
Grill Colors	Three interchangeable colors
Speaker Wire Polarity	Black = negative, Black/white stripe = positive
Alignment Adjustment	Rotatable for angled tubes
Warranty	1 year limited
Country of Design	USA
Manufacturer	Maxxsonics USA Inc.
Website	mbquart.com
Package Contents	Speaker pod, clamp, bushings, grills, logo, mounting screws
Installation Guide	Quick Start guide included

Frequently Asked Questions - NPT1-120 MB QUART

What tube diameters can the NPT1-120 clamp fit?

The NPT1 clamp fits round tubing with diameters from 1.5 inches to 2.75 inches. Separate bushing sets are included for each 1/8 inch increment within that range.

How do I install the speaker grill?

Select one of the three included grill colors, adhere the MB Quart logo in the correct position, and secure the grill using the four provided screws.

How do I align the speaker on an angled tube?

Loosen the speaker mounting screws, rotate the speaker to the desired alignment, and then re-mount it. The pod has a series of mounting holes behind the speaker to facilitate this adjustment.

What is the warranty period for the NPT1-120?

The product is covered by a one-year limited warranty from the date of purchase, covering defects in materials and workmanship.

What are the wire color codes for the speaker?

Black wire is audio signal negative, and black wire with a white stripe is audio signal positive.

Can the speaker be mounted on oval or flat structures?

No, the NPT1 clamping system is designed exclusively for round tubing. Oval tubing and flat structures are not compatible.

Are different bushing sizes included?

Yes, separate bushing sets are included for each tube size at 1/8 inch increments from 1.5 to 2.75 inches. Refer to the table in the manual for the specific configuration.

Where can I find more detailed information about the speaker?

Visit the official MB Quart website at mbquart.com for detailed specifications, system settings, and subwoofer configuration.

What is included in the package?

The package includes the speaker pod, clamping system, bushings for various tube sizes, three grill color options, MB Quart logo, and mounting screws.

Do I need professional installation?

If you are unsure about the installation process, it is recommended to consult a professional audio installer. The manual also advises caution when removing interior panels.

USER MANUAL NPT1-120 MB QUART

Technical line drawing of a mechanical component with radial blades and mounting bracket (no text or symbols)

NPT1-116

NPT1-120

Congratulations on your choice of a MB Quart speaker. This "Quick Start" Installation guide is meant to help you complete a basic installation. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit our website at mbquart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many manufacturers locate speakers behind interior panels that require special tools to remove. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires only through safe areas. Do not let speaker wire make contact with metal edges or hot engine components.

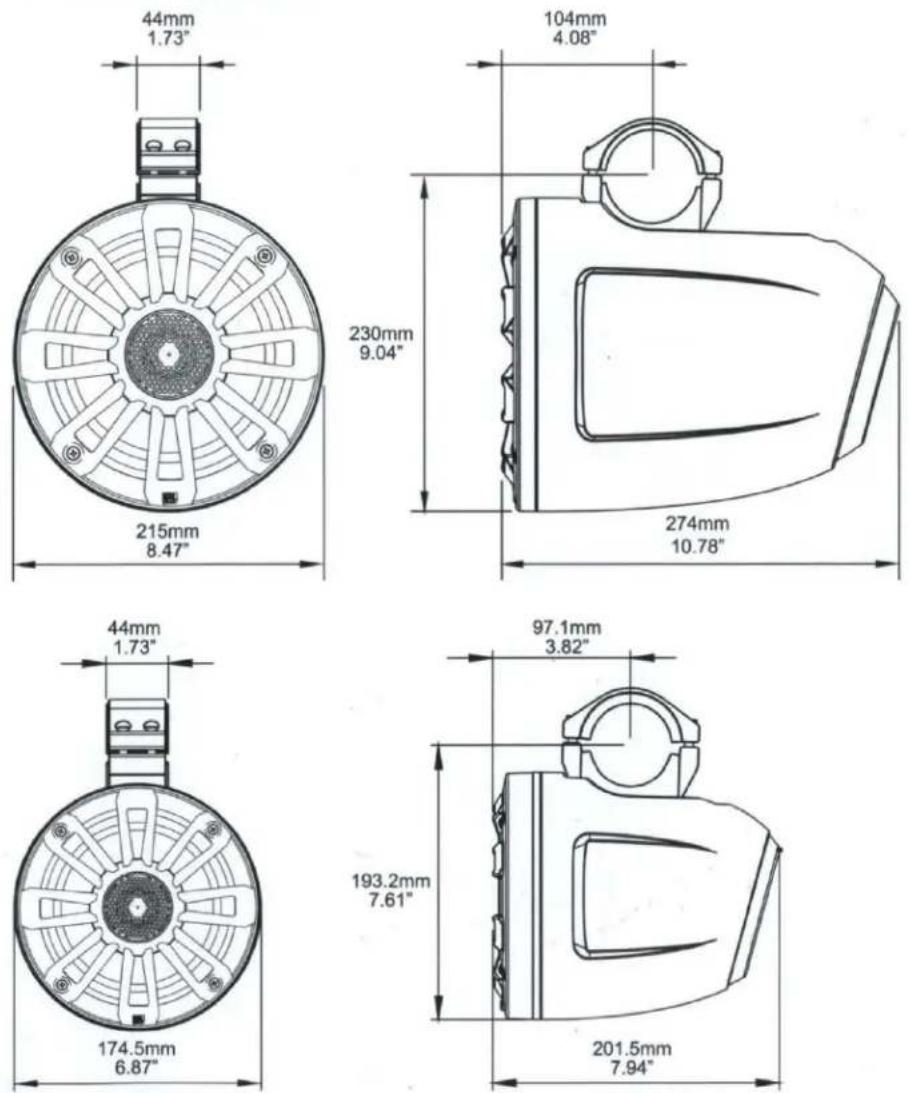

Dimensions

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your application. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional.

Mounting Location

Choose a suitable mounting location

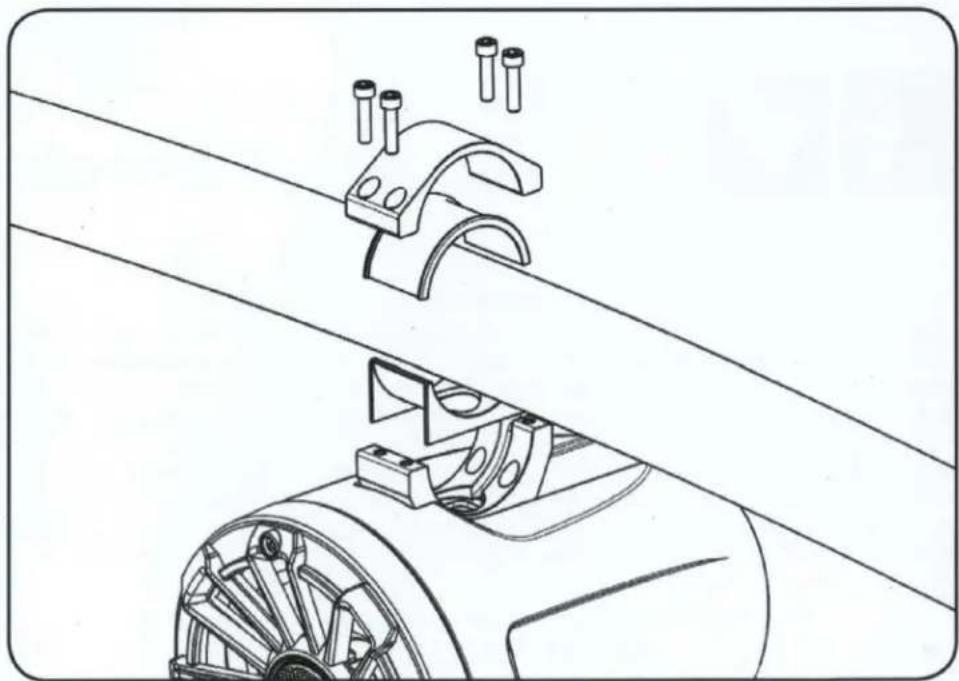

The NPT1 clamping system is designed for towers and support structures that utilize ROUND tubing. Oval tubing and flat structures will not work with this clamp. The NPT1 clamp can be used with tube diameters from 1.5" up to 2.75". Included are separate bushing sets for all tube sizes at 1/8" increments. Refer to the table below to determine your configuration.

Tube Diameter	Tube Circumference	Clamp	Top Bushing	Bottom Bushing
1.5	4.71	A	1.50	1.50
1.625	5.10	A	1.63	1.63
1.75	5.50	A	1.75	1.75
1.875	5.89	A	none	1.88
2	6.28	B	2.00	2.00
2.125	6.68	B	2.13	2.13
2.25	7.07	B	2.25	2.25
2.375	7.46	B	2.38	2.38
2.5	7.85	B	2.50	2.50
2.625	8.25	B	2.68	2.68
2.75	8.64	B	none	none

Technical line drawing of a mechanical assembly with mounting brackets and a wheel (no text or symbols)

Wiring

Route signal wires

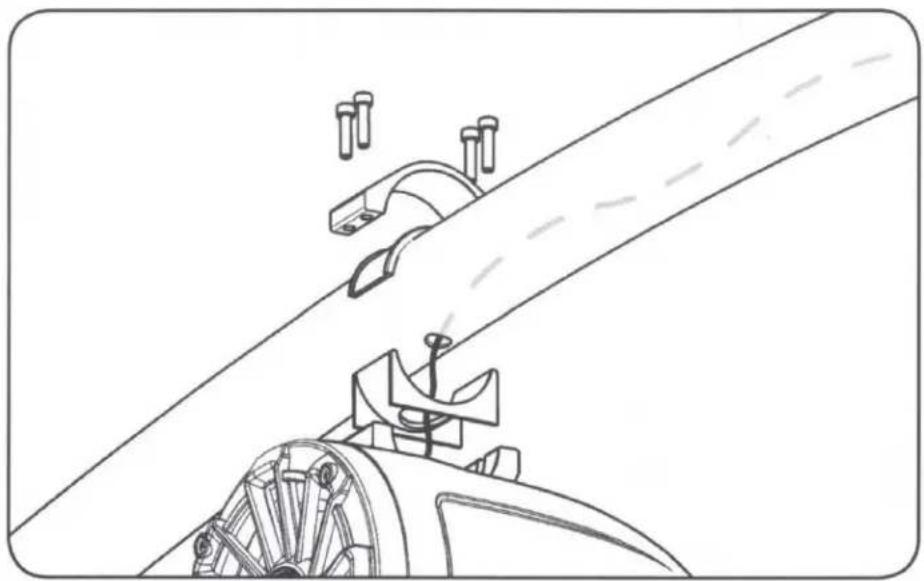

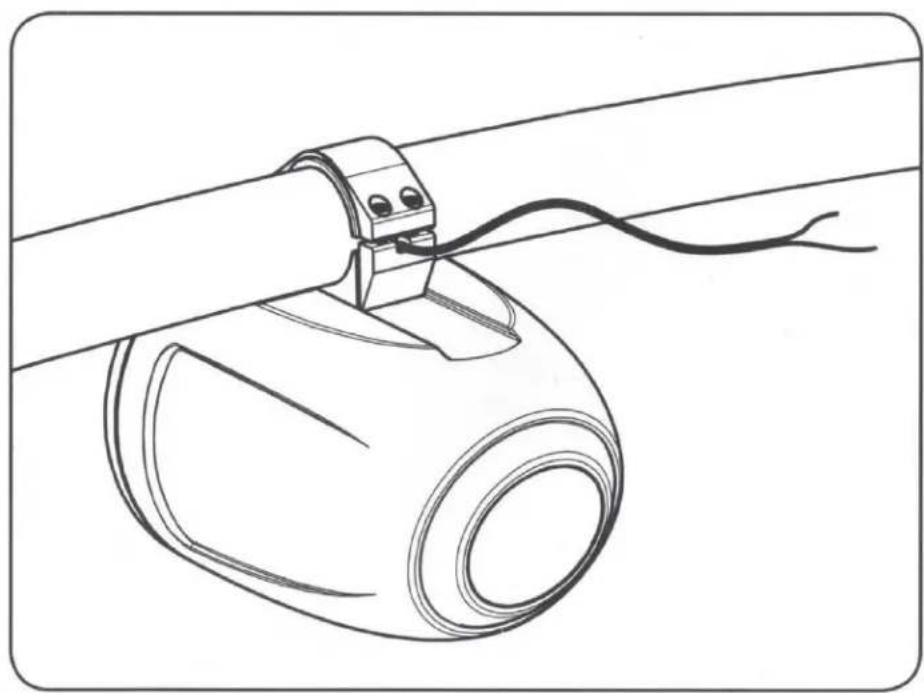

Carefully select a route for the audio signal wires. If using existing speaker wires, confirm that the wire is in good shape and not shorted.

Black ...... Audio signal negative

Black w/white stripe ...... Audio signal positive

Technical line drawing of a car wheel assembly with mounting bracket and guide rails (no text or symbols)

Line drawing of a mechanical clamp securing a circular component with a string, no text or symbols present

Speaker Grill

Installing the speaker grill

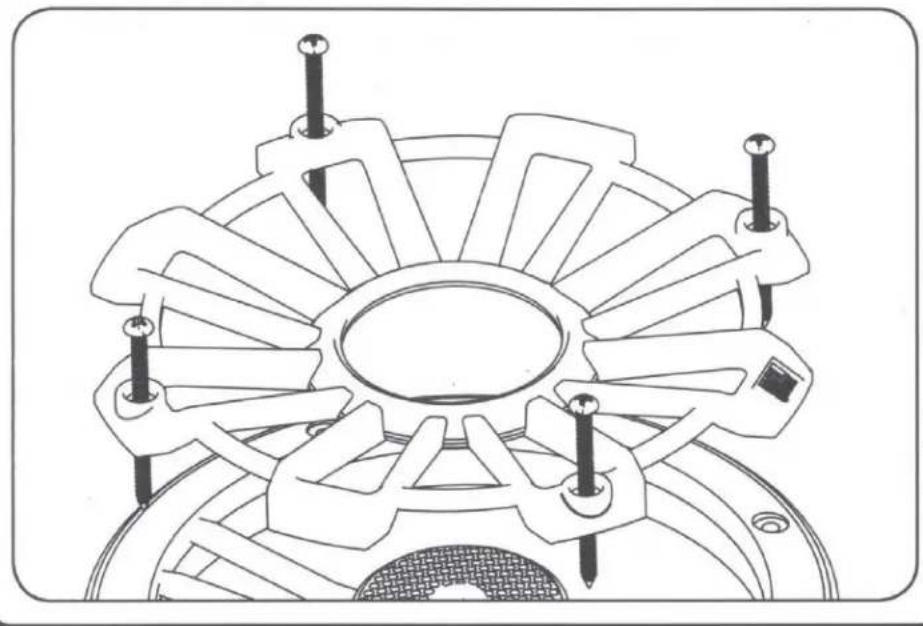

The NPT1 speaker pods come with three different grill colors to match your application. Select the color of your choice, adhere the MB Quart logo in the correct position on the grill, and secure using the 4 screws provided.

Technical line drawing of a mechanical component with multiple blades and mounting holes (no text or symbols)

Adjust the speaker alignment

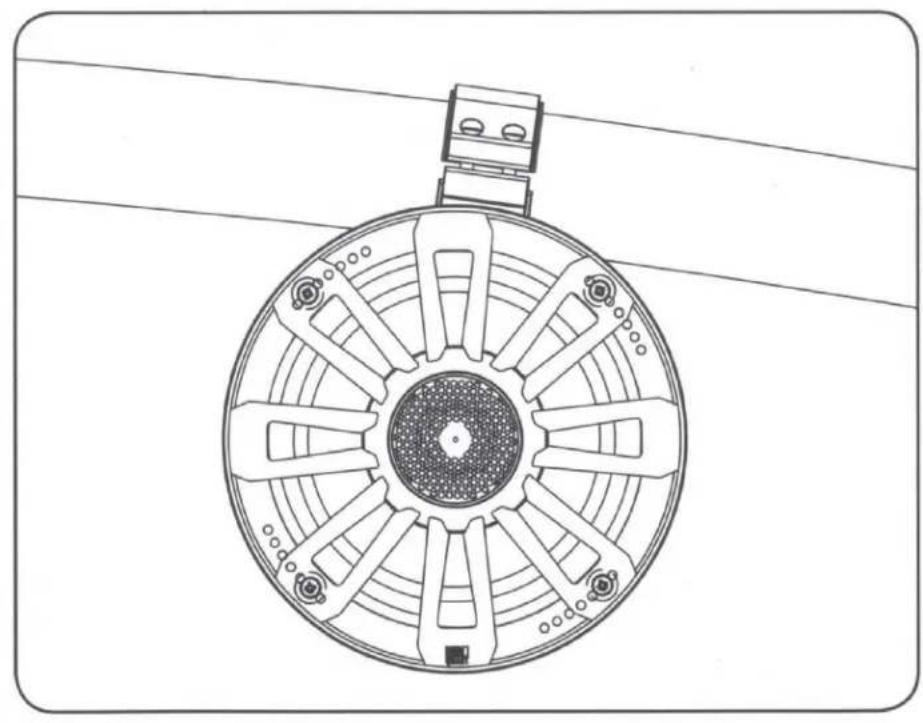

Your NPT1 speakers can be aligned to "hang straight" on an angled tube by loosening, rotating and re-mounting the speaker. Just behind the speaker mounting holes is a series mounting holes that can be used to align the speaker in the pod.

Technical line drawing of a circular mechanical component with radial slots and central hub (no text or symbols)

MBQuart.com

#MUSIC DEFINED

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS®
