Product Type	Tower Speaker
Brand	MB Quart
Model	NT2C-116B
Clamp System	Designed for round tubing only
Tube Diameter Compatibility	1.5" to 2.75"
Tube Circumference Range	4.71" to 8.64"
Clamp Type A	For tube diameters 1.5"-1.875"
Clamp Type B	For tube diameters 2"-2.75"
Bushing Sets Included	Yes, for 1/8" increments
Wiring Polarity (Negative)	Black wire
Wiring Polarity (Positive)	Black wire with white stripe
Grill Alignment	Adjustable via rotating mounting holes
Mounting Location	Choose suitable location on tower structures
Installation Guide	Quick Start Guide included with purchase
Warranty	1 year from date of purchase
Country of Design	USA by Maxxsonics
Professional Installation	Recommended for optimal performance
Product Series	NT2C
Manual Availability	Free download in PDF format
Tube Shape Requirement	Round tubing only; oval or flat not compatible

Frequently Asked Questions - NT2C-116B MB QUART

What tube sizes does the NT2C-116B clamp fit?

The NT2C-116B clamp fits round tubing with diameters from 1.5 inches to 2.75 inches. It includes bushing sets for 1/8-inch increments.

How do I wire the speaker?

Use the included speaker wire. Connect black wire to audio signal negative and black wire with white stripe to audio signal positive. Ensure wires are routed safely away from sharp edges and heat sources.

Can I install this speaker on oval or flat tubing?

No, the NT2C clamping system is designed exclusively for round tubing. Oval tubing and flat structures are not compatible.

How do I adjust the speaker alignment?

To align the speaker on an angled tube, loosen the mounting screws, rotate the speaker pod to the desired position, and re-tighten. The mounting holes behind the speaker allow for fine alignment.

What is the warranty period?

MB Quart offers a 1-year warranty to the original consumer purchaser from the date of purchase, covering defects in material and workmanship.

Do I need a professional installer?

While the installation is straightforward, consult a professional audio installer if you are unsure about removing interior panels or routing wires safely.

What is the difference between Clamp A and Clamp B?

Clamp A is used for tube diameters from 1.5" to 1.875", while Clamp B is used for diameters from 2" to 2.75". Different bushing sets are provided for each clamp.

Does the speaker come with all necessary mounting hardware?

Yes, the speaker includes the clamp assembly and bushing sets for various tube sizes. Refer to the manual for the specific bushing configuration based on your tube diameter.

Where can I find the full manual?

The full user manual is available for free download in PDF format at mbquart.com or through notice-facile.com.

What is the power handling of this speaker?

The manual does not specify power handling. For full specifications including RMS and peak power, visit the MB Quart website or contact customer support.

USER MANUAL NT2C-116B MB QUART

Technical line drawing of a mechanical device with internal gear-like structure (no text or symbols)

NT2C-116B

Congratulations on your choice of a MBQuart speaker. This “Quick Start” Installation guide is meant to help you complete a basic installation. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit our website at mbquart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many manufacturers locate speakers behind interior panels that require special tools to remove. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires only through safe areas. Do not let speaker wire make contact with metal edges or hot engine components.

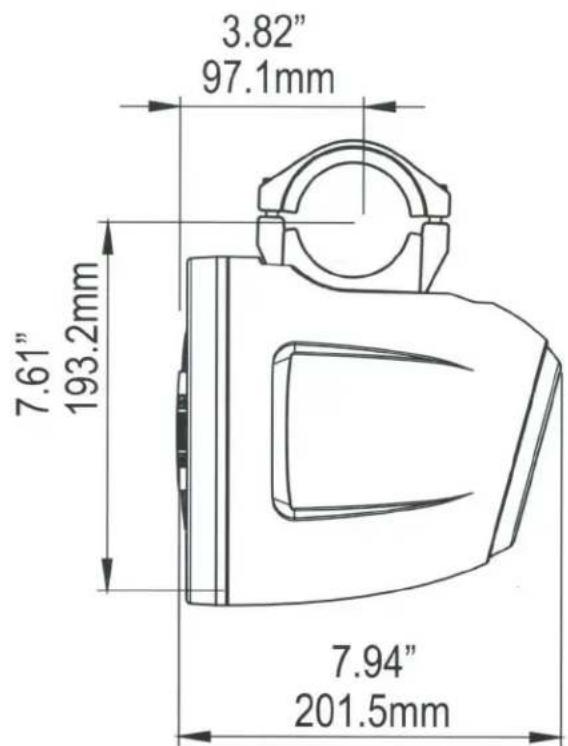

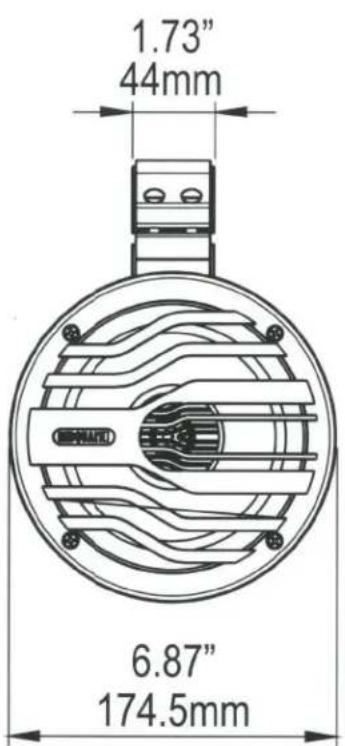

Dimensions

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your application. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional.

Mounting Location

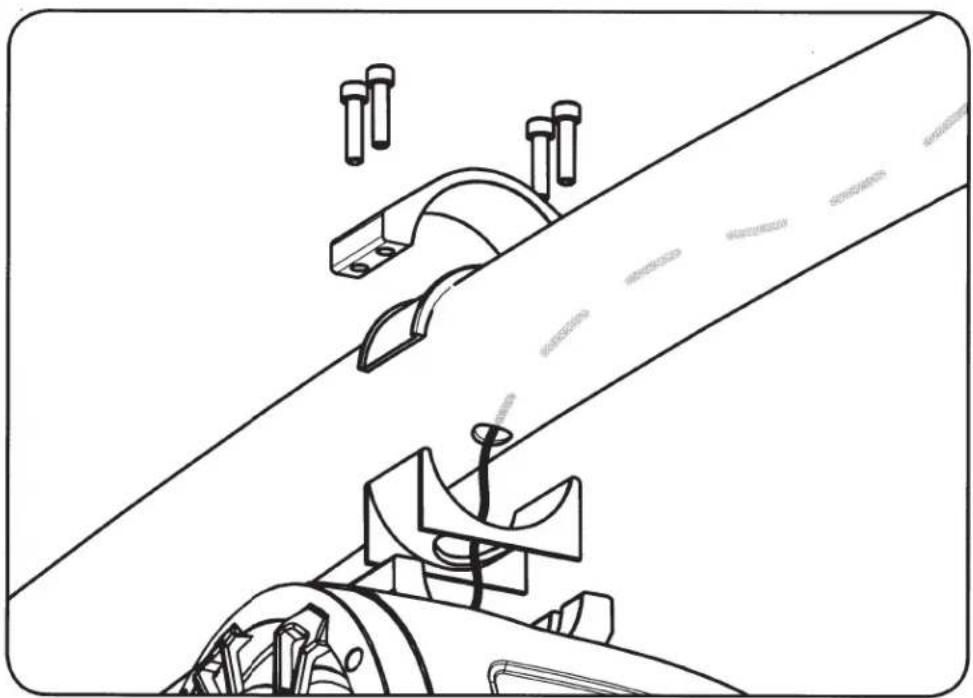

Choose a suitable mounting location

The NT2C clamping system is designed for towers and support structures that utilize ROUND tubing. Oval tubing and flat structures will not work with this clamp. The NT2C clamp can be used with tube diameters from 1.5" up to 2.75". Included are separate bushing sets for all tube sizes at 1/8" increments. Refer to the table below to determine your configuration.

Tube Diameter	Tube Circumference	Clamp	Top Bushing	Bottom Bushing
1.5	4.71	A	1.50	1.50
1.625	5.10	A	1.63	1.63
1.75	5.50	A	1.75	1.75
1.875	5.89	A	none	1.88
2	6.28	B	2.00	2.00
2.125	6.68	B	2.13	2.13
2.25	7.07	B	2.25	2.25
2.375	7.46	B	2.38	2.38
2.5	7.85	B	2.50	2.50
2.625	8.25	B	2.68	2.68
2.75	8.64	B	none	none

Technical line drawing of a mechanical assembly with clamps and brackets (no text or symbols)

Wiring

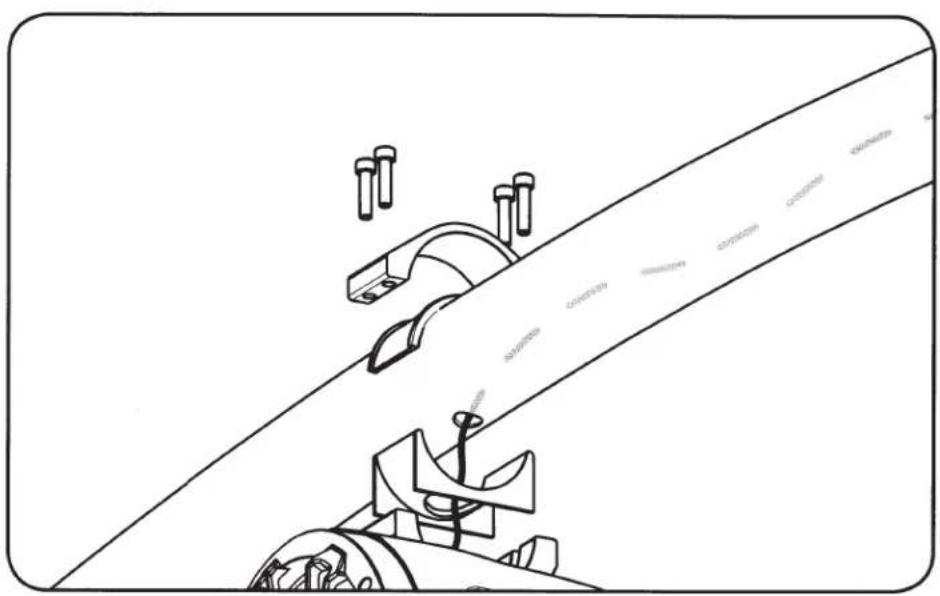

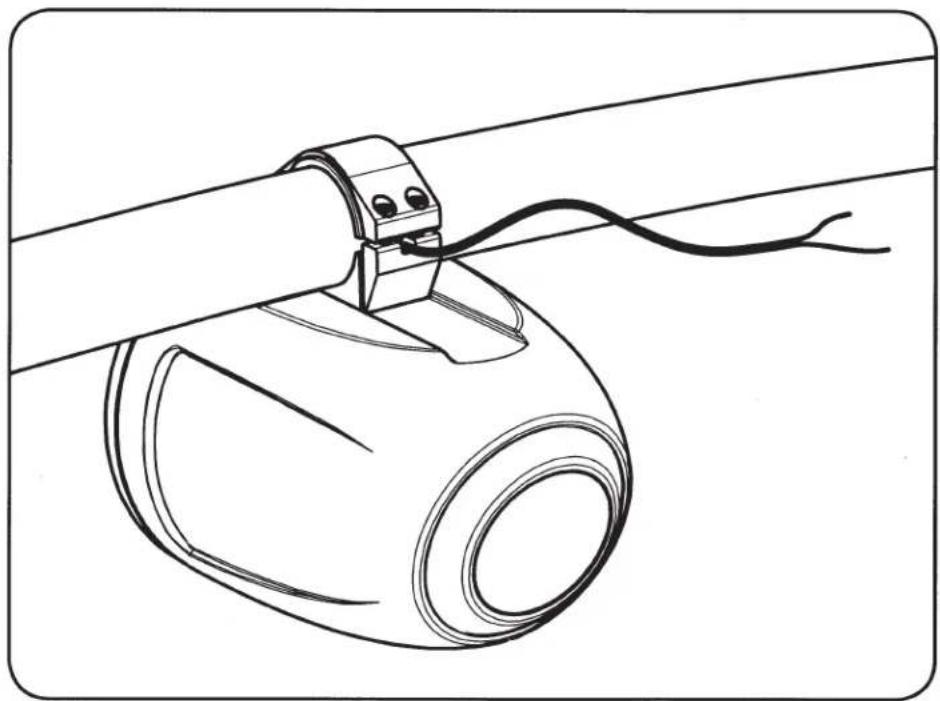

Route signal

Carefully select a route for the audio signal wires. If using existing speaker wires, confirm that the wire is in good shape and not shorted. Avoid routing wires through dangerous areas.

Black .... Audio signal negative Black w/white stripe .... Audio signal positive

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a cable being inserted into a device (no text or symbols)

Grill alignment

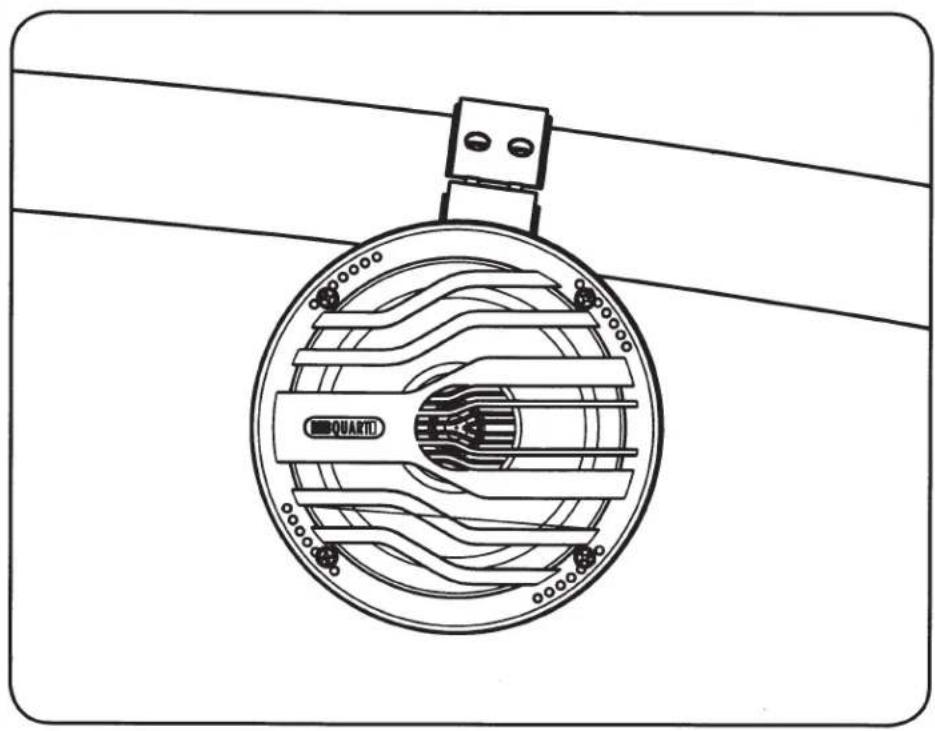

Adjust the speaker alignment

Your NT2C speakers can be aligned to "hang straight" on an angled tube by loosening, rotating and re-mounting the speaker. Just behind the speaker mounting holes is a series mounting holes that can be used to align the speaker in the pod.

Technical line drawing of a mechanical component with concentric grooves and mounting bracket (no text or symbols)

MBQuart.com #MUSIC DEFINED

WARRANTY

Maxxsonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxxsonics USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxxsonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The costs associated with removal, re-installation and freight are not the responsibility of Maxxsonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidental or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS®

Clamp A	Tube
CL188	CL175
CL268	CL213
CL250	CL200
CL238	CL163
CL225	CL150
