Product Type	USB-C to DVI Converter with Power Delivery Port
Brand	Manhattan
Model	153423
Part Number	153423
EAN/UPC	0766623153423 / 766623153423
Color	Black
Input Connector	USB Type-C (24-pin male)
Output Connector	DVI-I (29-pin female)
Power Delivery Port	USB-C PD, up to 60 W (20 V / 3 A)
Maximum Video Resolution	1920 x 1200 @ 60 Hz
Supported Resolutions	1080p, 720p, 1024x768, 800x600, 640x480
Standards	USB 3.2 Gen 1, DP 1.2 Alt Mode, PD 3.0, DVI, CE, FCC, RoHS2, WEEE
Compatibility	Thunderbolt 3, DisplayPort 1.2 Alt Mode, Plug and Play; Windows XP/Vista/7/8.1/10, Mac 9.x/10.x+, Android
Cable Length	19.5 cm (7.67 in)
Dimensions (W x H x D)	60 x 40 x 16 mm (2.36 x 1.57 x 0.63 in)
Weight	36.05 g (1.27 oz)
Housing Material	ABS plastic
Shielding	Fully shielded with Mylar and aluminum; molded PVC boot and strain relief
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Humidity (Noncondensing)	0 to 96%
Warranty	Lifetime
Package Contents	USB-C to DVI Converter, Quick Instruction Guide
Cleaning and Care	Wipe with a dry, soft cloth; avoid liquids and abrasive cleaners.
Safety Notes	Use only with compatible devices and power adapters; do not expose to moisture.

Frequently Asked Questions - 153423 MANHATTAN

What is the maximum resolution supported by the Manhattan 153423?

The converter supports up to 1920 x 1200 @ 60 Hz, including 1080p, 720p, and lower resolutions.

Does this converter support Power Delivery (PD) for charging?

Yes, it has a dedicated USB-C PD port that provides up to 60 W (20 V / 3 A) for charging connected devices when used with an external PD charger.

Is the converter compatible with Thunderbolt 3?

Yes, it is Thunderbolt 3 compatible and compliant with DisplayPort 1.2 Alternate Mode.

Which operating systems are supported?

It supports Windows XP/Vista/7/8.1/10, Mac 9.x/10.x or above, and Android.

What type of DVI connector does the output use?

The output is a DVI-I (29-pin female) connector, compatible with DVI-I and DVI-D interfaces.

Does the converter require an external power supply?

No, it is Plug and Play and requires no external power supply for video conversion. Power Delivery requires an external PD charger.

What is the cable length?

The integrated cable is 19.5 cm (7.67 in) long.

What materials is the converter made of?

The housing is ABS plastic with a fully shielded design including Mylar and aluminum shielding, and a molded PVC boot for strain relief.

What are the operating temperature ranges?

Operating temperature: 0 to 50°C (32 to 122°F); storage temperature: -40 to 85°C (-40 to 185°F).

What is included in the package?

The package includes the USB-C to DVI Converter with Power Delivery Port and a Quick Instruction Guide.

USER MANUAL 153423 MANHATTAN

Black USB drive adapter with DVA connector and USB cable (no text or symbols visible)

USB-C to DVI Converter with Power Delivery Port

Supports up to 1920x1200@60Hz Resolution, Power Delivery (PD) up to 60 W (20 V / 3 A), Black

Part No.: 153423

EAN-13: 0766623153423 | UPC: 766623153423

Our USB-C to DVI Converter with Power Delivery (PD) Port: high-resolution DVI from your device's USB-C port and power for all devices

The Manhattan USB-C to DVI Converter with PD Port makes it easy to show content from your USB-C device on an existing DVI display, monitor or projector. This converter is easy and quick to install — no settings or adjustments required. It is a compact yet powerful solution that helps avoid extra cables, tangles and clutter to keep workspaces neat and tidy.

USB-C Power Delivery

The included USB-C PD port gives up to 60 W (20 V / 3 A) to all devices in your setup. Connecting the upstream device's cable and power adapter supplies power to the upstream device and boosts the high-resolution signal for a high-quality picture. The PD function also provides faster charging than standard chargers since it finds out the power needs of compatible devices and supplies it at the quickest and safest rate.

Features:

• Supports 1080p@60Hz resolution (up to 1920 x 1200)

• Supports Power Delivery (PD) up to 60 W (20 V / 3 A)

- Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan

• Thunderbolt 3 compatible
- Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
- Plug and Play; requires no external power supply
- Compatible with DVI-I and DVI-D interfaces
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
- Lifetime warranty

Specifications:

Standards and Certifications

• USB 3.2 Gen 1
  • DP 1.2 Alternate Mode
• PD 3.0
  • DVI
  • CE
  • FCC
• RoHS2
  • WEEE

Connections

• USB type C, 24-pin, male
• DVI-I, 29-pin, female
• Power Delivery USB-C port

Video Resolutions

•1920x1200@60Hz
• 1080p
• 720p
- 1024x768
- 800x600
- 640x480

Physical

• 32-AWG cable gauge
- Mylar and aluminum shielding
• Thermal plastic casing
- Dimensions: 60 × 40 × 16 ~mm (2.36 x 1.57 x 0.63 in.)
• Cable length: 19.5 cm (7.67 in.)
• Weight: 36.05 g (1.27 oz.)
- Shielded
• Housing: ABS plastic

Operating Environment

• Operation Temperature: 0 - 50°C (32 - 122°F)
• Storage Temperature: -40 - 85°C (-40 - 185°F)
• Humidity (noncondensing): 0 - 96%

System Requirements

• Windows XP/Vista/7/8.1/10
• Mac 9.x/10.x or above
- Android

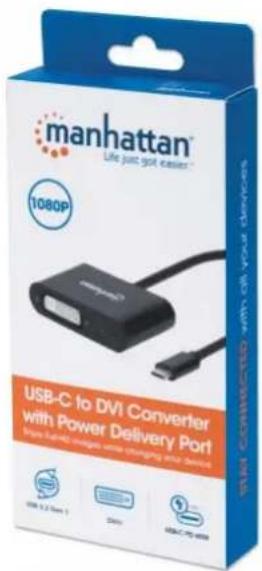

Package Contents

• USB-C to DVI Converter with Power Delivery Port
- Quick Instruction Guide

Four black electronic devices with connectors and labels: V2D/4.5, 1000/1000, 1000/1000, and Manhattan Ethernet cable (no visible text or symbols on devices)

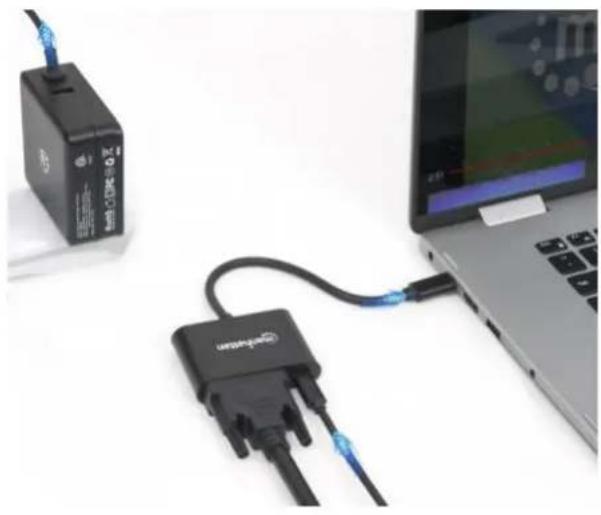

Laptop connected to a black USB device with blue cable, next to a small black device (no visible text or symbols)
