Product Type	USB-C to DisplayPort Converter with Power Delivery Port
Brand	Manhattan
Model	153447
Color	Black
Connector A	USB-C (24-pin male)
Connector B	DisplayPort (20-pin female)
Power Delivery Port	USB-C (requires external PD charger)
Max Resolution	4K @ 60Hz (DisplayPort 1.2)
Power Delivery Output	Up to 60W (20V / 3A)
Compatibility	Thunderbolt 3, DP Alt Mode, USB 3.2 Gen 1
Cable Length	19.5 cm (7.67 in)
Dimensions (L x W x H)	60 x 40 x 16 mm (2.36 x 1.57 x 0.63 in)
Weight	31.76 g (1.12 oz)
Housing Material	ABS plastic
Shielding	Mylar and aluminum foil, fully shielded
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Humidity	0 to 96% (non-condensing)
System Requirements	Windows XP/Vista/7/8.1/10, Mac 9.x/10.x+, Android
Certifications	CE, FCC, RoHS2, WEEE
Warranty	Lifetime
Plug and Play	Yes, no external power supply required for conversion
Package Contents	Converter, instructions
Care Instructions	Keep dry, avoid extreme temperatures, clean with a soft cloth

Frequently Asked Questions - 153447 MANHATTAN

What is the maximum resolution supported by the Manhattan 153447 converter?

The converter supports resolutions up to 4K@60Hz following DisplayPort 1.2 standards.

Does this converter support Power Delivery?

Yes, it supports Power Delivery up to 60W (20V / 3A) via the integrated USB-C PD port. Note: an external PD charger is required.

Is the Manhattan 153447 compatible with Thunderbolt 3?

Yes, it is Thunderbolt 3 compatible and compliant with DisplayPort 1.2 Alternate Mode.

Do I need to install drivers or software?

No, the converter is plug and play and requires no drivers or settings adjustments.

What is the cable length of this converter?

The cable length is 19.5 cm (7.67 inches).

What are the dimensions and weight of the device?

Dimensions: 60 x 40 x 16 mm (2.36 x 1.57 x 0.63 in). Weight: 31.76 g (1.12 oz).

Which operating systems are supported?

It supports Windows XP/Vista/7/8.1/10, Mac 9.x/10.x or above, and Android.

Does the converter work with audio?

The manual does not specify audio; DisplayPort can carry audio, but this feature is not guaranteed. For video only, it supports up to 4K@60Hz.

What is the warranty period?

Manhattan offers a lifetime warranty on this converter.

How should I clean and maintain the converter?

Clean with a soft, dry cloth. Avoid moisture and extreme temperatures. Store in a cool, dry place.

USER MANUAL 153447 MANHATTAN

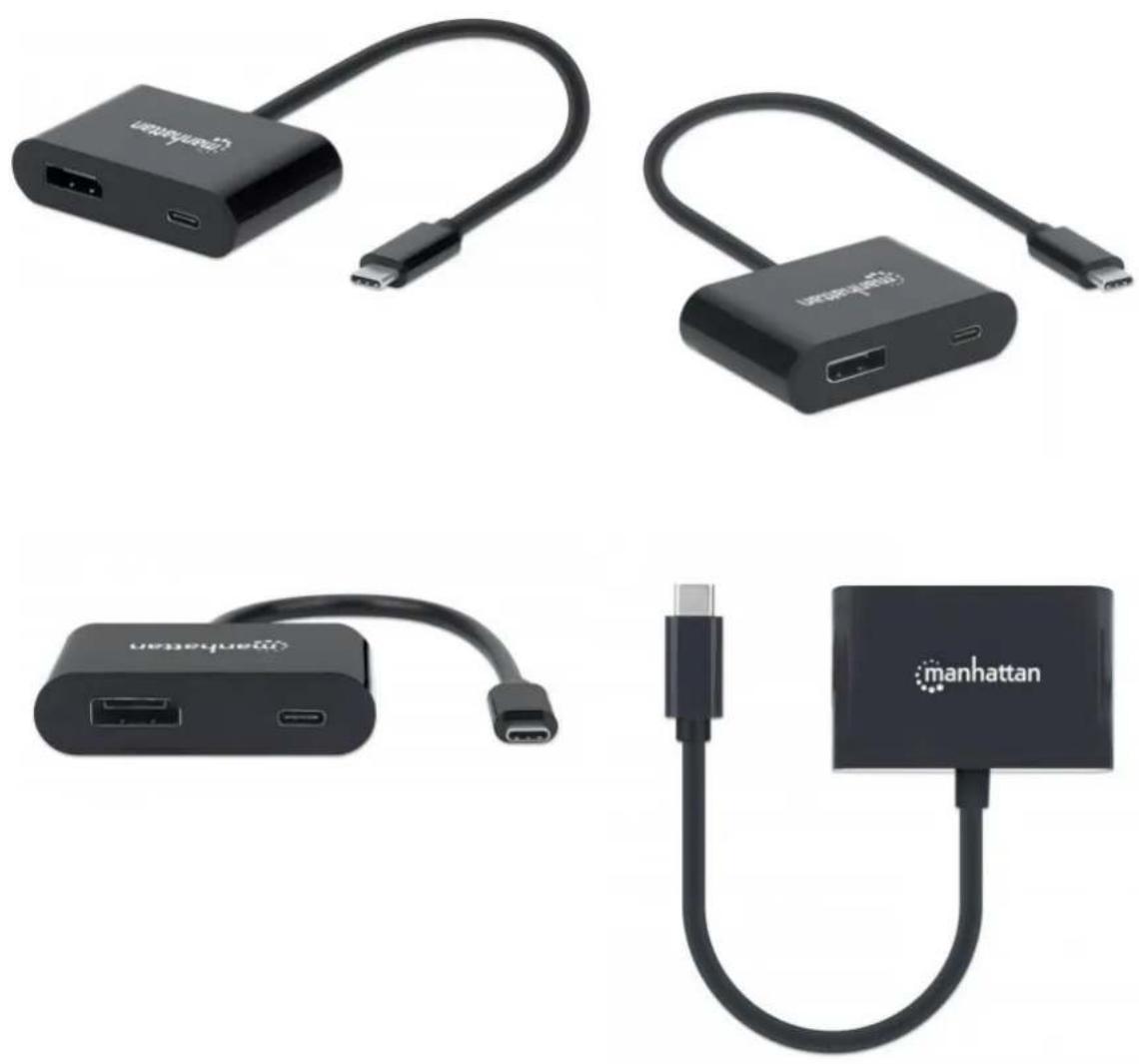

Black USB device with connector and port, no visible text or symbols on body

USB-C to DisplayPort Converter with Power Delivery Port

4K@60Hz Resolution, Power Delivery up to 60 W (20 V / 3 A), Black Part No.: 153447

EAN-13: 0766623153447 | UPC: 766623153447

Our USB-C to DisplayPort Converter with Power Delivery (PD) Port: 4K DisplayPort signal from your device's USB-C port and power for all devices

The Manhattan USB-C to DisplayPort Converter with PD Port makes it easy to show content from your USB-C device on an existing DisplayPort display, monitor or projector. This converter is easy and quick to install — no settings or adjustments required. It is a compact yet powerful solution that helps avoid extra cables, tangles and clutter to keep workspaces neat and tidy.

USB-C Power Delivery

The included USB-C PD port gives up to 60 W (20 V / 3 A) to all devices in your setup. Connecting the upstream device's cable and power adapter supplies power to the upstream device and boosts the 4K signal for a high-quality picture. The PD function also provides faster charging than standard chargers since it finds out the power needs of compatible devices and supplies it at the quickest and safest rate.

Features:

• Supports resolutions up to 4K@60Hz following DisplayPort 1.2 standards
• Supports Power Delivery (PD) up to 60 W (20 V / 3 A)
- Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan

• Thunderbolt 3 compatible
- Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
- Plug and play; requires no external power supply
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime warranty

Specifications:

Standards and Certifications

• USB 3.2 Gen 1
  • DP 1.2 Alternate Mode
• PD 3.0
• DisplayPort 1.2
• HDCP 2.2
  • CE
  • FCC
• RoHS2
  • WEEE

Connections

• USB type C, 24-pin, male
- DisplayPort, 20-pin, female
• Power Delivery USB-C port

Video Resolutions

• 4K@60Hz
• 4K@30Hz
• 2560 × 1600
• 2048 × 1280
• 1920 × 1200
  • 1080p
  • 720p
• 1024 × 768
• 800 × 600
• 640 × 480

Physical

• 32-AWG cable gauge
- Mylar and aluminum shielding
• Thermal plastic casing
- Dimensions: 60 × 40 × 16 ~mm (2.36 x 1.57 x 0.63 in.)
• Cable length: 19.5 cm (7.67 in.)
• Weight: 31.76 g (1.12 oz.)
- Shielded
• Housing: ABS plastic

Operating Environment

• Operation Temperature: 0 - 50°C (32 - 122°F)
• Storage Temperature: -40 - 85°C (-40 - 185°F)
• Humidity (noncondensing): 0 - 96%

System Requirements

• Windows XP/Vista/7/8.1/10
• Mac 9.x/10.x or above
- Android

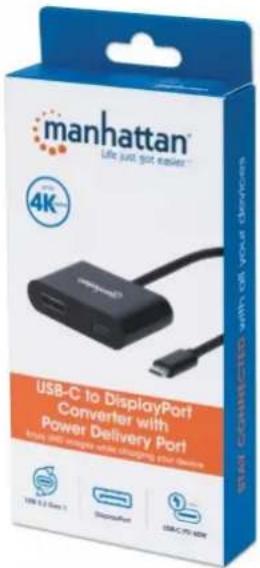

Package Contents

• USB-C to DisplayPort Converter with Power Delivery Port
- Instructions
