SP20150BLN - Kitchen Appliances SWAN - Free user manual and instructions

Product Type	Electric Kettle
Brand	Swan
Model	SP20150BLN
Capacity	1.5 L
Power	2200 W
Voltage	220-240 V, 50/60 Hz
Material	Stainless steel
Base Type	360° cordless
Color	Blue
Dimensions (approx.)	230 x 190 x 250 mm
Weight (approx.)	1.2 kg
Filter	Removable scale filter
Auto Shut-off	Yes
Boil-Dry Protection	Yes
Water Level Indicator	Yes
Lid Opening	One-button push-open
Maintenance	Descale regularly with vinegar or citric acid
Cleaning	Wipe exterior with damp cloth; do not immerse in water
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts	Available from Swan customer service
Repairability	User-serviceable only for scale filter; other repairs by authorized service

Frequently Asked Questions - SP20150BLN SWAN

How do I descale the kettle?

Fill the kettle with equal parts water and white vinegar or use citric acid. Boil, let sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

Can I use the kettle to boil milk?

No, boiling milk can cause burning and damage to the heating element. The kettle is designed for water only.

What is the maximum water level?

Do not fill above the MAX line indicated inside the kettle. Overfilling may cause water to spill out during boiling.

Is the kettle safe to leave unattended?

Yes, the kettle has auto shut-off and boil-dry protection. However, always use with caution and not with children nearby.

How do I clean the filter?

Remove the scale filter from the spout and rinse it under running water. Use a soft brush to remove stubborn deposits. Reattach when dry.

Why does my kettle turn off before boiling?

This may be due to scale buildup on the heating element. Descale the kettle following the instructions. Also, ensure the lid is closed properly.

Can I use the kettle with an extension cord?

It is not recommended. Use the kettle directly into a wall outlet. If necessary, use a heavy-duty extension cord rated for the kettle's wattage.

What does the blue light indicator mean?

The blue LED indicates the kettle is powered on and heating. It may stay on during boiling and turn off when the water is ready.

How do I store the kettle?

Empty the kettle, dry it thoroughly, and store it on its base in a dry place. Avoid winding the cord tightly around the base.

Is the kettle BPA-free?

Yes, all parts that come into contact with water are BPA-free and safe for daily use.

USER MANUAL SP20150BLN SWAN

Swan Retro designed for life

designed for life

Exterior view of a beige electric shaver with a transparent handle and metallic buttons (no text or symbols visible)

5 Speed Hand Mixer

Model: SP20150 [all colours]

Helpline: 01733 404703

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
• Never immerse the unit in water or any other liquid for cleaning purposes.
• Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid

2

Swan

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.

• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Do not touch moving parts with fingers or any utensil during operation!

TECHNICAL DATA

Description: Retro 5 Speed Hand Mixer

Model: SP20150 (all colours). Input Voltage: 220-240V

Frequency: 50/60Hz. Power consumption: 350 Watts

Swan

3

HOW TO USE

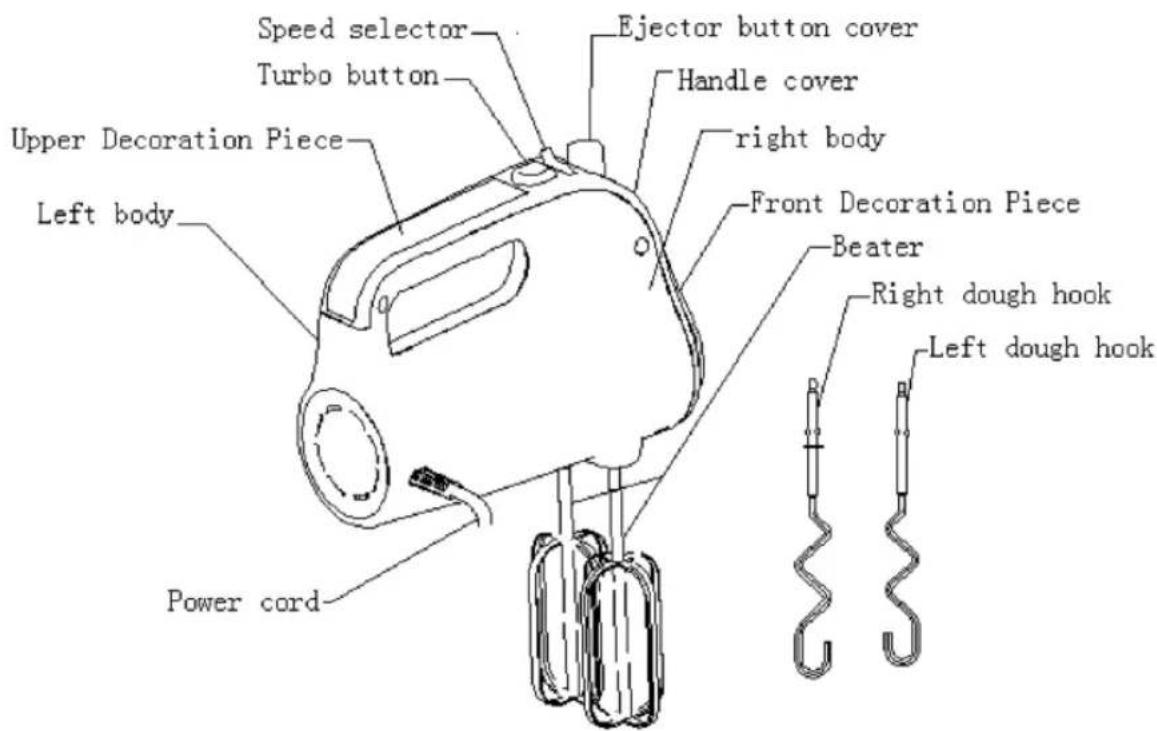

GETTING TO KNOW YOUR MIXER

Speed selector Turbo button Ejector button cover Handle cover upper Decoration Piece left body front Decoration Piece Beater Right dough hook Left dough hook Power cord

BEFORE USE

Remove all packaging. Wash the dough hooks and beaters in warm, soapy water. Rinse and dry thoroughly.

• Before assembling the mixer, be sure that the power cord is unplugged and switch is in the OFF position
  • The beaters are for mixing egg white or other liquid
  • The dough hooks are for kneading dough etc
• The dough hooks are NOT identical. There is a left and right one and they can only be inserted one way round. The dough hook with the washer goes into the larger socket
• Turn the speed selector to one of the 5 settings. Pressing the TURBO button will increase speed by about 10%
• MAX operation time is 5 minutes. This should be more than enough for most operations. After 5 minutes running the unit should be rested for 20 minutes to cool.
• Warning: Do not put fingers or any utensil near the dough hooks or beaters during operation

4

HOW TO USE

• When mixing is complete, turn the speed selector to the OFF position and unplug the power cord from the outlet
• AFTER unplugging, you can clean any excess food from beater or dough hook using a wooden spoon or plastic utensil
• Hold the beaters firmly with one hand and press the EJECT button on top of the unit to release them

TIPS

• For refrigerated ingredients, it is usually best to allow them to come to room temperature before mixing
  • We recommend eggs are broken into separate container before adding to mixture to prevent contamination by egg shells etc
• Use lower speed when blending different ingredients. Eg. folding in dry ingredients
  • For egg whites etc, start at lower speed then build up to fastest

CLEANING

• Disconnect from mains power supply before cleaning.
• Do not submerge the appliance in water. This may lead to electric shock or fire.
• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.
• Motor housing: Clean the housing only with a damp cloth and a squirt of washing-up liquid.
• Mixing attachments are suitable for dishwasher, or you can clean them in soapy water.
  • Always rinse and dry thoroughly before storing with mixer

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s):

• 2004/108/EEC The EMC Directive (the Electromagnetic Compatibility Directive).
• 2006/95/EC. The LVD Directive (Low Voltage Directive).
• 2011/65/EU. The RoHS directive (Restriction of Hazardous Substances Directive)
• EC 1935/2004 Food Contact
• 2009/125/EC Eco Design Directive

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
- Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items

purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

PARTS ORDERING

When ordering spare parts, use the references below:

SP20150-01 Dough hook set

SP20150-02 Whisk/beater set

Stylized white and gray swan logo design on black background (no text or symbols)

www.swan-brand.co.uk

Scan this QR code to hear about our story

We love what we do

we're proud of our quality

Find us on Facebook

* on selected products

Copyright © Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
