Product Type	Fridge Freezer
Model	TB090FF
Brand	Tricity Bendix
Height (mm)	1580
Width (mm)	600
Depth (mm)	600
Weight (kg)	58
Net Capacity Fridge (L)	192
Net Capacity Freezer (L)	51
Energy Consumption (kWh/year)	438
Energy Class	C
Freezing Capacity (kg/24h)	12
Rising Time (h)	17
Rated Power (W)	130
Power Supply	230 V, 13 A fuse (BS 1362)
Climate Class	N (16-32°C)
Thermostat Control	Settings 1-5 (0=Off, 5=Coldest)
Low Ambient Temperature Switch	Switch on when room temp < 16°C
Defrosting System	Automatic in refrigerator, manual in freezer
Light Bulb	230 V, 15 W, E14 thread
Door Reversal	Possible (instructions provided)
Safety Features	Child lock not mentioned; safety warnings for flammables, frostbite

Frequently Asked Questions - TB090FF Tricity Bendix

How do I adjust the temperature on my Tricity Bendix TB090FF?

The thermostat control is located in the control panel and marked from 1 to 5. A setting of 3-4 is usually suitable for normal operation. The higher the number, the colder the setting. Position '0' turns the appliance off.

What should I do if the freezer is not cold enough?

Check that the thermostat is set correctly, the door is not left open, and the air ventilation is not obstructed. Also ensure the ambient temperature is within 16-32°C. If the room temperature is below 16°C, enable the low ambient temperature switch.

How often should I defrost the freezer?

The freezer should be defrosted when the frost layer reaches about 4 mm (1/4 inch). For complete defrosting, do it once or twice a year when the appliance is empty.

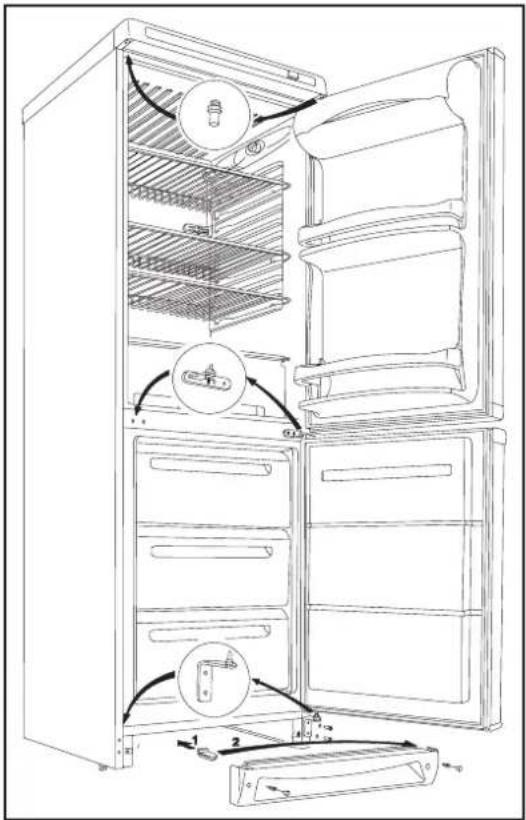

Can I reverse the door on my TB090FF?

Yes, the door can be reversed. Follow the detailed instructions in the manual: disconnect power, lay the appliance on its back, remove grille and hinges, swap door to opposite side, and reassemble. Ensure the door gasket seals properly after reversal.

What type of light bulb does the fridge use?

The refrigerator uses a 230 V, 15 W bulb with an E14 thread. Spare bulbs are available from your local Tricity Bendix Service Force Centre.

Why is my appliance making unusual noises?

Normal sounds include gurgling (refrigerant flow), whirring (compressor), and a click (thermostat switching). If the noise is excessive, check that the appliance is level on the floor. Adjust the front feet if needed.

How do I clean the interior and exterior?

For interior cleaning, use warm water and bicarbonate of soda (5 ml to 0.5 litre of water). Never use detergents, abrasive powders, or perfumed products. For the exterior, wash with warm soapy water. Dust the condenser and compressor at the back once or twice a year.

What should I do during a power failure?

Keep the door closed. If the power is off for a short time, food in the freezer will remain frozen. If food begins to thaw, consume it quickly and do not refreeze. Refer to the manual's guidelines for specific food types.

Can I store carbonated drinks in the freezer?

No, do not place carbonated or fizzy drinks in the freezer compartment as they can burst when the contents freeze. Also avoid storing containers with flammable gases or liquids.

What is the recommended storage time for frozen food?

Always adhere to the manufacturer's recommended storage times on the packaging. The manual provides a storage chart for various foods. Lean food keeps better than fatty food, and salt reduces storage time. Wrap food airtight to maintain quality.

USER MANUAL TB090FF Tricity Bendix

Abstract gray graphic with a stylized white 'i' and dot, no text or symbols present

FRIDGE FREEZER

TB 090 FF / TB 116 FF

This instruction book contains safety precautions, information on use and helpful hints and tips.

To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

- Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

• Do not allow children to tamper with the controls or play with the product.
• There is a risk of suffocation! Keep packaging material away from children!

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.
• Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the appliance.
• Frozen food should not be refrozen once it has thawed out.

• Do not place carbonated or fizzy drinks in the freezer compartment.

• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

• Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Bottles and cans must not be placed in the freezer compartment they can burst when the contents freeze.
• Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.

Maintenance and Cleaning

• Before cleaning, always switch off the appliance and disconnect from the electrical supply.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

• This product should be serviced by an authorised engineer and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

• When disposing of your appliance use an authorised disposal site.
• Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

The Appliance and the Environment

This appliance does not contain gasses which could damage the ozone layer.

Avoid damaging the cooling unit.

The packaging used on this appliance marked with the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

CONTENTS

Instructions for the User

Important Safety Instructions 3

General information 5

Description of the appliance, main parts 5

Using the Appliance 6

Before Use 6

To Start the Appliance 6

Temperature Control 6

Low Ambient Temperature Switch 7

The Refrigerator 7

Storage Shelves 7

Storage Times 7

The Freezer 8

Freezing Fresh Food 8

Frozen Food Storage 8

Thawing 9

To Make Ice Cubes 9

Hints and Tips 9

Normal Operating Sounds 9

Food Storage 9

Energy Saving Advice 9

In the Event of a Power Failure 10

Maintenance and Cleaning 10

Internal Cleaning 10

External Cleaning 10

When the Appliance is not in Use 10

Defrosting 10

Refrigerator 10

Freezer 11

To Change the Light Bulb 11

Something not Working 12

Service and Spare Parts 12

Customer Care Department 12

Service Force 13

Guarantee Conditions 15

Instructions for the Installer

Technical data 16

Installing the Appliance 16

Transportation, unpacking 16

Cleaning 16

Location 16

Leveling the Appliance 17

Ventillation requirements 17

Door Reversal 18

Electrical Connections 19

Storage Chart 20

INSTRUCTIONS FOR THE USER

General information

This appliance is designed for the storage of refrigerated and frozen food in a domestic environment.

To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.

Description of the appliance, main parts

A - Refrigerator

B - Freezer

1. Control Panel
2. Thermostat Control/Light
3. Wire shelves
4. Defrost water drain
5. Glass shelf
6. Salad drawers
7. Rating Plate
8. Freezing compartment
9. Frozen food storage compartments
10. Defrost water outlet

11. Bottom Plinth

12. Adjustable feet

13. Dairy compartment
14. Egg tray
15. Door shelf
16. Door gasket
17. Bottle shelf
18. Ice tray
19. Condenser
20. Defrost water outlet tube
21. Spacer
22. Evaporator tray
23. Compressor
24. Rollers

Using the Appliance

This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs.

The appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16 °C and 32 °C.

If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18 °C and food spoilage may occur.

Before Use

Remove all packaging and securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after installation.
2. Plug in the appliance and switch on at the mains supply.
3. Turn the thermostat control to the required setting. A setting of 3 - 4 is usually suitable for normal operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside.

Temperature Control

The thermostat control situated in the control panel regulates the temperature both within the fridge and freezer compartments. The thermostat control is marked from 1-5, the higher the number, the colder the setting.

Position „0” - Off

Position 1 - Cold

Position 5 - Coldest

The temperature will be affected by:

• Ambient temperature
  • How often the door is opened
  • How much food is stored
• Position of the appliance

Simple line drawing of a mechanical component with a circular dial and arrow indicating rotation (no text or symbols)

In determining the correct temperature control setting, all these factors have to be considered and some experimentation may be necessary.

Do not allow children to tamper with the controls or play with the product.

Low Ambient Temperature Switch

The low ambient temperature switch, situated on the right hand side of the panel at the top of the appliance, should be switched on when the room temperature falls below 16 °C.

When the room temperature rises above 16 °C switch off, by releasing the switch. No damage can be caused by leaving the switch in this position for a period of time.

The Refrigerator

Below is the recommended storage positions for various food types:

1. Ready-cooked foods, fresh meat, cold cuts.
2. Milk, dairy products.
3. Fruits, vegetables, salads.
4. Cheese, butter.
5. Eggs.
6. Yoghurt, sour cream.
7. Small bottles, drinks.
8. Large bottles, drinks.

Storage Shelves

The shelves in the refrigerator compartment are adjustable to allow for the storage of large items.

To re-arrange the shelves, open the door to 90°.

Storage Times

The storage charts at the end of the instruction book give information on storage times in the freezer and refrigerator compartments. The storage times quoted are intended as a guide only.

• Do not cover the shelves with paper or trays etc. as this will affect the air circulation within the refrigerator compartment.
• Do not put hot foods in the refrigerator, allow hot foods to reach room temperature naturally before placing in the refrigerator.
• Cover foods, or place in closed dishes before placing them in the refrigerator, this prevents any transference of food smells.

Line drawing of a door frame with an arrow pointing to the top panel (no text or symbols)

The Freezer

When freezing fresh food always place the food in the freezing compartment which is the top drawer in the freezer section.

1. Turn the thermostat control to 5 (max).
2. Place the food to be frozen in the top drawer.
3. After 24 hours reset the thermostat control to its normal setting and place the frozen food into the storage compartments.

Frozen Food Storage

When first starting the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least 2 hours before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Do not open the door frequently or leave it open longer than is necessary.

Important

Do not put carbonated liquids in the freezer.

Ice lollies, if consumed immediately after removal from the freezer can cause a low temperature skin burn.

In the event of a power cut the food in the freezer will not be affected if the power cut is short and the freezer is full. Do not open the door. Should the food begin to thaw it must be consumed quickly and must not be re-frozen. (See Hints and Tips)

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in the fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

To-Make Ice Cubes

1. Fill the ice cube tray 34 full with cold water, place in the freezing compartment and leave to freeze.
2. To remove the cubes twist the tray or hold it under running water for a few seconds.

Never try to free an ice tray that is frozen to the freezer compartment by using pointed rp edged objects.

i Hints & Tips

Normal Operating Sounds

• You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing.
• When the compressor is on, the refrigerant is being pumped round and you will hear a whirring sound or pulsating noise from the compressor.
• A thermostat controls the compressor and you will hear a faint 'click' when the thermostat cuts in and out.

Food Storage

To obtain the best performance from your freezer:

• Do not store warm food or evaporating liquid.
• Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.
• Do not push food together too much, try to allow air to circulate around each item.
• Do not store food uncovered.
• Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
• Lean food keeps better and longer than fatty food, salt reduces the storage time.
• Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.
• Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.

Energy Saving Advice

- Do not install the appliance close to sources of heat, such as a boiler or radiator.

• Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.
• Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.
• Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.
• Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• Ensure there are no obstructions preventing the door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:

Ice Cream: Once thawed should be discarded.

Fruits & Vegetables: If soft should be cooked and used up.

Breads & Cakes: Can be refrozen without danger.

Shellfish: Should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat: Can be refrozen providing there are still ice crystals remaining within them.

Small Joints: Should be cooked and can then be refrozen as cooked dishes.

Chicken: Should also be cooked and refrozen as a fresh dish.

Maintenance and Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.

Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

External Cleaning

Wash the outer cabinet with warm soapy water.

Once or twice a year dust the condenser (black grille) and the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

When the Appliance is not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells.

Defrosting

Refrigerator

The refrigerator defrosts every time the compressor stops. The water is discharged, via the pipe, into a tray located at the back of the appliance above the compressor, where it evaporates.

Important

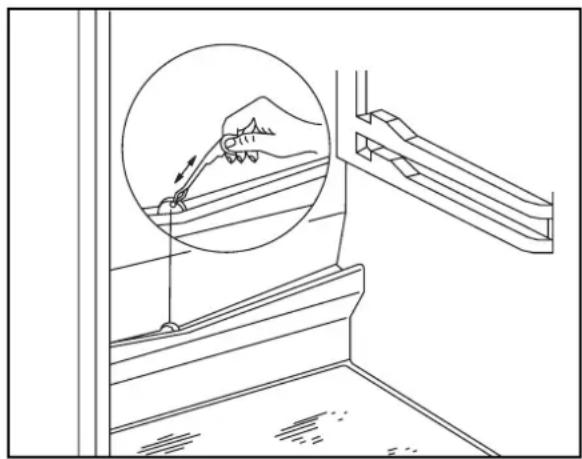

To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment, behind the salad drawers. Use the defrost cleaner provided which you will find already inserted into the discharge hole.

Remember to wash to defrost cleaner in hot soapy water at regular intervals. Dry thoroughly before replacing.

Technical line drawing showing a hand holding a tool near a bracket, with an inset circular diagram highlighting the process (no text or symbols present)

Freezer

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost reaches 14 .

During this operation it is not necessary to switch of the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

For complete defrosting (once or twice a year) proceed as follows:

1 Turn the thermostat dial to the "OFF" position (O) or disconnect the appliance from the mains.
2 Remove any food from inside the freezer and fridge; wrap it in several sheets of newspaper and store in a cool, dry place.
3 When defrosting is complete, dry the interior thorough.
4 Reconnect the appliance to the mains or reset the thermostat to 5 (coldest) and leave to run for at least four hours.
5 Replace the previously removed food.
6 Return the thermostat to the normal position.

Important

A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

Change the Light Bulb

1. Disconnect the appliance from the electrical supply or turn the thermostat to '0'.
2. Take the lamp cover off in the direction of the arrow and change the bulb. (Type of bulb: 230 V, 15 W, E 14 thread)
3. Replace the lamp cover and fixing screw.
   Spare bulbs are available from your local Tricity Bendix Service Force Centre.

Something Not Working

If the appliance is not working correctly, please carry out the following checks before contacting your local Tricity Bendix Service Force Centre.

Problem	Possible Cause	Solution
No power to the appliance	No power at the socket.There is a power cut.The fuse has blown.Thermostat control is set at „0”.	Check there is power at the socket.Check there is not a power cut by checking the household lights.Check the fuse has not blown.Check the thermostat setting.
The temperature in the appliance is too high	The appliance is located in an unsuitable position.The thermostat control is set too low.	Check the ambient temperature is within the appliances operating limits of 16 °C to 32 °C.Check that the thermostat control knob is turned to the correct setting relative to ambient conditions.
The compressor runs continuously	The thermostat is set at the wrong temperature.The door is open.Large quantities of food have been placed in the cabinet.The door has been opened too frequently.The air ventilation is obstructed.	Adjust the thermostat control knob.Close the door.Check that the air ventilation is not obstructed.
The temperature in the appliance is too low	The thermostat control is set too cold.	Set the thermostat control knob to a warmer position.
Excessive frost and ice has built up	The door has been left open.Something is obstructing the door.The door gasket is dirty.	Check the door has not been left open.Check nothing is preventing the door from closing.Check the door gasket is intact and clean.
The appliance is noisy.	The appliance is not level.	Check if the appliance stands stable on the floor.

If after the above checks your appliance still does not operate correctly, contact your local Tricity Bendix Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:

0870 5 929929

Your call be routed the Service Force Centre covering your post code area.

Customer Care Department

For general enquiries concerning your Tricity Bendix appliance or for further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows:

Customer Care Department

Tricity Bendix

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel: [phone] calls to this number may be recorded for training purposes.

To contact your local Tricity Bendix Service Centre telephone [phone]

CHANNEL ISLANDS		ORKNEY(M65)	Corsie Domestics7 King StreetKirkwallOrkney KW15	NORTH EAST
GUERNSEY	Guernsey ElectricityPO Box 4Vale, GuernseyChannel Islands			GATESHEAD(M39)	Unit 356aDukesway CourtDukeswayTeam ValleyGateshead NE11 0BH
		PERTH	Hydro ElectricalInveralmond HouseRuthervenfield RoadPerth PH1 3AQ
JERSEY	Jersey Electricity CompanyPO Box 45Queens RoadSt HelierJerseyChannel Islands JE4 8NY			GRIMSBY(M42)	15 Hainton AvenueGrimsbySouth HumbersideDN32 9AS
		PERTH(OWN SALES)	Graham BeggUnit 4Airport Ind EstateWick KW1 4QS
SCOTLAND		SHETLAND(OWN SALES)	Tait Electronic Systems LtdHolmsgarth RoadLerwickShetland ZE1 0PW	HULL(M41)	Unit 1Boulevard Industrial EstateHullHU3 4AY
ABERDEEN(M05)	54 Claremont StreetAberdeen AB10 6RA			LEEDS(M37)	64-66 Cross Gates RoadLeedsLS15 7NN
AUCHTERMUCHY(M03)	33a BurnsideAuchtermuchyFife KY14 7AJ			NEWTON AYCLIFFE(M45)	Unit 16Gurney WayAycliffe Industrial EstateNewton AycliffeDL5 6UJ
BLANTYRE(M07)	Unit 5Block 2Auchenraith Ind. EstateRosendale WayBlantyre G72 0NJ			SHEFFIELD(M38)	Pennine HouseRoman Ridge Ind.Roman Ridge RoadSheffield S9 1GB
DUMFRIES(M01)	93 Irish StreetDumfriesScotland DG1 2 PQ	NORTHERN IRELAND		NORTH WEST
		BELFAST(M27)	Owenmore HouseKilwee Business ParkUpper Dunmury LaneBelfastBT17 0HD	BIRKENHEAD(M11)	1 Kelvin ParkDock RoadBirkenheadL41 1LT
DUNOON(M67)	Brair Hill7 Hill StreetDunoonArgyll PA23 7AL			CARLISLE(M10)	Unit 7James Street WorkshopsJames StreetCarlisleCumbria CA2 5AH
GLASGOW(M04)	20 Cunningham RoadClyde EstateRutherglenGlasgow G73 1PP	WALES
		CARDIFF(M28)	Guardian Industrial EstateClydesmuir RoadTremorfaCardiffCF2 2QS
INVERNESS(M06)	Unit 3BSmithton Ind. EstateSmithtonInverness IV1 AJ			ISLE OF MAN(M64)	South Quay Ind. EstateDouglasIsle of ManIM1 5AT
ISLE OF ARRAN(OWN SALES)	Arran DomesticsUnit 4 The Douglas CentreBrodickIsle of Arran KA27 8AJ			LIVERPOOL(M15)	Unit 1Honeys Green PrecinctHoneys Green LaneLiverpoolL12 9JH
ISLE OF BARRA(OWN SALES)	J Zerfah244 BruernishIsle of BarraWestern Islands HS9 5QY	DYFED(M77)	Maes Y CoedHigh MeadLlanybydderCarmarthenshireSA40 9UL
ISLES OF BUTE	Walker EngineeringGlenmhorUpper Serpentine RoadRothesayIsle of Bute PA20 9EH			MANCHESTER(M09)	Unit BCentral Industrial EstateSt Marks StreetBoltonBL3 6NR
		HAVERFORDWEST(M75)	Cromlech LodgeAmblestonHaverfordwestPembrokeshireSA62 5DS
ISLE OF LEWIS	ND Macleod16 James StreetStornowayIsle of Lewis PA87 2QW			PRESTON(M13)	Unit 250Dawson PlaceWalton SummitBamber BridgePrestonLancashire PR5 8AL
KELSO(M08)	2-8 Wood MarketKelsoBorders TD5 7AX		OSWESTRY(M17)Plas FfynnonWarehouseMiddleton RoadOswestrySY11 2PP	STOCKPORT(M16)	Unit 20 Haigh ParkHaigh AvenueStockportSK4 1QR

To contact your local Tricity Bendix Service Centre telephone [phone]

MIDLANDS		LONDON & EAST ANGLIA		SUNBURY(M63)	Unit 1aThe SummitHanworth RoadHanworth Ind. EstateSunbury on ThamesTW16 5D
BIRMINGHAM(M18)	66 Birch Road EastWyrley Road Ind. EstateWittonBirminghamB6 6DB	BECKENHAM(M79)	11a Gardener Ind. EstateKent House LaneBeckenhamKent BR3 1QZ
BOURNE(M44)	Manning Road Ind. EstatePinfold RoadBournePE10 9HT	CHELMSFORD(M47)	Hanbury RoadWidford Ind. EstateChelmsfordEssexCM12 3AE	SOUTH EASTASHFORD(M58)	Unit 2Bridge Road Business Est.Bridge RoadAshfordKent TN2 1BB
BRIDGNORTH(M72)	68 St. Mary's StreetBridgnorthShropshireWV16 4DR	COLINDALE(M53)	Unit 14Capitol ParkCapitol WayColindaleLondon NW9 0EQ
GLOUCESTER(M23)	101 Rycroft StreetGloucesterGL1 4NB	ELTHAM(M78)	194 Court RoadMottinghamElthamLondon SE9 4EW	FLEET(M59)	Unit 1Redsfield Ind. EstateChurch CrookhamFleetHampshire GU13 0RD
HEREFORD(M31)	Unit 3Bank BuildingsCattle marketHarefordHE4 9HX	ENFIELD(M49)	284 Alma RoadEnfieldLondonEN3 7BB	HAYWARDSHEATH(M55)	21-25 Bridge RoadHaywards HeathSussex RH16 1UA
HIGHAM FERRERS(M51)	30 High StreetHigham FerrersNorthantsNN10 8BB	GRAVESEND(M57)	Unit B4Imperial Business EstateGravesendKentDA11 0DL	SOUTH WESTBARNSTAPLE(M30)	Main RoadFremingtonBarnstapleNorth Devon EX31 2NT
ILKESTON(M43)	Unit 2Furnace RoadIlkeston DE7 5EP	HARPENDEN(M46)	Unit 4Riverside EstateColdharbour LaneHarpendenAL5 4UN	BOURNEMOUTH(M26)	63-65 Curzon RoadBournemouthDorsetBH1 4PW
LEICESTER(M22)	Unit 7Oaks Ind. EstateCoventry RoadNarboroughLeicestershireLE0 5GF	LETCHWORTH(M50)	16-17 Woodside Ind. EstateWorks RoadLetchworthHertsSG6 1LA	BRIDGEWATER(M35)	6 Hamp Ind. EstateBridgewaterSomerset TA6 3NT
LINCOLN(M40)	Unit 8Stonefield ParkClifton StreetLincolnLN5 8AA	LONDON(M76)	2/4 Royal LaneYiewsleyWest DraytonMiddlesexUB7 8DL	BRISTOL(M25)	11 Eldon WayEldonwall TradingBristolAvon BS4 3QQ
NEWCASTLEUNDER LYME(M12)	18-21 Croft RoadBrampton Ind. EstateNewcastle under LymeStaffordshireST5 0TW	MAIDENHEAD(M60)	Reform RoadMaidenheadBerkshireSL6 8BY	EMSWORTH(M33)	266 Main RoadSouthbourneEmsworthPO10 8JL
REDDITCH(M20)	13 Thornhill RoadNorth Moons MoatRedditchWorcestershireB98 9ND	MOLESEY(M61)	10 Island Farm AvenueWest MoleseySurreyKT8 2UZ	ISLE OF WIGHT(M34)	Unit 8Enterprise CourtRyde Business ParkRydeIsle of Wight PO33 1DB
TAMWORTH(M19)	Unit 3Sterling ParkClaymoreTamworthB77 5DO	NEWBURY(M24)	9 Pipers CourtBerkshire DriveThatchamBerkshireRG19 4ER	NEWTON ABBOT(M29)	Unit 2Zealley Ind. EstateKingsteigntonNewton AbbotS. DevonTQ12 3TD
WORCESTER(M73)	Units 1 & 2Northbrook CloseGregorys Mill Ind. EstateWorcesterWR3 8BP	IPSWICH(M48)	Unit 6CELton Park Business CentreHadleigh RoadIpswichIP2 0DD	REDRUTH(M36)	Unit 7DPool Ind. EstateWilson WayRedruthCornwall TR15 3QW
		NORWICH(M52)	2b Trafalgar StreetNorwichNR1 3HN

Guarantee Conditions

We Tricity Bendix undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Tricity Bendix Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.

- Products of Tricity Bendix manufacture which are not marked by Tricity Bendix.

The guarantee is in addition to your statutory and legal rights.

TRICITY BENDIX EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, list below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone] Germany Nurenberg [phone] Italy Pordenone [phone] Sweden Stockholm [phone] UK Slough [phone]

Instructions for the Installer

Technical data

Model	TB 116 FF	TB 090 FF
Gross capacity (l)	Freezer: 105Refrigerator: 195	Freezer: 65Refrigerator: 195
Net capacity (l)	Freezer: 80Refrigerator: 192	Freezer: 51Refrigerator: 192
Width (mm)	600	600
Height (mm)	1790	1580
Depth (mm)	600	600
Energy consumption (kWh/24h)(kWh/year)	1,42518	1,20438
Energy class, according to EU standards	C	C
Freezing capacity (kg/24h)	18	12
Rising time (h)	18	17
Rated power (W)	150	130
Weight (kg)	65	58
Number of compressors	1	1

Installing the appliance

Transportation, unpacking

The appliance and the interior fitting are protected for transport.

• Remove all packaging and any adhesive tape.
• Any remnants of adhesive can be removed using white spirit.
• After transportation the appliance must not be switched on for 2 hours. This is to allow the refrigerant to settle.

Cleaning

Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to 0.5 litres of water). Rinse and dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

Location

The appliance should be positioned in a well ventilated, dry room.

Energy use is affected by the ambient temperature.

The appliance should therefore:

• not be installed next to radiators, cookers or other sources of heat
• only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the rating plate.

The following table shows which ambient temperature is correct for each climate classification:

Climate Classification	Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C

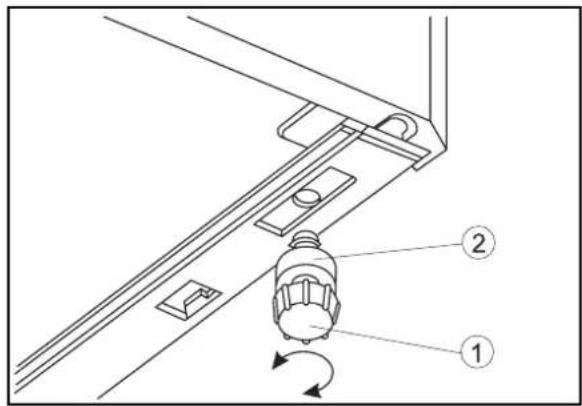

Levelling the Appliance

When placing the appliance ensure that it stands level. This can be achieved by adjusting either or both of the feet (1) at the front of the appliance. If required the washers (2), that are accessories of the feet, can be removed.

Do not stand the appliance next to a source of heat a radiator or cooker.

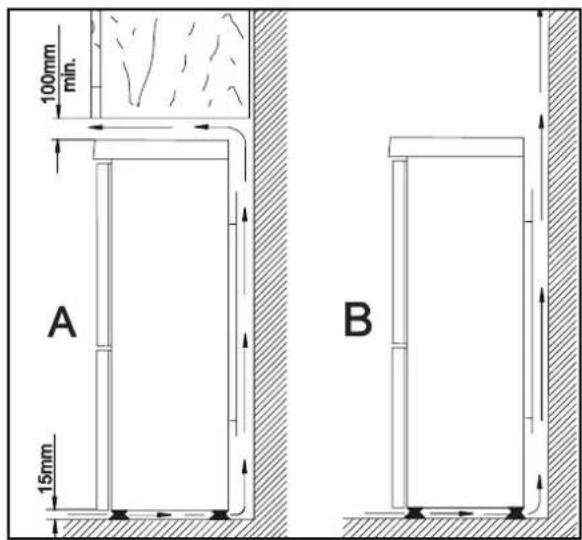

Ventilation Requirements

The appliance must have adequate ventilation to ensure correct operation.

Diagram shows the ventilation requirements when installed:

A Under a cupboard.
B When freestanding

Door Reversal

The diagram shows the model TB 116 FF.

1. Disconnect the appliance from the electricity supply.

2. Gently lay the fridge/freezer on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packaging.

3. Prize out the two white screw covers from the ventilation grille at the bottom of the appliance.

4. Remove the two securing screws and remove the grille.

5. Unscrew the bottom hinge.

6. Remove the door by releasing it from the middle hinge.

7. Unscrew the middle hinge.

8. Slide out the fridge door from the pin, unscrew the pin and then screw it into the hinge blade provided on the opposite side.

9. Refit the fridge door on the opposite side and replace the middle hinge to the left hand side.

10. Replace the door and bottom hinge on the opposite side.

11. Remove the plug from the ventilation grille in the direction of the arrow (1) and insert it on the opposite side (2).

12. Refit the ventilation grille. Secure with the two screws and push in the screw covers.

13. Return the appliance to its upright position.

Important

After completion of the door reversing operation, check that the door gasket adheres to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating the part involved with a normal hairdryer on a low setting.

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

Electrical Requirements

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

The wire coloured green and yellow must be connected to the terminal marked with the letter „E“ or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal „N“ or coloured black.

The wire coloured brown must be connected to the terminal marked „L“ or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

CE This appliance complies with the following E.E.C. Directives:

• 73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,
• 89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Storage time chart

Time and method of storage of fresh foods in the refrigerator

Foods Storage time in days Method of packaging
	1	2	3	4	5	6	7
Raw meat X X x x x cling film, airtight
Cooked meat X X X	x x x dish covered
Roasted meat X X X	x x dish covered
Raw minced meat X dish covered
Cooked minced meat X X x x dish covered
Cold cuts X X x x cling film, cellophane, grease-								proof paper
Fresh fish	X	x	x					cling film, airtight
Cooked fish	X	X	x x dish covered
Tinned fish, open	X	x	x					dish covered
Fresh chicken	X	X	X	x	x	x		cling film, airtight
Fried chicken	X	X	X	x x x dish covered
Fresh duck, goose	X	X	X	x	x	x		cling film, airtight
Roasted duck, goose	X	X	X	X	x	x	x	dish covered
Butter unopened	X	X	X	X	X	X	X	original packaging
Butter opened	X	X	x	x	x	x	x	original packaging
Milk	X	X	X	x x original packaging
Cream	X	X	x x plastic box
Sour cream	X	X	X	X	x	x	x	plastic box
Cheese (hard) X X X	X	X	X	X	aluminium foil
Cheese (soft) X X X	X	x x x	cling film
Egg	X	X	X	X	X	X	X
Spinach, sorrel	X	X	x x cling film
Green peas, green beans	X	X	X	X	x	x	x	cling film
Mushroom	X	X	x x x cling film
Carrot	X	X	X	X	X	X	X	cling film
Tomato	X	X	X	X	X	X	X	cling film
Cabbage	X	X	X	X	x x	x x	cling film
Fruits (Strawberry, raspberry, etc.)	X	X	X	x x cling film
Tinned fruits opened	X	X	X	x	x			dish covered
Cakes filled with cream	X	X	x	x				dish covered

Notation:

X recommended storage time
x maximum recommended storage time

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. 14 billion USD in more than 150 countries around the world.

From the Electrolux Group. The world's No.1 choice.
