USER MANUAL Nova 36403/30/12 Lucide

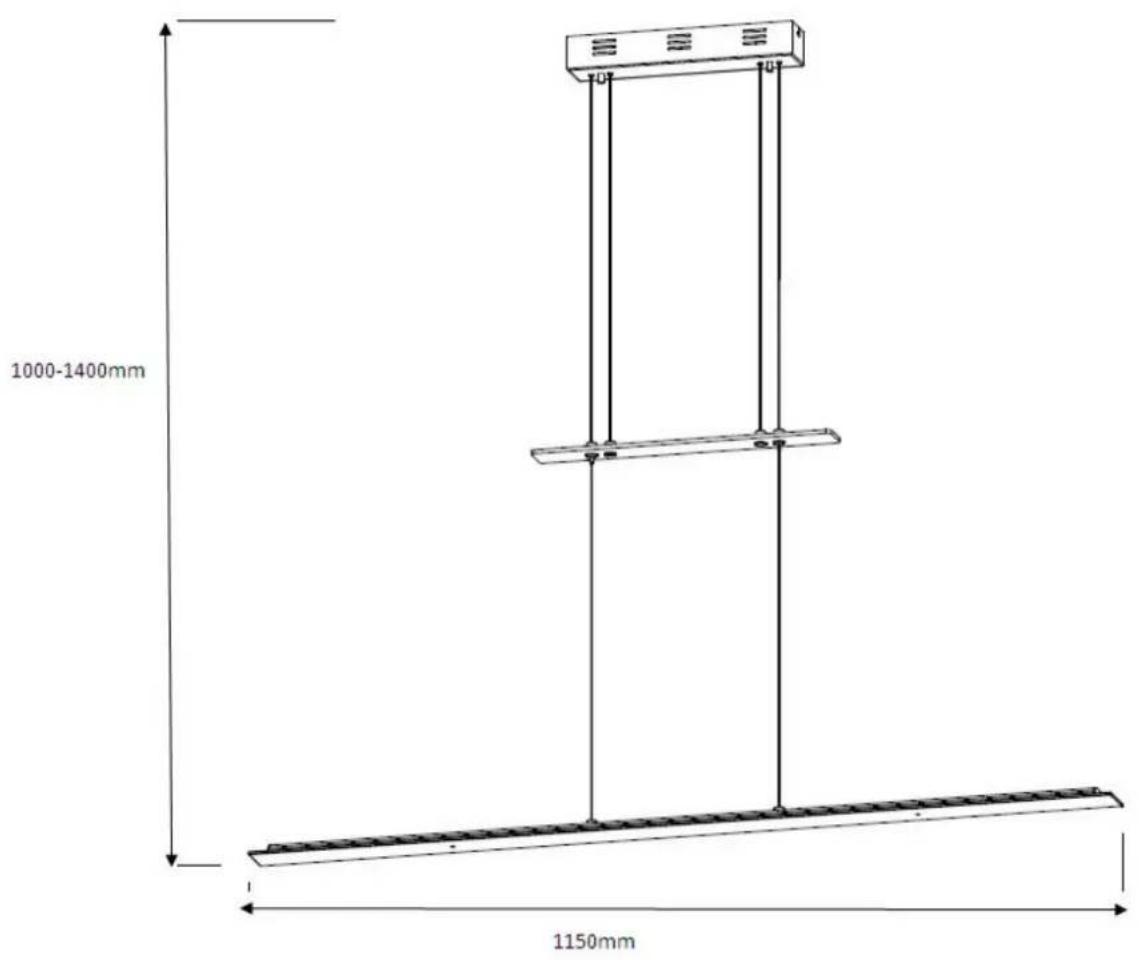

Line drawing of the item (with outline dimensions)


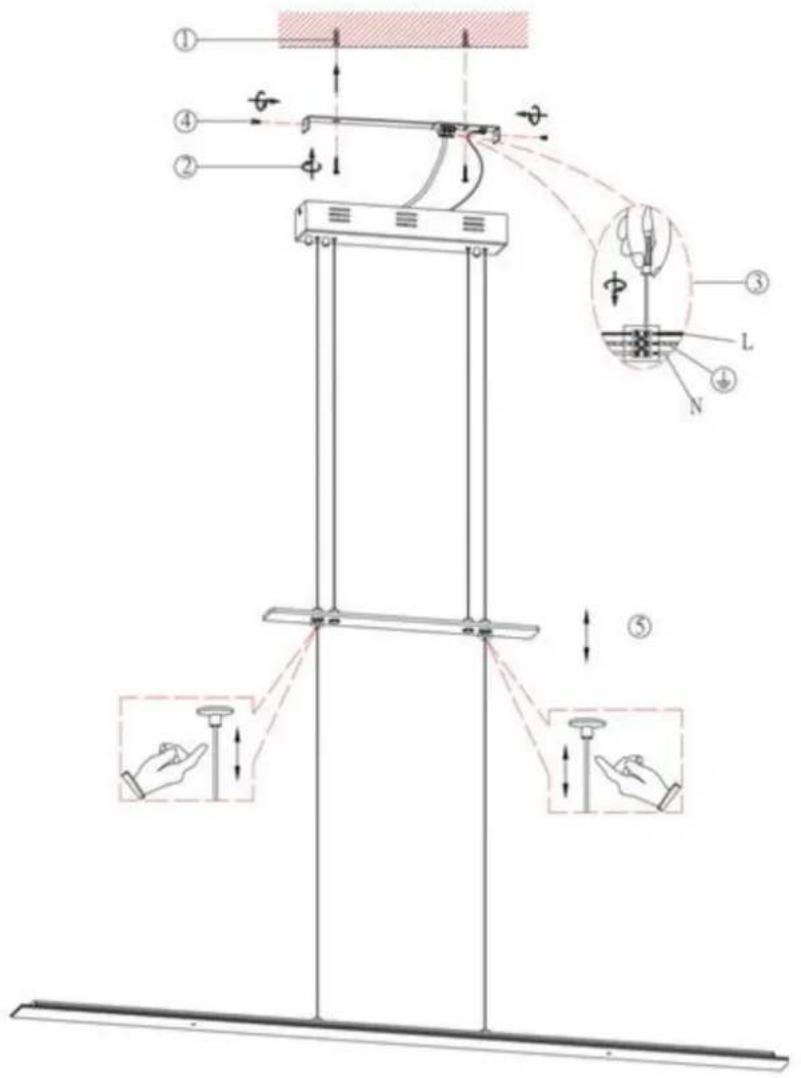

1000-1400mm 1150mmInstallation drawing (the same as it in its instruction manual)
| materials used: | Metal,Glass |
| color: | Satin nickel |
| dimmable and how is the fixture dimmable: | Driver dimmable |
| size: Height: | 1000-1400mm |
| Length: | 1150mm |
| Width: | 60mm |
| Net Weight: | 2.7KGS |
| power requirements: | 220-240~50Hz |
| bulb type and maximum Wattage: | LED 6W |
| number of bulbs: | 5xLED |
| IP degree: | IP20 |
EES label (only one in English, vertical)
