USER MANUAL DC-2030m AGFA

AGFAPHOTO DC-2030m .12 Megapixel

Thank you for purchasing this AgfaPhoto digital camera. Please read these operating instructions carefully in order to use the digital camera correctly. Keep the instructions in a safe place after reading so that you can refer to them later.

Precautions

• Do not aim the camera directly into the sun or other intense light sources which could damage your eyesight.
• Do not try to open the case of the camera or attempt to modify this camera in any way. High-voltage internal components create the risk of electric shock when exposed. Maintenance and repairs should be carried out only by authorized service providers.
• Do not press the flash too close to the eyes of animals or young children. Eye damage may result. Please remain at least one meter away from infants when using flash.
• Keep the camera away from water and other liquids. Do not use the camera with wet hands. Never use the camera in the rain or snow. Moisture creates internal danger and may cause electric shock.
• Keep the camera and its accessories out of the reach of children and animals to prevent accidents or damage to the camera.
• If you notice smoke or a strange odor coming from the camera, turn the power off immediately. Take the camera to the nearest authorized service center for repair. Never attempt to repair the camera on your own.
• Use only the recommended power accessories. Use of power sources not expressly recommended for this equipment may lead to overheating, distortion of the equipment, fire, electrical shock or other hazards.

Disclaimer

We assume no responsibility over and above the provisions of the Product Liability Law for damages suffered by the user or third parties as a result of inappropriate handling of the product or its accessories, or by their operational failure and by their use. We reserve the right to make changes to this product and its accessories without prior notice.

Warning!

Never disconnect to open the camera or remove any parts of it. This will invalidate all guarantee claims.

Contents

GETTING STARTED 1

USING THIS MENU 1

CONTENTS 2

PARTS OF THE CAMERA 3

INSERTING THE BATTERIES 5

LOW BATTERY INDICATOR 5

ABOUT BATTERY TYPE 5

INSERTING THE MEMORY CARD 6

ABOUT CAMERA MEMORY 7

DCF PROTOCOL 7

SETTING THE DISPLAY LANGUAGE / DATE &

TIME 7

SETTING THE DISPLAY LANGUAGE 7

SETTING THE DATE & TIME 8

USING THE LCD MONITOR 9

REC MODE 9

PLAYBACK MODE 10

CHANGING THE LCD STATUS 11

BASIC OPERATION 12

TURNING THE POWER ON AND OFF 12

POWER SAVING FUNCTION 13

CHANGING THE MODE 13

SWITCHING BETWEEN REC MODE AND

PLAYBACK MODE 13

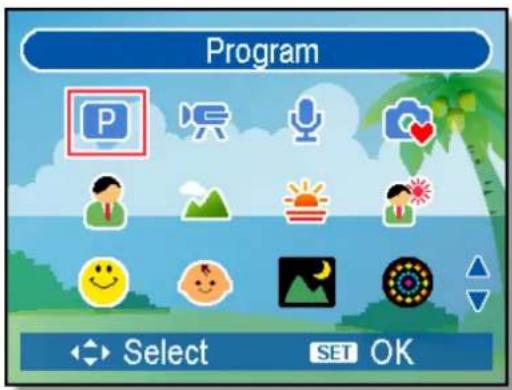

SELECTING THE REC MODE 14

USING THE MENUS 16

REC MENU 16

SETUP MENU 17

BASIC RECORDING 21

RECORDING STILL IMAGES 21

USING SMILE CAPTURE MODE 22

TO ACTIVATE SMILE CAPTURE 22

USING INTELLIGENT SCENE MODE 23

TO ACTIVATE INTELLIGENT SCENE 23

USING BLINK DETECTION MODE 24

TO ACTIVATE BLINK DETECTION 25

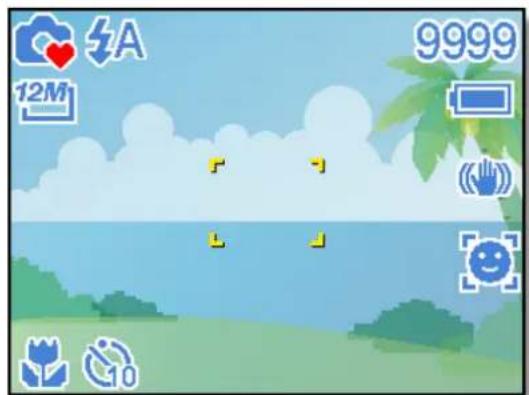

USING THE Q MODE 26

SETTING IMAGE SIZE AND QUALITY 27

USING THE ZOOM FUNCTION 28

USING THE FLASH 29

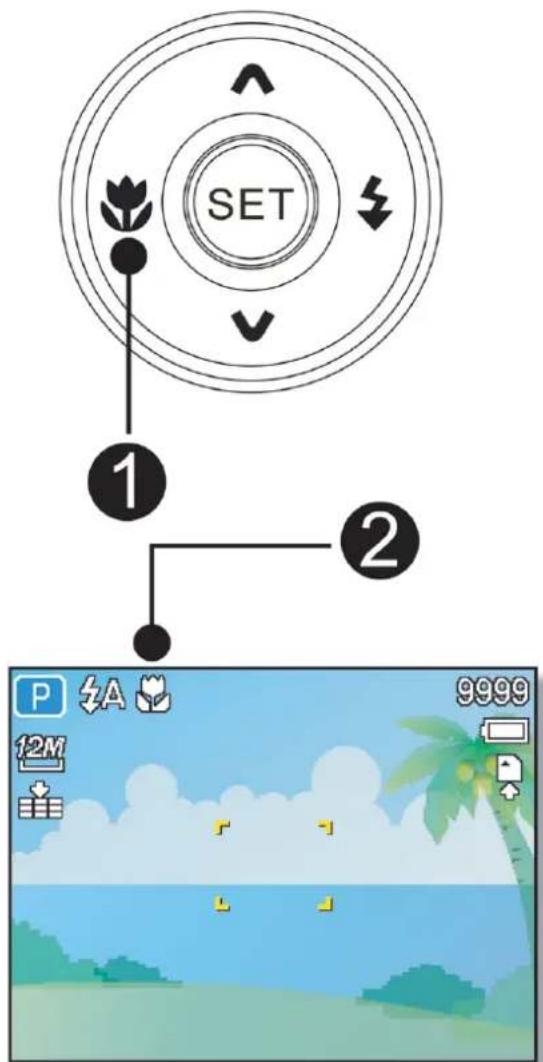

USING THE MACRO 30

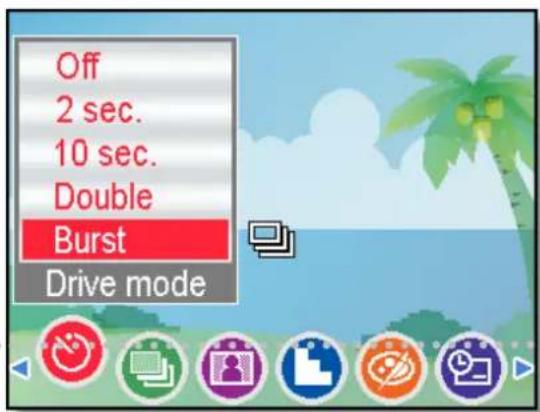

USING THE SELF-TIMER & BURST 31

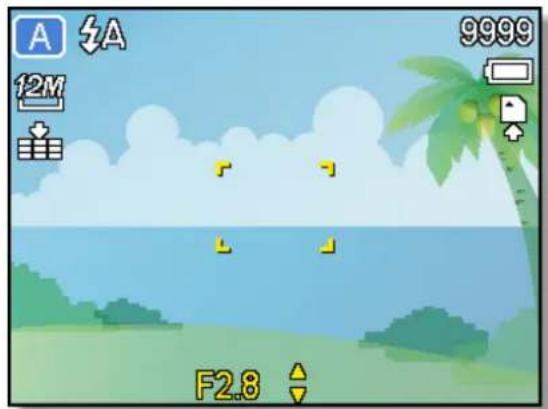

USING THE APERTURE PRIORITY 32

USING THE SHUTTER PRIORITY 33

USING THE MANUAL EXPOSURE 33

USING THE STABILIZER 34

RECORDING MOVIE CLIPS 34

SETTING THE MOVIE SIZE 35

YOUTUBE® MODE 35

SETTING THE SHARPNESS 41

SETTING THE PHOTO EFFECT 41

SETTING DATE STAMP 41

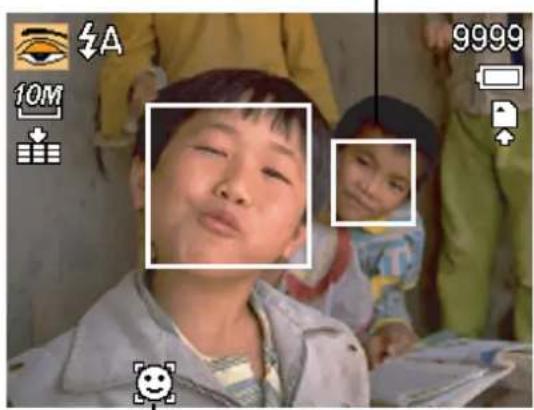

SETTING FACE TRACKING 42

SETTING PHOTO FRAME 42

SETTING AF LAMP 42

PLAYBACK 43

PLAYING BACK IMAGES 43

PLAYING BACK MOVIE CLIPS 43

MAGNIFYING & TRIMMING STILL IMAGES 44

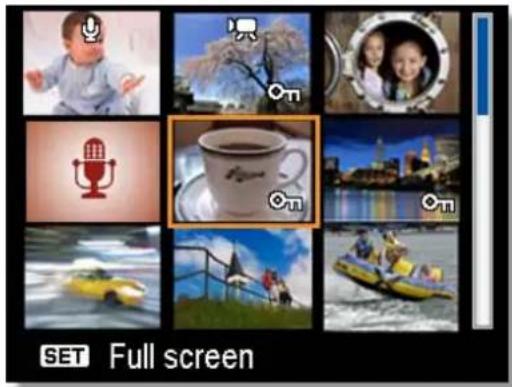

VIEWING IN THUMBNAIL 45

PLAYING A SLIDE SHOW 45

DELETING FILES 46

DELETING A SINGLE FILE 46

DELETING MULTIPLE FILES 47

DELETING ALL FILES 48

PROTECTING A SINGLE FILE 48

PROTECTING ALL FILES 49

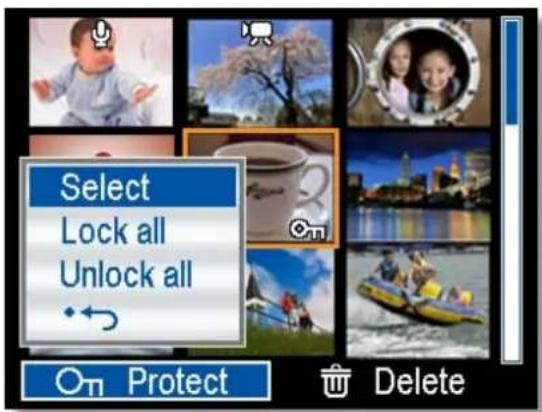

PROTECTING MULTIPLE FILES 49

EDITING IMAGES 50

ROTATING STILL IMAGES 50

CHANGING THE IMAGE SIZE 51

CHANGING THE IMAGE WITH EFFECTS 51

CHOOSING THE IMAGE WITH PHOTO

FRAME 52

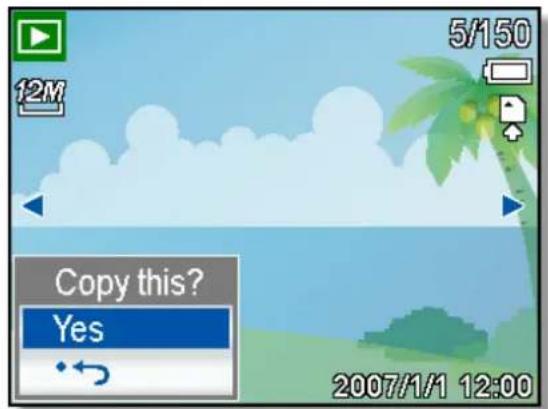

COPYING THE FILES 53

SETTING THE DPOF 54

CHOOSING A STARTUP IMAGE 55

MAKING CONNECTIONS 56

CONNECTING THE CAMERA TO A TV 56

CONNECTING THE CAMERA TO A PC 57

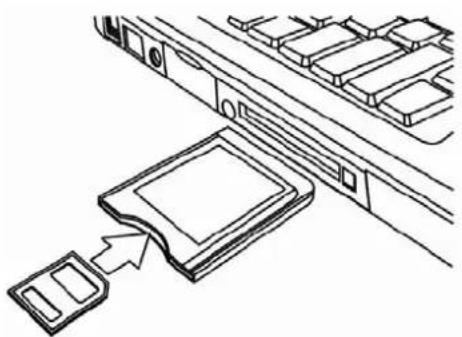

USING THE CARD READER 57

CONNECTING THE CAMERA TO A

COMPUTER WITH THE USB CABLE 57

APPENDIX 58

ABOUT THE FOLDER & FILE NAME 58

FOLDER STRUCTURE 58

FILE NAMING 59

TROUBLESHOOTING 60

SPECIFICATIONS 61

CUSTOMER CARE 63

COPYRIGHT 64

TRADEMARK RECOGNITION 64

DISPOSAL OF WASTE EQUIPMENT BY

USERS IN PRIVATE HOUSEHOLDS IN THE

EUROPEAN UNION 64

FCC COMPLIANCE AND ADVISORY 64

DECLARATION OF CONFORMITY 65

Getting Started

Using This Menu

Getting Started

This section contains information you should know before using this camera.

Basic Operation

This section explains all recording features of this camera.

Basic Recording

This section explains how to record still images, movies, and audio files.

Other Recording Functions

This section explains common operations about recording images.

Playback

This section explains playback, delete, and edit functions of still images, movies and audio files.

Making Connections

This section tells you how to connect this camera to a computer or TV.

Appendix

This section describes the troubleshooting and the camera specification.

The meanings of the symbols used in this user's manual are explained below:

	cautions that should be read before using these functions.
	This indicates the useful information when using this camera.
	This indicates the reference page.

Contents

Line drawing of a digital camera with lens and control panel (no text or symbols)

Coiled cable with two connectors (no text or symbols visible)

Coiled electrical wires with two connectors and a power plug (no text or symbols visible)

AgfaPhoto DC-2030m USB Cable AV Cable

Line drawing of a wristband device with a strap (no text or symbols)

Soft Case Strap

2 x AA Batteries

Software Installation CD-ROM

Simple line drawing of a closed book with no text or symbols visible

Quick Guide

Caution

• Actual accessories may be different.
- Note that the shape of the charger plug depends on the area where you purchased the camera.
- Do not swing the camera around by the strap.

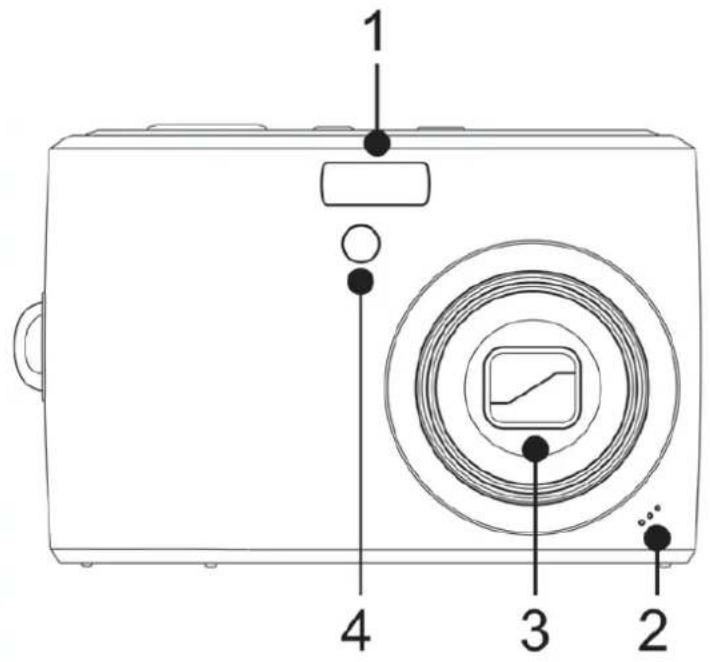

Parts of the Camera

1 4 3 2

1. Flash (page 29)
2. Microphone
3. Lens
4. AF Lamp / Self-timer Lamp

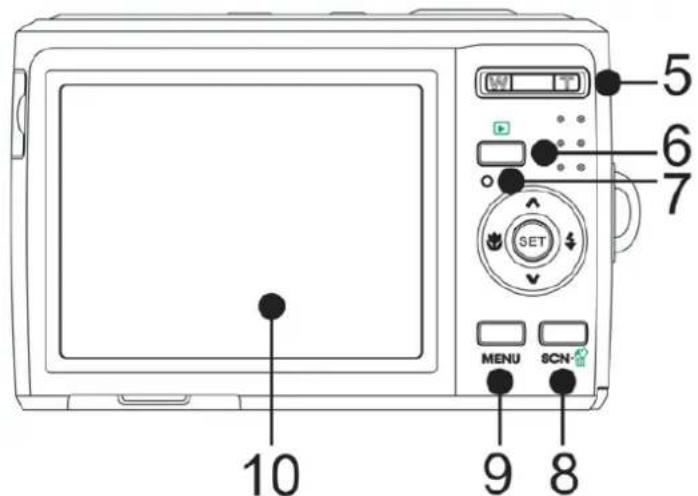

5 6 7 SET MENU SCN 10 9 8

Four-way Control

SET 11 12 13

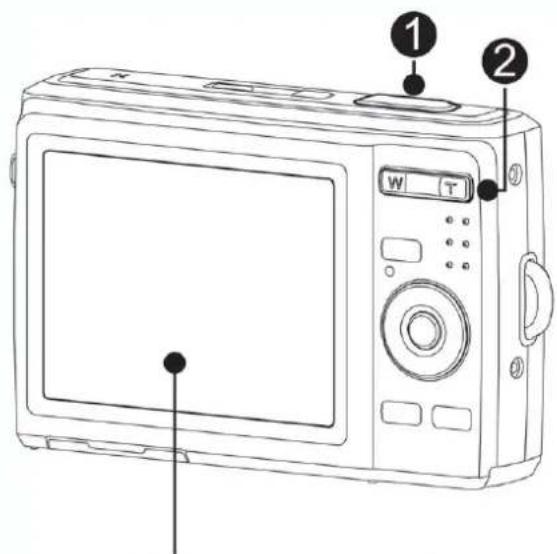

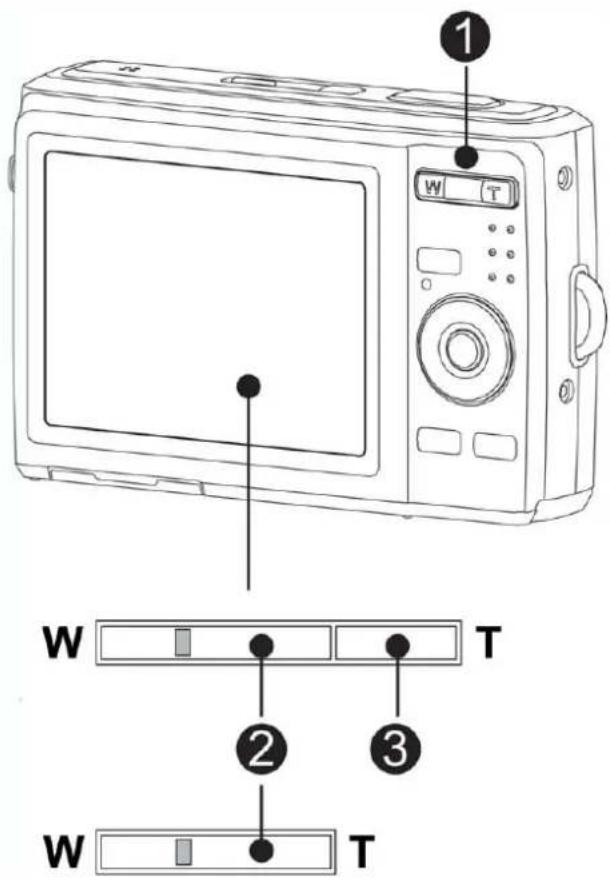

1. Zoom Button (page 28)

2. Thumbnail (page 45)

3. Playback Zoom

(page 44)

1. Playback Button
   (page 13)
2. Operation Lamp
3. Mode Button ( page 13)

- Delete Button ( page 46)

1. Menu Button ( page 16)
2. LCD Monitor ( page 9)
3. Flash Button (page 29)
4. SET/DISP Button

(page 11)

1. Macro Button ( page 30)

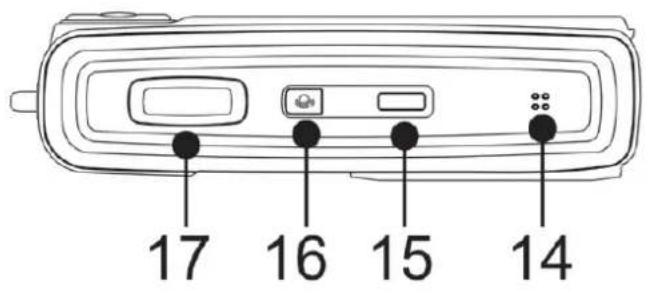

17 16 15 14

1. Speaker
2. Power Button ( page 12)
3. Stabilizer
4. Shutter Button

(page 21, 34)

19 18

1. USB/AV Terminal

(page 20, 57)

1. Strap Ring

22 21 20

1. Memory Card Slot Cover
   (page 6)
2. Tripod Socket
3. Battery Cover ( page 5)

Inserting the Batteries

1 Open the battery cover.

- Slide the battery cover in the direction indicated by the arrow.

Line drawing of a handheld electronic device with an arrow indicating rotation (no text or symbols)

2 Insert the batteries.

- Insert two AA-size batteries with the positive (+) and negative (-) poles matching the directions indicated inside the battery room.

Line drawing of a computer monitor with two reels and an arrow indicating direction (no text or symbols)

3 Close the battery cover.

Diagram of a mobile phone receiver with an arrow indicating refresh or signal flow (no text or symbols)

Low Battery Indicator

A low battery indicator 📄 appears on the LCD screen when the batteries are nearly exhausted. Batteries should be replaced promptly when the low battery indicator appears.

About Battery Type

After replacing the batteries, please check the Battery Type in the setup menu (page 20).

Caution

• Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions.
• Be sure to turn off the camera power before insert or remove batteries.
• It is recommended to use the provided battery. For other compatible batteries, please refer to Battery types. ( page 20). Use of any other type battery is not recommended.
• Replace all batteries at the same time. Never mix old and new batteries.
• Remove batteries if you will not be using them for a long time.
• The camera body may feel warm after extended use. This is normal.
• The type of battery and the battery power level may cause the lens to be stuck up. Ensure you use the correct battery type and use a fully charged battery.

Inserting the Memory Card

Expand your camera's storage by using SD or SDHC memory cards.

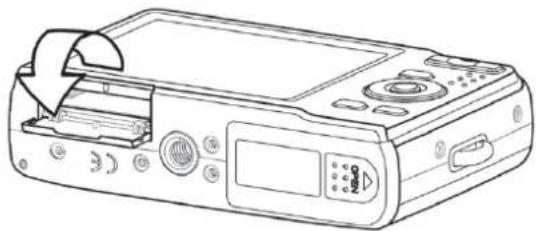

1 Open the SD Card cover.

- Slide the battery cover in the direction indicated by the arrow.

Line drawing of a portable electronic device with ports and a scroll wheel (no text or symbols)

2 Insert the card.

- Insert the card with the label facing up and the arrow pointing in.

Line drawing of a digital camera with an open lid and control panel (no text or symbols)

? Tips

- To remove the card, gently press on the edge of the card and release it. Pull the card out and close the SD Card cover.

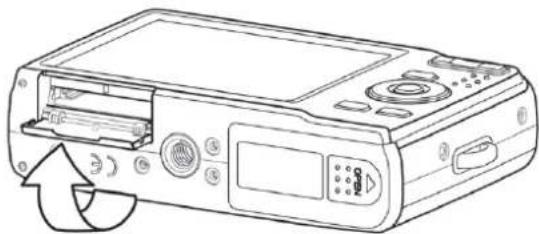

3 Close the SD Card cover.

Line drawing of a portable electronic device with ports and an open lid, showing no text or symbols.

Caution

• It may cause damage to the card if removed while the camera is on.
• Do not touch the connection terminals on the back side of the card.
• Not all cards may be compatible with your camera. When purchasing a card, please check the card's specifications and take the camera with you.

About Camera Memory

This camera is equipped with internal memory. If the memory card is not inserted in the camera, all images and movie clips recorded by the camera will be stored in the internal memory. If the memory card is inserted, images and movie clips are stored on the memory card.

DCF Protocol

The DCF protocol defines the format for image file data as well as the directory structure for the memory card. Images that are taken by a DCF camera can be viewed on DCF-compatible cameras from other manufacturers.

Setting the Display Language / Date & Time

When using the camera for the first time after purchasing, be sure to choose a language and set the date & time before using the camera.

Setting the Display Language

1

Turn the power on, and set the camera to the Setup Menu (page 17).

2

Select [09 Language].

- Press ▲ or ▼ to select [LANGUAGE] then press ▶ or the SET button to launch the submenu.

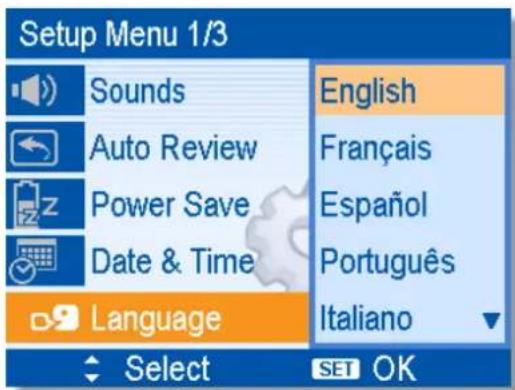

Setup Menu 1/3 Sounds English Auto Review Français Power Save Espanol Date & Time Português Language Italiano Select SET OK

3

Select a language.

- Press ▲ or ▼ to select a language and press ◀ or the SET button to apply the setting.

4

Press the MENU button to close the menu.

Setting the Date & Time

1

Turn the power on, and set the camera to the Setup Menu (page 17).

2

Select [√ Date & Time].

- Press ▲ or ▼ to select [Date & Time] then press ▶ or the SET button to launch the submenu.

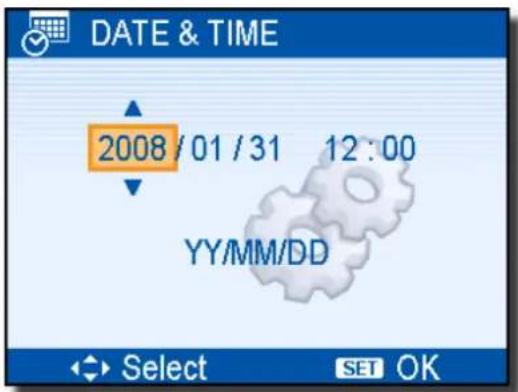

DATE & TIME 2008/01/31 12:00 YY/MM/DD Select SET OK

3

Set date and time.

- Press ▲ or ▼ to change the value of the cursor located. Press ◀ or ▶ to move the cursor between settings.

Tips

• Holding down▲ or ▼ changes the values continuously.
• For date stamp setting ( finger pointing to page 41).

4

Apply the setting.

- After adjusting the settings, press the SET or the MENU button to apply the setting.

Caution

- If the batteries are removed for longer than 48 hours, the Date and Time will need to be re-set.

Using the LCD Monitor

The LCD monitor is used to compose images while recording, adjust settings and replay images. The following indicators may appear on the LCD monitor while recording or playing back images.

REC mode

12M 3:2 16:9 8M 4M 2M VGA 25 24 12M AF P A W T 9999 x3.0 5 6 7 8 IN 9 23 22 21 20 19 18 +2.0EV F2.8 1/30 17 16 15 14 AWB [ ] ISO AUTO 10 11 12 13 AWB

1 Recording mode (page 13)
2 Flash (page 29)
3 Macro (page 30)
4 Self-timer / Burst (page 31)
5 Zoom indicator (page 28)
6 Shots remaining 19
7 Battery (page 5)
8 Storage media 21
9 Stabilizer 22
10 Metering (page 38)
11 ISO ( page 40)
12 Histogram 25
13 White balance ( page 38)

14 Shutter speed (page 21)
15 Shake warning (page 21)
16 Aperture value (page 21)
17 Face tracking (page 42)
18 Exposure (page 40)
Focus area ( page 21)
20 Date stamp (page 41)

AEB (page 40)

Sharpness ( page 41)

23 Quality (page 27)
24 Resolution (page 27)

AF Lamp ( page 42)

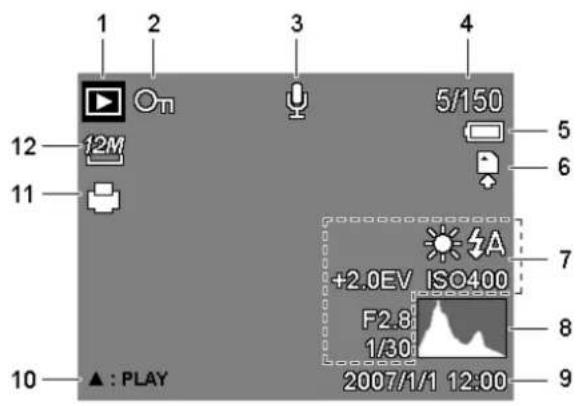

PLAYBACK mode

1 2 3 4 5/150 12 12M 11 ▲ : PLAY +2.0EV ISO400 F2.8 1/30 2007/1/1 12:00 9 6 5 7 8

1 Playback mode ( page 13)
2 Protect (page 48)
3 Voice memo ( page 37)
4 File number / Total 10
5 Battery (page 5)
6 Storage media 12
7 Recording info (page 11)
8 Histogram
9 Captured date & time
Voice memo control (page 37)
11 DPOF (page 54)
Resolution ( page 27)

Caution

- Some information may not display correctly if you display images captured by other camera model.

Changing the LCD Status

Press the SET/DISP button changes the LCD status as shown below:

■ REC mode

Game scene with a tropical beach, palm tree, and sky (no readable text or symbols)

(A)

(A) OSD on

Game interface screenshot showing a beach scene with palm trees, water, and UI elements (no readable text or symbols)

(B)

(B) Full OSD

Illustration of a tropical beach scene with palm trees, sky, and distant hills (no text or symbols)

(C)

Illustration of a tropical beach scene with palm trees, sky, and birds (no text or symbols)

(D)

(C) Guide line

(D) OSD

Tips

- Use the "Guide line" to compose images easily before shooting images.

■ PLAYBACK mode

Game scene with palm tree, ocean, and sky (no readable text or symbols)

(A)

(A) OSD on

On 12V 9607389 -2.8EV F:8 130 ISO100 2007/1/1 12:00

(B)

(B) Full OSD

Illustration of a tropical beach scene with palm tree, green hills, and blue water (no text or symbols)

(D)

(D) OSD off

Caution

- You cannot change the LCD status in the following situation:

。 Manual exposure
。 Recording movie clips or audio files
。 Playing movie clips or audio files
。 Playing the slideshow
。 Viewing in thumbnail
。 Trimming a still image

Basic Operation

Turning the Power On and Off

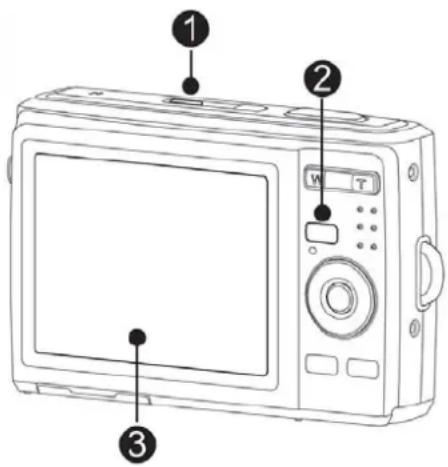

1 Press the POWER button (①) to turn on the camera in the REC mode.

- The power turns on, the lens extends and the LED lights in green.

Press the PLAYBACK button (②) to turn on the camera in the PLAYBACK mode.

- The power turns on, and an image displays on the LCD monitor (③).

Diagram of a digital camera with labeled parts including front panel, screen, and buttons

2 Press the POWER button (①) again to turn the power off.

- The power turns off, the lens retracts and the LED turns off.

Tips

• You can turn on the camera without the start-up and operating sound by pressing and holding the POWER (①) or the PLAYBACK (②) button over 1.5 seconds.
• Switch between REC mode and PLAYBACK mode ( finger page 13).

Power Saving Function

For saving the battery power, the LCD monitor automatically turns off 1 minute after the last control accessed (factory-preset setting). Press any button other than the power button to turn on the LCD monitor. You can change the power save setting in Setup menu (page 19).

After the power saving function has been active for 1 minute, the power will turn off completely. Press the POWER (①) or the PLAYBACK (②) button to restore the power.

The power save feature will not activate in the following situation:

• Recording movie clips or audio files
- Playing movie clips or audio files

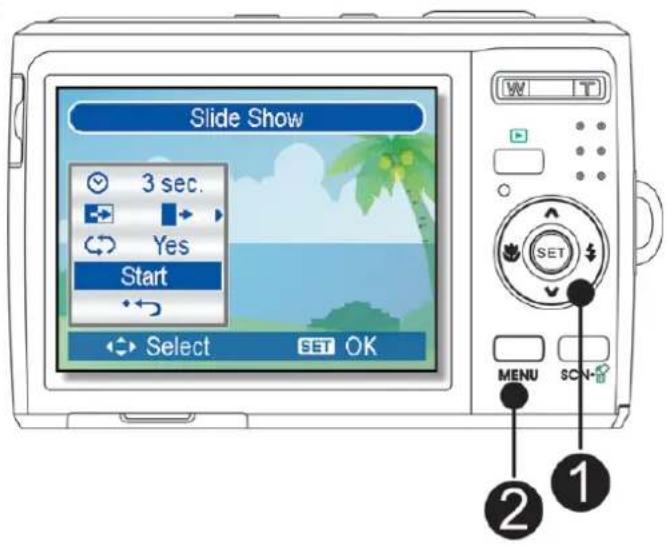

- Playing the slideshow
- Connecting the camera to a computer or printer with the USB cable

Changing the Mode

You can record images and voices in the REC mode. And using the PLAYBACK mode to replay, delete, or edit images on the LCD monitor.

Switching between REC mode and PLAYBACK mode

In REC mode, press the PLAYBACK button (①) to switch to the PLAY mode.

In PLAY mode, press the PLAYBACK (①) or the MODE (②) button to switch to the REC mode.

Diagram of a digital camera with labeled parts including screen, buttons, and control panel

Selecting the REC mode

1

Set the camera to the REC mode (page 13).

2

Launch the mode palette.

- Press the MODE button (②) to show the scene mode palette.

Program Select SET OK

3

Select a mode.

- Use the four-way control to select a desired mode and press the SET button to confirm the setting.

Display	Title Description
	Program The camera makes settings suitable for the shooting conditions.
	Movie For recording movie clips.
	Voice REC For recording audio.
	Q Mode Allows beginners to take pictures easily.
	Portrait Blurring the background to focus on the subject.
	Landscape Used for the wide scenic views.
	Sunset	Enhance the red hue for recording sunset images.
	Backlight	Shooting the image of backlight object by changing metering.
	Smile Capture	Capture the most brilliant smile of characters.
	Kids	Take a still image to capture moving kids.
	Night Scene	Shooting the subject while keeping the background night scenery.
	Fireworks	Slow shutter speed to take fireworks exploding.
	Snow Used for the beach or snow scenes.
	Sports Used to take still pictures in high speed motions.
	Party Used for the wedding or indoor parties.
	Candlelight To capture the warmth effects of candle light.
	Night Portrait	Use to take portrait pictures when the background is darker.
	Soft Skin Enhance the tone of skin so that the facial skin appears smooth.
	Soft Flowing Water	Can take pictures with effects as smooth as silk.
	Food Higher saturation makes food more appetizing.
	Building Enhance the edges of the subject.
	Text Enhance the black & white contrast.
	Auction Records small-size images that are perfect for auction notices.
	Blink Detection	This feature detects if the subject blinked an eye when the image is captured and gives the user an option whether to save it or not.
	Intelligent Scene	The camera detects the shooting conditions and automatically switches to the appropriate scene mode.
	Aperture Priority	The camera automatically adjusts an aperture value to match the brightness
	Shutter Priority	The camera automatically adjusts the shutter speed to match the brightness.

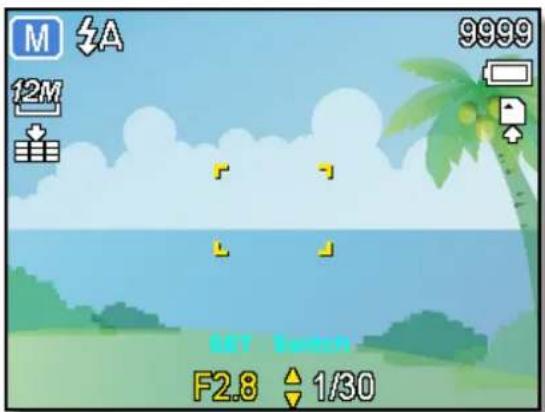

	Manual Exposure	This feature lets users adjusts the shutter speed and aperture value to correctly expose your images.

Using the Menus

When a menu is displayed, the four-way control and the SET button are used to make the desired settings.

REC menu

1

Turn the power on, and set the camera to the REC mode

2

(page 13).

Open the REC menu.

- Press the MENU button (①) to display the menu.

3

Select an item.

- Press ◀ or ▶(②) to select a menu item.

4

Change the setting.

- Press ▲ or ▼ (②) to change the setting.

5

Press the MENU (①) or the SET (②) button to save the settings and close the menu.

REC menu list (Still Image)

Menu Item Available Setting Page
Resolution		27
Quality		27
Metering		38
White Balance	Auto /	38
ISO	Auto / ISO125 / ISO200 / ISO400 / ISO800 / ISO1600 / ISO3200	40
Exposure	-2.0EV ... +2.0EV	40
Drive Mode	Off / [IMAGE] [VGTC]	31
AEB	Off /	40
Highlight	Off / /	40
Sharpness	/ [STDK]	41
Effect Off / B&W	/ Sepia / Red / Green / Blue 41
Date Stamp Off / Date / Date & Time 41
Digital Zoom Off / On 28
Face Tracking Off / On 42
Photo Frame Off / Frame 1 ~ 10 42
AF Lamp Auto / Off 42

REC menu list (Movie)

Menu Item	Available Setting	Page
Movie Size	/	35
Metering	/	38
White Balance	/ / /	38

Setup menu

1

Turn the power on, and set the camera to the REC or PLAYBACK mode ( finger page 13).

2

Press the MENU button (①) to open the REC or PLAYBACK menu.

- The menu displays depends on whether you are in the REC mode or the PLAYBACK mode.

Setup Menu 1/3 Sounds Auto Review 3 sec. Power Save 1 min. Date & Time Language English Select MENU Exit ①② MENU SCN

3

Open the Setup menu.

- Press four-way control (②) to select SETUP ( ) and then press the SET (②) button to display the Setup menu.

4

Select an item.

- Press ▲ or ▼(②) to select a menu item and then press ▶ or the SET (②) button to launch the submenu.

5

Change the setting.

- Press ▲ or ▼ (②) to select an option and press ◀ or the SET (②) button to apply the setting.

6

Press the MENU (①) button to close the menu.

Setup menu list

Menu Item Functions
Sounds	[Shutter]: Sets the shutter sound on and off.[Start-up]: Sets a type of the start-up sound.[Beep]: Sets the operation sound on and off.[Volume]: Adjusts the volume of the shutter sound, start-up sound, beep and playback sound.
Auto Review	[Off]: The captured image will not automatically display after shooing.[1 sec.]: The captured image will display for 1 second after shooting.[3 sec.] The captured image will display for 3 seconds after shooting.[5 sec.]: The captured image will display for 5 seconds after shooting.
Power Save	[Off] / [1 min.] / [3 min.] / [5 min.]:For power consumption, the camera is turned off automatically for a period of time.The power save feature will not activate in some situation (page 13).
Date & Time	Sets the date & time (page 8).
Language	Select a language for display menus and other information from the following 21 languages: (page 7)
File No.	Use this function if the camera experiences a “Folder cannot be created” error or if you want to restart numbering, for example, after erasing all files.
	[Series]: Store the latest used file number no matter deleting files or inserting a new memory card.[Reset]: Reset file numbering each time the memory card is changed.
	• Resetting the file number is useful for avoiding the file name duplication when images are downloaded to a computer (page 58).

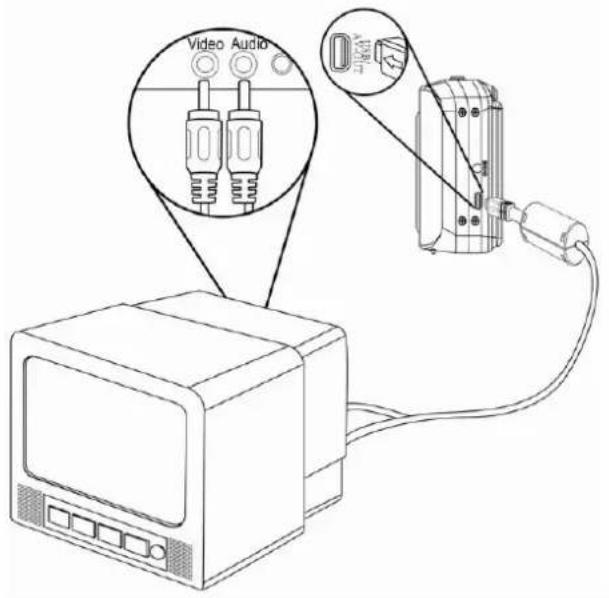

TV Out	You can review images on a television with a supplied AV cable (page 56). TV Out should be set to either NTSC or PALdepending on your region.[NTSC]: America, Japan and others[PAL]: Europe, Oceania and others
USB	[Computer] / [Printer]:Sets the USB mode to connect the camera with a printer or computer ( page 57).

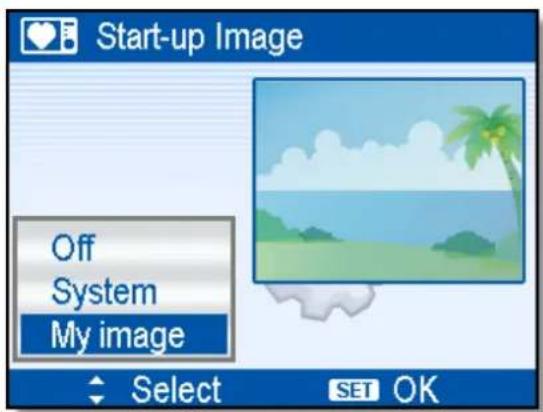

S.Image	Sets a recorded image as the start-up image ( page 55).
Format	To erase all data stored in the memory card if you are using a card, or all data stored in the internal memory if there is no card inserted.A “BUSY...PLEASE WAIT” message displays and the memory card is starting format.A “COMPLETED” message displays when finish formatting.All data will be deleted including protected files. Be sure to download important files to your computer before formatting.
LCD Save	[Off] / [On]:Enable the LCD save function to automatically decrease the LCD brightness to conserve battery powerWhen the camera is idle for 5 seconds, the LCD darkens.
Battery Type	To ensure the camera displays battery level correctly, set the type to match the batteries used.Alkaline / NiMH / Lithium / Qxyride
Reset All	Resets the entire menu and button operation settings to initial default.The following settings do not change after Reset All:Date & Time settingLanguage settingTV out settingBattery Type

Basic Recording

Recording Still Images

1

Turn the power on, and set the camera to the REC mode (page 13).

2

Compose the subject on the monitor.

- Aim the focus area (①) to the subject that you want to take.

P 9999 12M ISO100 F2.8 1/30 ① ③ ② ④

3

Half press the shutter button to focus the image.

• The focus area (①) becomes green while in focus, then shutter speed (②), aperture value (③) and ISO value (④) are displayed.
• If the shutter speed is slow or the possibility that image may be blurred, the shake warning icon ! 🎨 may appear on the LCD monitor. To avoid this, use a tripod to stabilize the camera when recording images.

4

Take a picture.

- Press the shutter button fully to take a picture.

Caution

• Make sure that your fingers or the wrist strap does not block the lens.

Line drawing of a digital camera with a screen and control panel, showing no text or symbols

Using smile capture Mode

The smile capture model uses smile tracking to automatically capture images.

Pressing the shutter button will enable the camera to take 6 continuous shots whenever a smile is detected. This feature is most useful in capturing different angles and smiles of moving people. When capturing an image with more than one person, the camera detects the smile of the closest person on the center of the screen

To activate smile capture

1

Select from Scene Mode submenu. ( page 13).

2

Focus the camera on the subject to capture.

3

Press the shutter button to start smile detecting. The smile capture icon blinks every second and the white focus frame turns green to denote camera activity.

4

When a smile is detected, the camera will automatically take a shot of the image. It will continuously take 6 shots whenever a smile is detected.

5

To stop shooting before the 6 shots are taken, press the shutter button again, The smile capture icon stops blinking and the focus frame turns white.

?

Tips

- When capturing an image with several faces, face tracking function may take up more time tracking faces for the first time.

Baby wearing striped outfit with cartoon bear graphic, smiling face in close-up (no text or symbols)

Camera displays a white tracking frame when smile is detected

Using Intelligent Scene Mode

With the Intelligent Scene Mode, the camera automatically detects the shooting conditions and switches to the appropriate scene and settings when aiming on a subject. This feature is most useful for novice users to capture great images even without basic knowledge of photography

To activate Intelligent Scene

1

Select from Scene Mode submenu. ( page 13).

2

Focus the camera on the subject to capture.

3

The camera detects the shooting conditions and switches to an appropriate scene mode.

Baby wearing a baby's outfit with camera interface overlays (no readable text or symbols)

The camera displays a solid white frame when a face is detected.

4

Half press the shutter button to focus the subject. The frame turns green to indicate focus is set.

5

Press the shutter button to take the shot.

The table below shows the modes supported by intelligent scene:

Icon Intelligent Scene Modes Description
	Portrait This mode is set when a face is detected.
	Backlight	This mode is set when a face is detected with an EV setting greater than 2.5.
	Landscape	This mode is set when:There is no face detected.The focus distance is more than 1.5 meters.The EV setting is greater than 11 or 10.5.
	Macro	This mode is set when:
Icon	Intelligent Scene Modes	Description
		There is no face detectedThe focus distance is within the macro range.This mode can only be detected when you half press the shutter button.
	Night Scene	This mode is set when:There is no face detectedThe focus distance is more than 1.5 meters.The EV setting is lower than 5 or 4.5.

Tips

• After the camera detects the shooting conditions, this icon changes to show the detected scene mode.
  • Face tracking is automatically enabled.

Using Blink Detection Mode

The Blink Detection mode tracks faces and determines captured image that contain subjects with blinked eyes. After shooting, when the camera detects that the subject blinked an eye, a menu selection appears to ask the user whether to save the image or not. This feature saves time in managing photos to be stored or deleted from the memory.

To activate Blink Detection

1

Select from Scene Mode submenu. (page 13).

2

Half press the shutter button to focus the subject. The frame turns green to indicate focus is set.

3

Press the shutter button to capture the image. The image is automatically saved unless the camera detects that the subject blinked an eye.

Detected faces are framed.

9999 10M

Face tracking is automatically enabled.

4

Select Save Image to save or Cancel to disregard.

Using the Q mode

The Q mode provides a simplified camera interface. Larger icons and fewer controls make it easier to take pictures anytime, especially for the beginners and elder users.

A 12M 9999

You can use only the basic settings in the Q mode:

Button	Flash: Auto / Red eye / Force on / Slow sync / Force off
	Macro: Off / On
	SET/DISP: OSD on / Guide line / OSD off
	Stabilizer: Off / On
Menu	Resolution: 12M / 3:2 / 16:9 / 8M / 4M / 2M / VGA
	Drive Mode: Off / 2 sec. / 10 sec. / Double / Burst
	Face Tracking: Off / On
	Photo Frame: 10 frames can be selected
	Beep: Off / On
	Auto Review: Off / 1 sec. / 3 sec. / 5 sec.

Rest of settings will not be controlled as below:

Fixed setting(*)	Quality: S.FineMetering: MultiWhite balance: AutoISO: AutoExposure: AutoAEB: Off	Highlight: OffSharpness: NormalEffect: OffDate Stamp: Date & TimeDigital Zoom: OffAF lamp: Auto
Utility setting(**)	Shutter soundFile No.Start-up soundPower save USBDate & TimeLanguage	TV outStart-up image

(*)Fixed setting: Settings are fixed in Q mode.
(**)Utility setting: Use the same setting as last mode used.

Setting Image Size and Quality

You can select lower image resolution and quality to decrease the image size to capture more images. Choose a suitable setting according to the desired image quality and purpose. For details, see page 16.

Resolution Values

Image Size Print Size
12M	4000 x 3000	Printing larger than A4-size.	Larger
3:2	4000 x 2664		(DAD5)
16:9	4000 x 2248
8M	3264 x 2448		Smaller
4M	2272x 1704
2M	1600 x 1200
VGA	640 x 480	Printing to postcards or attaching to e-mail.

Quality Values

Compression Purpose
	Super Fine	Shoot higher quality images.	Higher Quality Lower Quality
	Fine Shoot normal quality images.
	Normal Shoot for more images.

Using the Zoom Function

Your camera has a combination of optical and digital zoom functions that allows you to zoom in on far away subjects or zoom out for a wide angle shot.

The optical zoom is achieved by mechanically adjusting the lens of the camera. The digital zoom enlarges or shrinks the image using a software process.

1

Select the zoom setting, and point the camera at the subject.

2

Press the zoom button (①) to compose the image.

[W]: zoom out for a wide-angle shot.

[T]: zoom in for a telephoto shot.

- When the zoom button is pressed, the zoom bar appears on the LCD monitor.

- When the optical zoom (2) factor is at maximum, zooming stops temporarily. Press the [T] again, the camera switches to the digital zoom (3) automatically and zooming continues.

- The digital zoom (③) will not activate in movie recording.

W T ① ② ③ W T W T

3

Press shutter button to take a picture.

?

Tips

• Digital zoom works by enlarging the center portion of an image through a software interpolation process.
• The digital zoom is used to achieve magnification levels up to approx. 4 times.

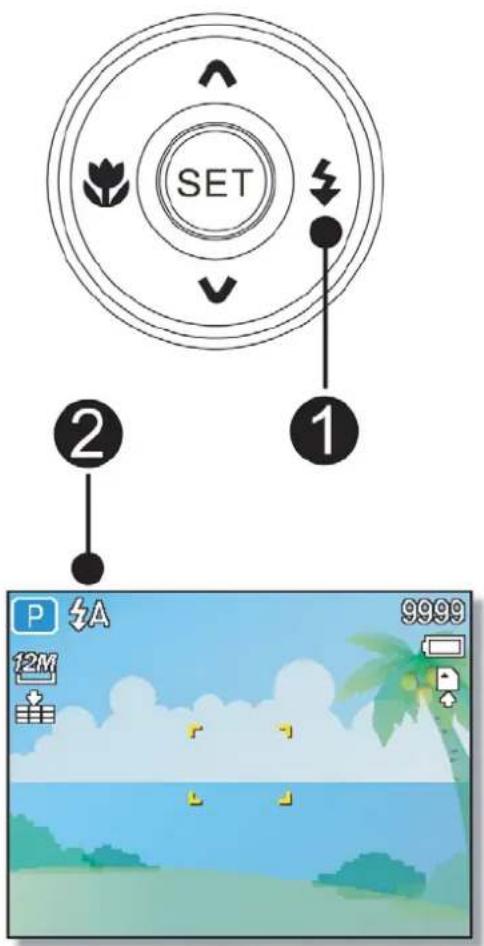

Using the Flash

The flash is not only for taking pictures when there is insufficient light, but also when the subject is in shade or in backlight conditions. Press the flash button to cycle your camera through the various flash modes. The flash will not activate when continuous shooting or movie recording.

1 Turn the power on, and set the camera to the REC mode ( finger pointing icon) page 13.

2 Press the flash button (①) to change the flash mode.

• Each time the flash button is pressed, the flash icon (②) changes.

Auto flash:

Flash fires automatically when shooting conditions require extra lighting.

Red-eye reduction:

Flash strobes to let the subject's eyes adjust to the flash, then fires again to take the actual image. Your camera will detect the subject brightness and use the flash only when required.

SET ① ② P A 12M 9999

Force on:

Flash fires every time you take a photo, regardless of lighting conditions.

S4 Slow sync:

Flash fires with a slow shutter speed.

Force off:

The flash never fires even in dark situation.

3 Press shutter button to take a picture.

Caution

• The flash charging time may increase when the battery is low.
• The available flash settings are limited depending on the REC mode you selected

Using the Macro

Your camera is equipped with a macro function that allows you to focus on very close subjects. In macro mode you can focus on subjects 10 cm from the lens when in the maximum wide angle setting and 40 cm in the maximum telephoto setting.

1

Turn the power on, and set the camera to the REC mode

(page 13).

2

Press the macro button (①) enters the macro mode.

• The macro icon (②) displays in the LCD monitor.
  • To leave the macro mode, press the macro button (①) again.

PF Pan Focus:

When Pan Focus is set, the camera focuses on every object.

INF Infinity:

When Infinity is set, the camera focuses on distant objects.

3

Press shutter button to take a picture.

?

Tips

• Distances referred to measure the distance between the camera lens surface and the subject.
• The available macro settings are limited depending on the REC mode you selected.

Using the Self-timer & Burst

Use the self-timer to set a delay from the time the shutter button is pressed to the time the image is shot. Use the burst to record continuous still images shooting.

1

Turn the power on, and set the camera to the REC mode (page 13).

2

Open the REC menu ( finger pointing to page 16). - Use ◀ or ▶ to select [Drive mode] from the REC menu.

3

Change the setting.

- Press ▲ or ▼ to select a drive mode, then press the SET button.

Off:

Record a single image.

2 sec.:

The shutter release will be delay for 2 seconds.

10 sec.:

The shutter release will be delay for 10 seconds.

Double:

Record two images in a shot after pressing the shutter release button 10 and 12 seconds.

Burst:

Off 2 sec. 10 sec. Double Burst Drive mode

Keep pressing the shutter button fully to take continuous shooting. Release the shutter button to stop shooting.

4 Press shutter button to take a picture.

Tips

- When using the self-timer function, be sure to use a tripod or place the digital camera on a level, stable surface.

Using the Aperture Priority

In this mode, you can set an aperture value to match the brightness. A higher aperture value brings the background out of focus. Selecting a lower aperture value allows you to soften the background.

1 Turn the power on, and set the camera to the Aperture Priority (page 14).

2 Adjust the aperture value by pressing ▲ or ▼button.

3 Press shutter button to take a picture.

A 9999 12M F2.8

Tips

- The larger the aperture value the smaller the lens opening, allowing less light to enter the camera.

Using the Shutter Priority

In this mode, you can set a shutter speed to match the brightness. Faster shutter speeds allow you to take a sharp picture of a moving subject while slower speeds create a trail effect and allow you to shoot without a flash in dark areas.

1 Turn the power on, and set the camera to the Shutter Priority ( page 13).

2 Adjust the shutter speed by pressing ▲ or ▼button.

3 Press shutter button to take a picture.

Game scene with a beach scene, palm tree, and sky (no readable text or symbols)

Using the Manual Exposure

You can manually set the shutter speed and aperture to achieve a particular effect.

1 Turn the power on, and set the camera to the Manual Exposure (page 14).

2 Use the SET button to switch between aperture value and shutter speed control. Press ▲ or ▼ to adjust the setting.

3 Press shutter button to take a picture.

- Press the shutter button halfway, the difference between the standard exposure and the selected exposure appears in red.

M 3A 12M 9999 F2.8 1/30

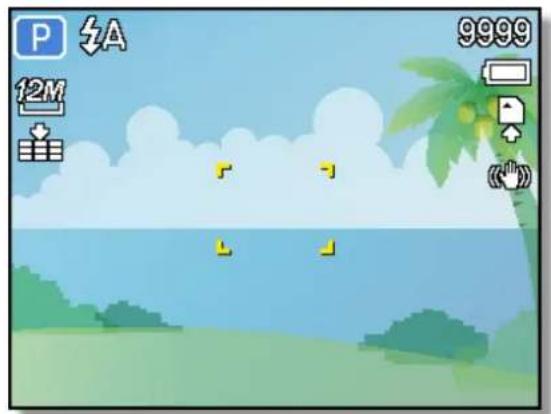

Using the Stabilizer

With more sensibility and faster shutter speed to bright up the pictures, effectively prevent blur image caused by hand shack or target movement.

Game interface screenshot showing a beach scene with palm trees, sky, and UI elements (no readable text or symbols)

Line drawing of a device with a hand icon and signal waves, no text or symbols present

Recording Movie Clips

1

Turn the power on, and set the camera to the Movie mode (page 13).

2

Compose the subject on the monitor.

• Aim the focus area (4) to the subject that you want to take.
• The LCD monitor displays the available recording time (③).

3

Start recording.

• Press the shutter button (①) to start recording.
• Using the zoom button (②) to adjust the image size.
• The White Balance is set and locked to the settings of the first frame

Line drawing of a digital camera with labeled buttons and screen, showing front panel and control panel.

00:10:00 320 ③ ④

4

Finish recording.

• Press the shutter again to end recording.
• The camera will stop recording automatically when the memory capacity has been reached.

Caution

• Sound cannot be recorded while pressing the zoom button..
- The digital zoom cannot be used in Movie mode.
- When the maximum capacity for a single video has been reached, simple press the shutter button again to continue recording. The camera will automatically stop recording when the memory capacity is full.

Setting the Movie Size

Movie Size and Frame Rate

Icon Resolution Frame Rate
	640 x 480	30 frames/ sec.
	320 x 240
	640 x 480 ( YouTube®)

YouTube® Mode

The YouTube® Mode allows you to record movies with predefined video settings for easy upload to the YouTube® website.

1

YouTube® supports two file upload standards:

• Single File Uploader. The maximum movie file size is up to 100 MB.
• YouTube® Uploader. The maximum movie file size is up to 1 GB.

Most uploaded movie length ranges within 5 minutes, although you can upload a maximum movie length of 10 minutes.

2

Therefore when you record using the YouTube® mode, the following standards are followed:

• Recorded movies are set to YouTube® standard resolution of 640 X 480.
• Recording automatically stops when the file reaches 100 MB.

Tips

• Using VLC software to play videos of the MAC may lead to display issues. We recommend using the QT player for video playback.
• To record a YouTube® movie, select from the Movie Size function.

Recording Audio Clips

1

Turn the power on, and set the camera to the Voice REC mode (page 13).

2

Press the shutter button to start recording.

- The voices are recorded from the microphone of the camera. Be careful to avoid touching the microphone while recording.

3

Press the shutter button again to end recording.

- The camera will stop recording automatically when the memory capacity has been reached.

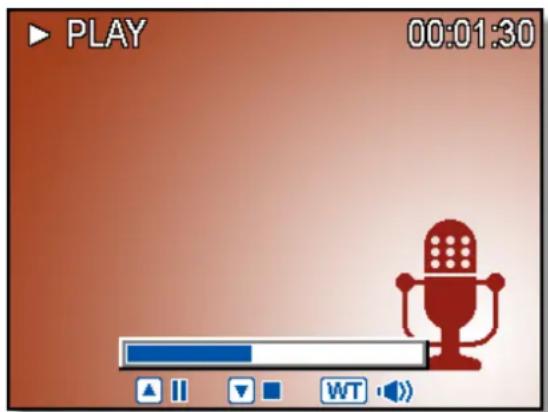

Playing Back Audio Clips

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select the audio clip that you want to playback.

3

Start playing back.

PLAY 00:01:30 WT

• Press ▲ to start playing the audio clip.
• Press ▼ to stop the audio clip, or press ▲ to pause it. When audio clip paused, press ▲ again to resume.

Recording a Voice Memo

You can add a voice memo to the still images after you record it.

1

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2

Press ◀ or ▶ to select a still image that you want to add a voice memo to.

- If the image already has the voice memo recorded, the appears on the LCD monitor.

The new recording will replace the previous one.

12M 5/150 REC voice? Start 2007/1/1 12:00

3

Open the PLAYBACK menu.

- Press the MENU button, using four-way control to select Voice Memo ( musical) and press the SET button.

4

Press the SET button to start recording for 30 seconds.

- Press the SET button again to end recording.

Caution

• The voice memo cannot be added to a movie clip or a protected image.
• You cannot delete only the voice memo. When you delete the image, the attached voice memo is also deleted.

Playing Back a Voice Memo

1

Turn the power on, and set the camera to the PLAY mode ( page 13).

2

Press ◀ or ▶ to select the image that has the voice memo recorded.

3

Start playing back.

• Press ▲ to start playing the voice memo.
• Press ▼ to stop the voice memo, or press ▲ to pause it. When voice memo paused, press ▲ again to resume.

Other Recording Functions

Setting the Metering

There are 3 different light metering options available on your camera.

Option Description
	Light is measured from the entire shooting screen, but gives more importance to the values near the center.
	Selects an exposure based on readings from multiple points in the subject area.
	Selects an exposure based on a single reading taken from the center of your picture.

Setting the White Balance

Adjust the white balance to match different light sources such as sunlight, incandescent (tungsten) lighting or, fluorescent lighting.

Option Description
AUTO	Automatically corrects white balance. Ideal for general photography.
	Adjusts for bright sun conditions, or natural light conditions.
	Adjusts for cloudy days or twilight conditions.
	Adjusts for normal indoor lighting conditions. Corrects the orange hue of household light bulbs. Ideal for indoor photos under tungsten or halogen lighting without a flash.
	Adjusts for fluorescent lighting. Corrects the green hue of fluorescent lighting. Ideal for indoor photos under fluorescent lighting without a flash.
	For more accurate adjustment or when the light source cannot be specified.

Tips

- Point the camera at a white piece of paper or similar object under the lighting conditions for which you want to set the white balance, and then press the Shutter button.

Setting the ISO

With the initial settings, the ISO sensitivity is automatically set according to the brightness of the subject.

Option Description

Auto Sets the ISO sensitivity automatically.

ISO 125 Sets the sensitivity to ISO 125 equivalent.

ISO 200 Sets the sensitivity to ISO 200 equivalent.

ISO 400 Sets the sensitivity to ISO 400 equivalent.

ISO 800 Sets the sensitivity to ISO 800 equivalent.

ISO 1600 Sets the sensitivity to ISO 1600 equivalent.

ISO 3200 Sets the sensitivity to ISO 3200 equivalent.

Tips

- Higher ISO speeds increase the image noise. To take clean images, use as low an ISO speed as possible.

Setting the Exposure

Set the exposure value manually to compensate for unusual lighting conditions such as indirect indoor lighting, dark backgrounds, and strong backlighting.

Setting the AEB

Sets the auto exposure bracketing (AEB) to shoot 3 continuous images, each with a different exposure setting: correctly exposed, underexposed, and overexposed.

Setting the Highlight

Make the subject stand out from its surroundings. The subject will be in focus in three

different ranges:

Tips

- The Photo Frame and Face Tracking cannot be used as using the Highlight.

Setting the Sharpness

You can select whether you want the image to have sharp or soft outlines.

Option Description
	The edges of the image are emphasized. The edges will become sharp, but noise may occur in the recording image.
	The edges of the image are sharp. This is suitable for printing.
[0452]	The edges of the image are softened. This is suitable for editing images on PC.

Setting the Photo Effect

You can add special effects to your images in Record mode or in Playback mode.

Option Description
Off No effect is added to the image.
	Red eye removal. (Playback only)
B&W Convert image to black & white.
Sepia Recorded image will be stored in a sepia tone.
Negative Opposite what they were in the original image. (Playback only)
Mosaic Add mosaic tiles to the images. (Playback only)
Red The image becomes reddish.
Green The image becomes greenish.
Blue The image becomes bluish.

Setting Date Stamp

The Date Stamp function can be used to add a date to your pictures as you take them.

Option Description

Off Do not add the recorded date & time to printed images.

Date Only add the recorded date to printed images.

Date & Time Add the recorded date & time to printed images.

Setting Face tracking

After initializing the face tracking function, the lens will lock the main character in the picture and follow their movements. Also, the use of auto digital zoom technology allows the lens to extend and retract.

Tips

• Pressing the shutter halfway showing green AF area means focus is complete.
• Face tracking is powered by Arcsoft.
• Under some environmental influences, face tracking function may be limited.
• The Highlight and Photo Frame cannot be used as using the Face Tracking.
• When capturing an image with several faces, face tracking function will take up more time tracking faces for the first time

Setting Photo Frame

You can add 10 kinds of frames to still images, making them more interesting.

Tips

• This feature is only available with still images (except 3:2 and 16:9).
• The Highlight and Face Tracking cannot be used as when using the Photo Frame.

Setting AF Lamp

The AF Lamp function allows you record images in low light conditions.

Option Description
Off Disable the AF lamp while recording images.
Auto	The AF lamp turns on automatically by half pressing the shutter button under low light conditions.

Playback

Playing Back Images

1

Turn the power on, and set the camera to the PLAYBAC mode ( finger page 13).

• The latest recorded imag appears on the LCD monitor.
• If there are no images stored, a message [No image] appears.

5/1 50 12V 2007/1/1 12:00 SET MENU SCN+ ①

2

Press the four-way control ◀ or ▶ (①).

• ◀: displays the previous image.
• ▶: displays the next image.

Tips

- Holding down or ▶ scrolls images in a high speed.

Playing Back Movie Clips

1

Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).

2

Press ◀ or ▶ to select a movie clip that you want to playback.

3

Start playing back.

• Press ▲ to start playing the movie clip.
• Press ▼ to stop the movie clip, or press ▲ to pause it. When the movie paused, press ▲ again to resume.

Tips

• During movie playing back, press ▶ to fast forward or press ◀to rewind it.
• Press the shutter to capture the still image from the movie clip while it had paused.

Magnifying & Trimming Still Images

1 Turn the power on, and set the camera to the PLAYBACK mode ( finger pointing icon) page 13.
2 Select an image.

- Press ◀ or ▶(③) to select the image that you want to magnify or trimming.

- Only still images can be magnified and trimmed.

1 3.0x SET 2 MENU SCN 3

3 Magnify the image.

• Press [T] (①) to magnify the image and the central portion of the image is displayed. You can use the arrow button (③) to view different parts of the magnified image.
• Press the MENU button (②) to return to the normal size.

4 Trim the image.

- Press the SET button (③) to set the image trimming.

5 Save the image.

- Press the SET button (③) again to trim the selected image and save it as a new one.

Viewing in Thumbnail

1

Turn the power on, and set the camera to the PLAYBACK mode ( page 13).

2

Press the zoom button [W], a thumbnail screen is displayed.

SET Full screen

3

Use the four-way control to select the desired image, and press [T] or the SET button to show the selected image in full screen.

Tips

- You can protect or delete multiple images in thumbnail, see page 47, 49.

Playing a Slide Show

1

Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).

2

Enter the slide show.

- Press the MENU button (①), use the four-way control (②) to select Slide Show (▶) and press the SET button (②).

Slide Show 3 sec. Yes Start Select SET OK MENU SC

3

Change the slide show settings.

• Use the four-way control (2) to set the slideshow interval (☑), effect ( ), and repeat (↔).
• You can set the interval between 1\~10 seconds.

4 Playing the slide show.

• Press the SET button (②) to start the slideshow.
• During the slideshow, press the SET button (②) to pause the slideshow and press the SET button again to resume.

Deleting Files

Deleting a Single File

1 Turn the power on, and set the camera to the PLAYBACK mode ( page 13).

2 Open the menu.

- Press the MENU button (①), then use the four-way control (②) to select Delete (☑) and press the SET button (②).

W SET MENU SCN ② ① ③

3 Press ▲ or ▼(2) to select [SINGLE], and then press the SET button (2).

4 Press ◀ or ▶ (②) to select the image you want to delete.

5 Press the SET button (②) to delete the image.

- Repeat step 4\~5 to delete images.

? Tips

- To quickly delete the current display image

1. Select the image you want to delete.
2. Press the Delete button (③) to show a confirmation.
3. Press the SET button (②) to delete the current display image.

- Protected images cannot be deleted with this function.

Deleting Multiple Files

1

Turn the power on, and set the camera to the thumbnail screen (page 45).

2

Open the menu.

- Press the MENU button, then Press ◀ or ▶ to select to select Delete (☐) and press the

Select All Protect Delete

SET button.

3

Press ▲ or ▼ to select [Select], and then press the SET button.

- The frame of the selected image turns green.

4

Select multiple images.

- Use the four-way control to select the image. - Press the SET button toggles the 📄 on and off. Repeat this step until all images that you want to delete are displayed with an icon 📄.

5

Delete images.

- Press the MENU button, then select [Yes] and press the SET button. All selected images will be deleted. - To cancel delete, press the MENU button in this step.

Deleting All Files

1 Turn the power on, and set the camera to the PLAYBACK mode ( page 13).

2 Open the menu.

- Press the MENU button, then use the four-way control to select Delete (☐)

and press the SET button.

- You can open the menu in full screen or in thumbnail.

3 Press ▲ or ▼ to select [ALL], and then press the SET button.

4 Press the SET button to delete all unprotected images.

Protecting a Single File

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).

2 Open the menu.

- Press the MENU button, then use the four-way control to select Protect (Oπ) and press the SET button.

3 Press ▲ or ▼ to select [SINGLE], and then press the SET button.

4 Press ◀ or ▶ to select the image you want to protect.

5 Press the SET button to protect the image.

• When the file is locked, the ON displays on the LCD monitor.
• Repeat step 4\~5 to protect images.
• To unlock the file, press the SET button again in step 5. The ON will disappear and the file is unlocked.

Protecting All Files

1

Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).

2

Open the menu.

• Press the MENU button, then use the four-way control to select Protect (Oπ) and press the SET button.
• You can open the menu in full screen or in thumbnail.

Protect Single Lock all Unlock all Select SET OK

3

Press ▲ or ▼ to select [Lock all], and then press the SET button.

- To unlock all files, select [Unlock all] in this step, then press the SET button.

4

Press the SET button to protect all images.

Protecting Multiple Files

1

Turn the power on, and set the camera to the thumbnail screen (page 45).

2

Open the menu.

• Press the MENU button, then Press ◀ or ▶ to select to select Protect (Oπ) and press the SET button.

Select Lock all Unlock all •← On Protect Delete

3

Press ▲ or ▼ to select [Select], and then press the SET button.

- The frame of the selected image turns green.

4 Select multiple images.

• Use the four-way control to select the image.
• Press the SET button toggles the ON on and off. Repeat this step until all images that you want to protect are displayed with an icon ON.

5 Protect images.

• Press the MENU button, then select [Yes] and press the SET button. All selected images will be protected.
  • To cancel protect, press the MENU button in this step.

Editing Images

Rotating Still Images

1 Turn the power on, and set the camera to the PLAYBACK mode ( finger page 13).
2 Press ◀ or ▶ to select the image you want to rotate.
3 Open the menu.

Rotate Rotate OK Select SET OK

- Press the MENU button, then use the four-way control to select Rotate (☐) and press the SET button.

4 Press the SET button to rotate the image.

• Each press rotates the image 90 degrees in clockwise.

5 Press ▲ or ▼ to select OK, and then press the SET button to finish rotating.

Changing the Image Size

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).
2 Press ◀ or ▶ to select the image you want to resize.
3 Open the menu.

- Press the MENU button, then use the four-way control to select Resize (☐) and press the SET button.

4 Press ▲ or ▼ to select an option, and then press the SET button.

- The resized image will be saved as a new file.

Caution

- Only a large size image can be resize to a smaller one.

Changing the Image with Effects

You may use Red Eye Removal remove the red eye caused by flash from original photo. Or use color filters to save as a new image.

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).
2 Press ◀ or ▶ to select the image you want to add the effect.
3 Open the menu.

- Press the MENU button, then use the four-way control to select Photo Edit (💡) and press the SET button.

4 Press ▲ or ▼ to select an option, and then press the SET button.

- The edited image will be saved as a new file.

Choosing the Image with Photo Frame

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).
2 Press ◀ or ▶ to select the image you want to add the photo frame.
3 Open the menu.

- Press the MENU button, then use the four-way control to select Photo Fames (☐) and press the SET button.

4 Press ▲ or ▼ to select the image you want, then press the SET button to apply the choice.

- The edited image will be saved as a new file.

Copying the Files

You may copy the data from the camera's internal memory to the memory card for convenience.

1

Be sure you have inserted a memory card into your digital camera. Set the camera to the PLAYBACK mode.

page 13).

2

Open the menu.

- Press the MENU button, then use the four-way control to

select Copy to card (→) and press the SET button.

12M 5/150 Copy this? Yes 2007/1/1 12:00

3

Press ▲ or ▼ to select [Single], then press the SET button.

• To copy all images to a memory card, select [All].

4

Press ◀ or ▶ to select the image you want to copy to a card.

5

Select [Yes] and then press the SET button to start copy.

- Repeat step 4\~5 to copy other images.

- Press the MENU button to complete the setting.

Setting the DPOF

The Digital Print Order Format (DPOF) setting allows you to select images on the memory card for printing and specify the number of print copies in advance using the camera. This is extremely convenient for sending the images to a photo developing service or for printing on a direct print function compatible printer.

1

2

Turn the power on, and set the camera to the PLAYBACK mode (page 13).

Open the menu.

- Press the MENU button, then use the four-way control to select DPOF (▶) and press the SET button.

12M 5/150 Copy this? Yes 2007/1/1 12:00

3

Press ▲ or ▼ to select [Single], then press the SET button.

• To set the DPOF setting for all images, select [All] in this step.
• To reset all DPOF settings to initial default, select [Reset] in this step.

4

Press ◀ or ▶ to select the image you want to print out.

5

Set the number of copies.

• Press ▲ or ▼ to specify the number of copies.
• The number of copies can be set from 0 to 30.
• To cancel this image DPOF setting, set the number of copies to 0.

6

Print the date stamp out.

• Press SCN button to set the date stamp of current image. Press SCN button again to turn off date stamp.
• Repeat step 4\~6 to other images for printing.

7

After you finished all image settings, press the SET or MENU button to apply it.

Choosing a Startup Image

1 Turn the power on, and set the camera to the PLAYBACK mode (page 13).
2 Open the menu.

- Press the MENU button, then use the four-way control to select Start-up Image (❤️) and press the SET button.

3

Press ◀ or ▶ to select the image you want, then press the SET button to apply the choice.

- A message "Completed" appears.

4

Set the camera to the Setup Menu ( finger pointing icon) page 17.

5

Press ▲ or ▼ to select Start-up Image (♥) then press ▶ or the SET button.

6

Press ▲ or ▼ to select a desired option and press the SET button to apply the setting.

Start-up Image Off System My image Select SET OK

[Off]: Disable the start-up image.

[System]: Use camera default image. [My image]: Use the image that you just specified in step 3.

7

Press the MENU button to close the menu.

Caution

- The start-up image will not be deleted even if the original image is deleted or memory formatted.

Making Connections

Connecting the Camera to a TV

You can display recorded images on a television with a supplied AV cable.

Video Audio

1 Set the TV out to match the TV system that you are using ( finger pointing icon) page 19.
2 Turn off the camera and the TV.
3 Use the supplied AV cable to connect the camera to the TV set.
4 Set the TV input signal to Video In.

• Refer to the documentation included with your TV for more information.

5 Display on TV.

- Everything that would normally appear on the camera's LCD screen, such as photo and video clip playback, slide shows, and image or video capture, appears on the TV.

Connecting the Camera to a PC

There are two ways to download files from the camera's internal memory or memory card to a computer:

• Inserting the memory card into a card reader
• Connecting the camera to a computer using the supplied USB cable

Using the Card Reader

1

Eject the memory card from the camera and insert it in a card reader that is connected to a computer.

2

Open [My Computer] or [Windows Explorer] and double-click the removable drive icon that represents the memory card.

Line drawing of a device being inserted into a rack, showing internal components and a close-up of the component (no text or symbols)

3

Copy images from the card into a directory of your choice on the computer's hard disk.

Connecting the Camera to a Computer with the USB Cable

1

Install the USB software driver included with the bundled CD-ROM.

2

Connect the supplied USB cable to the computer's USB port and turn on the camera.

- The LCD screen turns off when the connection to the computer has been successfully completed.

Diagram showing cable connection to a computer tower with labeled components and magnified views of the device.

3

Open [My Computer] or [Windows Explorer]. A “Removable Disk” appears in the drive list.

4

Double-click the "Removable Disk" icon to view its contents.

- Files stored on camera are located in the folder name "DCIM".

Appendix

About the Folder & File Name

Your digital camera automatically creates a directory of folders in the internal memory or memory card that it uses to organize still images, movie clips and other information.

Folder Structure

Your camera creates three directory names:

• DICAM. All captured images, videos and audio files are stored in this folder except for files recorded using the Auction or YouTube® mode.
• _AUCT. Captured images using the Auction mode are saved in this folder.
• _UTUBE. Captured videos using the YouTube® mode are saved in this folder. Folder name begins with a 3-digit number from 100 to 999 and followed by "DICAM" or "_AUCT" or "UTUBE", each folder holds up to 9999 files. If new files are made, a new folder named in sequence will be made automatically.

INTERNAL (F:) DCIM 100DICAM DSCI0001.JPG DSCI0002.JPG DSCI0003.JPG DSCI0004.AVI DSCI0005.WAV 101DICAM ... 102UTUBE DSCI0001.AVI DSCI0002.AVI ... 103_AUCT DSCI0001.JPG DSCI0002.JPG

File Naming

File name begins with "DSCI" and are followed by a 4-digit number that increases in sequence. File numbering starts from 0001 when a new folder is created.

If the highest folder number is 999 and highest file number exceeds 9999, the camera will display the warning message "Folder cannot be created". When it appears, try one of the following ways:

• Reset the file number and plug in a new memory card.
• The folder number and file number are initialized and renumbered from 100 and 0001 respectively.

Caution

- Do not change the folder and file names in the memory card using your computer. It may be unable to playback the data using the digital camera.

Troubleshooting

Problem Cause	Solution
Power does not turn on.	Battery is inserted in the wrong direction.	Reload battery in the correct direction.
	Batteries are dead. Replace or recharge batteries.
	The battery compartment door is open.	Make sure the battery compartment door is securely closed.
The camera does not take pictures.	The flash is charging. Wait for the flash to charge.
	Memory is full. Insert a new memory card.
	Memory card is not formatted correctly.	The card may be defective, use a new card.
when the shutter button is pressed.	The Flash is charge. Wait for the flash to charge. Image is not recorded
	Memory is full. Insert a new memory card.
The flash does not fire. Flash is set to OFF. Set the flash to any mode except off.
Image is blurry or out of focus.	The camera was moving when the image was captured.	Hold the camera steady when shooting picture.
	The subject was beyond the range within which the camera can focus.	Turn the Macro mode on it the subject is within 10 cm or 40 cm.Do not use Macro mode when shooting distant subjects.
Image is not displayed on the LCD monitor.	A memory card with non-DCIF images (recorded with other camera) is loaded.	This camera cannot display non-DCIF images.
Recorded images are not saved in memory.	The camera was turned off / powered down before the image was stored in memory.	If the battery low indicator appears on the LCD monitor, replace the battery immediately.
Cannot transfer images to a computer after connecting the USB cable.	USB driver is not installed. Install the USB driver before you connect the camera to a computer / turn the camera on.
Card error The memory card format may not be correct.		Re-format the memory card to the FAT format using a card reader in Windows.
The lens got stuck up. The type of the battery used may be incorrect or the battery power level is too low.		Do not force the lens to go back.Change the battery or charge the battery before using the camera.

Specifications

Sensor 12 megapixel CCD, Size : 1/2.3 inch
Lens Focal length	: f = 6.3 (W) ~ 18.9 (T) mm, 3X optical zoom, 4X digital zoom
LCD Display 2.7"	LCD
Focus Range Normal	: 0.4m ~ Infinity (All Zoom Step) / 0.1m ~ Infinity (at Wide only); Macro: (W) 10 cm ~ 80 cm / (T) 40 cm ~ 80 cm
Aperture F/ 3.1 (W), 5.6 (T)
Shutter 8 ~ 1/2000 sec.
File Format Still Image	: EXIF 2.2 compatible format (JPEG compression), DCF compatible. Support DPOF, Video: AVI; Audio: WAV
Resolution Still Image	: 4000 x 3000 (12M) / 4000 x 2664 (3:2) / 4000 x 2248 (16:9) / 3264 x 2448 (8M) / 2272x 1704 (4M) / 1600 x 1200 (2M) / 640 x 480 (VGA); Video: 640 x 480 / 320 x 240
Scene Mode	Program / Movie / Voice REC / Q. Mode / Portrait / Landscape / Sunset / Backlight / Smile Capture / Kids / Night scene / Fireworks / Snow /Sports / Party / Candlelight / Night Portrait / Soft Skin / Soft Flowing Water / Food / Building / Text / Auction / Blink Detection / Intelligent Scene / Aperture Priority / Shutter Priority / Manual Exposure
Sensitivity Auto / ISO 125 / ISO 200 / ISO 400 / ISO 800 / ISO 1600 / ISO 3200
White Balance Auto / Daylight / Cloudy / Tungsten / Fluorescent (H) / Fluorescent (L) / Custom
Exposure Control -2EV to +2EV in 1/3 step
Metering Center-weighted / Multi / Spot
Drive mode	2 sec. / 10 sec. / Double / Burst
Flash	Auto / Red eye reduction / Always on / Slow sync / Always off
Photo Edit	Red eye removal / Black & White / Sepia / Negative / Mosaic / Red / Green / Blue
Storage	32 MB internal memory / SD Card (2 GB) / SDHC (16 GB)
TV system NTSC / PAL
Power Supply	AA alkaline battery X2 (Use alkaline batteries or rechargeable batteries only)
Ambient temperature	Operating: 0°C to 50°C, Storage: -20 to 60°C
Microphone	Built-in
Speaker	Built-in
Dimension	Camera Body ( W x H x T ): 92 x 60.5 x 24.3 mm
Weight Camera Body w/o battery : Approx. 115 (g)

*These specifications are subject to change without notice.

Customer care

More information on the complete AgfaPhoto digital camera product range can be found under www.plawa.com / www.plawausa.com.

To return a product, you will need an RMA number which must be clearly visible on the returned shipment. You can find further information on the return of goods either by phoning our Support Hotlines or via the plawa website under the Menu item "Service & Support".

Service & Repair (USA/ Canada):

1-866 475 2605

www.plawausa.com

Support Service (USA/ Canada)

[e-mail]

Service & Repair Hotline (EU):

00800 752 921 00 (from a landline only)

Service & Support Hotline (Germany):

0900 1000 042 (1.49 Euro/ min. from a German landline only)

Online Service / International contact (Not for USA/ Canada):

[e-mail]

Manufactured by

AgfaPhoto is used under license of Agfa-Gevaert NV & Co. KG or Agfa-Gevaert NV. Neither Agfa-Gevaert NV & Co KG nor Agfa-Gevaert NV manufacture this product or provide any product warranty or support. For service, support and warranty information, contact the distributor or manufacturer.

Copyright

This manual contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer. © Copyright 2008.

Trademark Recognition

Windows 98, 2000, ME, XP are registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows Operation System. All other companies or product names are trademarks or registered trademarks of their respective companies. YouTube is a brand of Google, Inc. And YouTube, LLC, Mountain View, California, US.

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FCC Compliance and Advisory

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) this device may not cause harmful interference, and 2.) this device must accept any interference received, including interference that may cause unsatisfactory operation. This equipment has been tested and found to comply with the limits for a Class B peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. When shielded interface cables have been provided with the product or when specified additional components or accessories have elsewhere been designated to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Declaration of Conformity

We herewith confirm the following designated product: AgfaPhoto digital camera DC-2030m has been tested and found to comply with the requirements set up in the council directive on the approximation of the law of members' states relating to the EMC Directive 2004/108/EC. For the evaluation regarding to the electromagnet compatibility, the following standards were applied:

EN 55022: 2006 Class B

EN 55024: 1998+A1: 2001+A2: 2003

EN 61000-3-2: 2006

EN 61000-3-2: 1995 + A1: 2001 + A2: 2005

IEC 61000-4-2: Edition 1.2: 2001-04

IEC 61000-4-3 Edition 3.0: 2006

IEC 61000-4-4 2004

IEC 61000-4-5 Edition 2.0: 2005

IEC 61000-4-6: Edition 2.2: 2006

IEC 61000-4-8 Edition 1.1: 2001-03

IEC 61000-4-11 Second Edition: 2004

AS/NZS CISPR 22:2006

The device is marked with CE logo.
