PFD-38A - Set Middle Atlantic - Free user manual and instructions

Product Type	Front Door for Server Rack Cabinet
Brand	Middle Atlantic
Model	PFD-38A
Series	BGR Series
Compatible Rack Width	19 inches (standard EIA)
Height	38 RU (approximately 66.5 inches)
Material	Steel
Finish	Black powder coat
Hinge Type	Removable hinge pins for easy door installation
Swing Direction	Right hand swing as shipped; field-reversible to left hand
Lock Type	Key lock with cam and latch; rotatable for swing reversal
Handle	Recessed handle included
Door Strike	Included and adjustable for swing direction
Installation Hardware	Screws for hinges and door strike supplied
Maintenance	Periodic cleaning with mild soap and water; avoid abrasive cleaners
Safety	Ensure door is securely mounted to prevent tipping
Spare Parts Availability	Contact Middle Atlantic for replacement hinges, locks, handles
Repairability	Field-replaceable lock and hinge components
Warranty	Lifetime limited warranty against defects
Weight	Approximately 25 lbs (11.3 kg)
Country of Origin	USA (ISO 9001 and ISO 14001 certified)

Frequently Asked Questions - PFD-38A Middle Atlantic

What is the PFD-38A front door compatible with?

The PFD-38A is a front door for Middle Atlantic BGR Series server racks, designed for standard 19-inch EIA mounting.

Can the door swing direction be changed?

Yes, the door comes assembled for right hand swing but can be reversed to left hand swing by rotating the lock and relocating the hinges.

Refer to the manual for detailed instructions.

How do I install the door?

1) Install hinges onto the rack using supplied screws.
2) Install door strike.
3) Hang door onto hinge pins.

Ensure proper alignment before tightening.

How do I reverse the door lock?

Remove screws, cam, and latch. Then remove the handle. Rotate the lock mechanism 180 degrees. Reinstall handle, cam, and latch in the new orientation.

See Rotating Door Lock section in the manual.

What tools are required for installation?

A Phillips screwdriver is typically sufficient for installing hinges and door strike. No special tools needed.

How do I clean the front door?

Use a soft cloth dampened with mild soap and water. Avoid abrasive cleaners or solvents that may damage the powder coat finish.

Is the door lock rekeyable?

The lock is not designed to be rekeyed. For replacement keys or locks, contact Middle Atlantic for compatible parts.

What is the warranty on this product?

Middle Atlantic provides a lifetime limited warranty against defects in material and workmanship under normal use. See warranty section for full terms.

Can I use this door with a non-Middle Atlantic rack?

The door is specifically designed for Middle Atlantic BGR Series racks. Compatibility with other racks is not guaranteed due to variations in mounting hole patterns.

Where can I find replacement parts?

Contact Middle Atlantic customer service or visit middleatlantic.com for hinges, locks, handles, and other spare parts.

USER MANUAL PFD-38A Middle Atlantic

INSTALLATION INSTRUCTIONS

BGR SERIES

FRONT DOOR

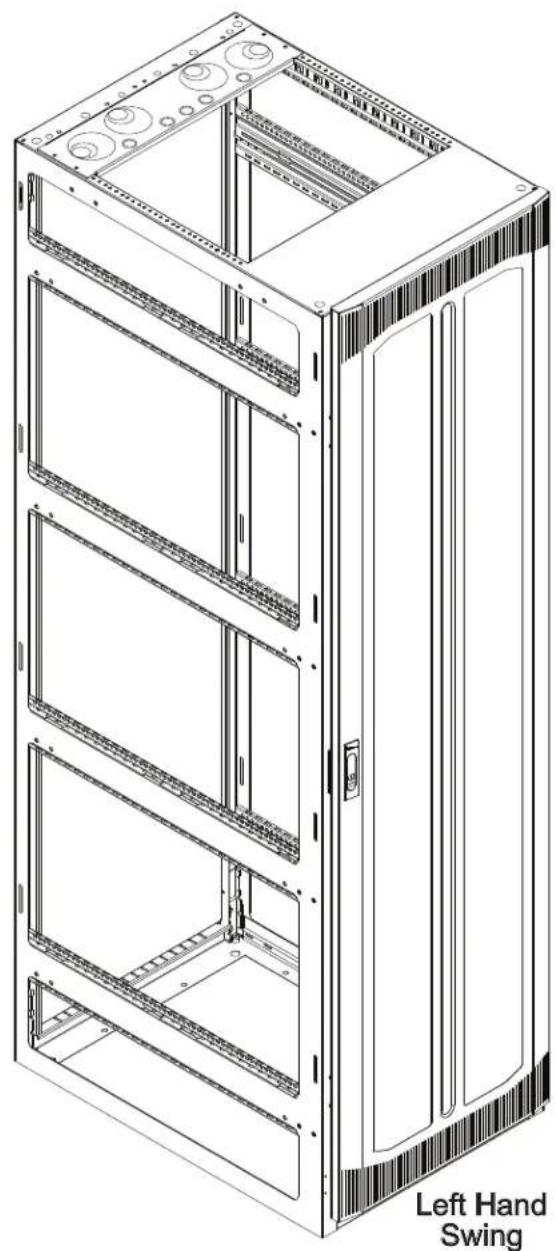

Technical line drawing of a server rack cabinet with labeled 'Left Hand Swing' (no other text or symbols)

THANK YOU

Thank you for purchasing the BGR Series Front Door. Please read these instructions thoroughly before installing this product.

INSTALLATION

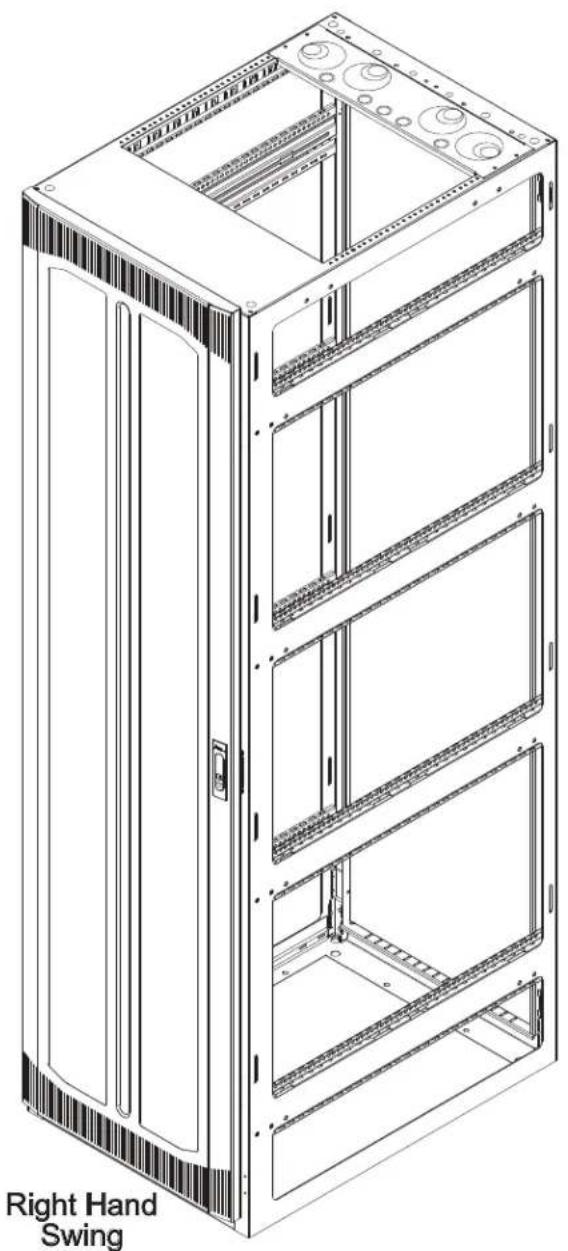

NOTE: Hinges and Door Strike can be installed on either side of the rack depending on desired swing direction. Door comes assembled for right hand swing.

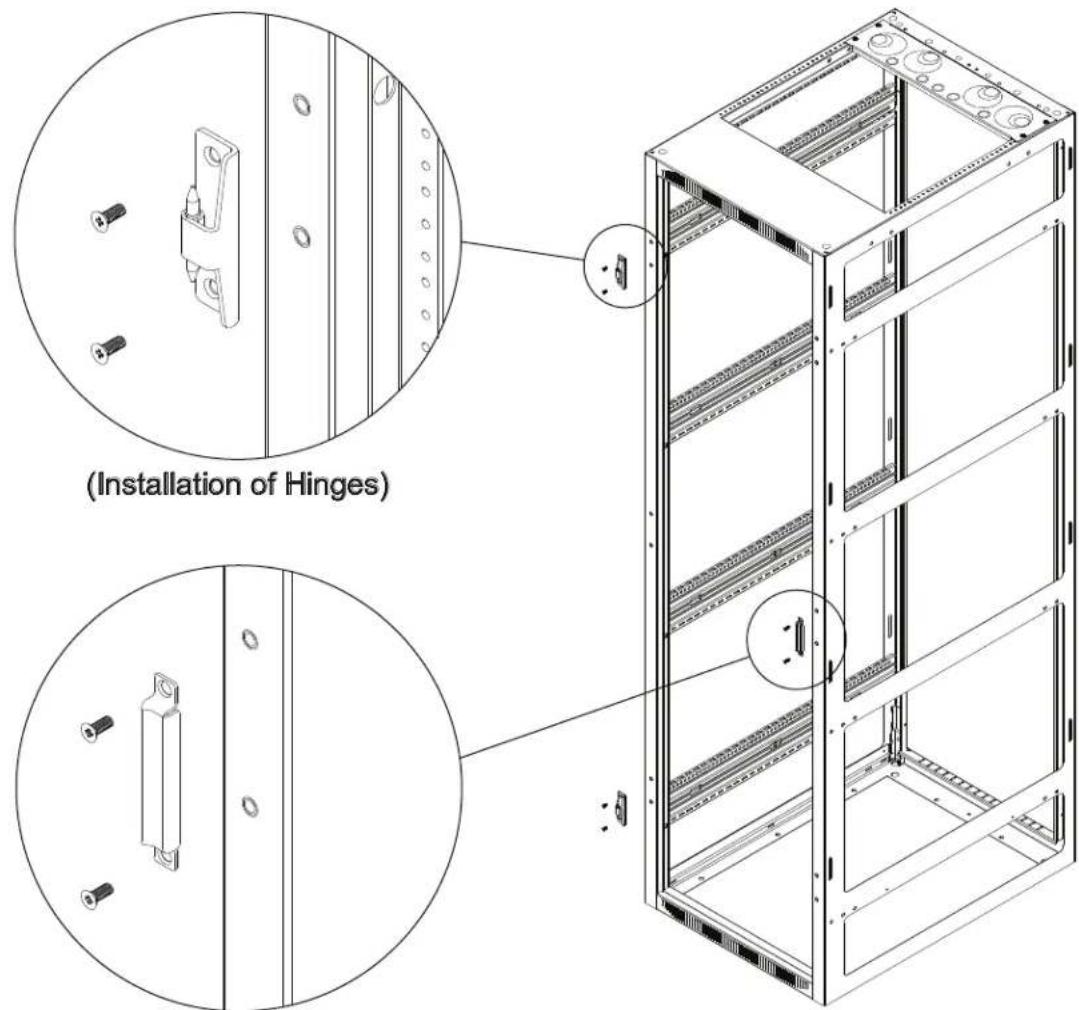

1) Install Hinges onto rack using supplied screws (two per hinge) as shown. (FIGURE A)
2) Install Door Strike using supplied screws. (FIGURE A)

(Installation of Door Strike)
(FIGURE A)

3) Install Door by hanging onto hinge pins (two places) as shown. (FIGURE B)

Technical line drawing of a server rack cabinet with an inset showing internal components (no text or symbols)

ROTATING DOOR LOCK

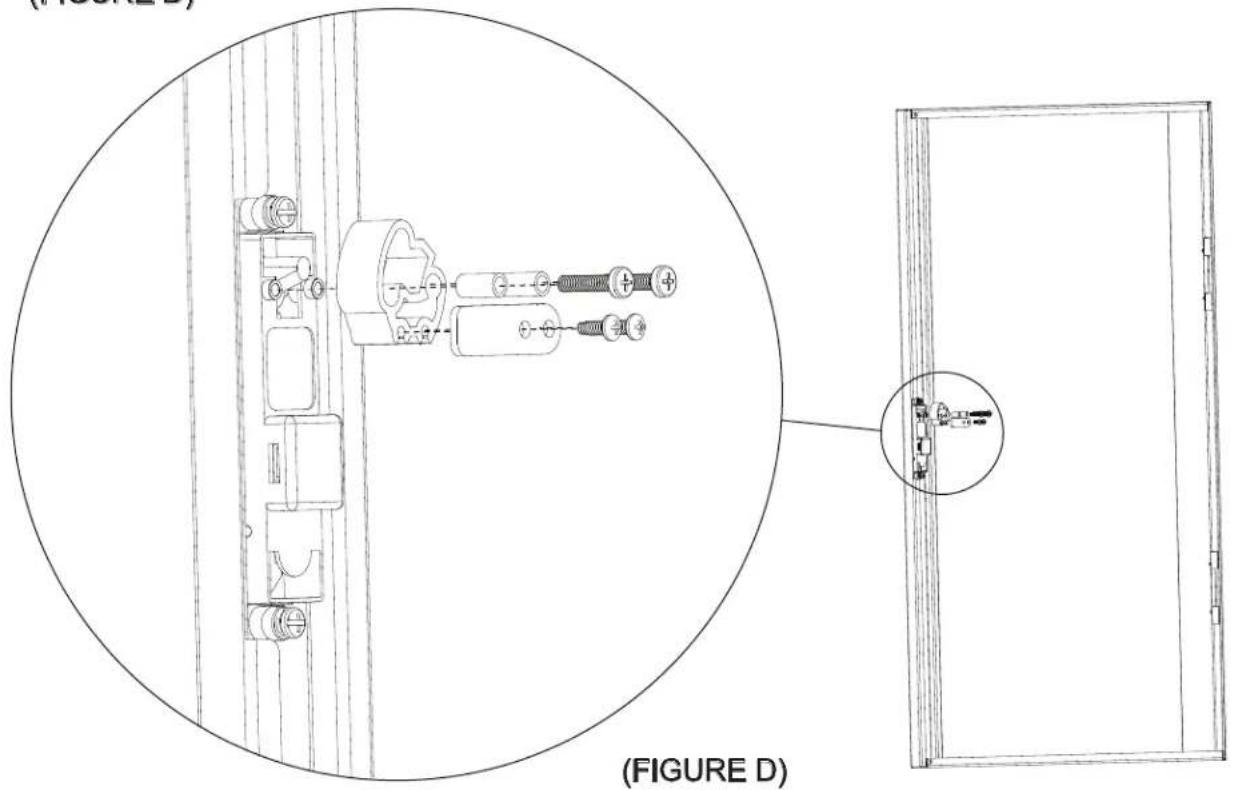

1) BGR Front Doors come pre-assembled for right hand swing. If the door requires a change in swing direction, the lock can be rotated. First remove the screws shown and then the cam and latch. (FIGURE D)

Technical line drawing of a door assembly with a close-up inset showing internal components (no text or symbols)

2) Remove the handle prior to rotating the door as shown. (FIGURE E)

Technical line drawing of a door lock assembly with mounting holes and wiring, labeled (FIGURE E) at bottom (no text or symbols on diagram itself)

ROTATING DOOR LOCK (CONTINUED)

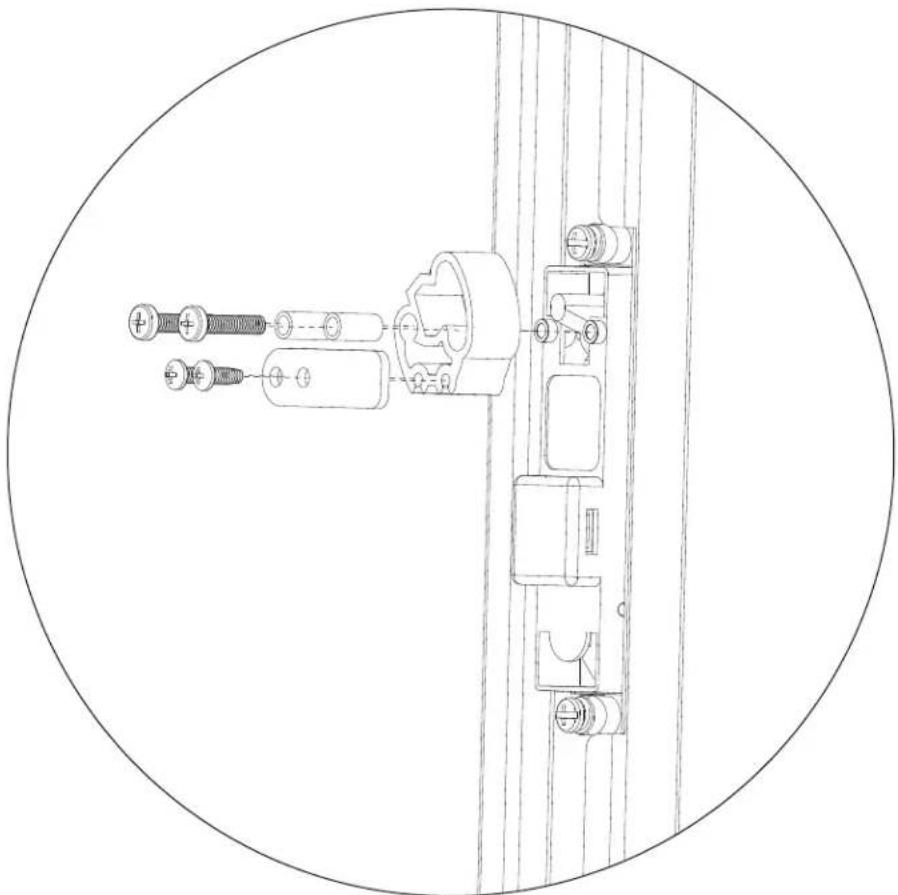

3) Reinstall the handle followed by the cam and latch as shown. (FIGURE F)

Technical line drawing of a mechanical assembly with multiple components and mounting brackets (no text or symbols)

(FIGURE F)

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the BGR Series Front Door to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory. This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.

Corporate Headquarters

Corporate Voice 973-839-1011 - Fax [phone] / International Voice [phone] - Fax [phone] middleatlantic.com - [e-mail]

Middle Atlantic Canada

Voice 613-836-2501 - Fax [phone] / middleatlantic.ca - [e-mail]

Factory Distribution

USA: NJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products Is an ISO 9001 and ISO 14001 Registered Company.

30% Recycled Paper
