Product Type	Telescoping Lacer Bar
Model	LBFR-3650-T
Brand	Middle Atlantic
Category	Server Rack Accessory - Cable Management
Hardware Included	8 studs and 8 flange nuts
Installation	Mounts to outside of front and rear adjustable rackrail for stand-alone racks; inside for SLIM 5 and AXS racks
Mounting Options	Can be mounted to center rail, front/rear rackrail, or between rackrail brackets
Applications	Vertical lacer strip mounting, vertical power strip mounting, horizontal cable management front to rear, cable strain relief
Compatibility	SLIM 5, AXS, AX-SXR series racks; compatible with LBH-1930-T horizontal lacer bars
Warranty	Lifetime limited warranty
Material	Heavy-duty steel (typical)
Color	Black (typical)

Frequently Asked Questions - LBFR-3650-T Middle Atlantic

What is the LBFR-3650-T used for?

The LBFR-3650-T is a telescoping lacer bar designed for cable management in server racks. It allows mounting of vertical lacer strips, power strips, and provides front-to-rear horizontal cable routing.

How do I install the telescoping lacer bar?

For stand-alone racks, mount the bar to the outside of the front and rear adjustable rackrails using the included studs and nuts. For SLIM 5 or AXS racks, mount it to the inside of the rackrails.

Can the LBFR-3650-T be used in any server rack?

It is designed for use with Middle Atlantic racks, particularly SLIM 5, AXS, and AX-SXR series. It may also fit other racks with compatible rackrail spacing.

What hardware is included?

The package includes 8 studs and 8 flange nuts for mounting.

Can I mount vertical power strips with this bar?

Yes, the LBFR-5A-XX version (compatible with the -T series) allows mounting of vertical power strips in racks without rail brackets, such as SLIM 5 and AXS series.

Is the lacer bar adjustable in length?

Yes, the telescoping design allows the bar to adjust in length to fit different rack depths.

How do I mount it in a SLIM 5 rack?

Use the LBFR-5A-XX version (or the -T with appropriate hardware) and mount the bar to the inside of the front and rear rackrails. HINT: Insert studs pointing into the rack for easier installation.

What is the warranty?

Middle Atlantic offers a lifetime limited warranty against defects in material and workmanship under normal use and conditions.

Can I use this bar with horizontal cable managers?

Yes, the LBH-1930-T horizontal lacer bar can be mounted to the LBFR series bars or directly to rackrails for combined vertical and horizontal cable management.

What are the mounting configurations?

The lacer bar can be mounted flat or upright, between rackrail brackets, between front-to-rear lacer bars, or directly to rackrails. It can also serve as cable strain relief when placed flat behind units.

USER MANUAL LBFR-3650-T Middle Atlantic

TELESCOPING LACER BAR

THANK YOU

Thank you for purchasing the LBH / LBFR Series Telescoping Lacer bar. Please read these instructions thoroughly before installing this product.

TABLE OF CONTENTS

Hardware

Installing LBFR-5A-XX Pg. 3

Installing LBFR-XXXX-T

Installing LBH-1930-T Pg. 4

Applications

Warranty

Pg. 2

Pg. 3

Pg. 5-7

Pg. 7

HARDWARE

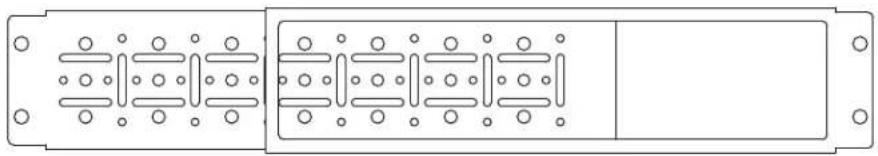

LBFR-5A-XX / LBFR-XXXX-T Includes:

Qty

Description

8

8

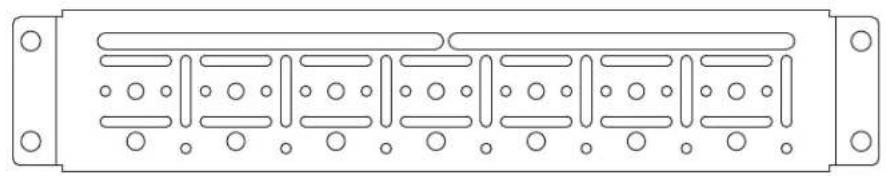

LBFR-5A-xx

or

LBH-1930-T Includes:

Qty

Description

4

4

4

4

5/16-18 flange nut

LBH-1930-T

INSTALLING LBFR-5A-XX

(SLIM 5 or AXS racks only)

1) Mount lacer bar in desired location to inside of front and rear rackrail of SLIM 5 or AXS rack using included hardware. (FIGURE A)

INSTALLING LBFR-XXXX-T

HINT:

For stand-alone racks, it may be easier to point studs into the rack during installation.

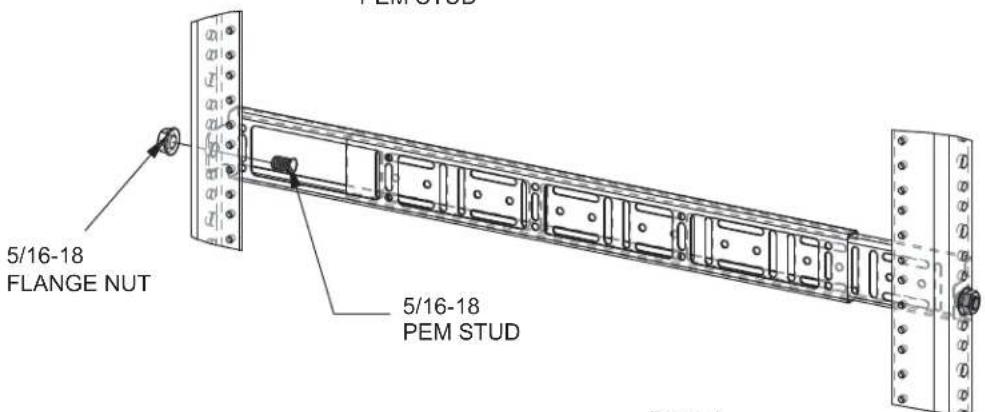

1) Mount telescoping lacer bar in desired location to outside of front and rear adjustable rackrail using included hardware. (FIGURE B)

HINT:

A) Telescoping lacer bars mount to the outside of rackrail so there is no interference if center rackrail is required.
B) Telescoping lacer bars can also be mounted to center rail and front or rear rackrail.

INSTALLING LBH-1930-T

1) Horizontal lacer bars can be mounted flat or upright with included hardware in the following configurations:

• Between rackrail brackets. (FIGURE C)
• Between LBFR Series front to rear lacer bars.
• Between rackrail. (FIGURE E)

(FIGURE D)

HINT:

When installing LBH-1930-T onto rackrail in a SLIM 5 or AXS Series rack, insert the PEM studs through the rackrail so that they point toward the inside of the rack. Then install nuts.

FIGURE E (Mounted upright)

APPLICATIONS

(For enhanced vertical and horizontal cable management capabilities)

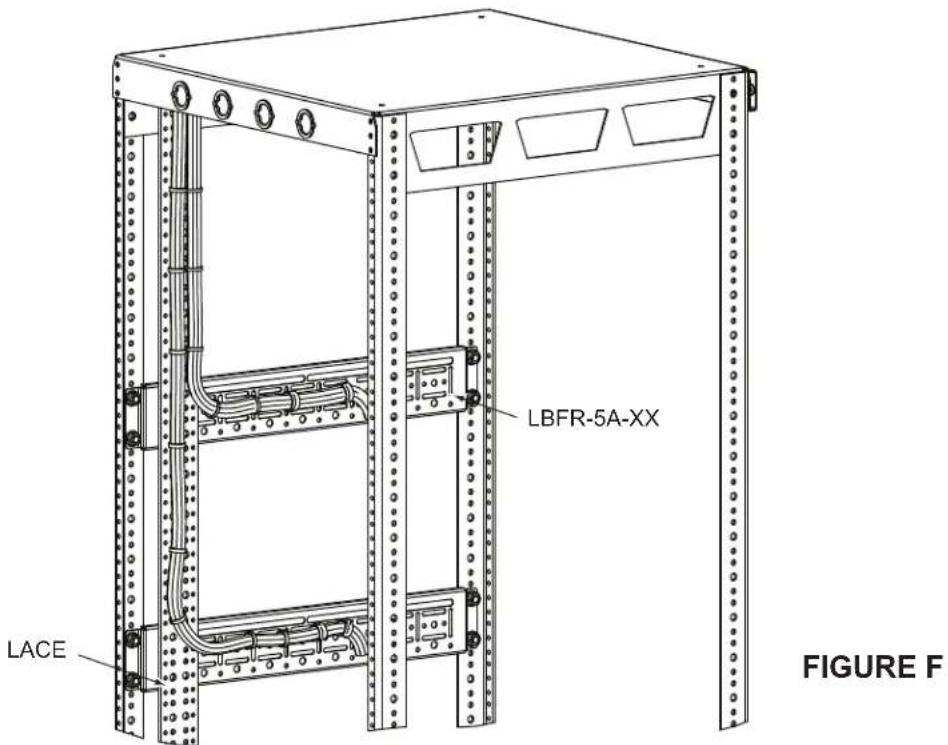

LBFR-5A-XX allows for mounting of vertical lacer strips in racks that do not have rail brackets such as SLIM 5, AXS & AX-SXR Series. (FIGURE F)

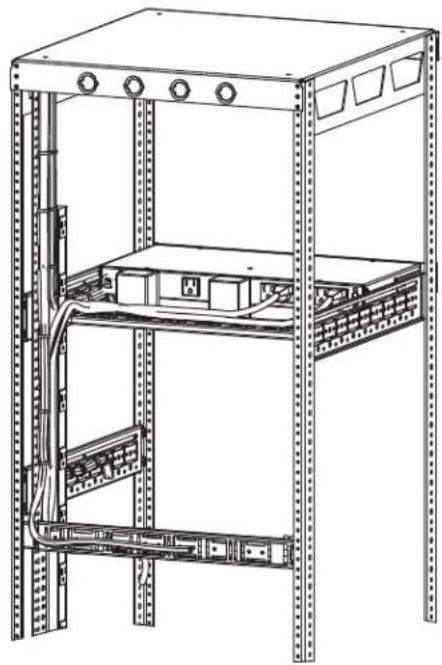

LBFR-5A-XX allows for mounting of vertical power strips within racks that do not have rail brackets such as SLIM 5, AXS & AX-SXR Series. (FIGURE G)

Page 5

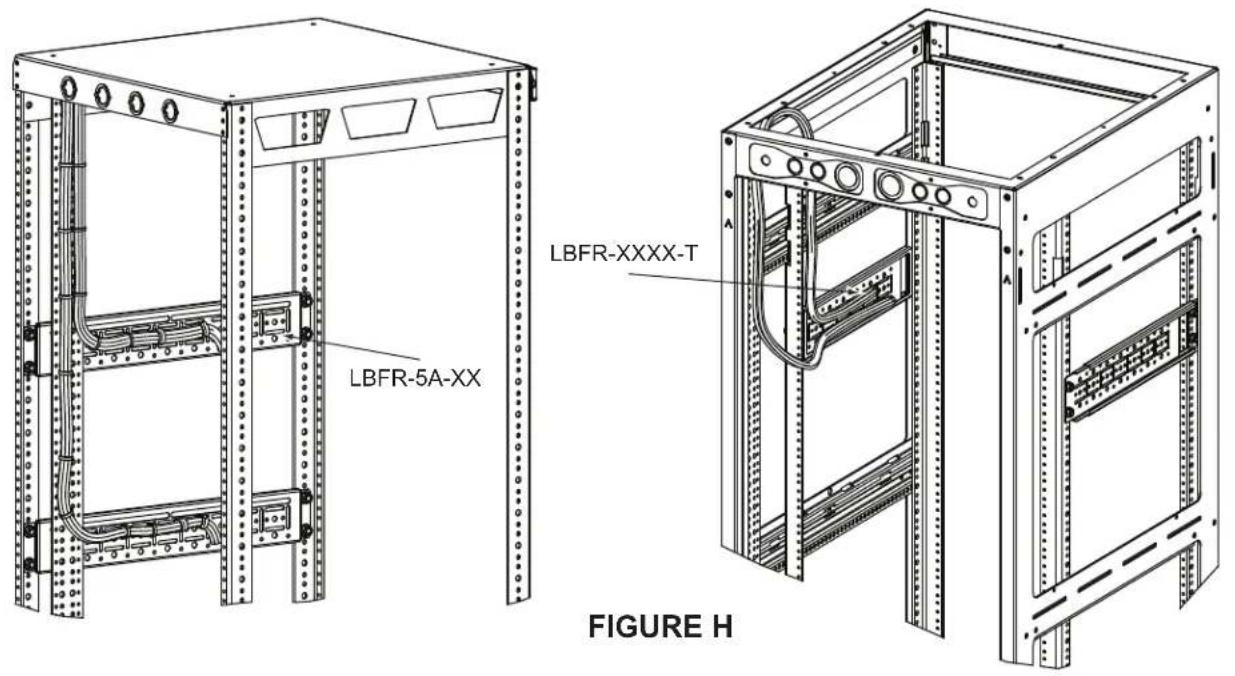

LBFR-5A & LBFR-XXXX-T allow for horizontal cable management from front to rear of the rack or enclosure and vertically between lacer bars. (FIGURE H)

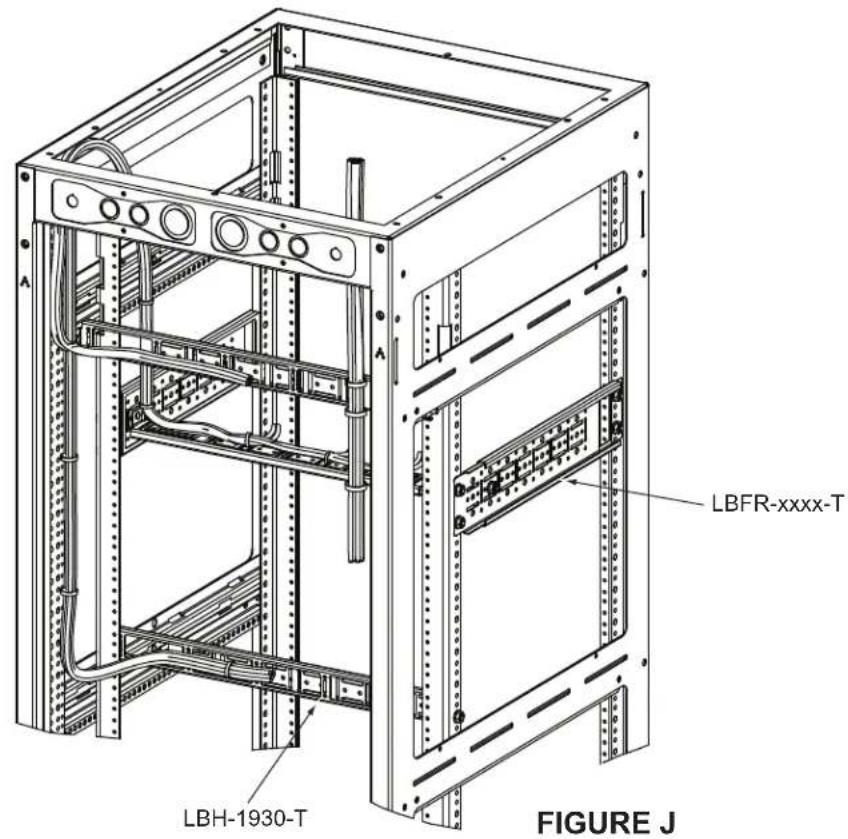

LBH-1930-T allows horizontal or vertical cable management by mounting to rackrail, rail brackets and / or the LBFR-5A or LBFR-xxxx-T. (FIGURE J)

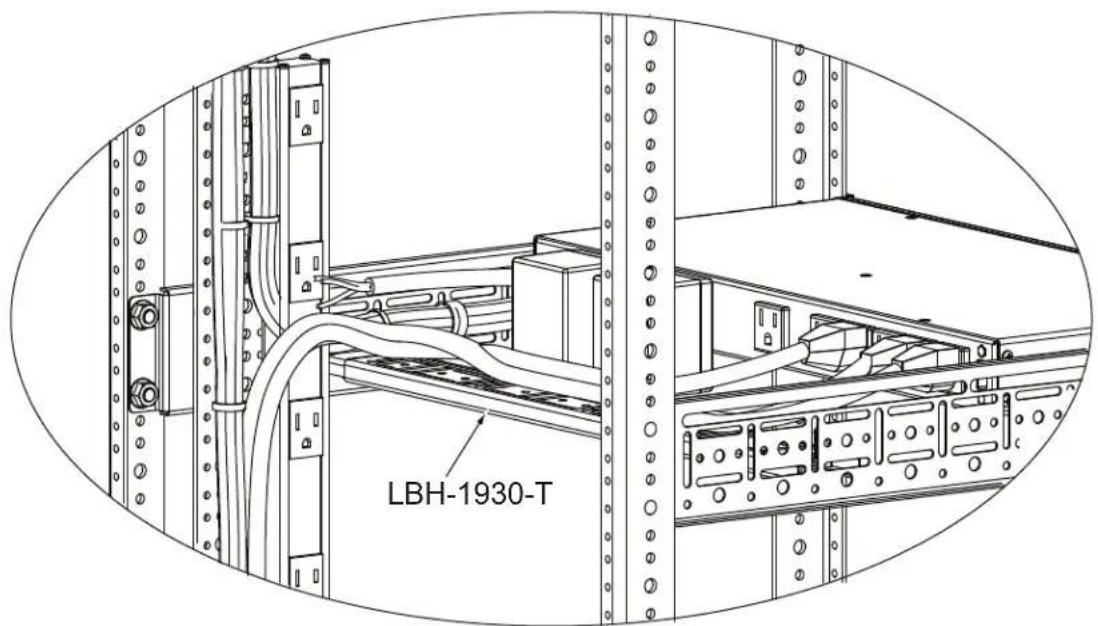

LBH-1930-T can be used as cable strain relief behind units when placed flat. (FIGURE K)

FIGURE K

WARRANTY

Middle Atlantic Products (the "Company") warrants the Telescoping Laver Bars to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.

Corporate Headquarters Middle Atlantic Canada Factory Distribution

Corporate Voice 973-839-1011 - Fax [phone]

Voice 613-836-2501 - Fax [phone]

USA: NJ - CA - IL Canada: ON - BC

International Voice [phone] - Fax [phone] middleatlantic.ca - [e-mail]

middleatlantic.com - [e-mail]

At Middle Atlantic Products we are always listening. Your comments are welcome. Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.
