Gtech POWER FLOOR K9 Model number: ATF035

OPERATING MANUAL

IMPORTANT SAFEGUARDS:

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

Do not use outdoors or on wet surfaces.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal Safety:

• Store indoors in a dry place out of the reach of children.
• Always use responsibly. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Don't let children play with the appliance; supervise children using or maintaining the appliance.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not block the appliances openings or hinder air flow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• The Power Floor K9 does not stay upright without constant support. Between uses, lie flat on the floor in a suitable location so that it does not become a trip hazard or can be stepped on.
• The Power Floor K9 has a constantly rotating brushbar. Never leave the cleaning head in one spot for an extended

period of time as this may damage the floor surface.

- The Power Floor K9 can be used for above floor cleaning and hard to reach places. Extra care should be taken when using the Multi Power Floor K9 for above the floor cleaning.

Electrical safety:

- Only use batteries and chargers supplied by Gtech.

- Never modify the charger in any way.

- The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.

- Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.

- Do not abuse the charger cord.

- Never carry the charger by the cord.

- Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.

- Don't wrap the cord around the charger when storing.

- Keep the charger cord away from hot surfaces and sharp edges.

- The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.

- Do not handle the charger or the

appliance with wet hands.

• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
• Ensure the appliance is off before connecting or disconnecting the motorised brush bar.

Battery safety:

• This appliance includes Li-Ion batteries; do not incinerate batteries or expose to high temperatures, as they may explode.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire.
• Liquid ejected from the battery may cause irritation or burns.
  • In an emergency situation contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
• Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

• CAUTION – To reduce the risk of injury from moving parts, remove battery before servicing.
• Before using the appliance and after any impact, check for signs of wear or

damage and repair as necessary.

• Do not use the appliance if any part is damaged or defective.
• Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.
• Never modify the appliance in any way as this may increase the risk of personal injury.
• Only use replacement parts or accessories provided or recommended by Gtech.
• If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

Intended use:

• This appliance has been designed for domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking.
• Use only as described in this manual.
• Don't use on concrete, tarmacadam or other rough surfaces.
• The brush bar may damage certain floor surfaces. Before vacuuming flooring, rugs or carpets, check the flooring manufacturer's recommended cleaning instructions.
• May damage delicate fabrics or upholstery. Care should be taken on loose-weave fabrics or where there are loose threads. If in doubt please test on an inconspicuous area first.

WARNING:

• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the unit in water and do not clean in a dish washer.
• Never use the appliance without the filter fitted.
• Never use the extension tube without a tool attached.
• For household use only.

Thank you for choosing a Gtech Power Floor K9

"I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us. Please take the time to write a review of the Power Floor K9 either on the website of the store you bought it from or at Trustpilot.co.uk. We will use your feedback to improve our products and services and let other people know what it's like to be part of the Gtech family." Nick Grey – Inventor, Owner of Gtech

What's in the box

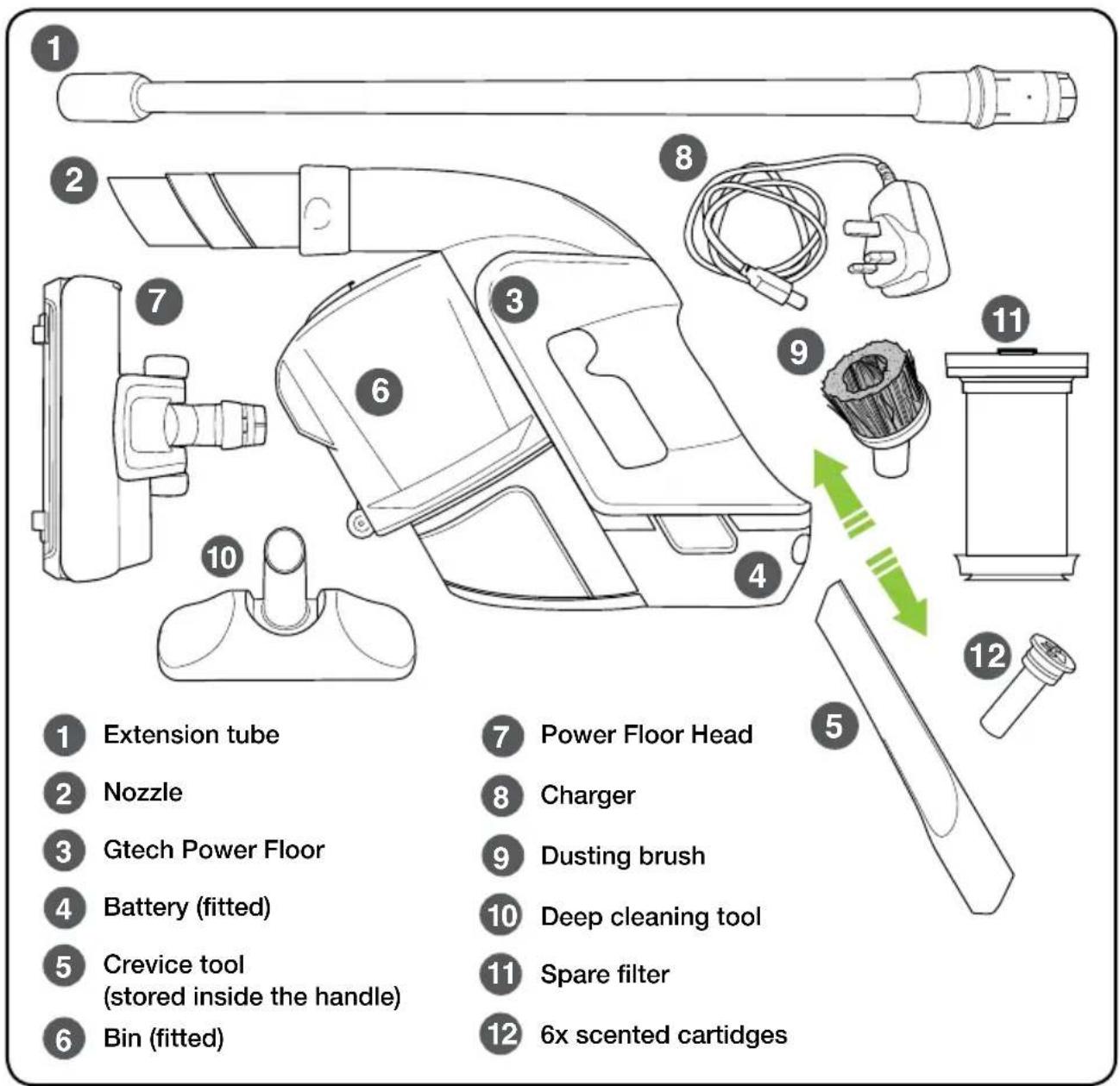

1 2 3 4 5 6 7 8 9 10 11 12 Extension tube Nozzle Gtech Power Floor Battery (fitted) Crevice tool (stored inside the handle) Bin (fitted) Power Floor Head Charger Dusting brush Deep cleaning tool Spare filter 6x scented cartridges

PRODUCT SERIAL NUMBER:

You can find this on the underside of your product

Tool configurations


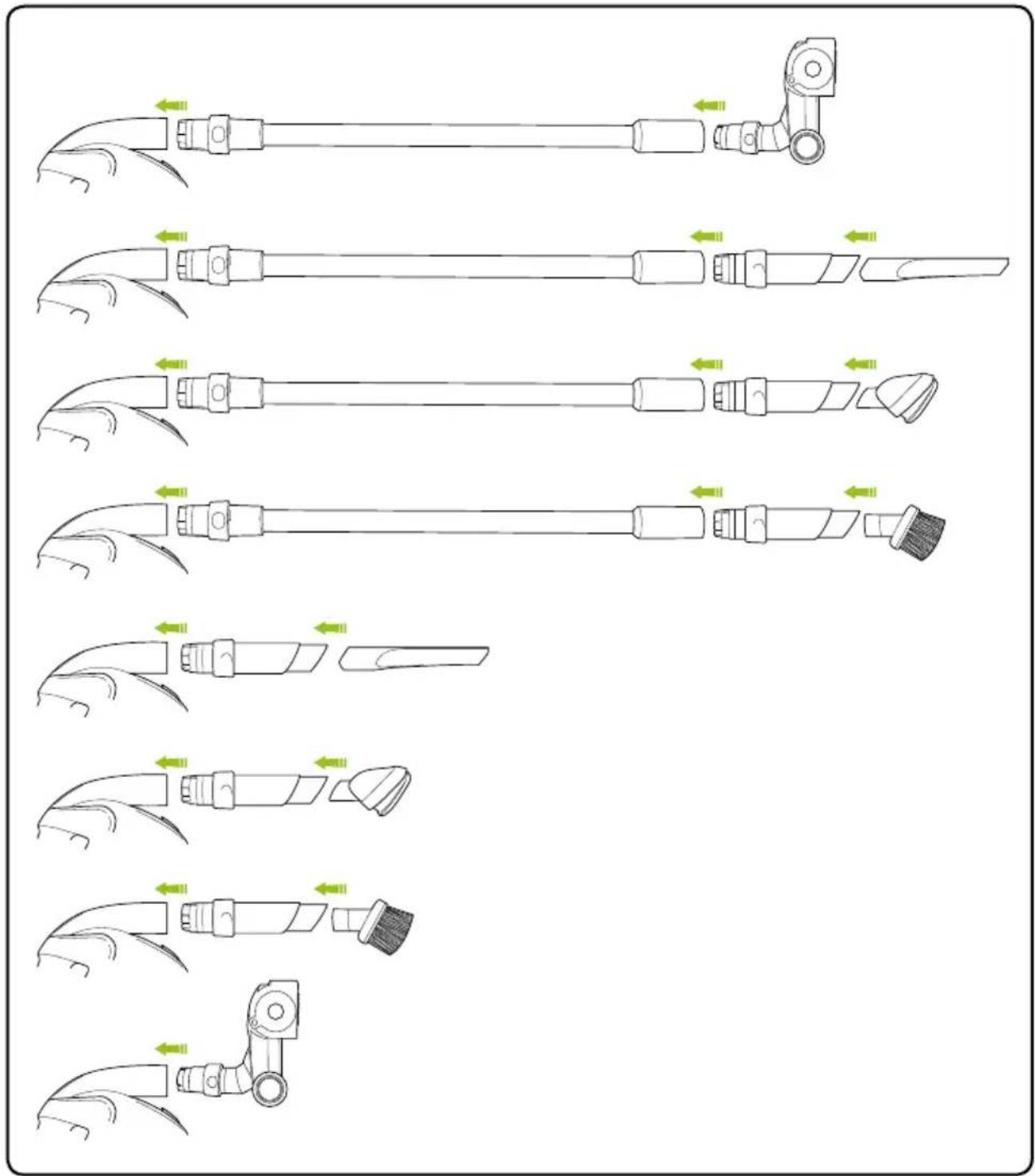

There are many configurations for the Power Floor K9, most of which involve the nozzle. Refer to this diagram to see how each tool can be used.

Operation

Line drawing of a handheld device with yellow highlight and green arrow indicating motion (no text or symbols)

Push the button to switch the Power Floor K9 on. Push again to switch off.

Line drawing of a handheld device with a green arrow indicating direction (no text or symbols)

The crevice tool is stored inside the handle.

Power floor head assembly

Illustration of a hand holding a green belt switch over a car interior (no text or symbols)

To attach the powered floor head, remove the nozzle by pulling gently on the green locking ring until the nozzle comes free from the body. The power must be off while changing tools.

Illustration of a hand holding a tool with a green arrow indicating direction (no text or symbols)

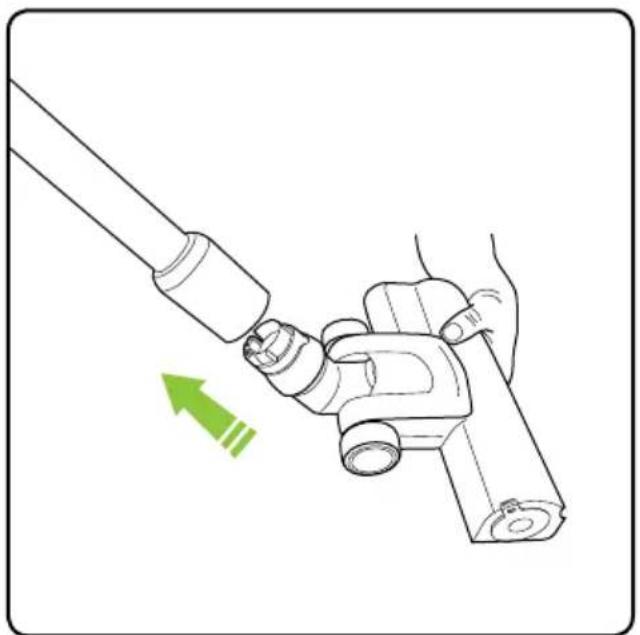

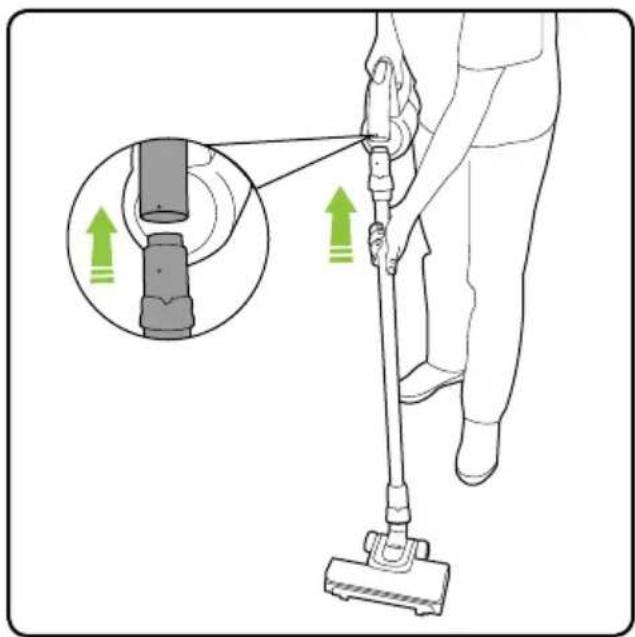

Take the powered floor head and attach it to the extension tube. It will click into place.

Diagram showing a person using a vacuum cleaner with green directional arrows indicating movement or force, and an inset close-up of the device's handle.

Attach the extension tube to the Power Floor K9, making sure the white dots are aligned. It will click into place.

Emptying the bin

Line drawing of a hand using a camera lens to adjust a device, with a green arrow indicating the motion (no text or symbols)

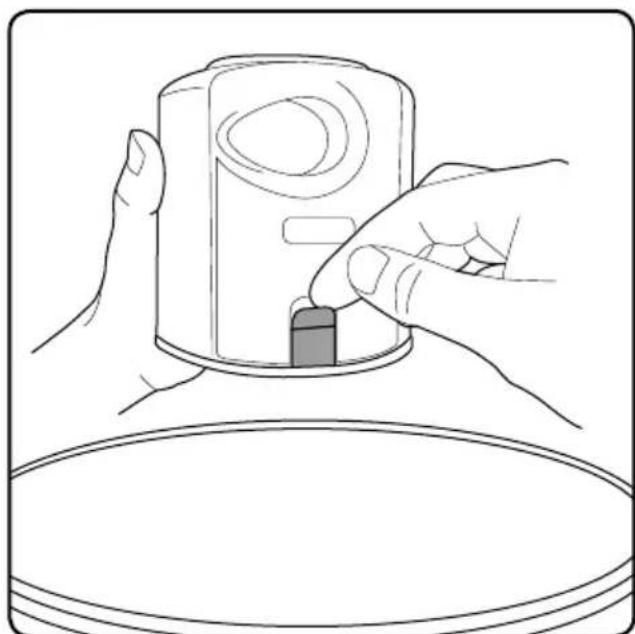

There's no latch, the bin just pulls off. It's easier if you wiggle it as you pull it.

Line drawing of a hand inserting a small object into a cylindrical device (no text or symbols)

Hold the Power Floor K9 bin over your rubbish bin and release the latch to empty the dirt.

Battery charging

Simple diagram with three horizontal bars and green gradient bars, no text or symbols present

When a single green light flashes, recharge the battery.

Line drawing of a handheld device connected to a Gtech cable (no text or symbols on the device itself)

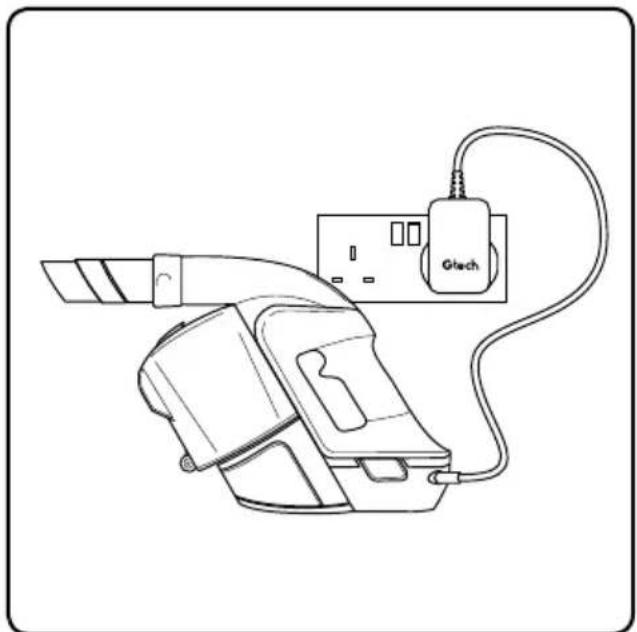

Plug the charger in and connect it to the battery.

3 4 hours

After 4 hours the LEDs turn green and charging is complete.

1 hour boost

It is OK to charge for 1 hour for a burst of cleaning.

Removing and cleaning the brush bar

Illustration of a hand using a tool to adjust a device, with a green arrow indicating the motion (no text or symbols present)

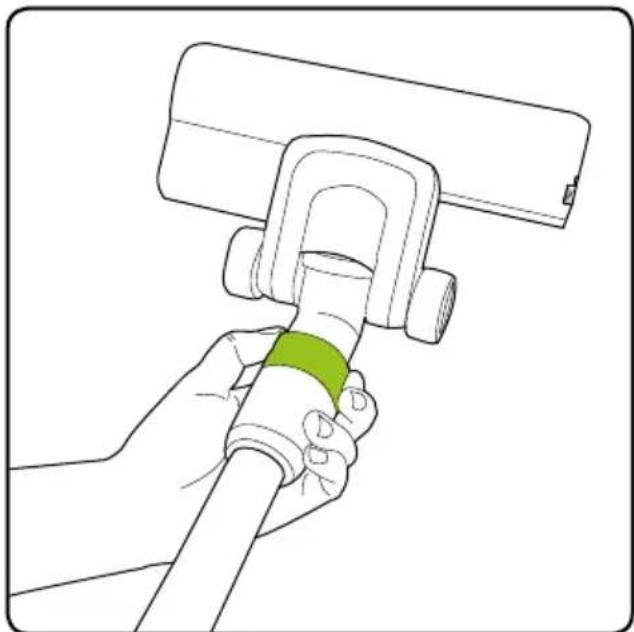

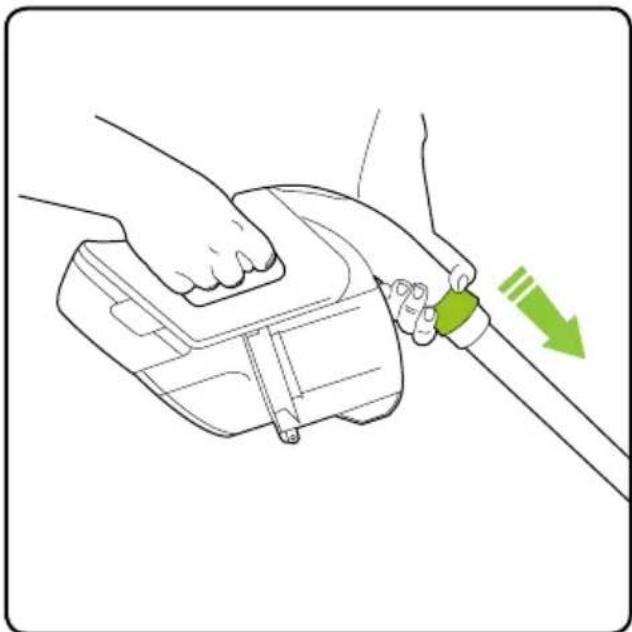

Remove the extension tube from the Power Floor K9 by pulling gently on the green locking ring.

Illustration of a hand holding a tool with a green band, next to a rectangular device (no text or symbols)

Before you remove the brush bar, you will need to remove the power floor head from the extension tube. To do this, gently pull on the green locking ring.

Technical illustration of a mechanical device with green arrows indicating rotation and a close-up view of the component (no text or symbols)

Rotate the latch on the side of the powered floor head and pull out the brush bar.

Illustration of a syringe with scissors and a green ring, no text or symbols present

To remove hair from the brush bar, run an open pair of scissors down the groove to cut the hair, then pull it out. Never operate the power floor head without the brush bar in.

Cleaning the filter

Illustration of hands holding a green cylindrical object with a black lid, no text or symbols present

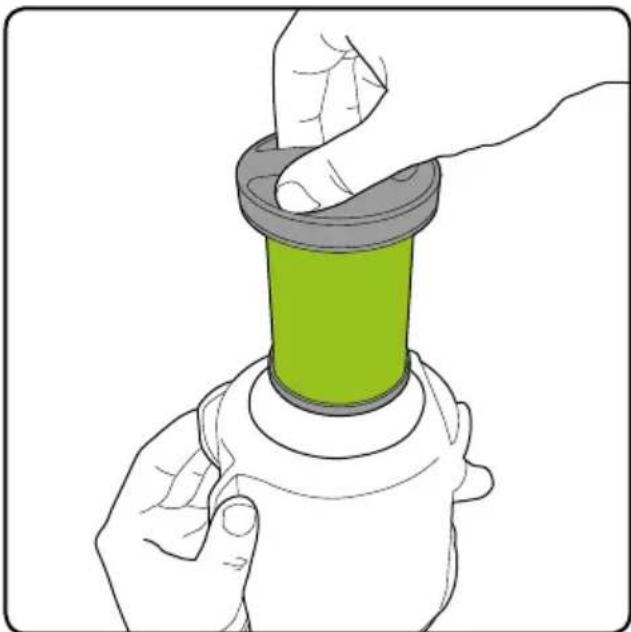

Remove the filter by pulling it from the top of the bin. Tap the dirt from the filter and tip any dirt from the filter housing. Wash the filter if necessary.

Illustration of two green plastic cups with liquid dripping from each other, being handled by a hand (no text or symbols)

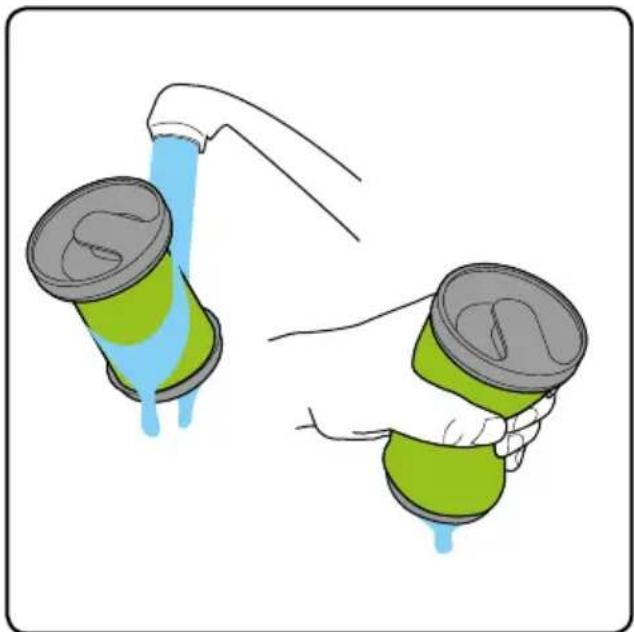

Wash the filter under a tap, squeeze it out then let it dry completely before using it. (You can get more at www.gtech.co.uk) Never put the bin back without the filter inside. You could damage the motor.

Removing the battery

Line drawing of a hand pressing a green component on a device (no text or symbols)

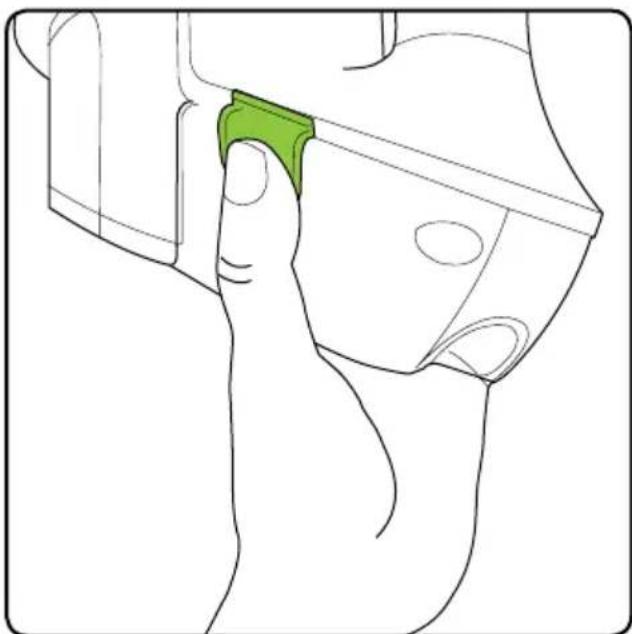

Press the green buttons and pull to remove the battery. The battery can be charged on or off the main unit. If you want to buy a spare battery go to www.gtech.co.uk or call 01905 345 891

Scented Cartridge

Scented cartridge refills: Keep out of the reach of children. People suffering from perfume sensitivities should be cautious when using this product as it may produce an allergic reaction or cause sensitisation by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to aquatic organisms, may cause long-term adverse effects in the aquatic environment. Scented refills contain: Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, Vanillin, Borneol, Polysorbate 20

Replacing the scented cartridges

Illustration of six cylindrical mechanical components with flanged ends, no text or symbols present

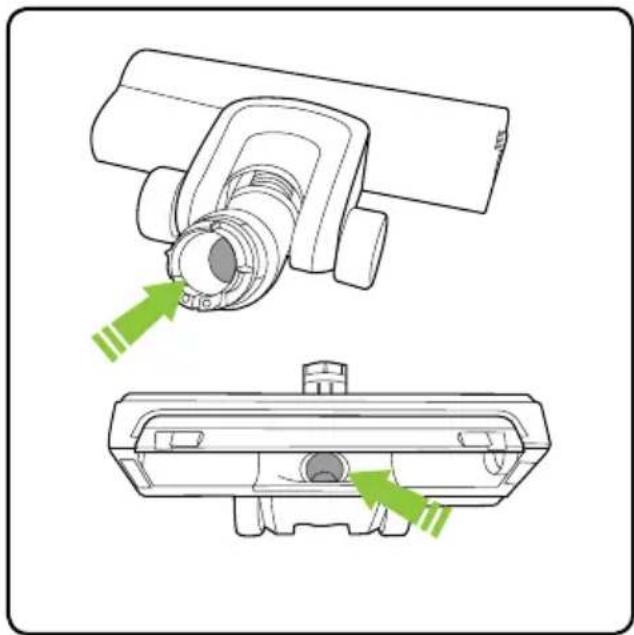

Scented cartridges are available from Gtech: Go to www.gtech.co.uk or call 01905 345 891

Diagram of a test tube with a cap and liquid, showing a downward green arrow indicating a decrease or drop (no text or symbols present)

Remove a scented cartridge from the bag then slide the plastic sleeve off. Please refer to page 10 for scented cartridge health warnings.

Illustration of a green cylindrical device with a gray lid and a small mechanical component, showing a green arrow indicating motion (no text or symbols)

Remove the old scented cartridge by pulling it out from the housing at the top of the filter.

Mechanical assembly diagram showing a green cylindrical component inserted into a housing, with a gray pin inserted (no text or symbols)

Place the new scented cartridge into the top of the filter. Never operate the Power Floor K9 without the scented cartridge fitted.

If the suction is low when the bin is empty and filter is clean... you have a blockage.

Line drawing of a handheld device with green arrows indicating directional movement (no text or symbols)

Remove the battery & bin from the body and look through both ends of the tube. Remove any blockages.

Technical line drawing of a mechanical component with two views: top shows internal structure, bottom shows front view with green arrows indicating features (no text or symbols)

The powered floor head can also get blocked. To check for blockages thoroughly, remove the brush bar. (See page 8)

Illustration of two mechanical components with green arrows indicating direction (no text or symbols)

The extension tube and crevice tool can sometimes block too.

Product Care

Your Gtech Power Floor K9 doesn't need much maintenance: keep the filter clean, check for blockages and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the filter.

Troubleshooting

Power Floor K9 is not cleaning well 1.	Empty the bin2. Clean the filter case3. Wash the filter4. Check for blockages5. Remove hair from brushbar
Power Floor K9 has stopped or won’t work	6. Charge the battery (check the socket works and is turned on)7. It might be blocked– check items 1 to 4 above
If this doesn’t solve your problem don’t worry, we will help.Go to www.gtech.co.uk or call 01905 345 891

GTECH POWER FLOOR K9 TECHNICAL SPECIFICATION

Battery model 113A0105
Battery 22V 2000mAh Li-Ion
Charging period 4 hours
Battery charger output 27V DC 500mA
Weight (with standard nozzle) 1.6kg

If your Gtech Power Floor breaks, don't worry, we're here to help.

Go to www.gtech.co.uk or call 01905 345 891 for assistance.

To qualify for your 2-year warranty, register your Power Floor within 3 months of purchase at:

www.gtech.co.uk/warrantyregistration or call 08000 518353

WHAT ISN'T COVERED SUMMARY

Gtech does not guarantee the repair or replacement of a product as a result of:

• Normal wear and tear (e.g. filters)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with Gtech Power Floor K9 operating manual.
- Blockages - please refer to the Gtech Power Floor K9 operating manual for details of how to unblock your vacuum cleaner.
- Use of the vacuum cleaner for anything other than the normal domestic household purposes.
- Use of parts and accessories which are not Gtech genuine components.
- Faulty installation (except where installed by Gtech)
- Repairs or alterations carried out by parties other than Gtech or its authorised agents.
- If you are in doubt as to what is covered by your guarantee, please call 01905 345 891.

• The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
• You must provide proof of delivery/purchase before any work can be carried out on the vacuum cleaner. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
• All work will be carried out by Gtech or its authorised agents.
• Any parts which are replaced will become the property of Gtech.
• The repair or replacement of your vacuum cleaner is under guarantee and will not extend the period of guarantee.
• The guarantee provides benefits which are additional to and do not affect your statutory right as a consumer.

The symbol indicates that this product is covered by legislation for waste electrical and electronic products (EN2002/96/EC)

When the vacuum has reached the end of its life, it and the Li-Ion battery it contains should not be disposed of with general household waste. The battery should be removed from the vacuum and both should be disposed of properly at a recognised recycling facility.

Call your local council, via amenity site, or recycling centre for information on the disposal and recycling of electrical products. Alternatively visit www.recycle-more.co.uk for advice on recycling and to find your nearest recycling facilities.
