Product Type	Server Rack Door (for S1 Racks)
Brand	Chief
Model	NS1D28P
Compatible Rack	Chief S1 Series
Door Height	28U (49 inches)
Door Width	Standard 19-inch rack width
Material Options	Plexiglass, Perforated Steel, Solid Steel
Finish	Black powder coat
Included Parts	Door, top door support, lower door support, door catch, mounting screws (1/4-20 x 5/8"), lock nuts (1/4-20), grounding wire
Installation Type	Bolt-on front mount
Tools Required	7/16" open-end wrench, Phillips screwdriver
Ventilation	Yes (perforated model) / No (solid or plexiglass)
Security	Door catch for secure closure
Grounding	Integrated grounding wire with lug; requires connection to rack ground
Safety Compliance	UL recognized components; grounding per National Electrical Code
Installation Notes	Doors must be installed before side panels; handle side determines nut and wire placement
Warranty	Limited warranty (contact manufacturer for details)
Manufacturer	Milestone AV Technologies

Frequently Asked Questions - NS1D28P Chief

What is the NS1D28P door compatible with?

The NS1D28P is designed for use with Chief S1 series server racks. It fits 28U rack enclosures.

What materials are available for this door?

The door can be ordered in plexiglass, perforated steel, or solid steel. The NS1D28P model specifically denotes the perforated variant.

How do I install the door on my rack?

Remove the four screws from the top and bottom of the rack front. Attach the top and bottom door supports using those screws. Then insert the door by aligning the spring handles with the holes in the supports and latching them.

What tools are required for installation?

You need a 7/16" open-end wrench and a Phillips screwdriver.

How do I ground the door?

The door includes a grounding wire. Loosen the screw on the lower door support, attach the grounding wire, and tighten the screw. Ensure the other end connects to the rack's grounding lug using a UL recognized 12 AWG green/yellow wire installed by qualified personnel.

Can I install side panels before the door?

No. If you are installing both doors and side panels, you must install the doors first before attaching the side panels.

How do I change the door handle side?

If you want the pulling handle on the right side, remove the two nuts and grounding wire from their current position on the door and reinstall them on the opposite end. The grounding wire must be at the bottom of the installed door.

Does the door come with a lock?

No, the door does not include a lock. It uses a door catch to hold it closed. A separate lock may be added if required.

What is the purpose of the door catch?

The door catch (part B) attaches to the rack rail and matches the handle cutout in the door. It secures the door in the closed position when the spring handles are engaged.

Where can I download the manual for my NS1D28P door?

You can download the manual for free from notice-facile.com in PDF format. The manual includes detailed installation instructions and safety warnings.

USER MANUAL NS1D28P Chief

INSTALLATION INSTRUCTIONS

S1 Racks Doors

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

LEGEND

	Tighten Fastener
	Apretar elemento de fijación
	Befestigungsteil festziehen
	Apertar fixador
	Serrare il fissaggio
	Bevestiging vastdraaien
	Serrez les fixations
	Loosen Fastener
	Aflojar elemento de fijación
	Befestigungsteil lösen
	Desapertar fixador
	Allentare il fissaggio
	Bevestiging losdraaien
	Desserrez les fixations
	Open-Ended Wrench
	Llave de boca
	Gabelschlüssel
	Chave de bocas
	Chiave a punte aperte
	Steeksleutel
	Clé à fourche
	Phillips Screwdriver
	Destornillador Phillips
	Kreuzschlitzschraubendreher
	Chave de fendas Phillips
	Cacciavite a stella
	Kruiskopschroevendraaier
	Tournevis à pointe cruciforme

TOOLS REQUIRED FOR INSTALLATION

7/16"

2

PARTS

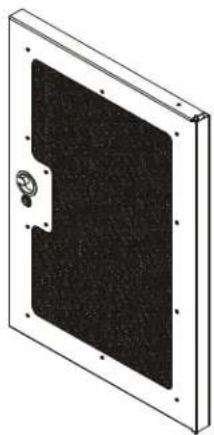

A (1) [Door]

Technical line drawing of a rectangular panel with a central handle and mounting holes (no text or symbols)

[Plexiglass]

OR

Exterior view of a rectangular panel with a black cover and mounting holes (no text or symbols)

[Perforated] [Solid]
(NS1D12F shown)

Simple line drawing of a rectangular panel with a circular lock and label 'OR' on the side (no text or symbols on the panel itself)

(NS1D12S shown)

(NS1D12P shown)

E (2) 1/4-20 x 5/8"

F (2) 1/4-20
B (1)
por catch]

INSTALLATION

IMPORTANT ! : If installing doors and side panels (not included) on an S1 rack, the doors must be installed before installing the side panels.

1. Remove and save four screws from both top and bottom of rack front. (See Figure 1)

Figure 1

1. Add top door support (C) and lower door support (D) to rack front. (See Figure 4)
2. Attach door supports using eight screws removed in Step 1.

Figure 2

IMPORTANT ! : If the door is to be attached with the pulling handle on the right side, the two nuts and grounding wire already installed on the door must be removed and reinstalled on the opposite end of the door before the door is installed. The grounding wire should be on the BOTTOM of the installed door. (See Figure 3)

Figure 3

1. Rotate two spring handles (one at bottom and one at top) on inside of door. (See Figure 4)

Figure 4

1. Pull down on upper spring handle, and push up on lower spring handle.

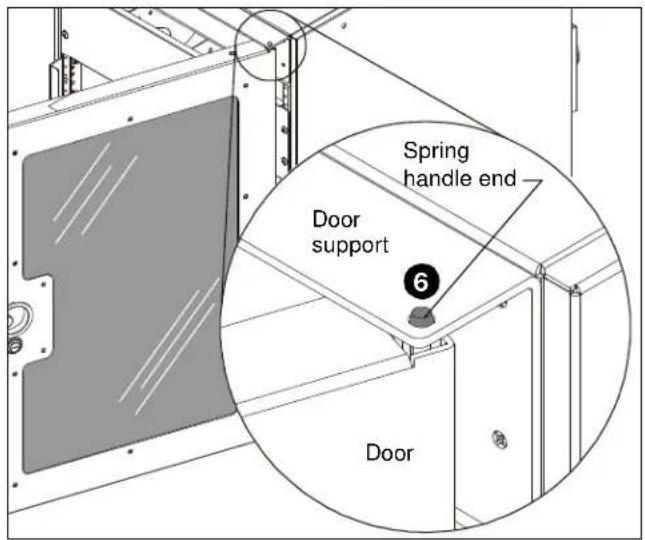

2. Insert door into rack, aligning the spring handle ends with the holes in the door support at top and bottom of rack. (See Figure 5)

Figure 5

1. Push spring handle end into door supports, and re-latch spring handle.
2. Determine location for door catch (B) by matching up handle cut-out in door with correct position on rack. (See Figure 6)

Technical line drawing of a server rack cabinet with mounting holes and a numbered component (no text or symbols)

Figure 6

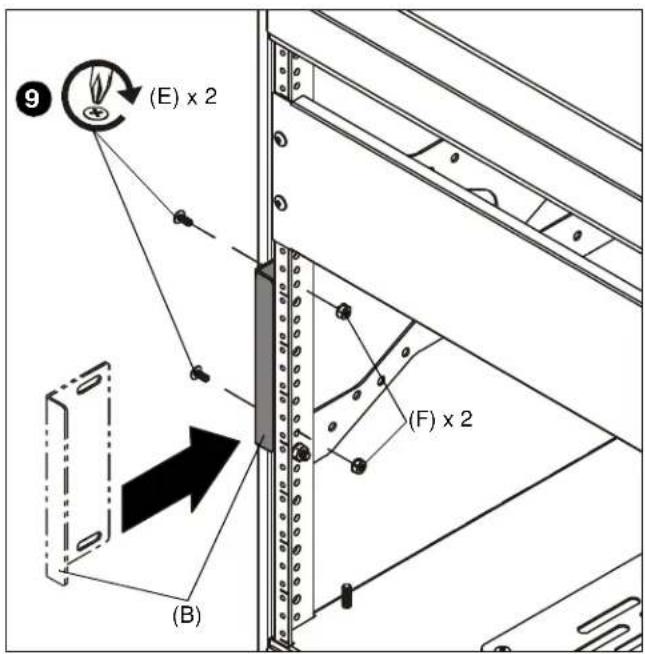

9. Add door catch (B) to rack rail using two 1/4-20 x 5/8" screws (E) and two 1/4-20 lock nuts (F). (See Figure 7)

Figure 7
10. Loosen screw in lower door support, attach door grounding wire, and tighten screw to finish connection. (See Figure 8)

Figure 8

Figure 9

DANGER: IMPROPER WIRING CAN LEAD TO DEATH OR SEVERE PERSONAL INJURY! Grounding must be installed by qualified personnel using a UL Recognized No. 12AWG Green and Yellow grounding wire connected to grounding lug on rack.

NS1D12-20-28-36-41

Installation Instructions
