Product Type	Built-in Electric Oven
Brand	Bellini
Model	BOT605BP-F
Dimensions (HxWxD)	595 x 595 x 550 mm
Weight	30 kg
Power Source	Electric
Power Consumption	2.5 kW
Energy Class	A
Capacity	65 L
Number of Functions	8
Temperature Range	50°C - 250°C
Timer	Yes, programmable
Display	Digital LED
Interior Light	Yes
Door Type	Drop-down
Number of Glass Panels	3
Safety Features	Child lock, automatic shut-off
Cleaning	Enamel interior, catalytic panels
Accessories Included	1 baking tray, 1 wire shelf
Warranty	2 years
Installation Type	Built-in
Color	Stainless steel / Black

Frequently Asked Questions - BOT605BP-F Bellini

How do I set the timer on the Bellini BOT605BP-F oven?

Turn the function selector to the required cooking function, then use the timer knob or +/- buttons to set the desired cooking time. Press the timer button to confirm. The oven will automatically turn off once the time elapses.

What is the maximum temperature of this oven?

The maximum temperature is 250°C (482°F). This is achieved in functions like conventional and grill.

How should I clean the oven interior?

After use, allow the oven to cool. Wipe the interior with a damp cloth and mild dish soap. For stubborn stains, use a non-abrasive cleaner. The catalytic panels (if present) self-clean during high-temperature cycles.

Why is my oven not heating up?

Check that the oven is properly connected to a power supply and the circuit breaker is on. Ensure the function selector is set to a heating function and the temperature is set above room temperature. If the problem persists, the heating element or thermostat may be faulty.

Can I use aluminum foil in the oven?

Yes, but avoid covering the oven bottom or the heating elements. Place foil only on the baking tray or to wrap food. Never use foil during grill functions as it may cause a fire hazard.

How do I replace the oven light?

Ensure the oven is unplugged and cool. Remove the glass cover by turning it counterclockwise. Replace the bulb with a new one of the same type (usually 25W/300°C halogen). Reinstall the cover.

What safety features does the Bellini BOT605BP-F have?

It includes a child lock to prevent accidental operation and an automatic shut-off that turns off the oven after a prolonged period of inactivity or if the timer ends.

How do I preheat the oven?

Select the desired cooking function and set the temperature. Wait until the thermostat indicator goes out, indicating the set temperature has been reached. Preheating typically takes 10-15 minutes.

Is the oven self-cleaning?

The oven features catalytic panels on the back wall which absorb grease and clean themselves during high-temperature cooking. For other interior surfaces, manual cleaning is required.

How to install the Bellini BOT605BP-F oven?

The oven is designed for built-in installation into a cabinet. Ensure the cabinet has proper ventilation and the electrical supply matches the rating label. Use the provided mounting screws to secure the oven. It is recommended to have a qualified electrician perform the connection.

USER MANUAL BOT605BP-F Bellini

Exterior view of a double oven with control knobs and a digital display (no visible text or symbols)

60cm Built In Oven

Model No.

BOT605BP-F

FINELINE: 5104070 Aus Only

BOT605BP

Thank you

Thank you for choosing Bellini Appliances.

Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room ... The Kitchen

All Bellini appliances carry a 3 year In Home warranty,

be sure to retain your installation and user manual and

receipt.

For all warranty and technical queries please contact

1300 373 199

Content

Safety instructions---- 1

Product description---- 3

Installation----5

Oven Setting----7

Maintenance and cleaning ----10

Warranty---- 13

This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

General Warnings

If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
◆ This product has not been designed for any uses other than those specified in this booklet
◆ This appliance must not be used as a space heater.
◆ In order to avoid fire, the appliance must be kept clean and vents kept unobstructed.
◆ Do not spray aerosols within the vicinity of the appliance during operation.
◆ Do not store flammable materials in or under the appliance, e.g. aerosols.
◆ Do not line the bottom of the oven with foil or cookware.
◆ Always use gloves when handling hot items inside the oven.
◆ Always turn the grill off immediately after use as fat left behind may catch fire.
Do not leave the appliance unattended when cooking. Oils and fats may catch fire due to overheating or boiling over.
Do not put pans weighing over 15Kgs on the opened door of the oven.
Do not use the appliance in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
◆ In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
◆ The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to operate the appliance.

Child Safety

This a appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they've been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

◆ Children should be supervised to ensure that they do not play with the appliance.
During use this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. oven door, heating elements.
◆ Accessible parts will also become hot when in use. To avoid burns and scalds children should be kept away.

Installation, Cleaning & Servicing

The appliance must be installed only by an authorised person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.
◆ Before using the appliance, ensure that all packing materials are removed from the appliance.
◆ In order to avoid any potential hazard, the enclosed installation instructions must be followed.
◆ Ensure that all specified vents, openings and air spaces are not blocked.
◆ The panels adjacent to the oven must be made of heat-resistant material.
◆ Cabinets with a veneer exterior must be assembled with glues which can withstand temperature of up to 120°C.

◆ To reduce the risk of fire, do not place or install this unit in areas where the ventilation or circulation ducts may become blocked. Make sure there are at least 70mm of space between the back of your oven and the wall. Keep some distance on each side of your oven that you can use that distance

flowing installing instructions.

The unit's power cord must be connected to a properly grounded and protected, 220-240V electrical outlet. Always use ground fault protection where required by the electrical code.
When transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration or other factors, which may damage the unit.
Do not operate oven with a damaged cord, plug or if the oven has malfunctioned or has been dropped or damaged in any manner. Return oven to authorised service facility for repair.
Only authorised personnel should carry out servicing. (Certificate of Compliance to be retained)
◆ Always ensure the appliance is switched off before cleaning or replacing parts.
◆ Do not use steam cleaners, as this may cause moisture build-up.
◆ Always clean the appliance immediately after any food spills.
◆ THIS APPLIANCE MUST BE EARTHED.
◆ To maintain safe operation, it is recommended that the product be inspected every five years by an authorised service person.

Oven

During use the appliance becomes hot. Care should be taken to avoid touching the hot surfaces inside the oven.
◆ Switch the appliance off before removing the oven light glass for globe replacement.
◆ To avoid an accident, ensure that oven shelves and fittings are always inserted into the appliance in accordance with the instructions.
◆ Do not use the door as a shelf.
◆ Do not push down when the oven door is open.

Grill

Do not cover the grill insert with foil, as fat built up may catch on fire.
◆ Always keep the grill dish clean as any build up may catch on fire.
◆ Do not leave the grill on unattended.
◆ To avoid fire, ensure that grill trays and fittings are always inserted into the appliance in accordance with the instructions.
◆ Do not place thick portions of food under the grill. Foods may curl, catch and ignite.
◆ Accessible parts may become hot when grill is in use. Children should be kept away.

Environmental Hints

◆ Use the oven ef ficiently, by cooking many trays of food at the same time.
◆ Cook 2 trays of scones, small cakes or sausage rolls at the same time.
◆ Select the correct shelf location for food being cooked.
◆ Do not open the oven door more than necessary.

◆ After the oven is turned off it retains heat for some time.

This product must not be disposed together with domestic waste. This product has to be disposed at an authorised place for recycling of electrical and electronic appliances.

By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

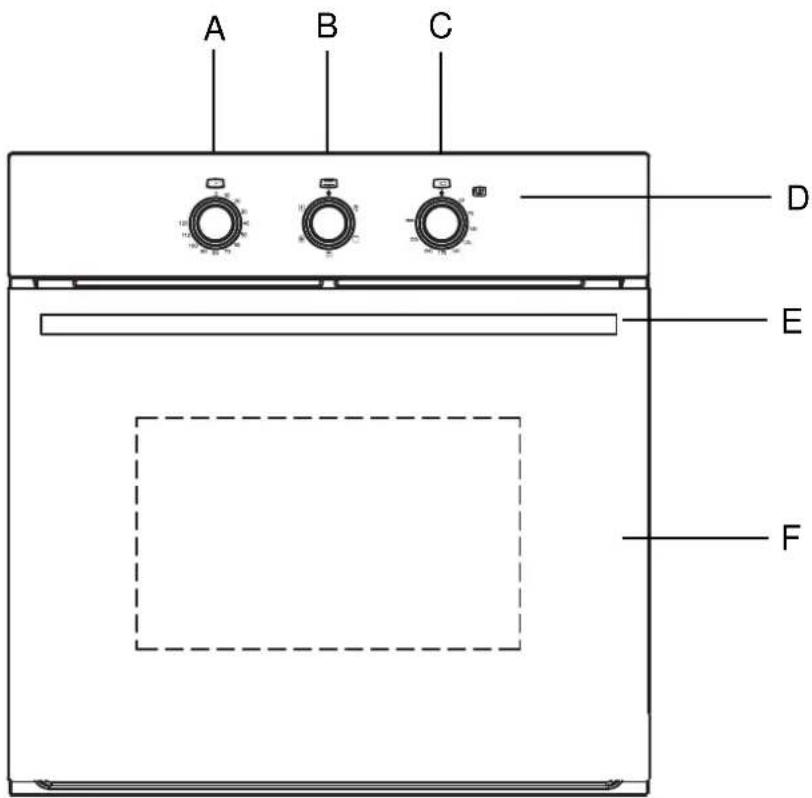

A B C D E F

A. Minute Timer Knob
B. Function Select Knob
C. Temperature Select Knob

D. Heating Indicator Light
E. Handle
F. 3 Layer Glass Door

Accessories

Accessory Name Picture Quantity
Mounting Screws(ST4x20)		2 pcs
Baking Pan & Rack		1 Pair
Rack		1 pcs
Tray handle		1 pc

Technical data

model	product dimensions (L x W x D) mm		electrical connection	min. fuse rating		max. power rating	max. current rating
All 2 models	595x596x575		220-240V/50Hz	15A		2.7 – 3.22Kw	13.4A
Heating elements Motor
Oven light :	25 Watt	Oven inside heating el. 1900 Watt
		Total grill heating el. 1000+1900 Watt			Shaded motor(back) 25 Watt
		Circle heatingel. 2100Watt			Shaded motor (top) 15Watt

WARNING!

Please follow the points below when installing the appliance

Use an Authorised Person

◆ Inst allation should be carried out according to the instructions by a professionally qualified person.

The manufacturer declines all responsibility for any damage to persons, animals or things due to a wrong installation.

◆ Wiring connections must be in accordance with AS/NZS 3000 Wiring Rules and any particular conditions of the local authority.

◆ Refer to data plate for rating information. The data plate is positioned behind the bottom of the oven door. The circuit diagram is positioned on the top panel of the appliance.

◆ A functional switch should be provided near the appliance in an accessible position. Refer to AS/NZS 3000 clause 4.7.1

◆ Wiring should be protected against mechanical failure. Refer to AS/NZS 3000 clause 1.5

A means of disconnection with a contact separation of at least 3mm must be supplied in the fixed wiring. Always turn the grill off immediately after use as fat left behind may catch fire.

◆ Unplug the power plug of appliance from socket before installation or any adjustment or maintenance.

This Appliance Must Be Properly Earthed

◆ Do not lift the appliance by the door handles.

◆ Prepare the cupboard opening to match your appliance measurements. (See diagrams)

◆ Slide appliance into the cupboard, ensuring that the supply cable (where fitted) does not kink.

◆ To prevent tipping, secure your oven into the cupboard by fastening with 2 screws supplied.

- Where the appliance is built into a cabinet, the cabinet must be capable of withstanding 70°C. Installation into low temperature tolerant cabinetry (e.g. Vinyl coated) may result in deterioration of the low temperature coating by discoloring or bubbling.

The unit panels next to the appliance must be heat resistant. In the case of veneered wood units, glue must be resistant to a temperature of 120^ C.
◆ If the appliance is to be installed adjacent to vinyl wrapped surfaces, use an installation kit available from the vinyl-wrap supplier.
◆ GSM cannot accept responsibility for damage caused by installation into low temperature tolerant cabinets.
◆ After installation, test and ensure that the appliance operates correctly before handing it over to the customer.
◆ Once the appliance is installed, there must be no possible contact with electrical parts. Any protective parts must can only be removed with the use of tools
If a power point is fitted, it must be accessible with the appliance installed, as the plug must be accessible after installation

To avoid any potential hazard, you must follow our instructions when you install your appliance. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.

Install the shelf

Line drawing of an oven with a close-up inset showing internal structure (no text or symbols)

1. Pay attention to high tempe rature, you may need to wear gloves if it is hot inside.
2. Always slide shelves into the layer with stopper.

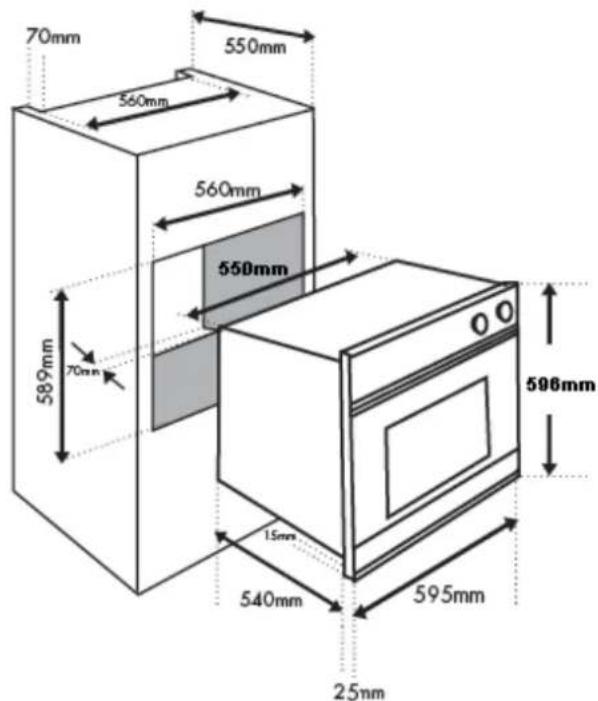

Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under a worktop or in a column unit are shown in figure.

mix. 30mm 23mm 560mm 550mm 595mm 589mm 70mm 596mm 15mm 540mm 25mm

70mm 560mm 550mm 560mm 550mm 589mm 70mm 15mm 540mm 595mm 25mm 596mm

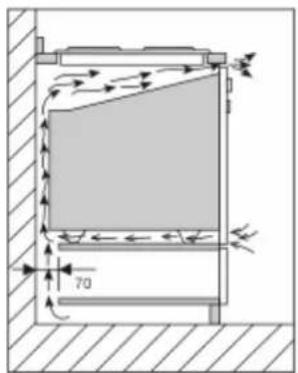

To provide adequate ventilation, there must be appropriate ventilation opening, the panel to which the oven is fitted should have a gap of at least 70 mm at the rear.

Technical diagram showing airflow or pressure distribution around a structural component with dimension标注 70

70 70

The unit panels next to the appliance must be heat resistant. In the case of veneered wood units, glues must be resistant to a temperature of 120^ C.

Fitting Your Appliance

Fit the appliance into its surround (beneath a work-top or above another appliance) by inserting screws into the 2 holes that can be seen in the frame of the oven when the door is open.

Mounting Screws

Note:

Your appliance must be mounted on a flat surface for the full width and depth of the product

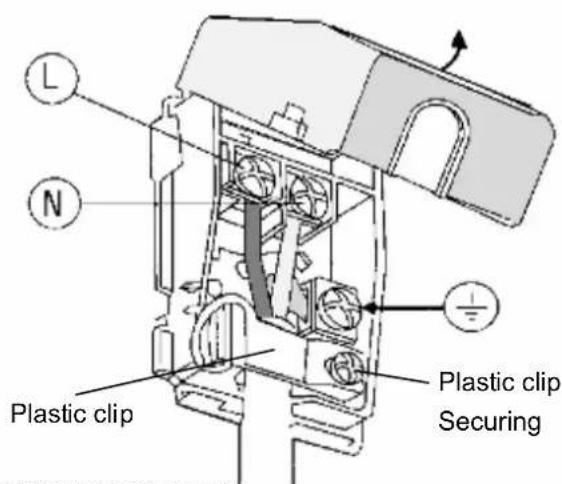

Connect Power Supply Cord

◆ Pull open terminal board cover at rear panel of appliance.
◆ Fit wires through on terminal board and make connections to terminals.
◆ Engage wires into plastic clip. Secure plastic clip with supplied screws.
◆ Close the terminal board cover.

L N Plastic clip Plastic clip Securing

Hard Wired Appliances :

When making the mains supply conductor connections to the terminal block within the terminal box, please ensure that minimum clearances are being maintained between individual conductors and conductors/connectors to the adjacent metal surfaces of the terminal box itself, where possible add heat shrink sleeves to any bare conductor end/connectors prior to securing.

Preparing Your Oven

1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation.
2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth.

Do not close the oven door until the oven is completely dry.

Select the Functions

Turn the function selector in any direction to the desired function. The oven cavity light will turn on.

Diagram of a circular mechanical or electrical component with labeled components (no text or symbols beyond basic labels)

Function Selector

function description

Oven Light	When the selector knob is in any position other than the “0”position, the oven light comes on.
Defrost	Select this function, the air at ambient temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration.
Fan Forced	Both the fan and the circular heating element operate together. The hot air adjustable between 50°C and MAX°C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell. It is ideal for delicate pastries.
Full Grill	This feature activated all upper heating elements and give rapid cooking to food.
Full Grill + Fan Force	The air which is heated by the grill heating element is circulated by the fan and so helps to distribute the heat between 50°C and 200°C. This function can be used for sterilizing glass jars.

Select the Temperature

◆ T o set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on.
A thermostat controls the temperature in your appliance. When the temperature is reached, the heating source switches itself off and the indicator light goes out. When the oven temperature falls below the desired setting, the heating source switches on and the indicator light comes on again.
Once the food is cooked, turn the temperature selector back in an anti-clockwise direction. Do not force it right round in a clockwise direction as this will result in damage to the thermostat.

°C 50 75 100 max 225 125 200 175 150

Important

The desired cooking function must be selected before the oven will operate.

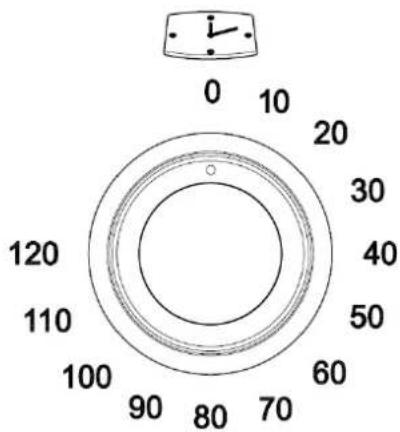

Minute Timer

Turn the knob clockwise to set the desired duration. The minute minder can be adjusted from 1 to 120 minutes. An audible signal will sound at the expiry of the set time, this will NOT switch the oven OFF. Switching the oven OFF has to be manually conducted by turning Function Selection Knob to O

0 10 20 30 40 50 60 70 80 90 100 110 120

WARNING!

Before cleaning your oven, or performing maintenance, disconnect it from the power supply.
◆ Do not use steam cleaners.
Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and damage the enamel.
◆ To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance!
Do not clean the appliance when it is still hot! The inside and external surface of the oven should preferably be cleaned by damp cloth when it is cooled down.
◆ Wash all accessories in hot soapy water or in a dishwasher and wipe dry with a paper or cloth towel.
◆ If you use your oven for an extended period of time, condensation may form. Dry it using a soft cloth.

Stainless Steel

All grades of stainless steel can stain, discolour or become greasy. You must clean these areas regularly by following the procedures below, if you want your appliance to look its best, perform well and have a long life.
◆ Care must be taken when wiping exposed stainless steel edges, they can be sharp!
◆ The front frame around the oven can be cleaned with stainless steel cleaners if it becomes soiled or discoloured.
◆ The stainless steel should only be cleaned with warm water and a mild detergent.
◆ Do not use stainless steel cleaners, abrasive cleaners or harsh solvents.
◆ Make sure you follow the polish or brushing lines in the steel.

Glass

◆ Glass surfaces on doors and control panels are best cleaned immediately after soiling.
◆ A damp cloth may help remove baked on food deposits.
◆ Oven cleaners can be used to remove stubborn marks and stains.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door since they can scratch the surface, which may result in shattering of the glass
◆ Treat glass door gently.

Oven

◆ Always keep your appliance clean. Ensure fats and oils do not accumulate around elements, burners or fans.
◆ Always keep the oven dish, baking trays and grill dish inserts clean, as any fat deposits may catch fire.
◆ Always wrap your meats in foil or an oven roasting bag to minimise cleaning. Any polyunsaturated fats can leave a varnish-like residue which is very difficult to remove.
◆ Always keep the grill dish and grill insert clean, as any fat deposits may catch fire.

Replacement of the Oven Light Bulb

WARNING!

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

◆ Cut off the supply of power to the oven by turning off the omni-polar switch connecting it to the mains, or by removing the plug if it is accessible; Avoids appearing the electric shock;
◆ Unscrew the glass cover attached to the lamp holder;
◆ Pull out the lamp and replace it with another high-temperature lamp (300°C) with the following characteristics:

• Voltage: AC230V
• Wattage: 25W
• Socket: G9
  ◆ Remount the glass cover and reconnect the appliance to the power supply.

Door Removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards.

Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the a, do the reverse.

When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder.

After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

ns, or

Diagram showing a device with labeled components and a speech bubble containing a hand gesture icon, likely illustrating a mechanical or electrical process.

Middle Layer Glass Removal

The oven door is made up of 3 panes of glass and has vents at the top and bottom. When the oven is operating, air is circulated through the door to keep the outer pane cool. If condensation has worked its way in between the glass panes, the door can be dismantled in order to clean in between the panes.

Remove the door as per above instruction and place it on a protective surface (e.g. on a table cloth) to prevent it getting scratched. The door handle should line up with the edge of the table. Make sure the glass lies flat to avoid breakage of glass during cleaning.

1. Undo the 2 screws on upper bracket.
2. Take out upper bracket and first pane of glass.
3. Loosen the 4 clips.
4. Slide out middle pane of glass carefully. Clean the glass panes and other parts with a damp microfiber cloth or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft cloth.

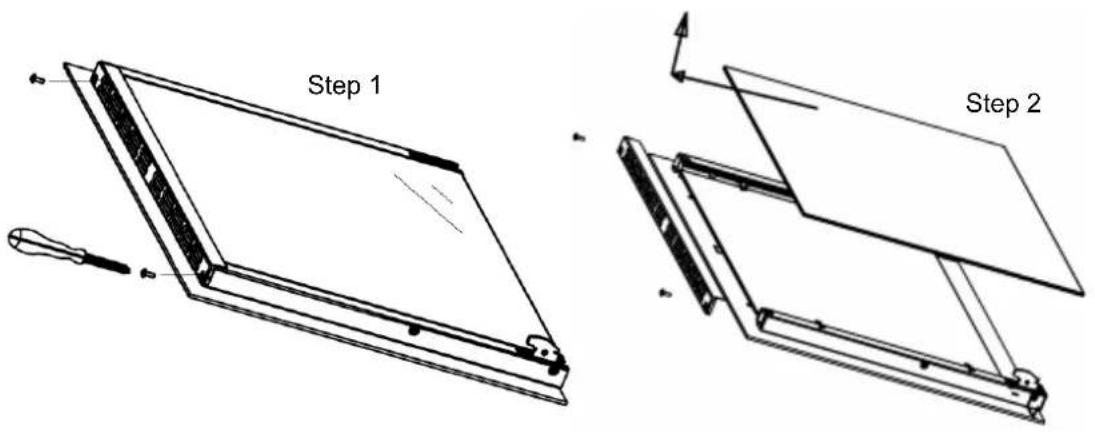

Step 1 Step 2

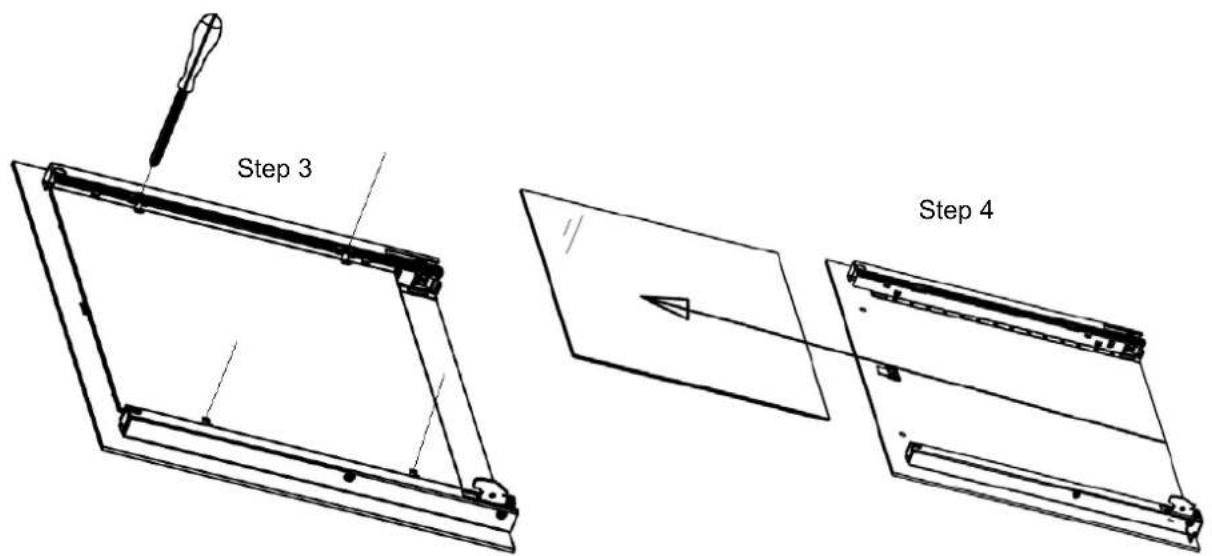

Step 3 Step 4

Troubleshooting

Faults Causes Remedies
The upper crust is dark and the lower part too pale	Not enough heat from the bottom	- Use the natural convection position.- Use deeper cake tins.- Lower the temperature.- Put the cake on a lower shelf.
The lower part is dark and the upper crust too pale	Excessive heat from the bottom	- Use the natural convection position.- Use lower side tins.- Lower the temperature.- Put the cake on a higher shelf.
The outside is too cooked and the inside not cooked enough	Too high temperature	- Lower the temperature and increase the cooking time.
The outside is too dry even though of the right color	Too low temperature	- Increase the temperature and reduce the cooking time.
The appliance does not work	Break in power supply	- Check the household fuse box, if there is a blown fuse replace it with a new one.
The oven lighting does not work	Bulb is loose or damaged - Tighten up or replace the blown bulb. (See chapter Cleaning & Maintenance).

* New appliances could have a smell during first use. It is recommended to 'run in' the oven before you cook for the first time. Operate the oven, empty, at a temperature of 180°C for approximately 2-4 hours. Please ensure the room is well ventilated during this process.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Belliniproduct;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a domestic household area.

*The in Home warranty does not apply to Commercial and or industrial usage. * Please See 1.7.7 for additional information

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.
1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/shop environments, hotel/motel or other similar accommodation or rental type properties including Bed and Breakfast establishments.

The Australian Consumer Law requires the inclusion of the following

statement with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912

(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Gerard Sourcing & Manufacturing

GSM RETAIL AUSTRALIA PTY LTD

The GSM Retail Australia Pty Ltd Group Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Retail Australia Pty Ltd. Group Companies
