Product Type	Video Projector
Brand	Acer
Model	PalmPro 7765PE
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	2000 ANSI Lumens
Contrast Ratio	2000:1
Lamp Life (Normal Mode)	3000 hours
Lamp Type	P-VIP 200W
Keystone Correction	Vertical ±40°
Zoom Ratio	1.1x Manual
Projection Distance	1.0 – 12.0 m
Screen Size	23 – 300 inches
Inputs	VGA, Composite Video, S-Video, Audio 3.5mm
Built-in Speaker	2W Mono
Dimensions (W x D x H)	280 x 220 x 80 mm (11.0 x 8.7 x 3.1 in)
Weight	2.5 kg (5.5 lbs)
Power Consumption	250W (Standby <1W)
Noise Level	30 dB (Eco Mode)
Operating Temperature	0°C – 40°C
Lamp Replacement	User-replaceable; access via top cover
Cleaning	Use soft dry cloth for lens; vacuum air filter monthly
Safety	Class 1 laser product; avoid staring into beam
Warranty	1 year limited (lamp 90 days or 500 hours)

Frequently Asked Questions - PalmPro 7765PE ACER

How do I connect my laptop to the Acer PalmPro 7765PE?

Use a VGA cable to connect your laptop's VGA port to the projector's VGA input. If your laptop has HDMI, you may need an HDMI-to-VGA adapter. Also connect the audio cable from your laptop's headphone jack to the projector's Audio In.

What is the recommended projection distance for a 100-inch screen?

For a 100-inch diagonal image, the projector should be placed approximately 3.0 to 3.5 meters away from the screen, depending on the zoom setting. Refer to the user manual for precise distance tables.

How do I clean the projector lens?

Turn off the projector and unplug it. Use a soft, lint-free cloth (like a microfiber cloth) gently to wipe the lens. Do not use any liquid cleaners or abrasive materials. If needed, slightly dampen the cloth with water or lens cleaning solution.

The image is blurry or out of focus. What should I do?

First, adjust the focus ring on the lens. If that doesn't help, check the projection distance and ensure it is within the recommended range. Also, clean the lens and check that the projector is perpendicular to the screen. Use the keystone correction if needed.

How do I replace the lamp?

Turn off the projector and wait at least 30 minutes for it to cool. Unscrew the lamp cover on the top of the projector using a screwdriver. Remove the old lamp module, insert the new one, and secure the cover. Reset the lamp timer in the on-screen menu.

Why does the projector turn off automatically?

The projector may overheat if the air filter is clogged or if ventilation is blocked. Clean the filter and ensure at least 10 cm clearance around the vents. It could also be a lamp issue; check the lamp life and replace if needed.

Can I use the projector with a ceiling mount?

Yes, the Acer PalmPro 7765PE is compatible with standard ceiling mounts. Use a mount that fits the 3-point screw pattern on the bottom. Ensure the mount supports the weight (2.5 kg). Adjust the image orientation in the projector's menu if inverted.

How do I access the on-screen menu?

Press the 'Menu' button on the projector or remote control. Use the arrow keys to navigate and 'Enter' to select. The menu includes settings for image, audio, keystone, and system configuration.

What should I do if no signal appears?

Check that the correct input source is selected (press 'Source' button). Ensure the cable is securely connected to both the projector and the device. Try a different cable or port. If using a laptop, check that the external display is activated (e.g., by pressing Fn+F4 or similar key combination).

How often should I clean the air filter?

Clean the air filter every 100 hours of use or monthly under normal conditions. Remove the filter cover, take out the filter, vacuum it gently, and reinstall. Replace the filter every 500 hours or if damaged.

USER MANUAL PalmPro 7765PE ACER

Digital Multimedia Projector

Model name

PalmPro 7763P/65PE

OPERATING GUIDE

Thank you very much for purchasing this Acer DLP™ Technology Projector.

Please read this operating guide to ensure correct use of the device. After reading this manual, keep it for future reference.

Outline

This DLP ^™ Technology Projector can display various computer signals and NTSC/PAL/SECAM video signals.

Features

Line drawing of a projector with ventilation grilles and a circular lens (no text or symbols)

(1) High brightness
(2) High resolution
(3) Compact size, light weight for portability
(4) RGB output terminal
(5) RS232 Communication
(6) Mouse emulation
(7) Complies with VESA DDC1/2B specifications

Copyright

Copyright © 2000 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.

Disclaimer

This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of this company to notify any person of such revision or changes.

Fill this in!!

For the convenience of service, record the following information in the space below. The serial number is on the back of the product.

Monitor Information

Product 7763P/65PE Name: Serial Number: Date of Purchase:

Dealer Information

Dealer: Telephone Number: Address:

Caution

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PLUS SERVICE PERSONNEL. AND PLEASE READ ALL OF THESE INSTRUCTIONS BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Safety Instructions

1. Read all of these instructions before you operate your projector and save for future reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond rated life could cause them to explode in rare occasions.
3. Power is still available when the projector is in the standby mode. Never replace lamp assembly or any electronic components unless the projector is unplugged.

4. Do not attempt to service this product yourself, as opening or removing covers may damage the components inside and will void your warranty.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6. The Standard Remote Control contains a low-power laser that acts as a pointing device during presentations. The light beam may cause injury if pointed directly into a person's eyes.
7. This product is capable of displaying inverted images for ceiling mount configurations. Please use suitable equipment for mounting the unit and make sure it is securely installed.
8. Openings in front or at two sides are for ventilation. They must not be blocked or covered.
9. For ventilation reasons, the fan continues to operate for about 2 minutes after the projector has been powered off. Please do not unplug the power cord until the fan stops.
10. Do not look straight at the projector lens during operation. The intense light beam may injure your eyes.

Table of Contents

Introduction	1
Projector Features	1
Description	2
A FRONT (figure)	2
B REAR (figure)	2
C BOTTOM (figure)	3
Installation	3
A. Positioning	3
B. Adjustable Feet	4
Moving the Projector	4
Accessories	5
Connection	7
A Connecting the Projector to Computer/Notebook 7
B Connecting the Projector to Macintosh/Power Book 8
Operation	9
Turn On/Off Procedure	9
A Power on	9
B Standby	9
External Control	9
A Control Pad	9
B Remote Control	11
Usage and Replacement of Lamp	12
A Lamp/temperature Status LED Indicator	13

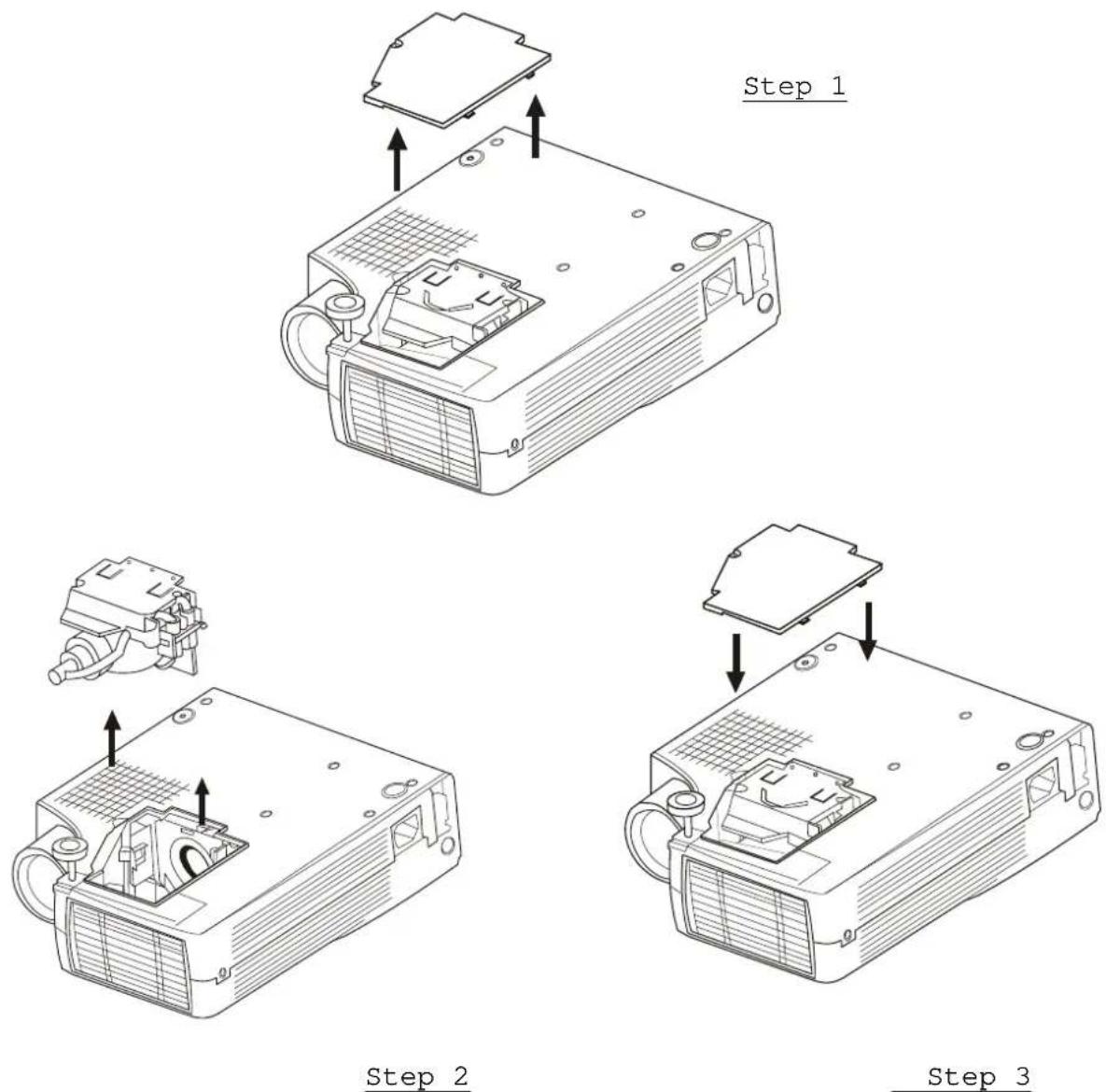

B Replacing the Lamp	14
OSD	17
Main OSD Menu	17
A Display Page	18
B Image Page	19
C Control Page	20
D Source Page	21
Other Correspondent Remote Functions and Messages 22
Maintenance and Troubleshooting	24
A Lamp Replacement	24
B Cleaning the Lens	24
C Troubleshooting	24
Specifications	26
A Optical	26
B Electrical	26
C Mechanical	26
D Preset Display Resolution Table	27
Appendix	28

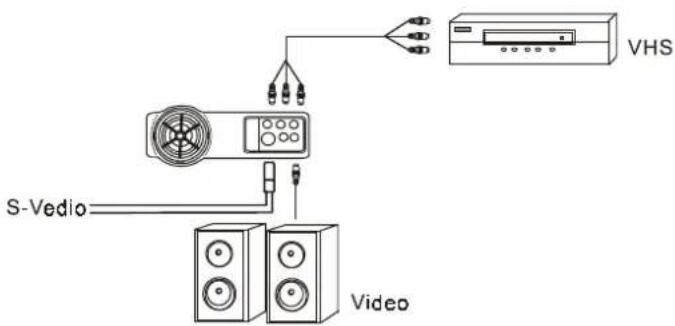

AV Connection Port	28
AV Control Pad	28
A Connecting the Box	29

Introduction

Projector Features

A Image Resolution

Fully compatible with true SVGA(63P)/XGA(65PE), and supports SXGA using advanced intelligent compression technology. The advanced intelligent compression technology enables it to present clear compression SVGA/XGA images without line omission.

B Brightness

Provides superior brightness of 700 ANSI lumens using TI's Digital Micromirror Device (DMD) and our own optical design, with a geometric effect that increases light usage efficiency. By increasing the light usage efficiency we can better reproduce the three basic colors (RGB) required for color reproduction on a single DMD.

C Portability

This projector has a sophisticated shape, like that of an attaché case, with a retractable carrying handle that is extremely compact and lightweight. It helps you make powerful presentations wherever you go with its 5-pound weight and B5 size.

D Keystone

The projection position is already set to the height of the line of vision; there is no keystone effect. Even when projecting above or under the height of the line of vision, image distortion (if any) can be adjusted using the keystone correction function.

E Multilanguage

The OSD (On Screen Display: information screens and menus) in 7 languages (English, Deutsch, Français, Italiano, Español, Swedish and Dutch) provides you with additional information to help you make corrections with OSD operation in your native languages.

F Auto Detect System

This projector can detect display signals from PCs with frequently used timing and do the optimization simultaneously. It does not require complicated adjustments in order to project picture images from PCs.

G Ceiling Mount and Rear Screen Projection

The projector is equipped with a full mirror scan conversion function (vertical/horizontal mirror), which allows the image to be reversed for ceiling mounting as well as for rear projection applications.

H AV box

An AV box is optional, and users can attach one or two to the projector. Additionally, our AV box video standard is compatible with NTSC U.S. and Canada standard

PAL Western Europe standard

SECAM France and Eastern Europe standard

NTSC4.43 Middle East standard

If users want to watch CATV, AV box will serve the need.

Description

A FRONT (figure)

Vetilation Hole Projection Lens

Figure 1 Front view of 7763P/ 65PE
B REAR (figure)

Control Pad Control Port (for Mouse) AV Box Connector Computer Input D-Sub 15 pin AC Inlet

Figure 2 Rear view of 7763P/65PE

C BOTTOM (figure)

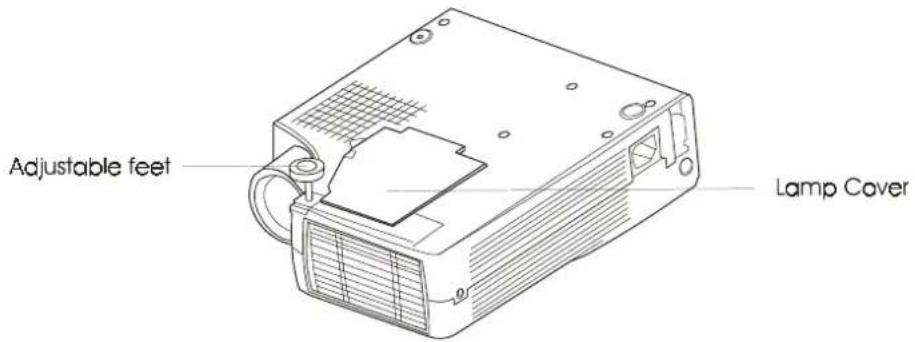

Adjustable feet Lamp Cover

Figure 3 Bottom view of 7763P/65PE

Installation

A. Positioning

• This projector is basically designed to project on a flat projection surface.
• This projector can be focused from 1.5m-14m.
  • Refer to the figure below to adjust the screen size.

Figure 4 Positioning of 7763P/65PE

B. Adjustable Feet

Picture tilt and projection angle can be adjusted by twisting Adjustable Feet. Projection angle can be adjusted 2^ to 8.5^ degrees by rotating Adjustable Feet.

Figure 5 Adjustable feet

Moving the Projector

Use the carrying handle when moving the projector.

Replace the lens cover and rotate the feet fully clockwise (to shorten the feet) when moving the projector to prevent damage to the projector.

Caution

The carry bag (supplied) is intended to protect the projector from dust and scratches on the surface of the cabinet. It is not designed to protect the projector from external shock.

Do not transport the projector in an unsuitable transport case by using a courier or transport service. This may cause damage to the projector.

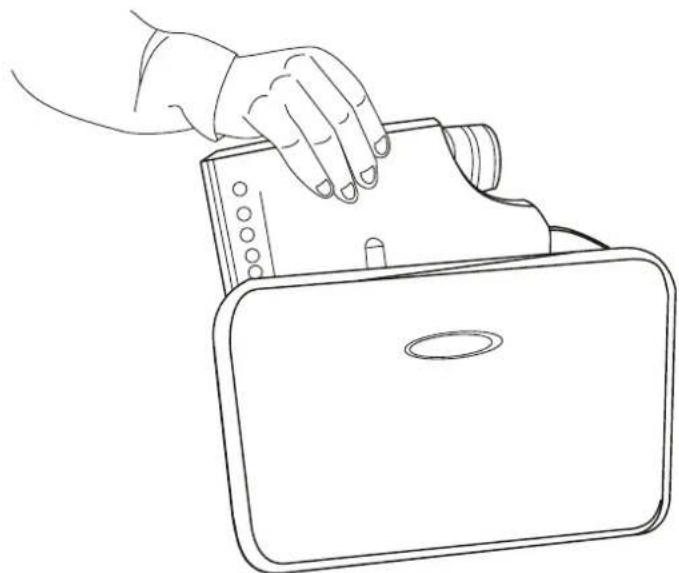

Line drawing of a hand pressing down on a device component (no text or symbols)

Figure 6 Moving the projector

Accessories

Please check and make sure your box contains everything listed below. If any pieces are missing, contact your dealer.

Please save the original box and packing materials in case you ever need to ship the unit.

User's manual Manual Remote Control Batteries Mac Adapter 15pin D-sub connector ADB Mouse adapter PS/2 Mouse adapter Serial Mouse adapter General cable RCA jack (Audio/Video) Audio cable S-video cable

Figure 7 Accessories of 7763P/65PE

Connection

2

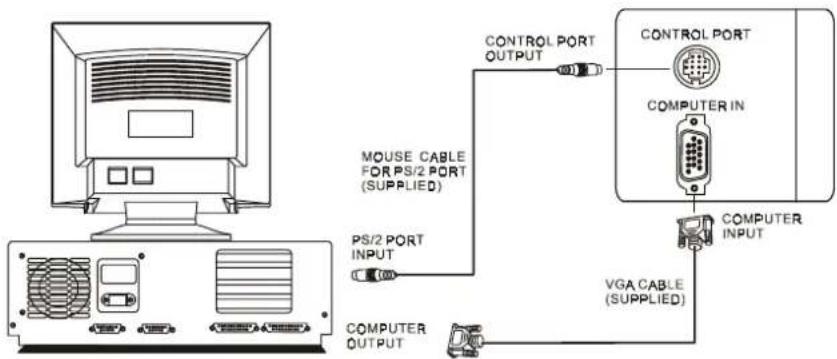

A Connecting the Projector to Computer/Notebook

MOUSE CABLE FOR PS/2 PORT (SUPPLIED) PS/2 PORT INPUT COMPUTER OUTPUT CONTROL PORT OUTPUT CONTROL PORT COMPUTER IN VGA CABLE (SUPPLIED) COMPUTER INPUT

Figure 8 Connection to PC

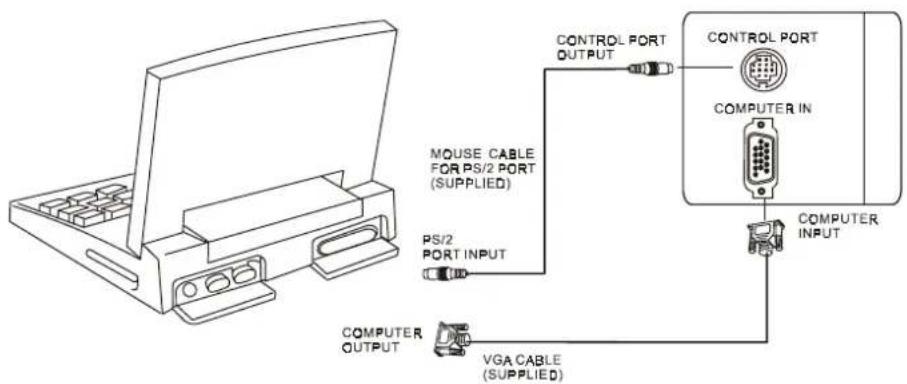

MOUSE CABLE FOR PS/2 PORT (SUPPLIED) PS/2 PORT INPUT CONTROL PORT OUTPUT CONTROL PORT COMPUTER IN COMPUTER INPUT COMPUTER OUTPUT VGA CABLE (SUPPLIED)

Figure 9 Connection to notebook

B Connecting the Projector to Macintosh/Power Book

Figure 10 Connection to Macintosh

MOUSE CABLE FOR PS/2 PORT (SUPPLIED) ADB PORT INPUT CONTROL PORT OUTPUT Control Port Computer In COMPUTER INPUT COMPUTER OUTPUT VGA MAC ADAPTER (SUPPLIED) VGA CABLE (SUPPLIED)

Figure 11 Connection to Power Book

Operation

Turn On/Off Procedure

A Power on

Press the Standby/On key to turn on the lamp. The LED will blink green during warm up and then light solid green.

"INPUT SIGNAL DETECTED, ACTIVATING AUTO IMAGE" will be displayed on the screen after the projector has identified the input signal;
"SEARCHING" message will be displayed on the screen if there is no signal input;
"SYNC IS OUT OF RANGE" message will be displayed on the screen if the horizontal frequency of the input signal exceeds the range of the projector.

B Standby

Press the Standby/On key for more than one second to turn off the lamp. The LED will then blink orange and the lamp will shut down, but the fan will continue to run for about 1 minute to cool the lamp. After the fan stops, the LED will turn to a light solid orange.

*Lamp Protection Procedure: If you try to turn on the lamp again while the LED is blinking, the projector will ignore the command until it has cooled down for one minutes.

External Control

A Control Pad

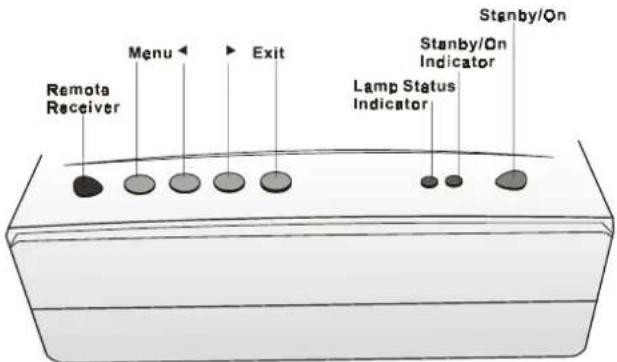

Remote Receiver Menu Exit Lamp Status Indicator Stanby/On Indicator Stanby/On Indicator

Figure 12 External control pad

MAIN UNIT FUNCTION
Menu	To call the OSD menu.To enter sub pages.To select items.
▸	To navigate through sub pages or to increase the scale bar number.
◄	To navigate through sub pages or to decrease the scale bar number.
Exit	To exit from the current page or OSD menu, and save setting changes.To show lamp hour message
Standby/On	To turn the projection lamp on and off.
Standby/On indicator	Functions as an indicator showing the standby status.
Lamp status indicator	Lights or blinks when the lamp does not light.

STMANDBY/ON (LED) Laser Source Menu Exit Freeze Blank L-Click Drag R-Click Magnify Volume Return Mute

B Remote Control

Figure 13 Remote control

The remote control allows you to operate the function keys on the projector and to emulate mouse function when the projector is connected to a computer.

Main Unit Function
Standby/On	To turn the projection lamp on and off.
Freeze	Pressing this button displays a still (frozen) picture.
Magnify	Pressing this button partially magnifies a displayed picture.(Move the picture with the Disk Pad after pressing the Magnify button.)
Disk Pad	When the OSD menu is active, Disk Pad acts as ▲▼selecting device. When the on-screen menus are not active, it works as mouse pad. When the magnify function is active, use disk pad to move through the picture.
Menu	Call the OSD Menu.To enter sub pages.To select items.
Blank	The blank screen is displayed by pressing Blank. And the blank screen will be revealed partially from top to bottom by pressing Blank again.
Source	Selects the input source.
Mute	Mutes the sound.
Volume	Adjusts volume. The sound gets louder or quieter by pressing the "+" or "-" button.
Laser	Laser pointer on button. Use as a stick (for indication).
Mouse Left-Click	When operating in mouse emulation mode, it registers a left mouse click. (bottom button)
Mouse Right-Click	When operating in mouse emulation mode, it registers a right mouse click.
Exit	To leave current OSD Pages.
◄►Drag	To move Left/Right among OSD items.

Inserting Batteries in the Remote Control

Be sure to follow instructions in placing batteries into the remote control units.

• Push and slide the lid in the direction of the arrow.
  • Install two 'AAA' batteries as indicated inside the battery compartment.
• Replace the lid and snap into place.

Caution

• Avoid excessive heat and humidity.
• Do not mix new and old or different types of batteries.

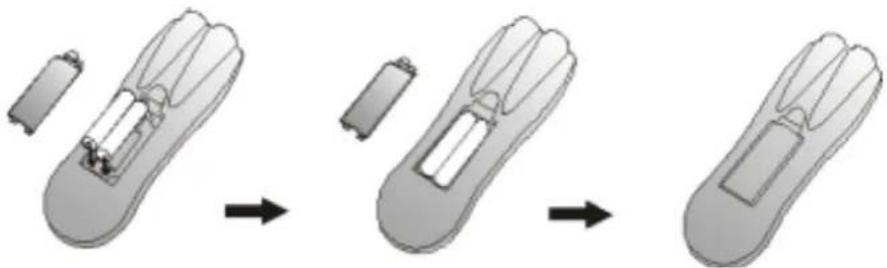

Three-step diagram showing battery charging process: first with battery, second with battery, third with battery (no text or symbols)

Figure 14 Battery replacement process

Remote Control Range

The remote sensors are located on the back of the unit. It can function in a range 50 degrees horizontal and 30 degrees vertical relative to a line that is a right angle to the remote sensor. The distance between the remote control and remote sensor must be shorter than four meters (13 feet).

Up >15°-20° Right 30° 30° Left Down

Figure 15 Range

Usage and Replacement of Lamp

The light source lamp has a limited service life.

The picture will become dark or the color will fade after the lamp has been used for a long time. In such cases, continued use of the lamp could cause a malfunction. Replace the lamp with a new one.

A Lamp/temperature Status LED Indicator

1. Lamp in excess of service hours

When the LED light is a continuous red, it means the lamp has exceeded (*1500) service hours. After this light appears, it is advisable to replace the projection lamp as soon as possible.

i. "CHANGE THE LAMP, AND RESET THE LAMP TIMER" will be displayed on the screen if the lamp has been operated for 1200 hours (see figure 16).
ii. "CHANGE THE LAMP, THE POWER WILL TURN OFF AFTER 20 HOURS" will be displayed on the screen if the lamp has been operated for 1479 hours. The "20" will count down (see figure 17).
iii. "CHANGE THE LAMP!" will blink on the screen together with a red LED if the lamp has been operated for more than (*1500) hours (see figure 18). The power will turn off automatically after 10 minutes. All three of the above messages will not display for more than 3 minutes, but each message will be displayed whenever you turn on the lamp.

CHANGE THE LAMP, AND RESET THE LAMP TIMER

Figure 16 Lamp replacement warning signal

CHANGE THE LAMP, THE POWER WILL TURN OFF AFTRE -12- HOUR

CHANGE THE LAMP

2. Lamp is not well attached

If the LED blinks rapidly, it indicates that the lamp is not attached properly.

3. Temperature is too high

If the projector's internal temperature is too hot to operate safely, the LED will blink slowly for one minute and then the lamp will turn off automatically.

4. Normal status

If the LED light is off, it means the lamp and temperature inside the projector are normal.

Caution:

The lamp indicator will light when the lamp becomes too hot. Turn off the power and let the projector cool for 45 minutes, then turn it on again. If the indicator is still shining, contact your dealer.

B Replacing the Lamp

Replacing the lamp

When replacing the lamp, turn off the projector and unplug the AC cord. Wait 45 minutes so that the lamp can cool. High-pressure lamp when hit, may explode if improperly handled.

Caution:

• Dispose of used lamps in accordance with local authorities.
• As the lamp is made of glass, do not apply shocks to it or scratch it.
• Also, do not use an old lamp, as this could cause the lamp to explode.
• If it seems that the lamp has exploded (for example, an explosive sound is heard), disconnect the power cord from the outlet and ask your dealer to replace the lamp. The lamp is covered by a front glass panel and an air-tight structure, but, in rare cases, the reflector and the inside of the projector may be damaged by scattered, broken pieces of glass, which could cause injury while being handled.

i. Turn the main power switch off and disconnect the power cord from the outlet.
ii. Remove the lamp cover.

- If hot, the lamp could cause burns. Wait for about 45 minutes until lamp has cooled down.

- Loosen a screw and remove the cover.

iii. Loosen the screw and pull the handle to remove the lamp.

• If the screw is not loosened completely, you could hurt your fingers.
• Do not insert your hand into the box after the lamp has been removed. (There are optical parts inside that, if touched, could result in color unevenness, etc.)

iv. Replace the lamp with a new one and fix it using the same screw.

- Firmly tighten the lamp screw. Loose screws could result in a poor connection, which could cause the unit to malfunction.

v. Install the lamp cover and fix it using a screw.

• To prevent burns, install the lamp cover and secure it using the screw.
- Do not turn on power with lamp cover removed.
- Whenever the lamp is replaced, reset the total operation time of the lamp. Do not reset if the lamp has not been replaced.
- Do not reset the timer without changing the lamp, as this can cause the lamp to break.

Lamp Replacement Procedure

Figure 19 Lamp replacement: Step 1, Step 2, Step 3

Resetting Lamp Timer

If replacing the lamp after 1500 hours of operation, please carry out the following operation within 10 minutes of powering on.

OSD	FUNCTION
Lamp -1234 Hr.-	Press the Exit button on the projector for 3 seconds or the Exit button on the remote control for 3 seconds and display the total lamp usage time.
	Press the Menu button on the projector or the remote control while the lamp usage time is being displayed, and the lamp hour display will be active and adjustable.
	Select the "Reset" item on the screen using the <▶ buttons or on control pad or remote.Lamp Hours Used/Reset

OSD

Main OSD Menu

Press the "Menu" key and the main OSD menu structure will appear as shown at right (Fig. 23). Whenever AV box is attached, 4 subpages appear in the menu: Display page, Image page, Control page, and Source page. However if input is from PC and no AV box is attached, Source will disappear in the menu.

Press the "Menu" key again to enter Display page items, or press "◀" or "▶" to select sub-pages. (The main OSD menu will automatically disappear if a key is not pressed within 10 seconds).

Keystone -123- Brightness -123- Contrast -123- Color Balance -123-

Press the "Exit" button to leave the current sub-page, and press the button again to leave the main OSD menu (at the same time the settings are saved). Figure 20 Main OSD menu

Input PC input without AV box PC input with AV box Video input with AV box status

Subpage	Display	Display	Display
	Image	Image	Image
	Control	Control	Control
		Source	Source

A Display Page

When a PC is the input source, there will be only four items on this page: Keystone, Brightness, Contrast, and Color Balance (Fig. 21). On the other hand, when the input source are video, S-video, TV or CATV, there will be other 4 items on this page: Keystone, Brightness, Contrast, and Sharpness (Fig.22).

Press the "Menu" button again to scroll through the items; press "◀" or "▶" to adjust the item scale, or press the "Exit" button to go back to the main OSD page.

Keystone -12. Brightness -123. Contrast -123. Color Balance -1.

Fig.21 Display sub-page when the input source is PC(with/without AV box)

Keystone Brightness Contrast Sharpness -12- -123- -123- -1.

Figure 22 Display sub-page when the input source is video, s-video, TV or CATV

Sharpness (Soft) (Sharp) Source is Videos

B Image Page

Select the Image sub-page and the first item, "Auto Resize" will be highlighted. There are five items on this page: Auto Resize, H. Phase, H. Size, H. Position, and V. Position (Fig. 23).

If AV box is attached and the input is from Video other instead of PC, another different IMAGE sub-page including Image Ratio, System, Color and Tint will come out as figure 24.

Auto Resize 011 On HPhase -123- H.Size -123- H.Position -123- V.Position -123-

Figure 23 Image sub-page... Only available when the input signal is PC

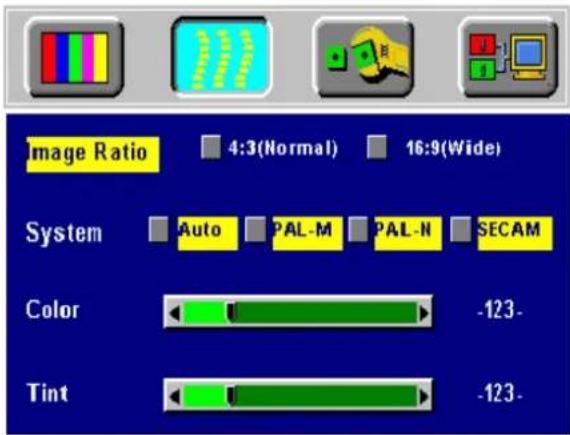

Image Ratio 4:3(Normal) 16:9(Wide) System Auto PAL-M PAL-N SECAM Color -123- Tint -123-

Figure 24 Image sub-page - Only available when the input signal is from video, S-video, TV or CATV

Setting effects

Auto When Auto Resize is on, the projector determines the Resize best fit of the image to the screen.

H. If flicker occurs on a projected image, users may try to adjust the H. Phase manually.

H. Size If the projected image is too wide or too narrow for the screen, users may turn Auto Image off and adjust the H. Size manually to fit the screen size.

H. Posit ion	(move the image left) (move the image right)
	The Auto Image should be turned off to activate the H. Position item. Position adjustments are saved when the projector is power off.
V. Positio n	(move the image down) (move the image up)
	Position adjustments are saved when the projector is power off.

Image Ratio 4:3 (Normal) 16:9 (Wide)
System	To select the input video system standard. When an AV box or turner box is attached, the projector will automatically detect the video system. Users also can select desired video systems. When selecting system, the projector will detect the selected system simultaneously, and the OSD will still exit on the screen. The default setting of System is "Auto" (See Figure 29).
Color	(Less) (More)
Tint	(Red) (Green) Source is Video or S-Video

*Tint may not be adjusted with PAL/SECAM video signal input.

C Control Page

When users go into the Control sub-page, the first item, "Language," will be highlighted. There are five items on this page: Language, Mirror, Blank, Auto Off, and Reset (Fig. 25).

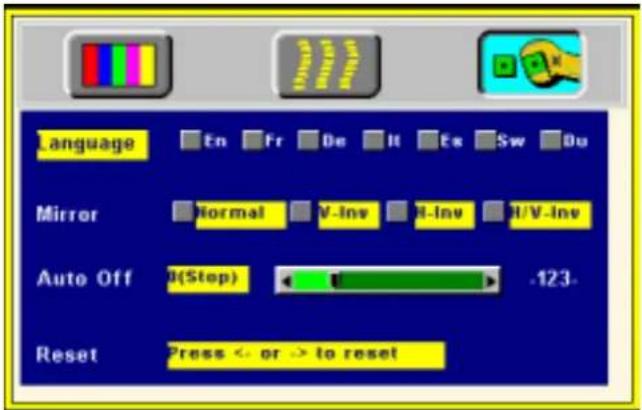

Language En Fr De It Ex Sw Du Mirror Normal V-Inv R-Inv R/V-Inv Auto Off 0(Step) -123. Reset Press < or > to reset

Figure 25 Control sub-page

Setting effects

Language To select the OSD menu language. Eight languages are supported: English, French, German, Italian, Spanish, Swedish and Dutch. (See Figure 25).

Mirror	To select Normal projection, H-Invert projection, V-Invert projection, or H/V Invert projection.
Blank	To select the background color when the image/sound is blanked.
Auto Off	To set the time to turn the power off after the start up screen is displayed and no signal is detected or sync is out of range. To select, use “◀” or “▶” to set the time. 0 means Auto Off function inactive.*Default setting is 0 (stop).
Reset	To reset display, image and control settings to factory settings.

Source Page D

This Sub-page will only show up whenever AV box is attached.

There are five items on this page: Source, Volume, Treble, Bass, and Mute.

Source PC Video S-Video TV CATV Volume -123- Treble -123- Bass -123- Mute 041 On

Figure 26 Source sub-page (AV box attached)

Items	Description
Source	3 input sources are available in the items when AV box is connected to the projector: PC, Video, S-video
Volume	To set the volume level of speaker built in the AV box.
Treble	To set the treble level of speaker built in the AV box.
Bass	To set the bass level of speaker built in the AV box.
Mute	To turn on/off the mute function.

*The priority of input signal detection: a. PC b. S-Video c. Video *When selecting input sources, the projector will detect the selected input simultaneously, and the OSD menu will still exist on the screen.

Other Correspondent Remote Functions and Messages

OSD	FUNCTION
Source	The selected source will be displayed at the bottom right of the screen for 3 seconds after selecting the source. (PC, VIDEO, S-VIDEO).
Freeze	The image will be frozen when the "Freeze" button is pressed. A " || " mark appears at the lower right of the screen for 3 seconds during the freeze function. Furthermore, a "▶" mark appears at the lower right of the screen for 3 seconds when freeze is released. "Freeze" is released when the source button or the "Freeze" button is pressed again.
Mute	Press the "Mute" button and the sound will be muted. There will be an OSD message as shown below:Press Mute again or the volume +/- buttons to turn off the mute.
Volume	Press volume + or - buttons to adjust the volume. The OSD message below will appear: (The message will disappear automatically 3 seconds after the volume is adjusted.)By pressing the magnify "+" button, the center of the picture can be magnified. Press the button again, and the image will be further magnified (to a maximum of 4X). Press the magnify "-" button, and the size of the magnified image will be reduced by 50 percent. To return to the normal display mode, press the "Return" button.
Magnify
Laser	Press this button to generate the laser beam.
Disk Pad	If users connect the PS2 (ADB) mouse cable on the projector with the PC/Notebook (Macintosh/ Powerbook) mouse port, the disk pad will be able to function as a PC/Notebook(Macintosh/ Powerbook) mouse. When an image has been magnified, press the "Disk Pad" button to move around the display area (the mouse function is not available when magnify function is on).
Drag	This button is a toggle switch to turn on/off the drag function of the remote mouse.
Blank	Press this button to activate or release the blank function.

Maintenance and Troubleshooting

4

A Lamp Replacement

Refer to Page 11

B Cleaning the Lens

Follow these steps to clean the projection lens:

1. Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth (abrasive cleaners, solvents or other harsh chemicals might scratch the lens).
2. Avoid using an excessive amount of cleaner.
3. Lightly wipe the clean cloth over the lens.
4. Affix the lens cover whenever the projector is not in use.

C Troubleshooting

PROBLEMS TRY THESE SOLUTIONS
NO POWER	✓ Plug the power cord into the AC Inlet. ✓ Plug the power cord into the power Inlet. ✓ Wait two minutes after the projector has been turned off before turning the projector back on.
NO PICTURE	✓ Check that you have selected the proper input source. ✓ Ensure all cables are connected properly. ✓ Adjust the brightness and contrast. ✓ Remove the lens cap. ✓ Is the POWER indicator flashing? ✓ Is the STATUS Indicator flashing?
IMAGE ISN'T SQUARE ON THE SCREEN	✓ Reposition the unit to improve its angle on the screen. ✓ Is the vertical offset properly corrected using the keystone function?
POOR COLOR	✓ Select the correct video system. ✓ Adjust brightness, contrast, or saturation.
IMAGE IS BLURRED	✓ Adjust the focus. ✓ Reposition the unit to improve its screen angle. ✓ Ensure the distance between the unit and screen is within the adjustment range of the lens.
REMOTE CONTROL DOESN'T WORK	✓ Replace the batteries with new ones. ✓ Make sure there is no obstacle between the remote control and the unit.
	√ Stand within 4 meters (13 feet) of the unit.√ Make sure nothing is blocking the receiver on the control pad.
NO SOUND	√ Check audio cable connection from audio input source.√ Adjust audio source.√ Press "Volume" (+) button.√ Press "Mute" button.

Specifications

A Optical

DMD ^TM 1-chip 0.7" DMD ^TM (Digital Micromirror Device) Lens Manual zoom, manual focus (F=2.8 to 3.1 f=31 to 40) Lamp mercury lamp 150W Image size 25" to 300" Projection Distance 1.5 to 14 M Light Output 800 ANSI lumens Contrast Ratio 450:1

B Electrical

Inputs RGB(H:31.47 to 68.70 kHz V:56.25 to 85.00 Hz)
Video (NTSC/PAL/SECAM/NTSC 4.43)
Color Reproduction Full color, 16.7 million colors simultaneously.
Power Requirement 100 to 240 VAC, 50 to 60 Hz

C Mechanical

Dimensions 24.3 cm (L) × 6.2 cm (H) × 19.8 cm (W)
Net Weight 2.3 kg/5.0 lb.
Operational Temperature projector: 10 to 40°C
Remote control

D Preset Display Resolution Table

Resolution H Sync (kHz) V Sync (kHz) Remark
640x350	31.5		70.1
640x400 37.9 85.1 VESA
720x400	31.5		70.0
720x400 37.9 85.1 VESA
640x480	31.5		60.0
640x480 37.9 72.8 VESA
640x480	35		66.7
640x480 43.3 85.0 VESA
800x600	35.2		56.3
800x600 37.9 60.3 VESA
800x600 46.9 75.0 VESA
800x600 48.1 72.2 VESA
800x600	53.7		85.1
832x624 49.7 74.5 Macintosh
1024x768	48.4		60.0
1024x768 56.5 70.1 VESA
1024x768	60.0		75.0
1024x768 68.7 85.0 VESA
1280x1024	64.0		60.0

Appendix

Guideline to Acer 7763P/65PE AV box

1. Features and Connection

AV Connection Port

This box is compatible with RCA input, S-Video input, audio output .

S-Vedio Video VHS

Figure 27 Connection of AV box

Speaker
RCA Jack	For Video and Audio Input from VHS or V8
S Video Port	For S-Video Input
Phone Jack	For Video input/Output

*AV box is sold separately and is not included in the standard configuration of accessories in the unit. Please contact the dealer nearest you need the box or visit the Acer Peripherals, Inc. Web site for more information.

AV Control Pad

Source	Select the source
Volume up	Turn the volume upward
Volume down	Turn the volume downward

Connecting the Box

Please follow the instruction here to place the AV box:

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Figure 28 Bottom View of AV box

Line drawing of a device with a button and arrow pointing to a component (no text or symbols)

Figure 29 Side View of AV box

To attach the AV box to the unit:

Line drawing of hands holding a device with buttons and ports (no text or symbols)

A/V function.

1. Precisely place the two chocks at the lower surface of the AV box into the lower slots in the correspondent position in the projector.
2. Slowly push the box to fit the unit and, meanwhile, insert the box plug into the A/V connector closely.

3. Plug in the correct cord into the correspondent jack or port to perform

4. Select inputs by pressing "Source" key, and select channel by the channel up or down keys.

Line drawing of two hands holding a device with ports and buttons (no text or symbols)

Figure30 Connecting the Box
