Product Type	Semi-Automatic Washing Machine
Model	TurboSpa SA72DR
Wash Capacity	7.2 kg
Spin Capacity	6.0 kg
Power Supply	230 V AC, 50 Hz
Washing Power Input	520 W
Spinning Power Input	190 W
Net Dimensions (WxDxH)	805 x 475 x 935 mm
Package Dimensions (WxDxH)	820 x 520 x 1000 mm
Net Weight	22 kg
Gross Weight	26 kg
Water Capacity (High)	75 L
Water Capacity (Low)	47 L
Wash Timer Range	Up to 35 minutes
Spin Timer Range	1 to 5 minutes
Soak Time	20 minutes
Wash Programs	Gentle, Normal, Heavy
Water Selector	Wash or Spin
Drain Selector	Wash/Rinse or Drain
Features	Soak timer, lint filter, castor wheels, buzzer
Safety Features	Thermal overload protector, lid switch for spin
Warranty	2 years comprehensive, 5 years on wash motor
Package Contents	Washing machine, spin-dry safety lid, inlet pipe, user manual

Frequently Asked Questions - TurboSpa SA72DR INTEX

What is the maximum wash capacity of the Intex TurboSpa SA72DR?

The maximum wash capacity is 7.2 kg, and the spin capacity is 6.0 kg.

How do I select the appropriate wash program?

Use the Wash Program selector to choose Gentle for delicate fabrics, Normal for regular laundry, or Heavy for heavily soiled clothes.

What should I do if the spin basket does not rotate?

First, ensure the spin dryer lid is closed. Check if clothes are evenly distributed and not caught between the basket and tub. Also verify the spin timer is set correctly.

How to clean the lint filter?

Pull out the lint filter from its lock, turn the net inside out, and clean with water. Reinsert by pressing down and locking as indicated by the arrow.

Can I use hot water for washing?

Do not use water exceeding 50°C as it may deform plastic parts. If using warm water, add hot water to cold water in the tub, never pour hot water into an empty tub.

What is the soak rinse function?

Set the wash timer for 35 minutes. The machine will soak/rinse for the first 20 minutes, then wash for the remaining 15 minutes. A buzzer sounds at the end.

How do I perform an intermediate spin rinse?

Place clothes in the spin tub, set water supply to SPIN TUB, open the tap for 1-2 minutes, then close. Spin for 1 minute. Set drain selector to DRAIN after. Do not keep water tap open during rotation.

What should I do if the machine vibrates excessively?

Unevenly distributed clothes in the spin tub can cause vibration. Open the lid, wait for the drum to stop, redistribute clothes evenly, and restart.

What are the electrical requirements?

The machine requires a 230 V AC, 50 Hz power supply with a 3-pin/5A earthed outlet. Do not use an extension cord or connect earth to a phone wire.

How long is the warranty period?

The Intex TurboSpa SA72DR comes with 2 years comprehensive warranty and 5 years specific warranty on the wash motor from the date of purchase. Service charges apply from the 3rd year.

USER MANUAL TurboSpa SA72DR INTEX

Semi Automatic Washing Machine

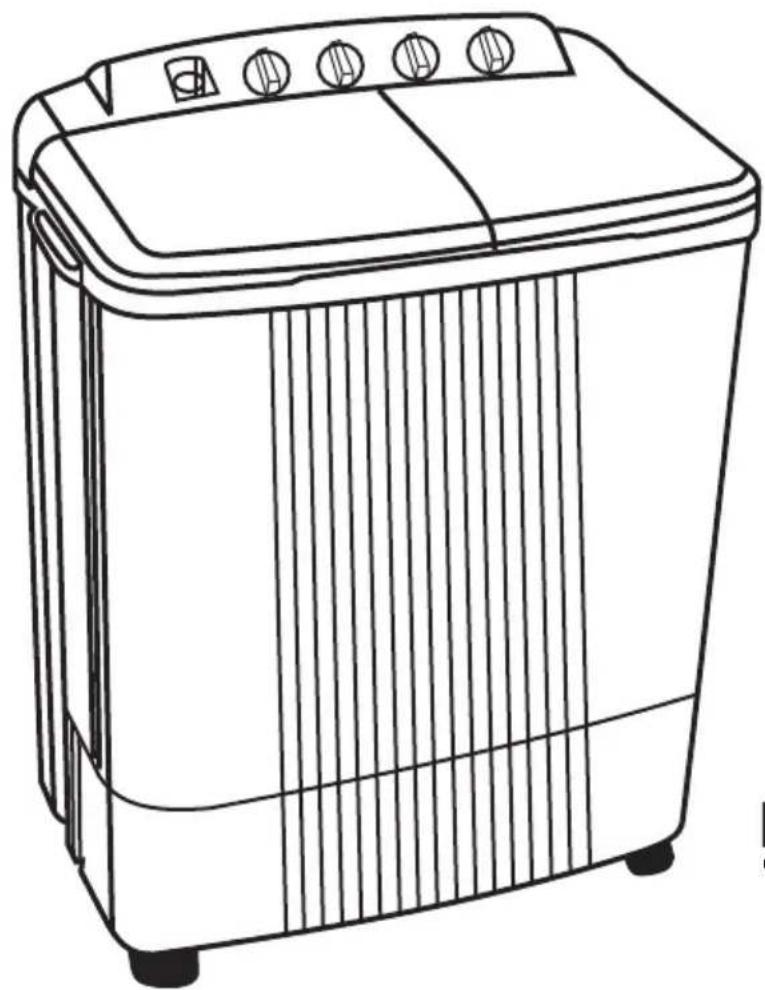

Line drawing of a washing machine with four buttons and front panel (no text or symbols)

TurboSPA

WMS76ST

WMS76FT

SA80CR

SA80LV

SA72DB

SA72DR

Experience the gentle touch of care

Intex Technologies (India) Ltd.

Message from Marketing Desk

Dear Valued Customer,

Congratulations on becoming a proud owner of INTEX product. You have now joined the fraternity of millions of satisfied INTEX consumers.

Intex Technologies (India) Ltd., incorporated in the year 1996 is one of the major players in India in mobile handsets, consumer durables and IT accessories. The company's flagship brand is 'INTEX'.

The trust built by brand INTEX in the industry is borne out by the increasing demand for its products. The Brand exhibits an exhaustive portfolio of 16 product categories ranging from mobile handsets, mobile accessories, multimedia speakers, LED TVs, washing machines and wearables.

The company has witnessed a fairly high growth in the last few years. With a CAGR of 81% over the past 3 financial years, the company has reached a turnover of almost INR 6400 crore in FY 15-16. Mobile business has been a key driver of growth: Intex became the No-1 Indian mobile handset brand as per IDC market share data of Q3 2015.

Intex has diversified in the sports management sector and has recently acquired the IPL team - Gujarat Lions.

The company's presence has a wide geographical spread through its network comprising 30 stock and sales offices and over 1500+ service touch points. Sales are routed through a distribution network comprising 1600+ distributors and 80,000+ dealers spread across the country. Intex also has retail presence in the country through its standalone brand stores - Intex Smart World. In addition products are available at more than 250 dedicated counters of reputed chains of hyper markets and specialty stores across the country, on TV shopping channels and e-commerce sites.

The company has Design and Development facilities in India and China that are well-equipped with modern equipment and are managed by qualified and experienced professionals looking after product design & development. These facilities ensure products are offered in line with latest global standards. The company has a strength of 11,000 employees across the country.

Intex started domestic manufacturing in 2004 and currently operates four manufacturing facilities that are based in Jammu, Baddi (Himachal Pradesh) and Noida manufacturing diverse products. The company has created local employment and training opportunities for youth living in the hinterland of its factories and also developed local vendors.

The company's operations are managed on a world-class collaborative business solution - SAP on a Virtual Private Network. Intex is an ISO 9001:2008 certified company.

Hope you will consider using more Intex products in future.

Intex Technologies (India) Ltd.

D-18/2, Okhla Industrial Area, Phaase - II, New Delhi - 110 020.

Tel.: [phone]

Email: [e-mail]

Website: www.intex.in

Helpline No.: 1860-208-5555

Note: Our Company devotes every efforts for improving the technology and product specifications. This manual is subject to change without notice.

Dear Customer

Congratulations on being the Proud owner of Intex Washing Machine. Your Washing Machine comes with a intex Guarantee of Quality.

Intex takes great pride in providing its customers with perfect products that adheres to international quality standards.

Intex is committed to international quality standards.

Intex is committed to provide the ultimate customer satisfaction as nothing brings us greater joy than having satisfied customers of Intex.

At Intex, feedback and suggestions based on your product usage experience are greatly appreciated.

CONTENTS:

1. Parts Identification .... 1
2. Safety Precaution 2
3. Recommended Washing Procedure .... 3
4. Laundry Guide .... 4
5. Trouble Shoot Table 5
6. Specification & Wiring Diagram 6
7. Warranty Card 7
8. Warranty Card 8
9. How to avail service 9

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Don't put hands into the tub when it's working.

The power cord of the washer is connected by Y shape. If must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

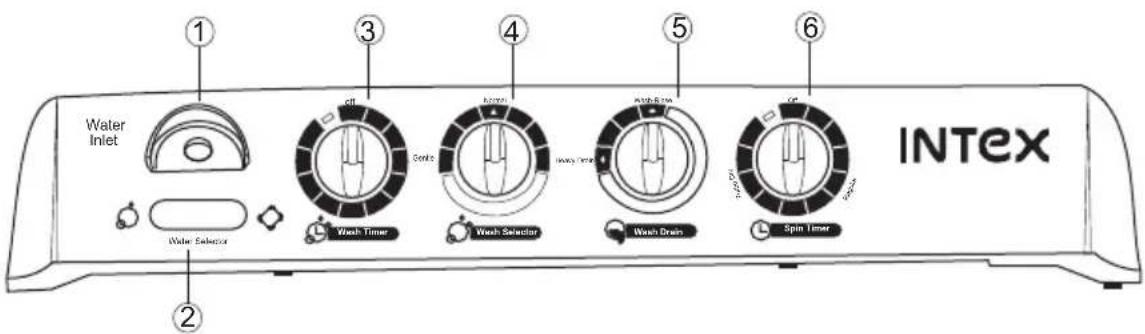

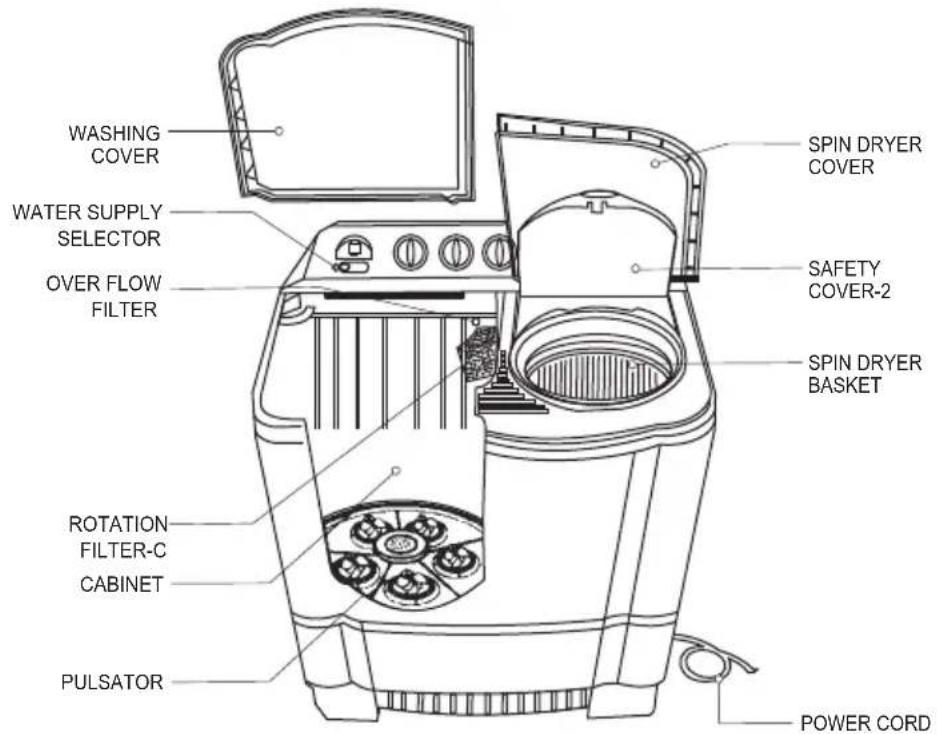

INTRODUCTIONS OF PARTS

1. Water Supply Inlet

Connect here with the inlet hose from the water tap to feed water to the tub.

2. Water Selector

Select "WASH" to supply water for washing and rinsing and "SPIN" for spin shower rinse.

3. Soak Timer

Select the desired time for soaking washing or rinsing.

4. Wash Program

Set the program to "Gentle", "Normal", "Heavy" according to kinds and quantity of the laundry.

5. Drain Selector

Select" Wash Rinse" for washing and rinsing and "Drain" to drain the water out of the tub.

6. Spin Timer

Select the desired time for spinning. The maximum limit is 5 min. Don't rotate the knob more than prescribed limit.

* Model SA80CR/LV with Turbodry features of 10min Spin Timer

Note : Graphics may be different with the actual machine.

Safety Precautions

1. Make sure that the washing machine is plugged to a 3 pin/5A electrical outlet and earth terminal is provided on the outlet.
2. Unplug the power supply cord when you do not use it.
3. To disconnect the washing machine from electrical mains completely, pull out the plug and do not pull it from the mains cord.
4. Don't allow your kids to look inside the washing machine while running.
5. This washing machine is meant for washing clothes with water as a medium. Do not use petrol or other chemicals. This can result in fire and damage.
6. Do not use water with temperature exceeding 50 degree C, as this deforms the plastic parts in the machine. If you desire to use warm water add hot water to cold water in the wash Do not pour hot water in an empty tub.
7. Keep the machine away from flames and inflammable material. Do not expose the washing machine to direct sunlight or rain. Also avoid placing it in humid locations.
8. Take Precautions not to pierce the control panel membrane sheet.
9. Do not connect the earth wire to a phone wire, lightening rod.
10. Do not press the button with an awl or a pin.
11. Avoid overloading of wash and spin tub.
12. Do not use wash & spin tub for water storage.

Care & Maintenance

Be sure to remove the power plug from main power supply before cleaning the machine and filter

Net Filter Cleaning

1. Pull out the lint filter from the lock use fingers pull out at the part of the Lint Filters side.
2. Turn the net inside out and clean with water.
3. Set back to the original position. Insert the bottom first as shown press down and lock as the arrow.

Cleaning the Wash Tub

1. After washing is complete, fill fresh water above the level of pulsator without adding clothes.
2. Run the machine for 1-2 minutes turn the knob to "DRAIN" position when pulsator is still rotating.
3. When water is completely drained out, turn the know to "WASH" position.
4. Finally turn off the machine.

Recommended washing procedure

1. Open the water tap and fill the wash tub about half way.
2. Put in the laundry detergent and allow it to disperse well.
3. Put in the clothes to be washed and add water in accordance with the amount of cloth load.
4. Set the WASH TIMER as desired depending on the fabric type and the degree of soiliage.
5. When washing is finished, set the Drain Selector to Drain

NOTE: Ensure that the clothes rotate freely during wash, if not, reduce the cloth load. (By removing some clothes from the machine)

Rinsing and Drying Rinsing

There are 3 ways to rines:

1. Soak Rinse : Fill the wash tub appropriately for the number of clothing being washed. Set wash timer for 35 Minutes.
   (Soak/Rinse will begin) and clothes will Soak/Rinse for a period of 20 Minutes.
2. After 20 minutes machine will switch to wash function and clothes will be washed for 15 Minutes. A Buzzer sound shall indicate the end of the wash period.
3. Intermediate Spin Rinse: Put clothes inside the Spin Tub. Set Water Supply selected to SPIN TUB. Open the water tap and keep it open for one to two minutes and then close tap. Spin for one minute. When rinsing is over, set the Drain Selector to DRAIN. Do not keep the water tap open when the Spin tub is rotating, else machine will malfunction.

SPIN DRYING

Put clothes inside Spin Drum, distributing them evenly and ensure that the drain hose is lowered otherwise the machine will malfunction. After putting clothes in Spin Drum place spin Drum Cap over the clothes inside the tub to prevent them from flying out. Close the Spin Drum Lid. If the lid is not closed the Spin Drum will not rotate. Set the SPIN TIMER from 1 to 5 minutes according to the type of clothes. If the spin Drum starts shaking noticeably, open the lid and wait for the Spin Drum to stop spinning. Distribute the clothes evenly and re-start.

* Model SA80CR/LV with Turbodry features of 10min Spin Timer

REFERENCE

TABLE 1. DETERGENT GUIDE

WASH LOAD	1.2 kg	1.2~2.5 kg	2.5~3.8 kg	3.8~5.0 kg	5.0 kg or ABOVE
Water Level	Min.	Low Medium		High	Over Flow
Amount of Detergent	25 gm	40 gm	50 gm	60 gm	64 gm
Amount of concentrate Detergent	16 gm	25 gm	30 gm	38 gm	40 gm
Amount of Softener	17 ml	22 ml	26 ml	29 ml	35 ml

Table 2- LAUNDRY GUIDE

Amount of Laundry	Clothes System	Synthetic Fiber	Cotton	Heavy Stained Clothes
Less than 1.2 kg	Washing Time	2 minutes	2~5 minutes	7~10 minutes
	Wash Selector	Regular	NORMAL*/ HEAVY	HEAVY
1.2 ~ 2.5 kg	Washing Time	2~5 minutes	7~10 minutes	10-15 Minutes
	Wash Selector	REGULAR	NORMAL*/ HEAVY	HEAVY
2.5 ~ 3.8 kg	Washing Time	7~10 minutes	10~15 minutes	#Soak 20 minutesWash 15 minutes
	Wash Selector	REGULAR	NORMAL*/ HEAVY	HEAVY
3.8 kg and above	Washing Time	Soak 20 minutesWash 10~15 minutes	Soak 20 minutesWash 15 minutes	#Soak 20 minutesWash 15 minutes
	Wash Selector	REGULAR	NORMAL*/ HEAVY	HEAVY

Notes:

• If the wash load and water volume do not match, clothes may damage/water splash may occur.
• The quantity of wash load varies depending on fabric type, thickness and size of the clothes.
• Adjust the water level/wash load as required by carefully watching the movement of the clothes in the tub.

Trouble shooting guide

TROUBLES	CHECK POINTS
Motor not working	Check supply source.Is the power cord firmly plugged in?Is the timer turned to a suitable point except “OFF”?Motor has been provided with “TOP” (Thermal overload protector). This will protect the motor from burning due to overheating caused by various variable factors such as overload voltage, frequency variation, etc. In such case motor supply will get off, thus stopping the motor. Wait for approximate 1/2 hour till motor cools to normal temperature.Restart the M/c to see if motor functions normally.
Spin dryer basket does not operate	Is there any cloth dropped between the basket and tub?Is the spin dryer cover closed?Is the laundry gathered to one side of the spin dryer basket?
Drain not drawing	Is the lint stuck to the plunger valve?Is the end of the drain hose guide located at an excessive height?

Trouble Shoot Table

Problem	Reason	Solution
The pulsator does not rotate	Power out or switch offTransmission belt burstPulsator is blocked by something	Switch on plugAssemble the transmission beltRemove the blockage
The pulsator rotates too slowly	Belt becomes looseThe flexible screw of motor is loose	Tighten the belt or replace itTighten the belt and the screw
Abnormal noise and vibration	The clothes in the spin-dry tub are unbalancedSomething was stuck between pulsator and wash tub	Place the clothes neatlyRemove it.
Water leaks from wash tub	The hose is not tightened with the wash tub	Tighten it

Usage instructions for semi-automatic washing machine

Step 1

■ Select the wash option (Heavy/Normal/Gentle) on the selector switch
■ Soak/Wash: Put clothes in the wash tub with water and detergent. Start the Soak/Rinse function.
- For the first 20 Minutes Soak/Rinse will work and after that clothes will be washed for the next 15 Minutes.

Step 2

■ Place the clothes in the spin tub.
■ Select spin timer for the time period required (For regular 5 mins / Turbodry 10mins)
■ This is required to remove excess soap
■ Will result in the first drying process for the clothes.

Step 3

■ Transfer clothes to the wash tub.
■ Rinsing: Fill in water only and select wash time for 3-4 minutes.
■ After this is complete, select the drain mode to drain out water

Step 4

■ Drying : Transfer clothes to spin tub and select spin time to complete final drying process.

SPECIFICATION

Model	SA72DB/DR	WMS76ST/FT	SA80CR/LV
Max. Rated Capacity Wash	7.2 kg	7.6 kg	8.0 kg
Max. Rated Capacity Spin	6.0 kg	6.0 kg	6.0 kg
Power Supply	230 VAC / 50Hz	230 V AC / 50Hz	230 V AC / 50Hz
Washing Input	520 W	520 W	540 W
Spinning Input	190 W	190 W	190 W
Net Dimension in mm (WXDXH)	805x475x935	805x475x995	805x475x1040
Package Dimension in mm (WXDXH)	820x520x1000	820x520x1055	820x520x1100
Net Weight	22 kg	23 kg	24 kg
Gross Weight	26 kg	27 kg	29 kg
Water Capacity High	75 L	75 L	75 L
Water Capacity Low	47 L	47 L	47 L
Castor	Yes	Yes	Yes
Buzzer	Yes	Yes	Yes
Wash Timer	35 min.	35 min.	35 min.
Soak Time	20 min.	20 min.	20 min.
Spin Timer	5 min.	5 min.	10 min.

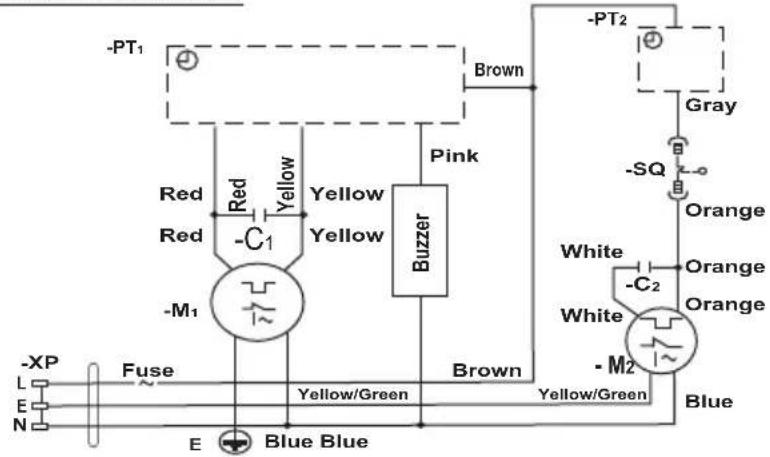

WIRING DIAGRAM

WIRING DIAGRAM

PACKING LIST

Name	Quantity
Semi Automatic washing machine	1
Spin-dry safety lid	1
Inlet pipe	1
User manual	1

Intex Technologies (India) Ltd

Warranty Card

Thank you for purchasing Intex product and we are sure you will enjoy it. In the unlikely event of your product requiring services please contact the nearest Intex Testing and repair Center (TRC) /designated Intex Care Partner (ICP). In case there is no such service center in your city please contact our Helpline No.:1860-208-5555 for assistance. We advise that you to read the instruction manual carefully before using the product.

Intex Technologies (India) limited (here after called "Intex") warranties the product during the offer terms in India shall have 2 year comprehensive warranty and 5 Year specific warranty on Wash Motor for All Semi Automatic and Fully Automatic models is applicable from the date of purchase. This non-transferable warranty is only for you, the first end user. If during this period of warranty of the product proves to be defective due to improper material for workmanship, Intex TRC/ICP will repair / replace the product free of charge subject to the terms and conditions mentioned below:

Terms and Conditions:

1. Warranty will be valid only when the warranty card along with the original invoice or sale receipt (Indicating the date of purchase, model no. and dealer's name) is presented together with defective product and the extended specific warranty will be effective from 1st Oct 2016.
2. This warranty Card is not applicable if it is not stamped or Original Invoice with TIN no. mentioning Product Serial Number is not produced at the time of repair.
3. This Five (5) Years Specific Warranty on Wash Motoris applicable from date of purchase but service charges & visit charges are applicable from 3rd year onwards from the date of purchase.
4. Intex reverses the right to decline warranty service, if the above documents cannot be presented or it the information contained is incomplete or tampered.
5. This warranty shall not cover any damage resulting from adaptation or adjustments which may be made to the product.
6. To avail Extended warranty, Customer shall register the product details at the Call Center No. 1860 208 5555 or Send SMS "WMEW [Product Serial Number]" to 9582943043 or register at www.intex.in
7. This warranty will not apply if the type or serial no. on the product has been altered, remove or defaced.
8. This warranty does not extend to any accessories defined in the operating instruction manual supplied with this Intex product.

9. This warranty does not cover the damage cause to the product due to improper installation by customer and / or connecting the product to the equipment not approved by INTEX and deficiency in the product performance due to signal reception.

10. This warranty does not cover the risk to the product caused by accident, lightening, water, fire, other acts of God, improper ventilation, dropping or excessive shock or any external caused beyond INTEX 's control.

11. This warranty does not affect the consumer's statutory rights under applicable Indian Law, nor the consumer's rights against the dealer arising from their sales / purchase contract.
12. Transportation cost (if required) will be bear by the customer.

This Warranty is not applicable in any of the following case:

1. Installation of Hardware, Software and Networking.
2. External accessories are not covered under warranty.
3. Extended Warranty does not cover any other accessory or any other models, any defects/damages occurring directly/indirectly due to accessory of models.
4. Intex is not responsible for the loss of your confidential, personal and corrupted date.
5. Configuration of Drivers, Embedded Software, System / Data recovery.
6. No retailer has authority to vary the terms of above warranty.
7. Any repair work is carried out by persons other than Intex authorized service personnel.
8. This warranty will automatically terminate on the expiry of the warranty period as specified above, even if Intex product may not be in use for any time during the warranty period for any reasons.
9. The product is installed, maintained and operated in ways other than as recommended by Intex.
10. No Plastic parts covered under warranty (Knobs, wash lid, spin lid, base, panel, top cover, tub, lint filter, drain hose, inlet hose)
11. Warranty valid only for residential use of the Product purchased during the Offer Term. The warranty shall become invalid in the following cases:
    · Commercial/Community/Public usage
12. Unauthorized re-installation, altercation or modification of the Product.
    · Damage caused by accident, theft, riots, natural disasters etc.
13. Accidental or internal damage due to electrical power inadequacy or fluctuating electrical power conditions including voltagefluctions, earthing issues.
14. Damage to Product incurred while moving the equipment from one location to another or re-installing it after movement by unauthorized dealer/distributor/workmen/person, etc.
    · Product not being used according to instructions in the user manual.
    · Any repair carried out by person others than from an authorized INTEX Service Center
15. Any disputes arising out of the warranty shall be exclusively settled at the Courts of Delhi.

How to avail services

a) In the event of yor require service assistance. Please contact Intex Customre Care Center at 1860-208-5555. Alternatively you may visit with the product at an Intex Authorised Service Center.

b) If the product is out of warranty, you can register the call at Intex Customer Care Center for a chargable repair.

Customer's Name: Model Name :

Serial No.: Model No.:

Customer's Contact No.: /

Customer's Address: ....

Retailer's Name: .... Location:....

Jobsheet Number ICP Name:

* On-site suport shall be within municipal limit from Intex Service Center
* On-site support shall be from Monday to Saturday (10:00 AM to 06:00 PM)

E-WASTE DISPOSAL

Environmental compliances:

As per the rules laid down by the Government for environmental concern & safety, your product has been made to comply and conform to the respective regulation as listed below.

This product falls under the E-WASTE (MANAGEMENT) RULES, 2016 of Ministry of Environment, Forests & Climate Change. For information on proper modes of disposal, please visit our website at http://www.intex.in/EWasteManagement/Index.

RoHS declaration:

This Product is in conformity with the requirements of Rule 16 of the E-WASTE (MANAGEMENT) RULES, 2016. The content of hazardous substances with the exemption of the applications listed in SCHEDULE II of the E-waste (Management) Rules, 2016 is as follows:

Lead (Pb): not over 0.1% by weight;

Mercury (Hg): not over 0.1% by weight;

Cadmium (Cd): not over 0.01% by weight;

Hexavalent Chromium: (Cr6+): not over 0.1% by weight;

Polybrominated Biphenyls (PBBs): not over 0.1% by weight;

Polybrominated Diphenyl Ethers (PBDEs): not over 0.1% by weight.

Information under E-Waste (Management) Rules, 2016

For disposal of E-waste, please call our helpline no. or visit our website.

E-waste Helpline Number: 0124-434-4444

Toll Free Number: 1860-108-5555

Web link; http://www.intex.in/EWasteManagement/Index

Name of E-waste Recycler : 3R Recycler

Website : www.3recycler.com

Toll Free:1800-102-8632

E-Mail: [e-mail]

Do's and Don'ts for disposal of product

1) Do's for disposal of Product

a. Always drop your used electrical/electronic products & parts, cables and packaging materials after the end of their life at the nearest authorized collection point/center.

b. Separate the packaging material according to responsible waste disposal options and sorting for recycling.

2) Don'ts of disposal of product

a. Never dump E-waste in Garbage bins or Municipal solid waste stream.

b. Do not dispose of your product as unsorted municipal waste.

c. Do not throw or dispose used, damaged parts & products into house hold waste.

3) Information on the consequences of improper handling, accidental breakage, damage & improper recycling of the end of life Product

a. If products are not properly disposed of, it can cause harm to human health or the environment.

b. Placing of products/parts or devices on or in heating devices, such as microwave oven, stoves, or radiators and improper disposal of products/parts may lead to explosion.

INTex

Intex Technologies (India) Limited

Email: [e-mail], www.intex.in

30 Branches -1500+ Service Touch Points

Helpline No: 1860-208-5555

CONSUMER DURABLE | MOBILE PHONE | IT ACCESSORIES

"The product falls under E-waste (Management) rules, 2016. For proper disposal method, visit our website." "Due to regular updation of the product, the picture and speci.cation on the packaging box/catalogue might differ from the actual product."

*All brand name trademarks are property of their respective owners.
