USER MANUAL VM-30AVB Kramer

Kramer Electronics, Ltd.

K KRAMER

USER MANUAL

Models:

VM-30AV, 1:3 Audio/Video DA

VM-30AVB, 1:3 Audio/Video DA

Contents

1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
4 Your Audio/Video DA 4
5 Using Your Audio/Video DA 5
5.1 Connecting your VM-30AV/B 5
5.2 Configuring a 1:3 Audio/Video DA for Component (YUV) or RGB 7
6 Technical Specifications 9

Figures

Figure 1: VM-30AV 1:3 Audio/Video DA 4

Figure 2: VM-30AVB 1:3 Audio/Video DA 4

Figure 3: VM-30AV 1:3 Audio/Video DA Connection 6

Figure 4: Configuring a 1:3 Audio/Video DA for Component (YUV) or RGB 8

Tables

Table 1: Front Panel VM-30AV and VM-30AVB 1:3 Audio/Video DA Features 5
Table 2: Rear Panel VM-30AV and VM-30AVB 1:3 Audio/Video DA Features 5
Table 3: VM-30AV and VM-30AVB Technical Specifications 9

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 500-plus different models now appear in eight groups ^1 that are clearly defined by function.

Congratulations on purchasing your Kramer VM-30AV and/or VM-30AVB 1:3 Audio/Video DA.

The VM-30AV and/or VM-30AVB are ideal for the following applications:

• Video/Audio duplication studios
• Retail outlets and home theater systems

The package includes the following items:

• VM-30AV and/or VM-30AVB 1:3 Audio/Video DA
• Power adapter (12V DC input)
- This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Step 1: Connect the input and the outputs - see section 5

Step 2: Connect the power

Step 3: Set the underside controls - see section 4

Adjust the audio EQ. and LEVEL

AUDIO LEVEL

VIDEO

EQ.

LEVEL

Adjust the video EQ, and LEVEL

3 Overview

The VM-30AV and/or VM-30AVB 1:3 Audio/Video DA are high performance 1:3 distribution amplifiers for video and stereo audio signals. The VM-30AV and/or VM-30AVB accept one input ^1 and distribute the signal to 3 identical outputs. Video signals transmit via:

• RCA connectors on the VM-30AV
• BNC connectors on the VM-30AVB

Both the VM-30AV and/or VM-30AVB include:

• RCA connectors for stereo audio signals
- Extra wide video bandwidth of 430MHz that allows for high-resolution data/video signals, SDI (serial digital) video and other specialized signals
• An audio level control knob
- Front panel cable EQ (equalization) and video level trimmer controls

Achieving the best performance means:

• Connecting only good quality connection cables, thus avoiding interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Avoiding interference from neighboring electrical appliances that may adversely influence signal quality and positioning your Kramer VM-30AV or VM-30AVB in a location free from moisture and away from excessive sunlight and dust

Caution - No operator-serviceable parts inside unit.

Warning - Use only the Kramer Electronics input power wall adapter that is provided with this unit ^2 .

Warning – Disconnect power and unplug unit from wall before installing or removing device or servicing unit.

4 Your Audio/Video DA

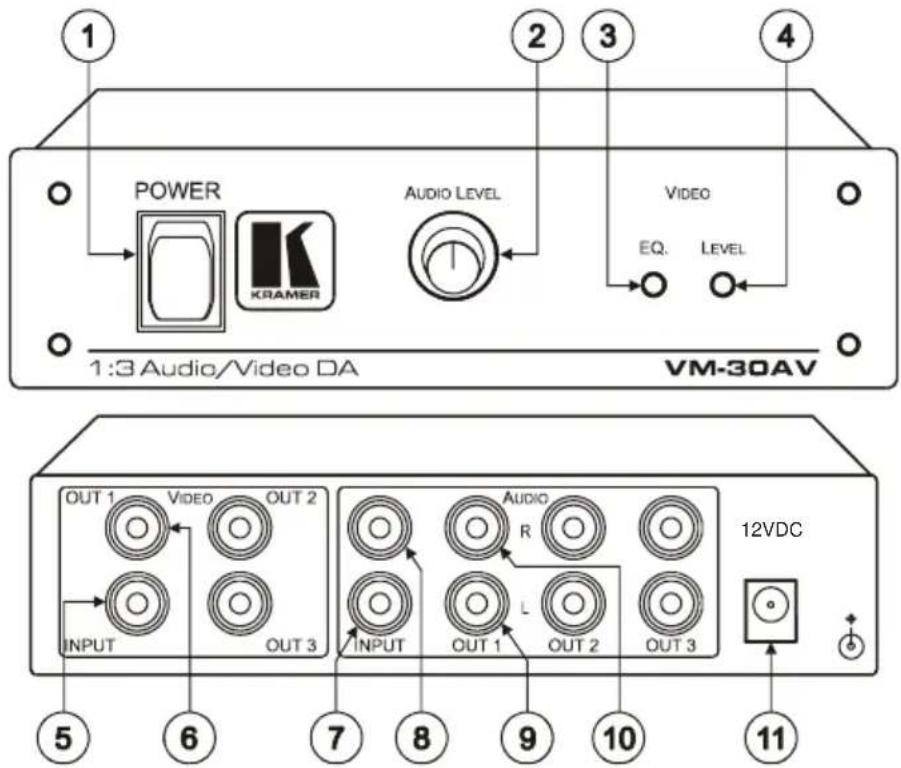

Figure 1 illustrates the front and rear panels of the VM-30AV:

1 POWER KRAMER AUDIO LEVEL 1:3 Audio/Video DA VM-30AV 2 3 4 VIDEO EQ. LEVEL OUT 1 VIDEO OUT 2 INPUT OUT 3 AUDIO R L OUTPUT 1 OUTPUT 2 OUTPUT 3 12VDC 5 6 7 8 9 10 11

Figure 1: VM-30AV 1:3 Audio/Video DA

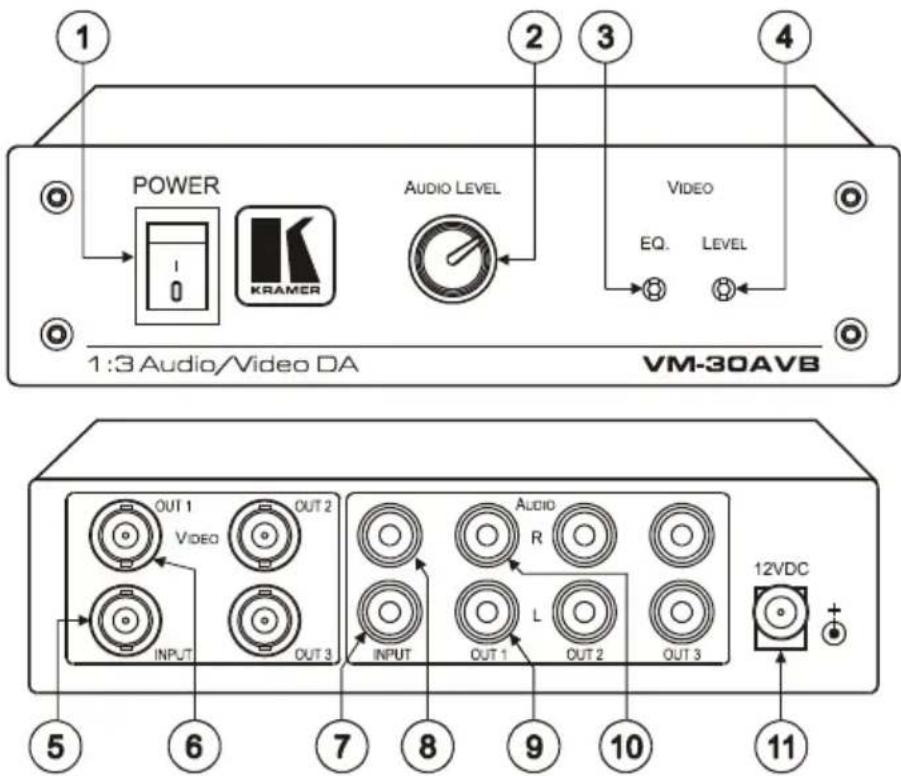

Figure 2 illustrates the front and rear panels of the VM-30AVB:

1 POWER KRAMER AUDIO LEVEL EQ. LEVEL 1:3 Audio/Video DA VM-30AVB OUT 1 VIDEO R AUDIO L OUT 2 OUTPUT INPUT OUT 3 12VDC 5 6 7 8 9 10 11

Figure 2: VM-30AVB 1:3 Audio/Video DA

Table 1 and Table 2 define the front and rear panels of the VM-30AV and the VM-30AVB, respectively.
Table 1: Front Panel VM-30AV and VM-30AVB 1:3 Audio/Video DA Features

#	Feature		Function
1	POWER Switch		Illuminated switch supplying power to the unit
2	AUDIO LEVEL Knob		Adjusts the audio output signal level
3	VIDEO	EQ. Trimmer	Adjusts^1 the video EQ. (equalization) compensation
4		LEVEL Trimmer	Adjusts^1 the video signal level

Table 2: Rear Panel VM-30AV and VM-30AVB 1:3 Audio/Video DA Features

#	Feature			Function
5	VIDEO	INPUT	VM-30AV: RCA Connectors	Connects to the video source
6		OUT	VM-30AVB: BNC Connectors	Connects to the video acceptor (from 1 to 3)
7	AUDIO RCA Connectors		INPUT (L)	Connects to the left audio source
8			INPUT (R)	Connects to the right audio source
9			OUT (L)	Connects to the left audio acceptor (from 1 to 3)
10			OUT (R)	Connects to the right audio acceptor (from 1 to 3)
11	12 VDC			+12V DC connector for powering the unit

5 Using Your Audio/Video DA

Section 5.1 describes how to connect a VM-30AV/B ^2 . Section 5.2 describes how to configure a 1:3 Audio/Video DA for component video (YUV) or RGB. You can also use the VM-30AV/B, with its very high frequency, to process SDI (serial digital interface) video.

5.1 Connecting your VM-30AV/B

To connect ^3 the VM-30AV/B 1:3 Audio/Video DA, as the example in Figure 3 illustrates, do the following:

1. Connect a composite video source (for example, a composite video player) to the VIDEO INPUT connector and to the left and right AUDIO INPUT RCA connectors.

2. Connect ^5 the 3 VIDEO OUT connectors and the left and right AUDIO OUT RCA connectors to the audio video acceptors (for example, composite video recorders).

3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 3).

4. Adjust the audio level and the video EQ. and video level, as required.

Figure 3: VM-30AV 1:3 Audio/Video DA Connection

5.2 Configuring a 1:3 Audio/Video DA for Component (YUV) or RGB

To configure a 1:3 Audio/Video DA for component (YUV) or RGB by combining three VM-30AV/B units, as illustrated in the example in Figure 4, do the following.

Connect ^1 the 1:3 Audio/Video DA for component (YUV) or RGB, as follows:

1. Connect the RGB source, by connecting:

2. The R cable to the first unit’s INPUT connector
   The G cable to the second unit's INPUT connector
   The B cable to the third unit's INPUT connector

3. Connect the first RGB acceptor, by connecting the OUT 1 connector from the:

■ First unit to the R cable
■ Second unit to the G cable
- Third unit to the B cable

1. Connect the second RGB acceptor, by connecting the OUT 2 connect from the:

■ First unit to the R cable
■ Second unit to the G cable
- Third unit to the B cable

1. Connect the third RGB acceptor, by connecting the OUT 3 connector from the:

■ First unit to the R cable
■ Second unit to the G cable
- Third unit to the B cable

1. Connect the audio source and acceptors, as required.

2. On each VM-30AV/B unit, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.

3. Adjust the audio level and the video EQ. and video level, as required, on the front panel on the first VM-30AV/B unit. This adjusts the levels on the combined 3 VM-30AV/B units.

Figure 4: Configuring a 1:3 Audio/Video DA for Component (YUV) or RGB

6 Technical Specifications

Table 3 includes the technical specifications.
Table 3: VM-30AV and VM-30AVB Technical Specifications

INPUTS:	1 composite video 1 Vpp/75Ω: RCA connector (VM-30AV); BNC connector (VM-30AVB)1 stereo audio, 4.8 Vpp / 73kΩ on RCA connectors
OUTPUTS:	3 composite video 1 Vpp/75Ω: RCA connectors (VM-30AV); BNC connectors (VM-30AVB)3 stereo audio, 1 Vpp / 150Ω on RCA connectors
MAX. OUTPUT LEVEL:	VIDEO: 2.0Vpp	AUDIO: 5.4Vpp
BANDWIDTH (-3dB):	VIDEO: 430MHz (-3dB),370MHz (-0.1dB), Fully Loaded	AUDIO: >100kHz (-3dB),20kHz (-0.1dB)
DIFF. GAIN:	0.04%
DIFF. PHASE:	0.07 Deg.
K-FACTOR:	<0.05%
VIDEO NON-LINEARITY:	0.1%
S/N RATIO:	VIDEO: 73.1dB	AUDIO: 83dB
CROSSTALK (all hostile):	VIDEO:	AUDIO:
CONTROLS:	Gain: video: -1.1dB to +1.8dB; audio: -66dB to +16dB; EQ.: 0 to +14.6dB
COUPLING:	AC
AUDIO THD + NOISE:	0.38% @ 1kHz
AUDIO 2nd HARMONIC:	0.02% @ 1kHz
POWER SOURCE:	12 VDC, 30mA
DIMENSIONS:	16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 1.7", W, D, H)
WEIGHT:	0.6kg (1.3lbs.) approx.
ACCESSORIES:	12 VDC power supply, brackets for stacking multiple units
OPTIONS:	19" rack adapter

LIMITED WARRANTY

Kramer Electronics (hereafter Kramants this product free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

WHO IS PROTECTED?

Only the first purchase customer may enforce this warranty.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items. We will not pay for the following:

1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC);

generic emission standard.

Residential, commercial and light industry"

EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".

CFR-47: FCC Rules and Regulations:

Part 15: "Radio frequency devices

Subpart B Unintentional radiators"

CAUTION!

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.

For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback.

Warning symbol image with exclamation mark inside triangle

Caution

Safety Warning:

Disconnect the unit from the power supply before opening/servicing.

ISO 9001:2000 IQC Institute of Quality & Control Certified Quality System

CE
