RK-WP16 - Adaptateurs de rack Kramer - Free user manual and instructions

Product Type	Rack Mount Adapter
Brand	Kramer
Model	RK-WP16
Compatible Devices	Kramer WP-16 wall plate or similar
Rack Units (U)	1U
Material	Steel
Dimensions (W x H x D)	19.0 x 1.75 x 12.0 in (48.3 x 4.4 x 30.5 cm)
Weight	5.0 lb (2.3 kg)
Color	Black
Mounting Type	Screw mount with included hardware
Included Accessories	Mounting screws, rack ears, user manual
Maximum Load Capacity	10 lb (4.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Package Contents	RK-WP16 rack adapter, screws, manual
Warranty	2 years
Country of Origin	Israel
Certification	CE, RoHS
Installation Requirements	Standard 19-inch rack, Phillips screwdriver
Maintenance	Wipe with dry cloth; avoid liquids

Frequently Asked Questions - RK-WP16 Kramer

What is the Kramer RK-WP16 used for?

The RK-WP16 is a rack mount adapter designed to install a Kramer WP-16 wall plate or similar device into a standard 19-inch rack.

What rack size does the RK-WP16 fit?

It fits a standard 19-inch rack and occupies 1U of rack space.

What tools are needed for installation?

You will need a Phillips screwdriver to secure the mounting screws. The adapter comes with all necessary hardware.

Is the RK-WP16 compatible with other Kramer devices?

It is specifically designed for the WP-16 wall plate, but may fit other devices with similar dimensions. Check the manual for details.

What is the weight capacity of the rack adapter?

The maximum load capacity is 10 lb (4.5 kg).

Does the adapter come with mounting screws?

Yes, the package includes mounting screws and rack ears for installation.

What material is the RK-WP16 made of?

It is constructed from steel for durability and painted black.

How do I clean the rack adapter?

Wipe it with a dry, soft cloth. Do not use liquids or abrasive cleaners.

What is the warranty period for the RK-WP16?

Kramer provides a 2-year warranty against manufacturing defects.

Where is the RK-WP16 manufactured?

It is manufactured in Israel by Kramer Electronics.

USER MANUAL RK-WP16 Kramer

Kramer Electronics, Ltd.

K KRAMER

USER MANUAL

Rack Adapter Models:

RK-2WP

RK-22WP

RK-121WP

RK-WP16

Contents

1 Introduction 1

2 Getting Started 1

3 Overview 1

3.1 Recommendations for Best Performance 1

4 Your Rack Adapters 2

5 Installing Your Kramer Rack Adapters 2

5.1 Installing Wall Plates on the RK-121WP 3

5.2 Installing Inserts on the RK-WP16 4

6 Technical Specifications 5

Figures

Figure 1: Installing the RK-121WP Rack Adapter 3

Figure 2: Mounting the RK-WP16 Rack Adapter 4

Tables

Table 1: The Wall Plate Rack Adapters 2

Table 2: Rack Adapter Blank Panels – Part Numbers 2

Table 3: Technical Specifications of the Rack Adapters 5

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better! Our 1,000-plus different models now appear in 11 groups that are clearly defined by function.

Congratulations on purchasing your Kramer RK-2WP, RK-22WP, RK-121WP or RK-WP16 rack adapters, which are ideal for mounting 1 Gang and 2 Gang wall plates, or wall plate inserts in a 19" 2U rack.

The package includes the following items:

• RK-2WP, RK-22WP, RK-121WP or RK-WP16 rack adapters
• Additional mechanical parts (blank plates (or inserts), and screws)
- This user manual ^2

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

3 Overview

You can mount a combination of Kramer 1 Gang and 2 Gang European wall plates, or wall plate inserts in a 19" 2U rack.

3.1 Recommendations for Best Performance

We recommend that you:

• Have a Philips screwdriver available
• Avoid interference from neighboring electrical appliances and position your rack adapter on the rack away from moisture, excessive sunlight and dust

4 Your Rack Adapters

Table 1 defines the different rack adapters:
Table 1: The Wall Plate Rack Adapters

Rack Adapter:	Wall Plates/Inserts Rack Adapter Diagram
RK-2WP	One 2 Gang wall plate
RK-22WP	Two 2 Gang wall plates
RK-121WP	One 2 Gang wall plateTwo 1 Gang wall plates

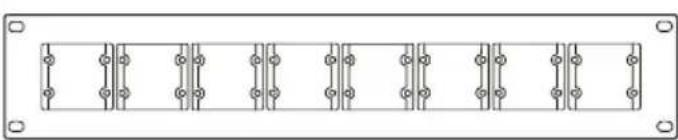

RK-WP16	Up to 16 single wall plate inserts, orUp to 8 double wall plate inserts, orA combination of the above

The rack adapters do not have to be entirely full with mounted wall plates (or inserts). You can use blank panels to fill the empty spaces (see Table 2).

Table 2: Rack Adapter Blank Panels – Part Numbers

Rack Adapter Blank Panel Size Part Number
RK-2WP	2 Gang (optional) 2732-000432
RK-22WP	2 Gang (1 supplied) 2732-000432
RK-121WP	1 Gang (1 supplied) 2732-000433
	2 Gang (optional) 2732-000432
RK-WP16	Single wall plate Inserts (10 supplied)	2732-503112

5 Installing Your Kramer Rack Adapters

This section describes how to install the:

• RK-121WP ^1 , see section 5.1
  • RK-WP16, see section 5.2

5.1 Installing Wall Plates on the RK-121WP

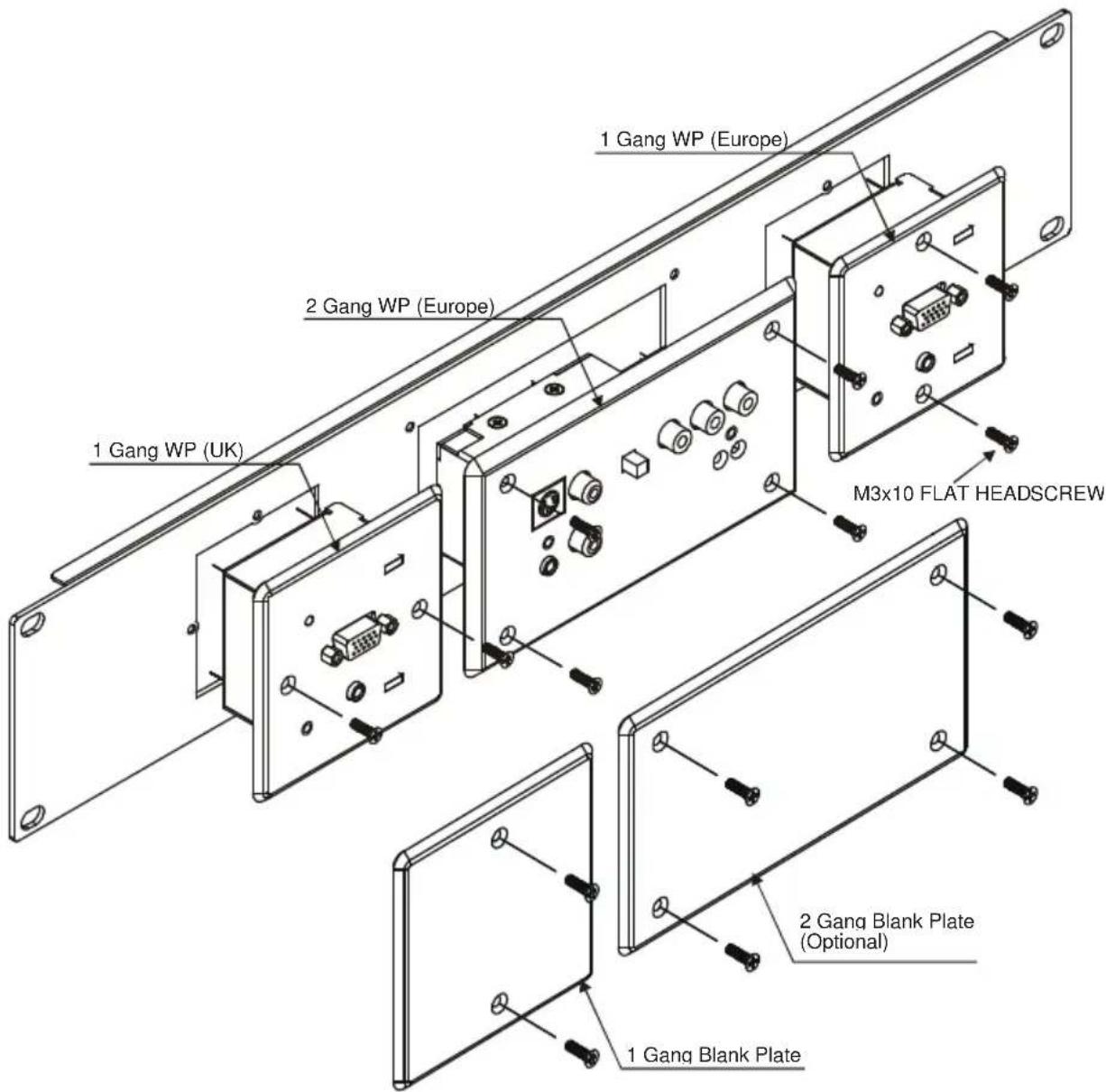

The example in Figure 1 shows how to mount wall plates in the 19" 2U RK-121WP rack adapter, including the optional insertion of blank plates.

Use the M3x10 flat-head screws (supplied with the unit) to install the required wall plates on the rack adapter.

1 Gang WP (UK) 2 Gang WP (Europe) 1 Gang WP (Europe) M3x10 FLAT HEADSCREW 2 Gang Blank Plate (Optional) 1 Gang Blank Plate

Figure 1: Installing the RK-121WP Rack Adapter

Instead of inserting a wall plate, you can use a blank plate to cover the relevant opening. If required, you can order additional blank plates to cover other openings.

After installing the wall plates, the unit is ready to be mounted on a 19" rack shelf.

5.2 Installing Inserts on the RK-WP16

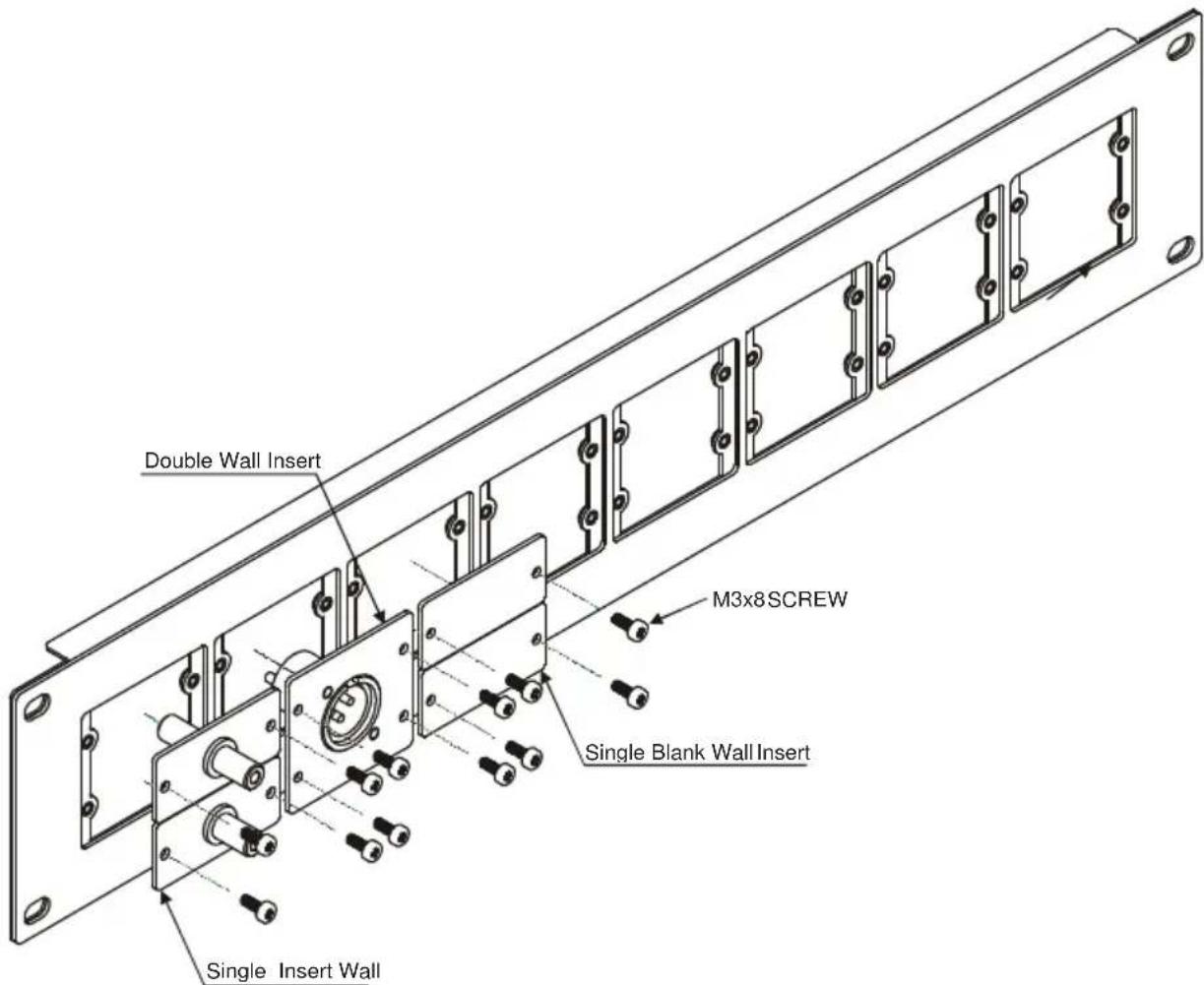

The example in Figure 2 shows how to mount single and double inserts in the 19" 2U RK-WP16 rack adapter, including optional insertion of blank inserts.

Use the M3x8 screws (supplied with the unit) to install the required inserts on the rack adapter.

Double Wall Insert M3x8 SCREW Single Blank Wall Insert Single Insert Wall

Figure 2: Mounting the RK-WP16 Rack Adapter

Instead of installing an insert, you can use a blank insert to cover the relevant opening. If required, you can order additional blank inserts to cover other openings.

After installing the wall inserts, the unit is ready to be mounted on a 19" rack shelf.

6 Technical Specifications

Table 3 includes the technical specifications:
Table 3: Technical Specifications ^1 of the Rack Adapters

DIMENSIONS:	RK-2WP, RK-22WP, RK-121WP: 19-inch (W), 0.39-inch (D) 2U (H)RK-WP16: 19-inch (W), 0.49-inch (D) 2U (H)
WEIGHT:	RK-2WP, RK-22WP, RK-121WP: 0.6kg (1.32lbs) approx.RK-WP16: 0.5kg (1.1lbs) approx.
ACCESSORIES:	RK-2WP: four M3x10 flat screwsRK-22WP: eight M3x10 flat screws, one 2 Gang (Europe) blank plateRK-121WP: eight M3x10 flat screws, one 1 Gang (Europe) blank plateRK-WP16: four M3x8 screws, 10 blank inserts
OPTIONS: Blank plates ^2

LIMITED WARRANTY

Kramer Electronics (hereafter K) warrants this product free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

Labor and parts are warranted for seven years from the date of the first customer purchase.

WHO IS PROTECTED?

Only the first purchase customer may enforce this warranty.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID IF TAMPERED sticker has been torn, reattached, removed or otherwise interfered with.
3. Damage, deterioration or malfunction resulting from:

i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items. We will not pay for the following:

1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for:

1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.

NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.

This equipment has been tested to determine compliance with the requirements of:

EN-50081: "Electromagnetic compatibility (EMC);

generic emission standard.

Residential, co-antlercial and light industry"

EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.

Part 1: Residential, commercial and light industry environment".

CFR-47: FCC* Rules and Regulations:

Part 15: "Radio frequency devices

Subpart B Unintentional radiators"

CAUTION!

Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
☒ Please use recommended interconnection cables to connect the machine to other components.

* FCC and CE approved using STP cable (for twisted pair products)

For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found.

We welcome your questions, comments and feedback.

Warning symbol image with exclamation mark inside triangle

Caution

Safety Warning:

Disconnect the unit from the power supply before opening/servicing.

ISO 9001:2008 IQC Institute of Quality & Control Certified Quality Management System

CE

P/N:

2900-000520

Rev:
