USER MANUAL PSW445T Pyle

Step 3: Hanging display

Firstly lift the bracket mounted display over the wall mount. And then hook the brackets over the top of the wall mount. Rotate the display let the bottom of the brackets hook over the bottom of wall mount, as shown in Fig.3a. Then put safe bolts into the bottom of the brackets and lock it, as shown in Fig.3b.

Warning: Some TV require two people to lift, as we are not responsible for any personal injury or product damage due to mishandling.

Fig 3a

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component labeled '4'.

Fig 3b

Thank you for choosing our products

Pyle Audio

1600 63rd st, Brooklyn, NY, 11204

[phone]

Tilt Flat Panel TV Bracket

Multifunctional double deck wall mount INSTALLATION GUIDE

Item No.:PSW445Item No.:PSW44

Technical line drawing of a mechanical assembly with mounting brackets and bolts (no text or symbols)

• Easy installing: Just hang up the display
  • Safety: locking by spinning bolt on the bottom
  • Max load capacity:35kg/77lbs
  • TV size range: 10" - 32"
• Adjustable angle: -5 15\~
  • Inside has balance adjust system
• Bulit in leveler system
  www pyleaudio com. MADE IN CHINA

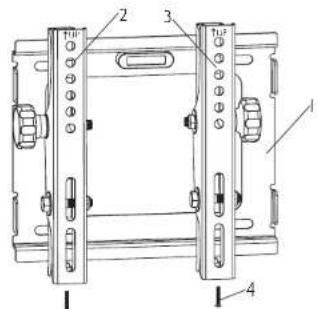

Hardware List: Actual parts appearance and the quantity may different with illustrated.

Technical diagram of a mechanical device with numbered components and labeled parts

A-F G H I J K

ID	DesQution
1	1	Wall mount
2	1	Left bracket
3	1	Right bracket
4	2	Safe bolt
A	4	M4 mm×12 bolt
B	4	M4 mm×16 bolt
C	4	M5×mm16 bolt
D	4	M6×16mm bolt

ID	Qty	Description
E	4	M5×36mm bolt
F	4	M6×36mm bolt
G	4	Square washer
H	4	Long bolt
I	4	Wall anchor
J	4	Long bolt washer
K	4	Spacer

After determining the height of stand, follow the installation instructions in below to install wall mount to different kinds of wall -wooden, concrete.

Wooden wall:

Using a awl or nail to make where the nails are located, as shown as fig.2b. Distance between two nails for fixing wall mount must not less than 16°. Pre-drill these holes with a 5mm drill bit to at least 40mm in deep hole. Please make sure these holes are level and located at center. Use wall mount as a template to mark the location of other three holes and drill the same holes. Fix the wall mount to the wall with 4 long bolts(H) and washers(I).

Concrete wall:

Using the wall mount as template to mark 4 holes location on the wall. Please make sure these holes are level and at least 6" between any two lines. Pre-drill these holes with a 10mm drill bit to at least 50mm deep hole. Insert wall anchors(I) into each of these holes. Attach the wall mount to the wall using 4 long bolts(H) and washers(J).

Simple line drawing of a room with vertical bars and a hanging object (no text or symbols)

Fig 2b

Balance-adjusting H

Fig 2c

Using balance-adjusting system on the plate, make sure whether wall plate is installed balance. If not, then slide the wall plate let pointer level in the center position.

Step 2: Antachi to wall to wall

First. determine the height of stand

The best height of stand is parallel to eyelevel of a person who sitting on a couch. Normally, the horizontal distance of eyelevel is about 4' from ground level.

The following two conditions are for determining the perfect height of stand:

1) the distance between wall and couch(Fig 2a).
2) the distance of eyelevel from ground level plus the distance measured from eyelevel of a person sitting on couch with viewing angle of IS (Fig 2a).

For example:

1) the distance of 'a' is S'-7', the distance of 'b' is about 1'
2) the distance of 'a' is 8'-13', the distance of 'b' is about 3'
3) the distance of 'a' is 14'-17', the distance of 'b' is about 4

The perfect height of stand centre will be anywhere within b, where you feel comfortable for viewing.

15 degree viewing angle eyelevel a b

Fig 2a

We are not responsible for any personal injury or product damage due to mishandling, incorrect mounting, incorrect assembly or incorrect use of this product.

Note: The supplied wall mounting hardware is not for use on steel stud walls or cold cinder block walls. If you are uncertain about the nature of your wall, please consult a qualified contractor. If the hardware you required is not included please contact your local hardware store.

Caution: This Product LCD /Plasma Wall Mount Bracket is intended for use only with the maximum weights indicated. See apparatus instructions. Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

Step 1: Attach bracket to TV

Check your TV manual to confirm the diameter of bolt to be used or choose an appropriate bolt according to size, height and position of the holes on your TV. See pages 4-5 of these instructions for examples.

For correct installing, make sure that hook of every bracket must facing down. Use selected bolts, spacers and washers for installing bracket at the back of display. Adjust two brackets to equal heights and level. Once aligned, tightly secure the bolts. Notebolen "MIPside" on the top.

IMPORTANT: Don't force the bolt into the hole, which will cause a damage of equipments and injure of person. Don't use electric drill to lasten any bolts.

UP Fig.1

Following examples shows how to use bolts, spacers and square washers.

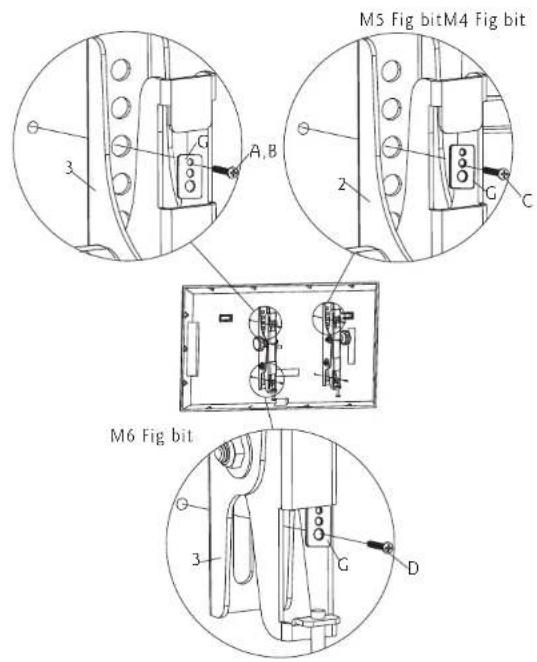

1. Some displays have vertical backs. No spacer is required. Install the bracket directly to the back of display by using bolts and square washers provided. As shown in Fig.1a.

M5 Fig bitM4 Fig bit 3 A,B 2 C M6 Fig bit 3 G D

Fig 1a

1. Some displays have curved backs with recessed mounting lands(Fig.a). It will require the use of spacer. For this display, install a spacer(K) between display and the bracket. AsshowninFig1b.

Fig a

M6 Fig bitM5 Fig bit K E 3 K 3 F G

Fig 1b
