Product Type	UHF Diversity Wireless Microphone System (Model 310 Series)
System Includes	310UDR Diversity Receiver, 35BT Body-Pack Transmitter, 35HT Handheld Microphone/Transmitter, EX-503L Lavalier Microphone, cables
Frequency Range	UHF 566.125 - 589.875 MHz (188 selectable frequencies)
Type of Reception	FM (Diversity)
Oscillator	PLL Synthesized
RF Power (Transmitters)	25 mW each
Frequency Response	50 Hz - 15 kHz
S/N Ratio (Receiver)	>57 dB (A-weighted)
Audio Output (Receiver)	MIC level, unbalanced, 3.5mm mini jack
Receiver Dimensions	2 1/2 x 3 15/16 x 1 3/16 in (64 x 100 x 27 mm)
Receiver Weight	Approx. 6 oz (170 g) with batteries
Body-Pack Transmitter Dimensions	2 1/2 x 3 15/16 x 1 1/16 in (64 x 100 x 27 mm)
Body-Pack Transmitter Weight	Approx. 6 oz (170 g) with batteries
Handheld Transmitter Dimensions	1 7/8 x 9 9/16 in (48 x 234.5 mm)
Handheld Transmitter Weight	Approx. 9.6 oz (270 g) with batteries
Power Source	2 AA alkaline or Ni-MH rechargeable batteries per unit (6-8 hours runtime)
Main Functions	Diversity reception, 188 selectable UHF channels, LCD display with battery and reception level, adjustable MIC input level, audio mute switch
Care and Maintenance	Remove batteries if not used for long periods; do not submerge; avoid forcing antennas
Safety	Use only specified batteries; observe correct polarity; do not mix old and new batteries
Spare Parts and Repairability	Contact Azden or authorized service center for spare parts; user-replaceable batteries; no user-serviceable internal parts
General Information	Specifications subject to change due to improvements; designed for video cameras and professional audio

Frequently Asked Questions - 310LH Azden

How do I set the channel on the Azden 310 system?

Use a small pointed object like a pen tip to press the UP or DOWN button on both the receiver and transmitter. Ensure both are set to the same channel number (01-47) for proper operation.

What type of batteries does the Azden 310 use?

Each unit (receiver, body-pack, handheld, plug-in transmitter) uses 2 AA alkaline batteries. Rechargeable Ni-MH batteries (Azden 1HR-3U) can also be used.

How long do the batteries last?

Typical battery life is 6-8 hours with fresh alkaline batteries.

Can I use other microphones with the 35BT body-pack?

Yes, any lavalier or headset microphone with a 3.5mm mini plug can be used with the 35BT body-pack transmitter.

What does the AUDIO switch do on the transmitters?

The AUDIO switch acts as a mute. Set it to OFF before powering on, then turn to ON to transmit audio. The RF signal stays on, allowing you to mute audio without losing connection.

How do I adjust the microphone input level?

Use the supplied tool to turn the orange dial inside the battery compartment. Clockwise increases level, counterclockwise decreases. Listen for distortion or low volume.

Why is there no sound from the receiver?

Check that both receiver and transmitter are on the same channel. Ensure the transmitter's AUDIO switch is ON, the microphone is properly connected, and the receiver is connected to the camera. Also check battery levels.

Can I use the Azden 310 with a mixer or audio interface?

Yes, connect the receiver's mini jack output to the mixer's microphone input using the supplied cables. The receiver provides microphone-level output.

How do I mount the receiver to a camera?

Use the supplied shoe mount to attach the receiver to the camera's hot shoe, or use the hook-and-loop fastener to secure it to the camera body.

What should I do if the receiver displays no reception bars?

Ensure the transmitter is powered on and set to the same channel as the receiver. Move the transmitter closer to the receiver. Check that antennas on the receiver are pointed upward. Also verify batteries are fresh.

USER MANUAL 310LH Azden

Exterior view of four black 35BT and 35XT wireless devices with visible antennas and control knobs (no text or symbols on main body)

INSTRUCTION MANUAL

Thank you for purchasing the Azden 310 Diversity Wireless Microphone system. The following table will show you the contents of the system you ordered:

310LT

1 x 310UDR Diversity Receiver
1 x Stereo Mini-to-Dual XLR Cable
1 x Stereo Mini-to-Stereo Mini Cable

1 x 35BT Body-Pack Transmitter

1 x EX-503L Lavalier Microphone

310HT

1 x 310UDR Diversity Receiver
1 x Stereo Mini-to-Dual XLR Cable
1 x Stereo Mini-to-Stereo Mini Cable
1 x 35HT Handheld Microphone/Transmitter

310XT

1 x 310UDR Diversity Receiver
1 x Stereo Mini-to-Dual XLR Cable
1 x Stereo Mini-to-Stereo Mini Cable
1 x 35XT XLR Plug-in Transmitter

310ULH

1 x 310UDR Diversity Receiver
1 x Stereo Mini-to-Dual XLR Cable
1 x Stereo Mini-to-Stereo Mini Cable
1 x 35BT Body-Pack Transmitter
1 x EX-503L Lavalier Microphone
1 x 35HT Handheld Microphone/Transmitter

310ULX

1 x 310UDR Diversity Receiver
1 x Stereo Mini-to-Dual XLR Cable
1 x Stereo Mini-to-Stereo Mini Cable
1 x 35BT Body-Pack Transmitter
1 x EX-503L Lavalier Microphone
1 x 35XT XLR Plug-in Transmitter

Operating the System

WARNING

• Do not use other batteries than the ones specified in this manual. Do not mix a fresh battery with a used battery.
• When installing batteries, make sure battery polarity is correct as marked inside the battery compartment.
• Remove the batteries if the products are not used for a long period of time.
• Do not submerge the products.

Because this is a frequency agile system, the receiver and transmitter must be on the same channel number. To change the channel selection, use a small , sharp object such as the tip of a pen, and press the "UP" or "DOWN" button to the desired channel. Make sure both the receiver and transmitter are on the same channel.

310UDR Diversity Receiver

After installing new batteries, mount the receiver to your video camera with supplied shoe mount or hook & loop fastener. Select one of the supplied cables and connect the output on the receiver and input on the video camera. Turn the power switch to "ON" and the battery level indicator on the LCD display should come on. If not, check the batteries. When the 310UDR receives a signal from the transmitter, the reception level indicator will come on. If it does not, make sure both the receiver and the transmitter are on matching channels.

35BT Body-Pack Transmitter

Plug in the supplied EX-503L Lavalier Microphone and clip it to your subject. The microphones should be placed 4"-12" from the subject's mouth. Clip the transmitter to a belt by using the supplied belt clip or place it in a pocket. Turn the power switch to "ON" and the battery level indicator on the LCD display should come on. If not, check the battery. Have someone speak into the microphone as you monitor the sound through the 310UDR Receiver's phone output. If the sound is distorted, lower the MIC input level on the 35BT Transmitter. If there is not enough volume, raise the MIC input level on the Transmitter.

35XT Plug-in Transmitter

Attach the 35XT Transmitter to any low impedance microphone with a corresponding 3-pin XLR connector. Turn the power switch on the 35XT Transmitter to "ON" position and the battery level indicator on the LCD display should come on. Have someone speak into the microphone as you monitor the sound through the camera's monitor output. If the sound is distorted, lower the MIC input level control on the 35XT Transmitter. If there is not enough volume, raise the level control on the Transmitter.

35HT Handheld Microphone/Transmitter

Turn the power switch on the 35HT Transmitter to “ON” position and the battery level indicator on the LCD display should come on. Have someone speak into the microphone as you monitor the sound through the camera’s monitor output. Adjust the MIC input level control accordingly.

310UPR Diversity Receiver

① Antennas

For the best reception, the antennas should be pointed in an upward position. Use caution and do not force them into this position.

② Power Switch

To turn ON/OFF the receiver

③ LCD Display

The LCD Display shows multifunctional readout. Refer to “LCD Display Readouts” in this manual for further details.

④ CHANNEL UP and DOWN Button

To change the channel number, use a small, sharp object, such as the tip of a pen, and press the UP or DOWN button until the desired channel number is shown on the LCD Display. Keep the button pressed down to fast forward the channel numbers. Once the desired channel number is selected on the receiver, set the transmitter to the same number.

⑤ PHONE Jack

This jack allows you to monitor the sound.

⑥ MIC OUT Jack

The 310UDR is supplied with both mini-to-mini and mini-to-dual XLR cables.

For mini jack microphone inputs: Use the supplied mini-to-mini cable. Plug one end of the cable into the 310UDR Receiver and the other end into the microphone input of the video camera.

For 3-pin XLR microphone inputs: Use the supplied mini-to-dual XLR cable. Plug the mini-plug end of the cable into the 310UDR Receiver (use the screw-down sleeve to secure it to the receiver) and plug the XLR ends into the microphone inputs on the video camera.

⑦ Battery Compartment

Remove the battery compartment lid by sliding it down. Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment. Alkaline batteries are preferred, but Azden’s 1HR-3U rechargeable Ni-MH batteries may be used.

LCD Display Readouts

a. TV channel number (30 - 33)
b. Transmit channel number (01 -47)
c. Reception level indicator: 4 bars = High, 1 bar = Low
d. Battery level indicator: 3 bars = High, 1 bar = Low

35BT Body-Pack Transmitter

⑧ Battery Compartment

Remove the battery compartment lid by sliding it down. Install two fresh alkaline "AA" batteries. Make sure the battery polarity is correct as marked inside the battery compartment.

⑨ Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment.

Inside the battery compartment, you will also find:

⑩ MIC Input Level Control

This control enables you to adjust the input level of the microphone. Using the supplied tool, also found inside the battery compartment, turn the orange dial clockwise to increase, or counterclockwise to decrease the input level.

⑪ POWER Switch

Switches the 35BT Transmitter "ON" or "OFF".

⑫ MIC Input Jack

Plug the supplied EX-503L Lavalier Microphone into the MIC input jack. In addition to the EX-503L, other lapel and/or headset microphones with 3.5mm mini plug may also be used with the 35BT.

⑬ LCD Display

The display shows the following information:

TV Ch – Transmit Channel Number (i.e. 30 – 01, 31 – 12, 33 – 47)

The TV – Transmit channel display is made of two parts. The first two digit number is the actual TV channel (30-33) and the second two digit is the transmit channel number (01-47).

Battery level by 3-bar indicator (3 bars = High, 1 bar = Low)

⑭ AUDIO Switch

It is best to set the AUDIO switch to “OFF” prior to first turning the POWER switch “ON”. When you are ready to begin transmitting, turn the AUDIO “ON”. The “OFF” position acts as “mute” that maintains the RF signal but turns off the audio.

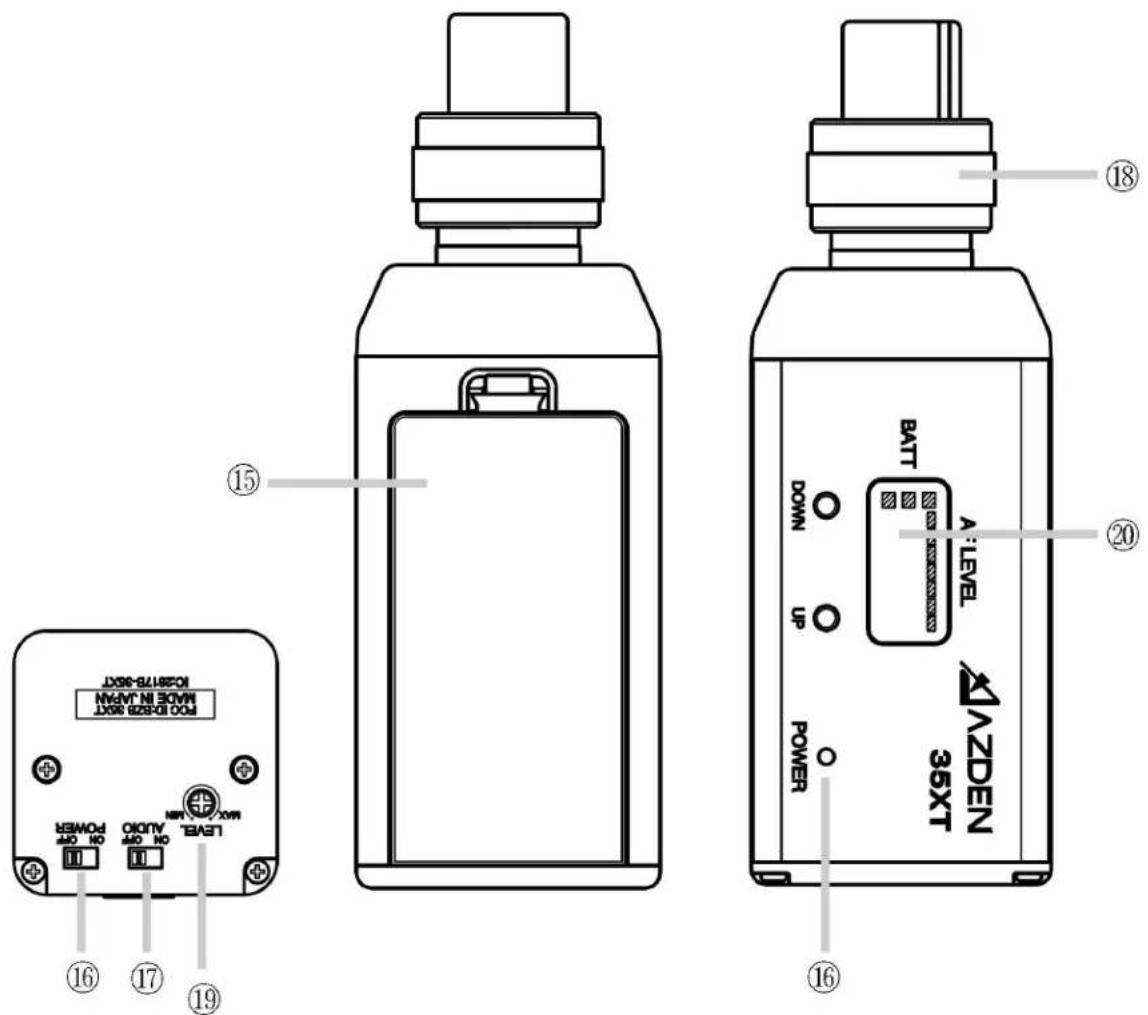

35XT Plug-in Transmitter

⑮ Battery Compartment

Open the battery compartment lid by pushing down on the tab and lifting it up. Install two fresh alkaline “AA” batteries. Make sure the battery polarity is correct as marked inside the battery compartment.

⑯ POWER Switch

Turns the 35XT Transmitter "ON" or "OFF".

⑰ AUDIO Switch

It is best to set the AUDIO switch to "OFF" prior to first turning the POWER switch "ON". When you are ready to begin transmitting, turn the AUDIO "ON". The "OFF" position acts as "mute" that maintains the RF signal but turns off the audio.

⑱ MIC Connector/Locking Ring

This 3-pin XLR connector is the microphone input. Any low impedance microphone with a corresponding connector may be plugged here. Once the microphone is plugged into the 35XT, the locking ring should be rotated clockwise until snug. To remove the microphone, first rotate the locking ring counterclockwise and then pull the microphone away while pressing the XLR release.

⑲ MIC Input LEVEL Control

This enables you to adjust the input level of the connected microphone. Using the supplied tool, turn the orange dial clockwise to increase, or counterclockwise to decrease the input level.

⑳ LCD Display

The LCD display shows the following information:

TV Ch – Transmit Channel Number (i.e. 30 – 01, 31 – 12, 33 – 47)

The TV – Transmit channel display is made of two parts. The first two digit number is the actual TV channel (30-33) and the second two digit is the transmit channel number (01-47).

Battery level by 3-bar indicator (3 bars = High, 1 bar = Low)

AF (Audio Frequency) level by 4-bar indicator (4 bars = High, 1 bar = Low)

To change the channel number, use the tip of the tool provided and press the UP or DOWN button until the desired channel number is shown on the LCD Display. Keep the button pressed to fast forward the channel numbers.

35HT Handheld Microphone/Transmitter

②1 Battery Compartment Cover

Remove the battery compartment cover by rotating it counterclockwise and sliding it down.

②2 Battery Compartment

Install two fresh alkaline "AA" batteries. Make sure the battery polarity is correct as marked inside the battery compartment.

②3 MIC LEVEL Control

This enables you to adjust the audio level of the microphone. Using the supplied tool, turn the orange dial clockwise to increase, or counterclockwise to decrease the audio level.

②4 Channel UP and DOWN Button

To change the channel number, use the tip of the tool provided and press the UP or DOWN button until the desired channel number is shown on the LCD Display. Keep the button pressed to fast forward the channel numbers.

⑲ POWER Switch

Turns the 35HT Transmitter/Microphone "ON" or "OFF".

②6 LCD Display

The LCD display shows the following information:

TV Ch – Transmit Channel Number (i.e. 30 – 01, 31 – 12, 33 – 47)

The TV – Transmit channel display is made of two parts. The first two digit number is the actual TV channel (30-33) and the second two digit is the transmit channel number (01-47).

Battery level by 3-bar indicator (3 bars = High, 1 bar = Low)

AF (Audio Frequency) level by 4-bar indicator (4 bars = High, 1 bar = Low)

Specifications

310UDR Receiver

Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)

Type of Reception: FM

Oscillator: PLL Synthesized

RF Squelch Level: -95 dBm

Frequency Response: 50Hz - 15kHz

S/N Ratio: >57dB (± 5kHz) "A" Weighted

Audio Out: MIC Level – Unbalanced – 3.5mm Mini Jack

-58 dBm - 600 ohms @ ± 5kHz deviation

-22 dBm - 600 ohms @ ± 40kHz deviation

Batteries: 2 "AA" Alkaline (2 x 1.5V), 6-8 hours runtime

2 "AA" Rechargeable Ni-MH (2 x 1.2V)

Dimensions: 2 1/2" x 3 15/16" x 1 3/16" (64 x 100 x 27mm)

Weight: Approx. 6oz (170g) w/ batteries

35BT Body-Pack Transmitter

Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)

Oscillator: PLL Synthesized

RF Power: 25mW

Frequency Response: 50Hz – 15kHz

Max Deviation: ±40kHz @ 1kHz Modulation, MIC input - 11dBm

Batteries: 2 "AA" Alkaline (2 x 1.5V), 6-8 hours runtime

2 "AA" Rechargeable Ni-MH (2 x 1.2V)

Dimensions: 2 1/2" x 3 15/16" x 1 1/16" (64 x 100 x 27mm)

Weight: Approx. 6oz (170g) w/ batteries

35XT Plug-in Transmitter

Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)

Antenna: Internal

Max Input Level: -16dBm

RF Power: 25mW

Input Impedance: 25k ohms

Audio Adjust Range: -65dBm to 46dBm

Batteries: 2 "AA" Alkaline (2 x 1.5V), 6-8 hours runtime

2 "AA" Rechargeable Ni-MH (2 x 1.2V)

Dimensions: 1 9/16" x 1 9/16" x 4 1/2" (40 x 40 x 114mm)

Weight: Approx. 6.4oz (180g) w/ batteries

35HT Handheld Microphone/Transmitter

Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)

Oscillator: PLL Synthesized

RF Power: 25mW

Frequency Response: 50Hz - 15kHz

Max Deviation: ± 40kHz @ 1kHz Modulation, MIC input - 65dBm (dev ± 5kHz)

Batteries: 2 "AA" Alkaline (2 x 1.5V), 6-8 hours runtime

2 "AA" Rechargeable Ni-MH (2 x 1.2V)

Dimensions: 1 7/8'' x 9 9/16"L (48 x 234.5mm)

Weight: Approx. 9.6oz (270g) w/ batteries

Due to constant improvements, specifications are subject to change without notice.
