Wireless Door Chime

Twin Pack

with Mains Power Connection

MDC820P2051112E

Operating Guide

Thank you for choosing the Swann Wireless Door Chime Twin Pack. It's an ideal unit for easily installing a doorbell without the hassle of wiring. Simply plug into a mains outlet, mount the doorbell where needed and you are ready to go!

Each receiver features 32 chimes and adjustable volume to suit your needs and can reach a distance of up to 50m/approx 165ft when there are no obstructions. Both receivers will sound each time the doorbell is pressed.

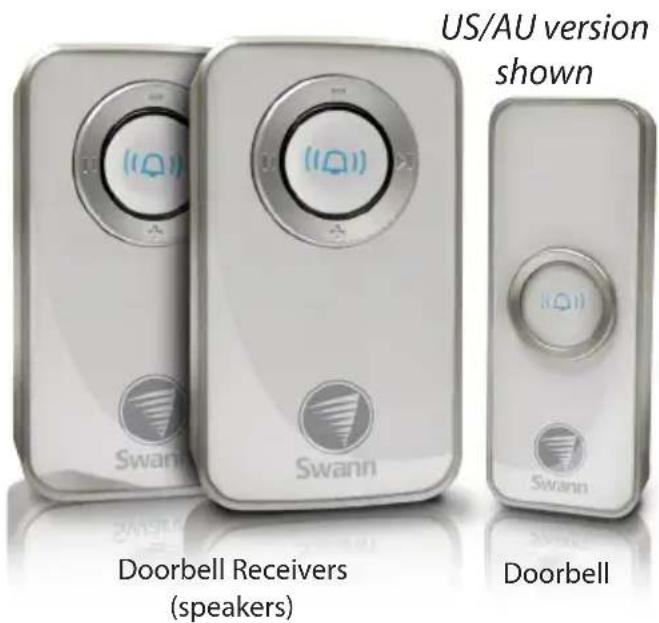

US/AU version shown Swann Swann Doorbell Receivers (speakers) Doorbell

Doorbell receiver

- The doorbell receivers do not require any mounting or batteries. Simply plug them into any mains power socket and you are ready to go.

Batteries (doorbell unit)

• The doorbell requires 1 x 23A/12V battery (included).
• To install the battery, carefully pry off the back cover using a small, flat-head screwdriver in the small notch at the bottom of the doorbell and fit the battery as indicated inside the battery compartment.
• To finish, note the arrows on the cover and doorbell are facing the same direction and clip the back cover back onto the doorbell unit making sure the rubber seal is fitted properly to ensure the unit remains water resistant.

Mounting the doorbell

The doorbell is mounted by simply sticking it to a wall using the included adhesive strip(s).

• Peel off one side of the adhesive strip and attach it to the rear of the backing plate, ensuring none of it is visible from the front.
  • Find the area you want to mount the doorbell. Flat, smooth surfaces are ideal. Make sure they are clean and dry before mounting.
• Peel off the other side of the adhesive strip and attach the doorbell to the mounting surface.

Specifications

Operating current (receiver unit): Operating current (doorbell unit): Transmission Frequency: Transmission Range: Internal Sounds:

UK, AU: 230v, US: 120V 12V (1 x 23A Battery, included) 433Mhz Up to 50m/165ft (line of sight) - 20m/66ft typical 32 chimes

Operating Guide

Setting the volume and chime

• To increase the volume, press the Volume Increase button.
• To decrease the volume, press the Volume Decrease button.
• To change chimes, press the Chime Select button (next) to move to the next chime or the Chime Select button (previous) to move to the previous chime. A chime will play each time you move forwards or backwards through the chimes. You do not need to confirm your selection. The chime playing is the chime selected and the one which will be heard when the doorbell is pressed.
• The Chime Test button can be used to check which tune is currently selected.

UK version shown here

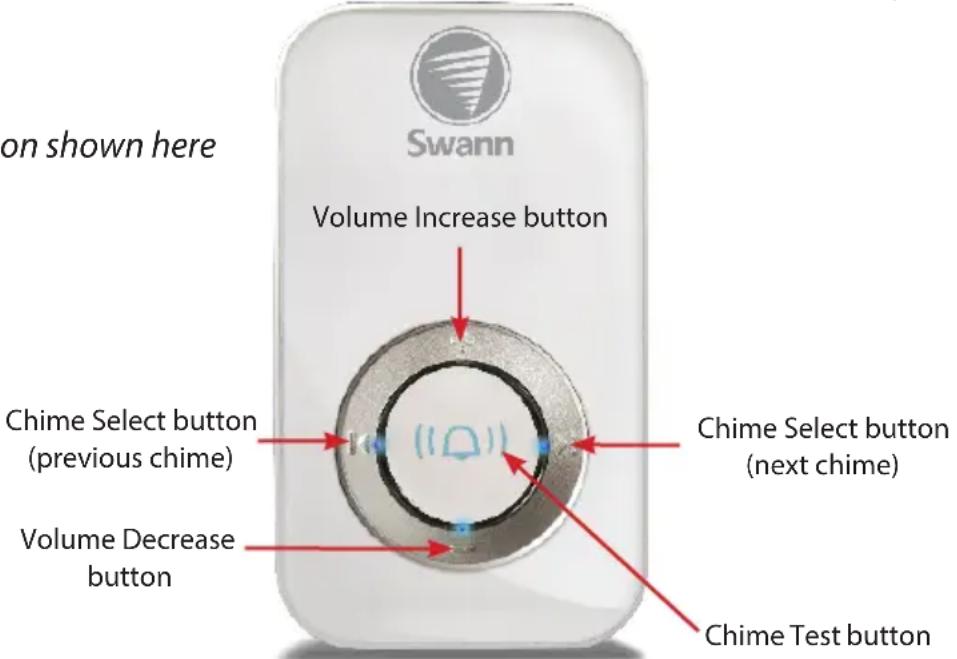

on shown here Swann Volume Increase button Chime Select button (previous chime) Volume Decrease button Chime Select button (next chime) Chime Test button

Pairing and Re-Pairing your Doorbell and Recievers

Your Wireless Doorbell comes with 1 doorbell and 2 paired receivers, but you can add more.

To pair a new Doorbell or Receiver:

1. Press and hold the Reciever's Chime Test button for 5 seconds, the chime will play until you hear two beeps.
2. Press the doorbell button within 15 seconds, you should instantly hear one beep from the receiver confirming the pairing.
3. Press the Chime Test button again to confirm the pairing and exit pairing mode.
4. Now when someone presses a paired button, all the receivers will chime.
5. To remove all pairing and reset the chime to the default, remove the Receiver from the power socket then press and hold the Chime Test button while plugging the receiver back in. You will then have to Re-Pair the Doorbell as shown above.

Helpdesk / Technical Support Details

Swann Technical Support

All Countries E-mail: [e-mail]

Telephone Helpdesk

USA toll free

1-800-627-2799

(Su, 2pm-10pm US PT)

(M-Th, 6am-10pm US PT)

(F 6am-2pm US PT)

USA Exchange & Repairs

1-800-627-2799 (Option 1)

(M-F, 9am-5pm US PT)

AUSTRALIA toll free

1300 138 324

(M 9am-5pm AUS ET)

(Tu-F 1am-5pm AUS ET)

(Sa 1am-9am AUS ET)

NEW ZEALAND toll free

0800 479 266

UK

0203 027 0979

See http://www.worldtimeserver.com for information on time zones and the

current time in Melbourne, Australia compared to your local time.
