USER MANUAL U-304 SANYO

INSTRUCTION MANUAL U-304

Stainless Kettle

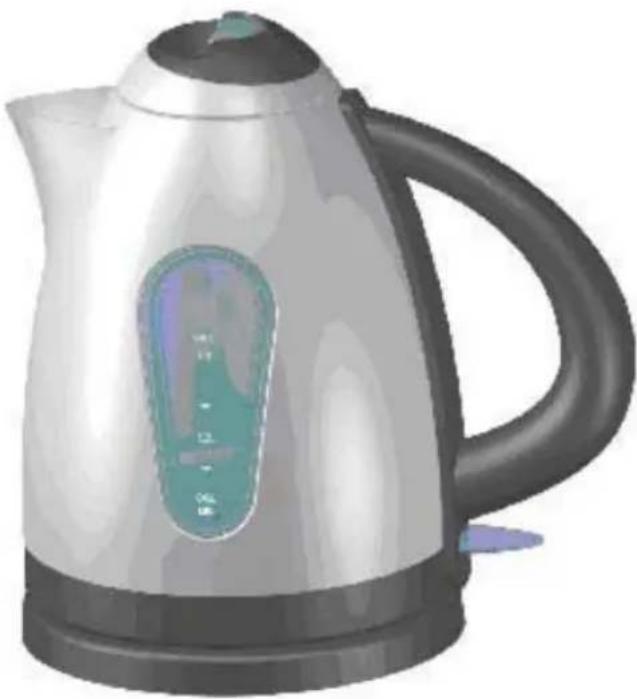

Illustration of a modern silver kettle with black handle and blue interior panel (no text or symbols)

First Use Precaut snoi

1. Please read this kbob carefully, especially the "Important Safeguards" section.
   2 Please follow all detailed Ins on surt ne you are afmiliar with similar app casil
2. Keep this guide in place for future reference.

CONTENTS

HOW T OARE FOR YOUR KETTLE......1

IMPORTAN \$AFEGUARDS....1-2

FEATURES....2

KNOW YOUR KETTLE....3

HOW TO USE YOUR KETTLE....3-4

1. Wipe the exterior of the kettle with a soft, damp cloth or sponge. Remove stubborn spots with a cloth moistened with mild liquid detergent. Do not use abrasive scouring pads or powders. Never immerse the kettle, cord or plug in water or other liquids.
2. Dependent on the nature of your water supply, you may need to clean the inside of the kettle from time to time. This may be done in the following manner:

1) Half fill the kettle with ordinary tap water.

2) Add 30 ml of white vinegar to the water in the kettle.

3) Boil the mixture and allow it to stand for 30 seconds.

4) Repeat this process two or three. Empty, rise well and use the kettle in the normal way.

IMPORTANT SAFEGUARDS

When using this kettle, please put top priority on safety and reduce the risk of fire, electric shock, or injury to people. Safety precaution should always be followed, including:

1. Read this manual carefully, even if you are familiar with the appliances alike.
2. To protect against the risk of electric shock, DO NOT IMMERSE the appliance, cord set or plug in water or other liquids.
3. To clean, wipe exterior with a damp cloth.
4. Keep children away from the kettle and prevent them from touching it when in use.
5. Switch off and remove the Plug from power Outlet when not in use, before assembling parts and pull from power outlet.

6. Never yank the cord to disconnect, instead grasp the plug.

7. Do not operate the appliance with a damaged cord or plug. Return the complete appliance to your nearest authorized service facility for examination, electrical repair, mechanical or adjustment.

8. The use of attachments or accessories not recommended or sold by this appliance manufacturer may result in fire, electric shock or injury to people.
9. Do not let Cord hang over edge of a table, counter, or touch hot sources.
10. Avoid touching hot surfaces, use handles and knobs.
11. Do not operate or place any part of this appliance on or near any hot sources (such as electric burner or a heated oven).
12. The power cord is wrapped under the stand. It can be pulled out if needed.
13. This kettle is only to be used with the stand provided.
14. Do not attempt to repair the appliance yourself; instead, take it to the Authorized Service Center for repair.

FEATURES

1. AC 220-240V 50-60Hz 1850-2200W
2. 1.5Ltr.capacity right size for family.
3. Concealed Coil for hygienic boiling and easy cleaning.
4. 360 degrees cordless for convenience.
5. Auto shut-off for safe operation.
6. Water level indicator for quick and easy reference.
7. Indicator lamp for safety and convenience.
8. Cord wrap facility for easy storage.
9. Filter for clean water.

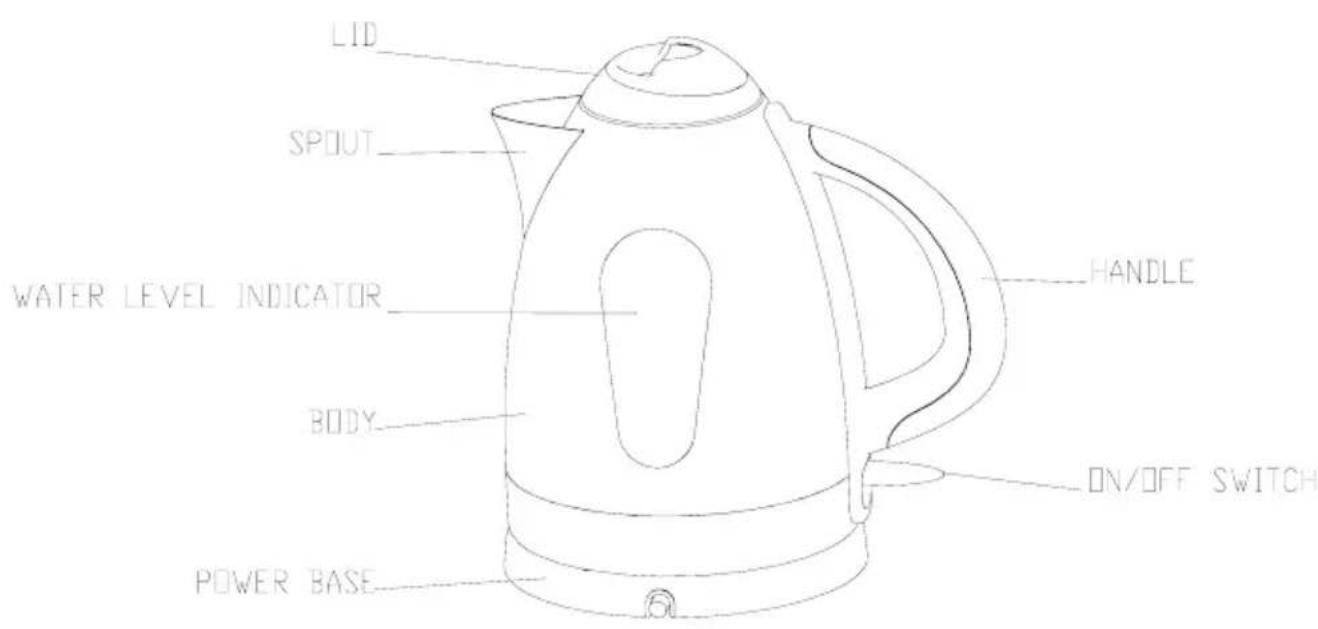

LID SPOUT WATER LEVEL INDICATOR BODY POWER BASE HANDLE ON/OFF SWITCH

HOW TO USE YOUR KETTLE

1. Before first use, fill the kettle with clean water to maximum capacity (1.5L.) and boil. Discard the water and repeat.
2. Fill the kettle with water to the desired level. Do not overfill or there will be risk of spillage. The water level indicator will help you find the correct amount.
3. The minimum water level is 0.6L, and the maximum water level is 1.5L, bn

4. Unwind sufficient cord from the storage area to reach the power outlet. Then place the power base on a dry, flat surface.

5. Place the kettle on the power base. Plug the cord set into an earthed power socket and switch on by depressing the switch on bottom of the kettle to the “on” position.

6. When the water has boiled, the kettle will switch off automatically.
7. Do not remove the kettle from the power base without first switching off.
8. Remember if you wish to re-boil, put the switch to the "on" position.
9. The kettle may be switch off at any time by either pushing the switch to the “off” position or by switching the power off at the power outlet. To pour water, lift the kettle from the power base and pour.
10. An automatic safety boil-dry cut-out has been fitted for protection against overheating: It will also operate if the kettle is switched on when containing insufficient water. Always ensure the water inside the kettle covers the minimum mark on the water level indicator gauge. If the cut-out has operated, switch the kettle off, disconnect from the power outlet and allow the kettle to cool down for 5 to 10 minutes. Then refill with enough water and switch on; the kettle will then boil and cut off as in normal operation.
11. When water boils, the steam passes through the steam channel and then switches off the kettle. After the steam has turned into water, it will drop to the base from the handle and then flow out. Therefore, there will be little steam inside the indicator or some drip of water on the base when the kettle is in use. Such a situation is a normal one and it does not say that the kettle leaks.
