Product Type	Headrest Monitor
Brand	Pyle
Model	PL1101HRGR
Screen Size	11" diagonal (16:9)
Display Type	TFT LCD
Resolution	1024 x RGB x 600
Color System	PAL / NTSC
Contrast Ratio	300:1
Brightness	350 cd/m²
IR Transmitter	Dual channel (Ch A: 2.3MHz L, 2.8MHz R; Ch B: 3.2MHz L, 3.8MHz R)
AV Inputs	2 wired
Power Supply	DC 12V
Adjustable Poles	12.5 cm to 20 cm
Available Colors	Black, Gray, Tan
Operating Temperature	-20°C to 50°C
Storage Temperature	-10°C to 70°C
Environmental Humidity	<90%
Accessories Included	Wireless remote control, assembling stick, AV input line, power wire, user manual

Frequently Asked Questions - PL1101HRGR Pyle

How do I install the headrest monitor?

Remove the existing headrest. Adjust the poles of the new headrest to fit your seat by moving them together or apart. Insert the cable into the proper hole, then insert the poles into the seat holes. Run the cable down the seat to the video source. Connect the wires: red to a switched +12V (ACC), black to chassis ground. Finally, connect the video input. Test the system.

What should I do if there is no picture or sound?

First, check that all power connections are secure and fuses are intact. Ensure the video input cables are properly connected and the source device (e.g., DVD player) is on. If there is no picture, adjust contrast and brightness settings. Confirm that the video signal is present.

Can I connect multiple video sources?

Yes, the monitor has two wired AV inputs. You can switch between them using the V1/V2 button on the monitor or remote control.

How do I adjust the headrest poles to fit my car?

Grasp one post in each hand and move them in opposing directions while pushing them toward or away from each other. The poles can be adjusted from 12.5 cm to 20 cm apart. Use the included adapter tubes if the seat holes are too large.

Does the monitor have built-in speakers?

No, the monitor does not have built-in speakers. Audio is transmitted via the built-in IR transmitter to wireless headphones (not included). Connect the audio from your source to the monitor using the AV input.

How do I change the remote control battery?

Press and hold the small button on the edge of the remote's battery drawer and slide the drawer out. Replace with a new battery (coin cell, type not specified) and push the drawer back in.

What are the IR transmitter frequencies?

Channel A: left 2.3MHz, right 2.8MHz. Channel B: left 3.2MHz, right 3.8MHz. This allows private audio listening with compatible wireless headphones.

Can I leave the monitor on when the car is off?

It is recommended to wire the red lead to a switched +12V source (ACC). This ensures the monitor turns off when the ignition is off, preventing battery drain. If wired to a constant source, it will drain the battery.

What is the screen resolution?

The monitor has a resolution of 1024 x RGB x 600 pixels, providing clear video playback for DVD, gaming, or other sources.

How do I clean the LCD screen?

Gently wipe the screen with a soft, dry cloth. Do not use harsh chemicals or apply pressure. Keep the unit away from moisture.

USER MANUAL PL1101HRGR Pyle

Front view of a DYLE mobile phone displaying a car on a road, with a remote control panel beside it (no readable text or symbols on the device itself)

Adjustable Headrest w/Built-in 11" TFT-LCD Monitor with IR Transmitter

Warning

▶ Read this manual before using this product.
This product is composed of precision components and should not be dissembled Service must be performed by a factory authorized technician.
▶ Protect the product from moisture and shock.

Attentions:

1. When connect the electric power wires, you should make clear about the positive and negative electrode (the red one is positive and the black is negative). If you wrongly connected the fuse in the filter box will be broken protectively. Please replace the fuse in same parameter.
2. Because the LCD screen is the main component It should be paid attention to be damp-proof.
3. The device must be installed firmly to prevent falling of device that will possibly cause injury and device-broken.
4. The connecting-point of direct current (12V) should connect on the Main line of storage battery as possible as it can, for keeping this device in normal operation and be away from the large voltage drop influence.
5. There is high voltage cluster in this machine, if you are the professional person, should never to take part the machine if malfunction and contact the dealer in time.

UNIVERSAL HEADREST WITH PRE-INSTALLED MONITOR OWNER'S MANUAL

Congratulations on your purchase of this headrest monitor system. The product is designed and built to deliver excellent video quality and long lasting high performance. For best results please consult a professional mobile electronics installer for application advice or troubleshooting. Please read these instructions thoroughly before installation.

Installation Instructions

1. Remove the existing headrest from the seat.
2. Adjust the posts of the new headrest to fit the holes in the seat where the headrest will be installed. The post can be moved together or apart: grasp one post in each hand, move the posts in opposing directions (like they were walking) while pushing them toward each other or away from each other.
3. Insert the cable in the proper hole. Insert the posts into the holes in the seat and carefully work the headrest into position. Make sure the cable is not pinched.
4. Run the cable down the seat and out to the location of the video source unit (such as a DVD player).
5. Connect the wires as indicated:

a. Red: Connect to a switched (+) 12 volt source (ACC). Use a lead that has (+) 12V when the ignition is on or in the ACC position so the monitors turn off when the key is in the off position. Wiring the monitors "hot" could cause your battery to run down when the engine is not running.

b. Black: Connect to a good chassis ground.

c. Reversing the polarity of the red and black leads will damage the monitor.

d. Connect the video input connector to the video output from the source unit (i.e.DVD player).

e. Test the system.

Install the Pillow

How to use the adapter tubes

Simple line drawing of two cylindrical objects with flanges, no text or symbols present

Since the spacing of the mounting holes can vary on different vehicles we supply two adapter tubes (12mm diameter). Use these tubes when the headrest mounting holes in your seat are too large for the posts of the headrest monitor.

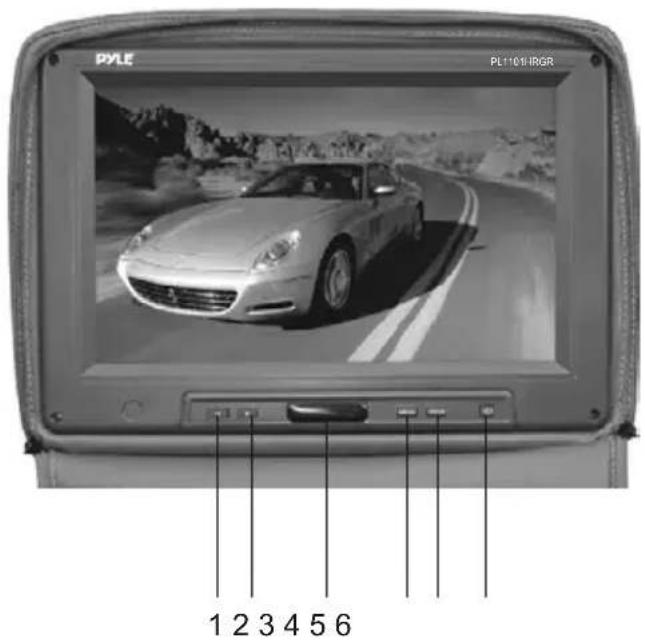

Monitor Controls and Features

The monitor is designed to operate in ambient temperature from -20^ to +50^ . Do not bump or press on the screen as this may damage the unit, keep the unit away from moisture. Where are the specifications?

The specifications of this product are subject to our modification without notice.

1. Negative adjustment
2. Positive adjustment

3. Remote sensor window

4. Activation of menu indicator

5. V1/V2 switch
6. Power ON/OFF

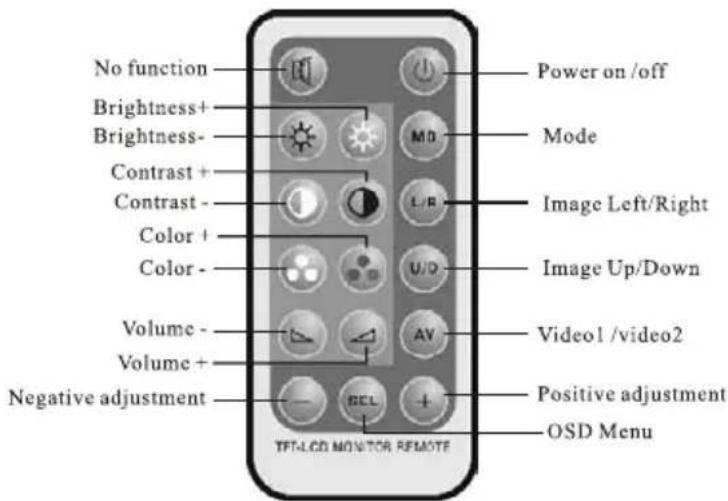

Remote Contorl

are ineffective on certain mode.

Changing the battery in the remote control

The remote battery is held in a small "drawer" on one edge of the remote. To open this drawer, press and hold the small button on the edge of this drawer (as shown below) and slide the drawer out.

Insert a new battery and push the drawer back fully into the remote.

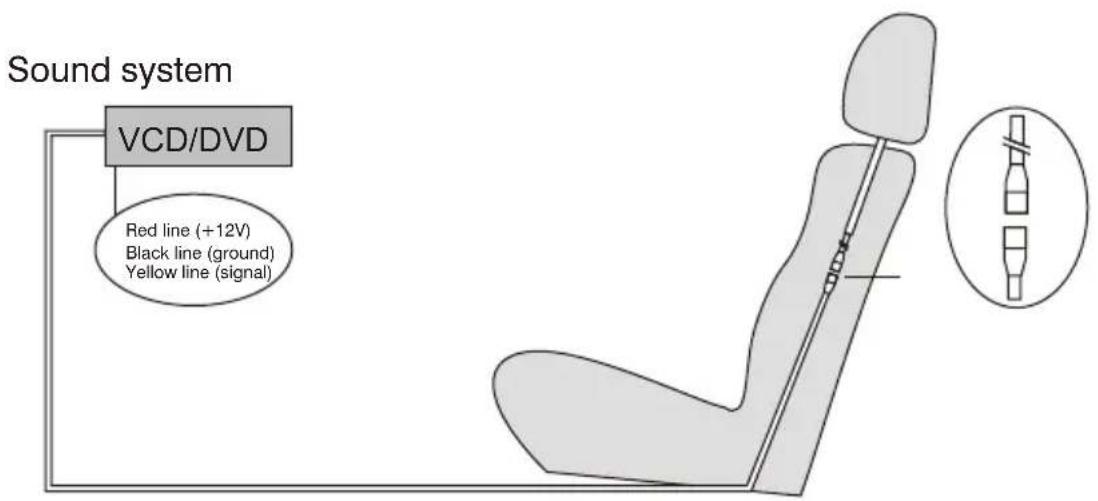

Installation Diagram

Specification

• Available in BLACK, GRAY, TAN
• Adjustable mounting poles to fit any seat
• Poles adjustable from 12.5cm to 20cm
• 11" wide (16:9) TFT LCD monitor
• High resolution: 1024xRGBx600
• 2 set wired AV inputs
• Color system: PAL/NTSC
• Contrast ratio: 300:1
• Brightness rating: 350 cd/m2
• Built in dual channel IR transmitter Channel A: 2.3Mhz (left), 2.8Mhz (right) Channel B: 3.2Mhz (left), 3.8Mhz (right)
• Operating Temperature: -20°C to 50°C
• Storage temperature: -10°C to 70°C
• Environmental humidity: <90%
• Power supply: DC 12V

Troubleshooting

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous page. If problems persist, read the following troubleshooting tips which may help eliminate the problems.

SYMPTOM

No picture or sound.

No picture.

CAUSE

Power cord is not properly connected.

Video input cables not properly connected.

Video input source is not operating properly.

Video signal not present.

Contrast and/or brightness is set improperly.

REMEDY

Check that power connections are properly made and all fuses are in functioning condition.

Check all cables.

Replace or repair video source (DVD player, video game, etc.)

Check all cables. If necessary, repair or replace video source.

Adjust contrast and brightness levels to see if picture appears.

Accessories

7" TFT LCD Pillow Monitor	1
Wireless Remote Control	1
Assembling Stick	2
AV Input Line	1
Power Wire	1
User's Manual	1

Thank you for purchasing the headrest TFT LCD color monitor. To enjoy the features of this device and to ensure years of trouble-free operation, please read this manual carefully and follow the instructions.

WARNING:

Hazard do not operate this unit unless vehicle is parked in safe and legal area.
