Product Type	CD Stereo System with DAB/FM Tuner
Model	SC-EN35DB
Main Unit Dimensions (W×H×D)	220 mm × 236 mm × 146 mm
Speaker Dimensions (W×H×D)	121 mm × 236 mm × 146 mm
Total System Weight	3.60 kg (with speakers)
Main Unit Weight	1.30 kg (without speakers)
Power Supply	AC 230-240 V, 50 Hz
Power Consumption	32 W (operating), 2.0 W (standby)
Amplifier Output Power	RMS 3 W per channel (both channels driven, 10% THD)
Speaker Type	1-way, 1-speaker system with 8 cm cone (6 Ω)
Disc Compatibility	CD-Audio (CD-DA), CD-R/RW (CD-DA & MP3), MP3
Tuner Bands	FM (87.5–108 MHz) and DAB Band III (UK/Europe)
Preset Stations	FM: 20 channels; DAB: 20 channels
Audio Features	Preset EQ (Heavy, Clear, Soft, Vocal), Live Virtualizer surround
Timer Functions	Play timer (daily) and Sleep timer (30/60/90/120 min)
Clock	24-hour display, automatic DAB clock adjustment
Input Jacks	Music Port (3.5 mm stereo), Headphone (3.5 mm stereo)
Supplied Accessories	Remote control, AC mains lead, DAB antenna, Music Port cable, 2× batteries
Maintenance	Wipe with soft dry cloth; use lens cleaner kit for CD lens
Safety Precautions	Do not expose to rain/moisture; ensure ventilation; no user-serviceable parts
Spare Parts (Order Codes)	Remote: N2QAYB000106; AC lead: K2CT3CA00004; DAB antenna: N1EADY000001; Music Port cable: K2KC39A00002
Repairability	Refer servicing to qualified personnel; no user repair

Frequently Asked Questions - SC-EN35DB TECHNICS

How do I set the clock on the SC-EN35DB?

Press CLOCK/TIMER once. Within 5 seconds, use ▼/◄◄ or ▲/►► to adjust the hour and minute (24-hour format). Press CLOCK/TIMER again to confirm. The clock is accurate to within ±60 seconds per month.

How can I preset FM radio stations automatically?

Press TUNER/BAND to select FM. Then press and hold PGM, -AUTO PRESET until the unit starts scanning. Up to 20 stations are stored automatically. For manual presetting, tune to the station first, then press PGM and select a channel number (1-20) using the numbered buttons.

What types of discs can I play on this system?

The unit supports CD-Audio (CD-DA), CD-R and CD-RW discs recorded with CD-DA or MP3 files. It also plays MP3 discs. Ensure discs are finalized and have the compact disc logo. Irregularly shaped discs or those with labels/stickers should not be used.

How do I connect external devices like a smartphone?

Use the supplied Music Port cable (3.5 mm stereo plug). Connect one end to the MUSIC PORT jack on the front of the main unit and the other end to your portable audio device. Select Music Port as the source on the main unit or remote control.

Why is there no sound from the speakers?

Check the following: 1) Speaker connections are secure (DC-in cord from left speaker to main unit). 2) The unit is not muted and volume is turned up. 3) The correct source is selected (CD, Tuner, Music Port). 4) If using headphones, they are disconnected. 5) There is no short circuit in speaker wires. If the problem persists, try resetting the unit.

How do I clean the CD lens?

Use a blower to remove dust from the lens. For heavy dirt, use a cotton swab gently. Panasonic recommends the lens cleaner kit (part no. SZZP1038C). Do not use CD-type lens cleaners as they can damage the mechanism.

Can I set a timer to wake up to music?

Yes. First set the clock. Then prepare the desired source (CD, radio, or Music Port) and adjust the volume. Press CLOCK/TIMER repeatedly until PLAY appears. Set the start and finish times using the arrow buttons, then press PLAY to activate the timer. The unit must be in standby mode for the timer to work.

What does the 'F76' error code mean?

The F76 error indicates a power supply problem. Disconnect the AC mains lead and consult your dealer or an authorized service center. Do not attempt to repair the unit yourself.

How do I perform a DAB auto scan?

Press TUNER/BAND to select DAB. If it’s the first time, auto scan starts automatically. To re-scan, press and hold PLAY MODE until DAB AUTO SCAN appears. The unit searches for available stations and stores them. Ensure the DAB antenna is properly connected and positioned for best reception.

Can I use rechargeable batteries in the remote?

No, only standard alkaline or manganese batteries (size AAA) are recommended. Do not use rechargeable batteries as they may cause malfunction. Insert the batteries with correct polarity (+/-).

USER MANUAL SC-EN35DB TECHNICS

3D rendering of a gray electronic device with control panel and remote control (no visible text or symbols)

These instructions are applicable to the following systems.

System SC-EN35DB
Main unit SA-EN35DB
Speakers	SB-EN35DBSB-EN35ADB

Note

"EB" on the packaging indicates the United Kingdom.

Panasonic®

Operating Instructions

CD Stereo System

Model No. SC-EN35DB

Digital Audio Broadcasting

Dear customer

Thank you for purchasing this product.

Before connecting, operating or adjusting this product, please read the instructions completely.

Please keep this manual for future reference.

Table of contents

Supplied accessories....2

The remote control....2

Control guide....2

Placement of speakers....2

Connections....3

Discs operations....3-4

Radio operations....4

DAB....5-7

Changing the main unit and remote control mode....7

Timers and others....8

Specifications....8

Troubleshooting guide....9

Maintenance....9

Safety precautions....10

Caution for AC Mains Lead....11

Supplied accessories

Use the numbers indicated in parentheses when asking for replacement parts.

(As of March 2007)

□ 1 Remote control [→ page 2] (N2QAYB000106)

□1 AC mains lead [→ page 3] (K2CT3CA00004)

☐ 1 DAB "T" antenna [→ page 3] (N1EADY000001)

□1 Music port cable [→ page 3] (K2KC39A00002)

□ 2 Batteries [→ page 2]

- The included AC mains lead is for use with this unit only. Do not use it with other equipment.

- Do not use an AC mains lead from other equipment.

The remote control

Remote control signal sensor

Batteries

• Insert so the poles (+ and -) match those in the remote control.
• Do not use rechargeable type batteries.

Use

• Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit.
• Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets.

Control guide

Placement of speakers

Right Speaker

Diagram of a computer monitor rear panel with connectors and ventilation slots (no text or labels)

AC mains lead
DC in cord to connect to main set

Left and right speakers are different.

Note

• Keep your speakers at least 10 mm away from the system for proper ventilation.
  • These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by magnetism.
  • You cannot take the front net off the speakers.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

• Do not attach these speakers to walls or ceilings.

• Speakers


2. DAB "T" antenna

The cross bar of the T should be kept firmly stretched. Find a position with good reception.

There is a function on the unit to check signal quality.

For best reception

A DAB outdoor antenna is recommended (refer to page 5).

Headphones

(not included)

Reduce the volume level and connect the headphones. Plug type: 3.5 mm stereo.

Note

To prevent hearing damage, avoid listening for prolonged periods of time.

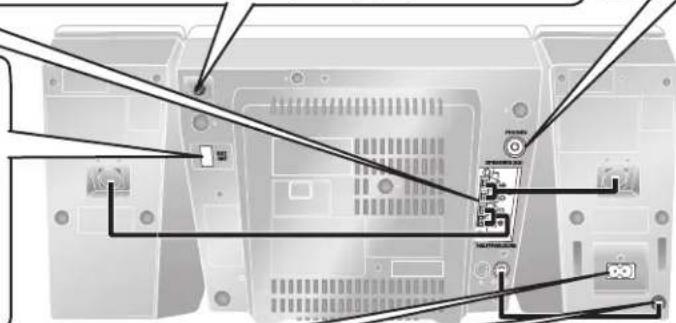

3. FM antenna

Stand the antenna up on its base.

Unplug the antenna connector by holding the taped part.

Back view of a computer chassis showing internal components and wiring (no text or symbols visible)

Front view of a stainless steel kitchen appliance with control panel and side shelves (no visible text or symbols)

4. AC mains lead

① Connect the DC in cord from left speaker to main set.

② Connect the AC mains lead.

READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 11 BEFORE CONNECTION.

Note

If the unit is left unplugged for longer than approximately two weeks, all settings will revert to the factory settings. Remember to reset the radio stations and any other memory items before using the unit again.

Portable audio equipment

(Cords and equipment not included)

Portable audio player Plug type:

3.5 mm stereo

Use

MAIN UNIT

EMOTE CONTROL

Start Playback from the Portable audio source.

Note

• Adjust the volume and sound quality of this unit and the other equipment.
• For details, refer to the instruction manual of the other equipment.

Discs operations

Basic play

① Press [∅/l] to turn the unit on.

② Press [▲ OPEN/CLOSE] to open the CD lid and then set the CD in place. Press [▲ OPEN/CLOSE] again to close the lid.

Keep fingers away from the CD lid when it is closing to avoid possible minor injury.

Label must face outward.
Press until you hear it click into place.

③ Press [CD ▶/II] to start play.

④ Adjust the volume.

Note

• Be sure to press the [▲ OPEN/CLOSE] button to open and close the CD lid.
• Damage may occur if the lid is forced closed.
• During standby, if the CD is ready in the unit, the unit comes on and play begins. (One touch play)

Stop	Press [■].
Pause	Press [CD ▶/■]. Press again to resume play.
Skip/Search	Press [√/◀◀] or [/ ] to skip/Press and hold [√/◀◀] or [/ ] to search.NoteYou can search during play or while paused.You cannot search through MP3 files.You can only search within the current track during program play, one track repeat, and random play.
Skip album [MP35]	[ALBUM or ] in the play mode.Press [ALBUM or ] once and then the numbered buttons in the stop mode.
Direct access play(Play starts with the track you select.)	CD Press the numbered buttons to select the desired track.MP31 Press [ALBUM or ] to select the album.2 Press [/ ] once and then press the numbered buttons to select the desired track.

Program play

The function allows you to program up to 24 tracks.

CD

① Press [PGM, -AUTO PRESET] while stopped.
② Press the numbered buttons to select tracks. (Maximum 24 tracks) Repeat this step to program other tracks.
③ Press [CD ▶/■] to start play.

Track number

Program number

MP3

① Press [PGM, -AUTO PRESET] while stopped.

② Press [ALBUM ← or →] to select your desired album.
③ Press [√▶▶] once and then press the numbered buttons to select tracks. (Maximum 24 tracks)
④ Press [ENTER].

Repeat step 2 to 4 to program other tracks.

© Press [CD ▶/II] to start play.

Album number Track number

■ Confirm a programmed track

Press [V/◄◄] or [\/►►] when “PGM” is displayed in the stop mode. To check while programming, press [PGM, -AUTO PRESET] twice after “PGM” appears, then press [V/◄◄] or [\/►►].

Delete all programs

Press [CLEAR] in the stop mode. "CLR ALL" is displayed.

CLR ALL

■ Cancel program mode

Press [PGM, -AUTO PRESET] in the stop mode to clear “PGM” indicator from the display.

Note

Program contents are stored in the unit's memory even after changing to a different function or turning the unit off. All program contents are erased by pressing [CLEAR] or by opening the CD lid.

Discs operations (continued)

→ Page 2 for the position of remote control buttons.

Play Mode function

Press [PLAY MODE] to select the desired mode.

Mode To play

1-TRACK1TR	one selected track on the disc.Press the numbered buttons to select the track.
1-ALBUMMP31ALBUM	one selected album on the disc.Press [ALBUM←or→] to select the album.
RANDOMRND	a disc randomly.
1-ALBUM RANDOMMP31ALBUM RND	all tracks in one selected album randomly.Press [ALBUM←or→] to select the album.

Note

During random play, you cannot skip to previous track.

Repeat play

You can repeat program play or other selected play mode.

Press [REPEAT] before or during play.

"REPEAT ON" and "☐" are displayed.

To cancel

Press [REPEAT] again.

"REPEAT OFF" is displayed and "☐" is cleared.

Display function

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause.

Note

• Maximum number of displayable characters: approximately 30
- This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not supported will not be displayed.
• ID3 is a tag embedded in MP3 tracks to provide information about the track.

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an audio recording disc for CD-DA and finalize* it when you finish recording.
The unit may not be able to play some discs due to the condition of the recording.
* A process performed after recording that enables CD-R/CD-RW players to play audio CD-R and CD-RW.

Caution

Choose discs with this mark:

Do not:

• use irregularly shaped CDs.
- attach extra labels and stickers.
- use CDs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.
- attach scratch-proof covers or any other kind of accessory.
• write anything on the CD.
- clean CDs with liquids (Wipe with a soft, dry cloth.).

MP3

The unit can play MP3, a method of compressing audio without overly hurting audio quality.

When creating MP3 files to play on this unit

• Maximum number of tracks and albums: 999 tracks and 256 albums.
- Compatible compression rate: Between 64 kbps and 320 kbps (stereo).

128 kbps (stereo) is recommended.

• Disc formats: ISO9660 level 1 and level 2 (except for extended formats).
- The time for reading TOC depends on the number of the tracks, the folders or folder structures.

Limitations on MP3

• This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
  • This unit cannot play files recorded using packet write.
• If the disc includes both MP3 and normal audio data (CD-DA), the unit plays the type recorded in the inner part of the disc. If the disc includes both MP3 and other types of audio data (e.g. WMA or WAV), the unit plays only the MP3.
• Depending on how you create MP3 files, they may not play in the order you numbered them or may not play at all.

Radio operations

To improve reception

FM

Receive the radio stations after connecting the antenna. Then attach the antenna cord to a wall or pillar where there is good reception.

To improve FM sound quality

Press and hold [PLAY MODE] to display "MONO".

To cancel

Press and hold [PLAY MODE] again until "MONO" disappears.

• MONO is also canceled if the frequency is changed.
- Turn off "MONO" for normal listening.

Manual tuning

① Press [TUNER/BAND] to select "FM".
② Press [PLAY MODE] to select "MANUAL".
③ Press [V|◀◀] or [^▶▶] to select the frequency of the required station.

To tune automatically

① Press [TUNER/BAND] to select "FM".
② Press [PLAY MODE] to select "MANUAL".
③ Press and hold [√/◀◀] or [√▶▶] until the frequency starts changing rapidly.
• Auto tuning stops when it finds a station.

• To cancel auto tuning, press [V/▲◀] or [^▶▶] once again.

Note

• Auto tuning may not function when there is excessive interference.

Memory preset

You can preset up to 20 FM channels.

Preparation: Press [TUNER/BAND] to select "FM".

Automatic presetting

Press and hold [PGM, -AUTO PRESET] to start presetting.

Manual presetting

① Press [PLAY MODE] to select "MANUAL".
② Press [V/▶◀] or [√▶▶] to tune to the required station.
③ Press [PGM, -AUTO PRESET].
④ Press the numbered buttons to select a channel.

The station occupying a channel is erased if another station is preset in that channel.

⑤ Repeat steps 2 to 4 to preset more stations.

Selecting a preset station

Press the numbered buttons to select the channel.

For channels 10 to 20 press [≥10], then the two digits.

OR

① Press [PLAY MODE] to select "PRESET".
② Press [V|◀◀] or [√▶▶] to select the channel.

DAB stands for digital audio broadcasting. It is a new form of radio that is broadcast digitally. Unlike regular analogue broadcasting, digital radio deteriorates less, and is thus able to provide quality sound close to that of a disc.

DAB structure

Bands

There are two types of DAB bands, "BAND III" (Receivable in this unit) and "L BAND" (Not broadcast in the United Kingdom, and not receivable on this unit).

Frequencies

There are 41 frequencies on BAND III. Among those frequencies, 7 are used in the United Kingdom (current as of March, 2007).

Ensemble, station and service

The number of stations that make up one frequency differ between DAB and analogue radio. Analogue stations all broadcast on different frequencies, even if it is the same company doing the broadcasting. With DAB however, it is possible to broadcast a number of stations on the same frequency. In DAB terminology, a group of stations on the same frequency is called an ensemble.

As shown in the diagram, an ensemble consists of a group of stations which have primary services, they can also have secondary services. This means, for example, that commentary on sports events from different areas can all be broadcast at once.

DAB outdoor antenna

Never use an outdoor antenna during a lightning storm.

DAB reception method on this unit

Depending on the region there is a difference between broadcast frequency and stations broadcast along the same frequency. For this reason, a memory of receivable stations should first be created and then selected from those memorized stations as the reception method.

DAB Auto Scan

This function searches for currently receivable stations and inputs them into unit memory.

When DAB is selected for the first time, this function starts automatically.

Note

Even if the station is stored into memory, some stations may not broadcast depending on the time of day etc. If this occurs, "NO SERVICE" is displayed.

Station Memory Updating

When there is a station name change, or a new station begins broadcasting, the unit memory is automatically updated when:

• The previous station name is displayed by selecting "STATION TUNE".
• One of the stations already broadcasting on the same frequency with the new station is displayed by selecting "STATION TUNE".

Note

• Deleting stations that are no longer broadcasting is not automatic. If you want to delete a station, perform Auto scan again and the new memory is created.
• When a new frequency begins broadcasting, stations on the new frequency are not automatically added to memory. Perform Auto scan to add them to memory. Also, you may need to change the Auto scan range if the new frequency is outside the factory set Auto scan range ( page 7).

STATION TUNE

You can select stations from the memory created as shown above in alphanumeric order. You can easily select your favorite stations by using presets (→ page 6).

DAB operation

① Press [TUNER/BAND] to enter DAB mode.

The unit comes on.

If you are selecting DAB for the first time, "DAB Auto Scan..." is displayed, stations that are currently receivable are memorized.

When a frequency is tuned the ensemble corresponding to the frequency is displayed.

The station first in alphanumeric order is broadcast.

Note

"SCAN FAILED" appears if no stations are memorized. If this occurs, adjust the antenna and try Auto scanning or change the Auto scan frequency range (page 7).

② Press [PLAY MODE] to select "STATION TUNE".

Each time you press the button:

"STATION TUNE" "PRESET TUNE"

③ Press [V/▲◀] or [√▶▶] to select a station.

The station name changes in alphanumeric order.

DAB Auto Scan

Press and hold [PLAY MODE] until "DAB AUTO SCAN" appears.

When a frequency is tuned by Auto scanning on this unit, the ensemble corresponding to the frequency is displayed for approximately 2 seconds.

Note

• When updating memory with Auto scan, preset stations are not erased or changed.
• When a frequency cannot be received, the previous memory is restored.
  • Total stations received is displayed for approximately 2 seconds.

Presetting

Presetting channel

Up to 20 channels can be set.
① Press [V/▶◀] or [√▶▶] to select a station.
② Press [PGM, -AUTO PRESET].
③ Press the numbered buttons to select a channel.
④ To preset more stations, press [PLAY MODE] to select "STATION TUNE" and then repeat steps 1 to 3.

Note

You cannot preset stations when the station is not broadcasting or when you are selecting a secondary service.

Selecting a preset channel

① Press [PLAY MODE] to select "PRESET TUNE".
② Press [V/◄◄] or [\/►►] or numbered buttons to select a channel.

Listening to the secondary service

Press the [DAB SECONDARY] to select the secondary service.

“▼” is displayed if there is a secondary service broadcast.

The secondary services are selected each time the button is pressed. The primary service is returned to after the last secondary service.

Display

Press [DISPLAY] to select the display.

The information scroll through the display.

Each time you press the button:

Turning automatic clock adjustment function on

To adjust the time information during DAB broadcasting and automatic time adjustment.

① Press [DAB MENU] to enter menu mode.
② Within 10 seconds, press [ALBUM ← or →] to select "AUTO CLOCK ADJ." and then press [ENTER].

③ Within 10 seconds, press [ALBUM ← or →] to select "ADJUST ON" and then press [ENTER].

Select "ADJUST OFF" to turn the automatic clock adjustment function off.

To exit

Press [DAB MENU] again.

Checking the DAB signal quality

To improve reception by adjusting the antenna while monitoring signal quality on the display.

① Press [DAB MENU] to enter menu mode.

Note

"SCAN FAILED" appears if no stations are memorized. If this occurs, adjust the antenna and try Auto scanning or change the Auto scan frequency range.

② Within 10 seconds, press [ALBUM ← or →] to select "SIGNAL QUALITY" and then press [ENTER].

③ Press [ALBUM ← or →] to select the frequency.

To exit

Press [DAB MENU] again.

Note

In order to enjoy the new stations after adjusting the antenna, it is necessary to perform Auto scanning and update the station memory.

Changing the Auto scan frequency range

Only the frequencies currently used in the UK as of March 2007 on BAND III are Auto scanned ("United Kingdom", factory setting).

Select "ALL BAND III" when you want to store stations on other frequencies to memory.

① Press [DAB MENU] to enter menu mode.
② Within 10 seconds, press [ALBUM ← or →] to select "DAB SCAN MODE" and then press [ENTER].

③ Within 10 seconds, press [ALBUM ← or →] to select "UNITED KINGDOM" or "ALL BAND III" and then press [ENTER].

Auto scan begins automatically after the change has been made.

To exit

Press [DAB MENU] again.

Note

When the "DAB SCAN MODE" is changed, the DAB preset channels are erased and if the DAB play timer has been set the timer switches to off.

ALL BAND III Frequency

Frequency block	Frequency (MHz)
5A 174.928	10N 210.096
5B 176.640	10B 211.648
5C 178.352	10C 213.360
5D 180.064	10D 215.072
6A 181.936	11A 216.928
6B 183.648	11N 217.088
6C 185.360	11B 218.640
6D 187.072	11C 220.352
7A 188.928	11D 222.064
7B 190.640	12A 223.936
7C 192.352	12N 224.096
7D 194.064	12B 225.648
8A 195.936	12C 227.360
8B 197.648	12D 229.072
8C 199.360	13A 230.784
8D 201.072	13B 232.496
9A 202.928	13C 234.208
9B 204.640	13D 235.776
9C 206.352	13E 237.488
9D 208.064	13F 239.200
10A 209.936

Frequency block	Frequency (MHz)

Shaded areas are frequencies used currently as of March 2007 in the "United Kingdom".

Changing the main unit and remote control mode

The remote control and main unit are factory-set to "REMOTE 1" mode.

If your remote control affects other equipment during operation, you can switch to operate in "REMOTE 2" mode.

To switch to "REMOTE 2" mode

① (While pressing and hold [MUSIC PORT] on the main unit) Press and hold [2] until “REMOTE 2” appears on the main unit display.
② Press and hold [ENTER] and [2] for at least 2 seconds. The main unit and remote control are now set to operate in "REMOTE 2" mode.

To return to "REMOTE 1" mode

Perform steps 1 and 2 above but use [1] instead of [2] for both steps. ("REMOTE 1" appears on the main unit during step 1.)

The remote control cannot work with the main unit if their modes are different.

"REMOTE 1" or "REMOTE 2" appears on the main unit when you operate the remote control.

* If "REMOTE 1" appears (The main unit is in "REMOTE 1" mode.) Press and hold [ENTER] and [1] on the remote control for at least 2 seconds. If "REMOTE 2" appears (The main unit is in "REMOTE 2" mode.) Press and hold [ENTER] and [2] on the remote control for at least 2 seconds.

Setting the time

This is a 24-hour clock.

① Press [CLOCK/TIMER] to set the clock.
② Press [V/▶◀] or [√▶▶] to select the time within 5 seconds.
(Press and hold to change the time faster.)
③ Press [CLOCK/TIMER] again.

■ To display the clock when the unit is on

Press [CLOCK/TIMER]

■ To check the time when the unit is off

Press [CLOCK/TIMER]

Note

The clock is accurate to within ±60 seconds a month. Readjust if necessary.

Set again after disconnecting the AC mains lead or power failure.

Sleep timer

The SLEEP timer can turn the unit off after a set time.

Press [SLEEP] to turn the SLEEP function ON/OFF.

• Each time you press the button:

30 MIN → 60 MIN → 90 MIN → 120 MIN

OFF (Canceled)

■ To check the remaining time

Press [SLEEP] once

Note

The play timer and sleep timer can be used together. The sleep timer always has priority. Be sure not to overlap timer settings.

Sound quality

You can choose one of four types of sound quality.

Press [PRESET EQ] to select the sound quality.

• Each time you press the button:

Live Virtualizer

You can create a three-dimensional sound field when listening to stereo sound.

Press [SURROUND] to turn the Live Virtualizer ON/OFF.

Note

The actual effect depends on the source played.

Play timer

You can set the timer to come on at a certain time to wake you up.

Preparation:

Turn the unit on and set the clock.

Prepare the music source you want to listen to; disc, radio or music port source, and set the volume.

① Press [CLOCK/TIMER] repeatedly to select play timer.

$$ \text { CLOCK } \rightarrow \text { PLAY } \rightarrow \text { Original display } $$

② Within 5 seconds, press [√/▲◀] or [√/▶▶] to set the starting time.

$$ 0 N 7: 3 0 $$

③ Press [CLOCK/TIMER] to confirm.

④ Repeat steps 2 and 3 to set the finishing time.

$$ \text { OFF } \quad 0: 0 0 $$

To activate the timer

⑤ Press [PLAY] to turn on the timer.
⑥ Press [☐] to turn off the unit.

To
Action

Change the settings

Repeat steps 1 to 4 and 6.

Change the source of volume ① Press [∅PLAY] to clear ⊕PLAY indicator

② Make changes to the source or volume.

③ Perform steps 5 and 6.

Check the settings (when the Press [CLOCK/TIMER] repeatedly to select

①PLAY.

Cancel

Press [∅PLAY] to clear the timer

indicator from the display.

Note

• The timer will start at the preset time, with the volume increasing gradually to the preset level.
  • The timer comes on at the set time every day if the timer is on.
• The unit must be in the standby mode for the timer to function.
• If you turn the unit off and on again while the timer is functioning, the finish time setting will not be activated.
• When MUSIC PORT is selected as the source when the timer comes on, the system turns on and engages MUSIC PORT as the source. If you wish to playback from the portable audio equipment, activate the equipment's play mode and increase the volume. (See the portable audio equipment's instruction manual.)

Specifications

■ AMPLIFIER SECTION

RMS OUTPUT POWER both channel driven

simultaneously

10 % total harmonic distortion (THD)

3 W per channel

Output impedance

HEADPHONE 16 Ω to 32 Ω

MUSIC PORT 14 kΩ

DC IN Jack

Terminal 14 V

Phone Jack

Terminal 3.5 mm stereo

Music Port Jack

Terminal 3.5 mm stereo

TUNER SECTION

Frequency range

FM 87.50 MHz to 108.00 MHz (50 kHz)

AM 522 kHz to 1629 kHz (9 kHz)

520 kHz to 1630 kHz (10 kHz)

DAB SECTION

Frequency Band (Wavelength)

Band III (UK Only)

11B to 12D (218.640 MHz to 229.072 MHz)

Band III (Europe)

5A to 13F (174.928 MHz to 239.200 MHz)

Intermediate frequency

1st:38.912MHz,2nd:2.048MHz

Sensitivity *BER 4x10 ^-4

MAX. Input Power 0 dBm

Min Requirement -96 dBm

Selectivity

Adjacent Channel (Band III) 33 dB

Far-Off Channel (Band III) 45 dB

DAB memories 20 channels

CD SECTION

Disc played [8 cm or 12 cm]

(1) CD-Audio (CD-DA)

(2) CD-R/RW (CD-DA, MP3)

(3) MP3

Sampling frequency

CD 44.1 kHz

MP3 32 kHz, 44.1 kHz, 48 kHz

Bit rate

MP3 32 kbps to 384 kbps

Decoding 16/20/24 bit linear

Pick up

Wavelength 785 nm

Laser power CLASS 1

Audio Output (Disc)

Number of channels 2 channel

Frequency response 20 Hz to 20 kHz (+1, -2 dB)

Wow and flutter Below measurement limit

Digital filter 8

D/A converter MASH (1 bit DAC)

■ SPEAKER SECTION

Type 1 Way, 1 Speaker system

Speaker(s)

Full range 8 cm cone type 6 Ω

Impedance 6 Ω

Input power 6 W (MAX)

Dimensions (W x H x D)

121 mm × 236 mm × 146 mm

GENERAL

Power supply AC 230 to 240 V, 50 Hz

Power consumption 32 W

Dimensions (W x H x D)

220 mm × 236 mm × 146 mm

Mass

With speakers 3.60 kg

Without speakers 1.30 kg

Power consumption in standby mode:2.0 W (approx.)

Notes:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about any of the check points, or if the solutions indicated in the chart do not solve the problem, consult your dealer for instructions.

No play.	The disc isn't correctly set.The disc is scratched or dirty. (Tracks skipped.)There is moisture on the lens. Wait for about an hour and then try again.
MP3 cannot be read.	You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.When creating a multi session disc, it is necessary to close the session.The amount of data on the disc is too small. Set the amount of data to greater than approximately 5 MB.
Sound is unfixed, reversed or comes from one speaker only.	Check the speaker connections. (⇒ page 3)•
No sound or there is a lot of noise.	Noise may occur when playing MP3 if recording quality is poor.Keep this unit away from mobile telephones if the interference is apparent.Turn the volume up.Switch the unit off, determine and correct the cause, then switch the unit on. Causes include shorting of the positive and negative speaker wires, straining of the speakers through excessive volume or power, and using the unit in a hot environment.
Humming heard during play.	An AC mains lead or fluorescent light is near the cords. Keep other appliances and cords away from this unit's cables.
A beat sound or noise is heard while receiving a radio broadcast.	Switch the TV or other audio player off or separate it from the unit.Switch off the portable audio player connected to “MUSIC PORT”.
The picture on the television near the set disappears or stripes appear on the screen.	The location and orientation of the antenna are incorrect.The television antenna wire is too close to the unit. Separate the antenna wire of the television from the unit.
Remote control doesn't work.	Check that the batteries are inserted correctly. (⇒ page 2)Replace the batteries if they are worn.

Display

--:--	You plugged the AC mains lead in for the first time and there was a power failure recently. Set the time. (→ page 6)•
PGM FULL	• The number of programmed tracks is limited to 24. No further tracks can be programmed.
NO PLAY A CD-ROM disc that is not CD-DA or MP3 format is inserted. It cannot be played.•
ERROR Incorrect operation performed. Read the instructions and try again.•
F76 There is a power supply problem. Consult the dealer.•

DAB

DAB reception is poor	Keep the antenna away from computers, televisions, other cables and cords.Use an outdoor antennas (→ page 5).
DATA Data broadcast being received over the DAB broadcast signal. Cannot be used on this unit.
SCRAMBLED The broadcast station being received cannot be accessed.
NO SERVICE	The station is currently not broadcasting.
NO SIGNAL	This station cannot be received. Check your antenna (→ page 3).
SCAN FAILED	Stations are not receivable. Check your antenna and try Auto scanning (→ page 3, 6).
STATION FULL	DAB station memory is full. Use the following method to clear station memory.Press [DAB MENU].Press [ALBUM ← or →] to select “STATION CLEAR”.Press [ENTER].“OK? Push ENTER” is displayed.Press [ENTER].Station memory is erased and the unit automatically begins Auto scanning.

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Care of the CD lens

• Clean the lens regularly to prevent malfunctions. Use a blower to remove dust and a cotton swab if it is extremely dirty.
  Recommended product: Lens cleaner kit (part no. SZZP1038C).
• Do not use the lens cleaner of the CD type.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperature, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a fire.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC power cord and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

(Inside of product)

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The socket outlet shall be installed near the equipment and easily accessible.

The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptable.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Caution for AC Mains Lead

(For United Kingdom)

("EB" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below. If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code: Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL 12 OR COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF-KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

For the United Kingdom and Republic of Ireland

Sales and Support Information

Customer Care Centre

• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland: 01 289 8333
- Visit our website for product information
• E-mail: [e-mail]

Direct Sales at Panasonic UK

- Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).

- Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk.

- Most major credit and debit cards accepted.

- All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

- It couldn't be simpler!

- Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our website for further details.

-If you see this symbol-

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will

be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
