Product Type	Induction hob
Model	GK46TIMASC
Product Family	GK46TIMASC, GK46TIMASZ (type 31091)
Number of Cooking Zones	4
Heating Technology	Induction
Energy Consumption per Cooking Zone (Wh/kg)	Zone 1: 177.5; Zone 2: 183.6; Zone 3: 180.1; Zone 4: 210.2
Energy Consumption of Entire Hob (Wh/kg)	187.9
Power Levels	1–9 plus PowerPlus (P)
Functions	Bridging, PowerPlus, AutoCook, Timer, Melting, Keeping Warm, Simmering, Pause Cooking, Wipe Protection, Childproof Lock
Pan Detection	Yes, automatic
Residual Heat Indicator	Yes, displayed as H
Automatic Safety Shut-off	Yes, depending on power level
Display	Digital with slider control
User Settings	Language, brightness, loudness, button signal, recommended timer value, factory reset
Cookware Compatibility	Magnetic base (induction-compatible), diameter 10–22 cm
Care & Cleaning	Use soft cloth, suitable detergent; scraper for stubborn residues; avoid abrasives
Safety Features	Childproof lock, automatic shut-off, pan detection, residual heat indicator, overheating protection
Installation	Must be installed by a qualified electrician per separate installation instructions
Spare Parts	Use original V-ZUG spare parts only
Repairs	Only by manufacturer, Customer Services, or similarly qualified person
Warranty	V-ZUG warranty; register online at www.vzug.com
Manual Pages	44

Frequently Asked Questions - GK46TIMASC V-ZUG

What cookware can I use on the GK46TIMASC induction hob?

You must use cookware with a magnetic base, such as stainless steel or cast iron. The base diameter should be between 10 cm and 22 cm. To test, check if a magnet sticks to the base. Avoid copper or aluminium base pans as they may leave marks.

How do I activate the briding function?

Select the far left or far right cooking zone and press and hold the slider for 2 seconds. This groups the two cooking zones together, allowing you to use a larger pan on both zones simultaneously. To deactivate, select the zone and hold again or set power to 0.

What is PowerPlus and how long does it last?

PowerPlus is a booster that provides extra high power for rapid heating, e.g., boiling water. It lasts for 10 minutes, then automatically reduces to power level 9. You can end it early by selecting the zone and setting a lower power level.

How does the childproof lock work?

The childproof lock prevents unintended use. You can activate it in the user settings. When active, you must enter a code displayed on the hob to unlock it for cooking. After switching off, the lock automatically reactivates.

What should I do if the hob shows 'E' and a number?

This indicates an internal error. Note the error number and the serial number (FN) from the identification plate. Contact V-ZUG Customer Services. If the error is only on one zone, other zones may still work until repaired.

How can I set the timer?

Ensure no cooking zone is selected. Press the multi-function button, then use the slider to select the timer icon. Press OK, then use the slider to set the time (1 minute to 9 hours 59 minutes). Press OK to confirm. The timer counts down independently.

Is the GK46TIMASC suitable for use with a pacemaker?

According to the manual, tests show no risk to cardiac pacemaker users under normal circumstances. However, if you are concerned, consult a competent medical authority for reassurance.

How do I clean the hob properly?

Allow the hob to cool completely. Use a soft cloth or sponge with water and a suitable detergent. For stubborn residues like boiled-over milk, use a glass ceramic hob scraper while still warm. Avoid abrasive cleaners, scouring pads, or wire wool.

What should I do if oil catches fire on the hob?

Never use water to extinguish oil or fat fires. Switch off the appliance immediately. Smother the flames with a lid or fire blanket. Keep doors and windows closed. If the fire is large, call emergency services.

How do I reset the user settings to factory defaults?

Access the user settings by pressing the multi-function button when no cooking zone is selected. Select the 'Factory settings' option and confirm. This will reset all user settings (e.g., child lock, brightness, language) to their original values.

USER MANUAL GK46TIMASC V-ZUG

Three rectangular panels with scattered gray squares and a central circle, no text or symbols present.

Operating instructions

GK46TIMAS | GK46TIMPS | GK57TIMS

Induction hob

Thank you for choosing to buy one of our products. Your appliance is made to high standards and is easy to use. Nevertheless, please take the time to read these operating instructions in order to familiarise yourself with the appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appliance at the time these operating instructions went to press. The right to make technical modifications for the purpose of the further development of the appliance is reserved.

Validity

The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to:

Type Product family
GK46TIMPSZ 31080
GK57TIMSZ, GK57TIMSZO 31082
GK46TIMASC, GK46TIMASZ 31091

Variations depending on the model are noted in the text.

Contents

1 Safety precautions 5

1.1 Symbols used 5
1.2 General safety precautions 6
1.3 Appliance-specific safety precautions.... 6
1.4 Instructions for use 7

2 Disposal 10

3 Using for the first time 11

4 Your appliance 12

4.1 Appliance overview.... 12
4.2 Operating and display elements 13
4.3 How induction hobs function 14
4.4 Flexible cooking 14
4.5 Pan detection.... 14
4.6 Cookware 15
4.7 OptiGlass.... 15

5 Operating the appliance 16

5.1 Switching the appliance on and off.... 16
5.2 Setting a cooking zone 16
5.3 Overview of power levels.... 17
5.4 Switching a cooking zone off 17
5.5 Residual heat indicator 17
5.6 Bridging function.... 18

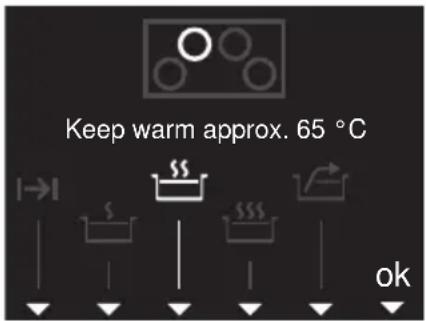

5.7 Melting, keeping warm and simmering 18
5.8 PowerPlus.... 20
5.9 AutoCook.... 21
5.10 Operating time.... 22
5.11 Timer.... 24
5.12 Pause cooking.... 26
5.13 Wipe protection 27

6 User settings 28

6.1 Accessing the user settings.... 28
6.2 Childproof lock 29
6.3 Language.... 29
6.4 Brightness 30
6.5 Loudness 31

6.6 Button signal.... 31
6.7 Recommended value for the timer.... 32
6.8 Factory settings.... 32

7 Care and maintenance 33

8 Trouble-shooting 34

9 Technical data 37

9.1 Product fiche.... 37

Index 39

10 Notes 41
11 Service & Support 43

1 Safety precautions

1.1 Symbols used

Denotes important safety precautions.

Failure to observe said precautions can result in injury or in damage to the appliance or fittings!

Information and precautions that should be observed.

Information on disposal

Information about the operating instructions

▶ Indicates step-by-step instructions.

– Describes how the appliance reacts to the steps taken.

- Indicates a list.

1.2 General safety precautions

- Read the operating instructions before using the appliance for the first time!

- This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be undertaken by children without supervision.

- If an appliance is not equipped with a mains cable and a plug or other means for disconnecting from the mains with a contact opening on each pole complying with the conditions of overvoltage category III for full isolation, an isolating device must be incorporated into the permanently installed electrical installation in accordance with the installation regulations.

- If the mains cable of this appliance is damaged, it must be replaced by the manufacturer or its Customer Services or a similarly qualified person in order to avoid hazard.

1.3 Appliance-specific safety precautions

- WARNING: Under no circumstances may hot pots or pans be placed on the display.

- WARNING: If the surface has a crack running through the thickness of the material, switch the appliance off and disconnect it from the mains to avoid possible electric shock.

• WARNING: The appliance and its accessible parts get hot during use. Be careful not to touch the heating elements.
• Under no circumstances use a steam cleaner to clean the appliance.
• Do not place metal objects such as knives, forks, spoons, lids or aluminium foil on the hob as they can get hot.
• After use, switch the hob off using the controls and do not rely on the pan detector.
• WARNING: It can be dangerous to leave the hob unattended when cooking with fat or oil, as this can lead to fires. NEVER attempt to extinguish a fire with water. Instead, switch the appliance off and then carefully smother the flames with, for example, a lid or a fire blanket.
• WARNING: Never store objects on the hob due to the risk of fire.
• WARNING: The cooking process should always be supervised. Shorter cooking processes, in particular, must be supervised the entire time.
• Do not operate the appliance using an external time switch or a separate remote control system.

1.4 Instructions for use

Before using for the first time

- The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work.

Correct use

- The appliance is designed for use in the home for preparing food. No liability is assumed for any damage caused by improper use or incorrect handling.

• Any repairs, modifications or manipulations to the appliance, especially any electrically live parts, may only be carried out by the manufacturer, its Customer Services or a similarly qualified person. Repairs if carried out incorrectly may cause serious injury, damage to the appliance and fittings, as well as affect the functioning of the appliance. If the appliance is not working properly or in case of a repair order, follow the instructions given in the 'Repair service' section. Contact our Customer Services if necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell the appliance or pass it on to a third party, please ensure these operating instructions accompany the appliance, together with the installation instructions.
• The appliance corresponds to recognized technology standards and the relevant safety regulations. However, proper use of the appliance is essential to avoid damage and accidents. Please therefore follow the precautions given in these operating instructions.
• The heated surface will remain hot for some time after it is switched off and will cool down only slowly to room temperature. Please allow sufficient time for the appliance to cool down before, for instance, cleaning it.

Note on use

- Tests have shown that under normal circumstances there is no risk to cardiac pacemaker users. If, as the user of a cardiac pacemaker (or a hearing aid or another type of implant), you would like to be reassured that using the appliance does not pose a risk, you are advised to consult a competent medical authority.

Caution: Burns hazard

- Overheated fat and oil can easily catch fire. Never attempt to extinguish burning oil or fat with water. Danger of explosion! Smother the flames with a fire blanket. Keep doors and windows closed.

Caution: Risk of injury

- Keep pets away from the appliance.

Caution: Risk to life

- Packaging materials, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from children.

How to avoid damaging the appliance

• Under no circumstances place hot pots or pans on the display!
• In case of overheating, switch the hotplate off and allow it to cool down completely. Do not put any dishes on it. Under no circumstances use cold water to cool it down quickly.
• Do not climb on to the appliance.
• Do not put hot cookware on the hob frame in order not to damage the silicone joints.
• Do not cut or prepare food on the surface and avoid impact with hard objects. Do not drag cookware across the surface.
• Take particular care that sugary foods or juices do not get onto the hot cooking zones as it can damage them. If sugary foods or juices do get on to the hot cooking zones clean away immediately (while still hot) with a scraper.
• Pots with pure copper or aluminium bases should not be used for cooking as they can leave behind traces that can be difficult to clean. If the traces are not removed immediately after cooking with a suitable cleaning agent, they can be permanently burned on and therefore permanently ruin the visual appearance of the appliance.
• Sliding pans and cookware across the glass ceramic causes scratches. This can be largely prevented by lifting pans and cookware up and then placing them down in position.
• The hob is designed to be used – signs of use, such as scratches or the wear and tear from pans and cookware, are normal. The more intensively it is used, the greater the signs of use; however, the appliance remains in perfect working order and therefore does not give a right of complaint. Safety is guaranteed at all times.
• There is no such thing as completely scratch-proof glass; scratches can even develop on sapphire glass, which is used in watches. The glass ceramic used is of the best quality available on the market.

2 Disposal

Packaging

- All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

- Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician!

Safety

- Disable the appliance to prevent accidents caused by improper use, especially through children playing.

- Pull the plug out of the mains socket or have the appliance disconnected from the mains by an electrician. Then cut the mains cable off flush with the appliance.

Disposal

- The old appliance should not be discarded as worthless rubbish. If disposed of correctly, the raw materials can be recovered for recycling.

- The symbol on the identification plate warns that the appliance may not be disposed of in normal household waste.

- The appliance must be disposed of in accordance with local regulations on waste disposal. For more information on the handling, disposal and recycling of the product, please contact the local authorities, the local recycling facilities for household waste or the retailer from whom you purchased the appliance.

3 Using for the first time

The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work.

During the first few hours of use, a cooking zone can give off an unpleasant smell. This is normal for brand new appliances. Ensure that the room is well ventilated.

Where is the identification plate?

The identification plate and the connection plate are located on the underside of the hob.

1 Identification plate with serial number (FN)
2 Connection plate

A second identification plate is supplied and should be affixed in the fitted unit underneath the hob.

Note down the serial number (FN) of your appliance on the back page of these operating instructions.

The serial number is required for identifying the appliance. Only then can customer services guarantee a faultless service.

4 Your appliance

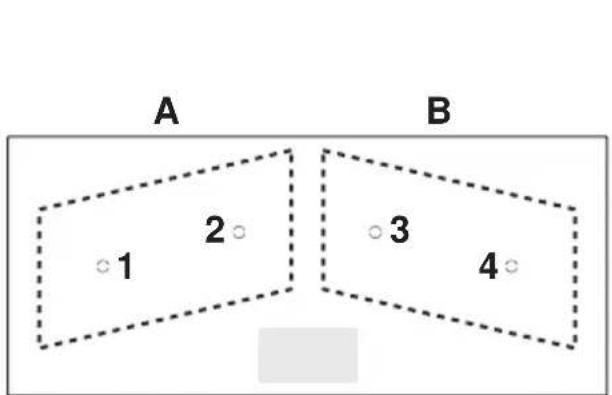

4.1 Appliance overview

GK46TIMASC, GK46TIMASZ

- 4 adjustable cooking zones

GK46TIMPSZ

- 4 adjustable cooking zones

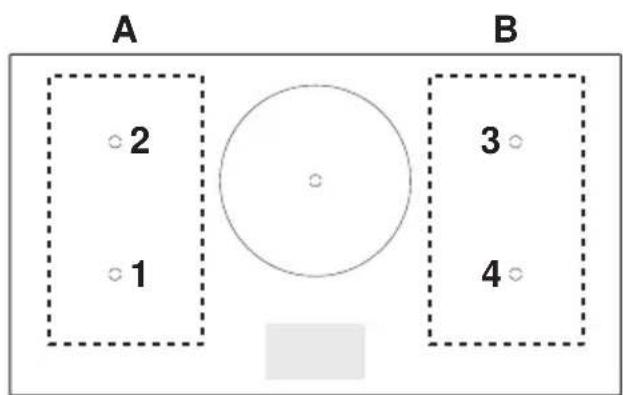

GK57TIMSZ, GK57TIMSZO

- 5 adjustable cooking zones (central cooking zone ∅ 280 mm)

Simple diagram with a gray rectangle and four small circles, no text or symbols present

Simple diagram with a gray rectangle and four small circles, no text or symbols present

Simple diagram with a circle centered at center and a gray rectangle below, surrounded by four small circles (no text or symbols)

4.2 Operating and display elements

Buttons

ON/OFF button, pause function

- Appliance ON/OFF - Pause cooking

Multi-function button

• Operating time
• Timer
• Automatic boost - Wipe protection
• Keeping warm, melting, simmering
• User settings

Slider

• Select cooking zones - Set time
• Set power level
• PowerPlus

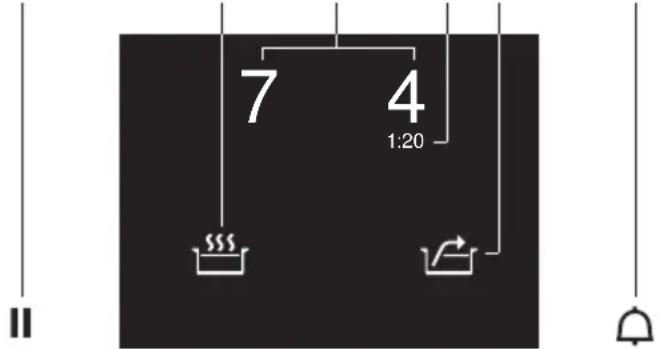

Displays

1 2 63 4 5

1 Pause cooking
2 Simmering
3 Cooking zone power level
4 Operating time
5 Automatic boost
6 Timer

4.3 How induction hobs function

Induction hobs work very differently from conventional hobs or hot plates. The induction coils under the glass ceramic plate produce a rapidly changing magnetic field which directly heats up the magnetic base of the cookware.

The glass ceramic plate is only warmed by the hot cookware. Removing the cookware from the cooking zone immediately interrupts the supply of energy. Induction hobs are:

• quick reacting
• finely adjustable
• powerful
• energy-efficient
• safe.

Induction hobs can only be used with cookware with a complete/full magnetic base.

4.4 Flexible cooking

In flexible cooking, there are no marked cooking zones.

Pans with different diameters can be placed on any cooking zone. ☐ must, however, be covered for pan detection.

If a large pan covers both circles, both heating zones can be switched on together with the bridging function.

For even frying, the pan must be centred on ☐

The diameter of the base of the pan should not be greater than the diameter of the cooking zone.

4.5 Pan detection

Each cooking zone is equipped with pan detection. This detects suitable induction compatible cookware with a magnetic base.

- If the cookware is removed during operation or if unsuitable cookware is used,

- the power level selected flashes alternately with

- If no suitable cookware is placed on the cooking zone before the pan detection time (10 minutes) elapses,

- the cooking zone switches off.

- the display changes from to «0».

- the appliance switches off after 10 seconds if no other cooking zone is in use.

4.6 Cookware

Suitable cookware

Only cookware with a magnetic base ( 10 cm to 22 cm) is suitable for use with the induction hob.

This can be tested in the following ways:

• A magnet sticks anywhere on the base of the cookware.
• Only the power level set illuminates on the hob.

Do not heat any unsuitable cookware using aids such as metal rings and the like. This can damage the hob.

Energy-efficient cooking

For maximum energy efficiency and even heat distribution note the following:

• The base of the cookware must be clean, dry and smooth.
• Centre the cookware in the middle of the cooking zone.
• Use a well-fitting lid.
• Match the diameter of the cookware to the quantity of food to be cooked.

Coated cookware

- Coated cookware may be operated above power level «7» provided that the bottom of the pan is completely covered with liquid.

- The coating may otherwise become overheated and damaged.

- For frying, do not use a higher power level than «7».

Never use PowerPlus with coated frying pans.

Noise during cooking

Cookware can make noise during cooking. This does not indicate any malfunction, nor does it affect the functioning of the appliance in any way.

Noise depends on the cookware used. If the noise causes considerable disturbance, it can help to change the cookware.

4.7 OptiGlass

Applies to GK57TIMSZO

Hobs with OptiGlass have an additional coating on the glass. This coating is very hard and renders the glass more resistant to scratches.

5 Operating the appliance

5.1 Switching the appliance on and off

All the appliances are operated in the same way.

▶ To switch the appliance on: Hold the ⏻ button depressed for 1 second.
- «0» illuminates in all the power level displays.
- If no other button is pressed, the appliance switches off after about 10 seconds for safety reasons.
▶ To switch the appliance off: Hold the ⏻ button depressed for 2 seconds.

5.2 Setting a cooking zone

▶ Press or swipe the slider to select the desired cooking zone.

- The cooking zone selected illuminates red.

▶ Press or swipe the slider to set the power level while the cooking zone is illuminated.

5.3 Overview of power levels

Power level	Cooking method Use
1	Melting, gentle warming Butter, chocolate, gelatine, sauces
2
3	Swelling Rice
4	Continued cooking, reducing, stewing, steaming	Vegetables, potatoes, sauces, fruit, fish
5
6	Continued cooking, braising Pasta, soup, braised meat
7	Gentle frying Rösti, omelettes, breaded fried foods, sausages
8	Frying, deep frying Meat, chips
9	Flash frying Steak
P	Fast heating Boiling water

5.4 Switching a cooking zone off

▶ Use the slider to select the desired cooking zone.
▶ Touch «0» on the slider.

- If no other entry is made and the other cooking zones are switched off, the appliance switches off automatically after 10 seconds.

5.5 Residual heat indicator

After a cooking zone is switched off, remains illuminated in the display for the relevant cooking zone as long as there is a risk of burns.

5.6 Bridging function

The bridging function allows the two right cooking zones or the two left cooking zones to be switched on together and to be regulated together.

Switching the bridging function on

▶ Use the slider to select the far left or far right cooking zone and keep this position pressed for 2 seconds.

- Both cooking zones are now grouped together and can be operated as one zone.

If, when the bridging function is switched on, one or both cooking zones are already running, the power level and operating time of these cooking zones are cleared and «0» illuminates in the power level displays.

Switching the bridging function off

▶ Use the slider to select the cooking zone and keep this position pressed for 2 seconds or set the power level to «0».

– The previous settings for both cooking zones are cleared.
– Each cooking zone can be regulated individually again.

5.7 Melting, keeping warm and simmering

	Melting With the melting function, butter, chocolate or honey, for instance, can be gently melted at 42 °C.
	Keep warm The keep warm setting keeps cooked food warm at approximately 65 °C.
	Simmering With the simmer function, sausages, dumplings and stuffed pasta, for instance, can be cooked just below boiling point at about 94 °C.

The precision of the simmer function depends on the cookware used. Water can start to boil. If this is the case, we recommend the pan lid be left off when using the simmer function.

For locations over 1,500 meters above sea level, it is generally recommended the pan lid be left off when using the simmer function.

Switching melting, keeping warm and simmering on

▶ Use the slider to select the desired cooking zone.

▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout.

▶ Use the slider to select 📄or 📃.

- The function selected illuminates brightly and ok appears.

▶ Press the slider below ok

- or is taken over for the cooking zone selected and the function selected illuminates in the power level display.

Switching melting, keeping warm and simmering on

▶ Use the slider to select the cooking zone.
▶ Use the slider to set any power level.

For locations over 1,500 meters above sea level, it is recommended that the pan lid be left off when using the simmer function.

5.8 PowerPlus

All the cooking zones are equipped with the PowerPlus booster.

When PowerPlus is switched on, the cooking zone selected works at extra high power for 10 minutes. PowerPlus can be used, for instance, to heat a large quantity of water quickly.

Switching PowerPlus on

▶ Use the slider to select the desired cooking zone.
▶ Press P on the slider.

• «P» illuminates in the display.
• After 10 minutes it automatically switches back to power level 9.

Removing the cookware interrupts PowerPlus. PowerPlus is resumed as soon as the cookware is returned to the cooking zone.

Ending PowerPlus before time

▶ Use the slider to select the desired cooking zone.
▶ Use the slider to set any power level.

Power management

PowerPlus cannot be used with both cooking zones of a group (A or B) at the same time. If PowerPlus is activated with both cooking zones of a group, then the power output is reduced for the cooking zone that was first selected.

PowerPlus with cooking zone	Group A * PowerPlus with cooking zone			Group B *
	1 2 3	4
1	P	5		3	P
2	5	P		4	5

*Maximum available power level with cooking zones

If the power level is increased above these levels, PowerPlus switches off.

5.9 AutoCook

Do not leave food cooking unattended while using AutoCook. Risk of boiling over, burning on and igniting!

With AutoCook, a cooking zone works at power level 9 for a certain duration (see table). When this duration is up, it automatically switches back to the previously set power level.

Power level / Function	1 2	3 4 5	6 7 8/9
AutoCook duration in mins.:secs.	0:45	1:15 2	:00 3:00 4:1	5 7:15	2:00	3:15

If, during AutoCook, a higher power level is selected, the duration will change automatically.

Switching AutoCook on

To set Automatic boost, a power level must already be set.

▶ Use the slider to select the desired cooking zone.
▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout.

▶ Use the slider to select ↗

- illuminates brightly and ok appears.

▶ Press the slider below ok

• 16 is displayed alternately with the power level set in the power level display.
• When the Automatic boost duration finishes, the appliance automatically switches back to the previously set power level.

Switching AutoCook off before time

▶ Switch the cooking zone off.
▶ To resume operation without AutoCook, select the cooking zone again and set a power level.

5.10 Operating time

Do not leave the hob unattended during use. Risk of boiling over, burning on and igniting!

With the operating time function, the cooking zone switches off automatically after a set time (1 min. to 1 hr. 59 mins.).

An operating time can be set for each individual cooking zone.

Setting operating time

To set the operating time, a power level must already be set.

▶ Use the slider to select the desired cooking zone.
▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout.

▶ Use the slider to select I→I

- I→luminates brightly and ok appears.

▶ Press the slider below ok

- The recommended value for the operating time illuminates in the settings display and the cooking zone selected is indicated by illuminating in the layout.

▶ Press or swipe the slider to set the operating time.

To increase or decrease the operating time faster, long press the slider. To clear the operating time, press and hold «0» on the slider.

▶ Press the slider below ok

- The operating time is taken over and displayed below the power level display for the relevant cooking zone.

Changing the operating time

▶ Use the slider to select the desired cooking zone.
▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout.

▶ Use the slider to select I→I

- I→luminates brightly and appears.

▶ Press the slider below ok
- The remaining operating time and the cooking zone selected illuminate in the settings display.
▶ Use the slider to change the operating time.
▶ Press the slider below ok
- The new operating time is taken over and displayed below the power level display for the relevant cooking zone.

Switching the operating time off before time

▶ Use the slider to select the desired cooking zone.
▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The cooking zone selected is indicated by illuminating in the layout.

▶ Use the slider to select I→I

- I→luminates brightly and appears.

▶ Press the slider below ok

- The remaining operating time and the cooking zone selected illuminate in the settings display.

▶ Use the slider to set the operating time to 0h00.

▶ Press the slider below ok

- The cooking zone continues to run.

End of operating time

When the operating time is up

– the relevant cooking zone switches off
– an acoustic signal is emitted
- 0h00 flashes in the display.

▶ Press ok switch off the acoustic signal and the display.

5.11 Timer

The timer functions like an egg timer (1 min.-9 h 59 min.).

It can be used at any time and independently of all other functions.

Setting the timer

In order to set the timer, no cooking zone may be selected.

▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears.

▶ Use the slider to select 🏠

- 📄Illuminates brightly and ok appears.

▶ Press the slider below ok

- The recommended value for the timer illuminates in the settings display.

▶ Press or swipe the slider to set the timer.

To increase or decrease the timer faster, long press the slider. To clear the timer, press and hold «0» on the slider.

▶ Press the slider below ok

- The timer is taken over.

- 📁 illuminates above the button.

Querying the duration remaining of the timer

In order to display the duration remaining of the timer, no cooking zone may be selected.

- The "Cooking zone independent functions" menu is displayed. The duration remaining of the timer is displayed above function selection.

Changing the duration remaining of the timer

In order to change the duration remaining, no cooking zone may be selected.

▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The duration remaining of the timer is displayed above function selection.

▶ Use the slider to select 🏠

- 📁Illuminates brightly and appears.

▶ Press the slider below ok

- The duration remaining of the timer illuminates in the settings display.

▶ Use the slider to change the timer.

▶ Press the slider below ok

- The new timer value is taken over.

Switching the timer off before time

In order to switch the timer off before time, no cooking zone may be selected.

▶ Touch the ▶ button.

- The «Cooking zone dependent functions» menu appears. The duration remaining of the timer is displayed above function selection.

▶ Use the slider to select 🔊

- 📄Illuminates brightly and appears.

▶ Press the slider below ok

- The duration remaining of the timer illuminates in the settings display.

▶ Use the slider to set the timer to 0h00.

▶ Press the slider below ok

• The timer is deactivated.
• goes out above the button.

Timer finished

When the timer finishes,

– an acoustic signal is emitted
- flashes above the button.
- 0h00 flashes in the display.

- Press ok switch off the acoustic signal and the display.

5.12 Pause cooking

With this function, the power level of all the cooking zones that are switched on can be temporarily reduced to 1 for up to 10 minutes. Thereafter, the appliance can continue to be operated using the previous settings.

Switching pause cooking on

▶ Briefly press the ⏻ button.

• All cooking zones switch to power level 1. 1 and the previously set level/function flash alternately in the power level displays.
• Illuminates above the button.
• Operating times are stopped.
  – Timers continue to run.
• Only the ⏻ button is still active.

The maximum pause time is 10 minutes. By which time, if it has not already been turned off, the appliance switches off completely.

Switching pause cooking off

▶ Briefly press the ⏻ button.

• All cooking zones switch back to the previous setting.
• Operating times continue to run again.
• All the buttons and the slider are active again.

5.13 Wipe protection

This function prevents the power level from being changed accidentally, for instance when wiping the control panel with a cloth.

Switching wipe protection on

To set wipe protection, the cooking zones may be active. However no cooking zone may be selected.

▶ Touch the ▶ button.
The «Cooking zone dependent functions» menu appears.
▶ Use the slider to select 🏠

- luminates brightly and appears.

▶ Press the slider below ok
- Wipe protection is activated for 20 seconds or until cancelled.

Press the ⏻ button to switch the appliance off at any time.

Switching wipe protection off

• Keep the slider below «Stop» pressed for 2 seconds.
  ▶ Wipe protection has been cancelled and the appliance may be operated again.

6 User settings

The following user settings can be set and stored individually:

User settings Function Possible settings
Childproof lock		OnOff*
Language		German*FrenchItalianEnglish
Individual settings	Brightness	Levels 1–9Level 5*
	Loudness	Levels 1–9Level 5*
	Button signal	OnOff*
	Recommended value	0h00* – 2h00
Factory settings		Reset

* Factory settings

6.1 Accessing the user settings

To change the user settings, the cooking zones may be active. However no cooking zone may be selected.

▶ Touch the ▶ button.
- The «Cooking zone dependent functions» menu appears.

▶ Use the slider to select

▶ Press the slider below ok

- The «User settings» menu appears.

Activating/deactivating function

▶ Use the slider to select a function.
- The function illuminates brightly and ok appears.
▶ Press the slider below ok
- The settings screen for the function appears. The function is activated or deactivated.
▶ Use the slider to select the desired setting.
▶ Press the slider below ok
- The function is now activated or deactivated.

6.2 Childproof lock

Activate childproof lock (see page 28)

Overriding the childproof lock off

▶ Switch the appliance on.

- The following display appears indicating that a code is required to unlock the appliance:

▶ Use the slider to enter the code given.

• The set numbers flash brightly.
• The childproof lock has now been overridden and it is possible to cook without any restrictions.

After the appliance is switched off again, the childproof lock is immediately activated again.

Deactivating the childproof lock (see page 28)

6.3 Language

The preferred language can be set in the user settings.

Changing the language settings (see page 28)

6.4 Brightness

The preferred brightness level for the display can be set in the user settings.

Changing the brightness settings

▶ Access the user settings (see page 28).
▶ Use the slider to select 🙏 – 🙏 illuminates brightly and 📁 appears.
- Press the slider below ok - The «Individual settings» menu appears.

▶ Use the slider to select
▶ Press the slider below

- The settings screen for brightness appears. The level of brightness selected is displayed.

▶ Use the slider to set the desired level of brightness.
▶ Press the slider below ok

- The display is set to the new level of brightness.

6.5 Loudness

The preferred loudness for the acoustic signals can be set in the user settings.

Changing the volume settings

▶ Access the user settings (see page 28).
▶ Use the slider to select 🙏 – 🙏 illuminates brightly and 📁 appears.
- Press the slider below ok - The «Individual settings» menu appears.
▶ Use the slider to select
- Press the slider below ok - The loudness settings screen appears. The level of loudness selected is displayed.

▶ Use the slider to set the desired level of loudness.
- Press the slider below ok - The hob is set to the new level of loudness.

6.6 Button signal

The button signal (single acoustic signal when a button/slider is pressed) can be switched on or off in the user settings.

Switching the button signal on/off (see page 28)

6.7 Recommended value for the timer

The recommended value for the timer can be set in the user settings. If, at a later stage, the operating time or the timer are set, the recommended value for the timer appears as the default setting.

Setting and changing the recommended value for the timer

▶ Access the user settings (see page 28).
▶ Use the slider to select

- illuminates brightly and appears.

▶ Press the slider below ok

- The «Individual settings» menu appears.

▶ Use the slider to select 🏠
▶ Press the slider below ok

- The settings screen appears. The set recommended value for the timer is displayed.

- Press or swipe the slider to set the desired recommended value for the timer.

To increase or decrease the recommended value for the timer faster, long press the slider. To clear the recommended value for the timer, press and hold «0» on the slider.

▶ Press the slider below ok

- The newly selected recommended value for the timer is activated.

6.8 Factory settings

If one or more user settings have been changed, these can be reset to the factory settings.

7 Care and maintenance

Clean the appliance only when it has completely cooled down. Burns hazard!

Always clean the hob after use. This prevents food residue from burning on. Dried-on or burned-on food residue is harder to clean off.

Use of improper cleaning techniques can result in damage to the markings or surface.

Avoid cleaning the surface of the glass ceramic hob with abrasive cleaning agents, scouring pads, wire wool, etc. as it can damage them. Refer to the homepage for tips on suitable cleaning materials.

• Use only a soft cloth or sponge with water and a suitable detergent for cleaning everyday soiling. Always follow the detergent manufacturer's instructions for use. Using a detergent with a protective additive is recommended.
• Remove stubborn soiling, e.g. boiled-over milk, while still warm using a glass ceramic hob scraper. Always follow the scraper manufacturer's instructions for use.
  ▶ Foods with a high sugar content, e.g. marmalade, that boil over should be removed while still hot using a glass ceramic hob scraper. The surface of the glass ceramic hob could otherwise become damaged.
  ▶ Remove melted plastic while still warm using a glass ceramic hob scraper. The surface of the glass ceramic hob could otherwise become damaged.
  ▶ Remove limescale stains when cool with a small amount of limescale remover, e.g. vinegar or lemon juice. Then wipe clean with a damp cloth.

8 Trouble-shooting

What to do if ...

... the appliance is not working and the display is dark?

Possible cause Solution
The fuse or circuit breaker for electrical installations in the home is defective.	▶ Change the fuse.▶ Reset the circuit breaker.
The fuse or circuit breaker keeps blowing.	▶ Call Customer Services.
An interruption in the power supply. ▶ Check the power supply.

... flashes alternately with the power level in the display?

Possible cause Solution
Cookware is not suitable for use with induction hobs.	▸ Use suitable magnetic cookware. See «Cookware». section.
Cookware is too small for the cooking zone selected.	▸ The diameter of the base of the cookware must be at least 10 cm.

... after switching the appliance on, a prompt to enter a code appears in the display?

Possible cause Solution
The childproof lock is activated. ▶ For operating the appliance with the childproof lock activated, see the «User settings» section. ▶ Switch the childproof lock off.

... a continuous acoustic signal is emitted and the following display flashes?

Possible cause Solution
A button was touched for longer than 10 seconds.Object (e.g. pan, dish) on the control panel.Food boiled over onto the control panel.	Remove object or food that has boiled over.The appliance can be used again as normal.

... and «0» flash alternately in the display?

Possible cause Solution
The automatic safety shut-off was triggered.	Switch the cooking zone back on again if required.

If a cooking zone has been running for longer without any settings being changed, the appliance switches the cooking zone off automatically, after how much time depends on the power level set.

Power level / Function		1 2	3 4 5	6 7 8	9
Safety shut-off after hrs.:mins.	2:00 8	30 6:	30 5:3	0 4:30	3:30	3:00 2	30 2:	00 1:30

... #lashes in the display?

Possible cause Solution
The excess temperature protection of a cooking zone was triggered.	Allow the cooking zone to cool down.Continue cooking on a different cooking zone.Check cookware.

... «E» and «8» flash alternately in the display?

Possible cause Solution
An object (e.g. paper) underneath the hob is obstructing the air intake.	Remove any objects in the drawer underneath the hob.Touch any button to cancel the error.After 10 minutes the appliance can be used again as normal.
Ventilation is defective. ▶ Note down the error number.Note down the serial number (FN) of the appliance. See the identification plate for this.Call Customer Services.

... «E» or «Er» and a number flash or illuminate alternately in the display?

Possible cause Solution
• Internal error occurred. ▶ Note down the error number. ▶ Note down the serial number (FN) of the appliance. See the identification plate for this. ▶ Call Customer Services.

If the error is only displayed in one or two cooking zones, the remaining cooking zones can still be used until repaired.

... an acoustic signal is emitted and «Er57» illuminates in the display?

Possible cause Solution
Display has overheated due to, for instance, hot cookware or food on the display.	Immediately remove the hot cookware or food that has boiled over from the display.Press the multi-function button or the slider to cancel the error message.
An object (e.g. paper) underneath the hob is obstructing the air intake.	Remove any objects in the drawer underneath the hob.Touch any button to cancel the error.After 10 minutes the appliance can be used again as normal.
Ventilation is defective. ▶ Note down the error number.Note down the serial number (FN) of the appliance. See the identification plate for this.Call Customer Services.

9 Technical data

9.1 Product fiche

In accordance with EU Regulation No. 66/2014

Model number GK 31080
Type designation GK GK46	TIMPSZ
Number of cooking zones	4
Heating technology Induction cooking zone
Dimensions of cooking zone	cm 18 × 20 18 × 20 18 × 20
Energy consumption per cooking zone	Wh/kg	183.8 184.6 185.9 186.8
Energy consumption of the entire hob EC	Wh/kg	185.3

Model number GK 31082
Type designation GK GK57	TIMASZ,	GK57TIMSZO
Number of cooking zones 5
Heating technology Induction cooking zone
Dimensions of cooking zone	cm	18 × 20	18 × 20	ø 28	18 × 20	18 × 20
Energy consumption per cooking zone	Wh/kg	184.7	191.4	192.5	189.1	198.1
Energy consumption of the entire hob EC	Wh/kg	190

9 Technical data

Model number GK 31091
Type designation GK GK46	TIMASC,	GK46TIMASZ
Number of cooking zones	4
Heating technology Induction cooking zone
Dimensions of cooking zone	cm 18 × 20 18 × 20 18 × 20
Energy consumption per cooking zone	Wh/kg	177.5 183.6 180.1 210.2
Energy consumption of the entire hob EC	Wh/kg	187.9

Index

A

Appliance overview 12

Appliance-specific safety precautions 6

AutoCook.... 21 Switching off before time .... 22

Automatic boost Switching on.... 21

B

Bridging function.... 18 Switching off.... 18 Switching on.... 18

Brightness 30

Brightness settings Changing 30

Button signal.... 31

C

Care and maintenance 33

Childproof lock 29 Overriding 29

Connection plate.... 11

Cookware Coated cookware .... 15 Energy-efficient cooking.... 15 Noise during cooking .... 15 Suitable cookware.... 15

D

Disconnection.... 10

Disposal.... 10

F

Factory settings.... 32

|

Instructions for use 7

L

Language.... 29

Loudness 31

Loudness settings Changing 31

M

Melting, keeping warm and simmering .... 18 Switching off.... 19 Switching on.... 19

Model number 2

N

Notes.... 41

O

Operating and display elements.... 13
Buttons .... 13
Displays.... 13
Operating time.... 22
Changing .... 23
Finished.... 24
Setting .... 22
Switching off before time .... 23

OptiGlass.... 15 Overview of power levels .... 17

P

Packaging 10

Pan detection.... 14

Pause cooking.... 26 Switching off.... 26 Switching on.... 26

Power management 20

PowerPlus.... 20 Ending before time.... 20 Switching on.... 20

Product family.... 2 Product fiche.... 37

Q

Queries .... 43 Quick instructions .... 44

R

Recommended value for the timer.... 32 Setting and changing .... 32 Residual heat indicator.... 17

S

Safety 10

Safety precautions

General.... 6

Safety shut-off 35

Selecting a cooking zone.... 16

Serial number (FN) 11

Service & Support...... 43

Service agreement.... 43

Switching a cooking zone off 17

Switching the appliance on and off...... 16

Symbols 5

T

Technical data 37

Timer 24

Changing the duration remaining .. 25

Finished.... 26

Querying duration remaining ..... 25

Setting 24

Switching off before time 25

Trouble-shooting 34

Type.... 2

U

User settings.... 28

Accessing 28

Using for the first time.... 11

V

Validity.... 2

W

Where is the identification plate?...... 11

Wipe protection 27

Switching off before time 27

Switching on.... 27

10 Notes

11 Service & Support

The «Troubleshooting» section provides valuable tips for dealing with minor operating faults. This saves you the time, effort and potential cost of having to call out a service technician.

Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty information. Please read this information carefully.

Please register your V-ZUG appliance immediately:

• online via www.vzug.com →Service →Warranty registration, or
• using the enclosed registration card.

This will allow you to take advantage of the best possible support in the event of a fault in the appliance during the guarantee period. You will require the serial number (FN) and appliance designation to complete the registration process. This information can be found on the identification plate for your appliance.

My appliance information:

FN: ____ Appliance: ____

Always have this appliance information to hand when you contact V-ZUG. Thank you.

The identification plate and connection plate are located on the underside of the hob.

Your repair order

Call the free service number 0800 850 850 to contact your nearest

V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish.

General queries, accessories and service agreement

V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progressive service agreements. You can contact us by calling Tel. + 41 58 767 67 67 or by going to our website at www.vzug.com.

Quick instructions

Please first read the safety precautions in the operating instructions!

Switching the appliance on

▶ Hold the ⏻ button depressed for 1 second.

Selecting a cooking zone

- Press the required cooking zone on the slider.

▶ Press or swipe the slider to set the power level while the cooking zone is illuminated.

- The cooking zone selected illuminates red.

To switch appliance off

▶ Hold the ⏻ button depressed for 2 seconds.

1021055-R02
