USER MANUAL IP2DVI StarTech.com

Ethernet to DVI Video Adapter

Ethernet to DVI Video Adapter over IP

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ...... 1

Packaging Contents....1

System Requirements ....1

Installation .... 1

Hardware Installation ....1

Driver Installation ....2

Display mode 7

Specifications 8

Technical Support 9

Warranty Information 9

Introduction

Packaging Contents

1 x IP2DVI video adapter•
1 x Power Adapter•
1 x Driver and Software CD•
1 x Instruction Manual•

System Requirements

DVI enabled monitor/projector•

TCP/IP network access•

Microsoft Windows® XP/Vista (32-bit)

Installation

Hardware Installation

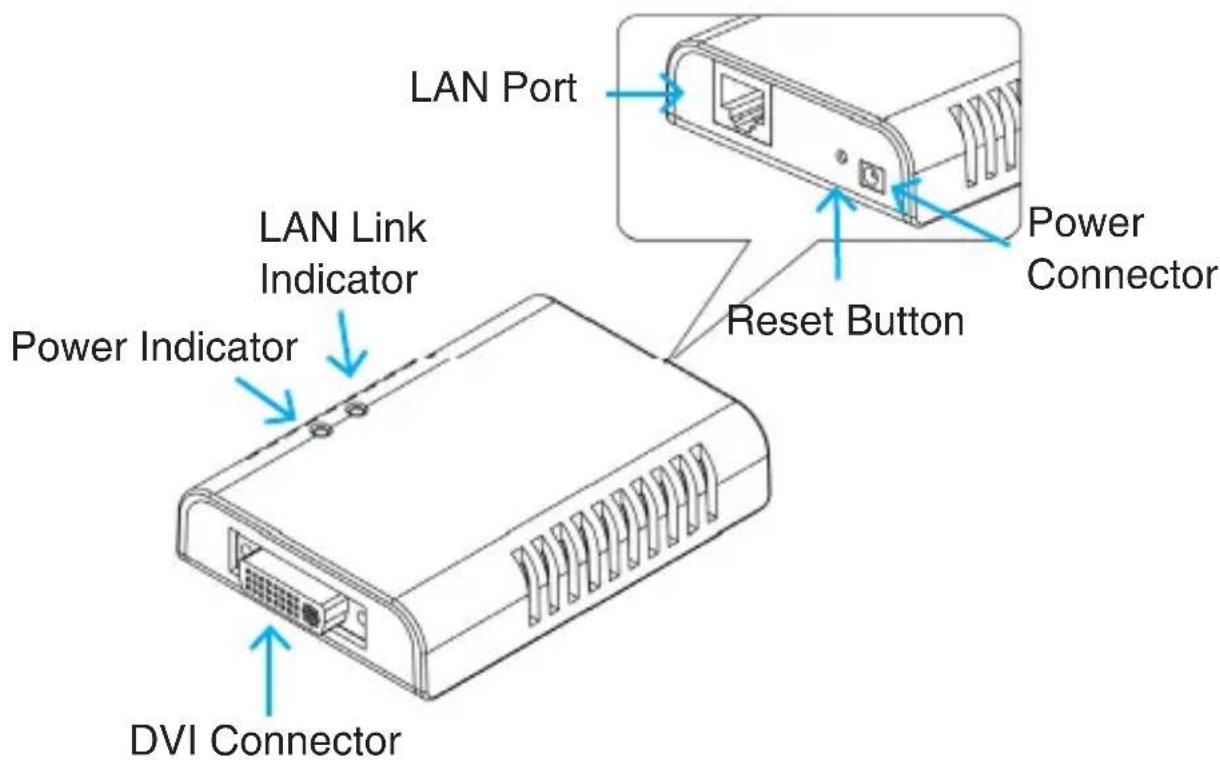

LAN Port LAN Link Indicator Power Indicator Reset Button Power Connector DVI Connector

LED Indicator

LED Colour Description
Power Red		ON: receiving power from adapterOFF: no power supplied from adapter
Link Green		ON: network connection detectedOFF: no network connection detectedFlashing: data transfer

Driver Installation

Windows XP

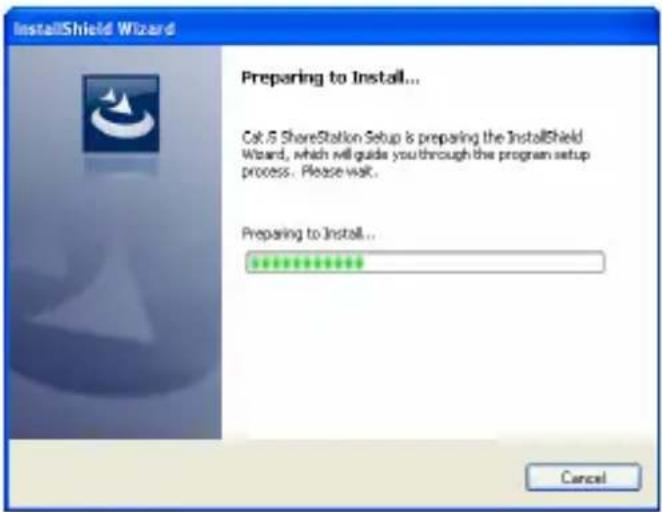

Insert the provided CD into your disc drive. Locate and double-click 1. the Setup.exe file in the Driver folder to launch the setup program.

InstallShield Wizard Preparing to Install... C#.S ShoreStation Setup is preparing the InstallShield Wizard, which will guide you through the program setup process. Please wait. Preparing to Install... ****** Cancel

During the installation, the screen may flicker a couple of times. This 2. is normal. When this section of the installation is complete, click 'Finish' to proceed.

When the ‘Install DisplayLink Software’ screen appears. Accept the 3. terms in the license agreement to proceed.

Install DisplayLink Software for Display over Ethernet English SOFTWARE END USER LICENCE AGREEMENT FOR DISPLAYLINK MIRROR DRIVER and DISPLAYLINK GRAPHICS ADAPTER SOFTWARE (THE "PROGRAM") This is a legal agreement between you, the end user, ("Yem") and DisplayLink (UK) Limited ("DisplayLink"). BY INSTALLING THIS SOFTWARE, YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS AGREEMENT. Some versions of this software, once installed, will check for updated system software at least once and then again at regular intervals unless you specifically disabled this feature when given this option. No personal information or information about your PC or the software installed on your PC is sent to our update servers during this process. Accepting the End-User License Agreement means that you accept this product feature. ✓ Automatically check for updates 1Accept Cancel

If you have a firewall enabled on the computer, make sure to unblock 4. the Cat5ShareStation utility.

Connect the IP2DVI unit to your router/switch and power it on.5.

When the Found New Hardware Wizard screen appears, select 6. 'Install the software automatically (Recommended)' and click Next.

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This wizard helps you install software for: Network USB Device If your hardware came with an installation CD or floppy disk, insert it now. What do you want the wizard to do? ○ Install the software automatically (Recommended) ○ Install from a slot or specific location (Advanced) Click Next to continue. < Back Next > Cancel

Click 'Finish' to complete the installation. 7.

Launch the Cat5ShareStation utility from the icon on the Desktop.8.

A list of all available IP2DVI units detected on the network will 9. appear.

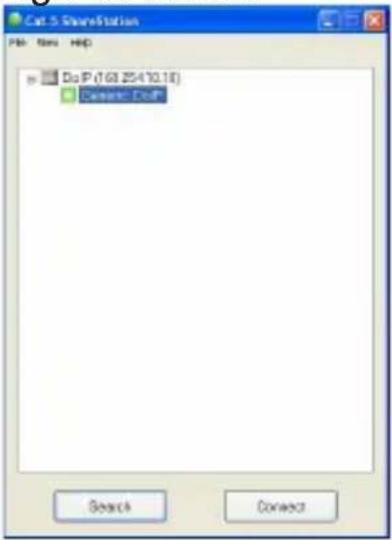

Select ‘Generic DoIP’ and click the ‘Connect’ button. When the 10. connection is ready, you will see the Generic DoIP icon become orange as below.

Cat.5 SoftwareStation File New Help Do IP (103.254.10.18) Connection: DoIP Search Connect

Cal.5 ShareStation File Edit Help DotP (163.254.10.18) Generate DotP Search Decrease

Then a pop-up message will appear in the notification area 11. indicating the installation is complete.

New display found: DVI over Ethernet 3. DVI over Ethernet (USB_00000000-000000) Use the icon here to control the new display.

If your monitor is not yet connected to the IP2DVI, make the 12. connection and power on your monitor.

After the connection, the remote monitor should display an image 13. from the computer.

Windows Vista

Insert the provided CD into your disc drive. Locate and double-click 1. the Setup.exe file in the Driver folder to launch the setup program.

InstallShield Wizard Preparing to Install... Cat.5 ShareStation Setup is preparing the InstallShield Wizard, which will guide you through the program setup process. Please visit. Preparing to Install... ****** Cancel

During the installation, the screen may flicker a couple of times. This 2. is normal. When this section of the installation is complete, click 'Finish' to proceed.

When the 'Install DisplayLink Software' screen appears. Accept the 3. terms in the license agreement to proceed.

Install DisplayLink Software for Display over Ethernet English SOFTWARE END USER LICENCE AGREEMENT FOR DISPLAYLINK MIRROR DRIVER and DISPLAYLINK GRAPHICS ADAPTER SOFTWARE (THE "PROGRAM") This is a legal agreement between you, the end user, ("Yes") and DisplayLink (UK) Limited ("DisplayLink"). BY INSTALLING THIS SOFTWARE, YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS AGREEMENT. Some versions of this software, once installed, will check for updated system software at least once and then again at regular intervals unless you specifically disabled this feature when given this option. No personal information or information about your PC or the software installed on your PC is sent to our update servers during this process. Accepting the End-User License Agreement means that you accept this product feature. ✓ Automatically check for updates 1 Accept Cancel

After the installation completes, select Yes to restart your computer.4.

DVI Over Ethernet or AV Over Ethernet You must restart your system for the configuration changes made to DVI Over Ethernet or AV Over Ethernet to take effect. Click: Yes to restart now or No if you plan to manually restart later. Yes No

Connect the IP2DVI unit to your router/switch and power it on.5.

Launch the Cat5ShareStation utility from the icon on the Desktop. 6. Click ‘unblock’ when you see the Windows Security Alert or other firewall warning.

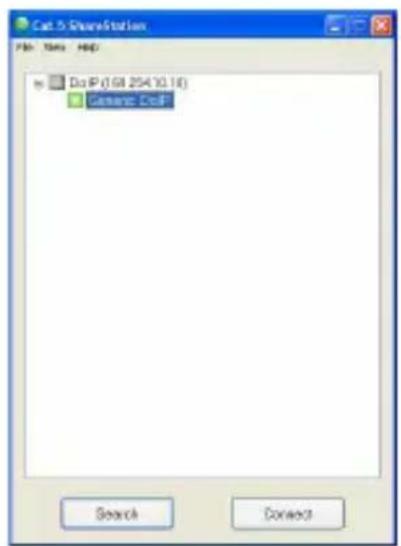

Select 'Generic DoIP' and click the 'Connect' button. When the 7. connection is ready, you will see the Generic DoIP icon become orange as below.

Cat 5 ShareStation File Edit Help Doc IP (1.68.254.10.16) Generic DoIP Search Connect

Cat.5 Presentation File Tools Help CatP (168.254.10.18) Generic CatP Search Delete

A pop-up message will appear in the notification area indicating the 8. installation is complete.

New display found: DVI over Ethernet 3. DVI over Ethernet (USB_00000000-000000) Use the icon here to control the new display.

If your monitor is not yet connected to the IP2DVI, make the 9. connection and power on your monitor.

After the connection, the remote monitor should display an image 10. from the computer.

Display Mode

To change the display mode, right-click on the tray icon located in the System Tray, next to the clock.

The IP2DVI connected monitor can be configured to:

Extend your Windows desktop (default)

Extend your Windows desktop to Right / Left / Above / Below the primary display

Mirror your Windows desktop

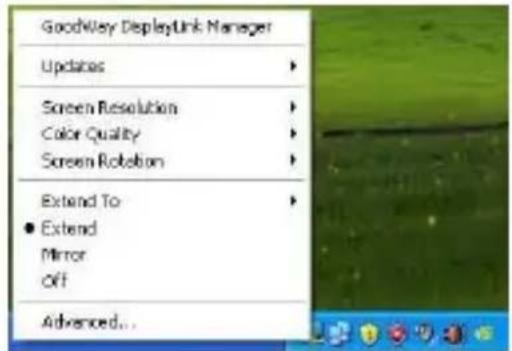

On Windows XP

GoodWiley DeployLink Manager Updates Screen Resolution Color Quality Screen Rotation Extend To Extend Mirror Off Advanced...

On Windows Vista

GoodWay DisplayLink Manager Updates Screen Resolution Color Quality Screen Rotation Extend To Extend Mirror Off Advanced...

Specifications

External Connectors	1 x RJ45 female1 x DVI-I 29-pin female
LEDs	1 x Power (red)1 x LAN Link (green)
Maximum Resolution	1280 x 1024
Supported Colour Depth	16 and 32 bit
Supported Display Modes	Extended Desktop (left/right/• above/below)Mirrored (Cloned) Desktop•
Power Adapter	AC: 100-240V, 50-60HzDC: 5V, 2.5A
Operating Temperature	10 - 40 degrees
Storage Temperature	-10 - 80 degrees
Dimensions	97.0mm x 69.8mm x 20.8mm
Weight	83 g
Compatible Operating Systems	Windows® XP/Vista (32-bit)

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
